SmallRig VB99 Lite mini V-Mount Battery 5245
SmallRig VB99 Lite mini V-Mount Battery 5245 is equipped with top-tier LG battery cells, delivering stable, true-rated high power output throughout the charge cycles. Featuring an advanced BMS chip with 8-layer protection, it continuously monitors current, voltage, and temperature, ensuring the safety of both the battery and connected devices.
With four output ports (1x BP, 1x D-Tap, 1x USB-C, and 1x USB-A), this compact power solution supports diverse equipment, including mirrorless cameras, video cameras, lights and monitors. The touchscreen display with 5 LED lamp beads offers intuitive monitoring and controls, providing real-time battery levels and low-battery alerts to prevent unexpected shutdowns. Supporting 65W PD 3.0 bidirectional charging, the VB99 Lite can be fully recharged in just 3 hours and maintains peak power output for 60W COB lights without voltage drop.
Weighing only 550g and designed with a compact size, it’s perfect for mobile creators who prioritize lightweight gear. The integrated dust cover slot ensures dust-proof protection while keeping ports easily accessible. Built for reliability inside and out, it allows you to focus on capturing every moment with confidence.
Certifications: CCC, CB
Button Functions:
Power On / Battery Level: Single Press
Power Off: Long Press (3 sec)
(Note: Only disables USB-C, USB-A, and LED display. BP and D-Tap ports remain active)
LED Indicator Functions:
Discharge / Battery Level:
0–5% Battery: 1 Red LED Flashes
6–10% Battery: 1 Solid Red LED
10–20% Battery: 1 White LED
20–40% Battery: 2 White LEDs
40–60% Battery: 3 White LEDs
60–80% Battery: 4 White LEDs
80–100% Battery: 5 White LEDs
Charging: Flashing LEDs indicate current charging level; solid LEDs show fully charged level
Abnormal Display:
Overcurrent / Overvoltage / Temperature Protection: All 5 white LEDs flash.
Recovery: Disconnect devices and wait ≥1 min; For temperature protection: Place battery within operational temperature range (Charging: 5°C – 40°C / 41°F - 104°F) / Discharging: -10°C – 55°C / 14°F – 131°F)
Work With
Mirrorless cameras, camcorders, cameras, monitors, follow focuses, image transmitters, lights, cell phones, tablets, laptops, etc.
Packing List
VB99 Lite mini V-Mount Battery x 1
Operating Instruction x 1
User Manual x 1

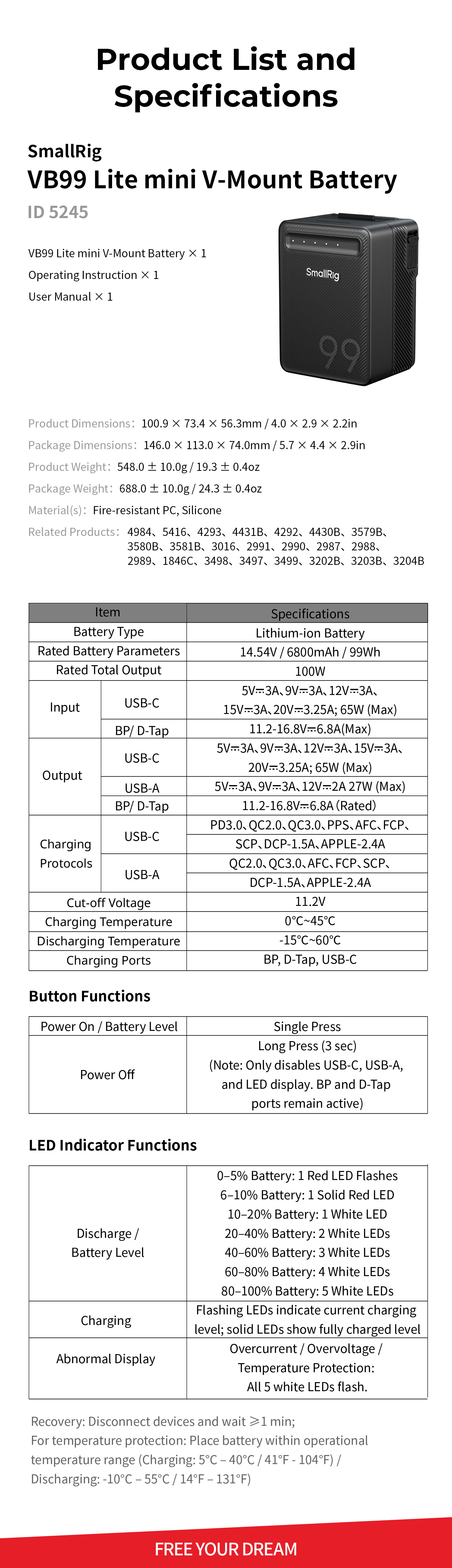

Technical Data

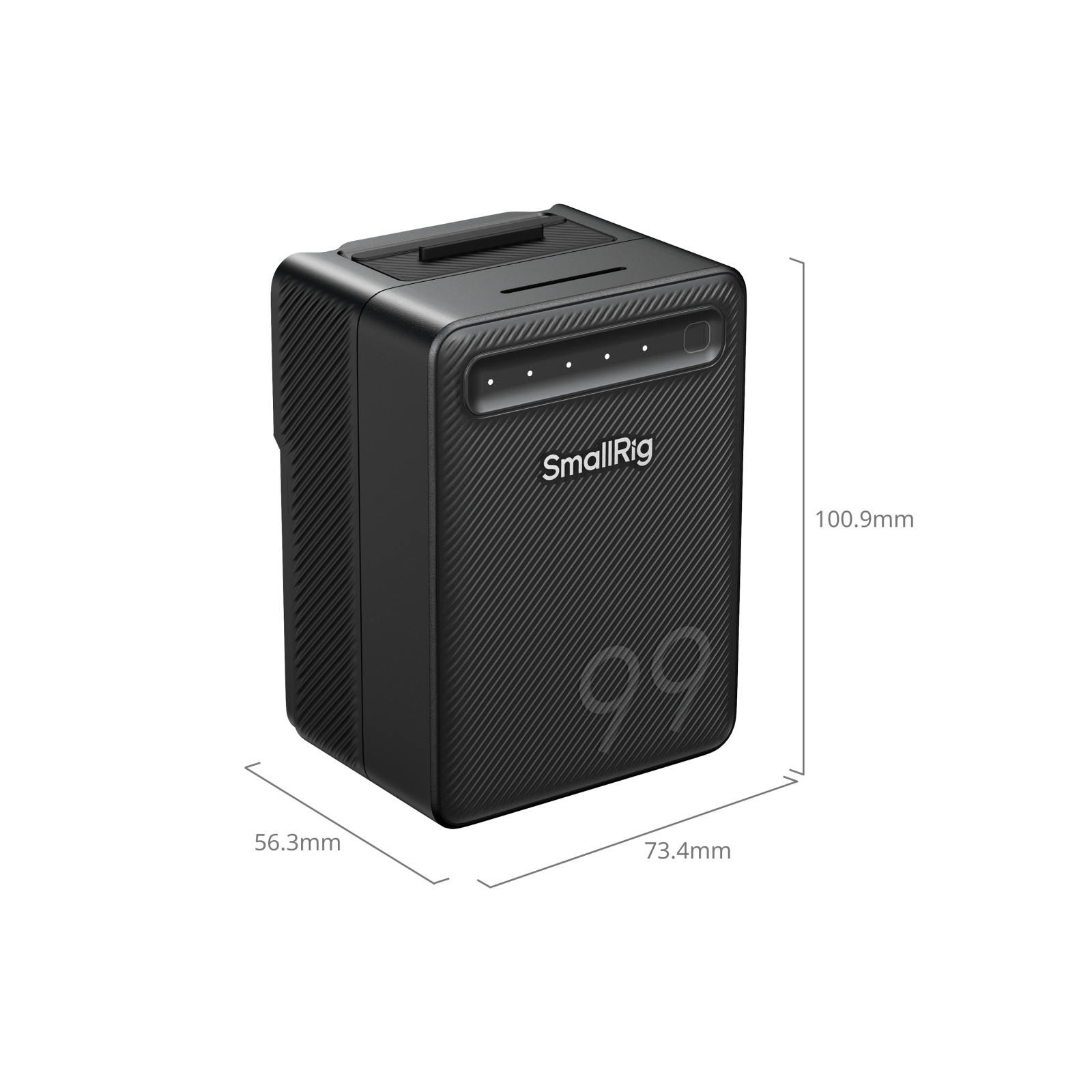

Product Dimensions: 100.9 x 73.4 x 56.3mm / 4.0 x 2.9 x 2.2in
Package Dimensions: 146.0 x 113.0 x 74.0mm / 5.7 x 4.4 x 2.9in
Product Weight: 548.0 ± 10.0g / 19.3 ± 0.4oz
Package Weight: 688.0 ± 10.0g / 24.3 ± 0.4oz
Material(s): Fire-resistant PC, Silicone
Battery Type: Lithium-ion Battery
Rated Battery Parameters: 14.54V / 6800mAh / 99Wh
Rated Total Output: 100W
Input:
USB-C: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
BP / D-Tap: 11.2-16.8V ⎓ 6.8A (Max)
Output:
USB-C: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
USB-A: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 2A; 27W (Max)
BP / D-Tap: 11.2-16.8V ⎓ 6.8A (Rated)
Charging Protocols:
USB-C: PD3.0, QC2.0, QC3.0, PPS, AFC, FCP, SCP, DCP-1.5A, Apple 2.4A
USB-A: QC2.0, QC3.0, AFC, FCP, SCP, DCP-1.5A, Apple 2.4A
Cut-off Voltage: 11.2V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -15°C to 60°C / 5°F to 140°F
Charging Ports: BP, D-Tap, USB-C
