SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B

SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B

1. Standard V-mount, compatible with most V-mount batteries.

2. PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.

3. D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.

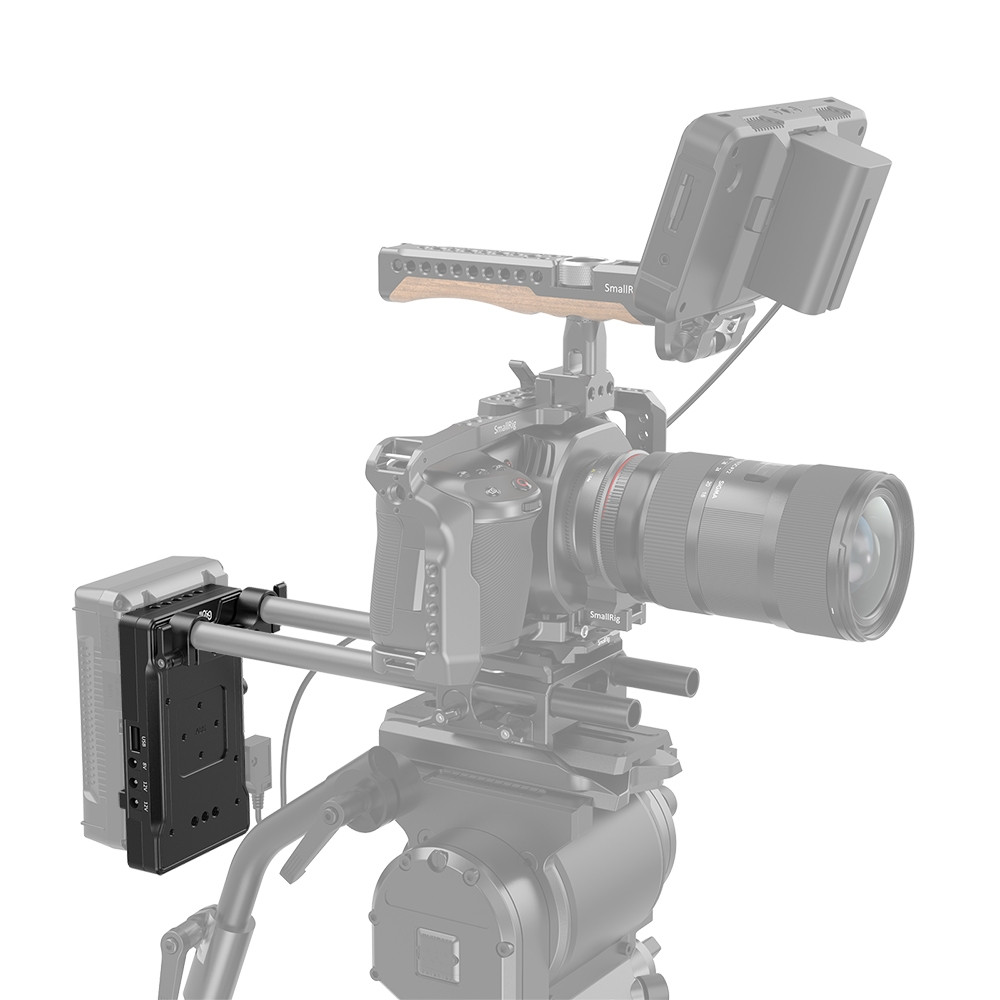

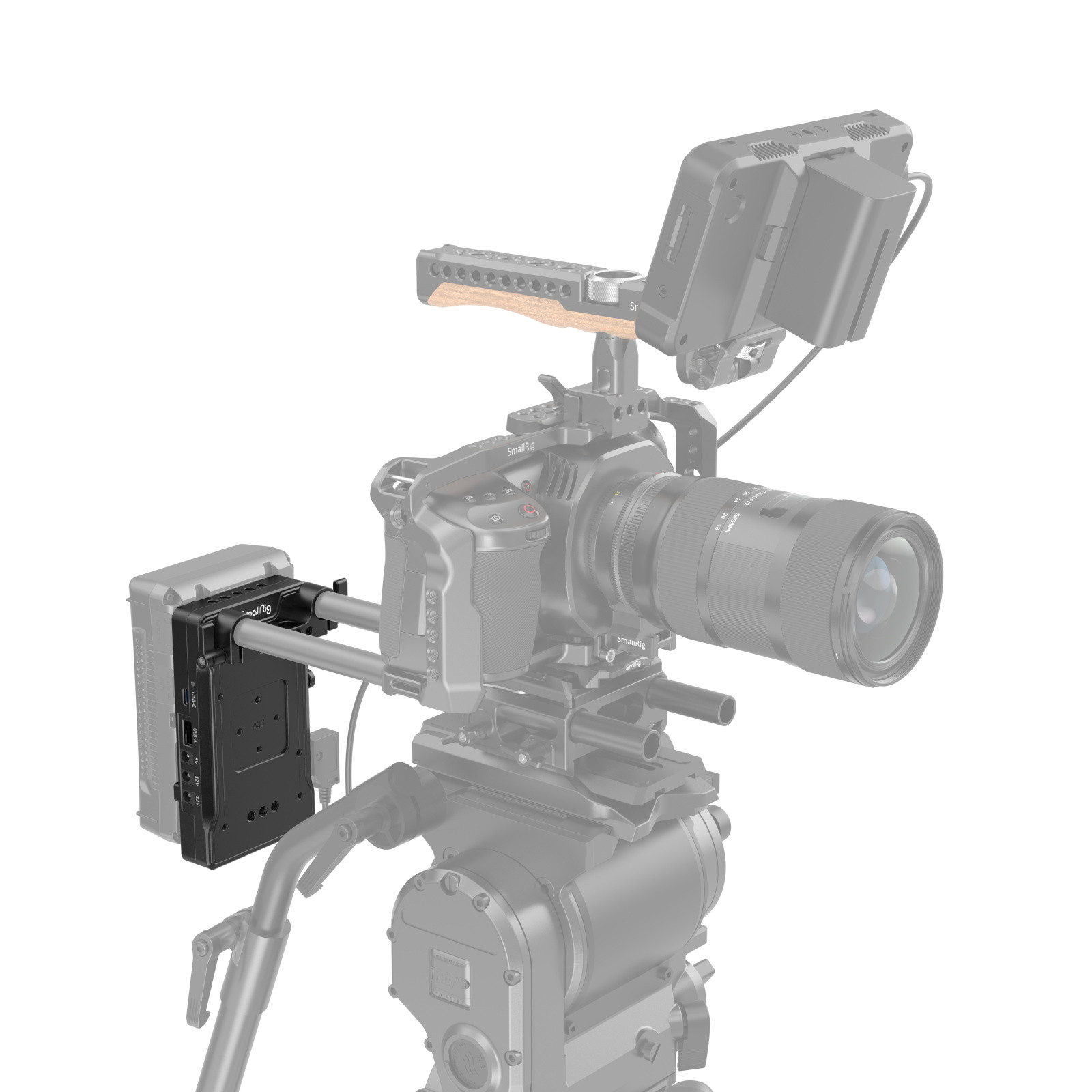

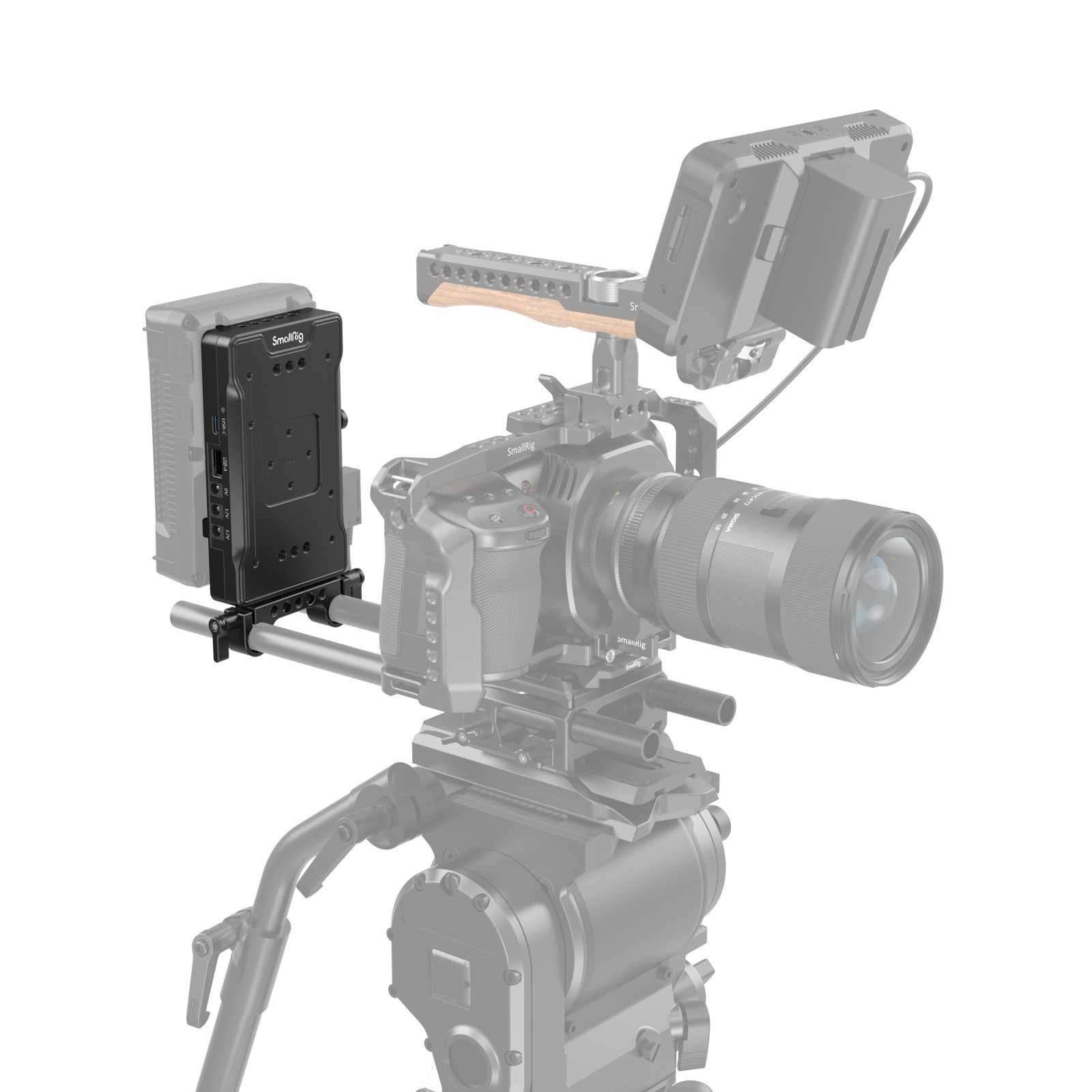

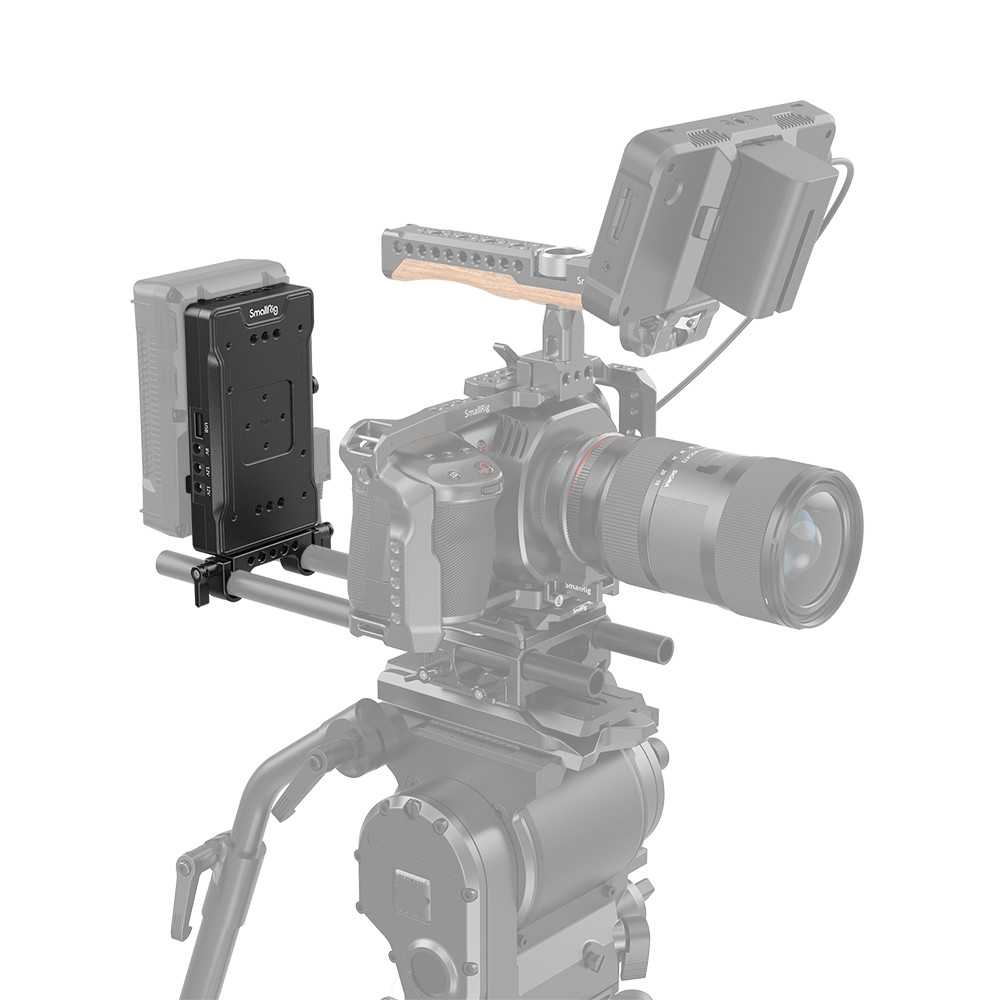

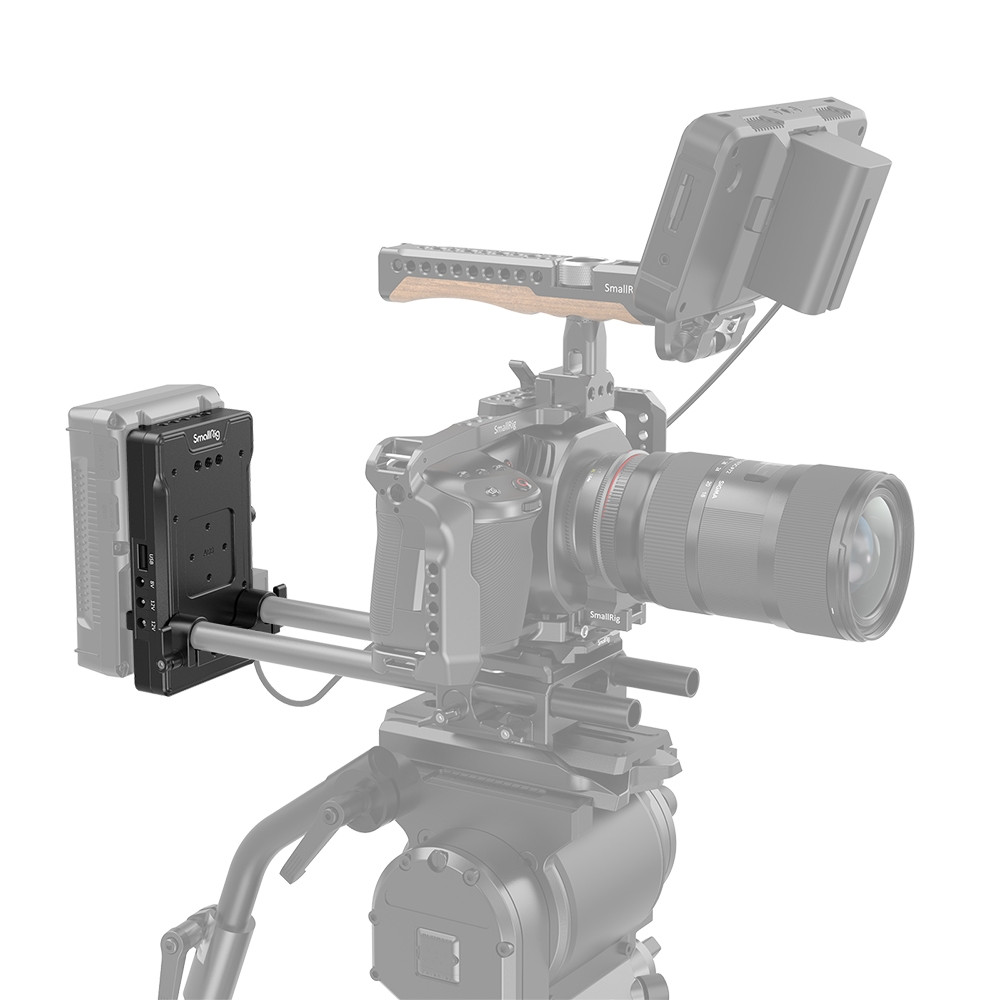

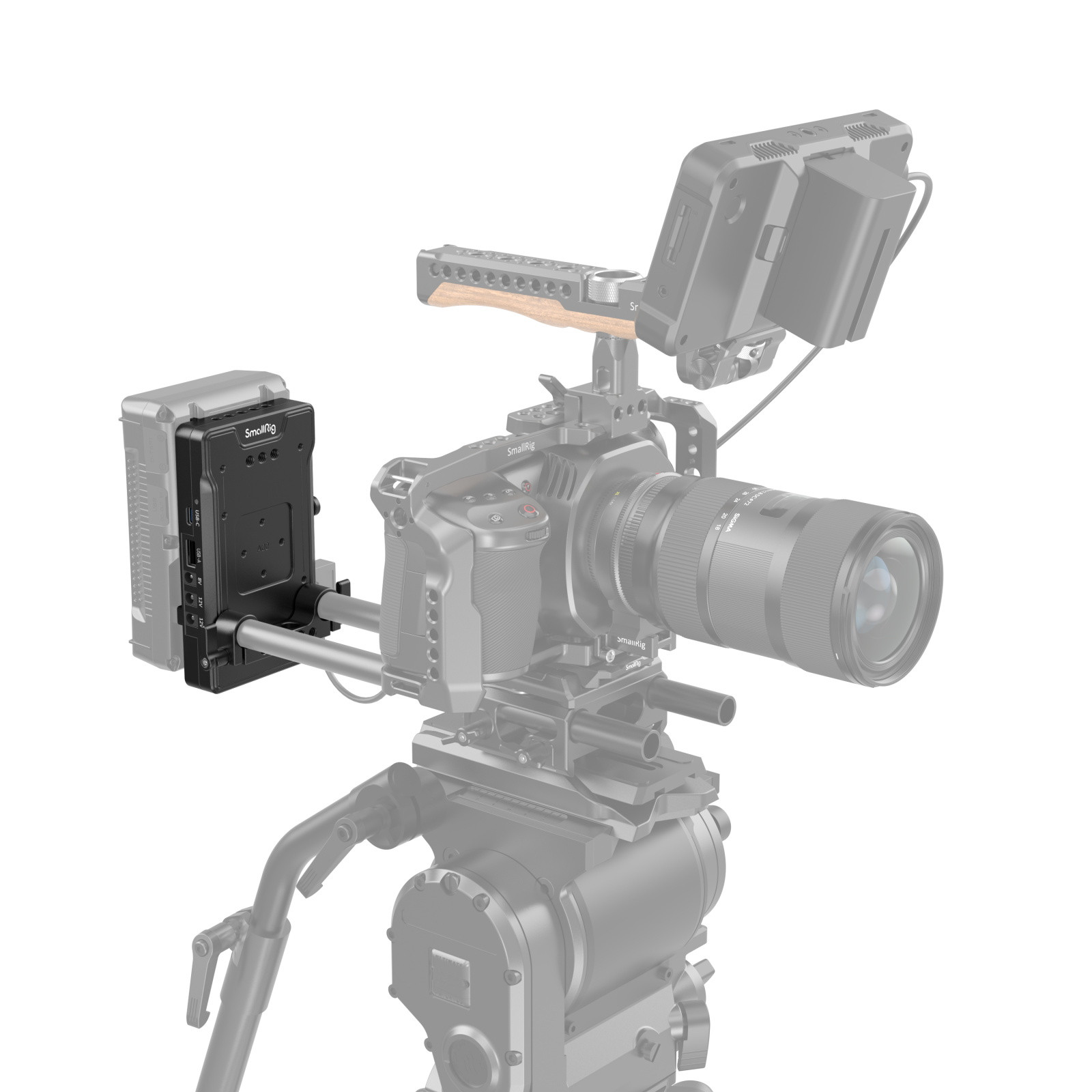

4. Quickly mounts onto 15mm LWS rod system.

5. 1/4"-20 threaded holes for dual rod clamp and other accessories.

$119.00
Sku 3203B
EAN 6941590014326

Availability: In stock 17

This product has been viewed 1139 times

Product Description



SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B

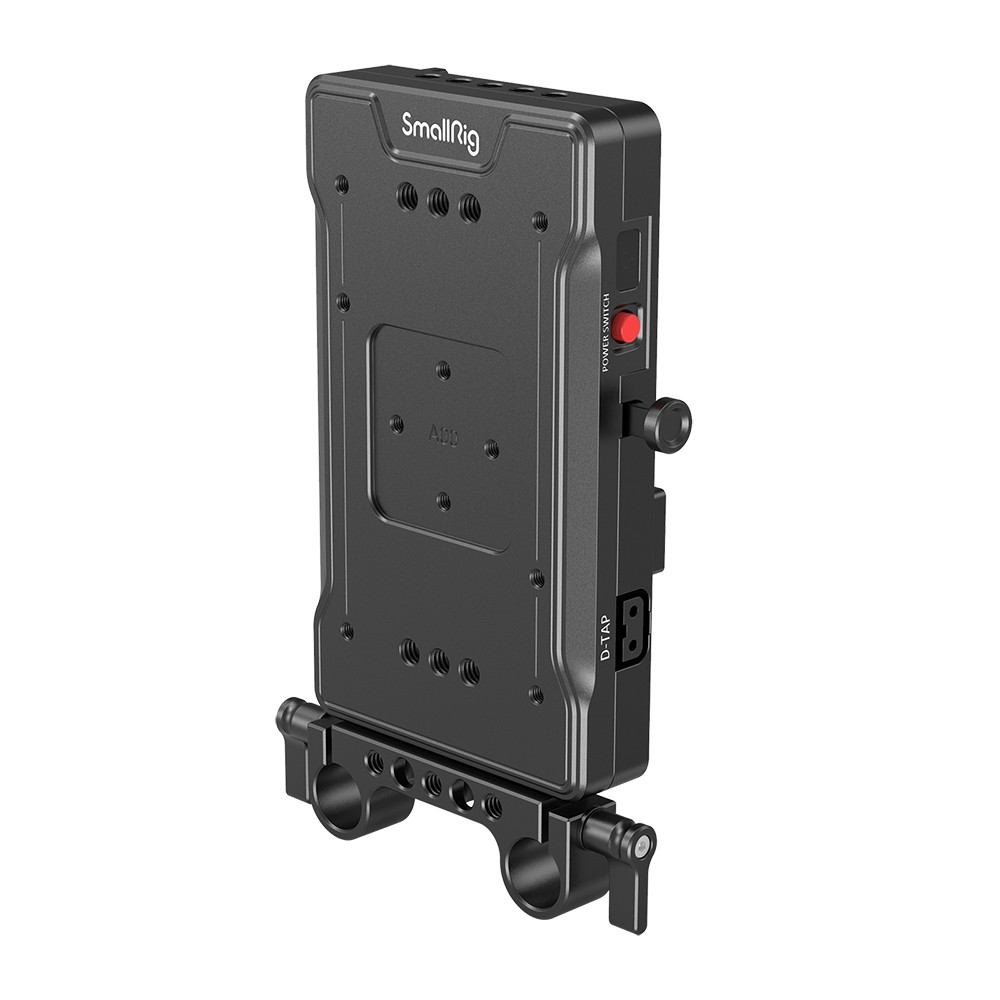

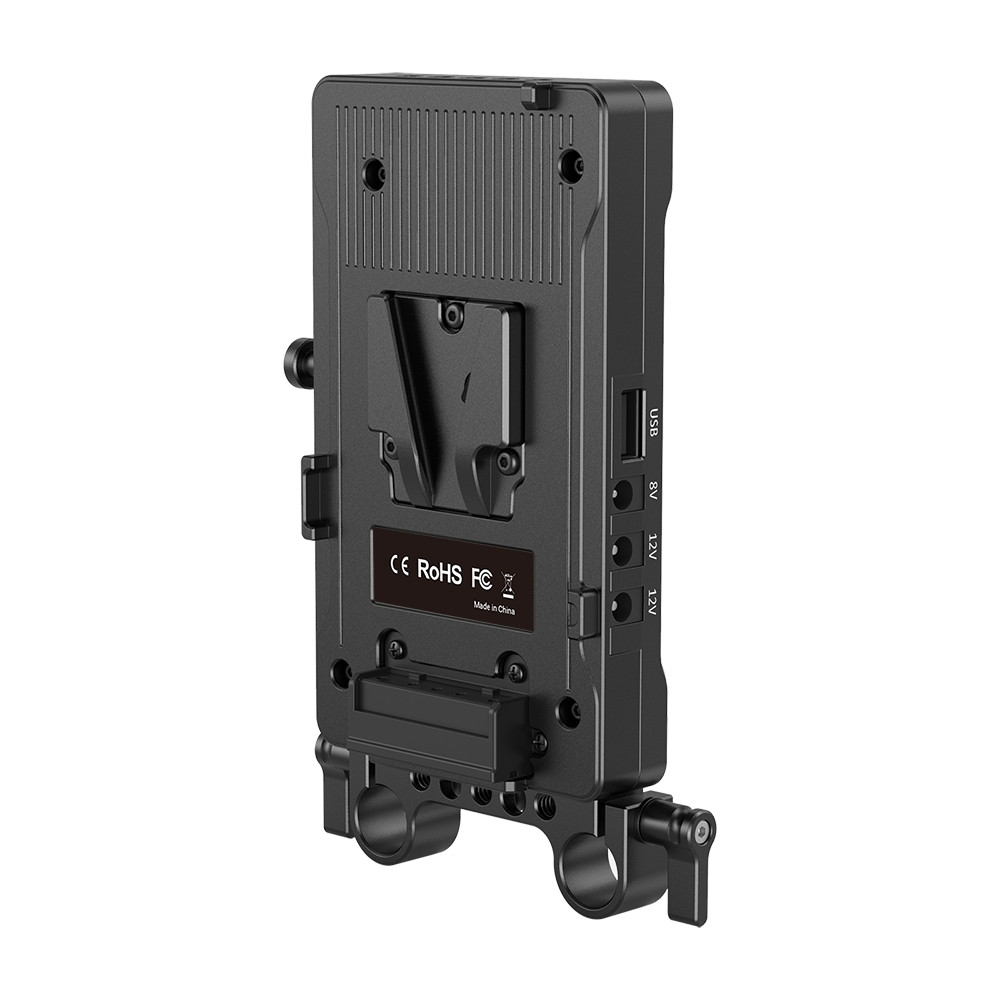

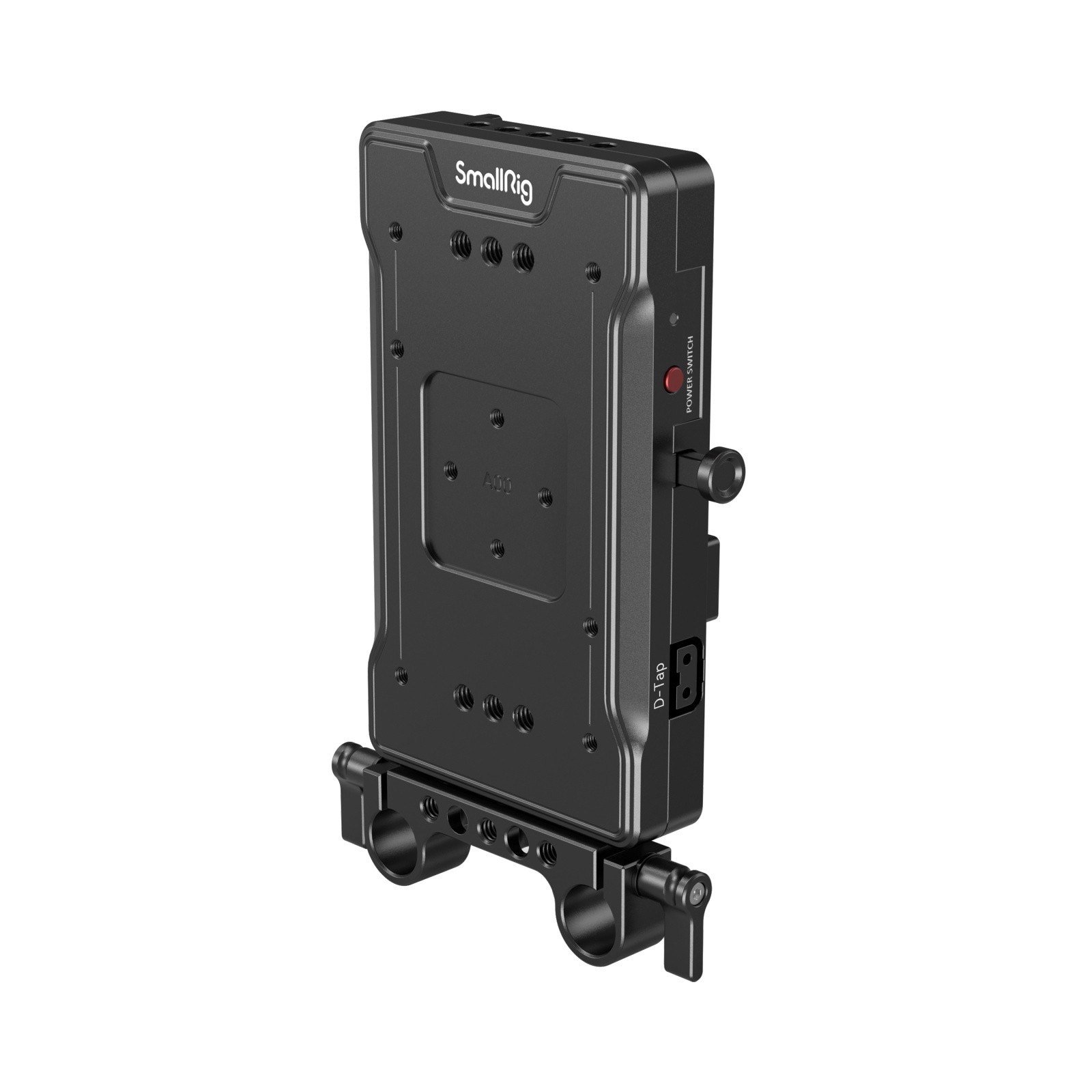

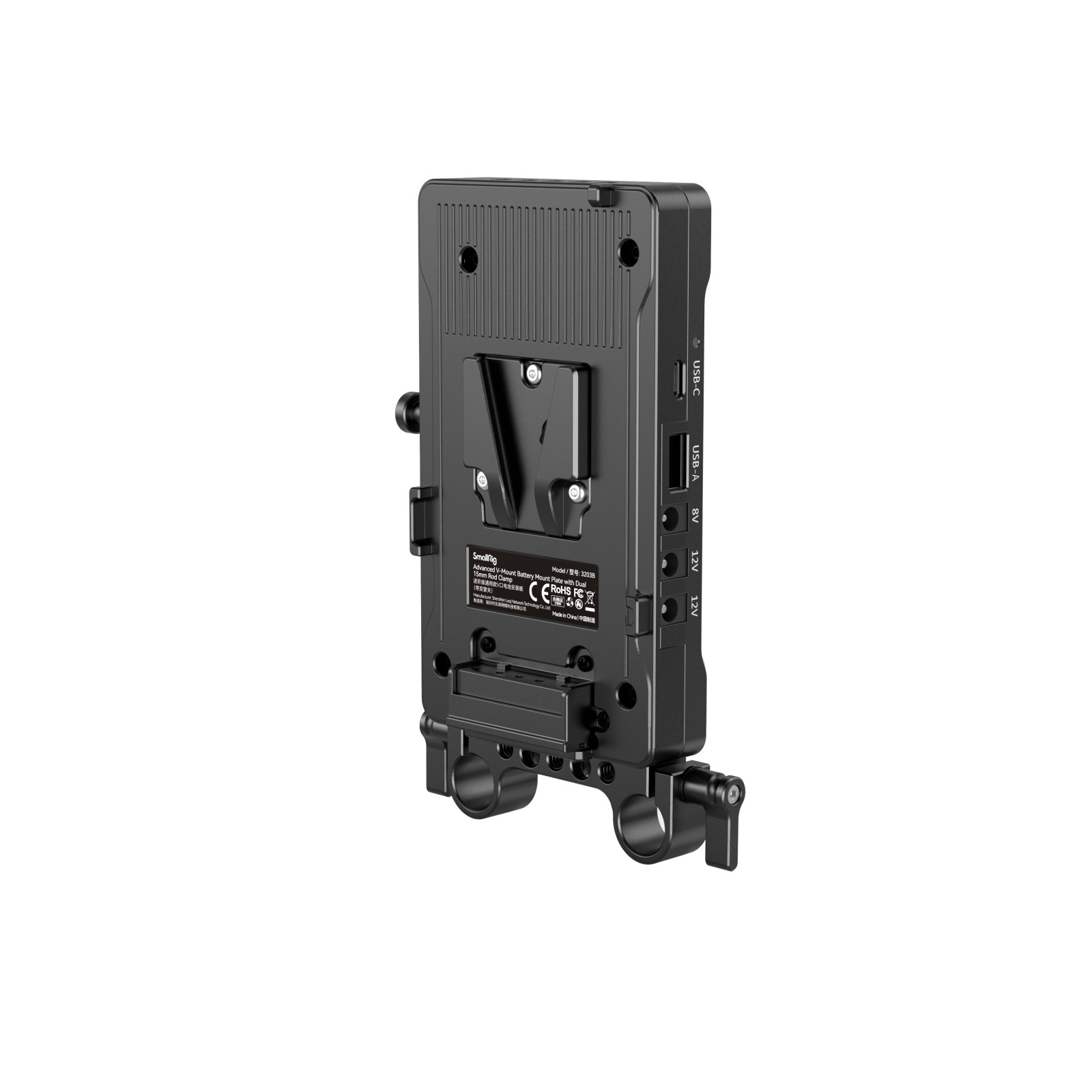

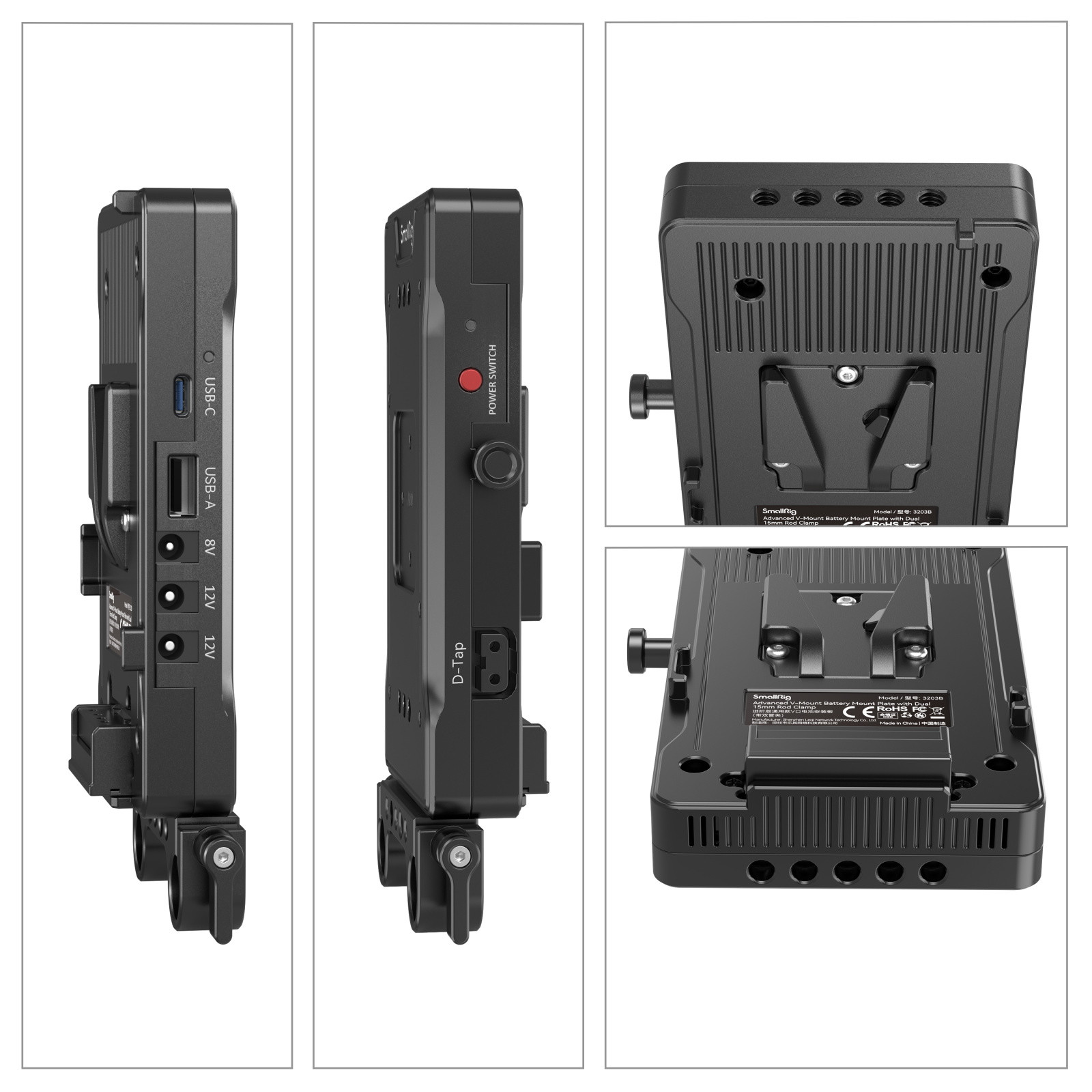

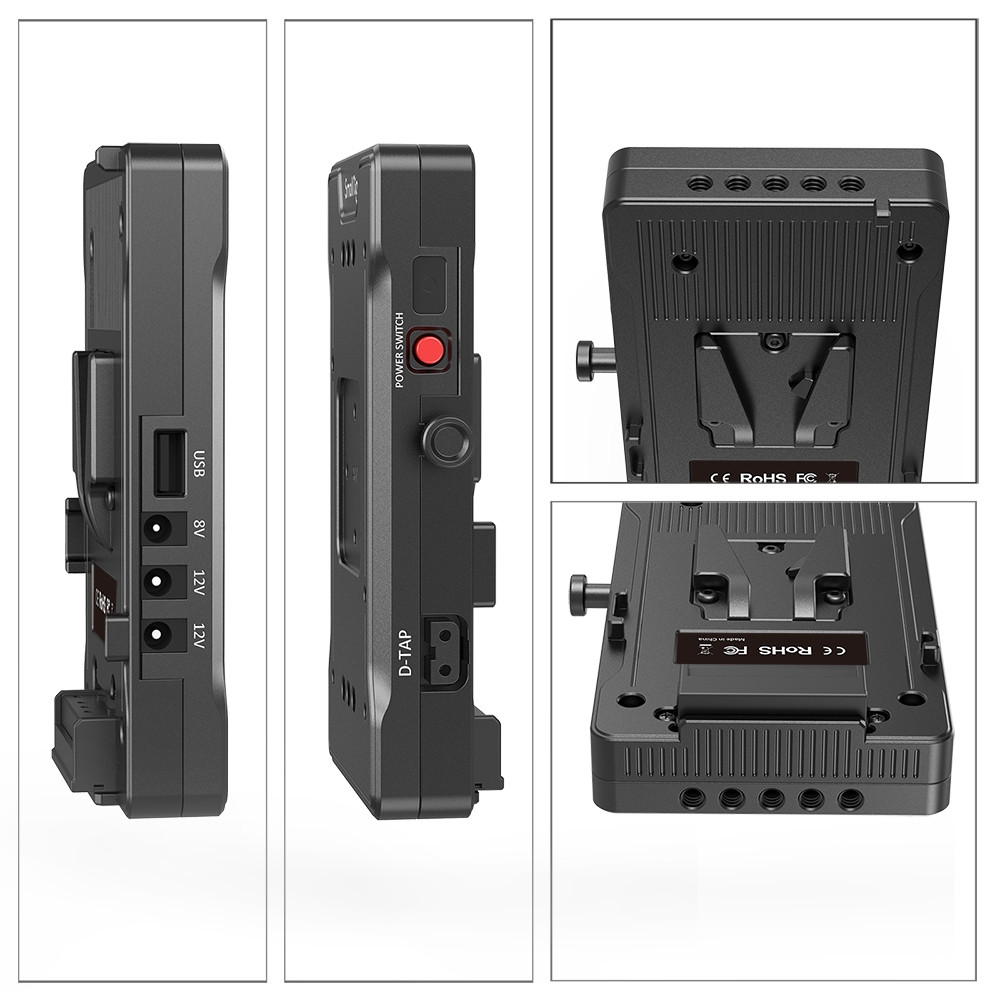

SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B can quickly mount onto a 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) ports; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicates the working status and fast/slow charging mode; the power on/off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED

Note: Product weight and dimensions may have measurement errors.

Functions Description:

Charging / Discharging: USB-C charging

Indicator Light: orange light—slow charging/discharging, ice blue light—fast charging/discharging

Power Indicator Light:

Light on—powered on

light off—powered off

light flashing—working temperature exceeds 65℃

Power on / off Button:

Power on—tap the button; power off—long press the button for 2 seconds

D-Tap, USB-A, and DC output are unavailable after powering off

D-Tap input and USB-C input/output available after powering off

Key Features

Warning:

1. Do not use it in a damp environment to avoid short circuits.

2. When the indicator light keeps blinking, it means the working temperature exceeds 65℃. Please suspend its use.

3. Please do not drop the product, or use it under high temperatures or when a short circuit occurs.

Work With

V-Mount Battery

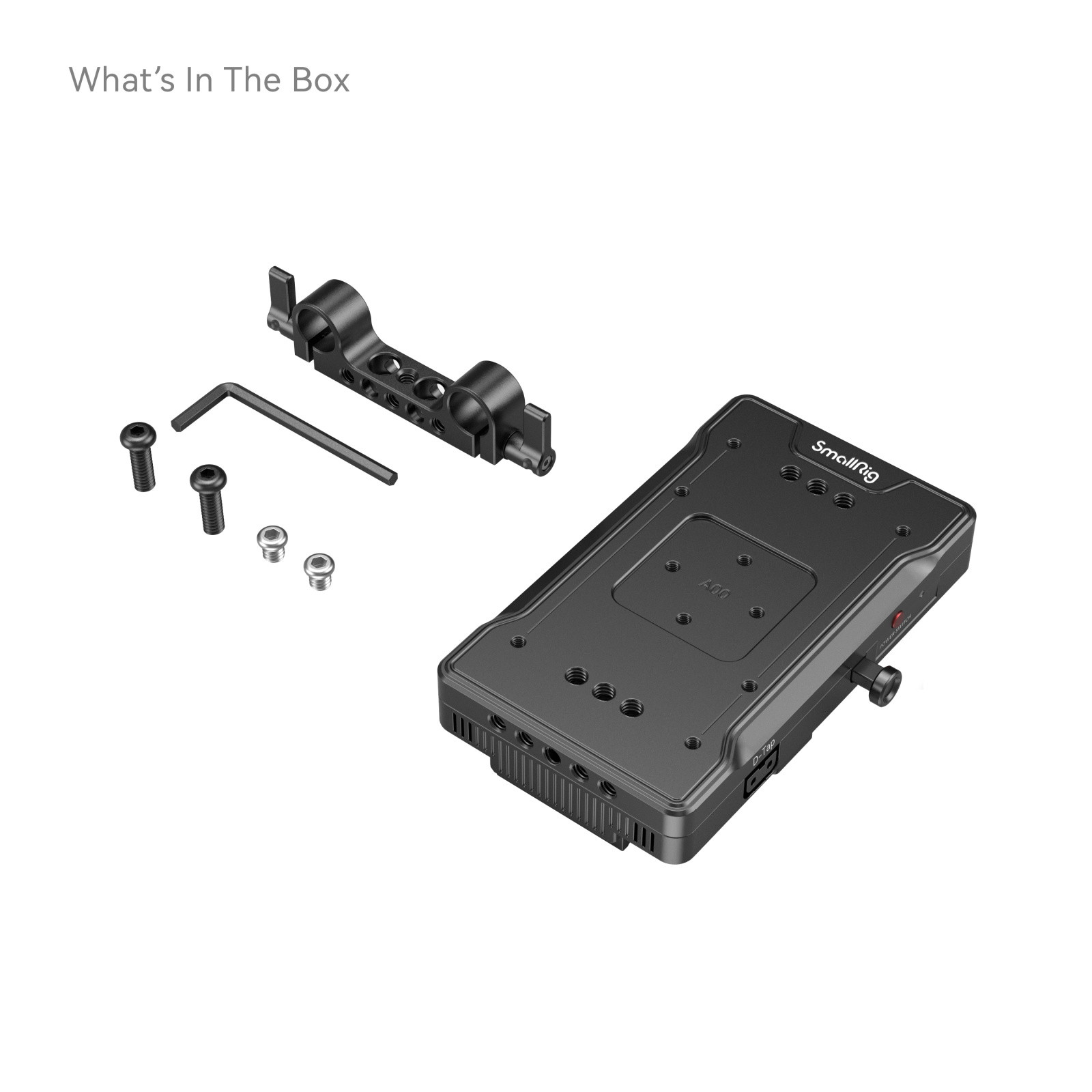

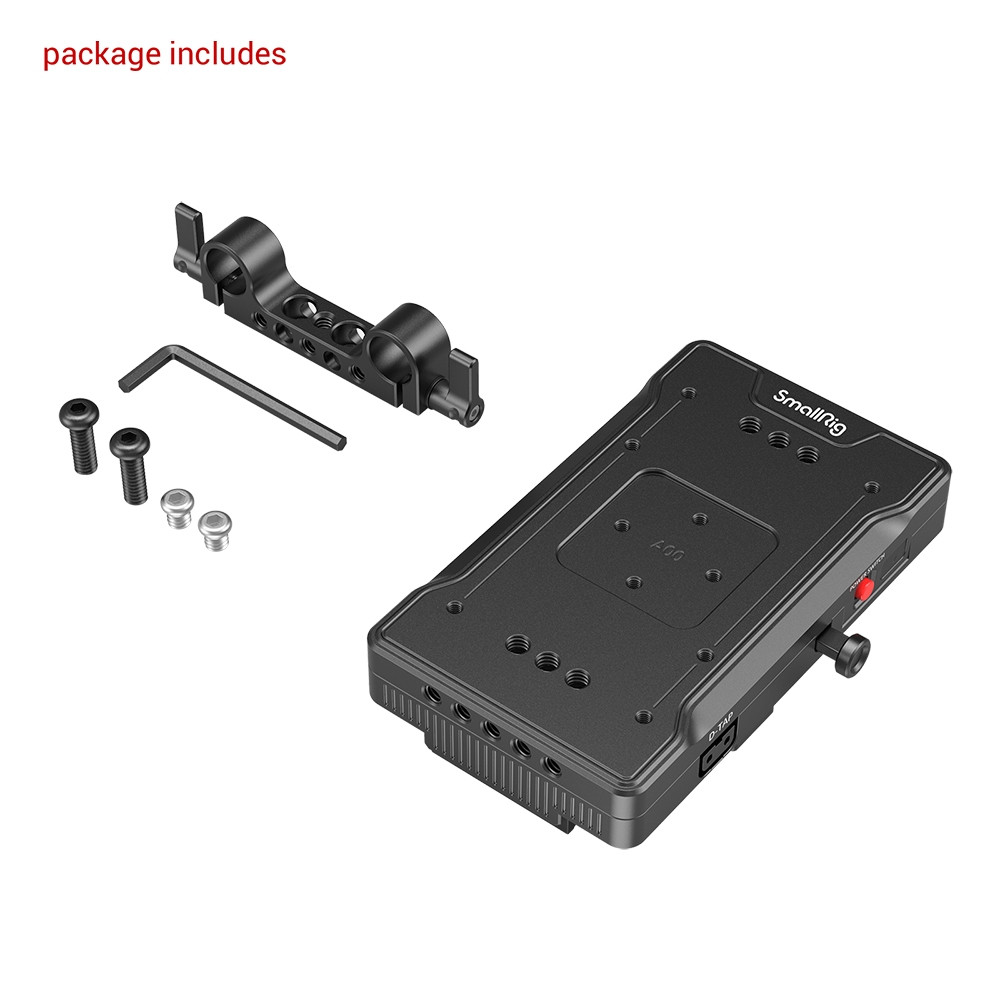

Packing List

V-Mount Battery Adapter Plate (Advanced Version) x 1

Dual Rod Clamp x 1

Hex Spanner x 1

Screw x 4

User Manual x 1

Technical Data

Product Dimensions: 16.87 × 10.8 × 3.3 cm

Package Dimensions: 17.4 × 14.5 × 4.7 cm

Product Weight: 337±5g

Package Weight: 425±5g

Battery Compatibility: V-Mount Battery

Dual Rod Diameter: 15mm (for 15mm LWS rod system)

Battery Voltage: 11.0V~16.8V

Battery Rated Capacity: 3500mAh~20000mAh / 14.8V

Cut-off Voltage: 11.0V

Input Voltage (Max.): 16.8V

Working Power (Max.): ≤ battery power (subject to battery capacity)

Total Maximum Power: Discharging: 271W (Max.)

D-Tap Rated Input / Output Current: 5A

D-Tap Input / Output Current (Max.): 10A (subject to power adapter)

D-Tap Input Voltage: 11.0V~16.8V

USB-A Output Power: 36W (Max.)

USB-A Output Protocol: QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A

USB-C Input Power: 65W (Max.)

USB-C Output Power: 65W (Max.)

USB-C Input / Output Protocol: PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A

DC1 Output: 8.0V / 3A (Max.)

DC2 Output: 12V / 3A (Max.)

DC3 Output: 12V / 3A (Max.)

DC Overcurrent Protection: ≥4.1A

Material(s): Aluminum Alloy
