SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B

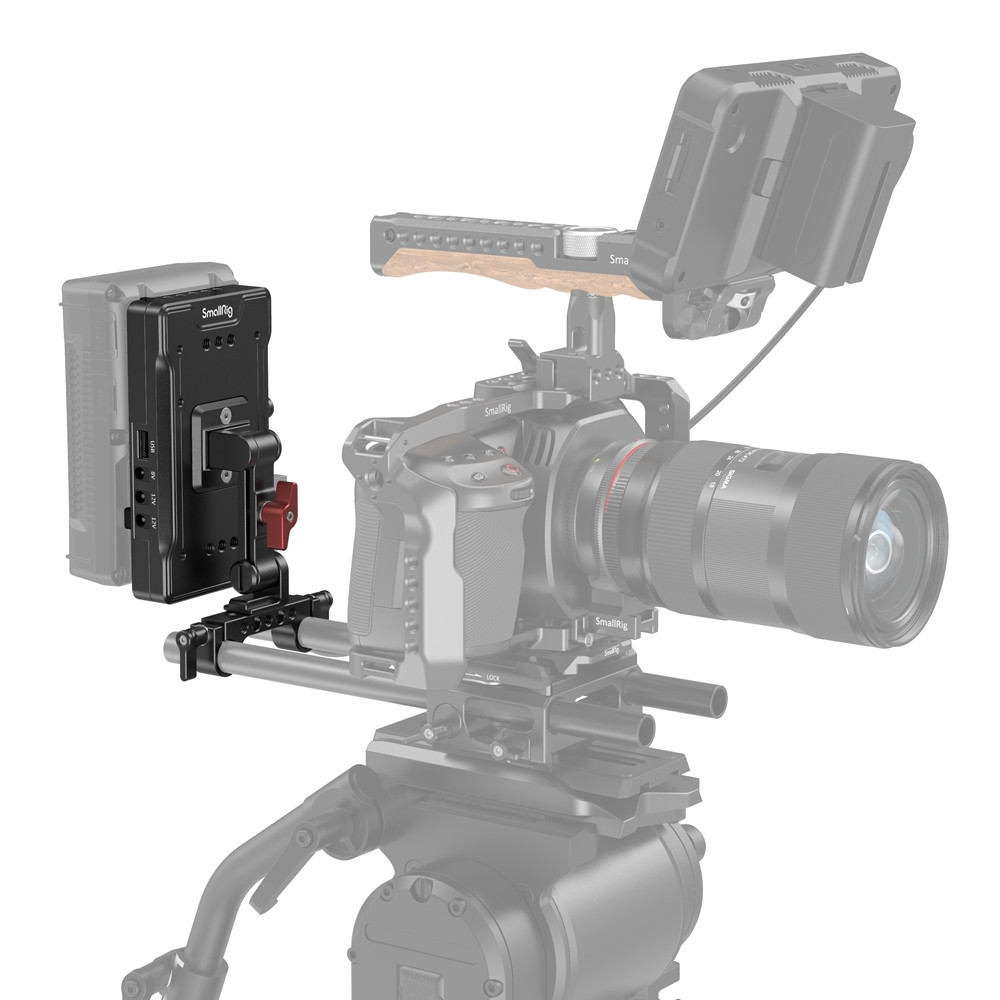

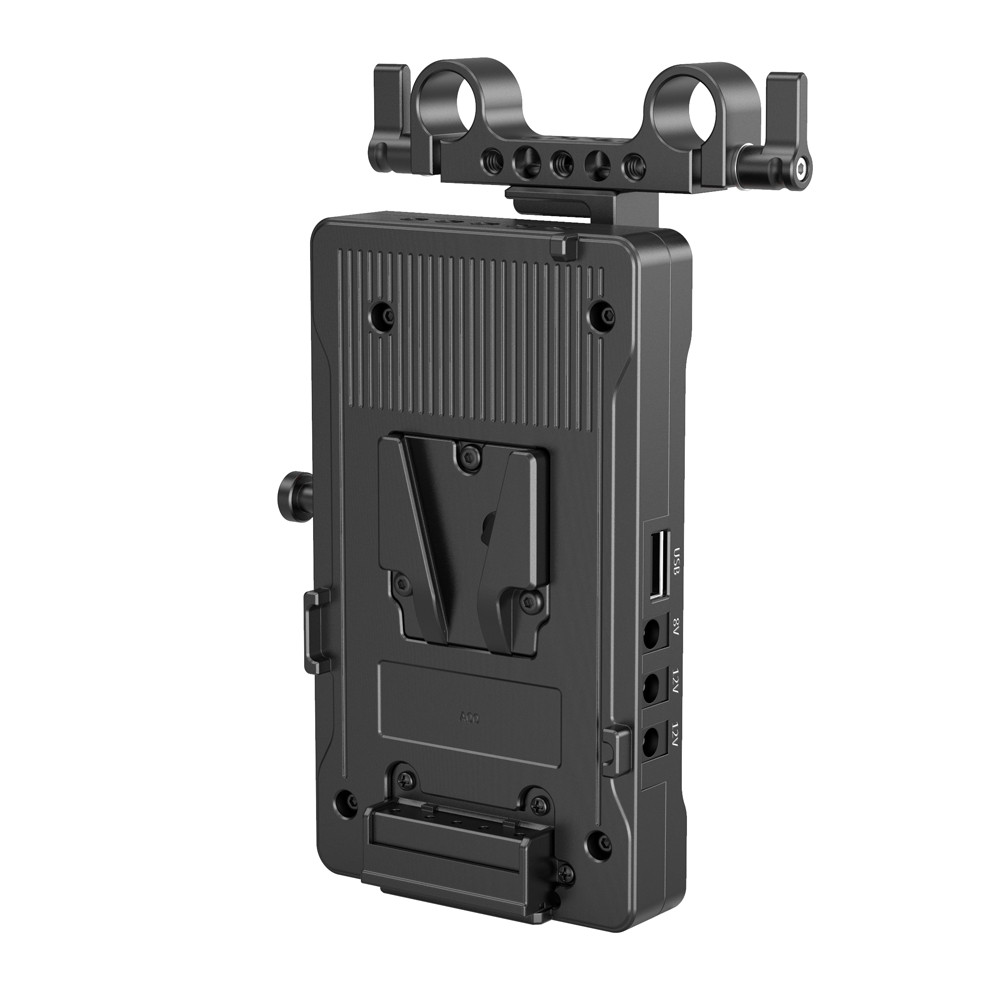

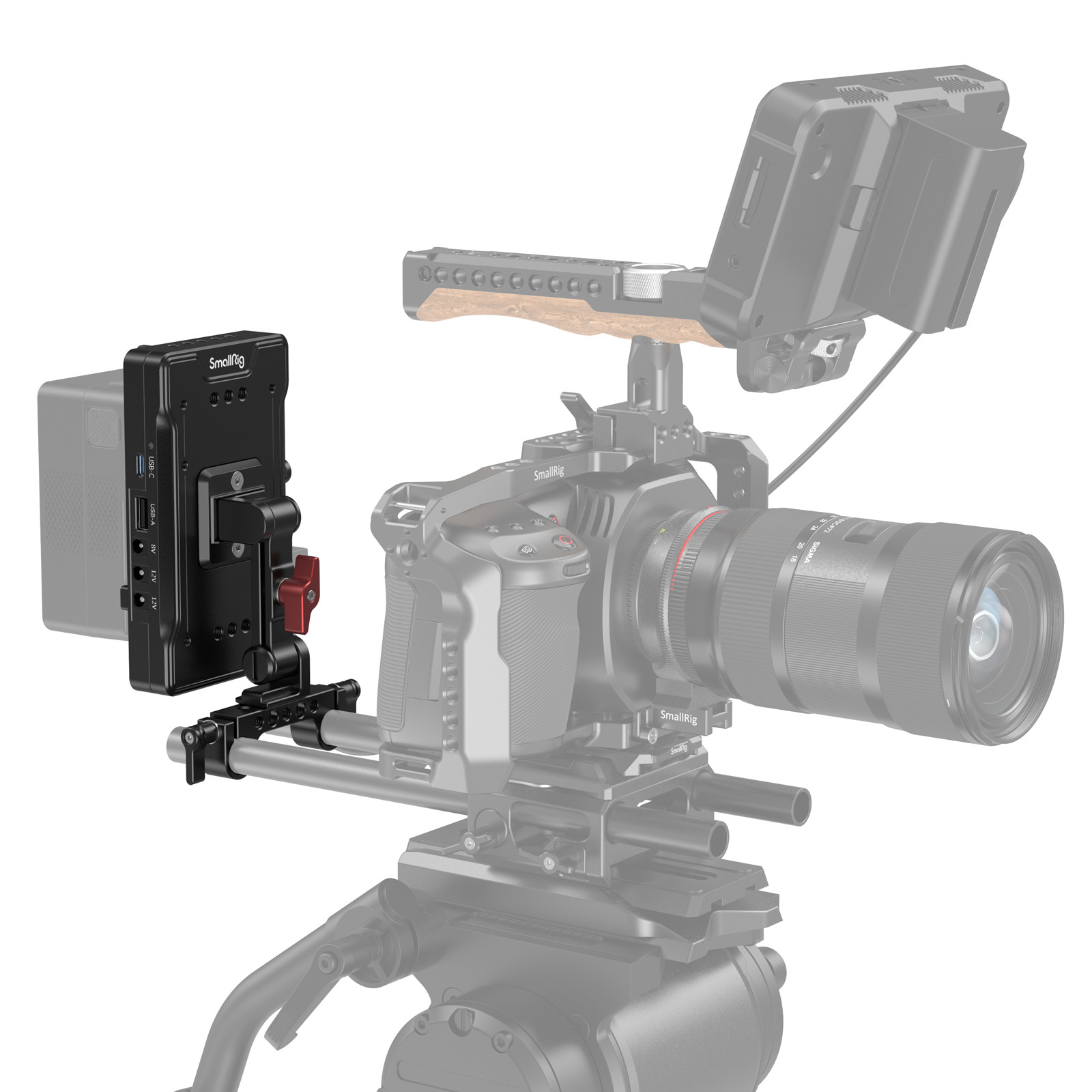

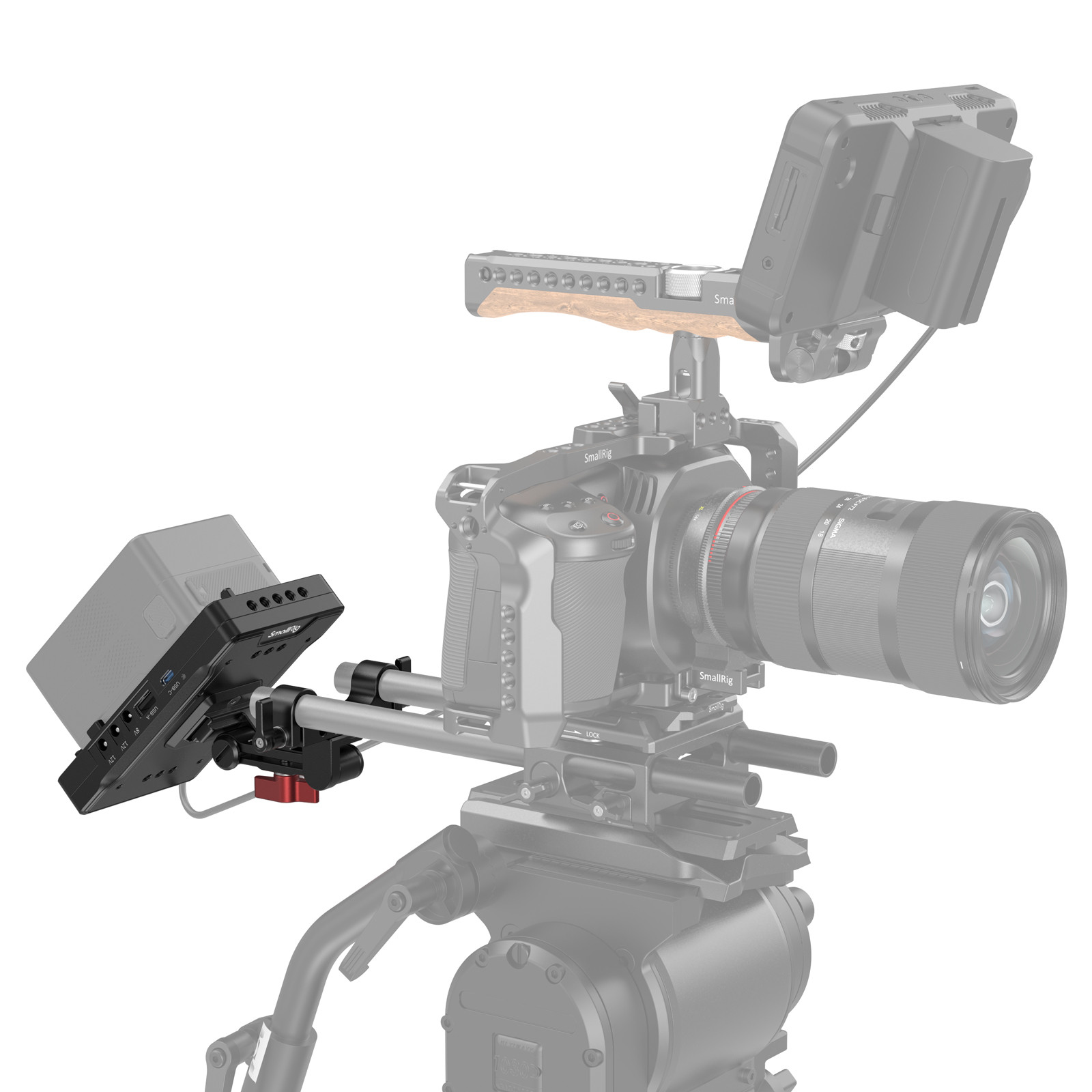

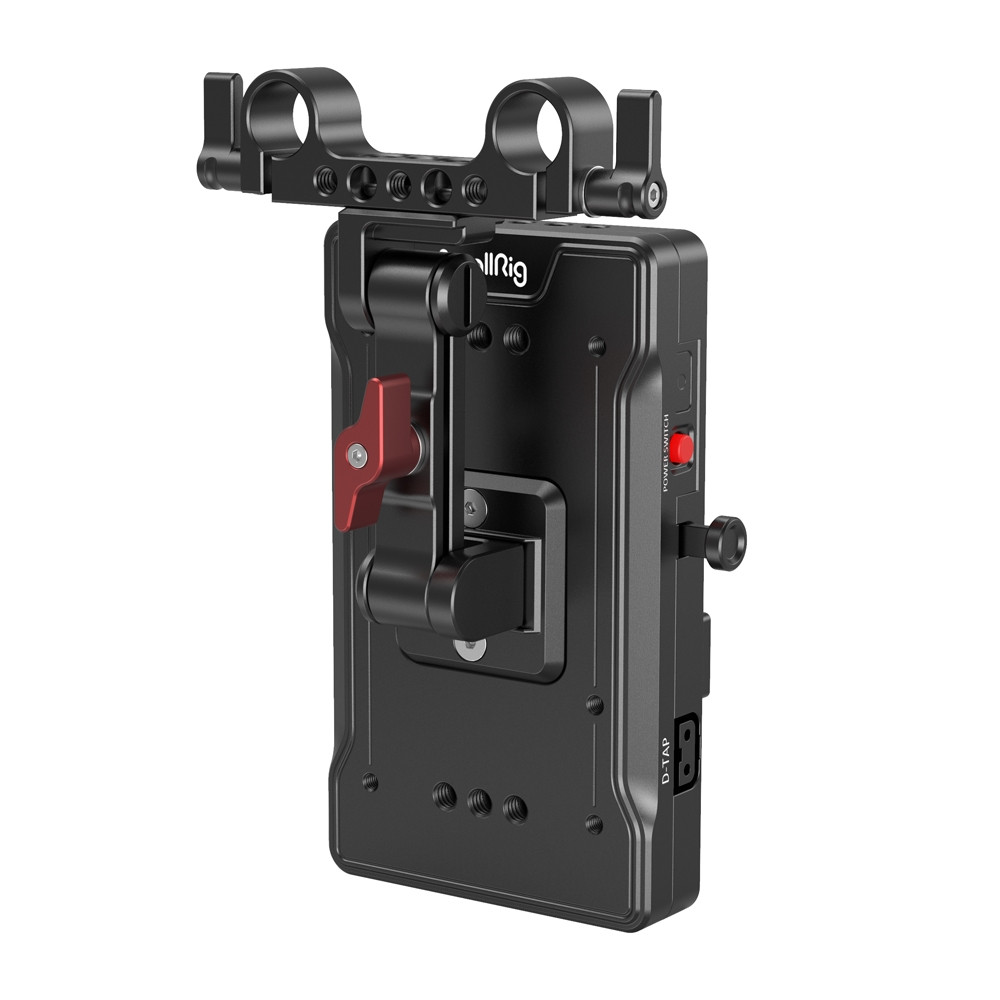

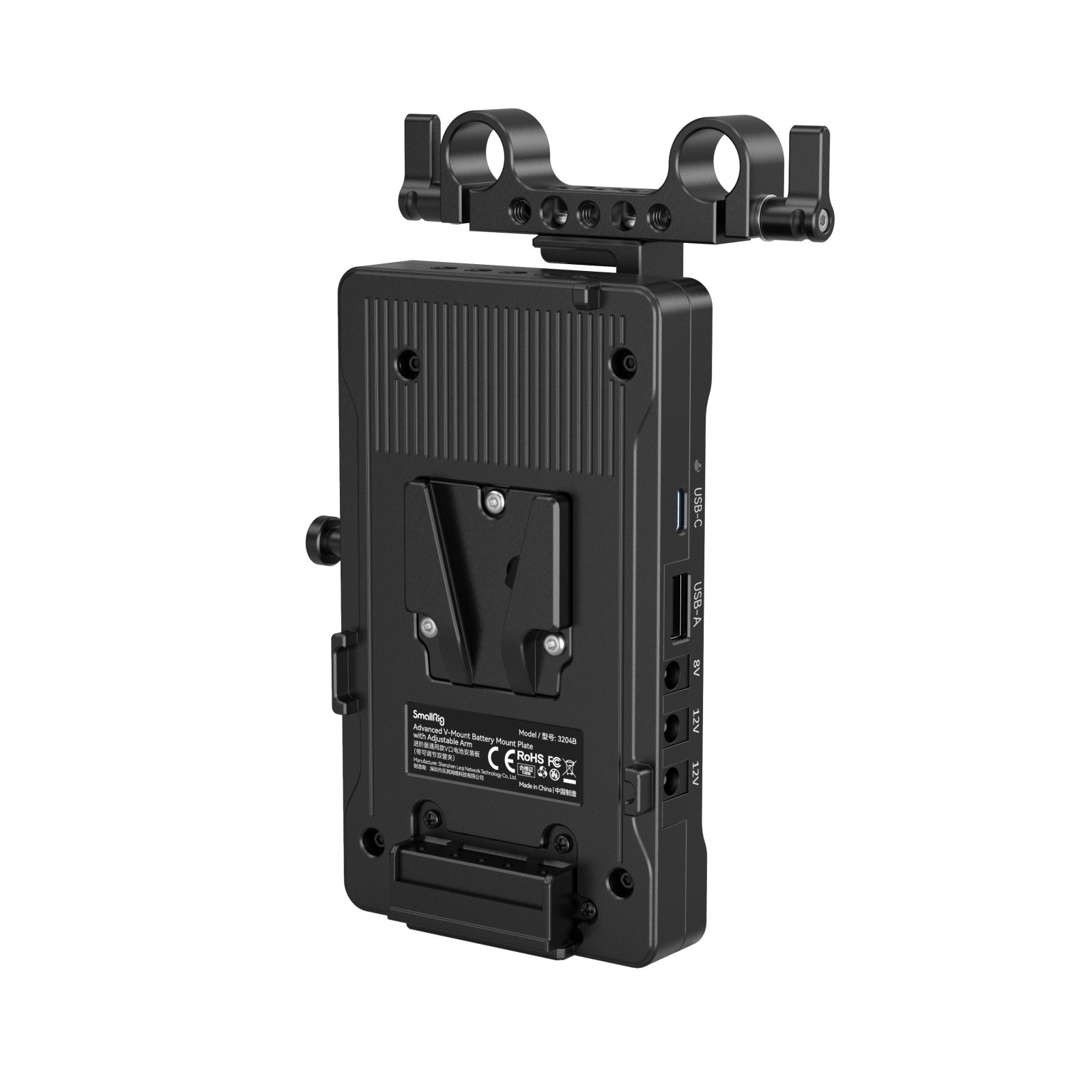

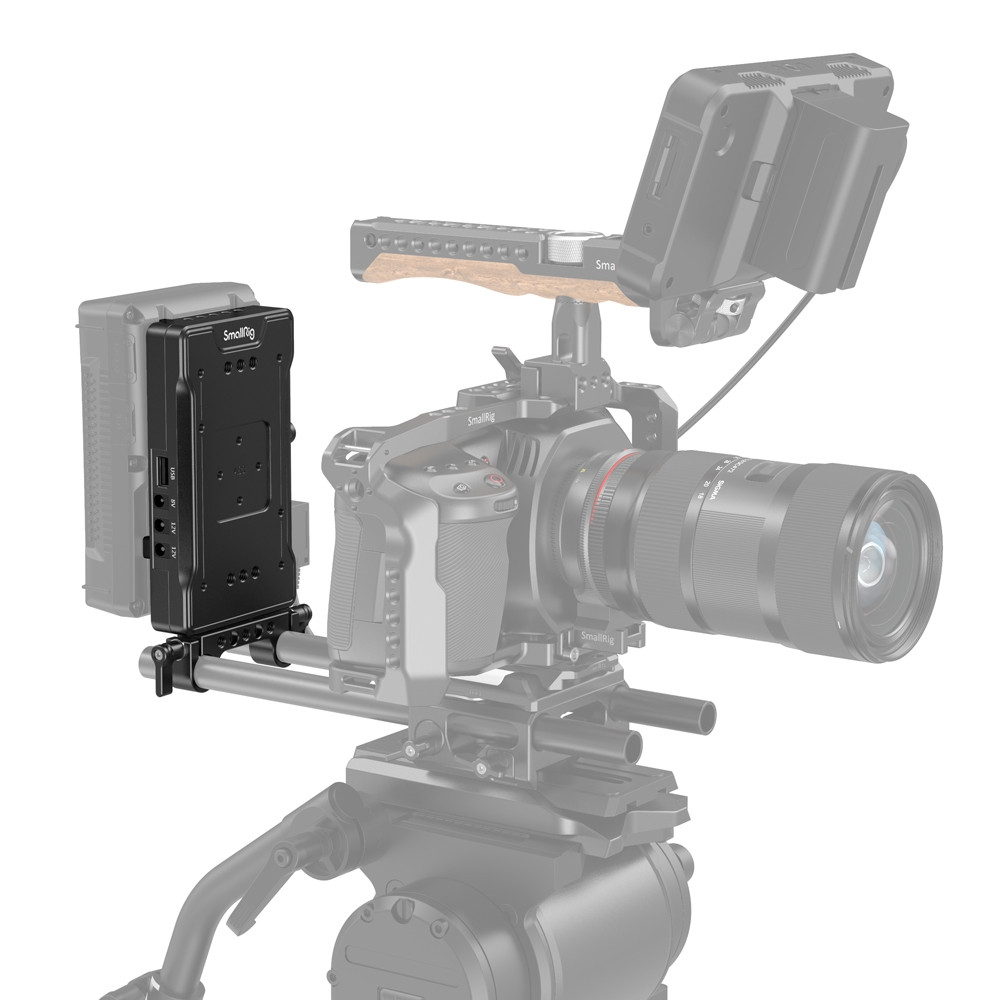

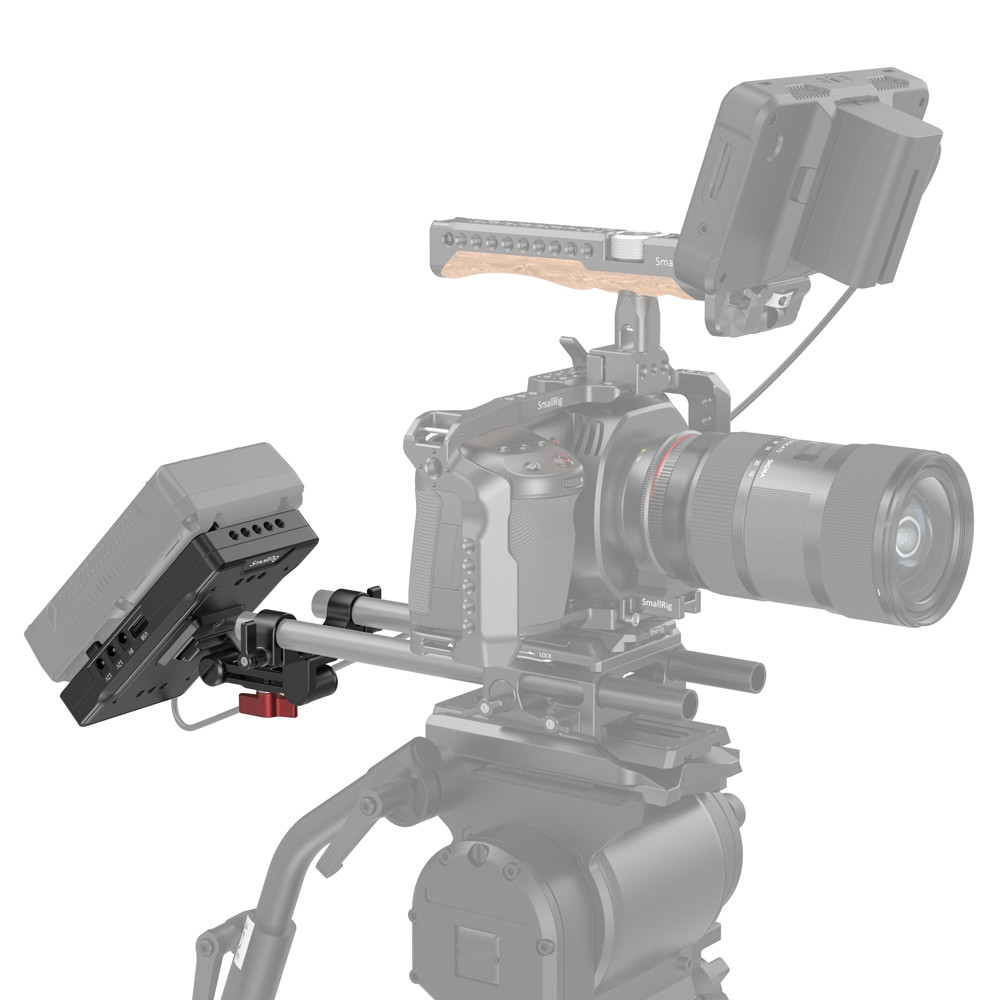

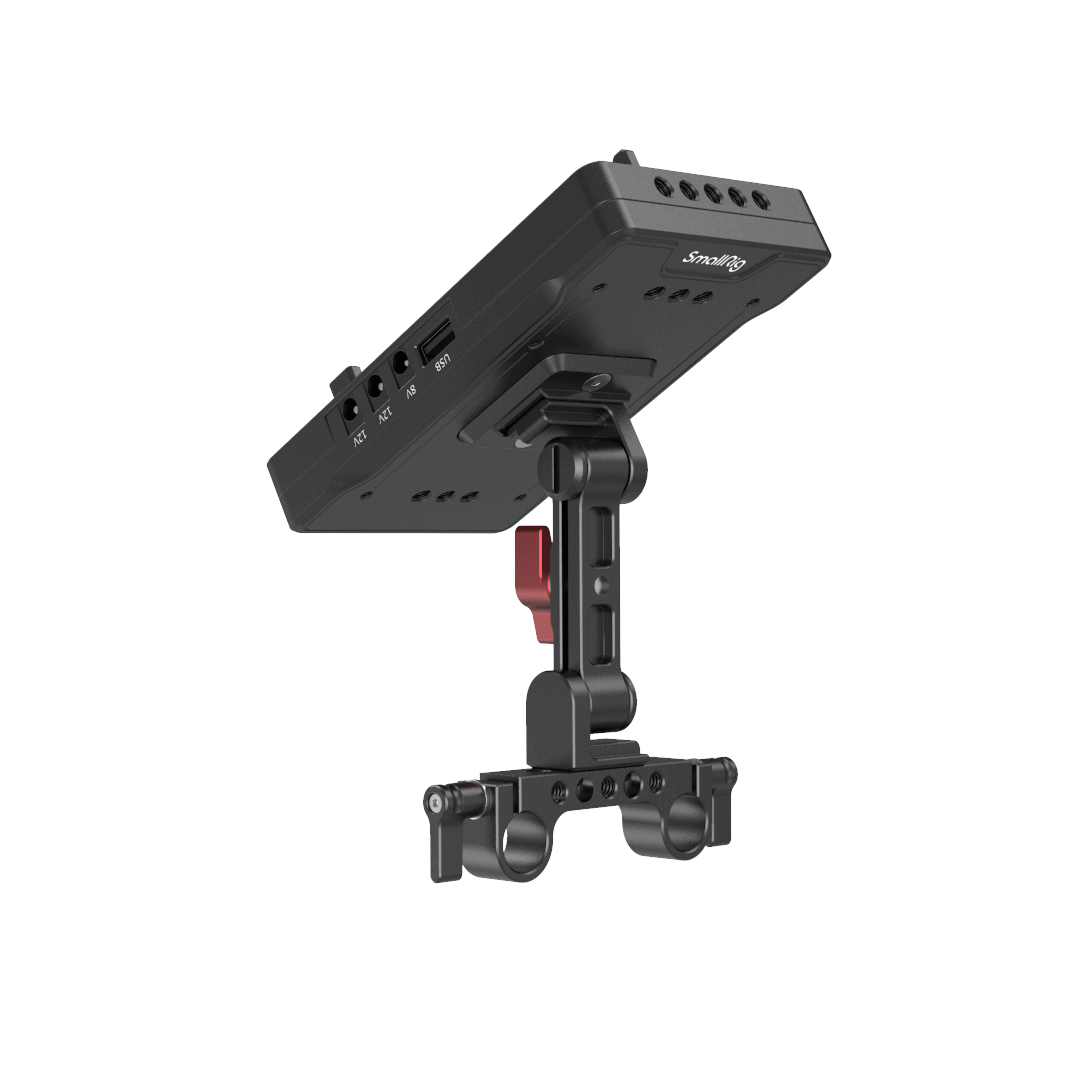

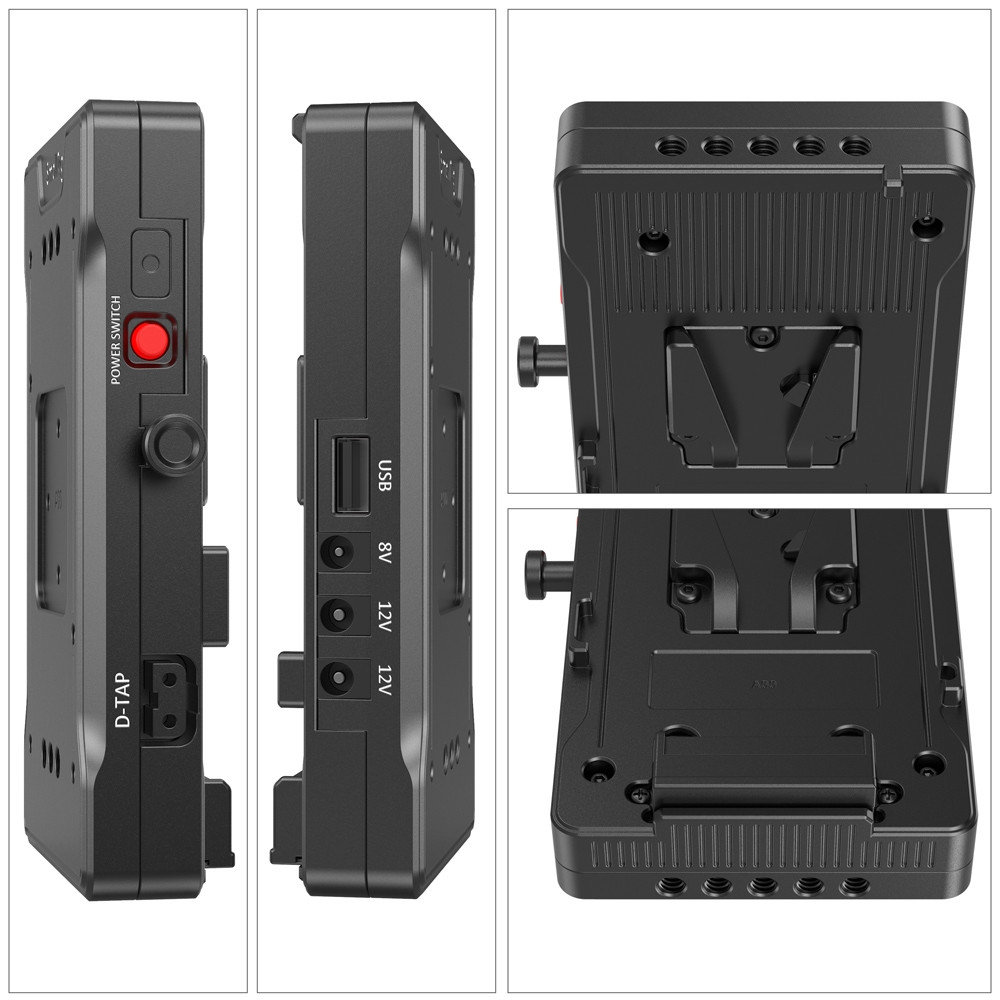

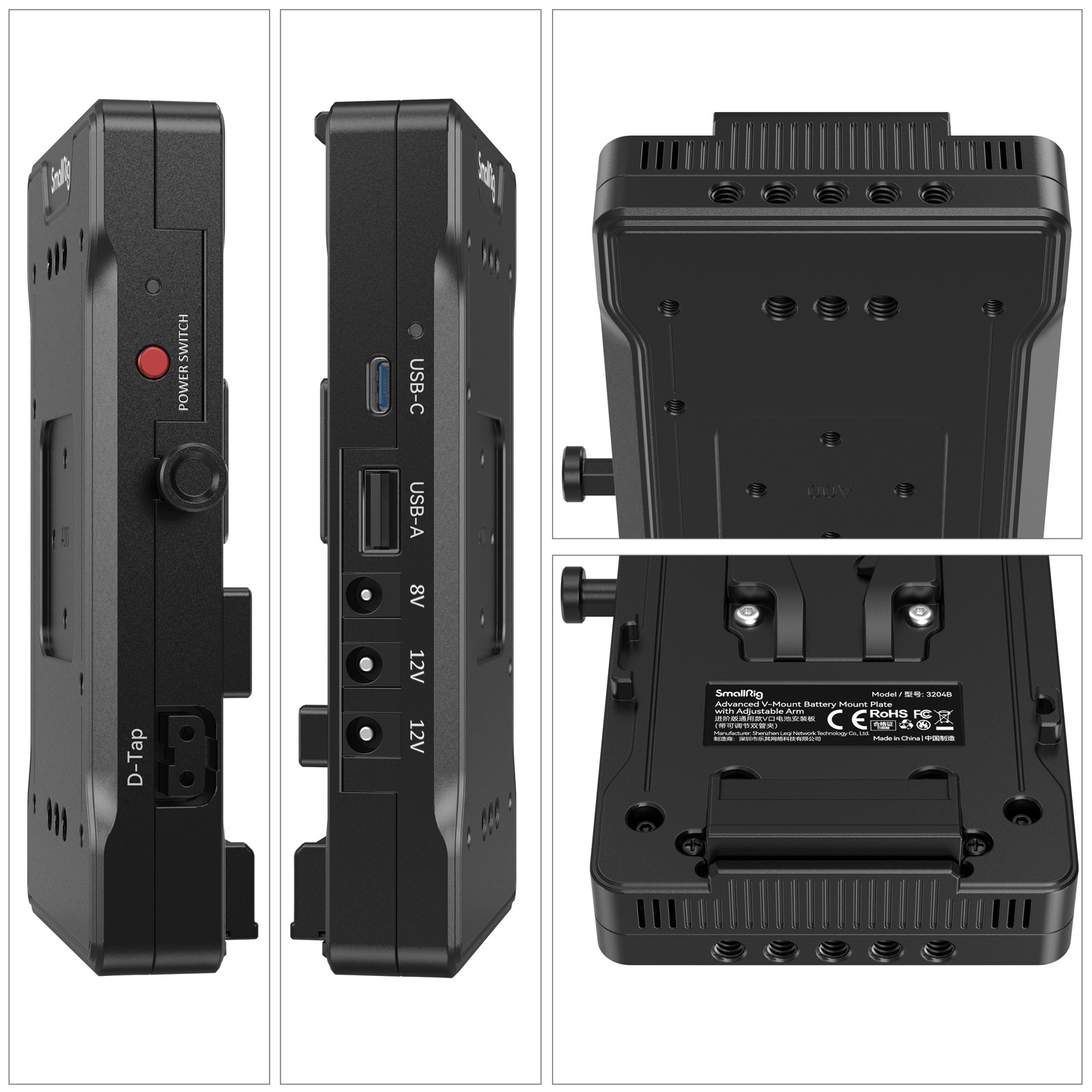

SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B can quickly mount onto a 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) port; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicate working status and fast/slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.
Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED
Note: Product weight and dimensions may have measurement errors.
Functions Description:
Charging / Discharging: USB-C charging
Indicator Light: orange light—slow charging/discharging, ice blue light—fast charging/discharging
Power Indicator Light:
Light on—powered on
light off—powered off
light flashing—working temperature exceeds 65℃
Power on / off Button:
Power on—tap the button; power off—long press the button for 2 seconds
D-Tap, USB-A, and DC output are unavailable after powering off
D-Tap input and USB-C input/output available after powering off
Key Features
Warning:
1. Do not use it in a damp environment to avoid short circuits.
2. When the indicator light keeps blinking, it means the working temperature exceeds 65℃. Please suspend its use.
3. Please do not drop the product, or use it under high temperatures or when a short circuit occurs.
Work With
V-Mount Battery

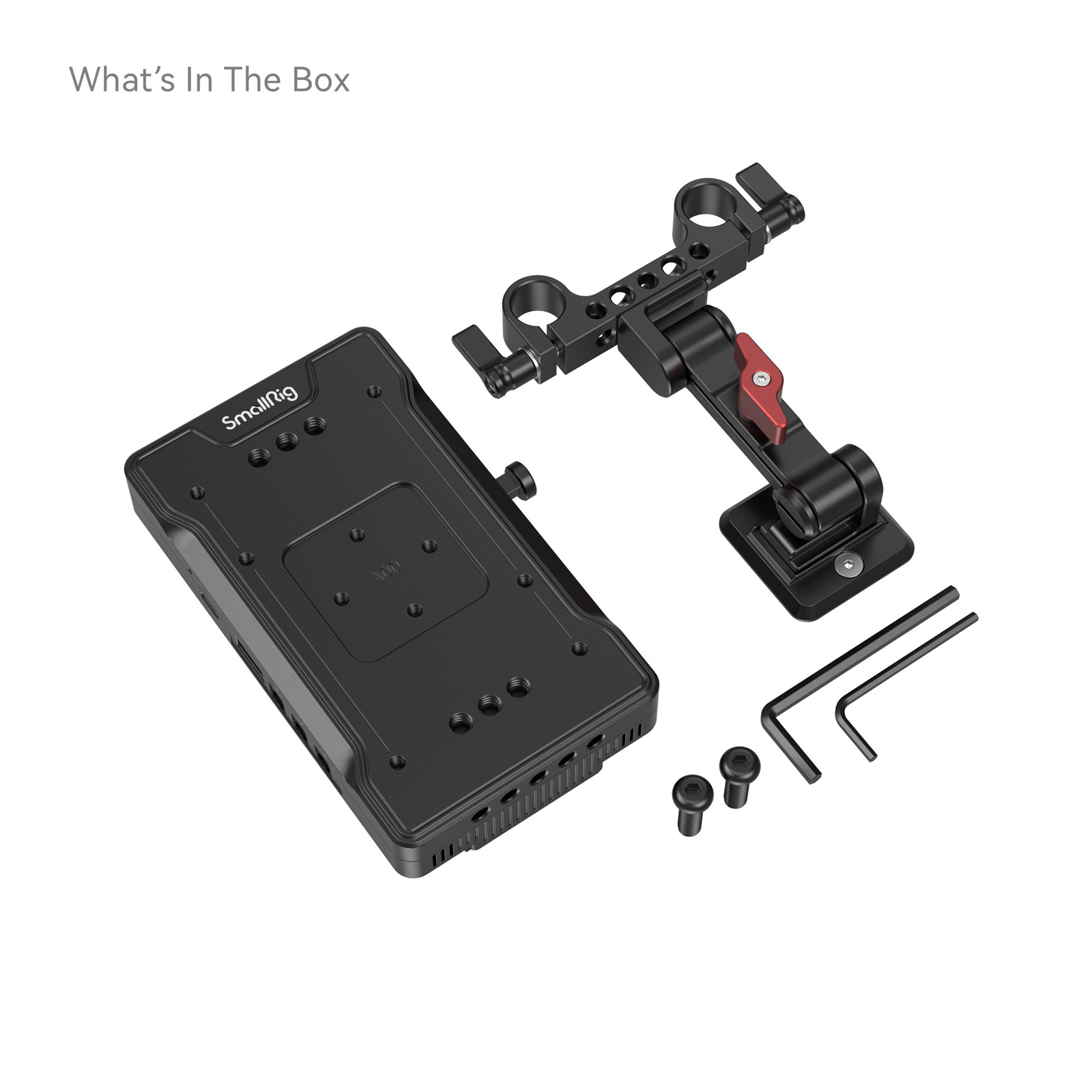

Packing List

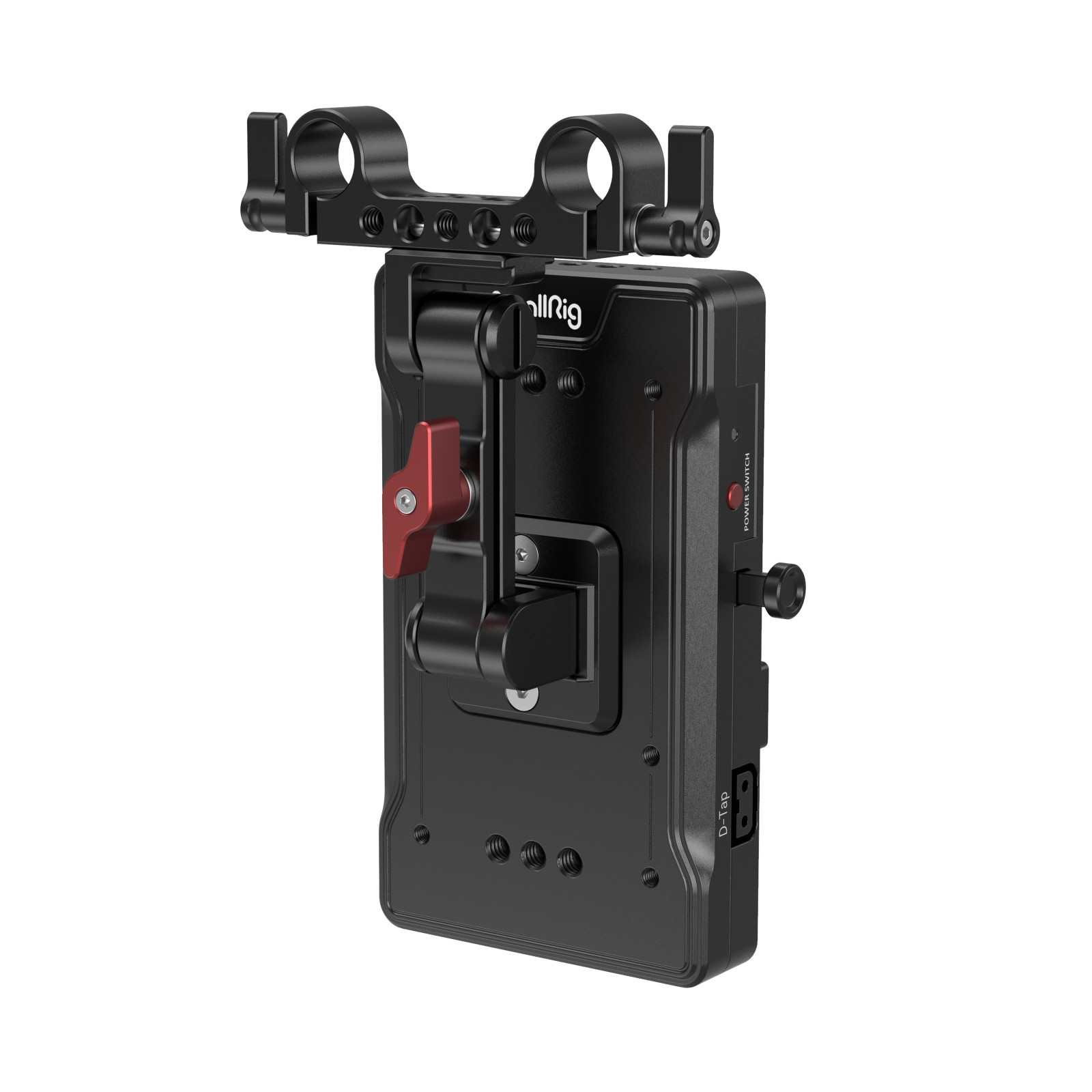

Advanced V-Mount Battery Adapter Plate x 1
Dual Rod Clamp with Adjustable Arm x 1
Hex Spanner x 2
Screw x 2
User Manual x 1
Technical Data
Battery Compatibility: V-Mount Battery
Dual Rod Diameter: 15mm (for 15mm LWS rod system)
Battery Voltage: 11.0V~16.8V
Battery Rated Capacity: 3500mAh~20000mAh / 14.8V
Cut-off Voltage: 11.0V
Input Voltage (Max.): 16.8V
Working Power (Max.): ≤ battery power (subject to battery capacity)
Total Maximum Power : Discharging: 271W (Max.)
D-Tap Rated Input / Output Current: 5A
D-Tap Input / Output Current (Max.): 10A (subject to power adapter)
D-Tap Input Voltage: 11.0V~16.8V
USB-A Output Power: 36W (Max.)
USB-A Output Protocol: QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
USB-C Input Power: 65W (Max.)
USB-C Output Power: 65W (Max.)
USB-C Input / Output Protocol: PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
DC1 Output: 8.0V / 3A (Max.)
DC2 Output: 12V / 3A (Max.)
DC3 Output: 12V / 3A (Max.)
DC Overcurrent Protection: ≥4.1A
Product Dimensions: 14.2cm×15cm×9.3cm
Package Dimensions: 17.1cm×13.3cm×8.3cm
Product Weight: 399g±5g
Package Weight: 517g±5g
Material(s): Aluminum Alloy
