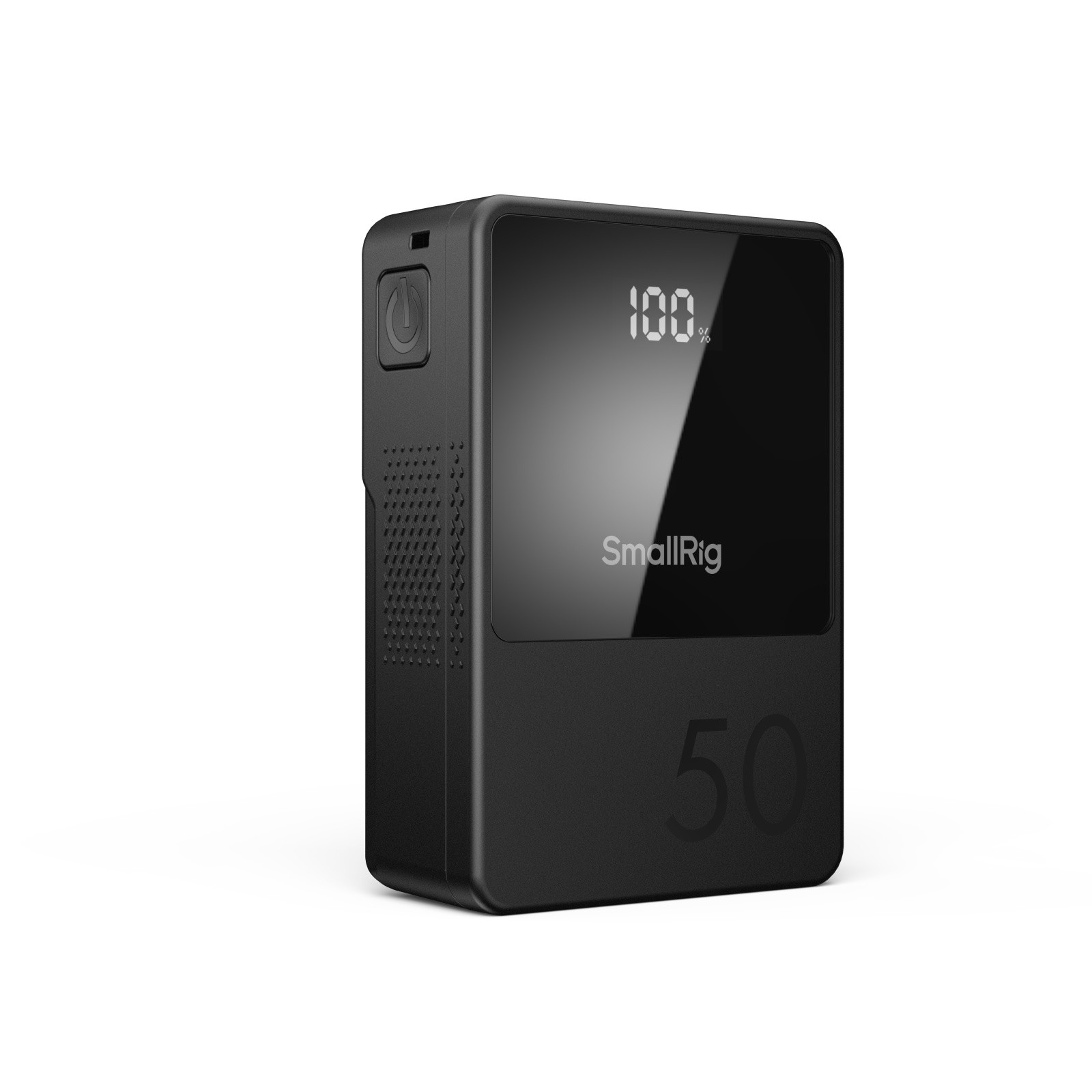

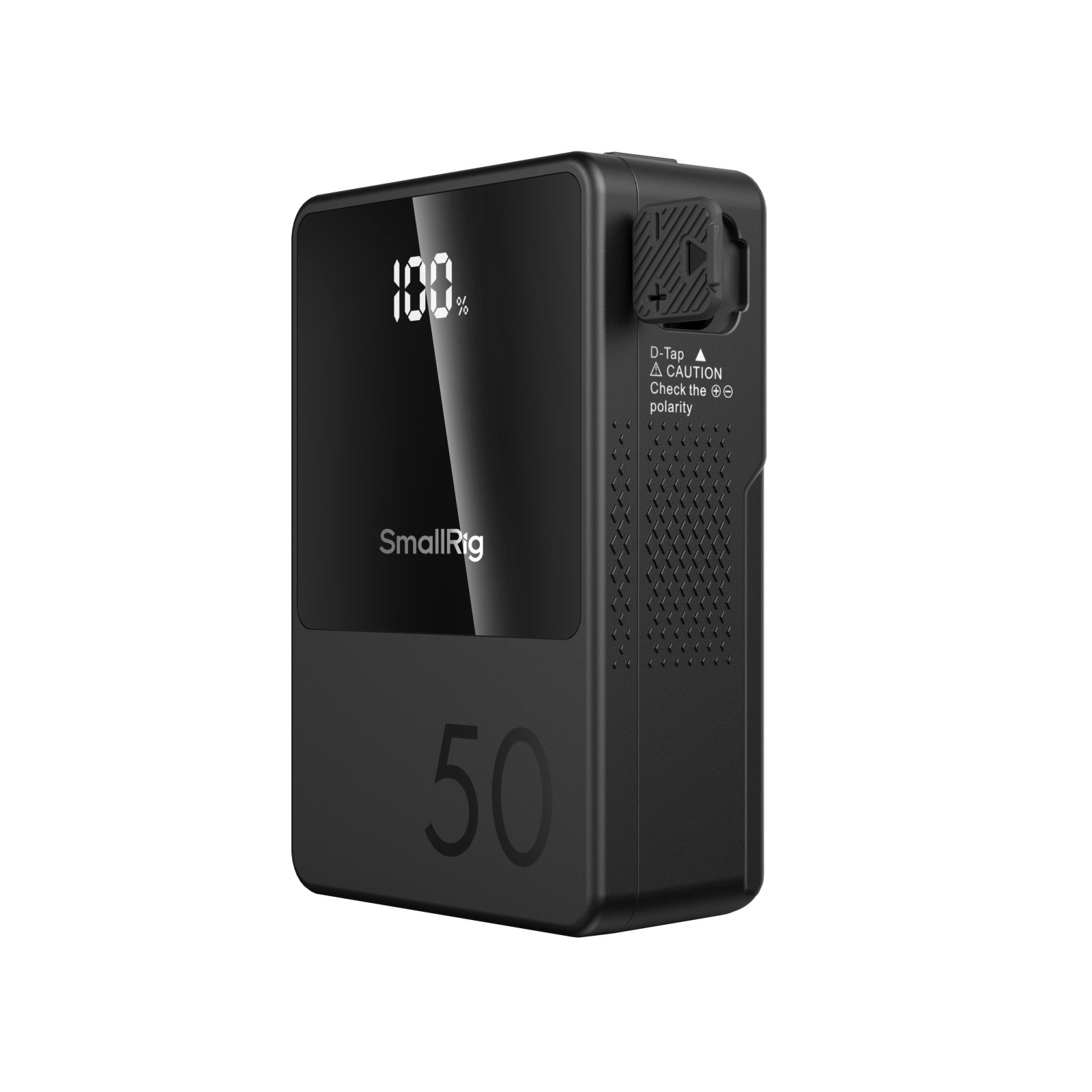

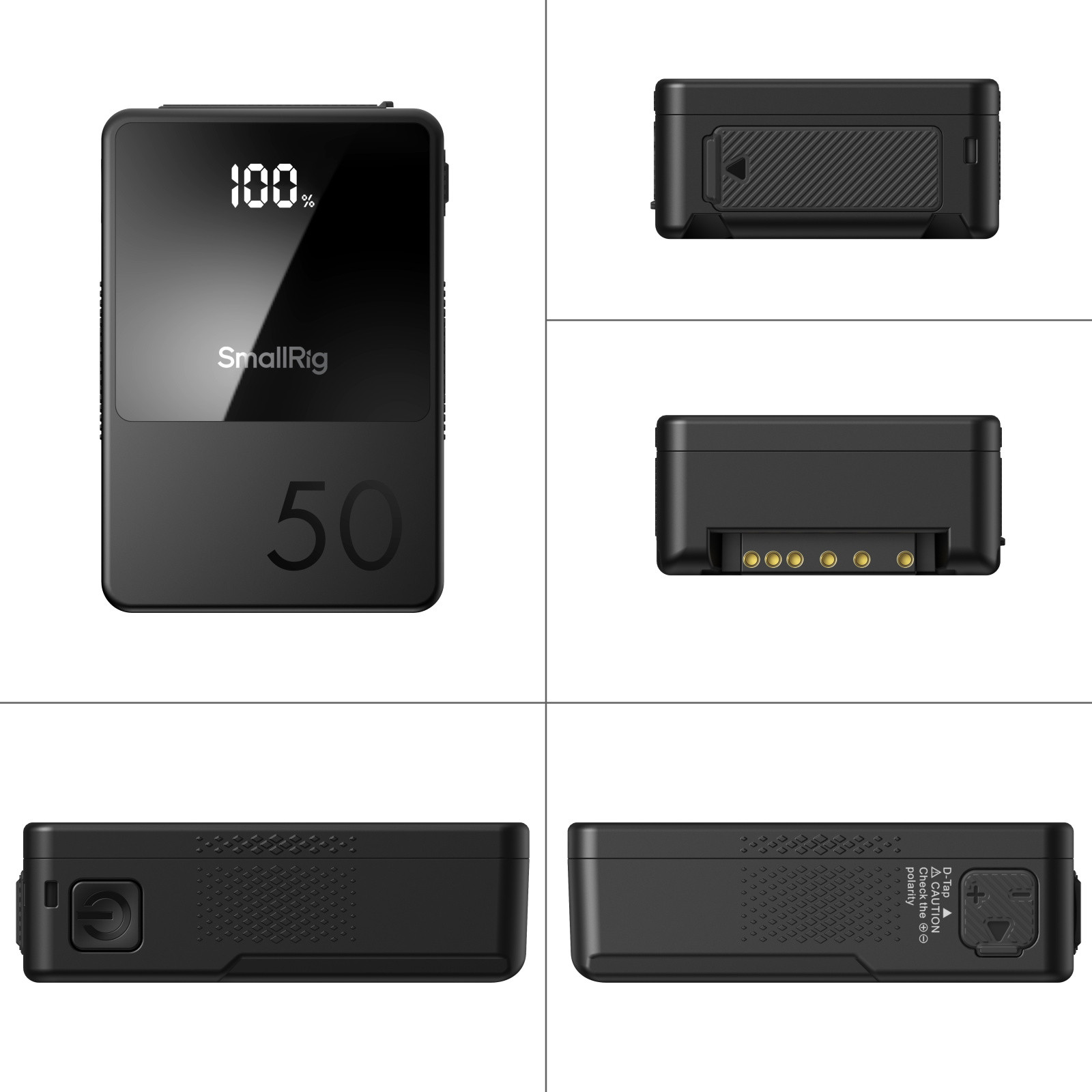

SmallRig VB50 mini V Mount Battery 3579

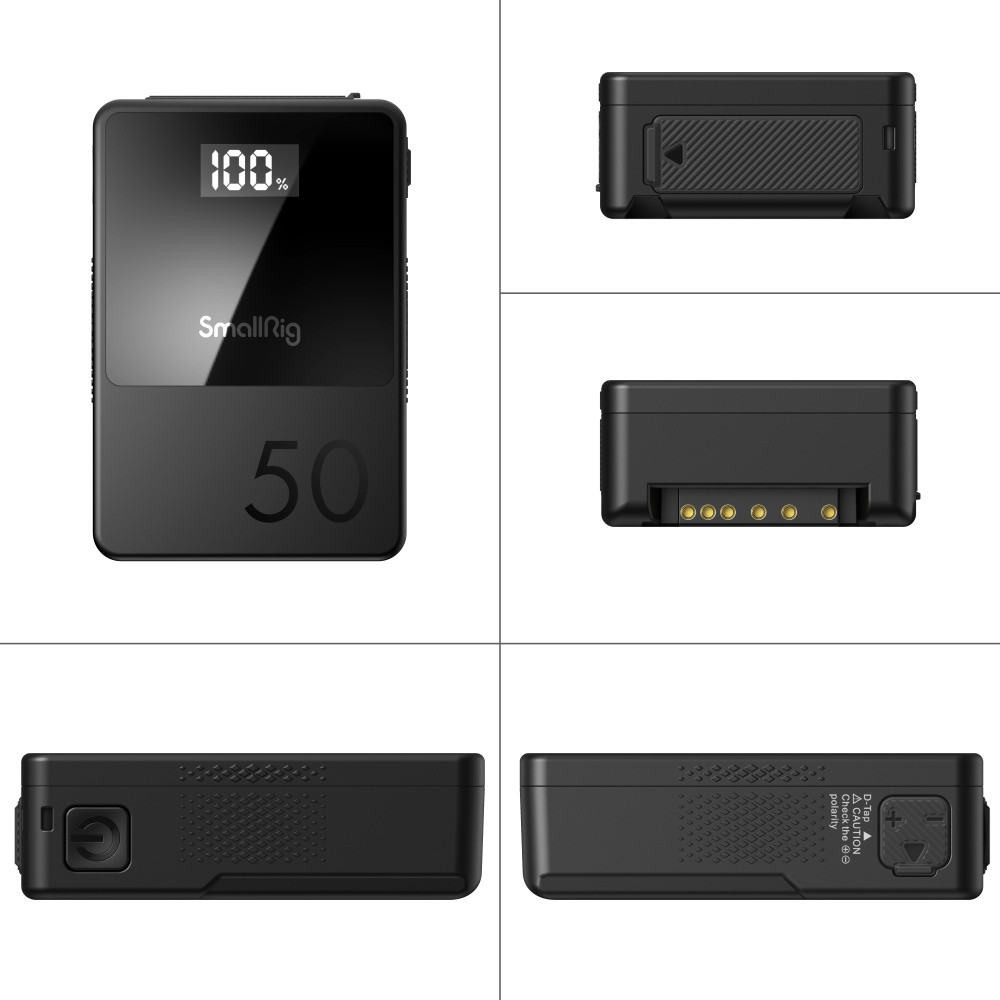

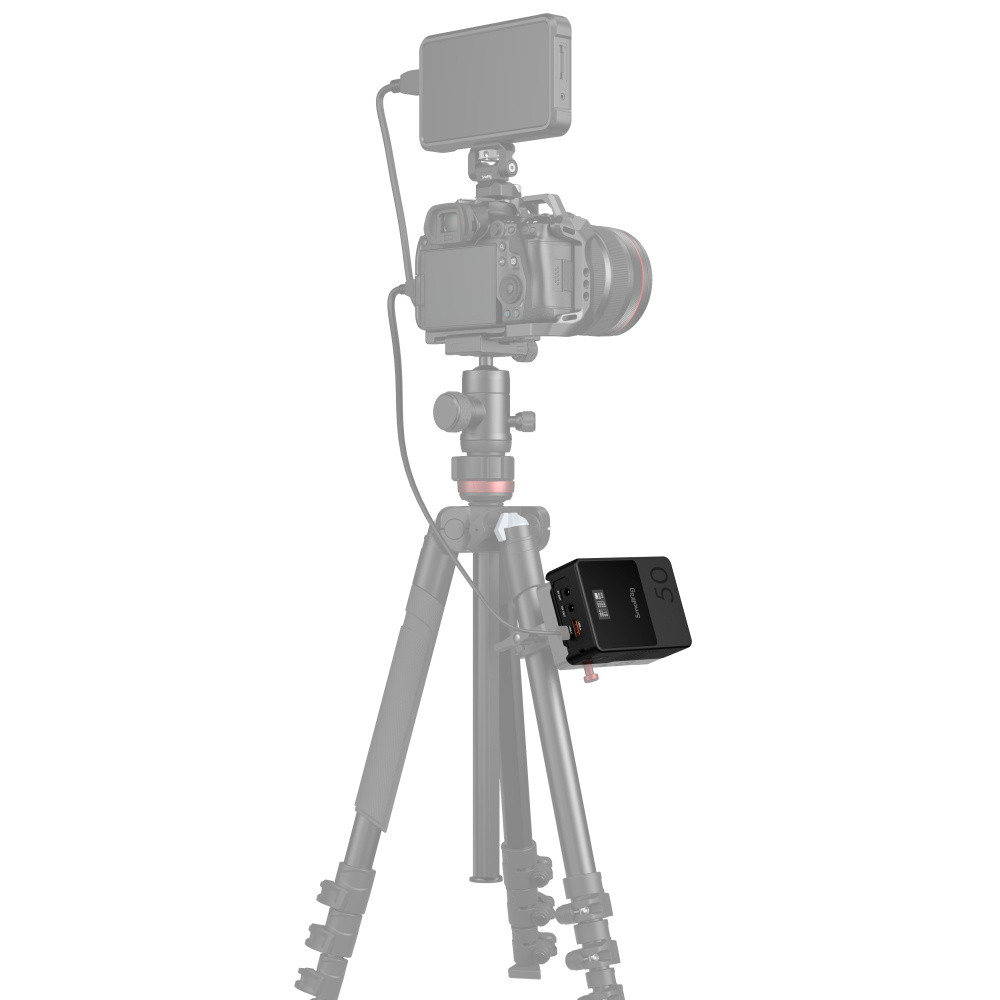

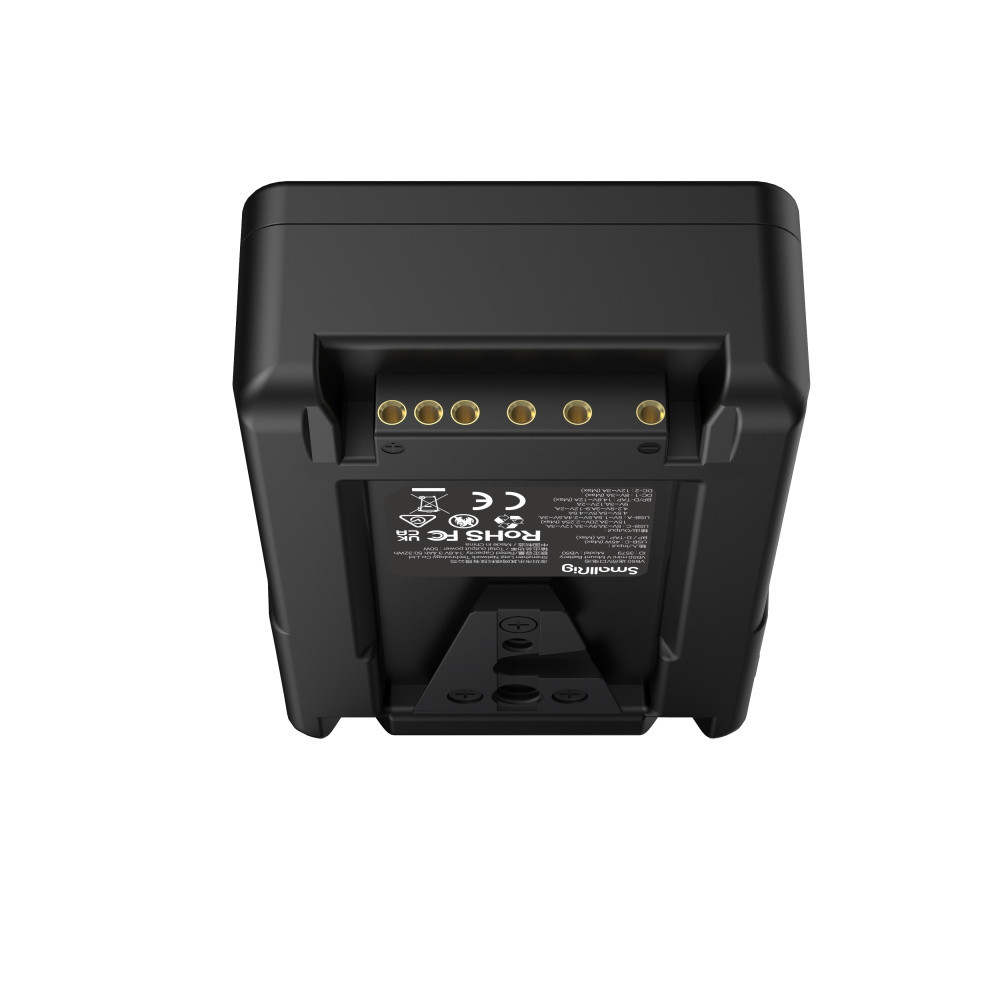

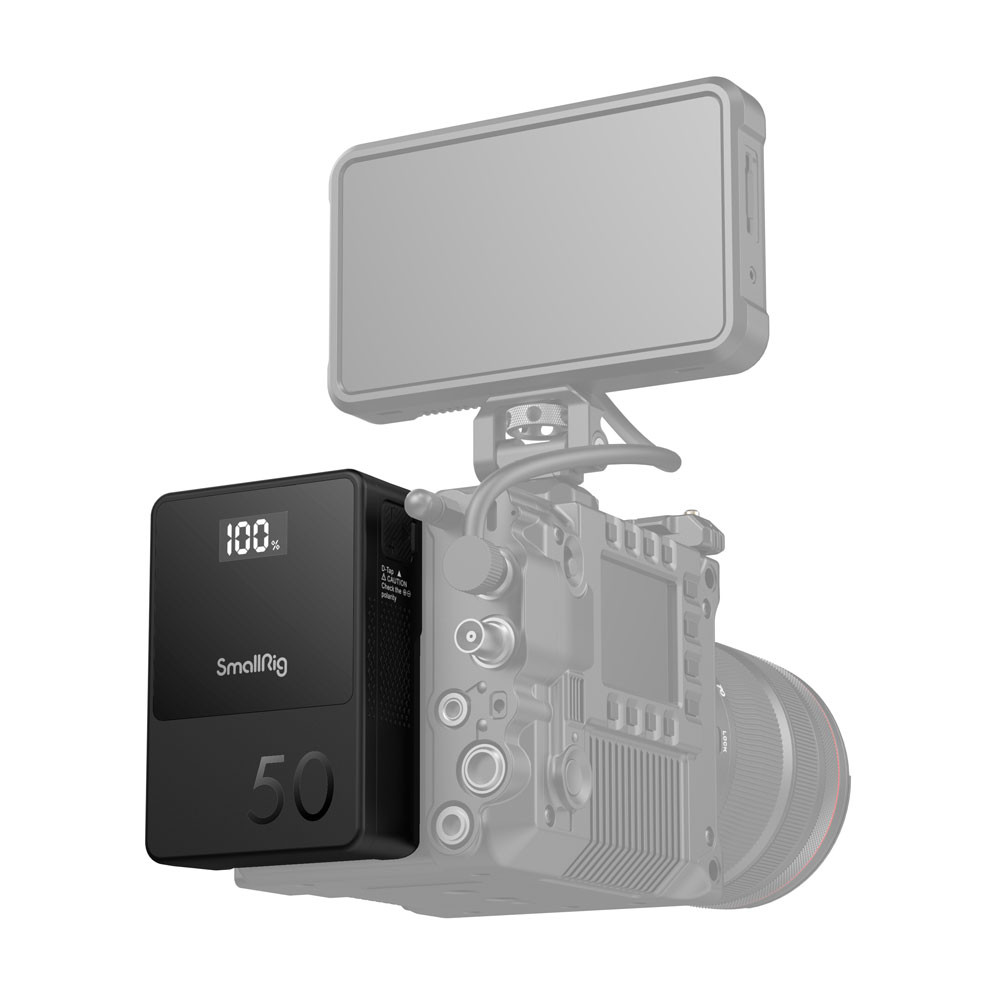

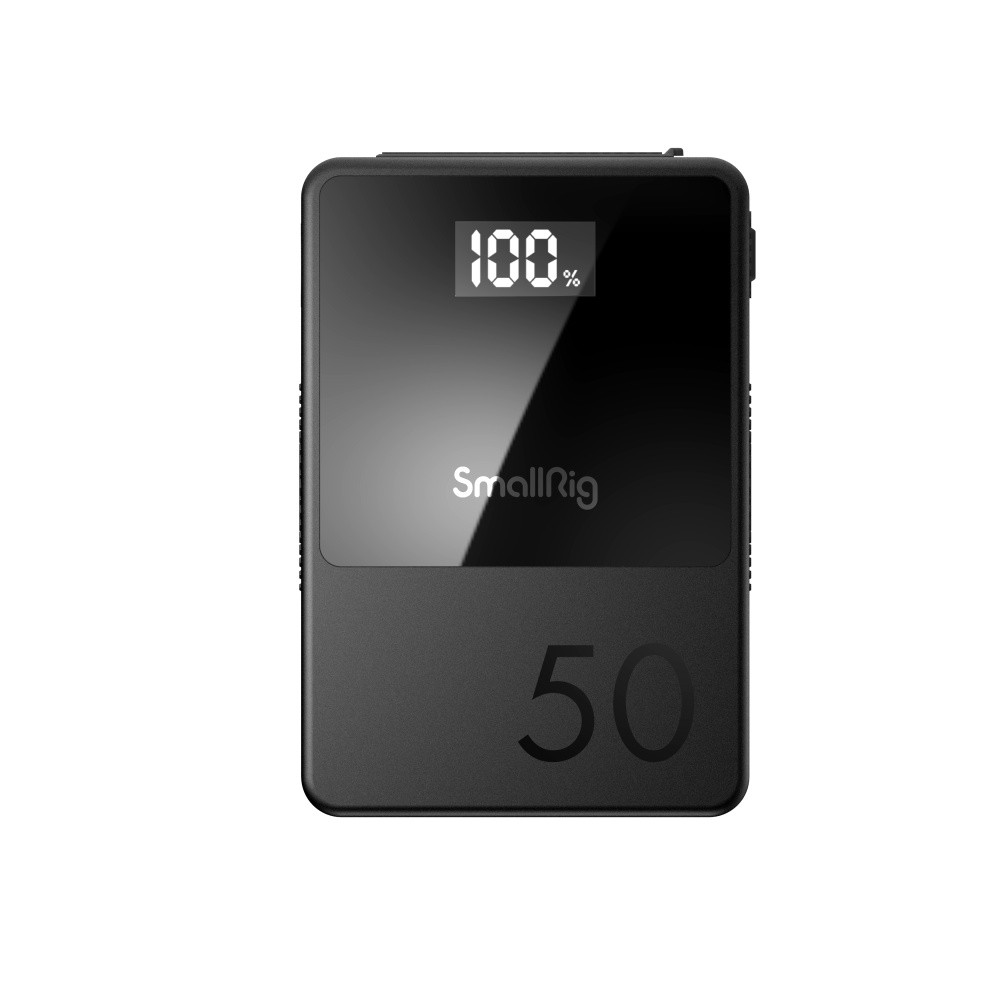

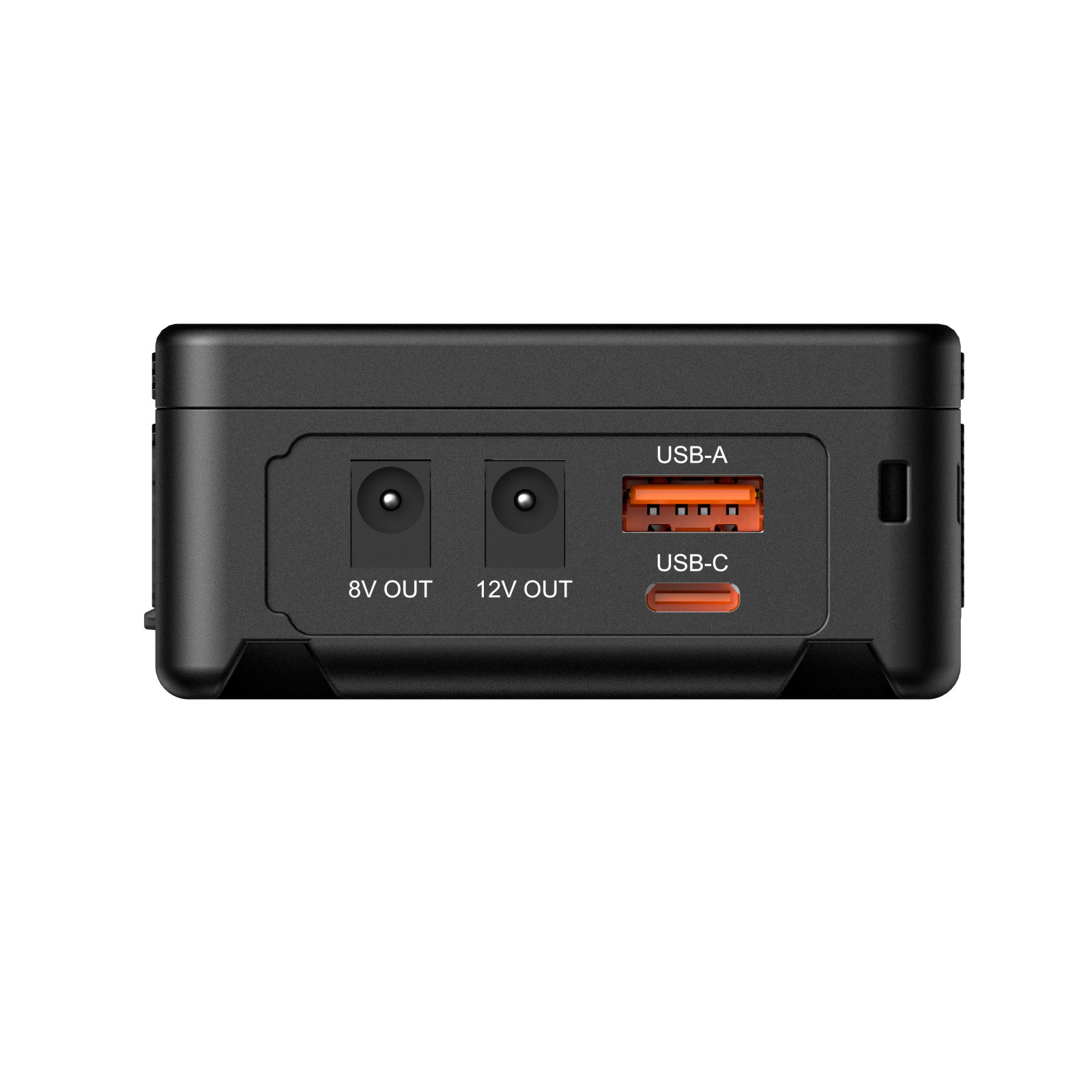

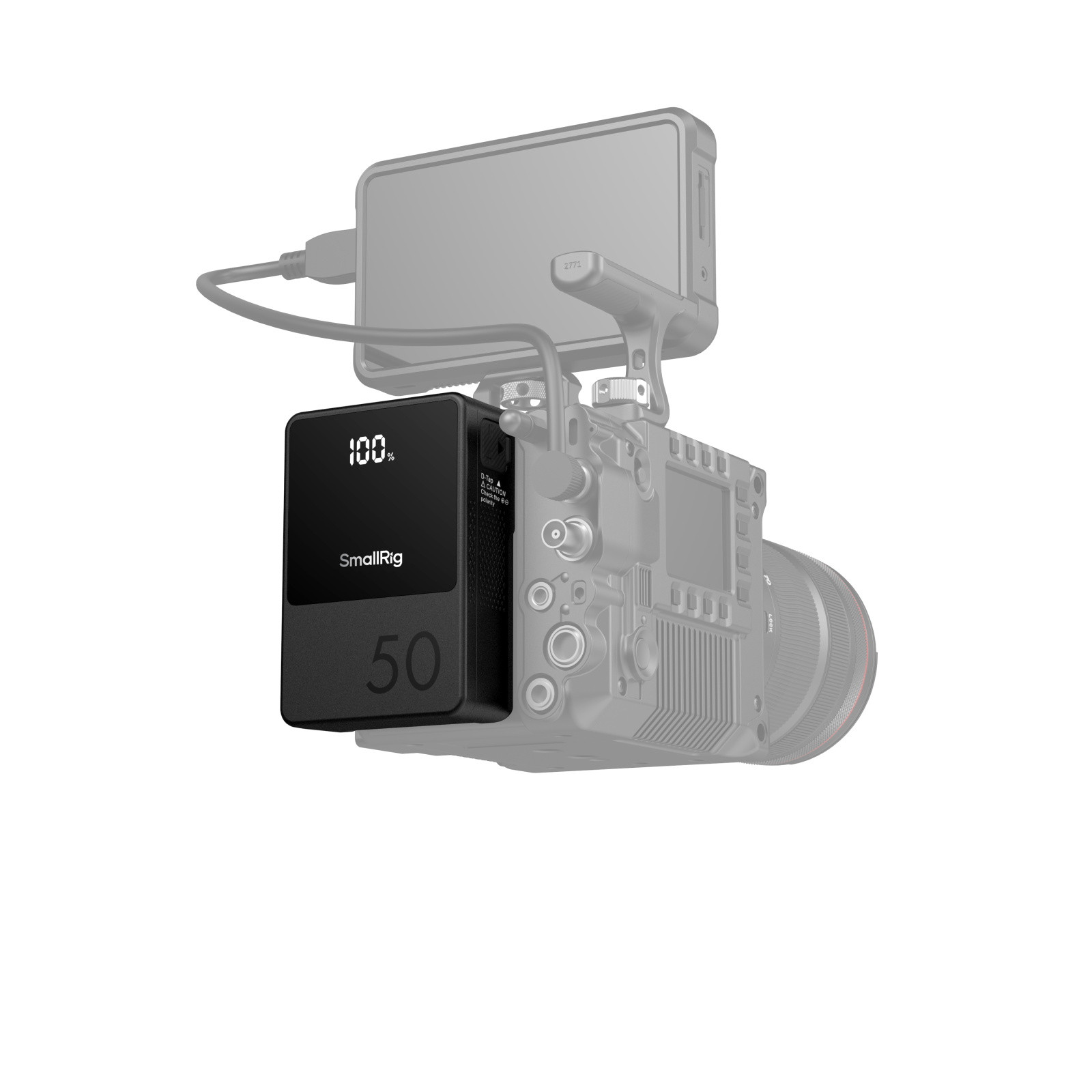

SmallRig VB50 mini V Mount Battery 3579 is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 45W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage, etc. Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!
Note:
Please keep it clean, dry area, and away from corrosive substances to reduce the risk of short circuits.
Please check its battery life regularly in case you need it anytime anywhere.
If the battery is left unused for a long time, please charge it to about 70% every three months and put it in a dry and ventilated environment for a longer lifespan.
Working temperature: -10℃ - 45℃ (14℉ - 113℉),
Storage temperature:
One month: -20℃ - 60℃ (-4℉ - 140℉)
Three months: -20℃~45℃ (-4℉ - 113℉)
One year: -20℃~20℃ (-4℉ - 68℉)
Reference storage temperature/humidity:
temperature: 20℃±5℃
humidity: 60±15%
It is normal for the battery to heat up slightly during charging or using.
When using the D-TAP connector, please distinguish the positive and negative terminals, and do not reverse the battery.
It’s normal that for a long time of storage the battery will lose some power cause it has self-consumption.
Do not exceed its rated output when powering up other devices.
Keep it away from water or fire when using.
Please avoid dropping or crushing.
Children can only use it under adult supervision.
![](https://www.smallrigreseller.com/media/wysiwyg/3579_3580_3581_detail_page_-_.jpg)
Packing List
User Manual × 1
Technical Data
Items |
Parameters |
Material |
Fireproof PC |
Capacity |
14.8V 3.4Ah 50Wh |
Rated Power |
Discharge: 50W Charge: 45W |
V Mount/ D-tap Input |
5A (Max) |
V Mount / D-tap Output |
14.8V / 12A (Max) |
USB-A Output Supports QC2.0 / QC3.0 / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A |
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
USB-C Input / Output Input 45W (Max) Output 45W (Max) Supports PD3.0 / QC2.0 / QC3.0 / PPS / AFC/ FCP / SCP / DCP-1.5A / APPLE-2.4A |
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 2.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-16V / 3A APPLE-2.4A: 5V / 2.4A |
DC1 Output |
8V / Max3A |
DC2 Output |
12V / Max3A |
Cutoff Voltage |
11V |
Optional Charging Method |
16.8V D-tap charger, USB-C charger such as GaN charger with PD fast charging tech (up to 45W) |
Product Dimensions |
107.0 × 73.0 × 34.0 mm |
Net Weight |
330 g ± 10 g |
Package Dimensions |
147.0 × 114.0 × 57.0 mm |
Gross Weight |
490 g ± 10 g |
