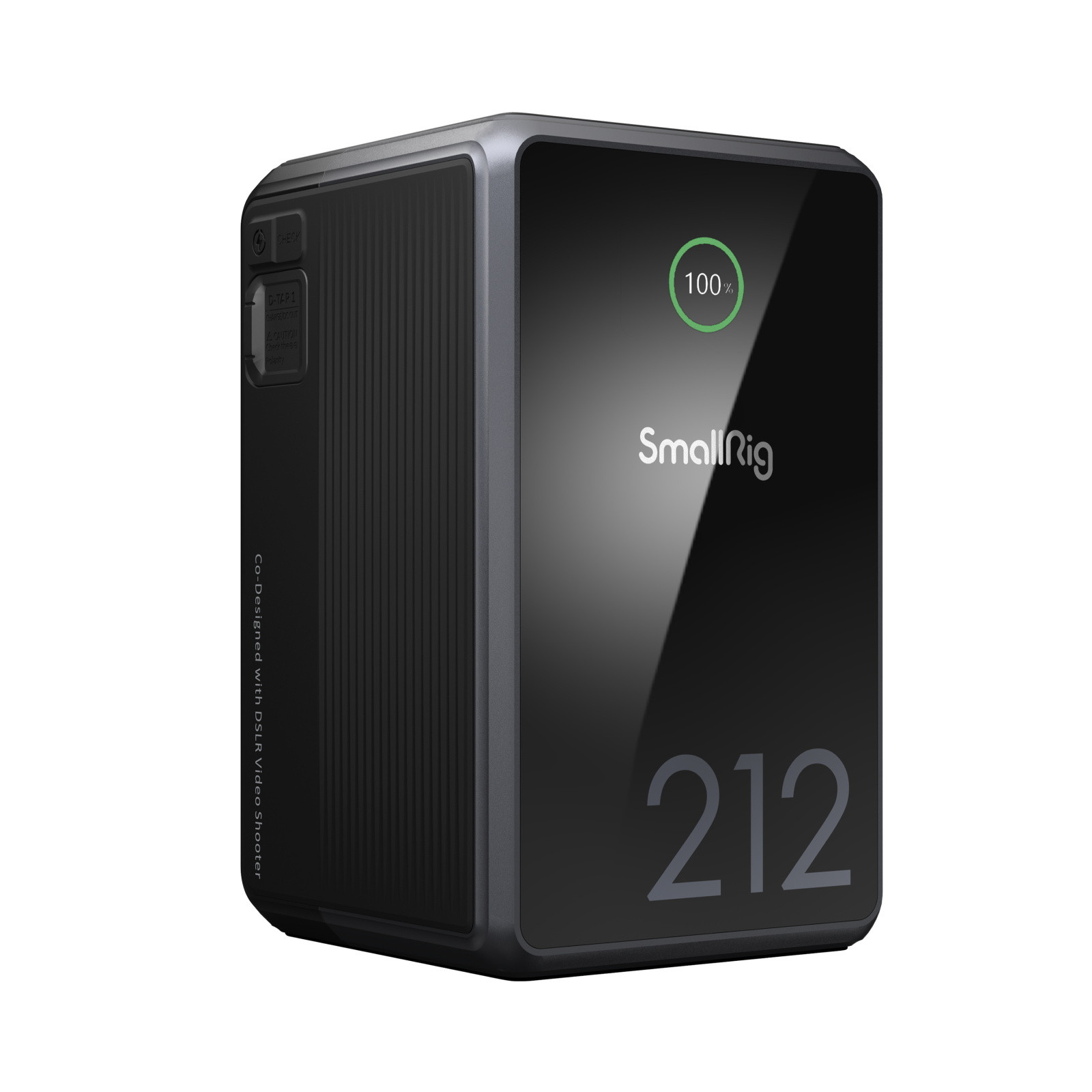

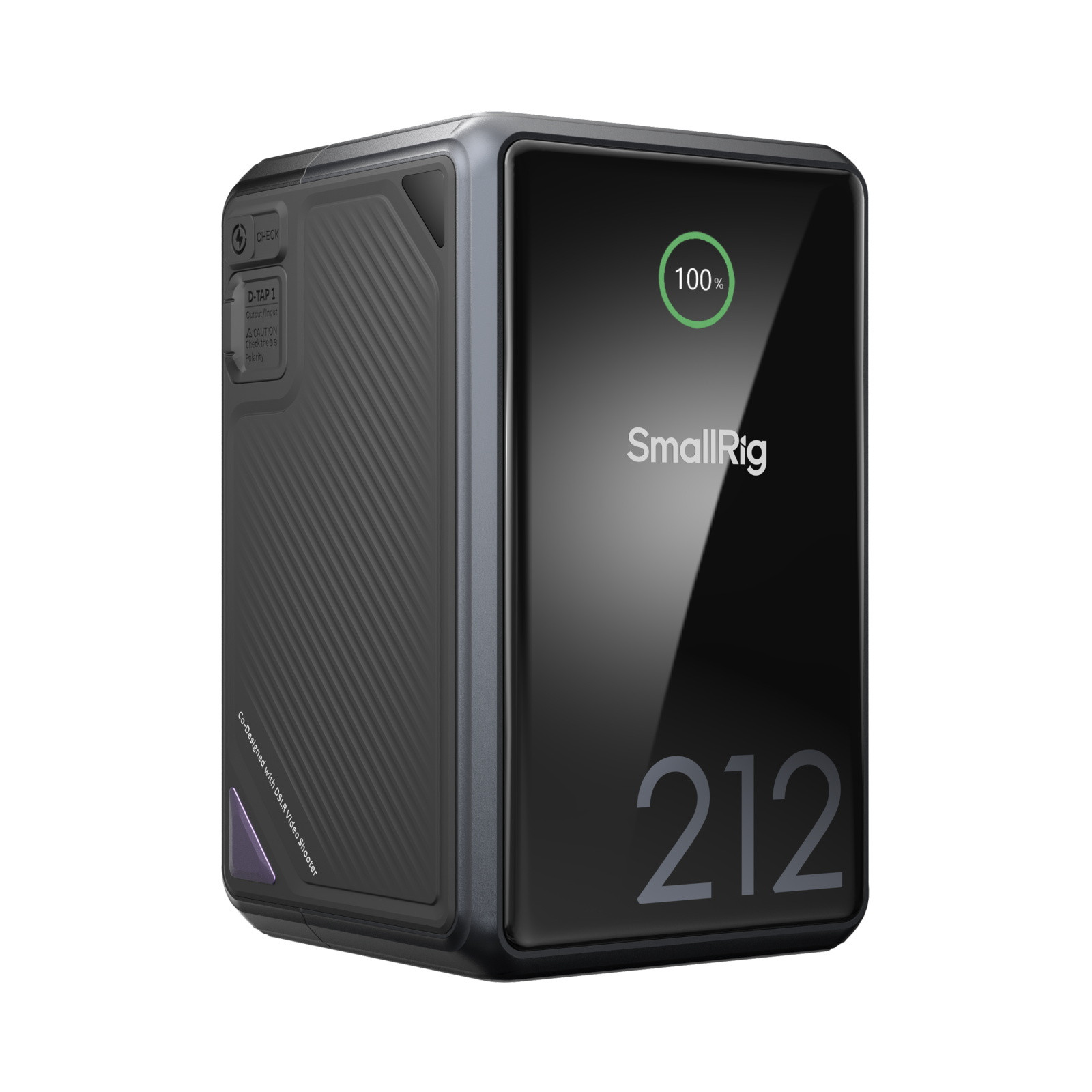

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293B
SmallRig x Caleb Pike VB212 mini V Mount Battery 4293B combines high capacity, rapid charging, and intelligent control in one compact power solution. It delivers 14.54V and 221Wh for stable, extended operation during demanding shoots.

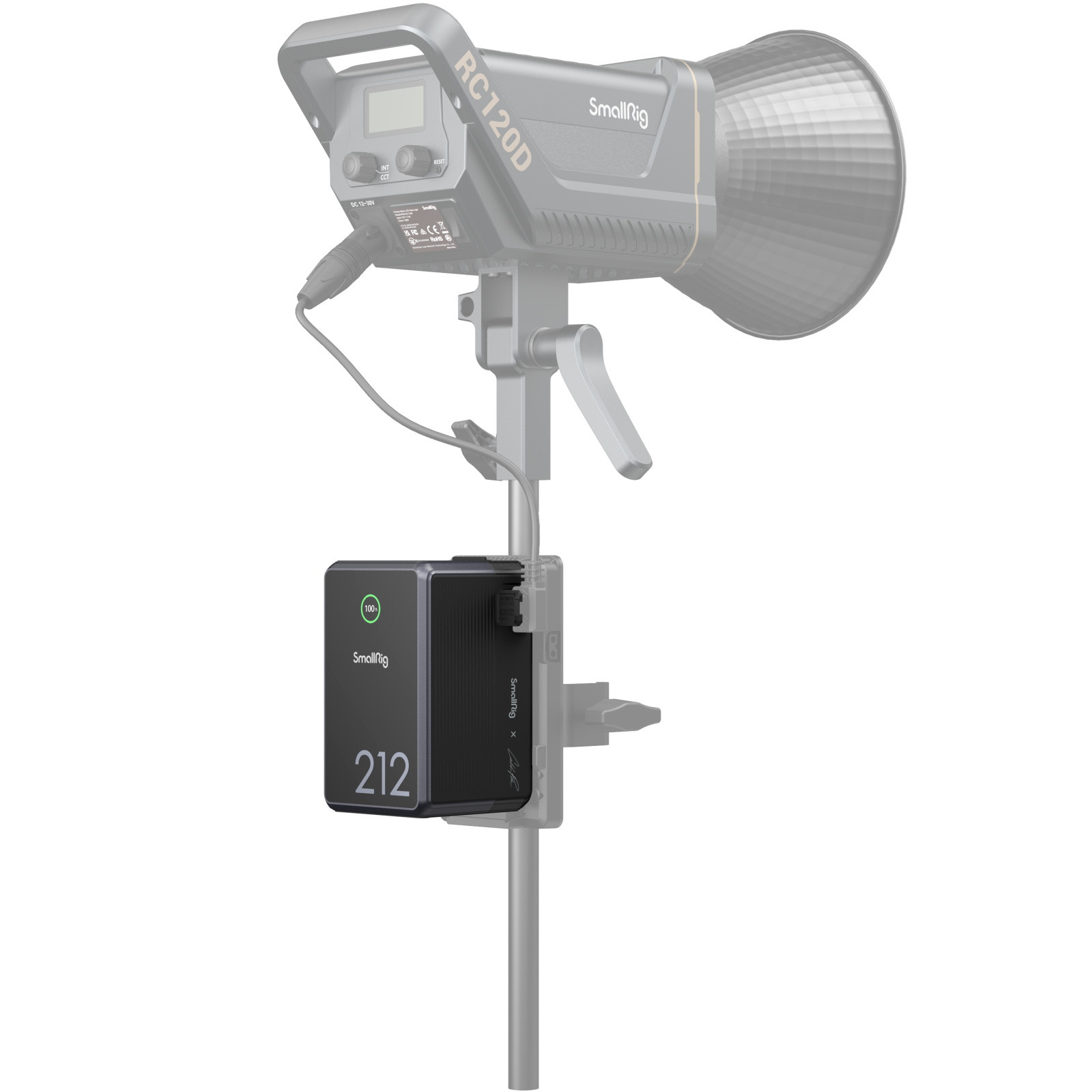

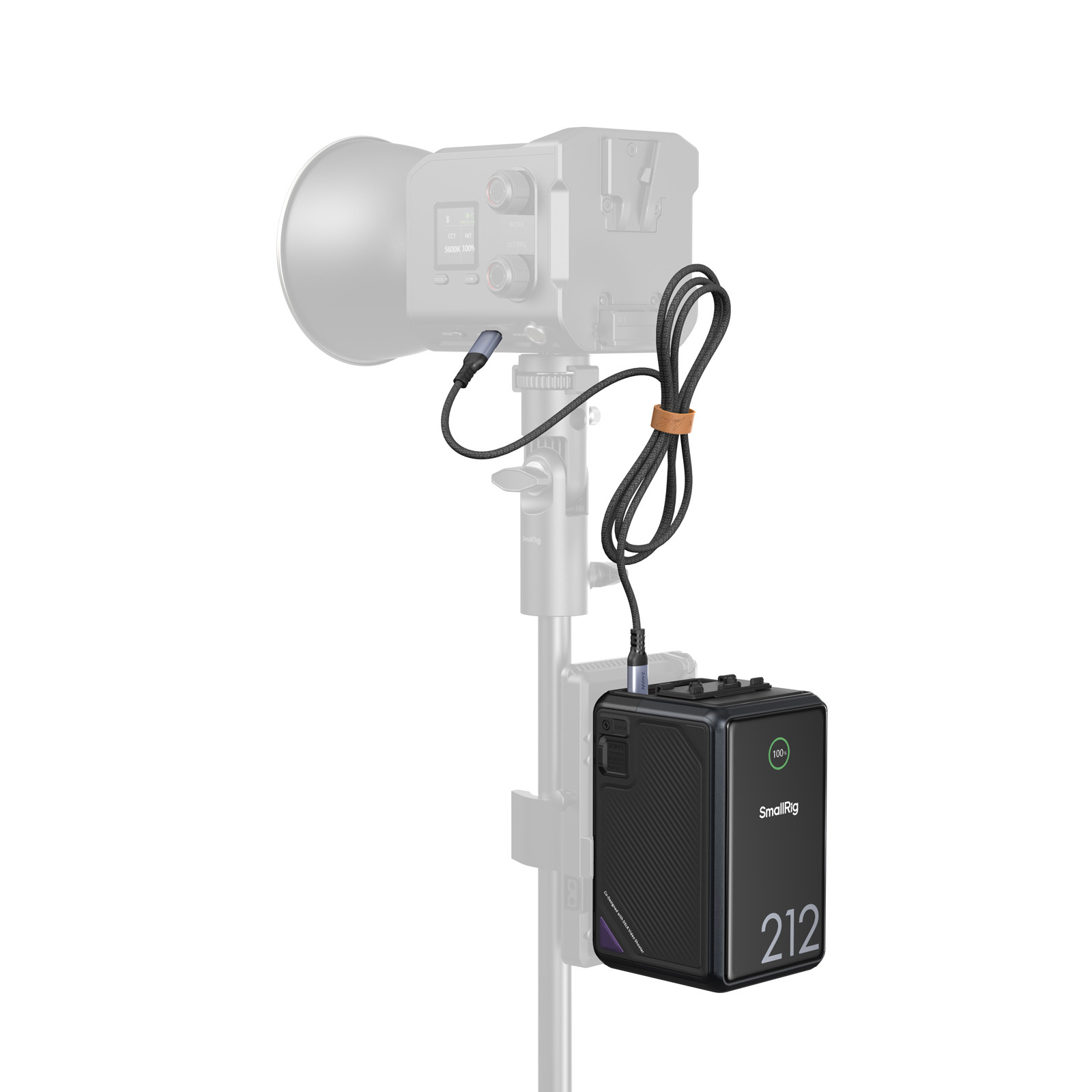

With PD 3.1 140W bidirectional fast charging, both USB C ports enable high speed power delivery. An upgraded cooling system allows a full charge in approximately 2 hours and maintains full-power discharge—capable of running 140W or lower fill lights at maximum brightness until depletion without any drop in performance.

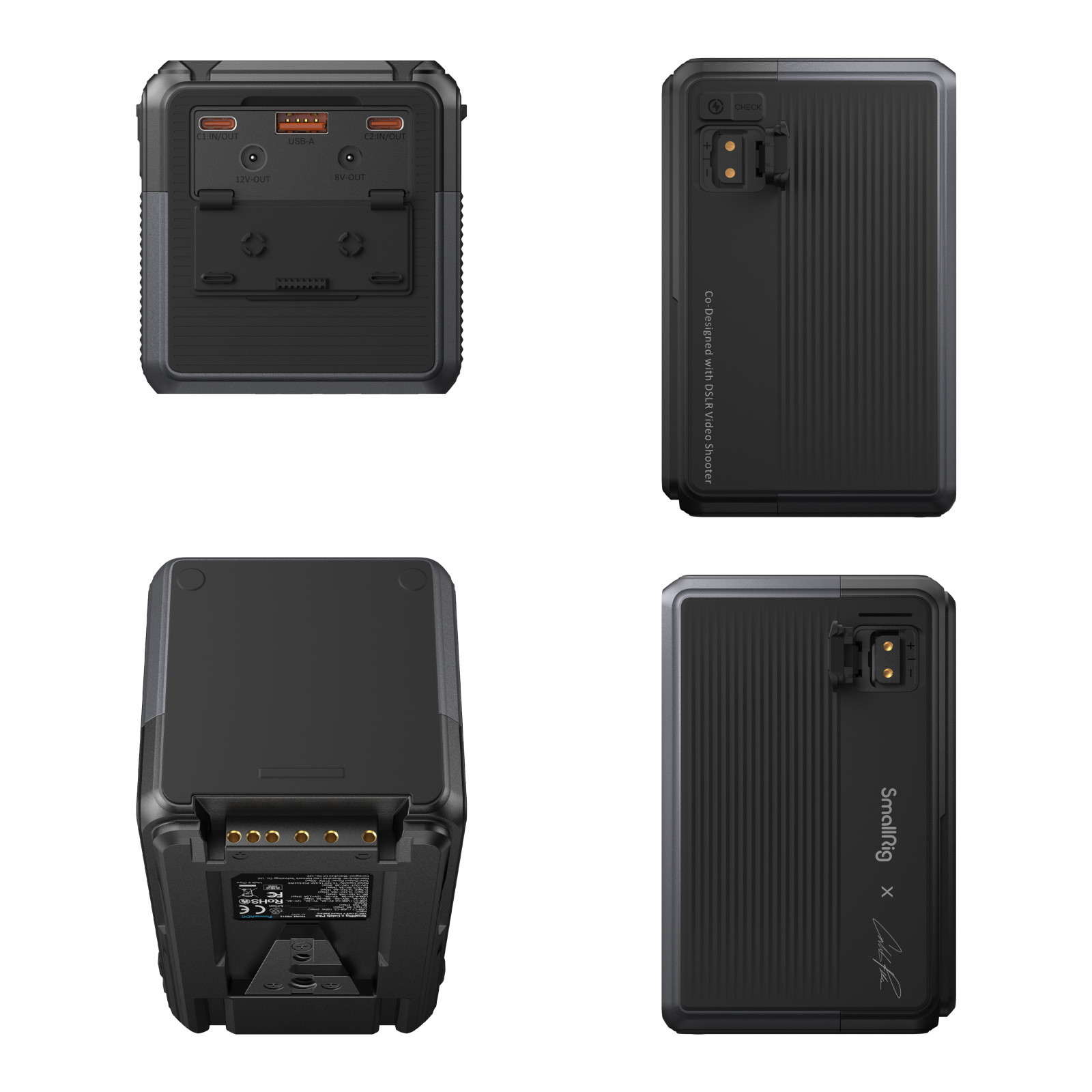

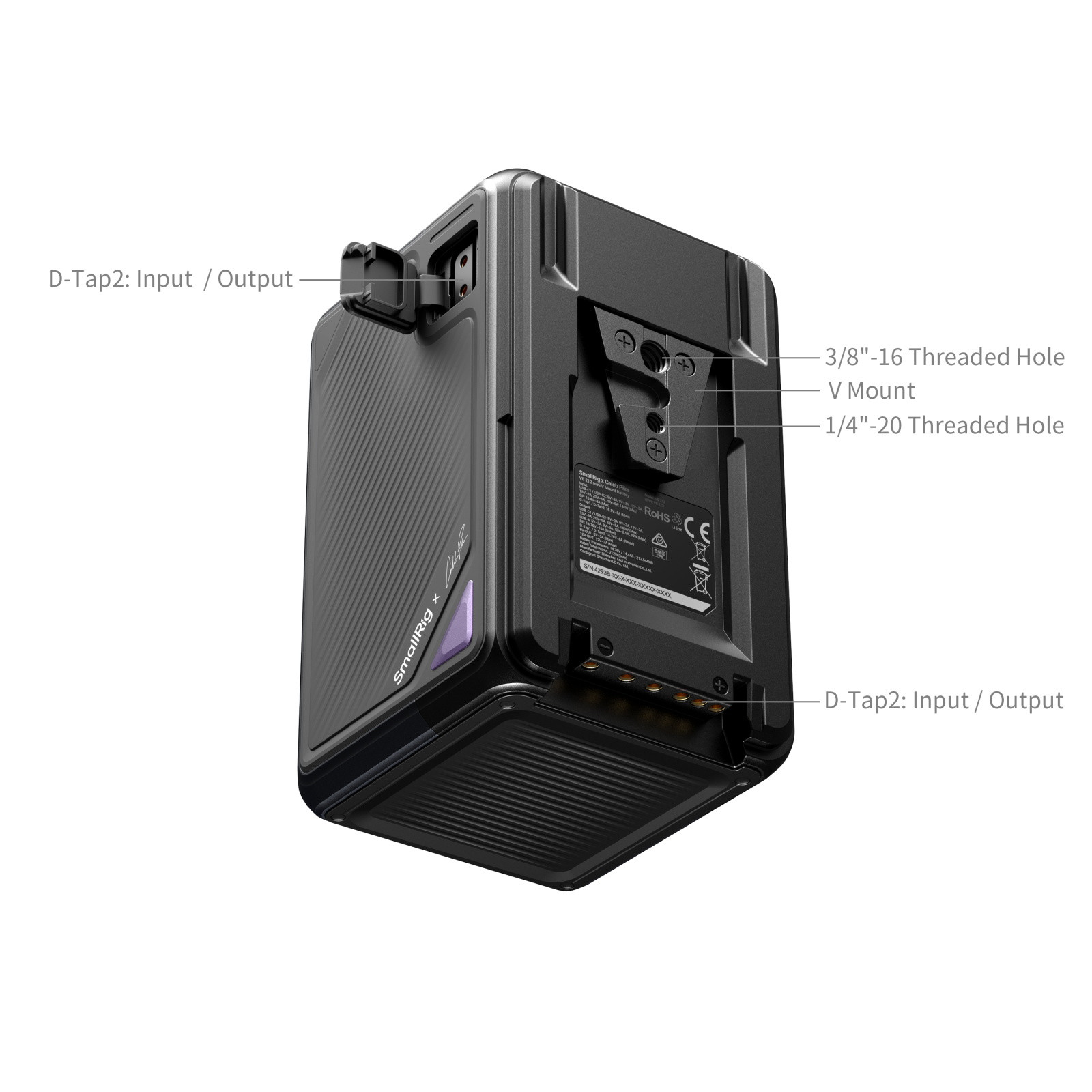

Its comprehensive port selection—1 BP, 2 USB-C, 2 D-Tap, 1 USB-A, 1 8V-OUT, and 1 12V-OUT—supports simultaneous output from all ports. This integrated design powers an entire gear setup from a single battery, reducing the need for multiple power sources.

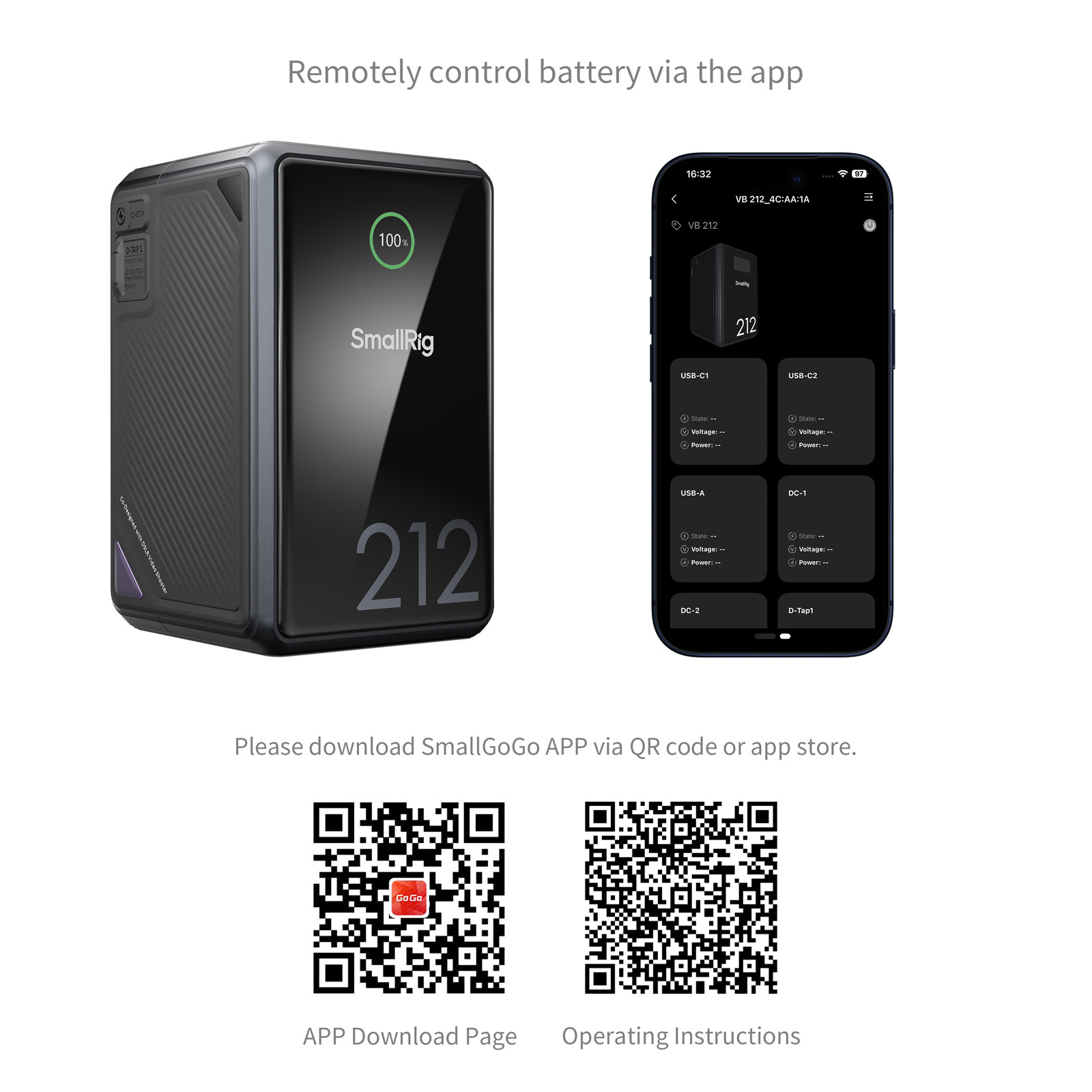

New smart app control allows users to monitor and manage multiple batteries remotely via smartphone or tablet. The app provides real-time battery status, port control, and firmware updates for streamlined operation.
Safety is engineered throughout: high-quality LG battery cells, a smart BMS control chip, and precision circuitry provide comprehensive protection against over-temperature, over-current, over-voltage, short circuits, overcharging, and over-discharging.

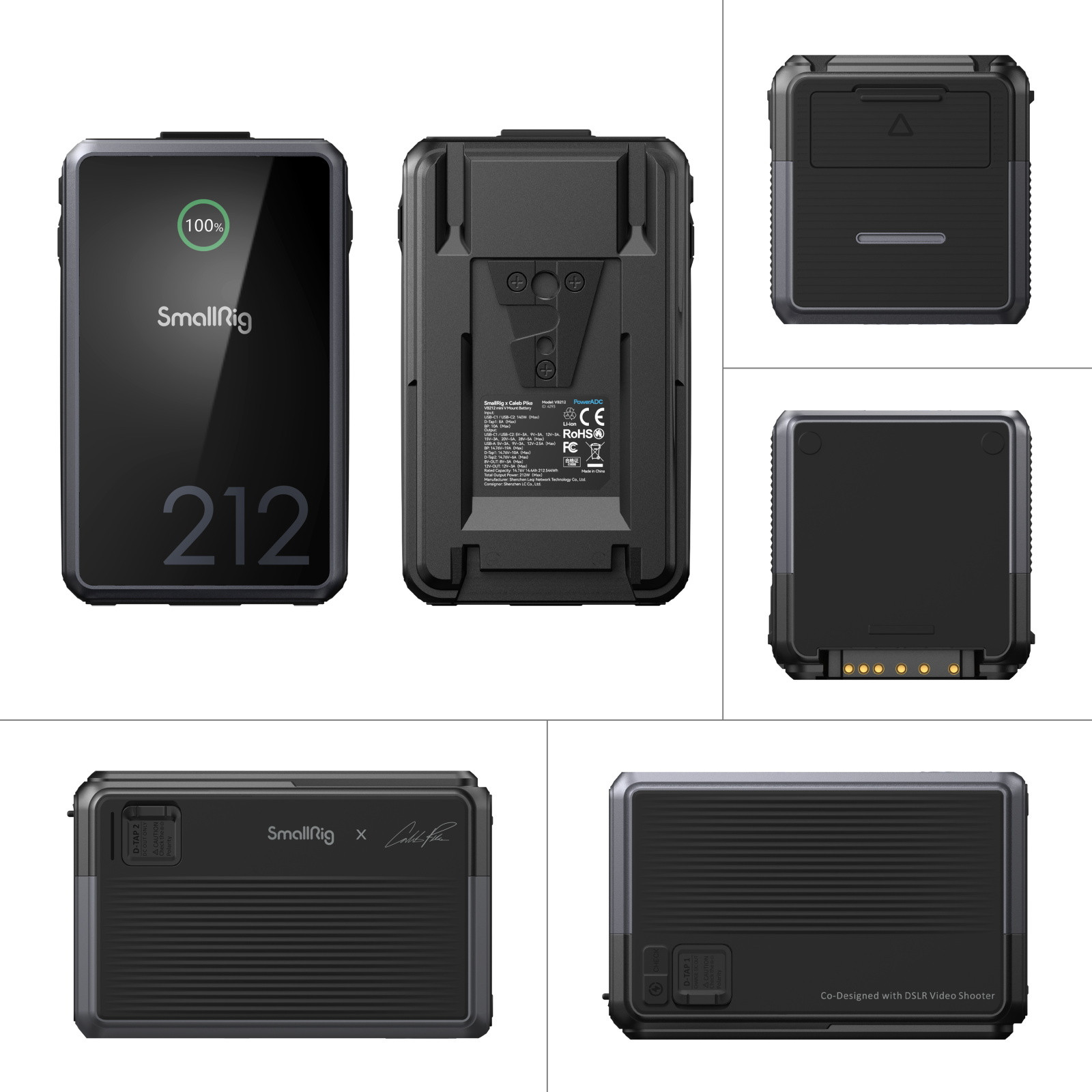

Housed in an aluminum alloy frame with silicone-covered sides and a thickened polycarbonate front panel, the VB212 is built to withstand scratches, impacts, heat, and flames.
From its internal cells to its external protection, the SmallRig VB212 is designed for all-around reliability—a trusted power companion for your most demanding creative projects.
Certifications: FCC, CE, RoHS, ISED, PSE, RCM
Work With

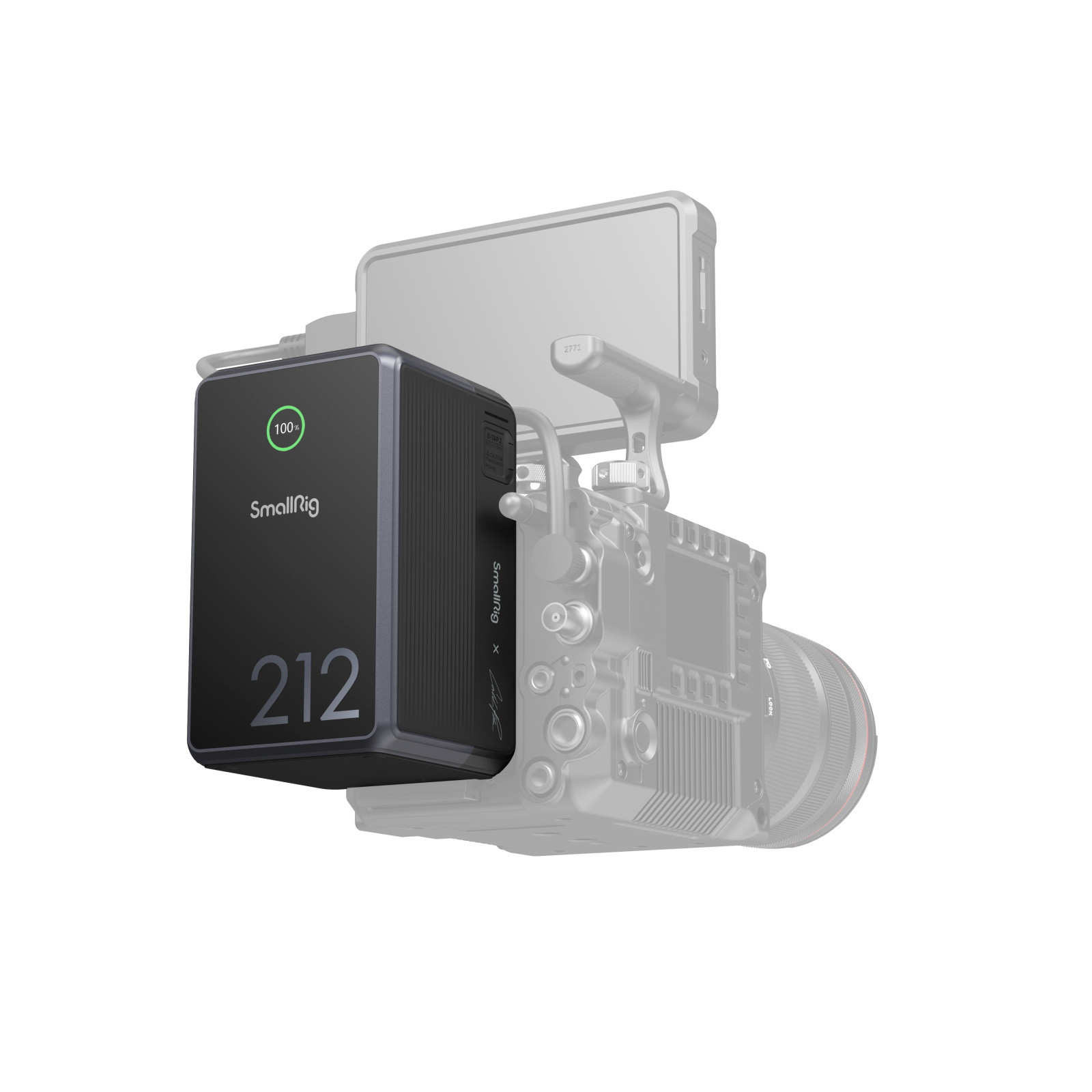

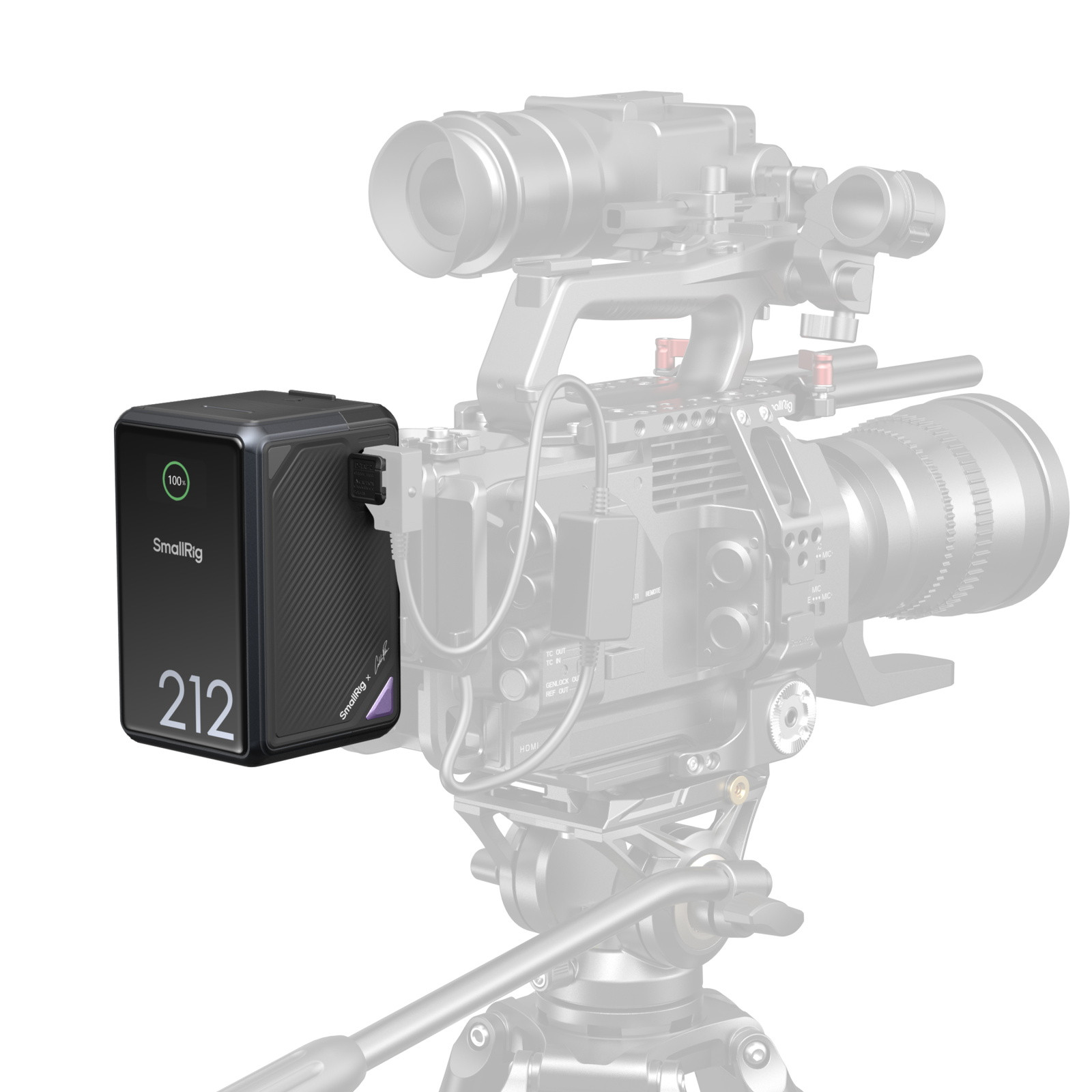

Mirrorless cameras, camcorders, cameras, monitors, follow focuses, image transmitters, LED video lights, cell phones, tablets, laptops, etc.

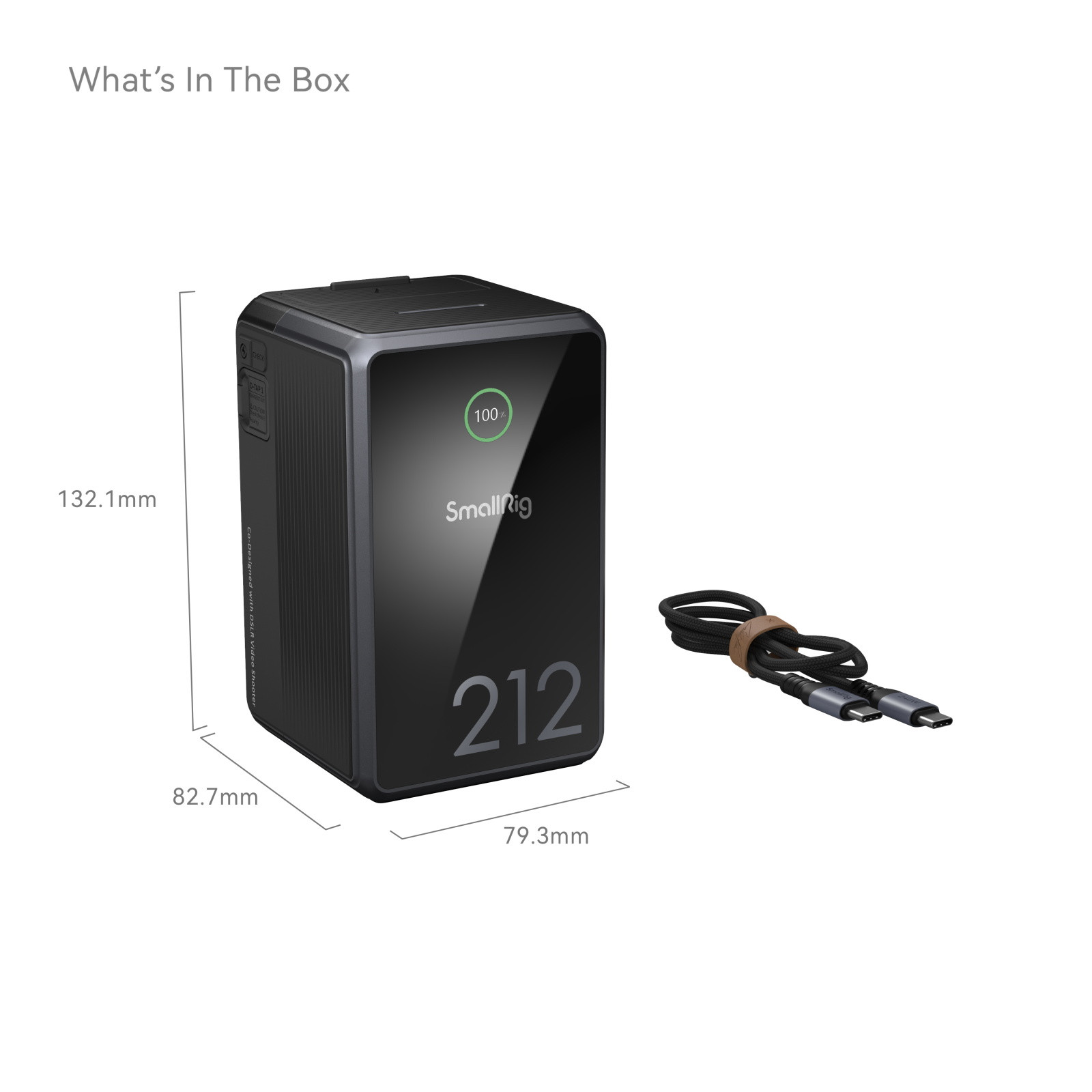

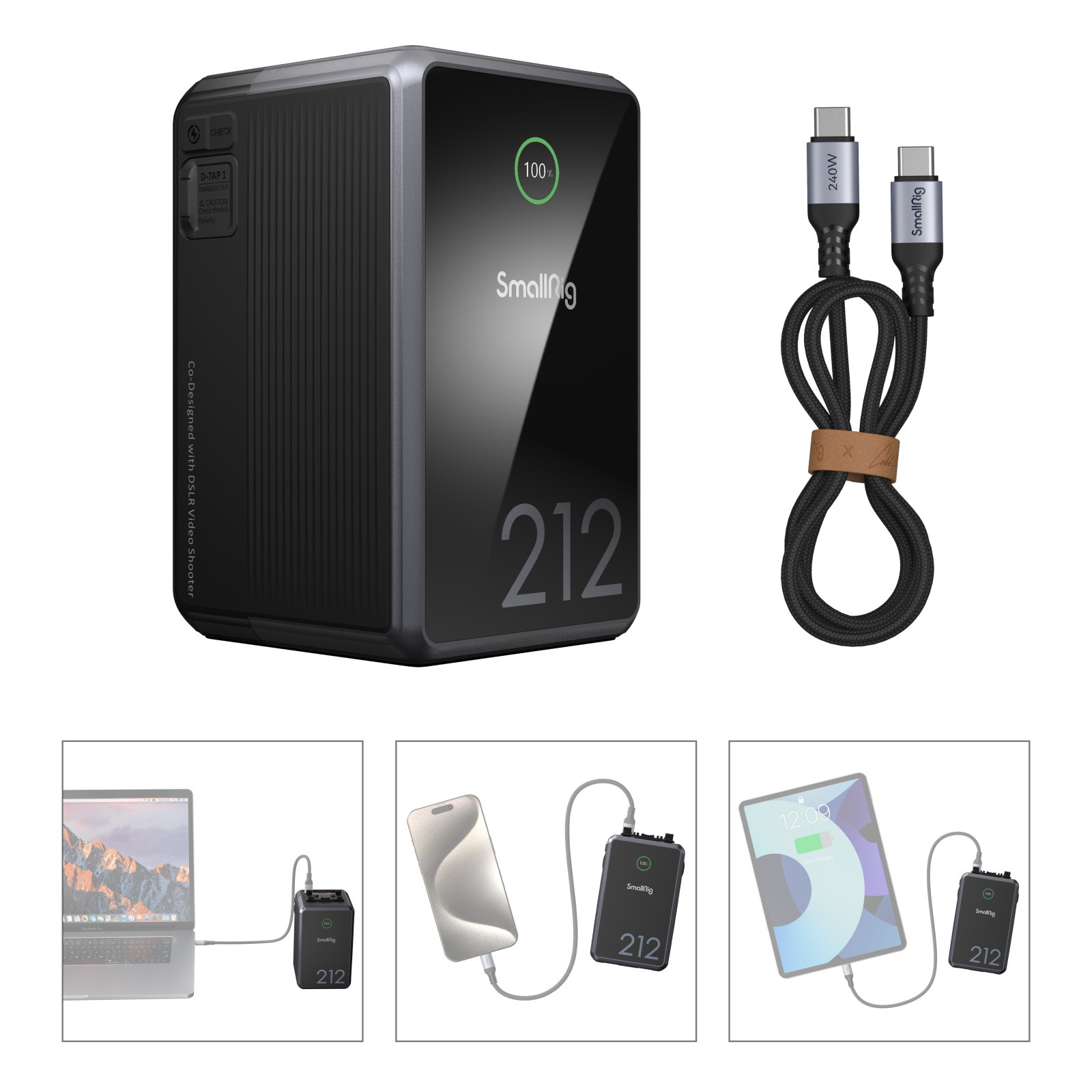

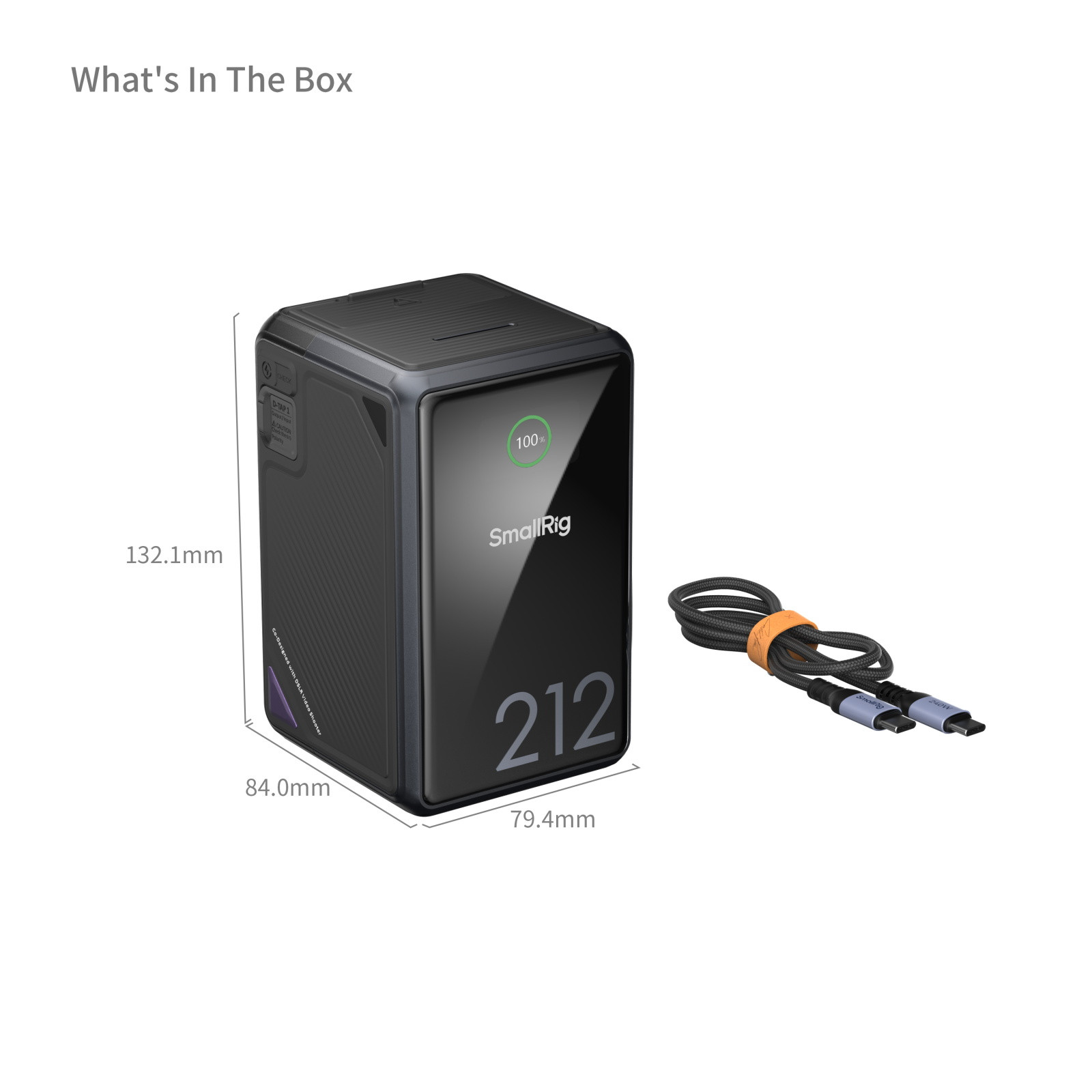

Packing List
VB212 V-Mount Battery x 1
240W USB-C Charging Cable x 1
Technical Data
Product Dimensions: 132.1 x 84.0 x 79.4mm / 5.2 x 3.3 x3.1in
Package Dimensions: 166.0 x 130.5 x 99.0mm / 6.5 x 5.1 x 3.9in
Product Weight: 1360.5 ± 10.0g / 48.0 ± 0.4oz
Package Weight: 1694.5 ± 10.0g / 59.8 ± 0.4oz
Material(s): Aluminum Alloy, Flame-Retardant PC, TPU, Silicone
Rated Battery Parameters: 14.76V / 14400mAh / 212.544Wh
Total Cell Capacity: 57600mAh (Cells: 4800mAh x 12)
Rated Power: Discharge: 212W / Charge: 140W
Input:
BP: 16.8V⎓8A (Max)
D-Tap1 / D-Tap2: 16.8V⎓8A (Max)
USB-C1 / USB-C2: 5V⎓3A,9V⎓3A,12V⎓3A,15V⎓3A,20V⎓5A,28V⎓5A; 140W (Max)
Output:
BP: 14.76V⎓10A (Rated)
D-Tap1 / D-Tap2: 14.76V⎓8A (Rated)
USB-C1 / USB-C2: 5V⎓3A,9V⎓3A,12V⎓3A,15V⎓3A,20V⎓5A,28V⎓5A; 140W (Max)
USB-A: 5V⎓3A,9V⎓3A,12V⎓2.5A; 30W (Max)
8V OUT: 8V ⎓ 3A (Max)
12V OUT: 12V ⎓ 3A (Max)
Charging Protocols:
USB-C1 / USB-C2: PD3.1, QC2.0, QC3.0, PPS, AFC, DCP-1.5A, APPLE-2.4A
USB-A: QC2.0, QC3.0, AFC, DCP-1.5A, APPLE-2.4A
Discharge Cut-off Voltage: 11.2V
Charging Temperature: 0°C to 50°C / 32°F to 122°F
Discharging Temperature: -20°C to 60°C / -4°F to 140°F
Charging Options: USB-C Charger, BP Port Charger, 16.8V D-Tap Charger
