SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B

SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B

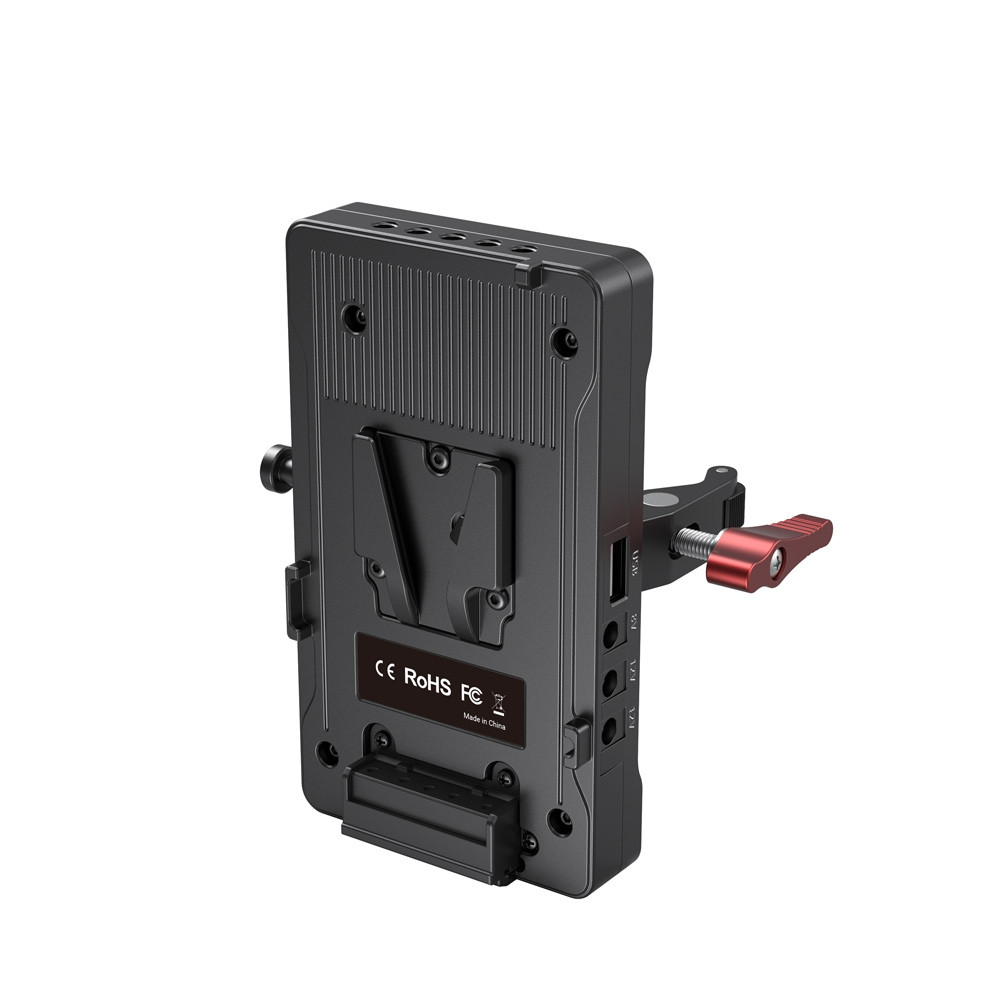

1. Standard V-mount, compatible with most V-mount batteries.

2. PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.

3. D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.

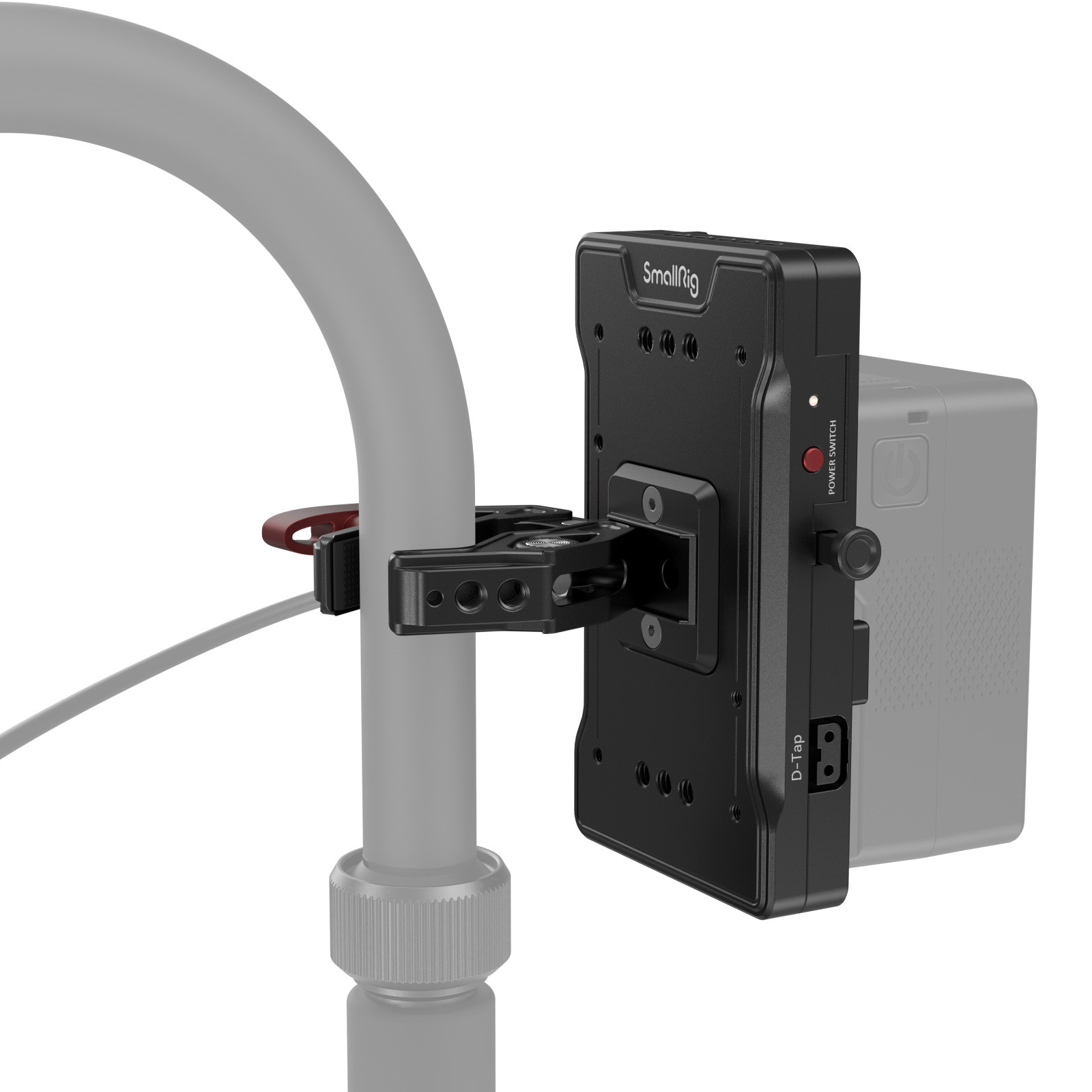

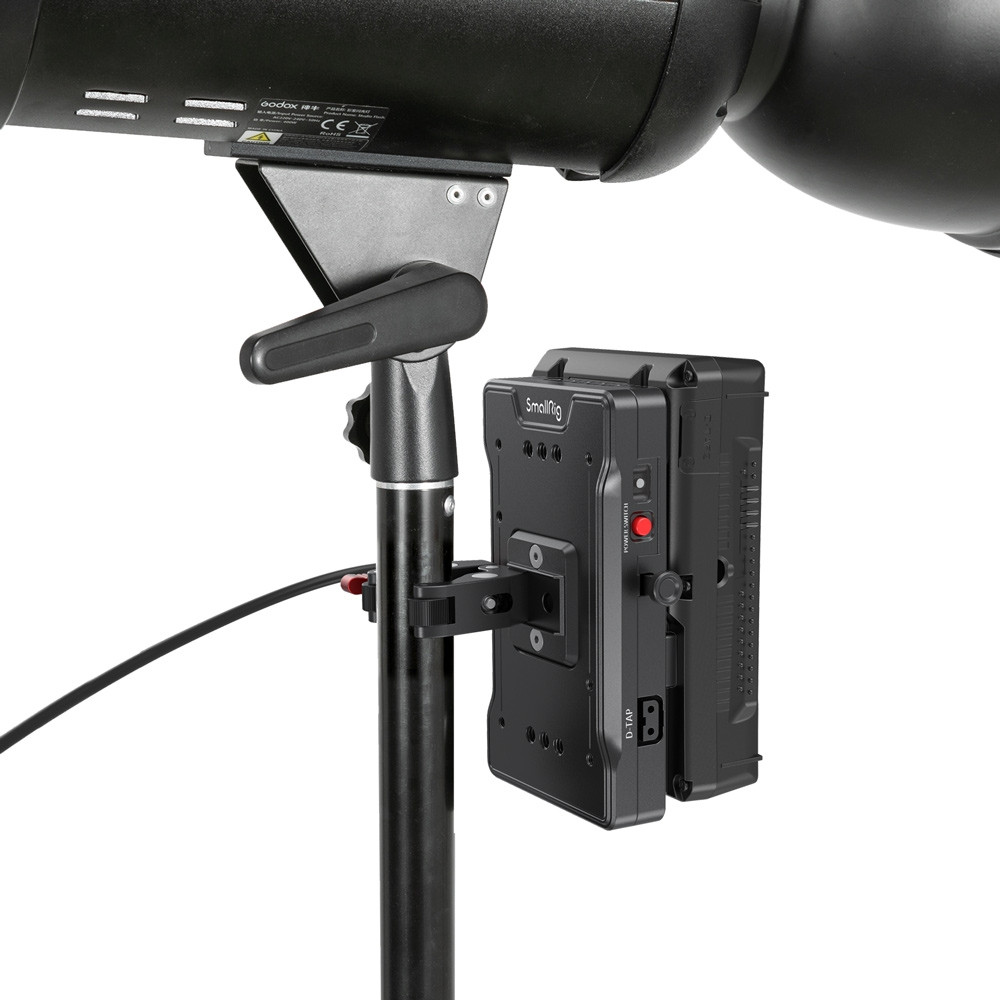

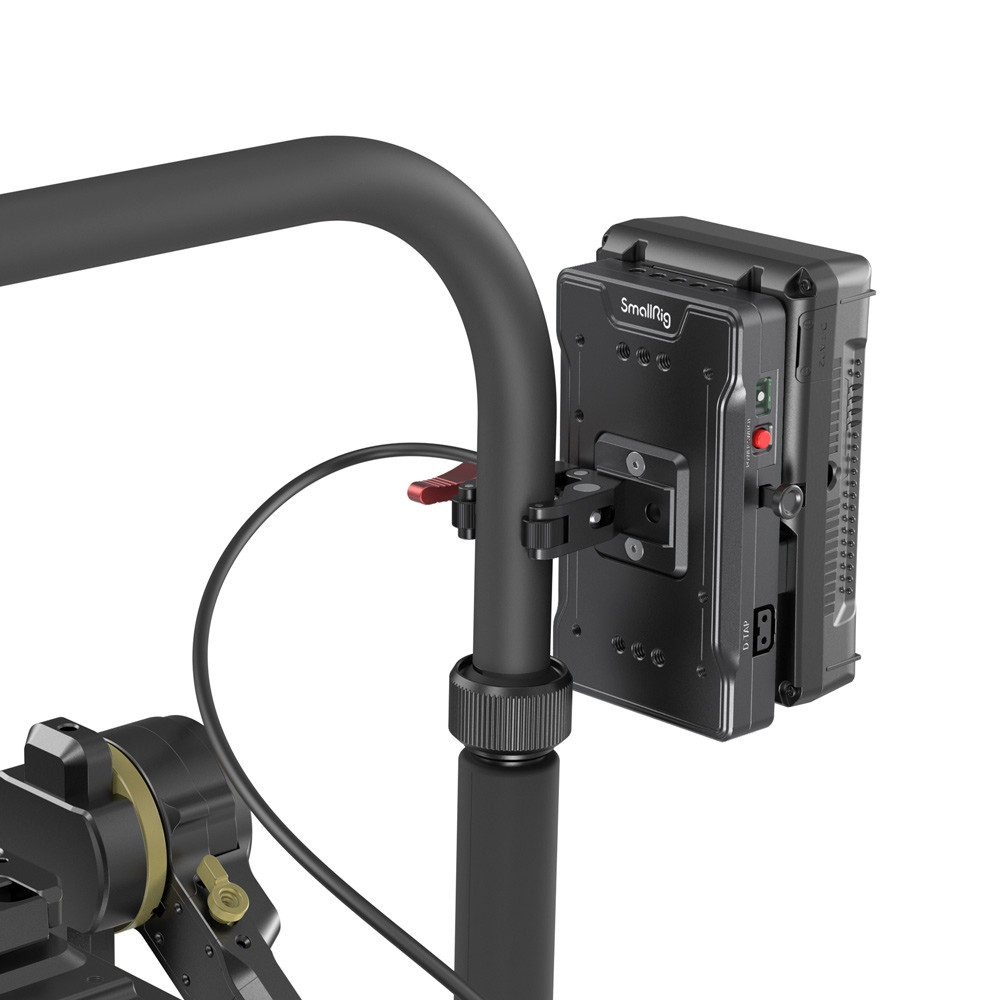

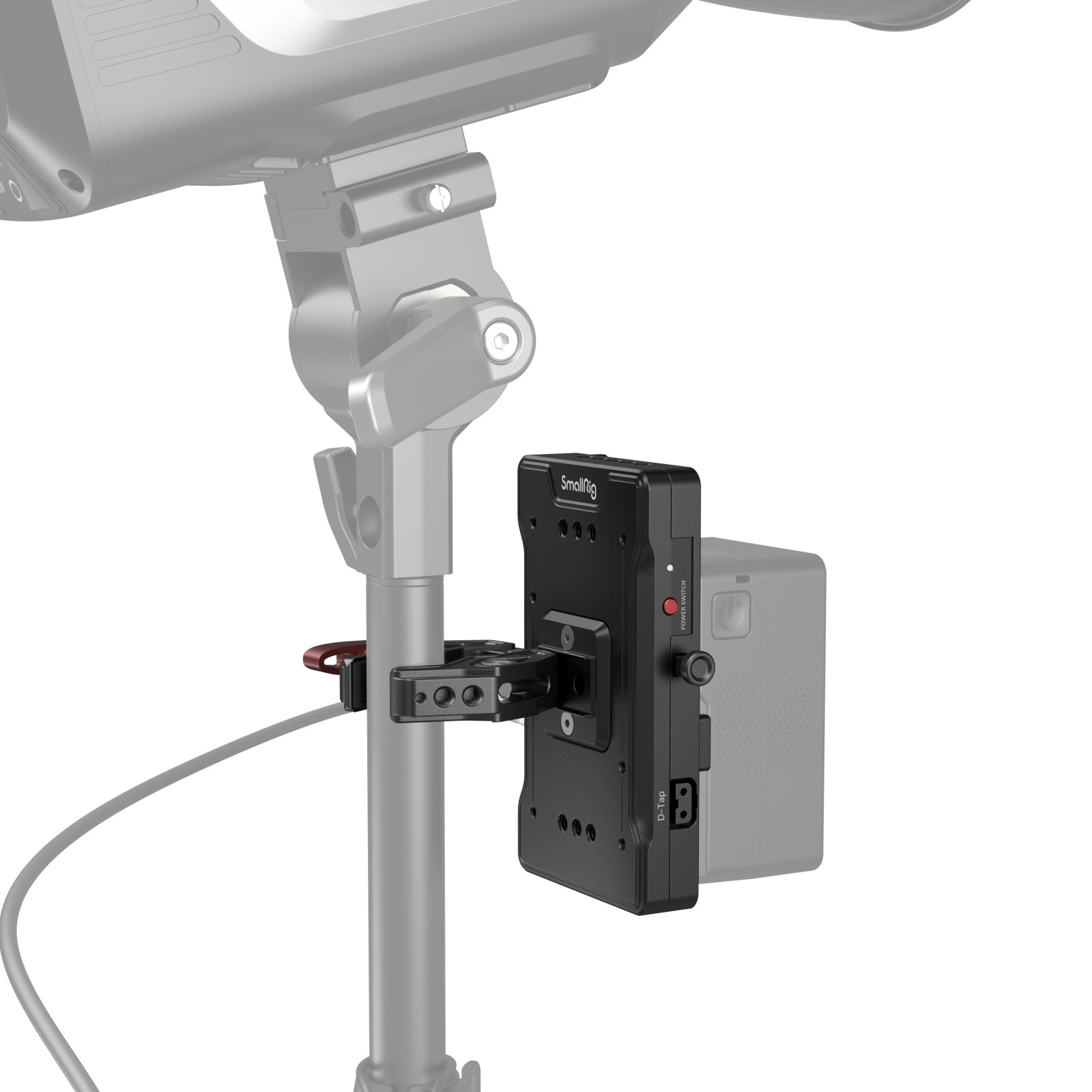

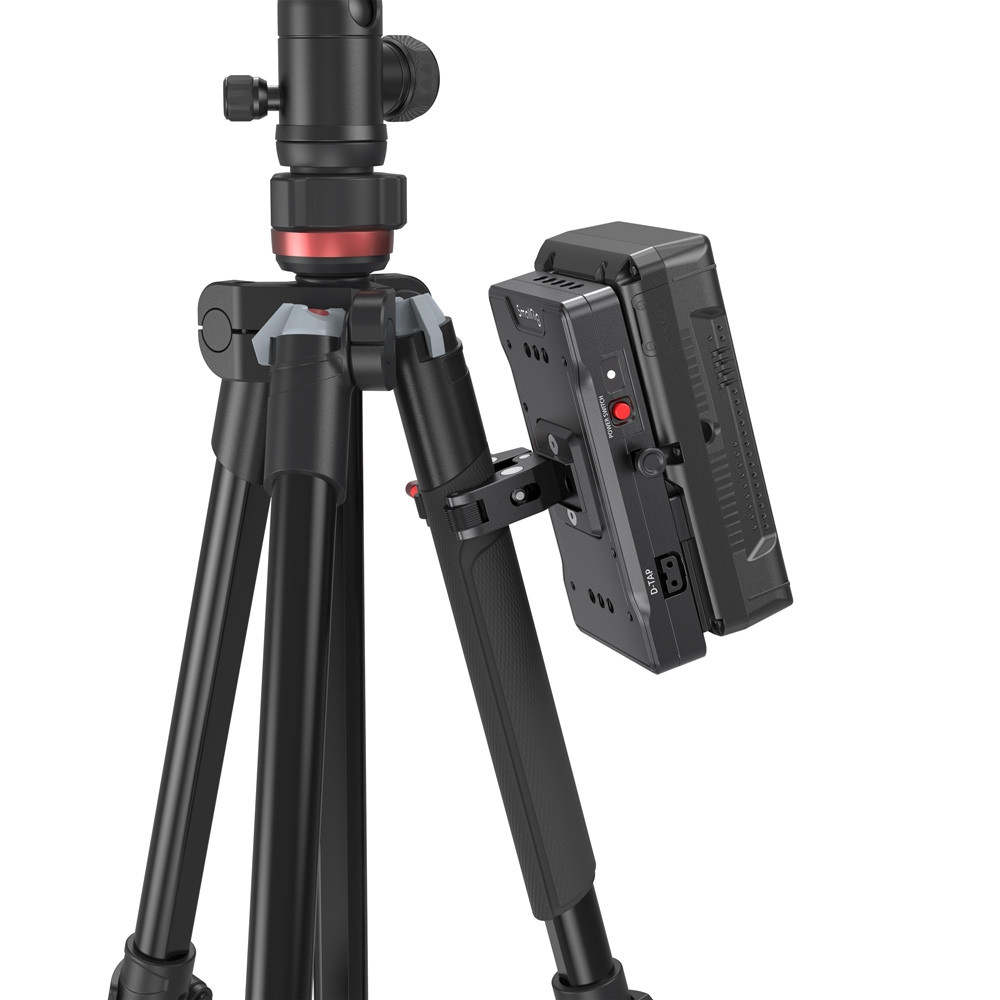

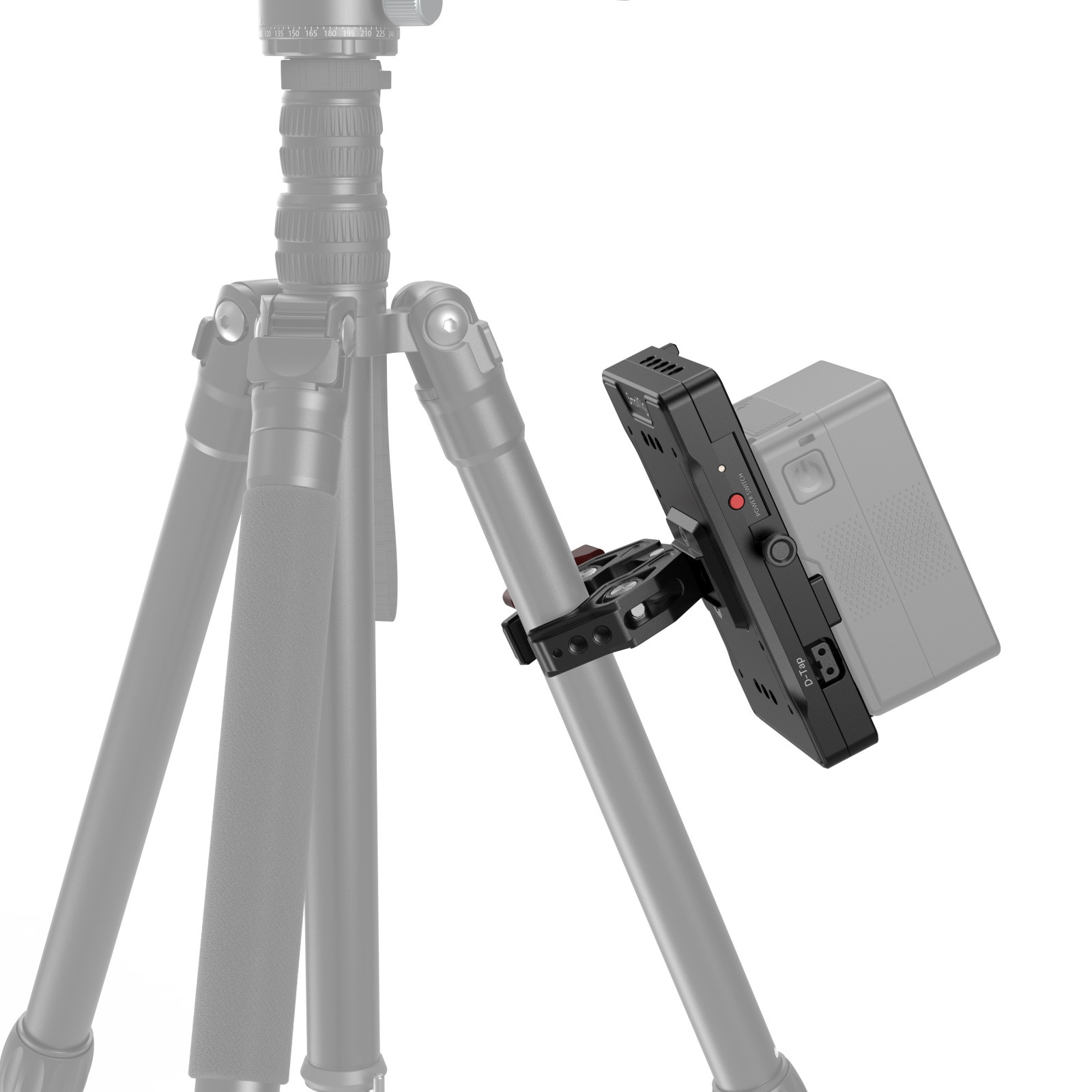

4. Supports Φ15-40mm rod for tripod, light stand, hand-held ring, etc.

5. 1/4"-20 threaded holes for dual rod clamp, magic arm, etc.

$119.00
Sku 3202B

Availability: Available soon

This product has been viewed 660 times

Product Description



SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B

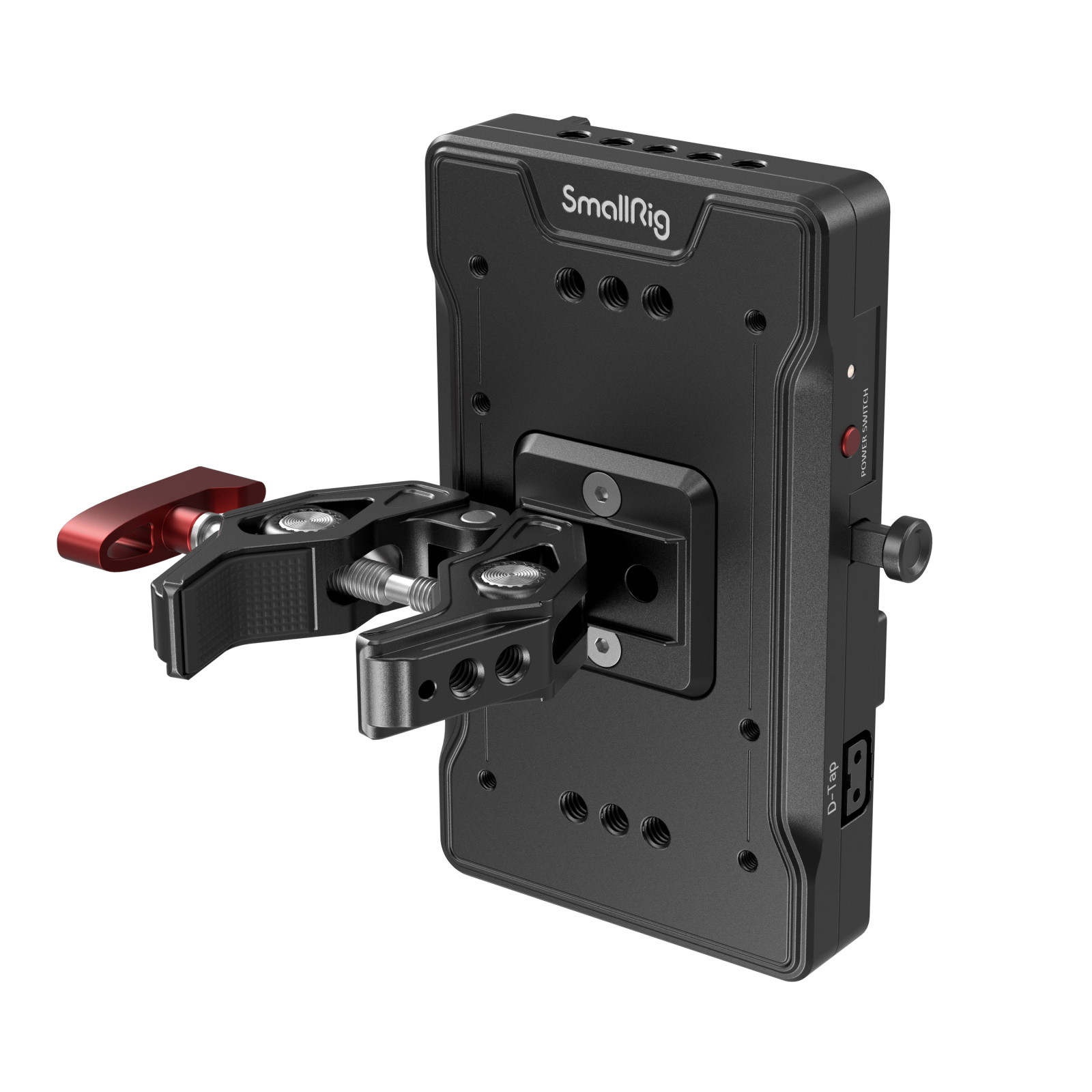

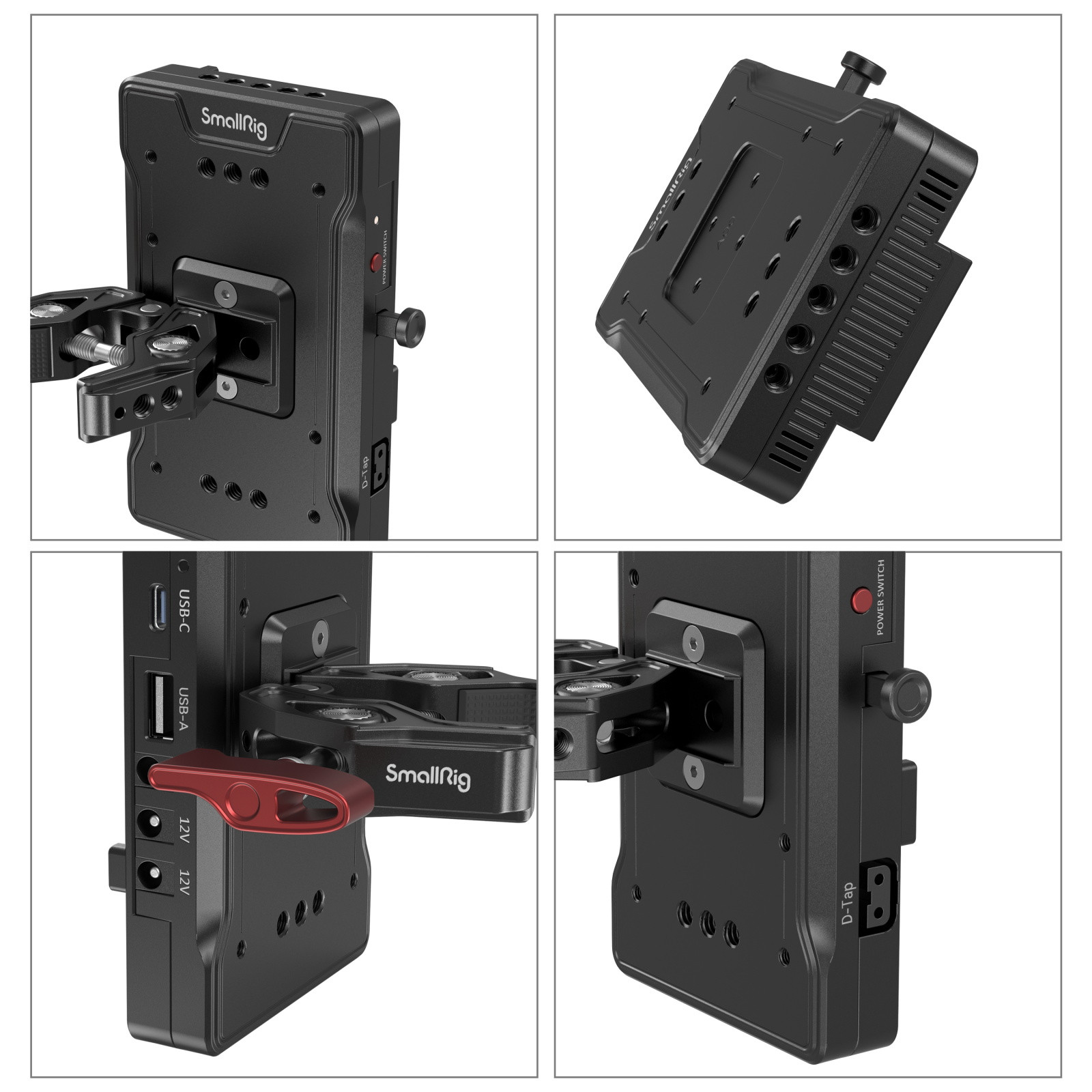

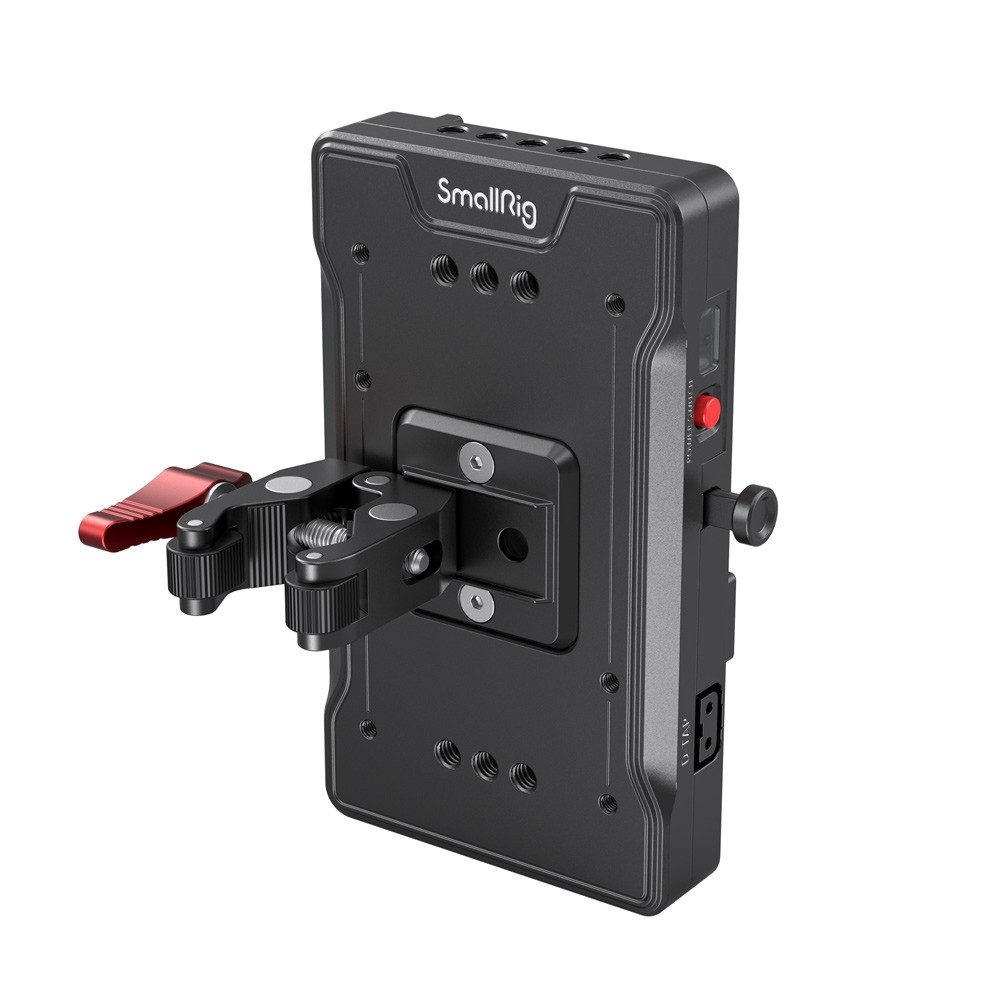

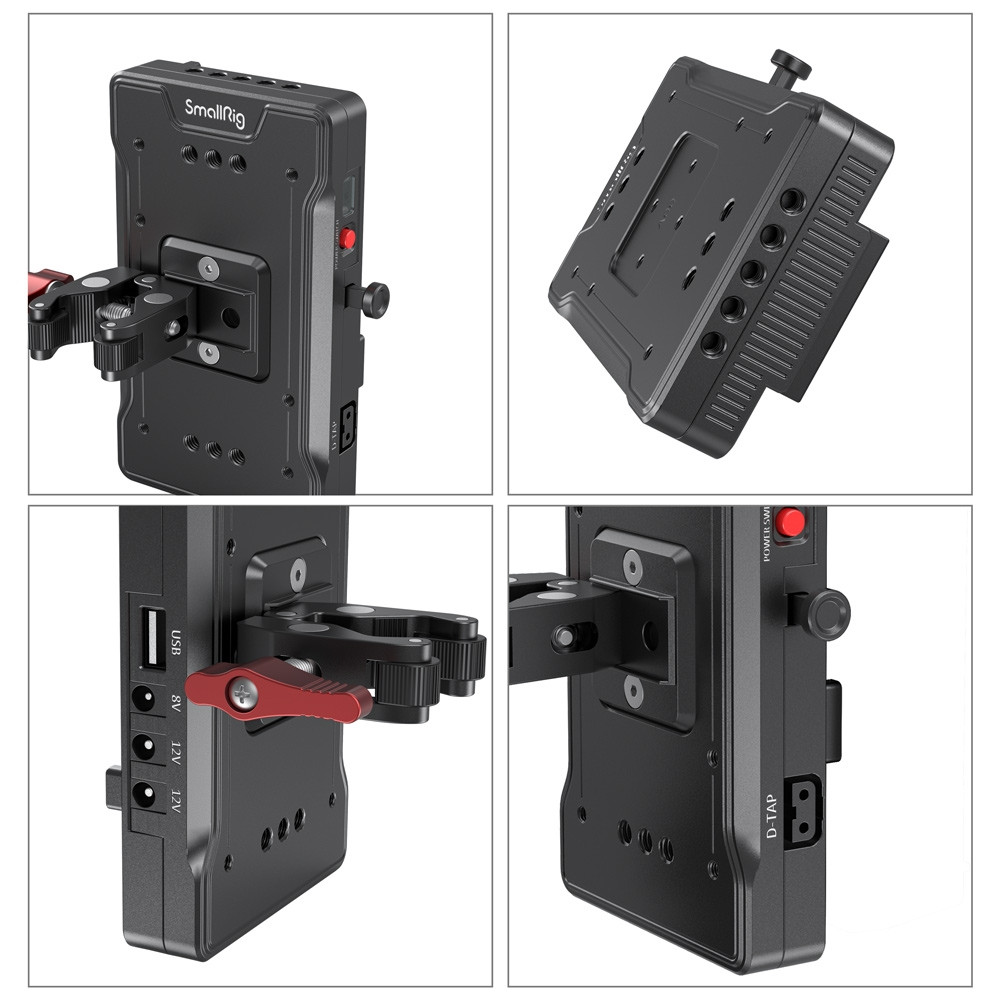

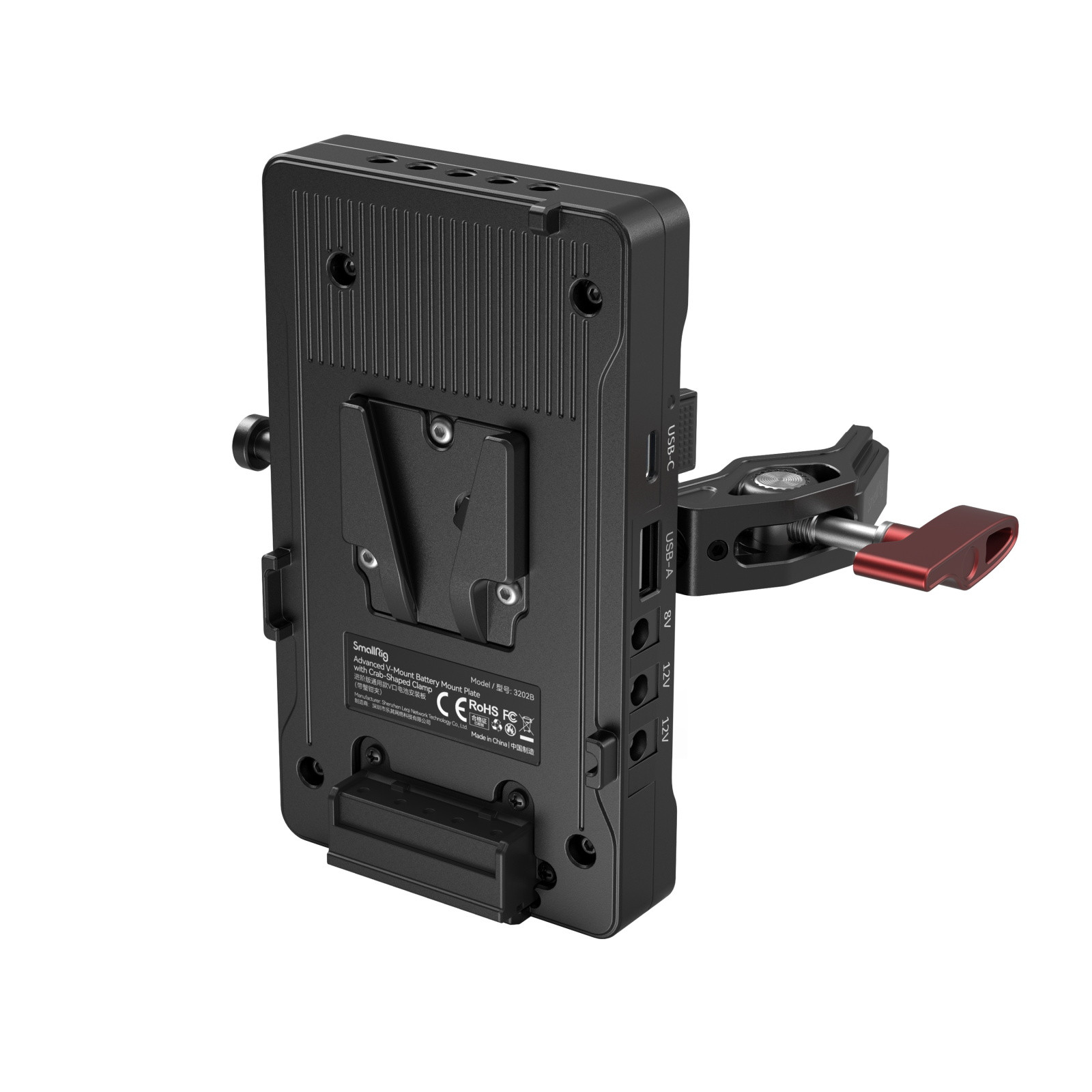

SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes, and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support crab-shaped clamp, dual rod clamp, magic arm, etc. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) ports; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicates the working status and fast/slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED

Note: Product weight and dimensions may have measurement errors.

Warning:

1. Do not use it in a damp environment to avoid short circuits.

2. When the indicator light keeps blinking, it means the working temperature exceeds 65℃. Please suspend its use.

3. Please do not drop the product, or use it under high temperatures or when a short circuit occurs.

Functions Description:



Charging / Discharging Indicator Light

USB-C charging;

orange light—slow charging/discharging, ice blue light—fast charging/discharging

Power Indicator Light

Light on—powered on, light off—powered off;

light flashing—working temperature exceeds 65℃

Power on/off Button

Power on—tap the button; power off—long press the button for 2 seconds;

D-Tap, USB-A, and DC output are unavailable after powering off;

D-Tap input and USB-C input/output available after powering off

Work With

V-mount Battery

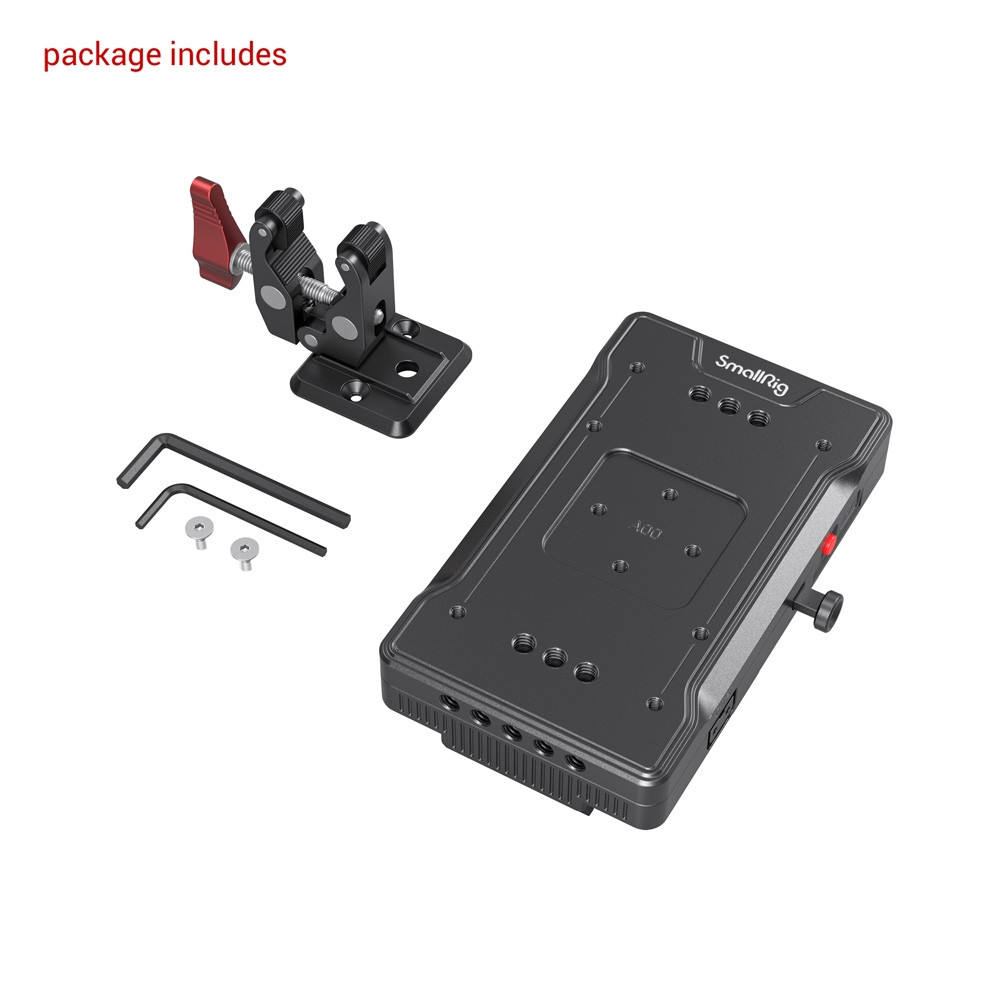

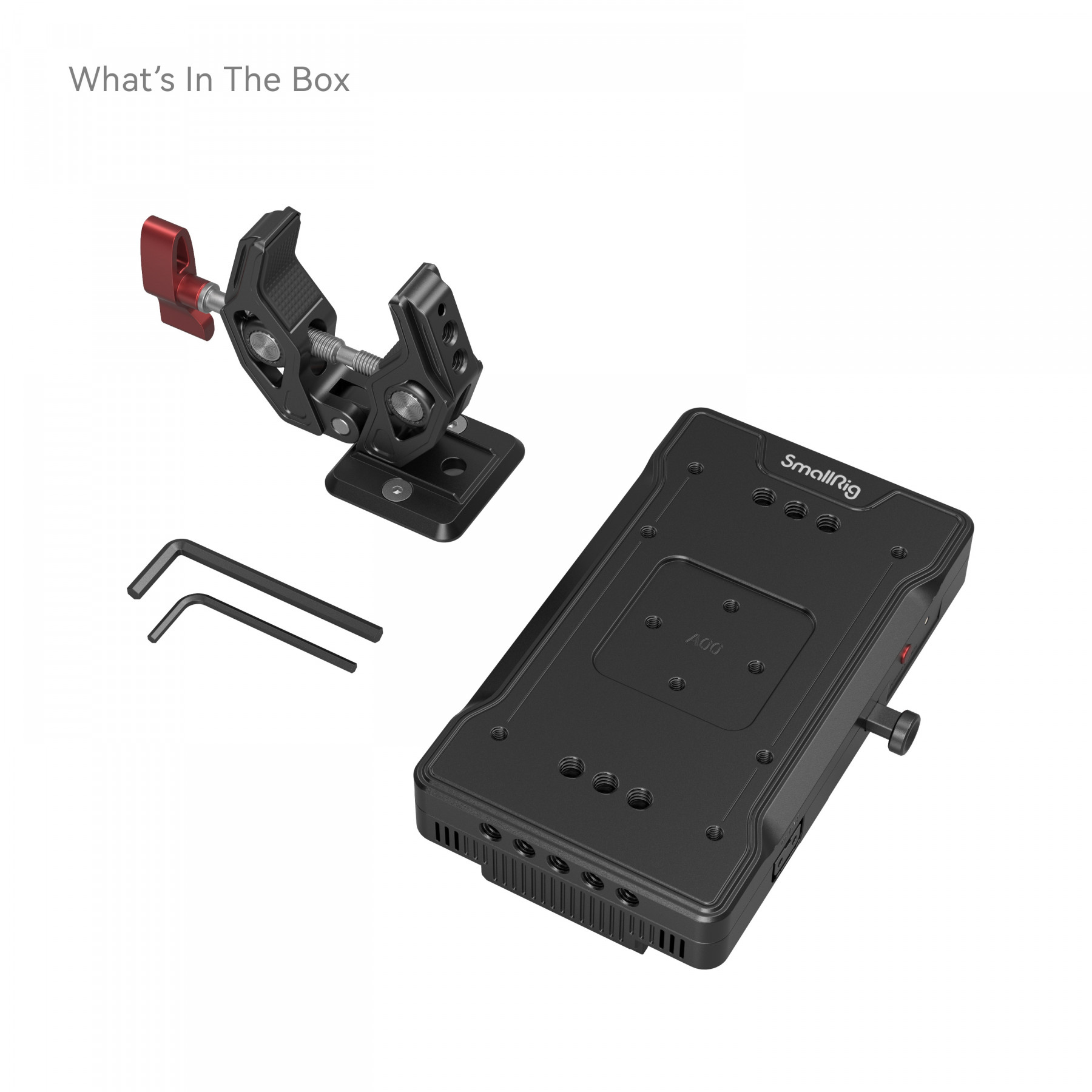

Packing List

Advanced V-Mount Battery Adapter Plate x 1

Crab-Shaped Clamp x 1

Hex Spanner x 2

User Manual x 1

Technical Data

Battery Compatibility: V-Mount Battery

Crab-Shaped Clamp Compatibility: Φ15-40mm rod; V-mount battery weighing not more than 1700g

Battery Voltage: 11.0V~16.8V

Battery Rated Capacity: 3500mAh~20000mAh / 14.8V

Cut-off Voltage: 11.0V

Input Voltage (Max.): 16.8V

Working Power (Max.): ≤ battery power (subject to battery capacity)

Total Maximum Power : Discharging: 271W (Max.)

D-Tap Rated Input / Output Current: 5A

D-Tap Input / Output Current (Max.): 10A (subject to power adapter)

D-Tap Input Voltage: 11.0V~16.8V

USB-A Output Power: 36W (Max.)

USB-A Output Protocol: QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A

USB-C Input Power: 65W (Max.)

USB-C Output Power: 65W (Max.)

USB-C Input/Output Protocol: PD3.0 / QC2.0 / QC3.0 / PPS / AFC /DCP-1.5A / APPLE-2.4A

DC1 Output: 8.0V / 3A (Max.)

DC2 Output: 12V / 3A (Max.)

DC3 Output: 12V / 3A (Max.)

DC Overcurrent Protection: ≥4.1A

Product Dimensions: 16 × 9.3 × 9.5cm

Package Dimensions: 24.4 × 13.1 × 6.2cm

Product Weight: 413 ± 5g

Package Weight:542 ± 5g

Material(s): Aluminum Alloy
