SmallRig D-Tap to NP-FZ100 Dummy Battery Power Cable 4253B
SmallRig D-tap to NP-FZ100 Dummy Battery Power Cable 4253B delivers a continuous power supply, saving you the trouble of changing batteries in between recordings. It is easy to use, upgraded chip, features full decoding, no pop-up window, high safety, and is fully compatible with all cameras. Being the same size as the original NP-FZ100 battery, it allows for easy change of battery without getting stuck. Overvoltage, overheating, and overcharge short-circuit protection alongside fire-resistant PVC and ABS make this item safe and reliable.
Certifications: FCC, UKCA, CE, ISED, ROHS, Quality Report.
Note: Manually measured weight and size may not be accurate.
Work With
Sony α6600 / α9 II / α7 III / α7R III / α1 / α7C / α7S III / α7R IV / α7R V / α6700 / FX3 / FX30 / α7CR / α7C II / α7 IV / ZV-E1 / ZV-E10 II
* There are too many compatible models to be listed. Please refer to their battery type
Packing List
D-tap to NP-FZ100 Dummy Battery Power Cable x 1
User Manual x 1
Technical Data
Items: Parameters
Output Voltage (Max.): 8.4V
Output Voltage (Min.): 8.0V
D-tap Input Voltage: 9.6-20V
D-tap Input Current: 2A (Min.)
Output Current: 2A Constant Current Output (Max.)
Output Current (Max.): ≤3.0A
Overcurrent Protection: 3.8~4.9A
Operating Temperature: 0℃~45℃
Storage Temperature: -20℃~+60℃
Material(s): ABS 50%, PVC 50%

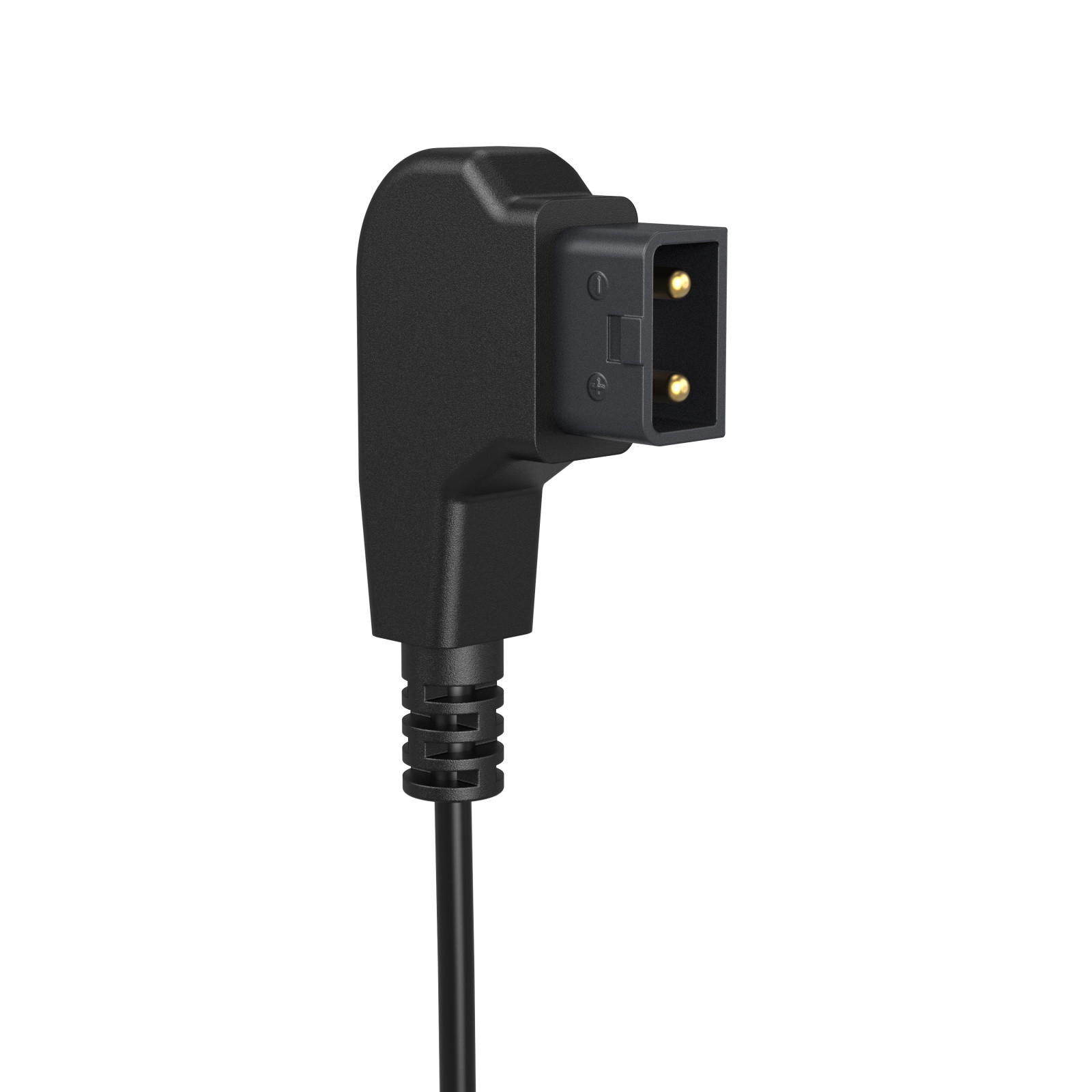

Inputs: D-Tap Male, Cable Length 2m±50mm (Extended)
Product Size: 580×38.7×22.7mm
Packing Size: 133×100×43mm
Product Weight: 71±5g
Package Weight: 114.5±5g
