SmallRig V Mount Battery Adapter Plate (Basic Version) with Extension Arm 3499B

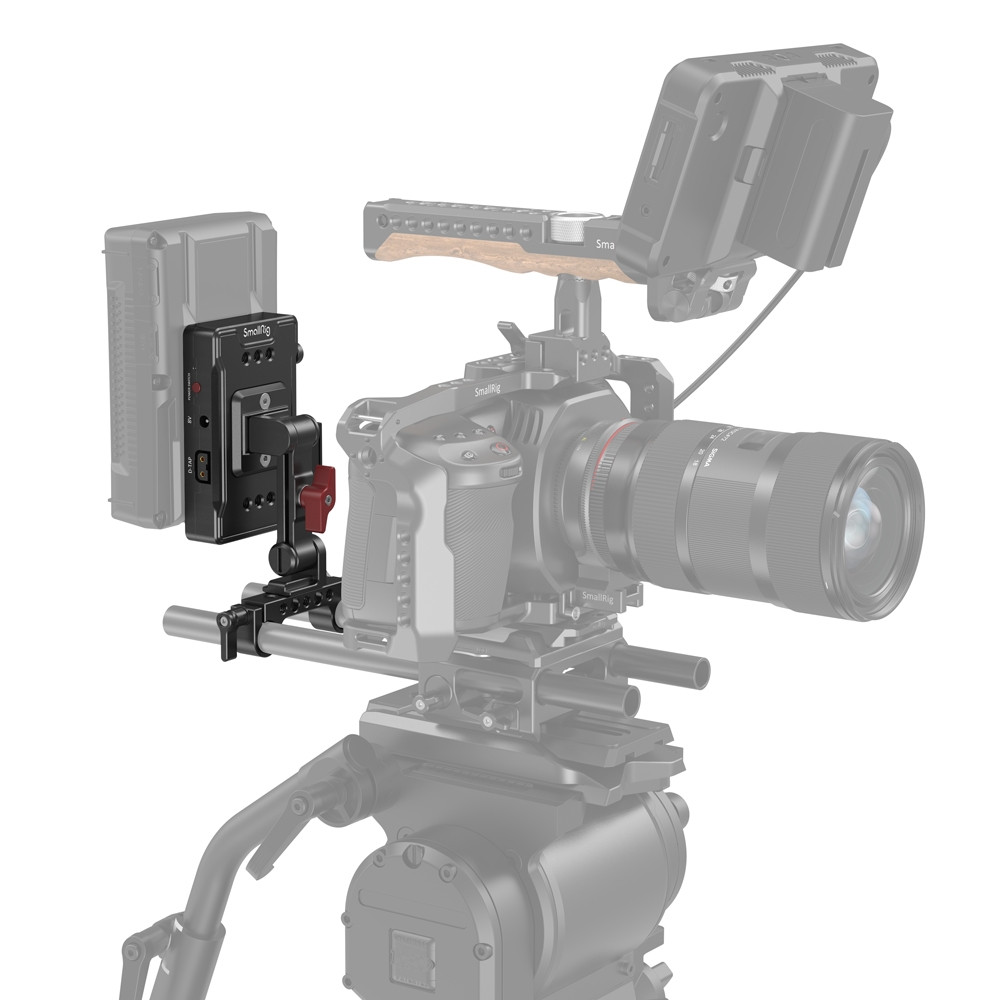

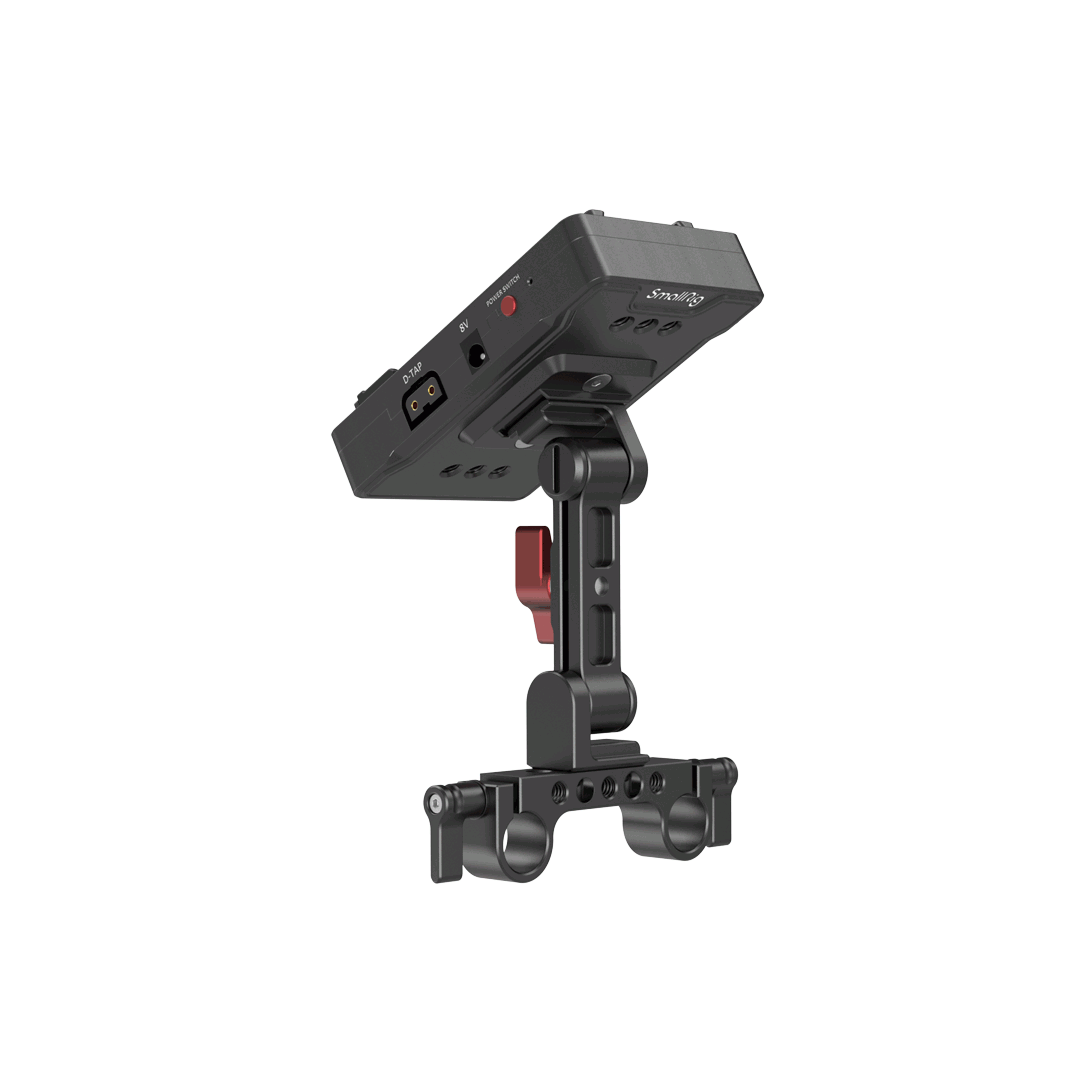

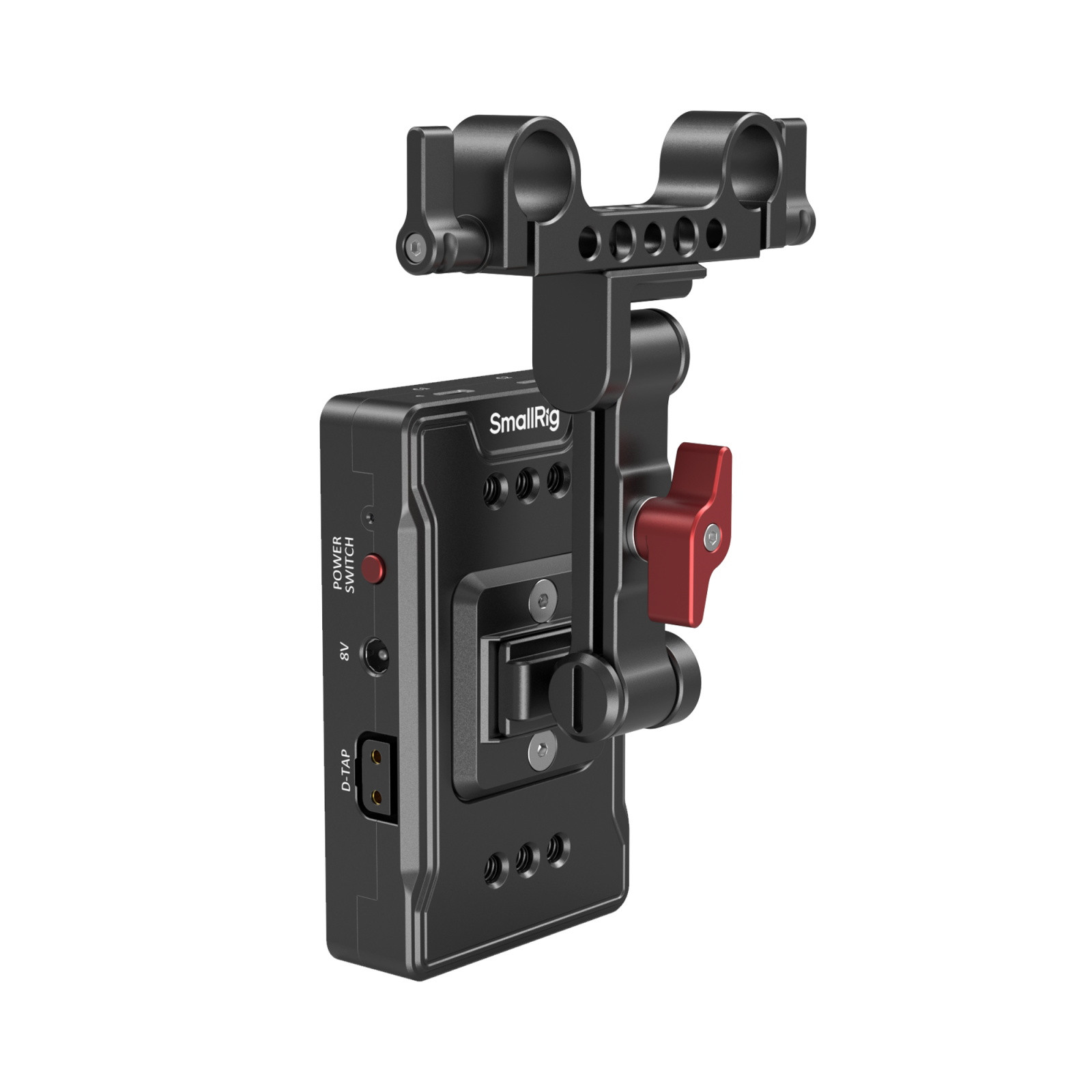

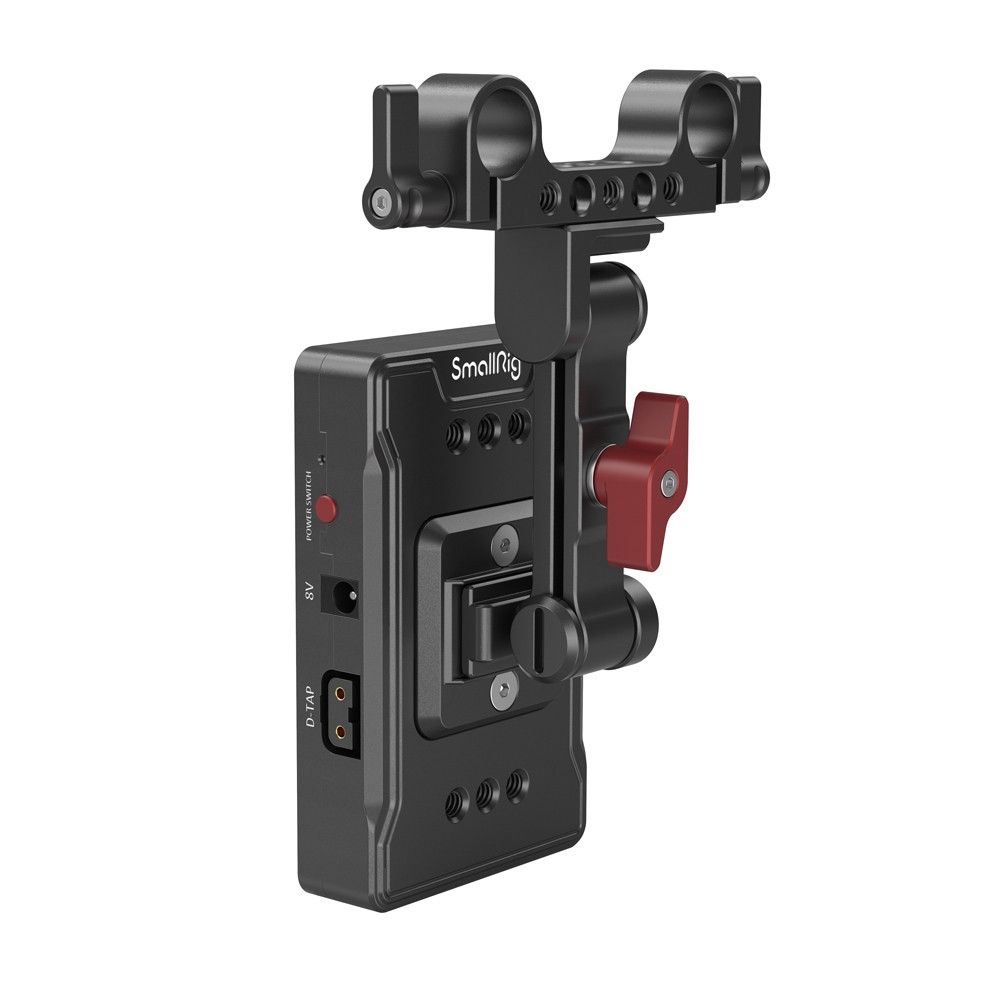

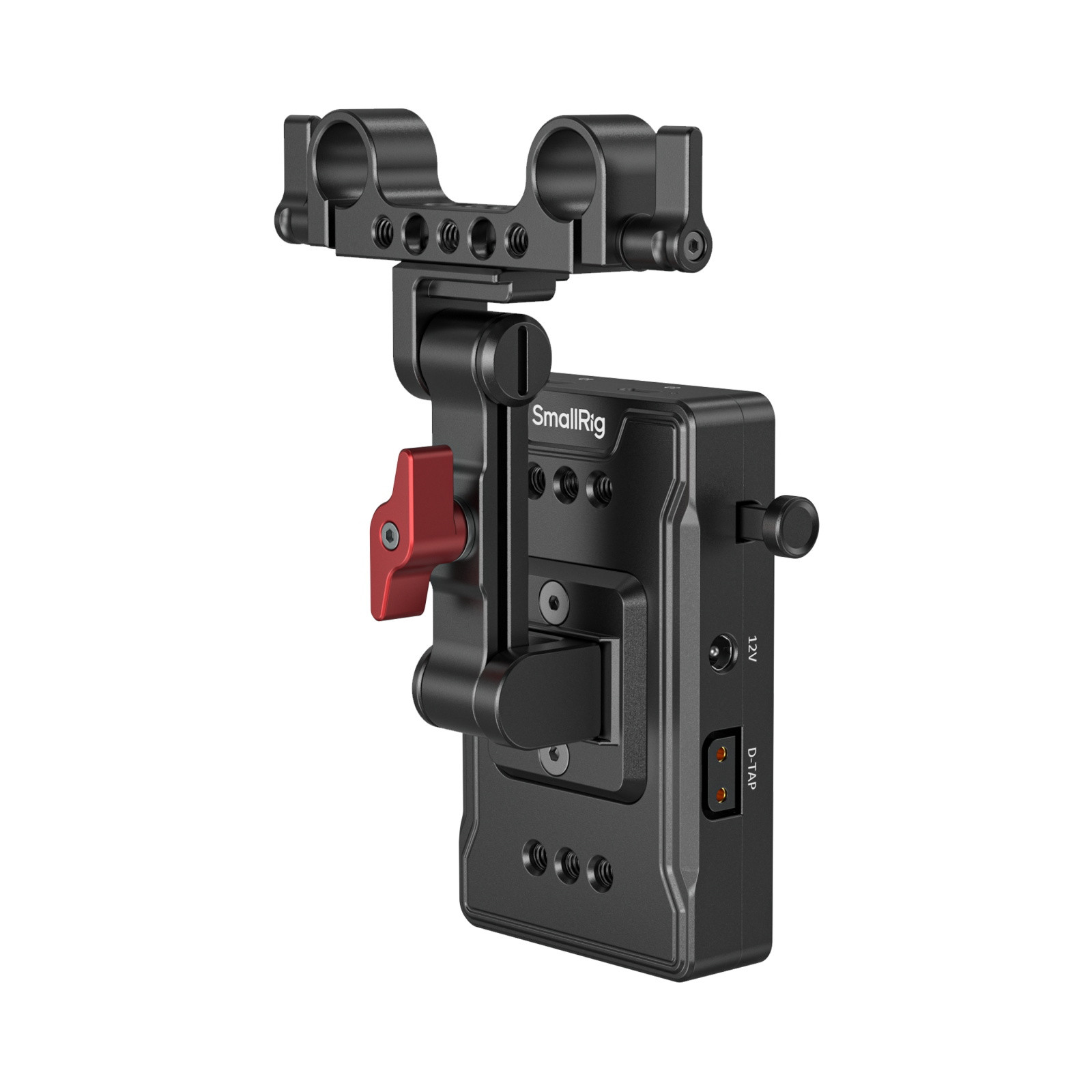

SmallRig V Mount Battery Adapter Plate (Basic Version) with Extension Arm 3499B can be quickly attached to a 15mm LWS rod system using the adjustable extension arm with a dual rod clamp. This battery adapter plate features a standard V-Mount that is compatible with most V-Mount batteries. It incorporates six 1/4"-20 threaded holes and ten M4 threaded holes on the back, as well as five 1/4"-20 threaded holes on the top and bottom, allowing for the attachment of a dual rod clamp and other accessories.

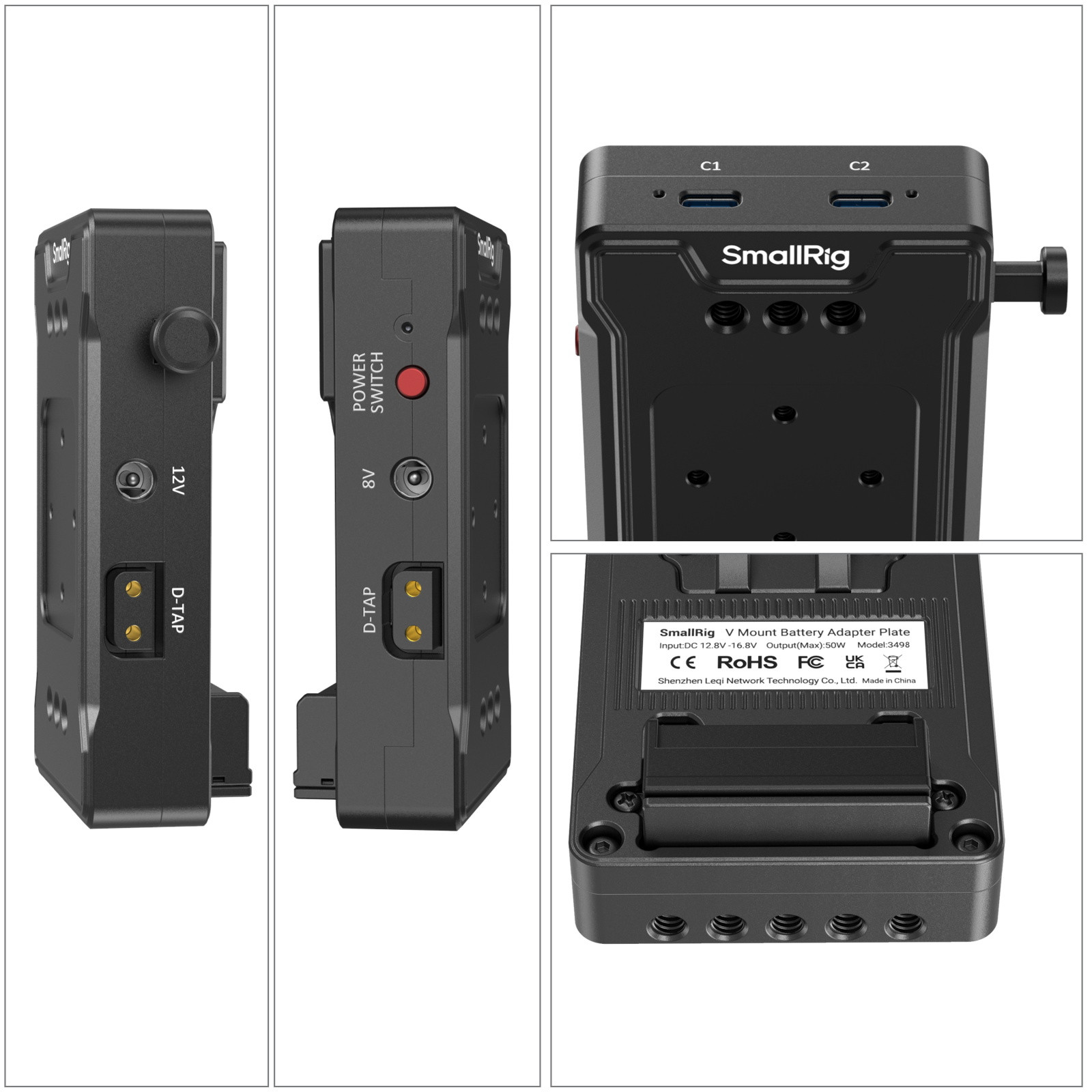

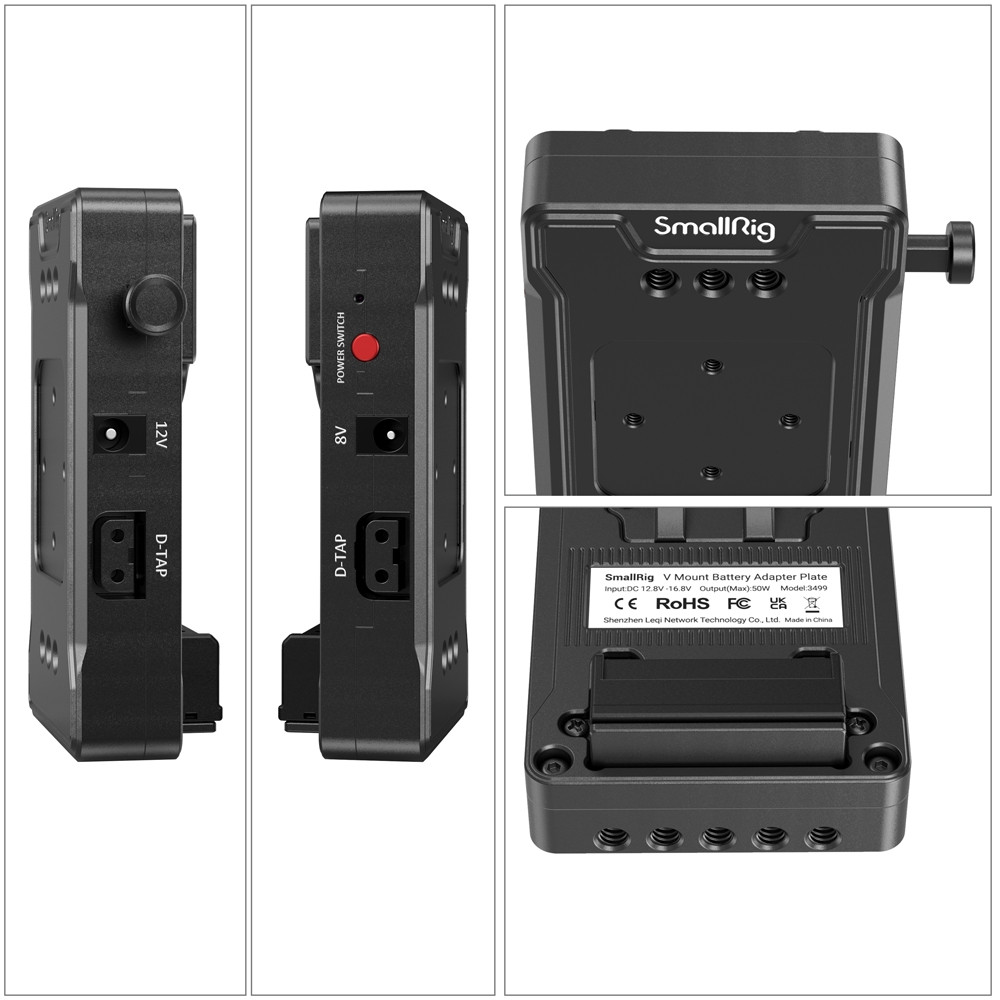

It is equipped with two USB-C input / output ports (65W Max.) that support PD protocol, and one USB-A output port, that supports QC protocol, for fast charging and discharging. Additionally, it has two D-Tap input / output ports (14.8V) and two DC output ports (DC5521 8V x 1 / DC5525 12V x 1) for versatile power solutions.
The power and charging mode indicator lights show the working status and whether fast or slow charging is in effect. The power on / off button can control multiple ports simultaneously. Furthermore, the adapter plate is constructed from high-strength aluminum alloy, providing robust durability and excellent heat dissipation.
Certifications: FCC、CE、ISED、RoHS
Note:
1. Do not use it in a damp environment to avoid short circuits.
2. When the indicator light keeps flashing, it means the working temperature exceeds 65℃ / 149°F. Please suspend its use.
3. Please do not drop the product, use it under high temperatures or when a short circuit occurs.
USB-C Charging / Discharging Indicator Light:
Orange Light: Slow charging / discharging
Blue Light: Fast charging / discharging
Power Indicator Light:
Light On: Powered on;
Light Off: Powered off;
Flashing Light: Working temperature exceeds 60℃ / 140°F
Power On / Off Button:
Power On: Tap the button;
Power Off: Press the button for 2 seconds
USB-C, D-Tap, and DC Output Unavailable after Powering Off
D-Tap and USB-C Input Available after Powering Off

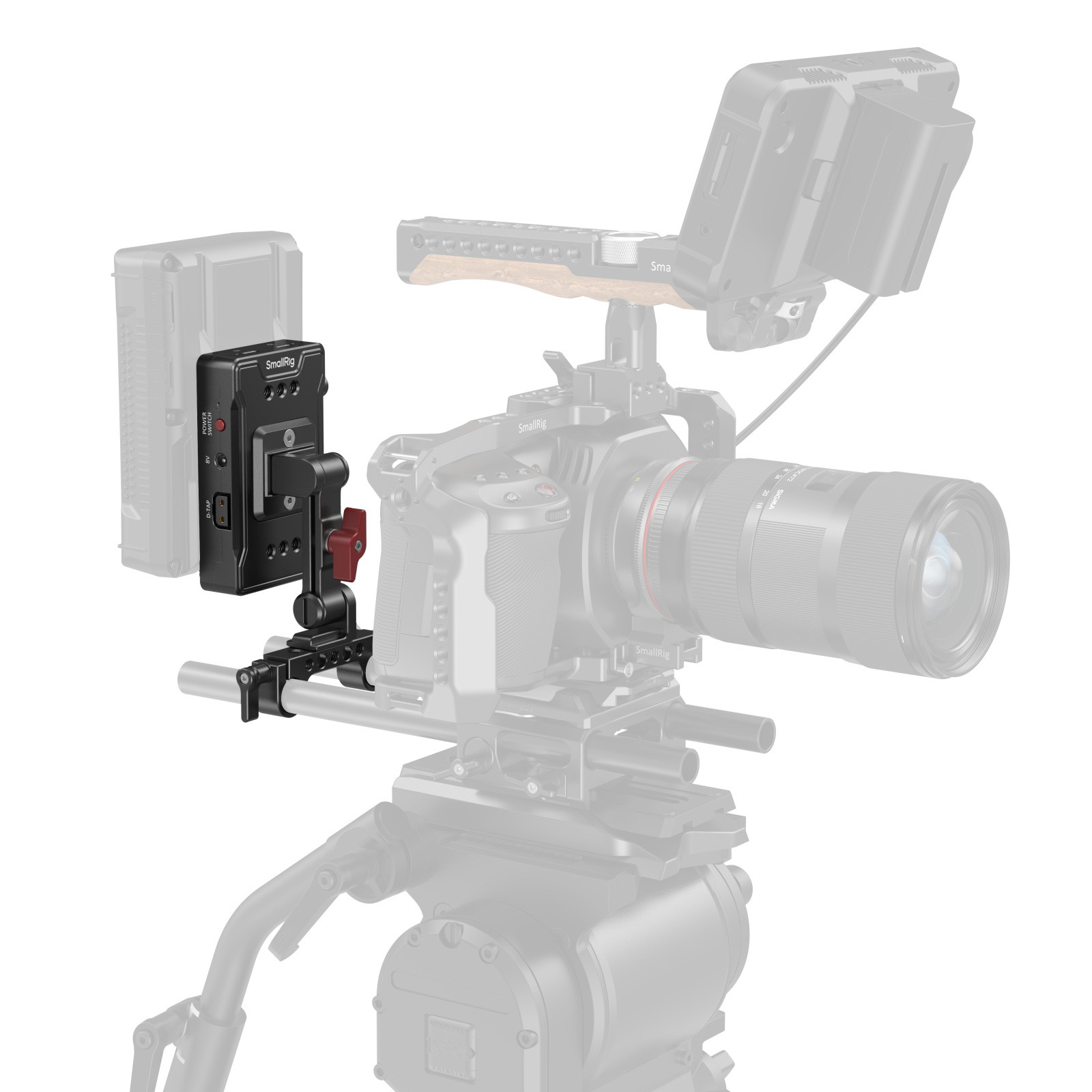

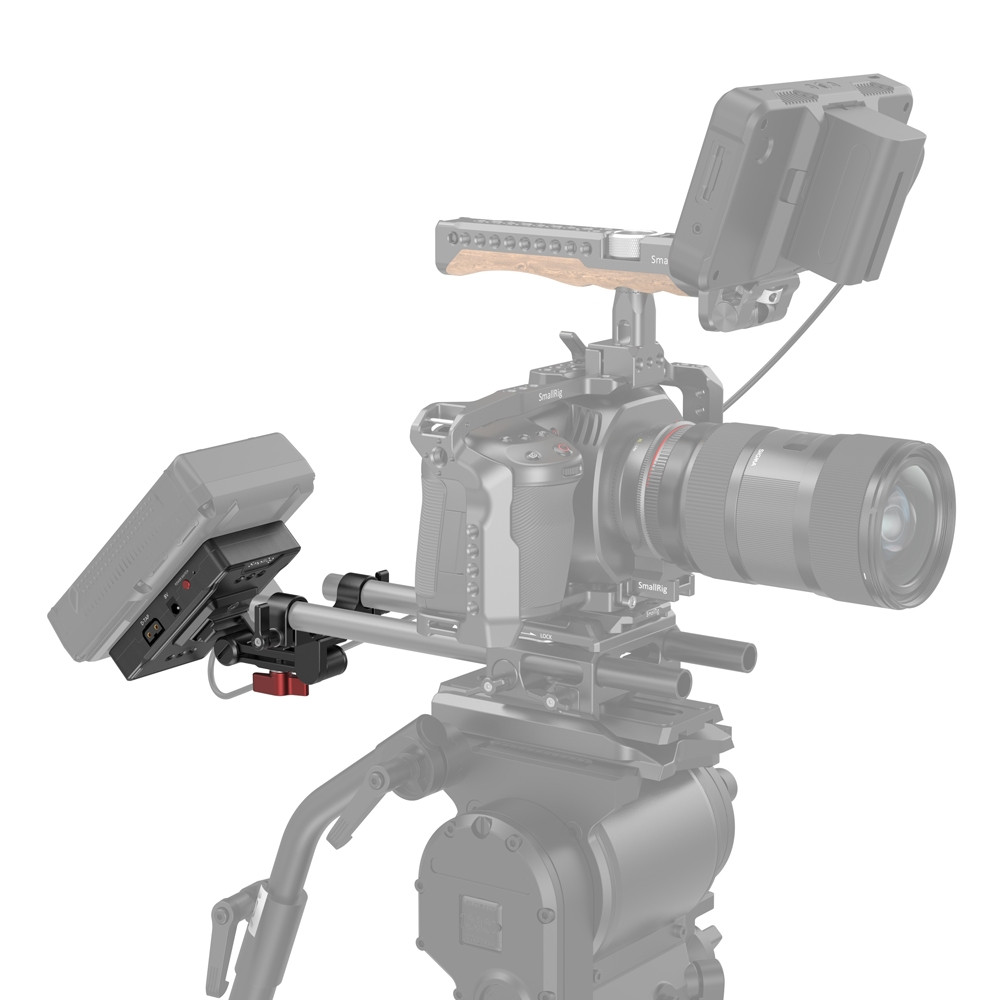

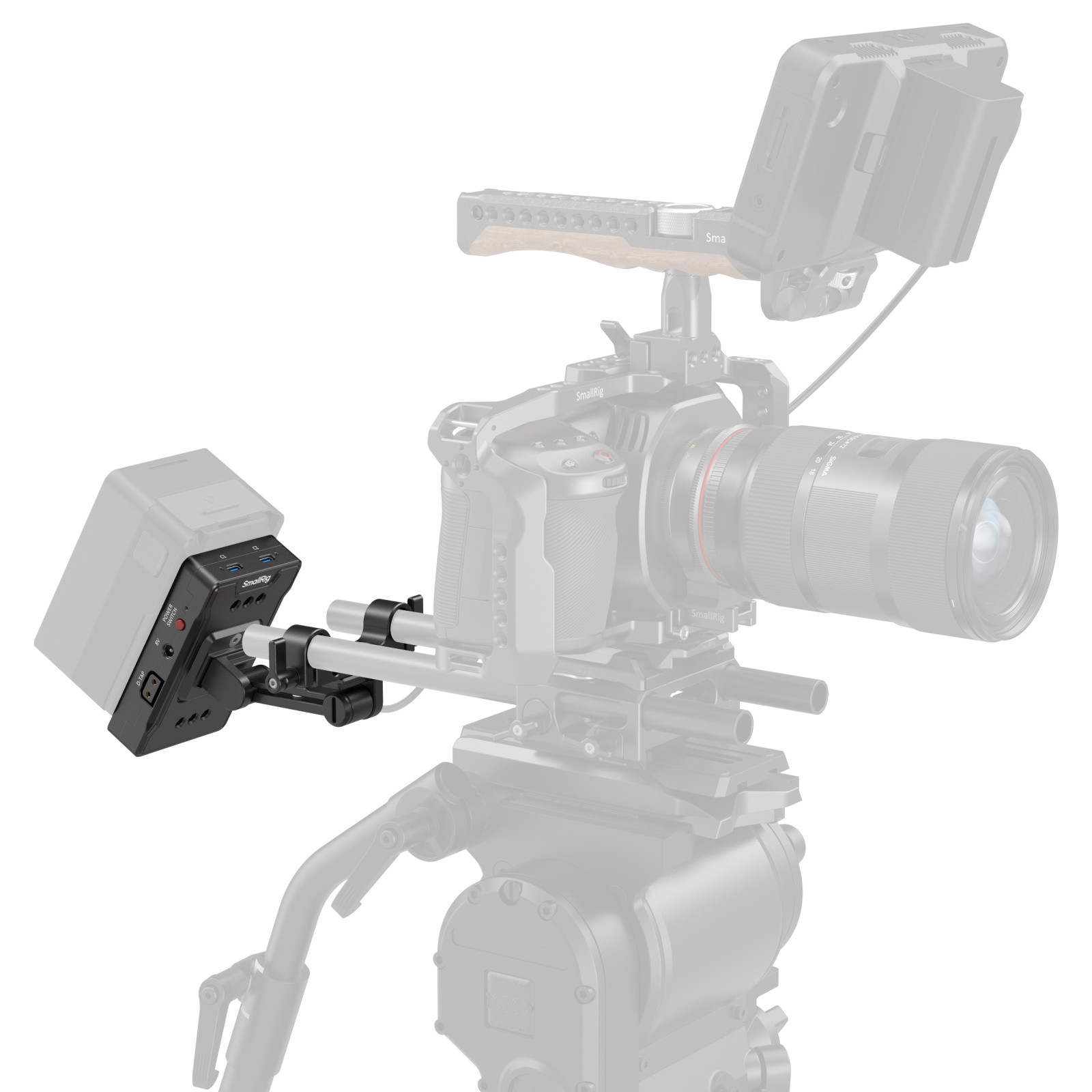

Work With
V-Mount Battery

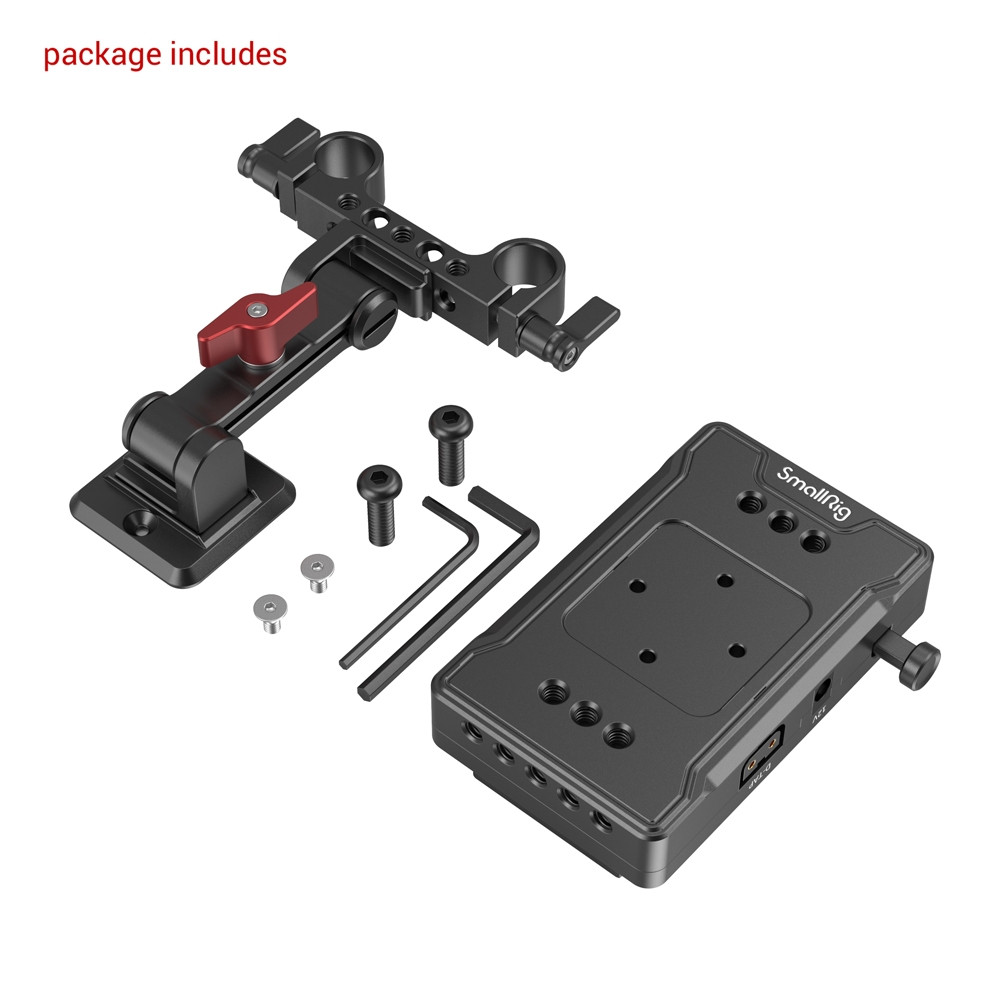

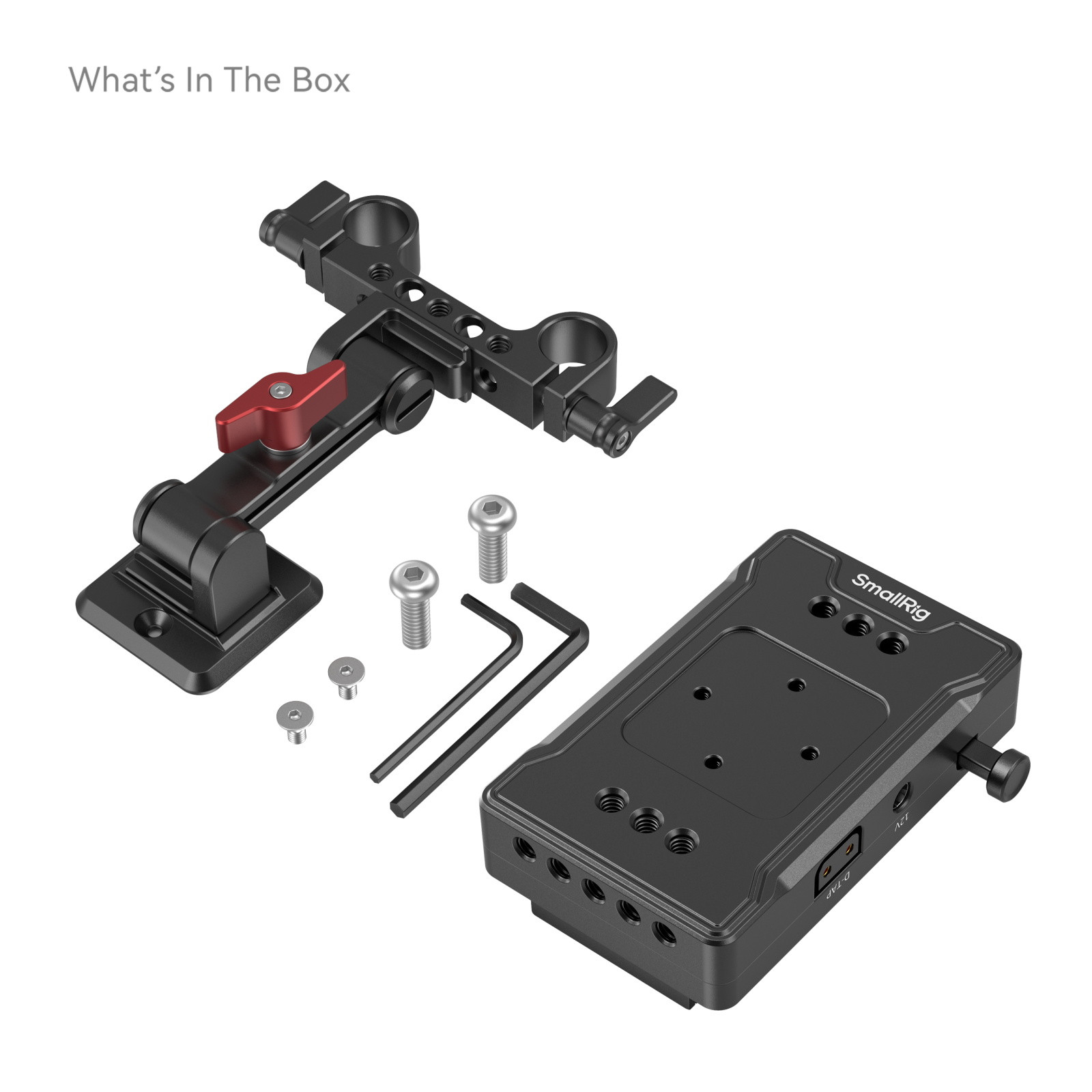

Packing List
V-Mount Battery Adapter Plate (Basic Version) x 1
Extension Arm x 1
Hex Spanner x 2
Screw x 2
User Manual x 1
Technical Data

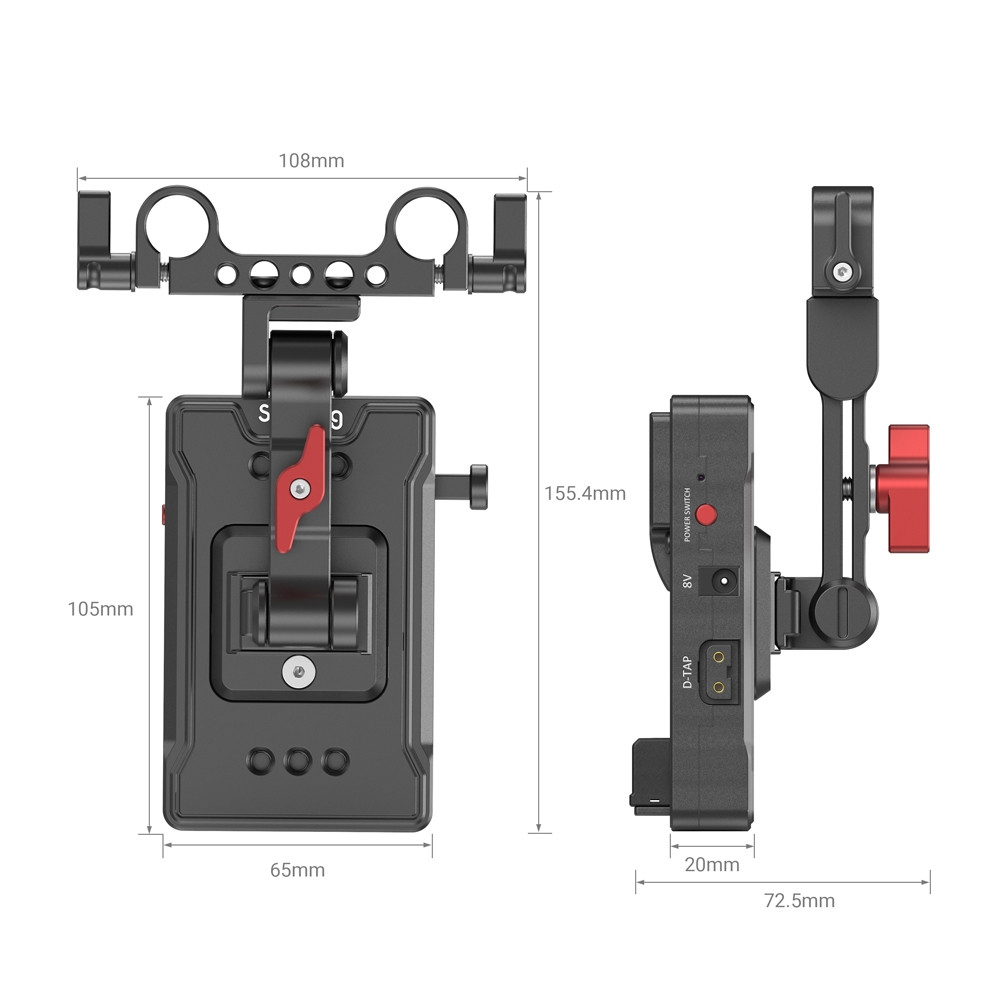

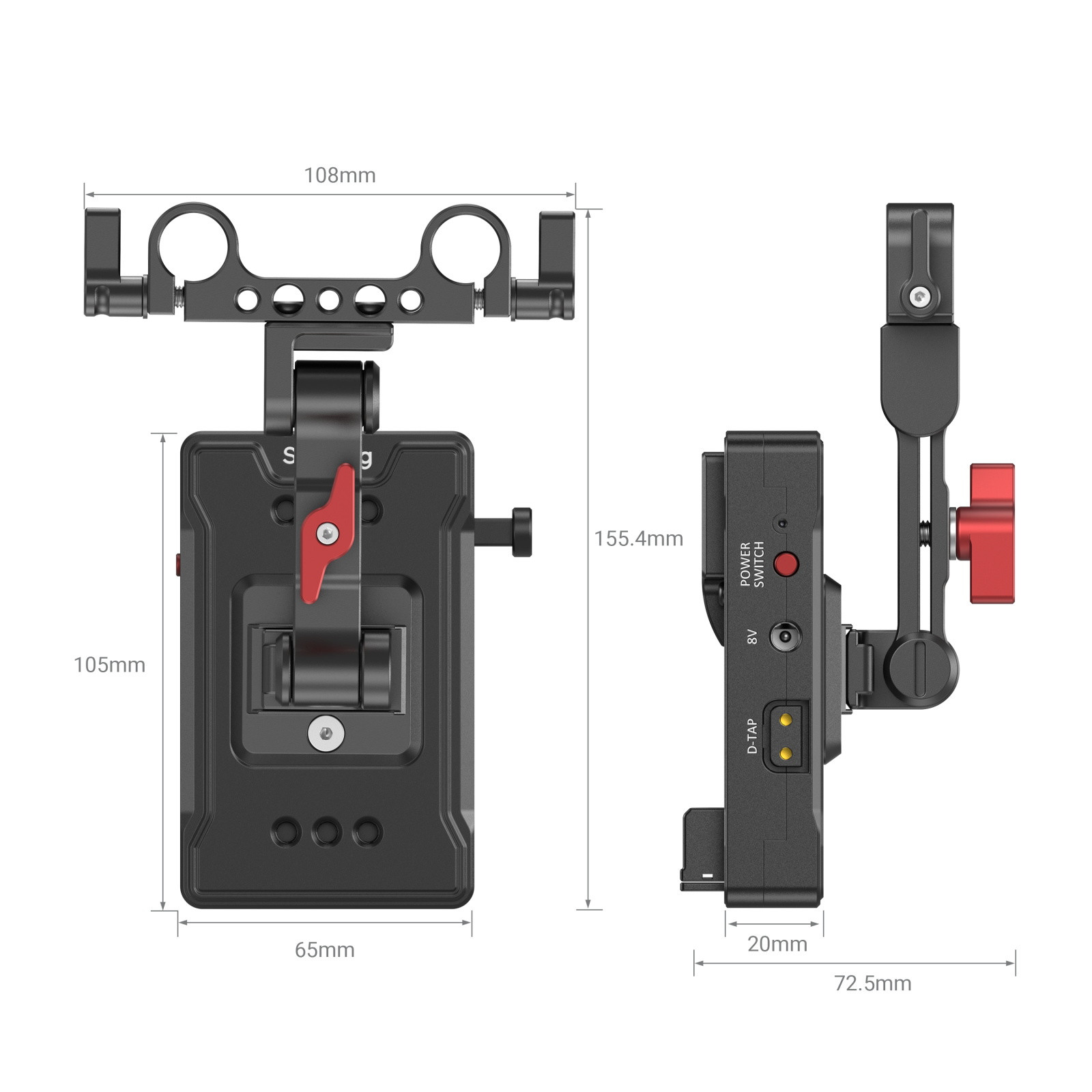

Product Dimensions: 155.4 × 108 × 72.5mm / 6.1 × 4.3 × 2.9 in
Package Dimensions: 211 × 142.5 × 54 mm / 8.3 × 5.6 × 2.1 in
Product Weight: 375 ± 10g / 13.2 ± 0.4oz
Package Weight: 466 ± 10g / 16.4 ± 0.4oz
Material(s): Aluminum Alloy
Dual Rod Diameter: 15mm (for 15mm LWS rod system)
Battery Voltage: 11.0V - 16.8V
Battery Rated Capacity: 3500mAh - 20000mAh / 14.8V (Nominal)
Cut-off Voltage: 11.2V
Input Voltage (Max): 16.8V
Working Power (Max): ≤ Battery Power (Subject to Battery Capacity)
Total Max Power: Discharging: 245W (Max)
D-Tap Input / Output Current (Max): 10A (Max)
D-Tap Rated Input / Output Current: 5A
D-Tap Output Voltage: 11.0V - 16.8V
USB-C Output Power: 100W (Max)
USB-C1 / C2 Input: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A, 20V⎓3.25A, 12V⎓2A, 5V⎓1.5A, 3.3-20V⎓3A, 5V⎓2.4A; 65W (Max)
USB-C1 / C2 Output: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A, 20V⎓3.25A, 12V⎓2A, 5V⎓1.5A, 3.3-20V⎓3A, 5V⎓2.4A; 65W (Max)
USB-C Input / Output Protocols: PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
DC1 Output: 8V / 3A (Max)
DC2 Output: 12V / 3A (Max)
DC Overcurrent Protection: ≥4.0A
