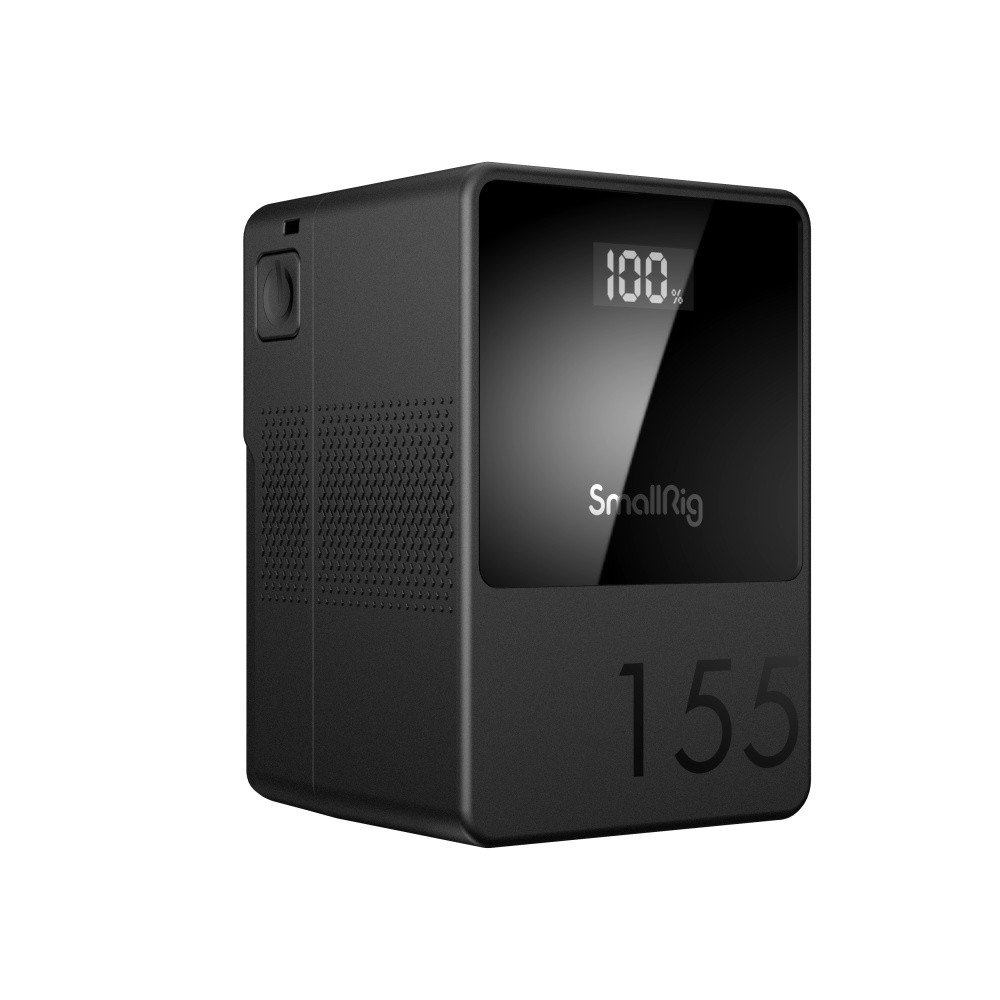

SmallRig VB155 mini V Mount Battery 3581

SmallRig VB155 mini V Mount Battery 3581

1. Compact and lightweight to be carried around: designed to lighten the burden of the film industry, the VB series is approximately 30% smaller than traditional V-mount batteries!

2. Intelligent BMS chip for efficient and safe use: a built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 65W (Max) USB-C PD fast charging!

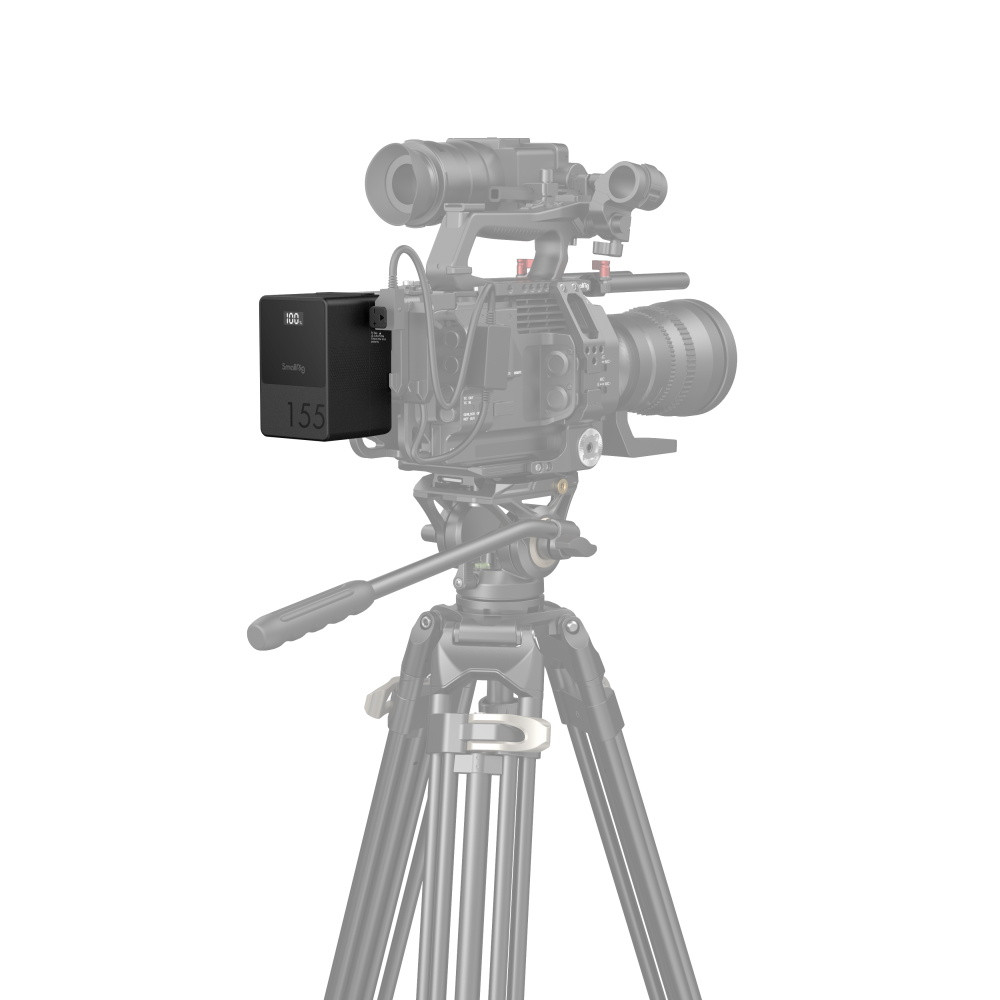

3. Various interfaces for high compatibility: compatible with camera / camcorder / monitor / wireless transmitter / video light, etc.

4. Practical OLED display for precise control: keeps track of the battery's working status at all times!

5. Premium Li-battery with guaranteed quality and safety: built-in high-capacity premium Li-battery, a double guarantee of quality and performance!

$379.00
Sku 3581

Availability: Available soon

This product has been viewed 68 times

Alcohol wipes or battery items included, please confirm if able to import or export.Especially for country / region:South Korea, India, Taiwan, Japan.
Product Description

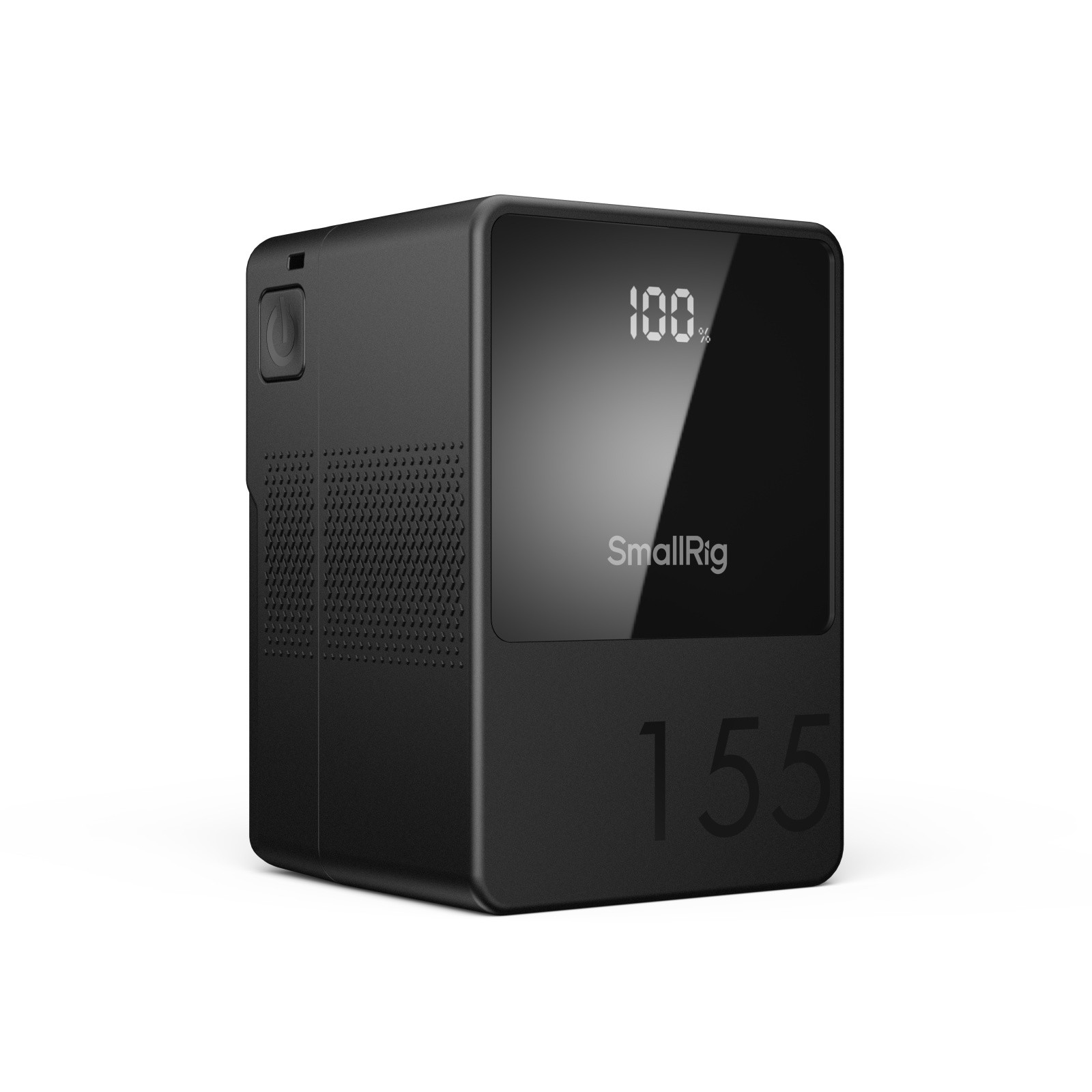

SmallRig VB155 mini V Mount Battery 3581

SmallRig VB155 mini V Mount Battery 3581 is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 65W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage, etc. Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V /  V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC /  power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery's status at all times. Built-in premium high-performance  battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!

Note:

Please keep it clean, dry area, and away from corrosive substances to reduce the risk of short circuits.

Please check its battery life regularly in case you need it anytime anywhere.

If the battery is left unused for a long time, please charge it to about 70% every three months and put it in a dry and ventilated environment for a longer lifespan.

Working temperature: -10℃ - 45℃ (14℉ - 113℉)

Storage temperature:

One month: -20℃ - 60℃ (-4℉ - 140℉)

Three months: -20℃~45℃ (-4℉ - 113℉)

One year: -20℃~20℃ (-4℉ - 68℉)

Reference storage temperature/humidity:

temperature: 20℃±5℃

humidity: 60±15%

It is normal for the battery to heat up slightly during charging or using.

When using the D-TAP connector, please distinguish the positive and negative terminals, and do not reverse the battery.

It’s normal that for a long time of storage the battery will lose some power cause it has self-consumption.

Do not exceed its rated output when powering up other devices.

Keep it away from water or fire when using.

Please avoid dropping or crushing.

Children can only use it under adult supervision.

Packing List

User Manual × 1

Technical Data

Items

Parameters

Material

Fireproof PC

Capacity

14.8V 10.5Ah 155Wh

Rated Power

Discharge: 155W  Charge: 65W

 V Mount / D-TAP Input

16.8V / 8A

 V Mount / D-TAP Output

14.8V / 14A(MAX)

USB-A Output

QC2.0 / QC3.0 /AFC / FCP / SCP

 / DCP-1.5A / APPLE-2.4A

QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A

QC3.0: 4.2-9V / 3A, 9-12V / 2A

SCP: 4.5V / 5A, 5V / 4.5A

DCP-1.5A: 5V / 1.5A

APPLE-2.4A: 5V / 2.4A

USB-C Input/Output



Input 65W (Max)

Output 65W (Max)

PD3.0 / QC2.0 / QC3.0 / PPS

 / AFC / FCP / SCP / DCP-1.5A /

 APPLE-2.4A

PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.25A

QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A

QC3.0: 4.2-9V / 2A, 9-12V / 2A

SCP: 4.5V / 5A, 5V / 4.5A

DCP-1.5A: 5V / 1.5A

PPS: 3.3-21V / 3A

APPLE-2.4A: 5V / 2.4A

DC1 Output

8V / Max3A

DC2 Output

12V/Max3A

Cutoff Voltage

11V

Optional Charging Method

16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W)

Product Dimensions

107.0 × 73.0 × 71.0 mm

Net Weight

770 g ± 10 g

Package Dimensions

147.0 × 114.0 × 93.0 mm

Gross Weight

990 g ± 10 g
