SmallRig X-Touch Smart Triple-Proof V-Mount Battery X99 4984
SmallRig X-Touch Smart Triple-Proof V-Mount Battery X99 4984 sets a new standard for professional power solutions by integrating smart technology, rugged protection, high-power fast charging and multi-port versatility, making it ideal for demanding shooting environments.

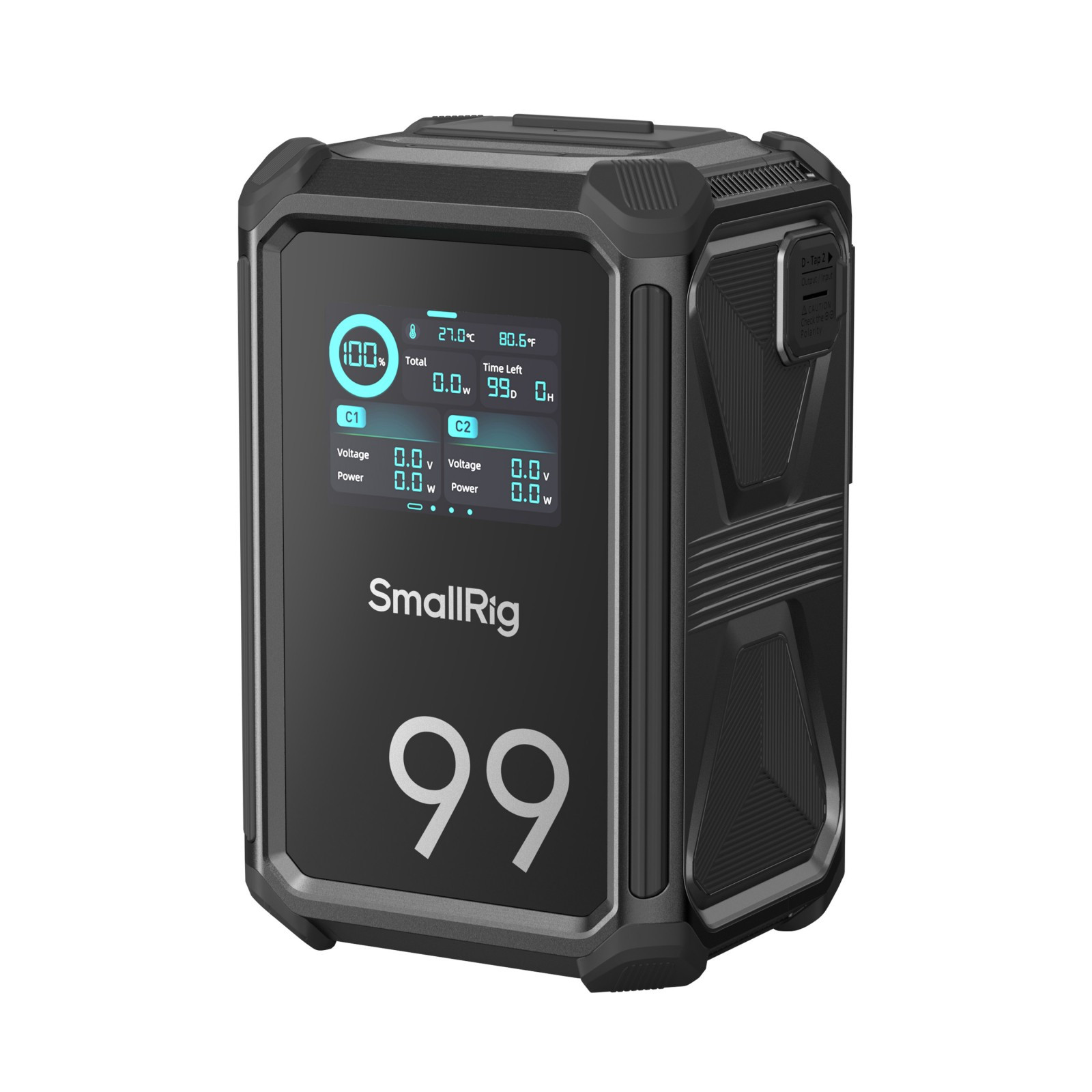

The battery's smart management system is centered around a 2.0-inch HD color touchscreen with a frosted anti-glare surface, ensuring optimal visibility in all lighting conditions. A dedicated mobile app offers comprehensive remote control features, including battery level monitoring, port management, battery location tracking, and OTA updates, significantly enhancing on-set workflow efficiency.

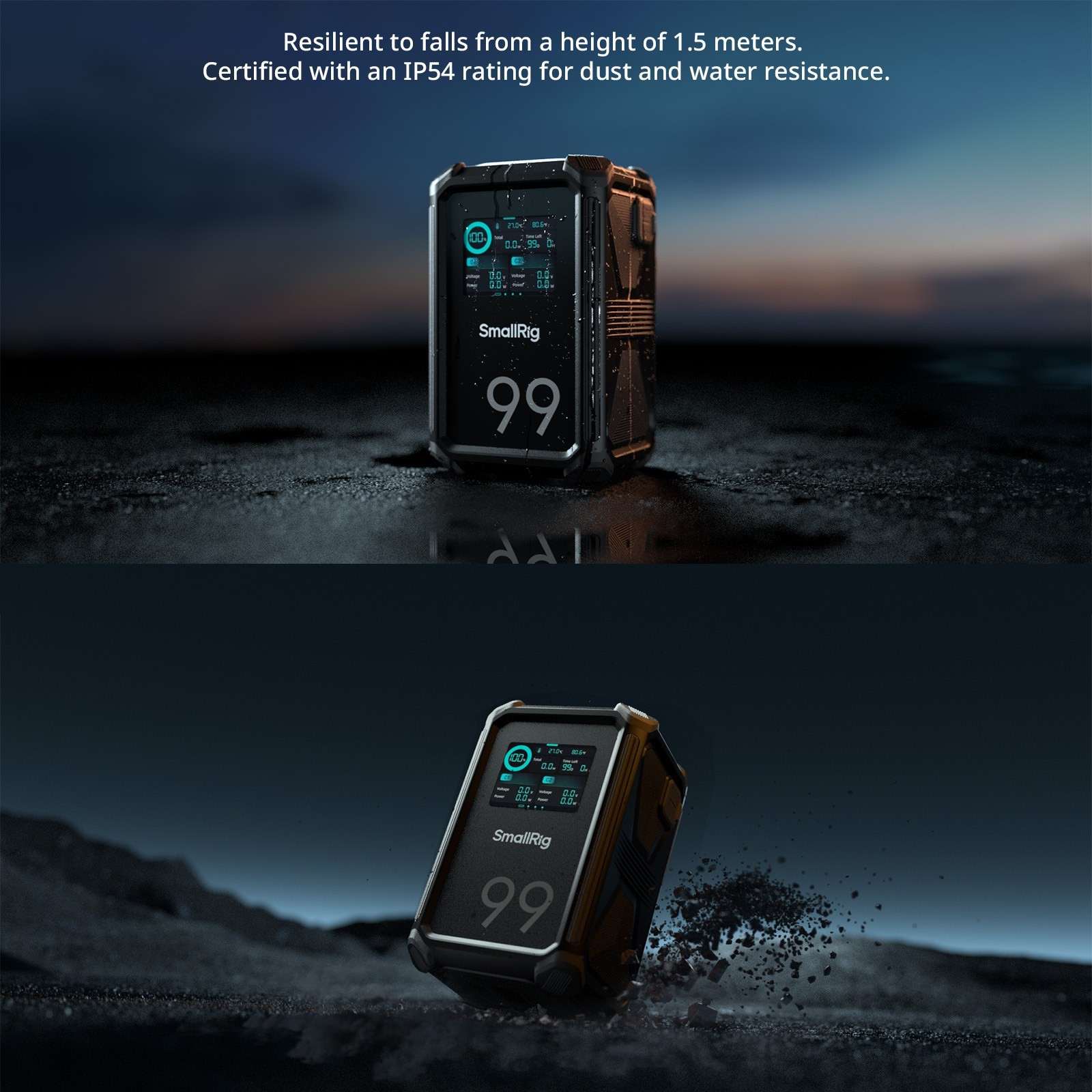

Designed to endure the rigors of professional use, the X99 incorporates triple-proof protection: a 1.5m (4.9ft) drop-resistant housing with eight silicone-protected corners and four reinforced edges, full metal side panels, and fully reinforced internal circuitry. With an IP54 rating, it ensures reliable operation when exposed to water splashes, rain, or dust, making it perfect for outdoor productions.

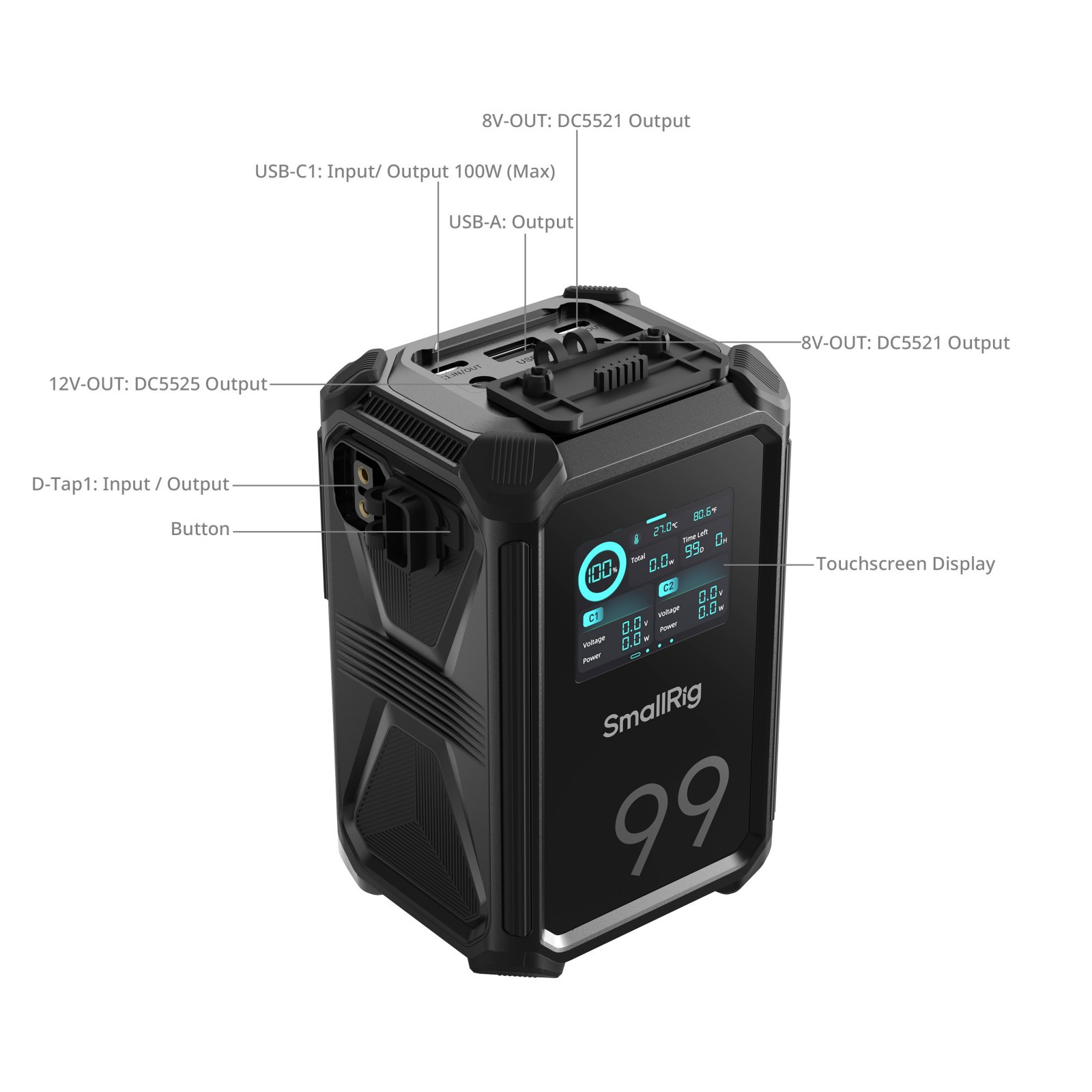

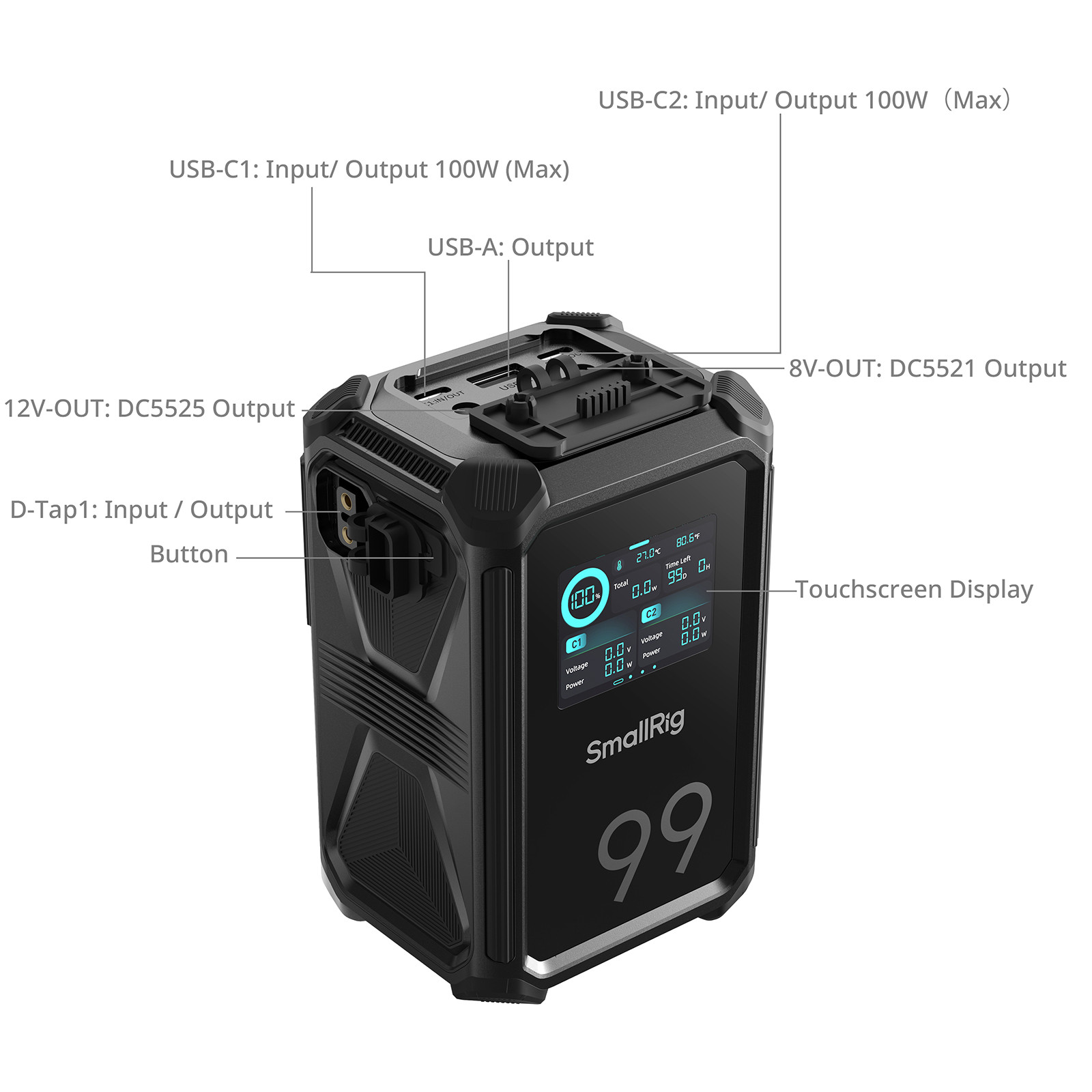

The battery features eight strategically placed ports: one BP port, two D-Tap ports, two USB-C ports (100W PD fast charging), one USB-A port, and two DC ports. Each port operates on an independent circuit, allowing multiple devices to charge simultaneously. The integrated BMS control chip guarantees rapid charging (fully charged in only two hours) and stable, safe power output.

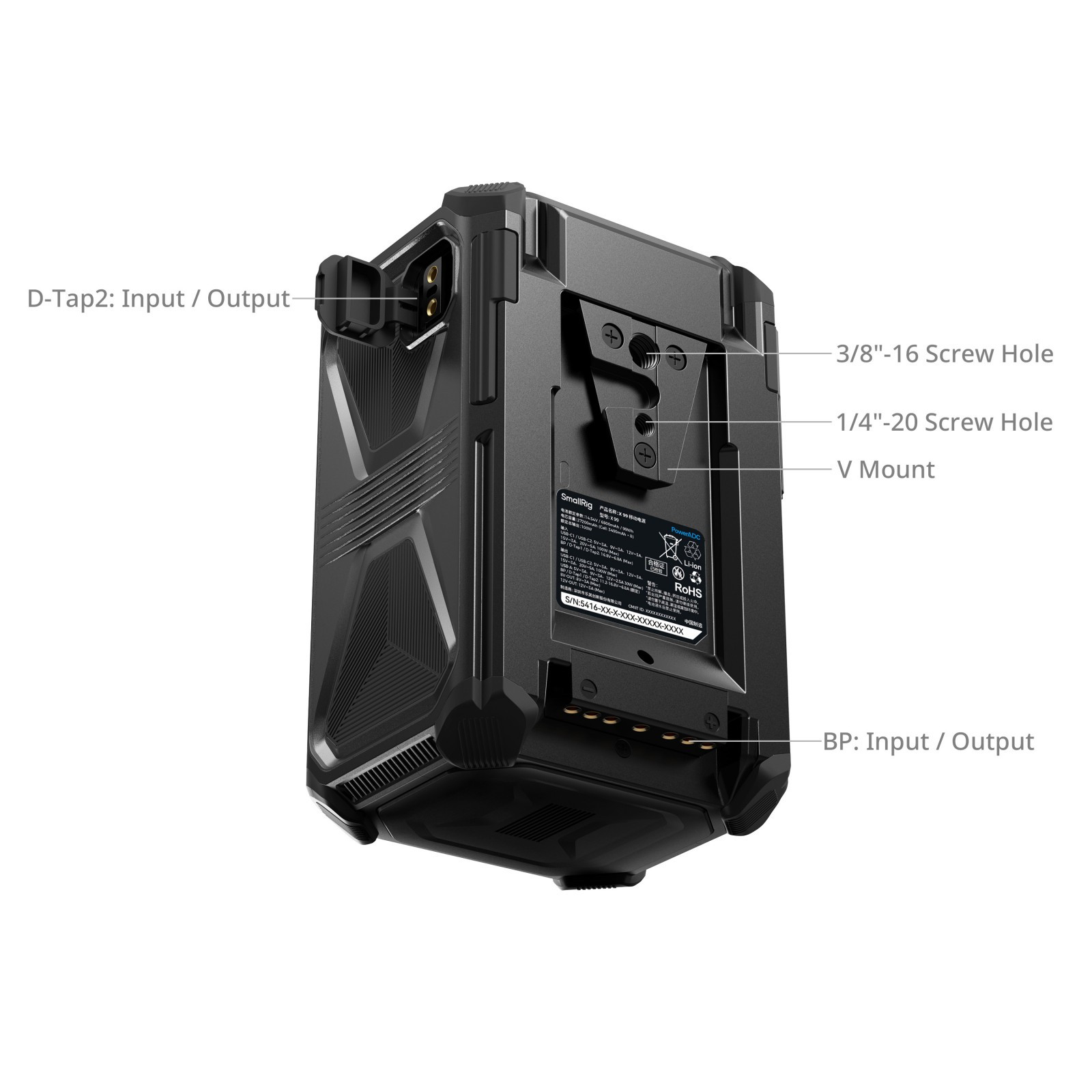

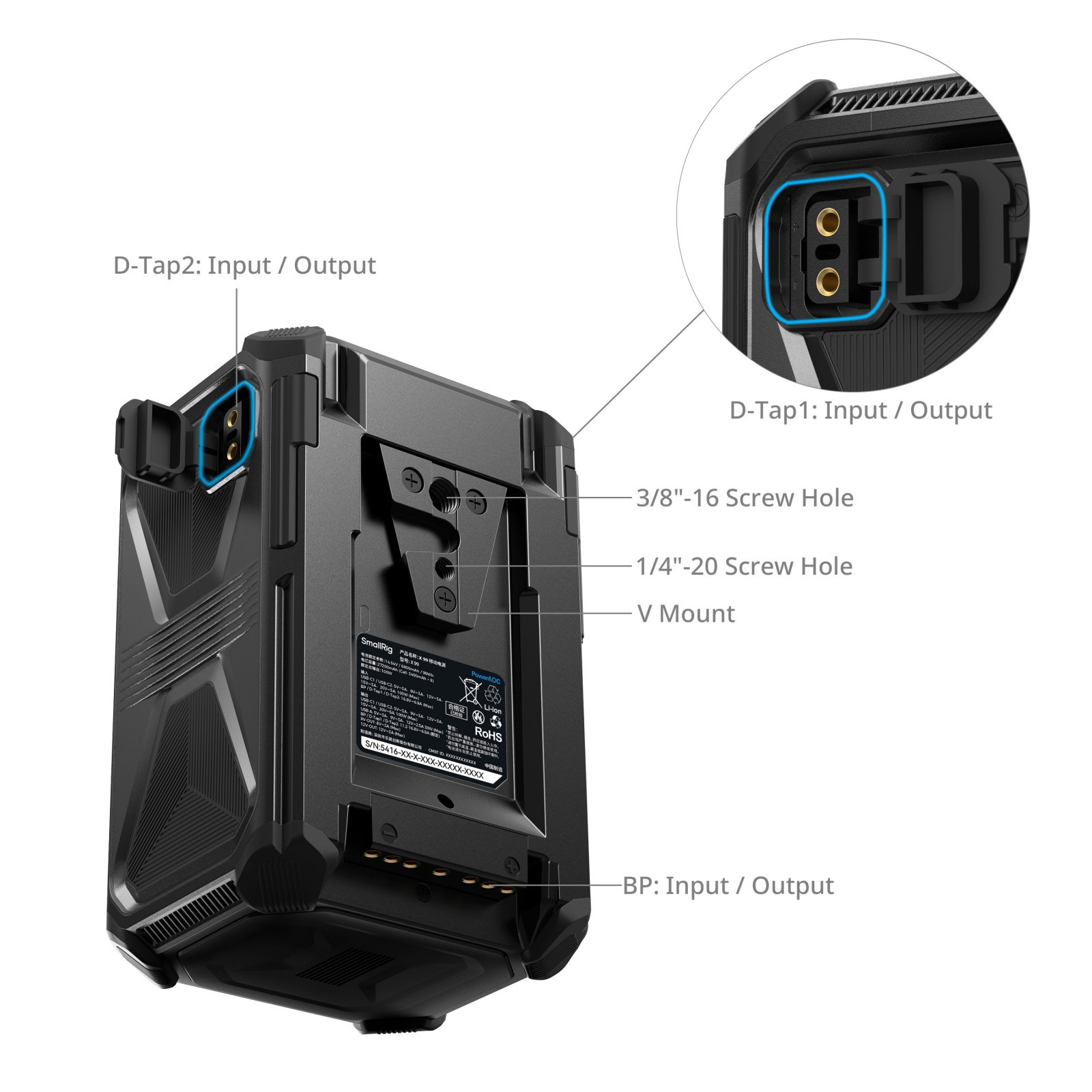

At its core, the X99 utilizes premium LG battery cells, renowned for their exceptional cycle life and accurate battery readings. Innovative designs include dual mounting options (1/4" & 3/8" threaded holes) and a backlight indicator for effortless installation even in dim light. These professional-grade features combine to make the X99 an indispensable power solution for serious content creators.
Certifications: FCC, CE, RoHS, ISED, PSE, RCM
Work With

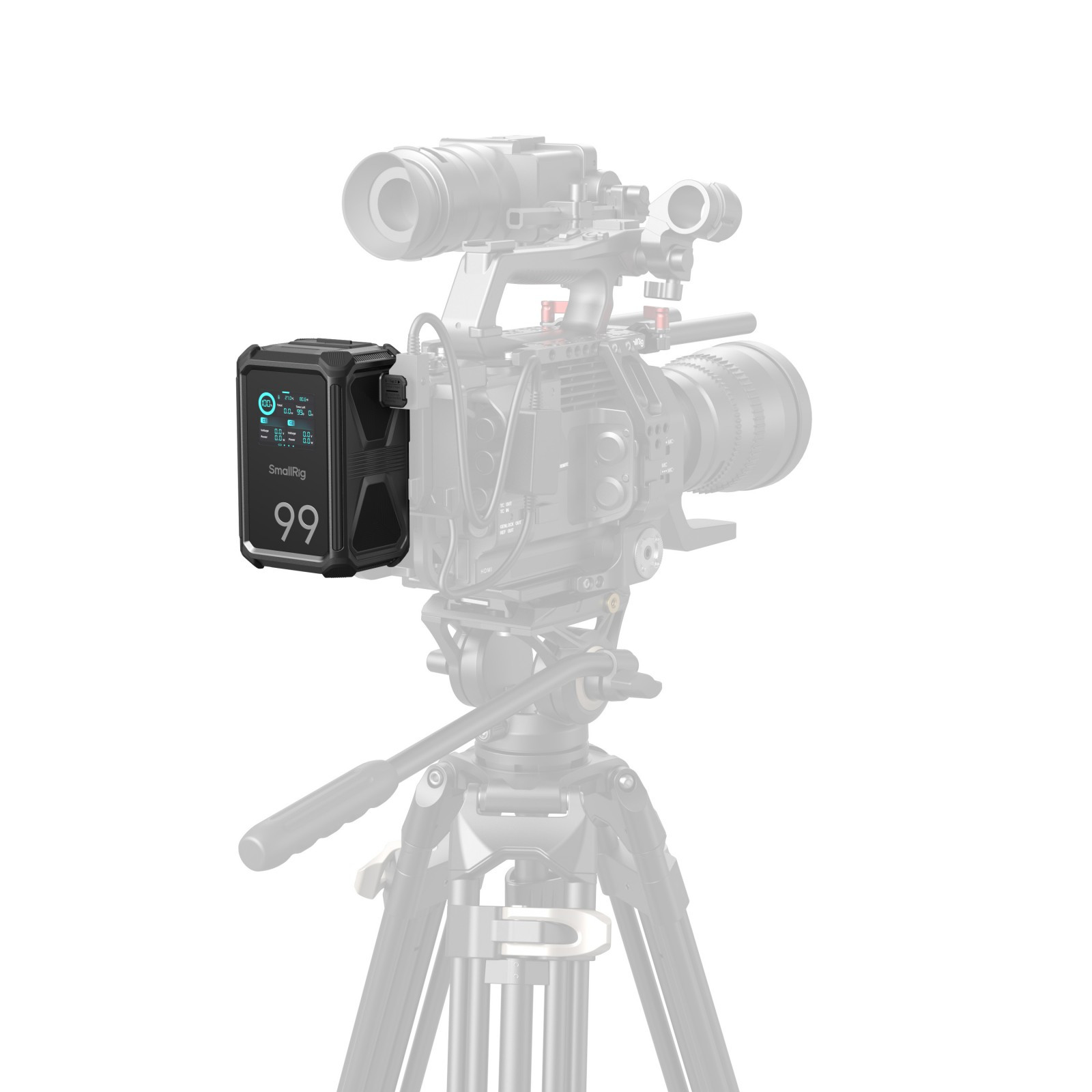

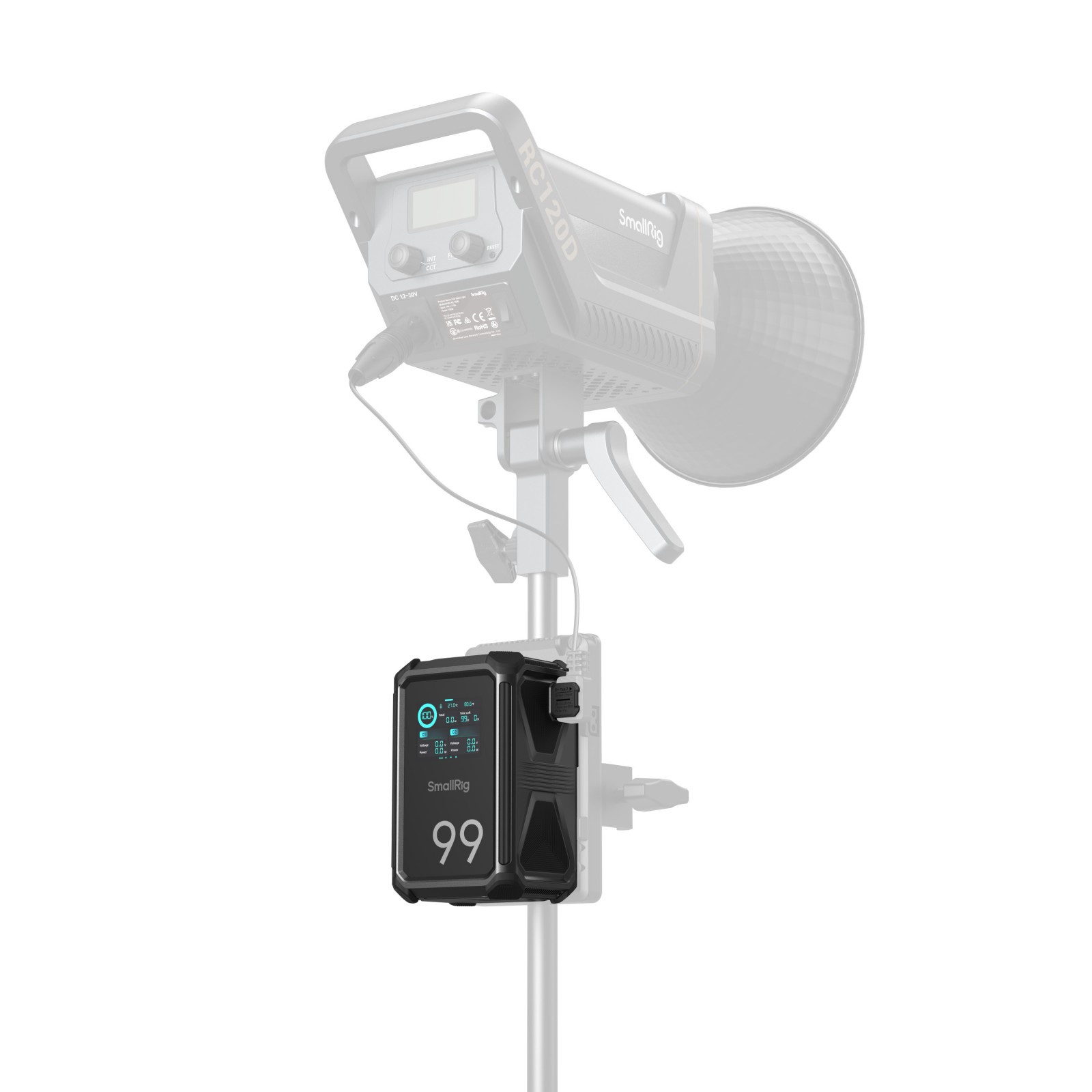

Mirrorless cameras, camcorders, cameras, monitors, follow focuses, image transmitters, LED video lights, cell phones, tablets, laptops, etc.

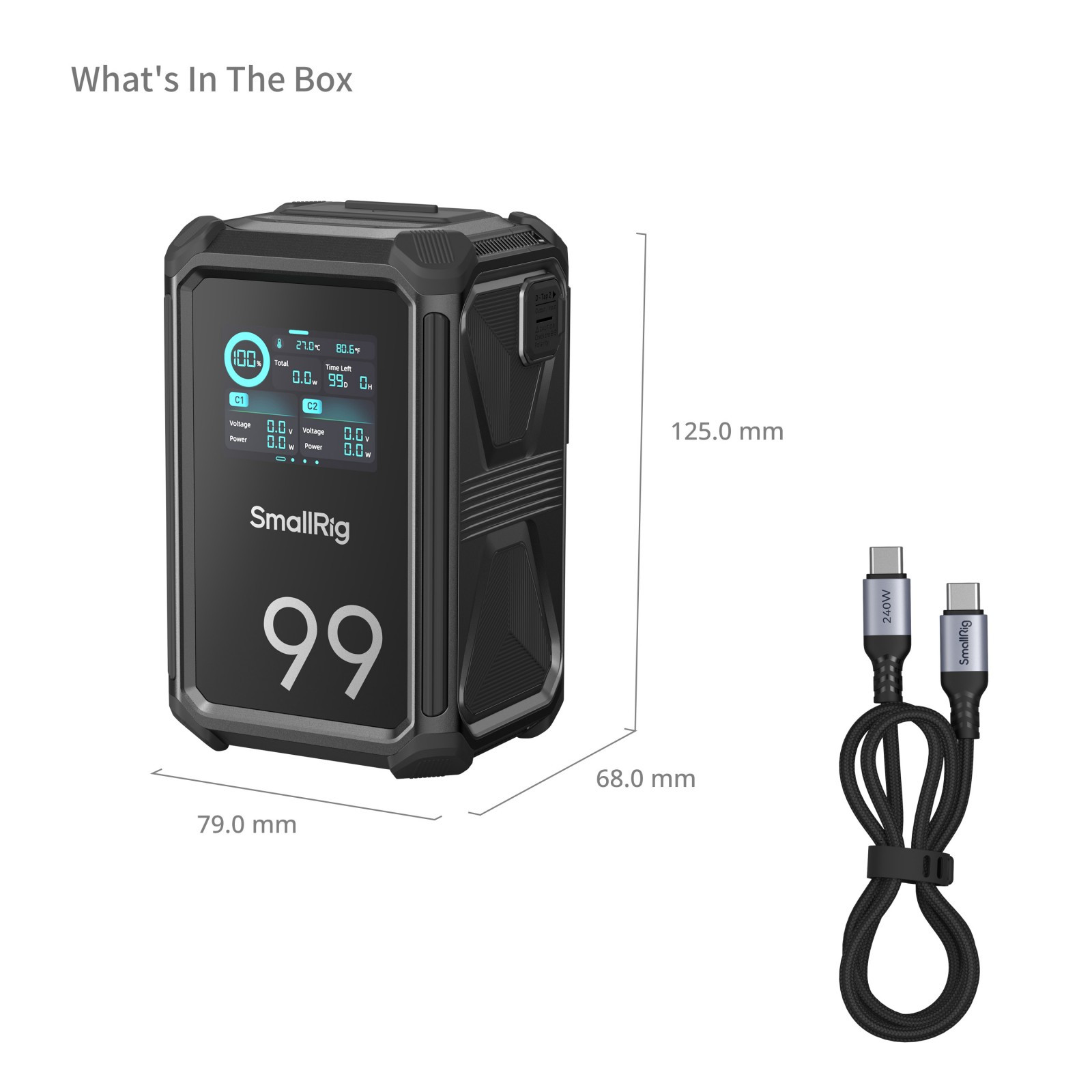

Packing List
X99 V-Mount Battery x 1
240W USB-C Charging Cable x 1
User Manual x 1
Operation Guide x 1
Technical Data
Product Dimensions: 125 × 79 × 68 mm / 4.9 × 3.1 × 2.7 in
Package Dimensions: 160 × 135 × 53 mm / 6.3 × 5.3 × 2.1 in
Product Weight (with Charging Cable): 880 ± 10g / 31 ± 0.4oz
Package Weight: 1135 ± 10g / 40 ± 0.4oz
Material(s): Fire-resistant PC, ABS, Aluminum Alloy
Battery Type: Lithium-ion Battery
Rated Battery Parameters: 14.54V / 6800mAh / 99Wh
Rated Total Output: 100W
Battery Capacity: 27200mAh (Cell: 3400mAh x 8)
Input:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
BP / D-Tap1 / D-Tap2: 16.8V (Max); 6.8A
Output:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓ 3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
USB-A: 5V⎓3A, 9V⎓3A, 12V⎓ 2.5A (30W Max)
BP / D-Tap1 / D-Tap2: 11.1-16.8V / 6.8A (Rated)
8V-OUT: 8V⎓3A (Max)
12V-OUT: 12V⎓3A (Max)
Charging Protocols:
USB-C1 / USB-C2: PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, Apple 2.4A
USB-A: QC3.0, QC2.0, AFC, FCP
Cut-off Voltage: 11.2V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -15°C to 60°C / 5°F to 140°F
Charging Ports: BP, D-Tap, USB-C
Drop Resistance Rating: 1.5 meters (5 feet)
Ingress Protection Rating: IP54
