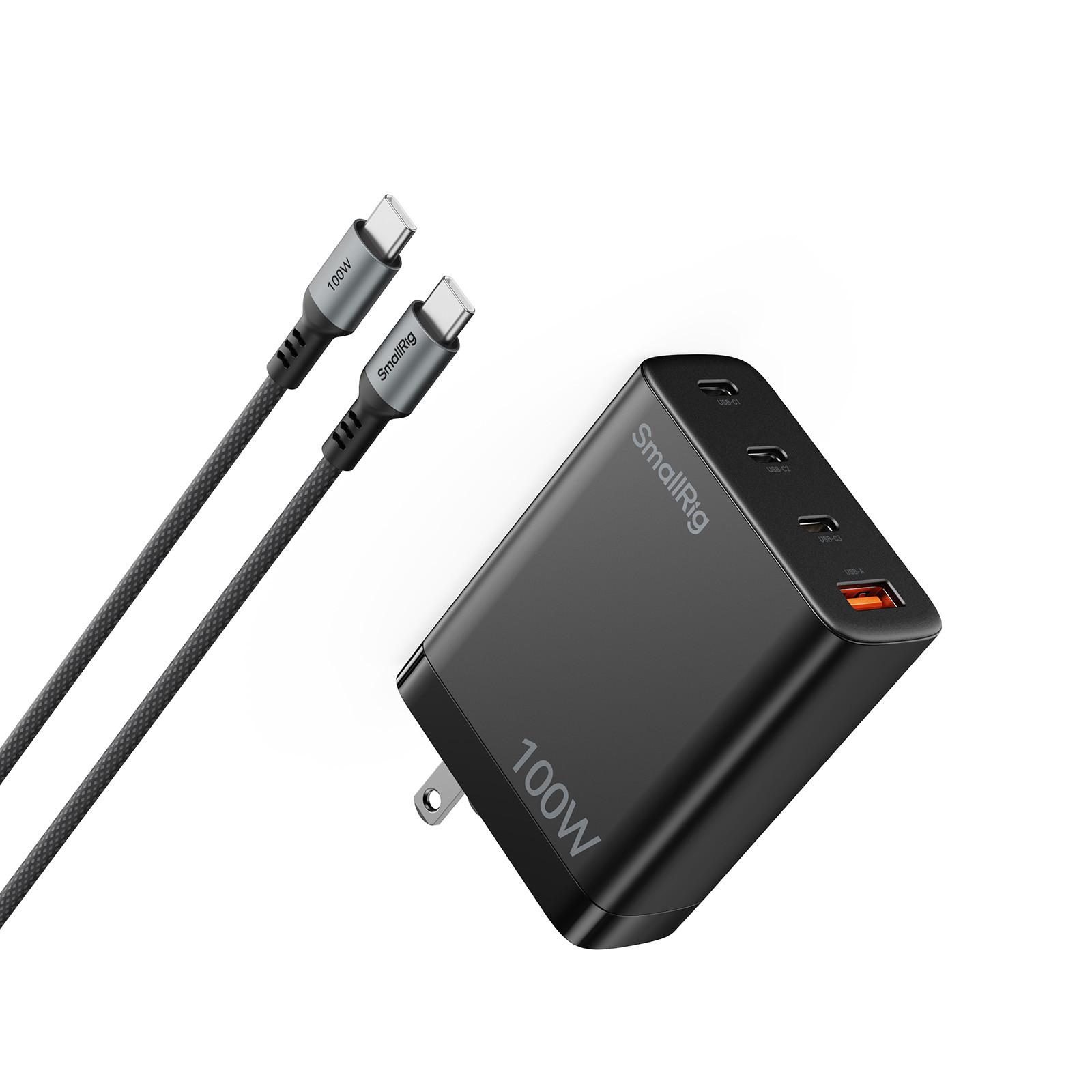

SmallRig 100W GaN Charger (US Standard) 6564
SmallRig 100W GaN Charger (US Standard) 6564 is a 100W charging solution designed to power SmallRig batteries, camera accessories, and everyday electronic devices. Using GaN technology, it combines high-power output with a compact design for studio, travel, and on-location charging.

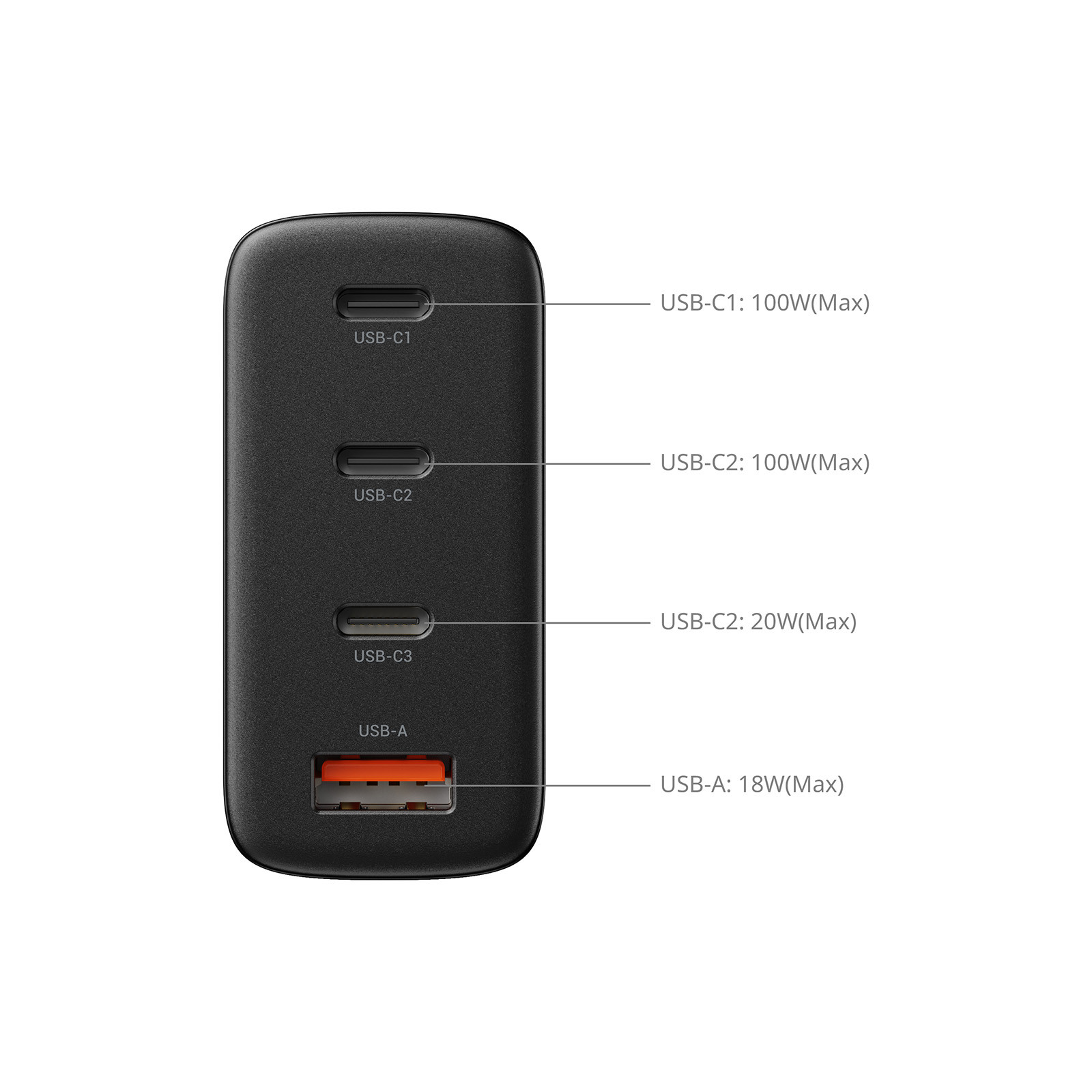

The charger features four output ports: USB-C1, USB-C2, USB-C3, and USB-A. USB-C1 and USB-C2 each support up to 100W (20.0V / 5.0A), while USB-C3 supports up to 20W and USB-A supports up to 18W. When all four ports are used simultaneously, power is automatically distributed, with a maximum combined output of 95W.
Optimized for the SmallRig power ecosystem, it supports a wide range of SmallRig models, including VB50, VB99, VB155, VB99 SE, VB99 Lite, VB99 Pro, and X99. It can provide stable charging for V-mount batteries, NP-F batteries, charging hubs, direct-charge batteries, camera battery chargers, wireless microphones, LED lights, monitors, and wireless video transmitters. It also supports fast charging for everyday electronic devices such as phones, tablets, and laptops, and supports major fast-charging protocols including PD, QC, and PPS.
For safety, it uses a flame-retardant PC housing and features intelligent temperature control together with five protection systems: overvoltage protection, overcurrent protection, short-circuit protection, overtemperature protection, and undervoltage protection. It has passed FCC certification for added peace of mind during extended use.
Certifications: FCC, UL 62368, CP65, TSCA, CEC, DOE
|
Item |
Specifications |
|
Total Power Output |
100W |
|
Input |
AC 100–240V, 50/60Hz, 2.5A Max |
|
Single-Port Output |
USB-C1 / USB-C2: 5.0V⎓3.0A, 9.0V⎓3.0A, 12.0V⎓3.0A, 15.0V⎓3.0A, 20.0V⎓5.0A; 100W (Max) |
|
Dual-Port Output |
USB-C1 + USB-C2: 60W + 30W; 90W (Max) |
|
Triple-Port Output |
USB-C1 + USB-C2 + USB-C3: 45W + 30W + 20W; 95W (Max) |
|
Four-Port Output |
USB-C1 + USB-C2 + USB-C3 + USB-A: 45W + 30W + 10W + 10W; 95W (Max) |
Work With
Compatible with V-mount batteries, NP-F batteries, direct-charge batteries, camera battery chargers, phones, tablets, laptops, and other USB-C and USB-A devices.
Packing List
100W Power Adapter × 1
Charging Cable × 1
User Manual × 1
Technical Data
Product Dimensions: 74.5 × 59.5 × 28.5mm / 2.9 × 2.3 × 1.1in
Package Dimensions: 138.5 × 94.0 × 34.5mm / 5.5 × 3.7 × 1.4in
Product Net Weight: 220.0 ± 10.0g / 7.8 ± 0.4oz
Product Weight (with Charging Cable): 246.5 ± 10.0g / 8.7 ± 0.4oz
Package Weight: 295.0 ± 10.0g / 10.4 ± 0.4oz
Material(s): PC
