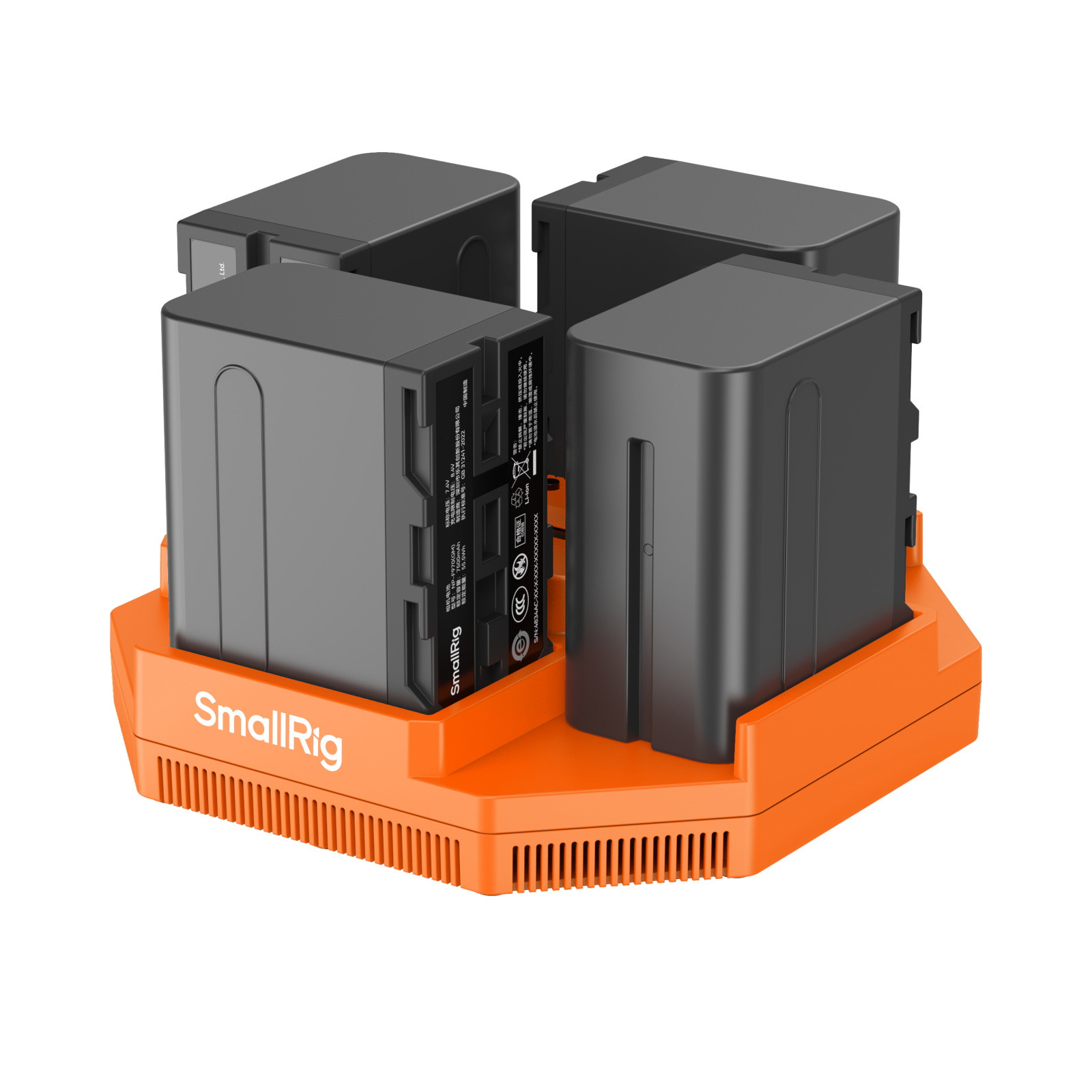

SmallRig NP-F970 4-Channel Camera Battery Charger & 4-Battery Kit 4834
SmallRig NP-F970 4-Channel Camera Battery Charger & 4-Battery Kit 4834 is a high-efficiency, high-power NP-F battery charger that supports a maximum input of 100W. With four NP-F ports, this charger can simultaneously charge four batteries, enabling fast and efficient charging. The charger is compatible with NP-F550, NP-F570, NP-F750, and NP-F970 batteries, each supporting fast charging to meet your diverse battery needs.
The charger ensures comprehensive safety protection with short-circuit and overcurrent protection on each output port, guaranteeing safety during the charging process. The portable design is compact and lightweight, making it convenient for travel and daily use, serving as your on-the-go charging expert.
Featuring a built-in OLED screen, the charger provides real-time updates on battery charging status and USB-C input power, allowing you to monitor the charging progress. Additionally, it comes equipped with four 7800mAh NP-F970 batteries, offering long-lasting power support for extended shooting sessions or outdoor use, ensuring seamless adaptation to various scenarios.
Certification: FCC / CE / RCM

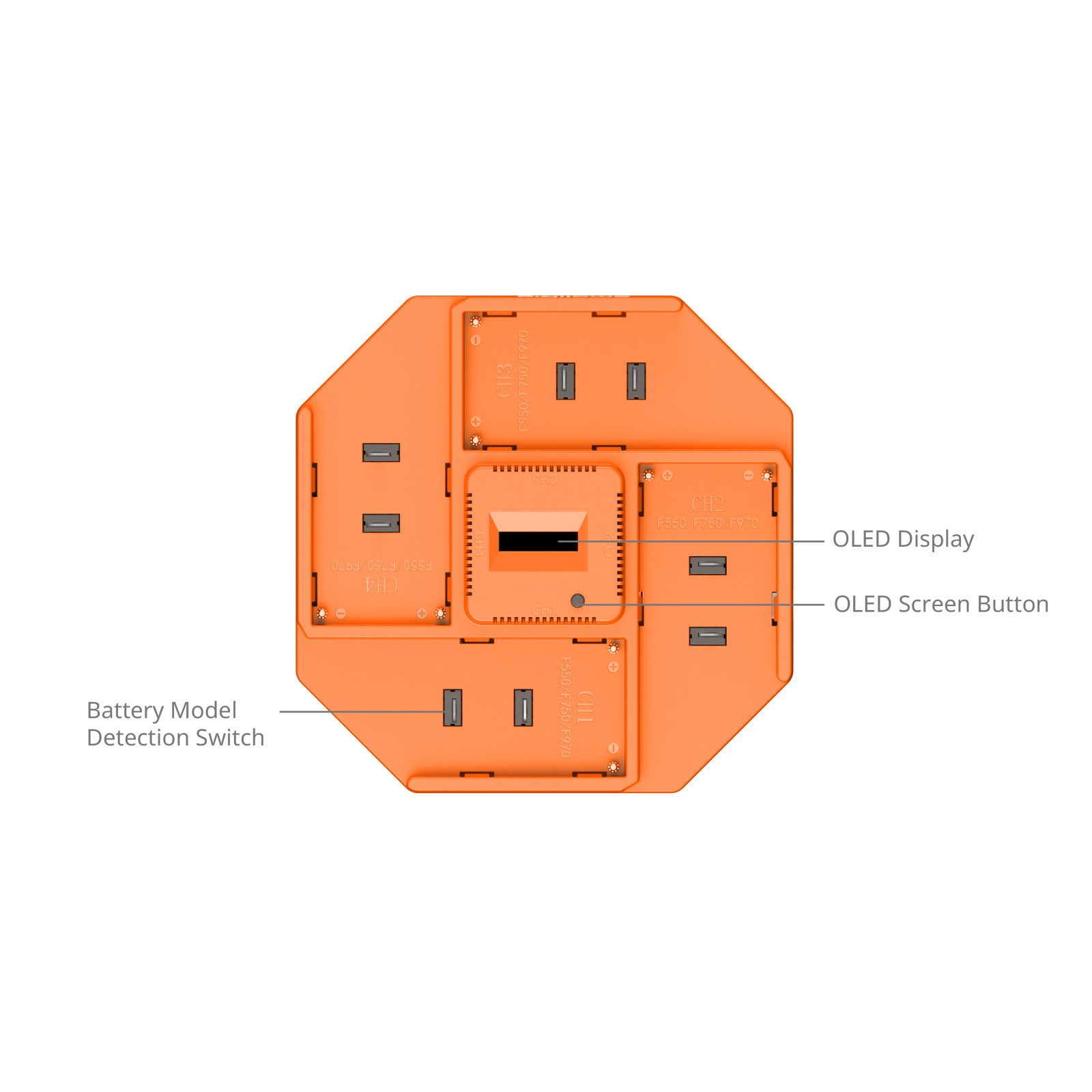

Button / Indicator Function Display:
Battery Model Detection Switch: The charger automatically adjusts the charging current based on the battery model detection switches pressed.
OLED Screen Button:
Short Press: Toggle display between individual channel battery levels/voltages, USB-C current/voltage/power, and temperature.
Long Press: Display model information, data, and version details.
OLED Screen: Provides information on voltage, current, power, and temperature, along with the charging status of each channel.
Work With
Panel light, image transmitter, monitor, camera, camcorder

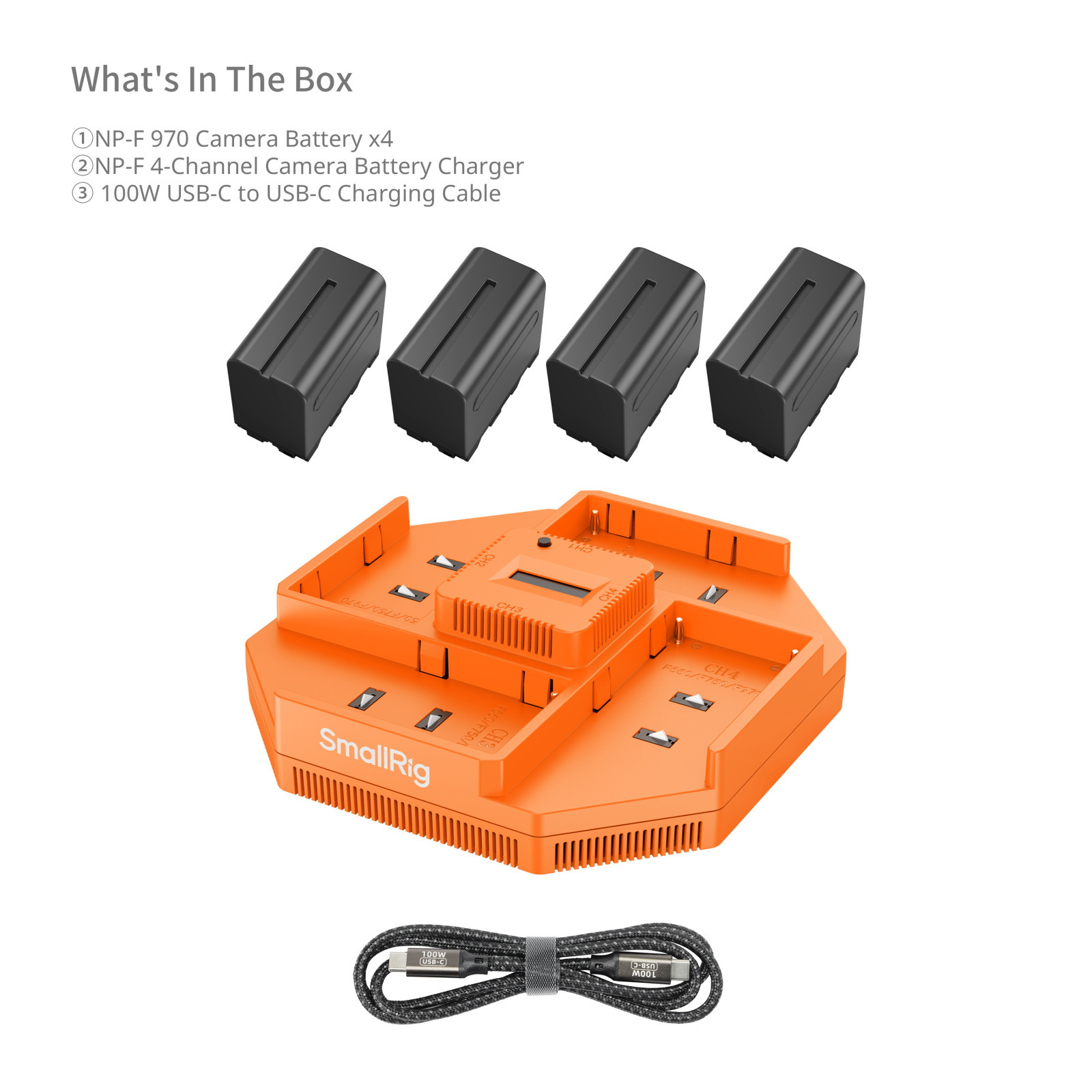

Packing List
NP-F 4-Channel Camera Battery Charger x 1
NP-F970 Camera Battery x 4
100W C to C Charging Cable x1
User Manual x 1
Guarantee Card x 1
Technical Data
Product Dimensions: 155.0 x 135.0 x 35.1mm / 6.1 x 5.3 x 1.4in
Package Dimensions: 165 x 184.5 x 103.5mm / 6.5 x 7.26 x 4.1in
Product Weight: 1571.5 ± 20g / 55.4 ± 0.7oz
Package Weight: 1.97kg / 69.49oz
Material(s): ABS + PC
Battery Type: Lithium-ion Battery
Battery Parameters: 7800mAh 7.2V 56.16Wh

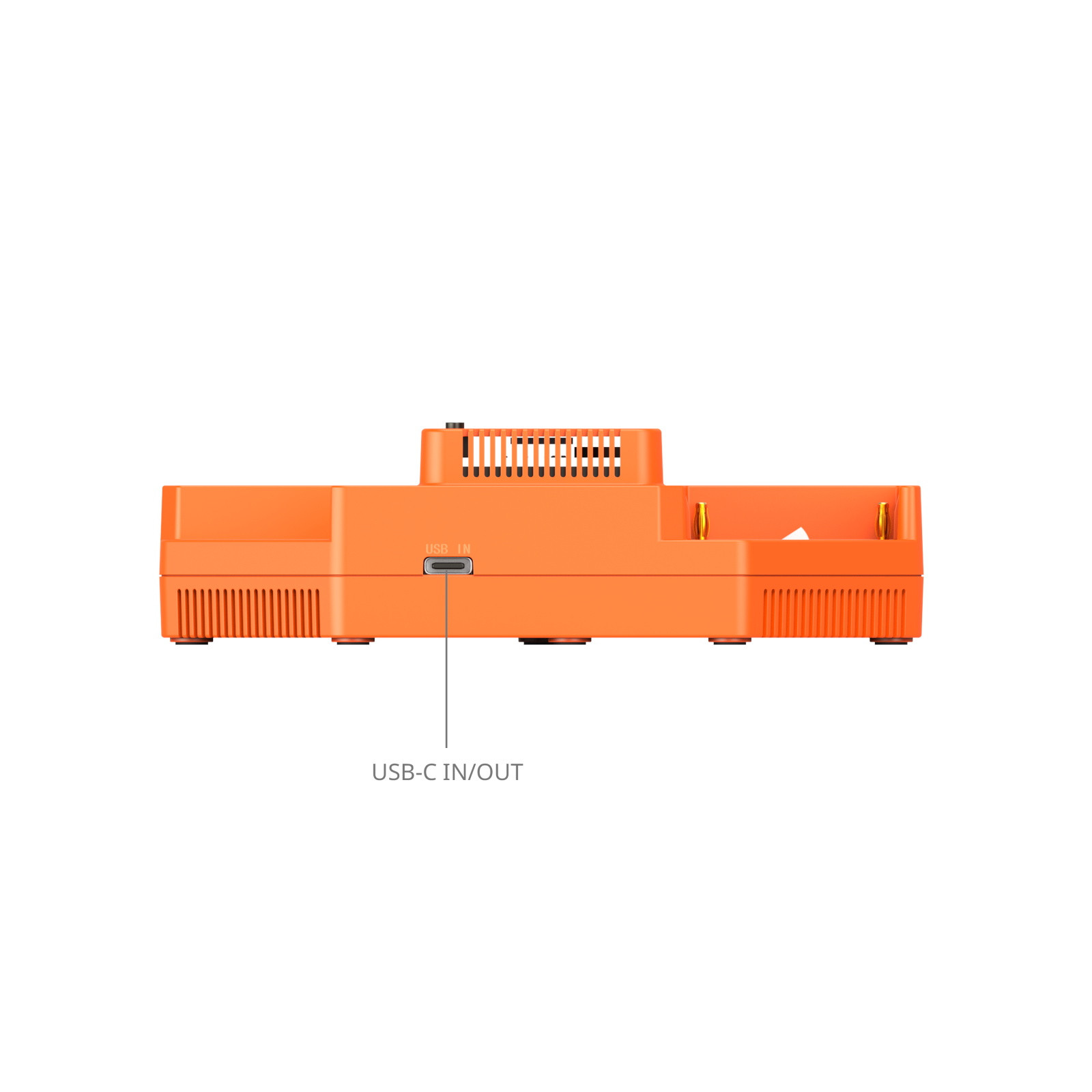

USB-C Input: 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
Output (Per Channel): 8.4V⎓0.9A, 8.4V⎓1.8A, 8.4V⎓2.5A
USB-C Protocol: PD
Charging Voltage Limit: 8.45V
Charging Environment Temperature: 5℃ to 45℃ / 41°F to 113°F
