SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749
SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749 is a highly efficient and versatile charging device with a total output power of 145W. Featuring four USB-C ports, this charger supports simultaneous charging of multiple devices such as V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, computers, etc., making it suitable for various usage scenarios. All ports support fast charging, with USB-C1 / C2 supporting a maximum single-port output of 140W through PD3.1, and USB-C3 / C4 supporting a maximum output of 45W, providing strong support for high-power devices and significantly enhancing charging efficiency. Each output port is equipped with short-circuit and overcurrent protection to ensure safe usage. Additionally, the compact size of the charger makes it convenient for travel and daily use. The power status indicator light design illuminates when connected to power and turns off when disconnected, providing a clear overview of the charging status.
Certification: CE RoHS
Button / Indicator Function:
Power Indicator:
Power connected: Light on.
Power disconnected: Light off.

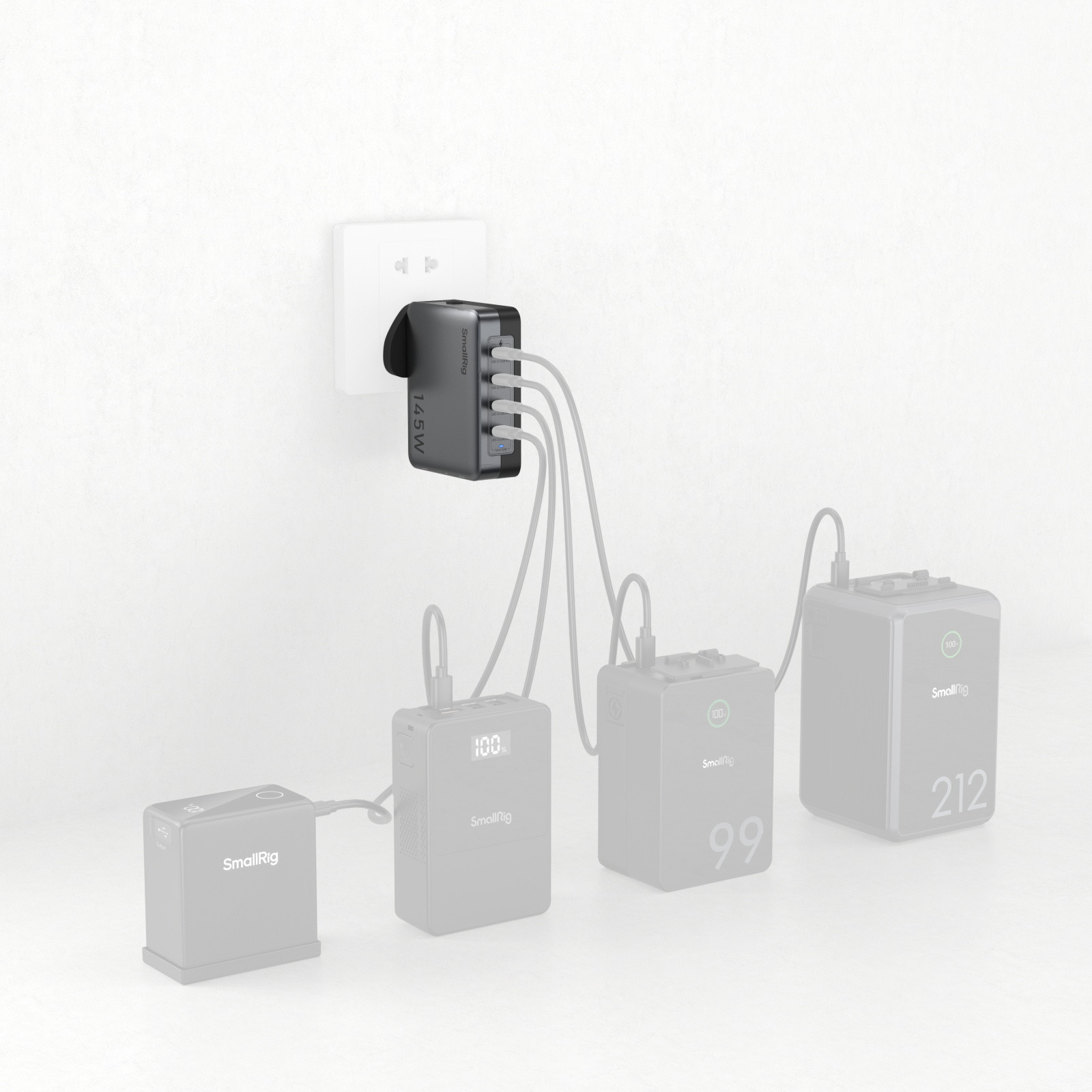

Work With
V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, tablets, and laptops.
Packing List
145W 4-Port PD Power Adapter x 1
Operating Instruction x 1
User Manual x 1
Guarantee Card x 1
Technical Data
Product Weight: 350.0 ± 10.0g / 12.3 ± 0.4oz

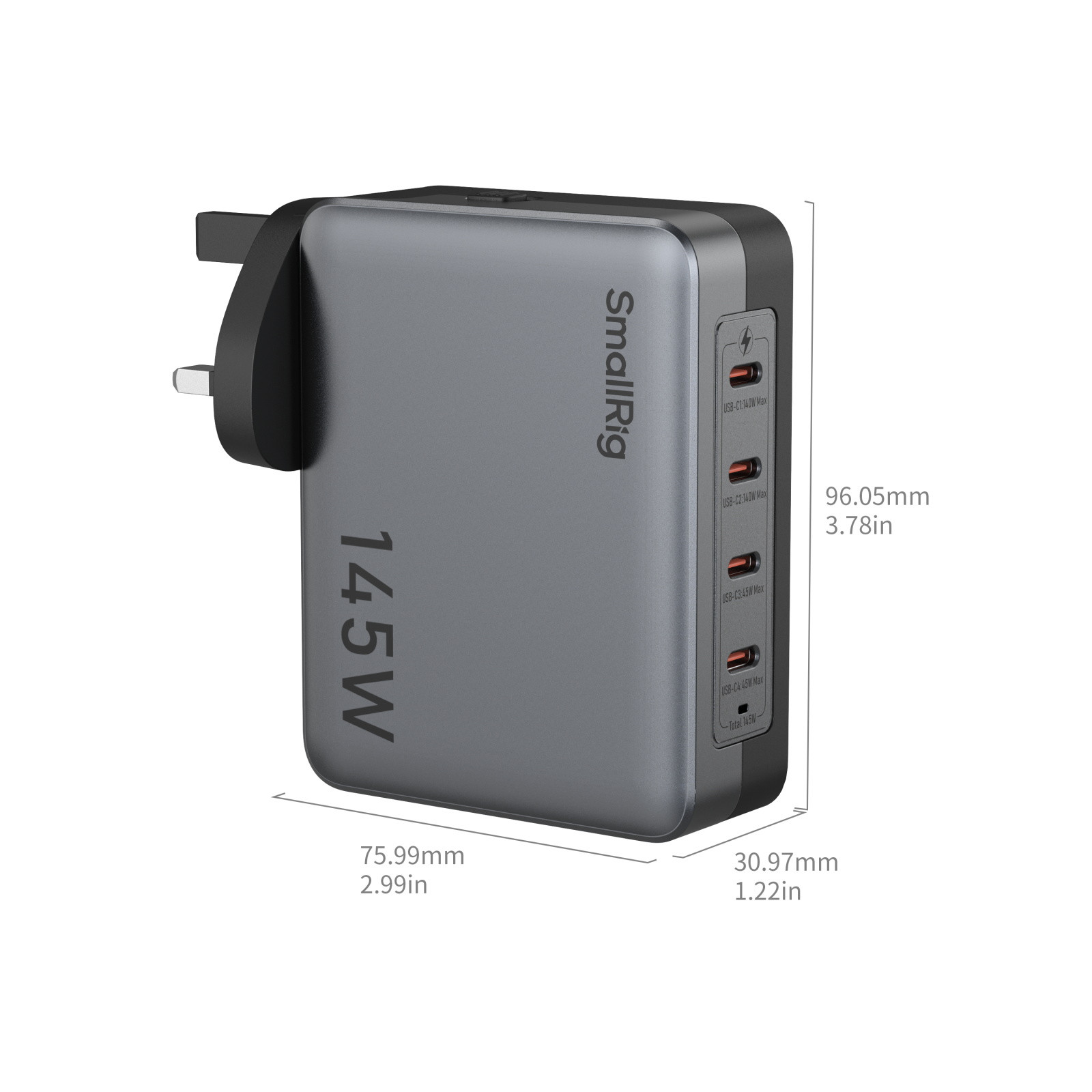

Product Dimensions: 97.0 x 76.0 x 31.0mm / 3.8 x 3.0 x 1.2in
Package Weight: 468.3g / 16.5oz
Package Dimensions: 155.0 x 123.0 x 53.0mm / 6.1 x 4.8 x 2.1in
Material: PC
Total Output Power: 145W
Power Input: 100-240VAC 50 / 60Hz 2.2A
Power Output:
Single-Port Mode:
USB-C1 / C2: 28V5A (140W) Max
USB-C3 / C4: 20V2.25A (45W) Max
Total: 140W Max
Dual-Port Mode:
C1 / C2 + C3 / C4:
USB-C1 / C2: 20V5A Max
USB-C3 / C4: 20V2.25A Max
C1 + C2:
USB-C1 / C2: 20V3.25A Max
C3 + C4:
USB-C3 / C4: 9V2.22A Max
Total: 145W Max
Triple-Port Mode:
C1 + C2 + C3 / 4:
USB-C1: 20V3.25A Max
USB-C2: 20V1.5A Max
USB-C3 / C4: 20V2.25A Max
C1 / C2 + C3 + C4:
USB-C1 / C2: 20V5A Max
USB-C3 / USB-C4: 9V2.22A Max
Total: 145W Max
Quad-Port Mode:
USB-C1: 20V3.25A Max
USB-C2: 20V1.5A Max
USB-C3: 9V2.22A Max
USB-C4: 9V2.22A Max
Total: 145W Max
