SmallRig NP-F970 USB-C Rechargeable Camera Battery (Green) 4577

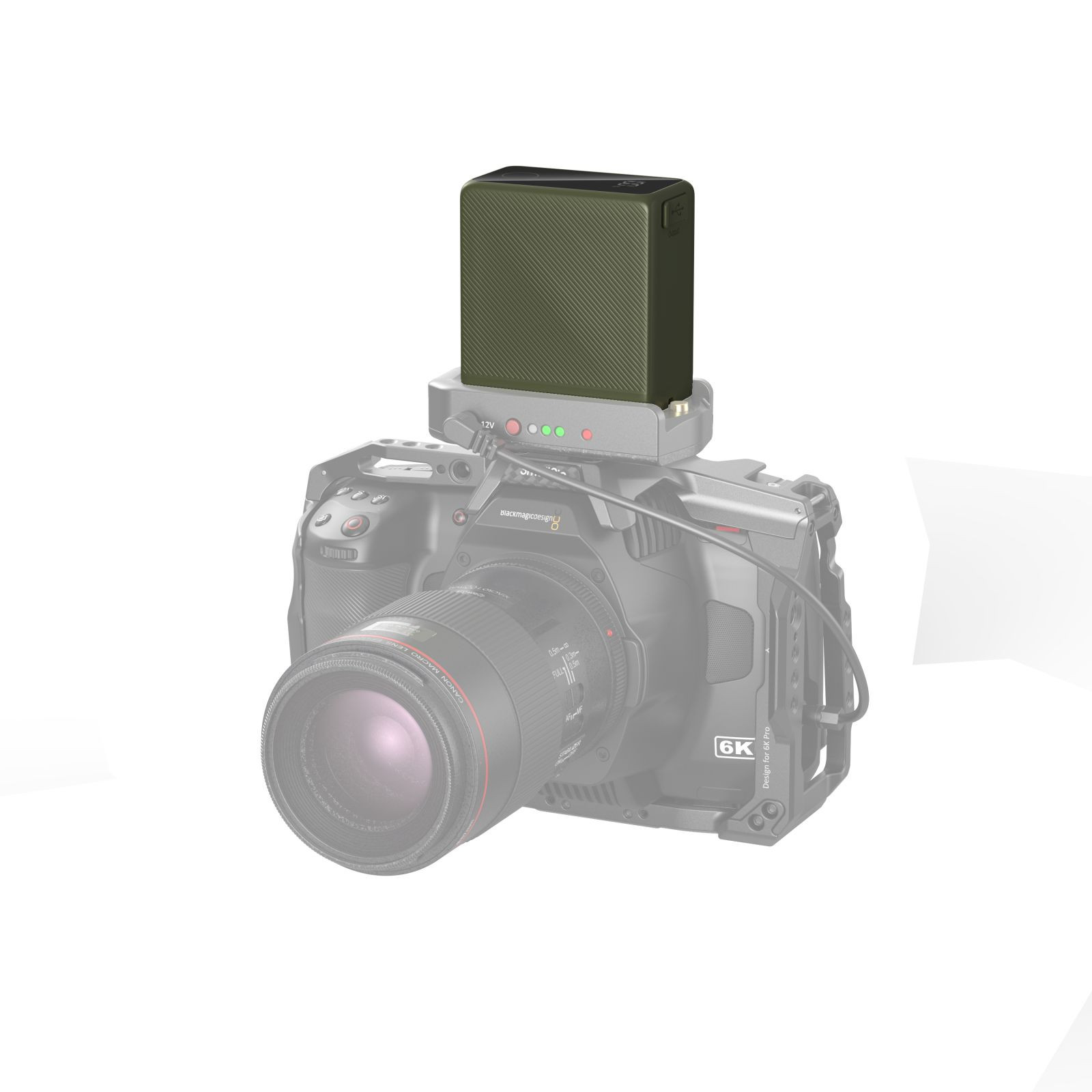

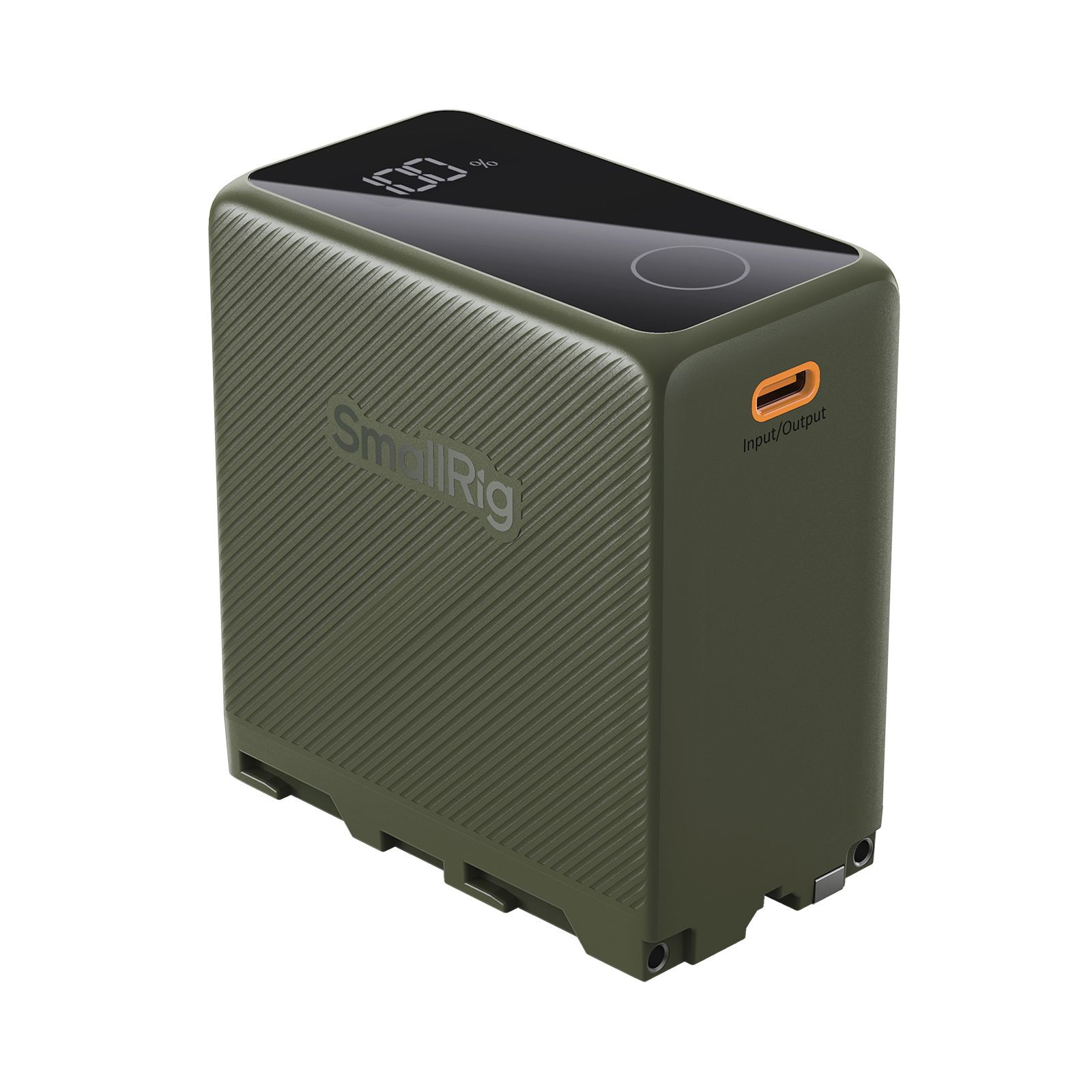

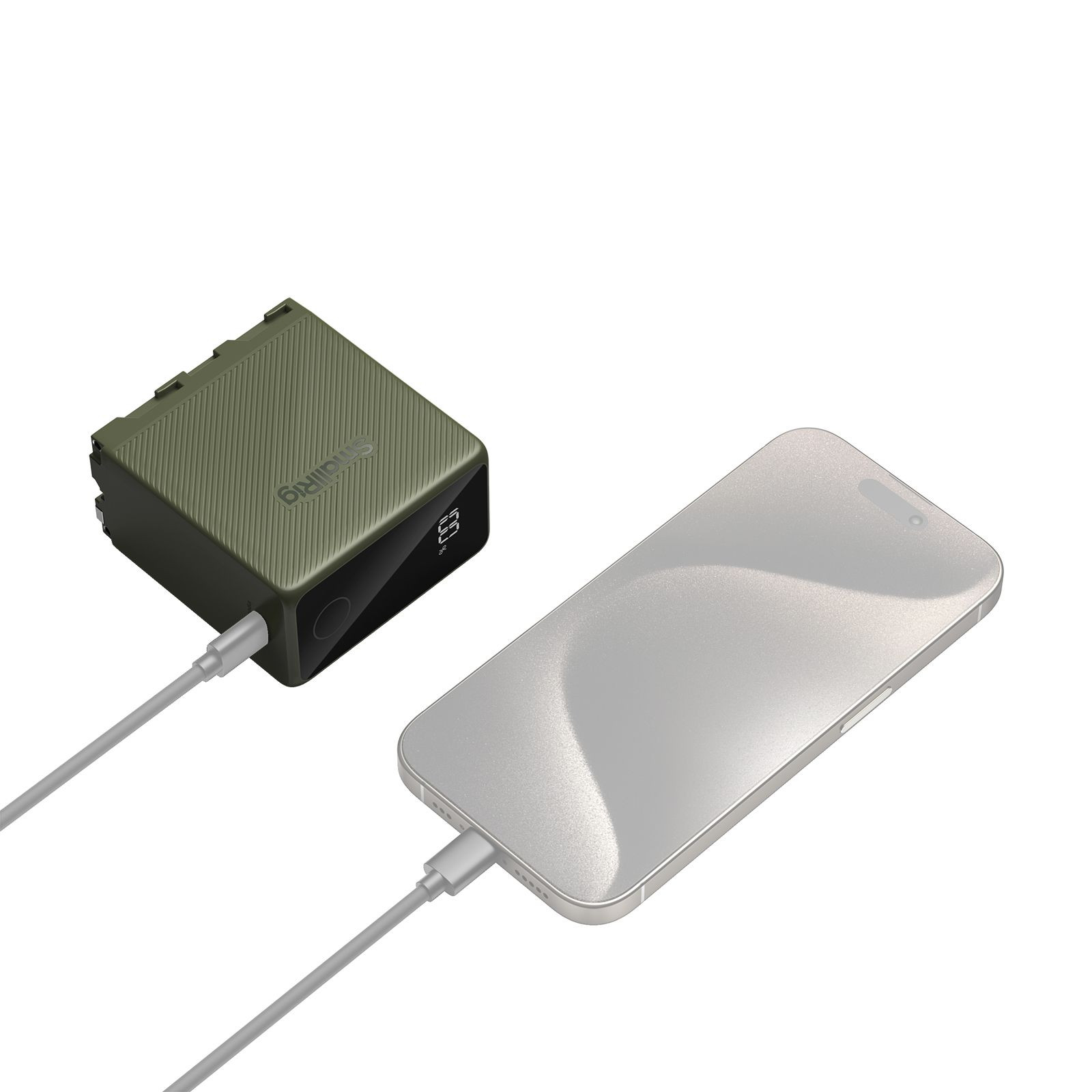

SmallRig NP-F970 USB-C Rechargeable Camera Battery (Green) 4577 is a high-capacity, high-performance, versatile, and intelligent direct-charging battery with a capacity of 10500mAh (76.65Wh). Its large capacity ensures long-lasting power, meeting the power demand during shooting. The main port at the bottom of the battery can power a variety of devices such as cameras, LED video lights, monitors, motorized sliders, and others. It also comes equipped with one USB-C port and one USB-A port, allowing for charging of electronic devices like smartphones, tablets, and other electronic devices. The USB-C port functions both as an input and output, with a maximum power of 36W. Charging the battery using the USB-C port takes only 3.5 hours, empowering efficient creation. The USB-A port provides an output function with a maximum power of 27W, adding more functionality to the battery through its diverse interfaces. The USB-C and USB-A ports have parallel circuits, allowing for simultaneous fast charging of two devices. This battery also comes with touch buttons and a battery level display screen, providing precise battery level information for easy monitoring of the battery status at any time. These batteries have an innovative blend of cutting-edge technology and stylish design elements, featuring a colorful exterior design that enhances their visual appeal. In addition, this battery features high-quality battery cells, and intelligent management chips, and is equipped with multiple protection features for your creative endeavors.
Certification: FCC CE ISED (UL2054 RoHS test is available)
Available regions: China, the United States, the United Kingdom, Europe, Canada
Work With

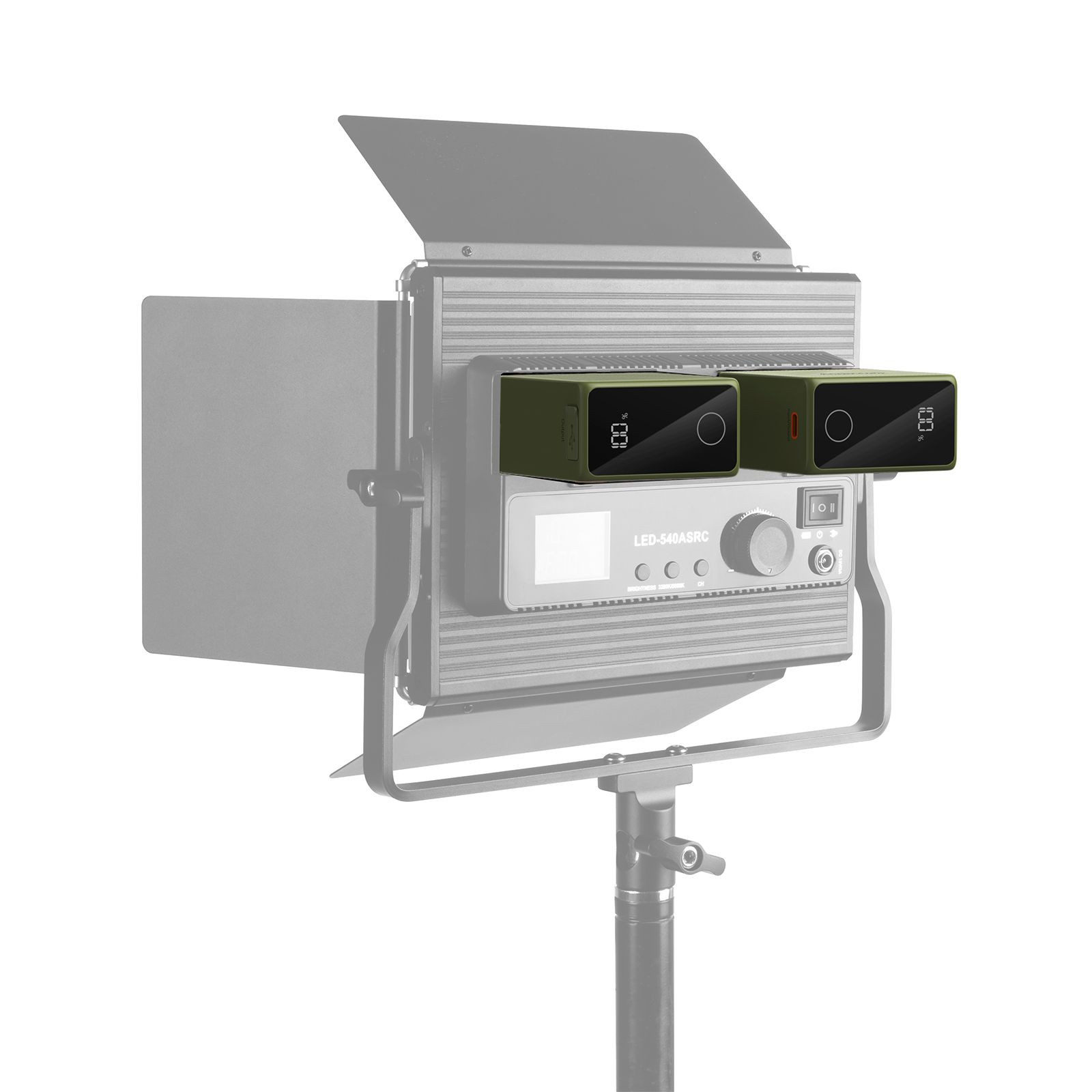

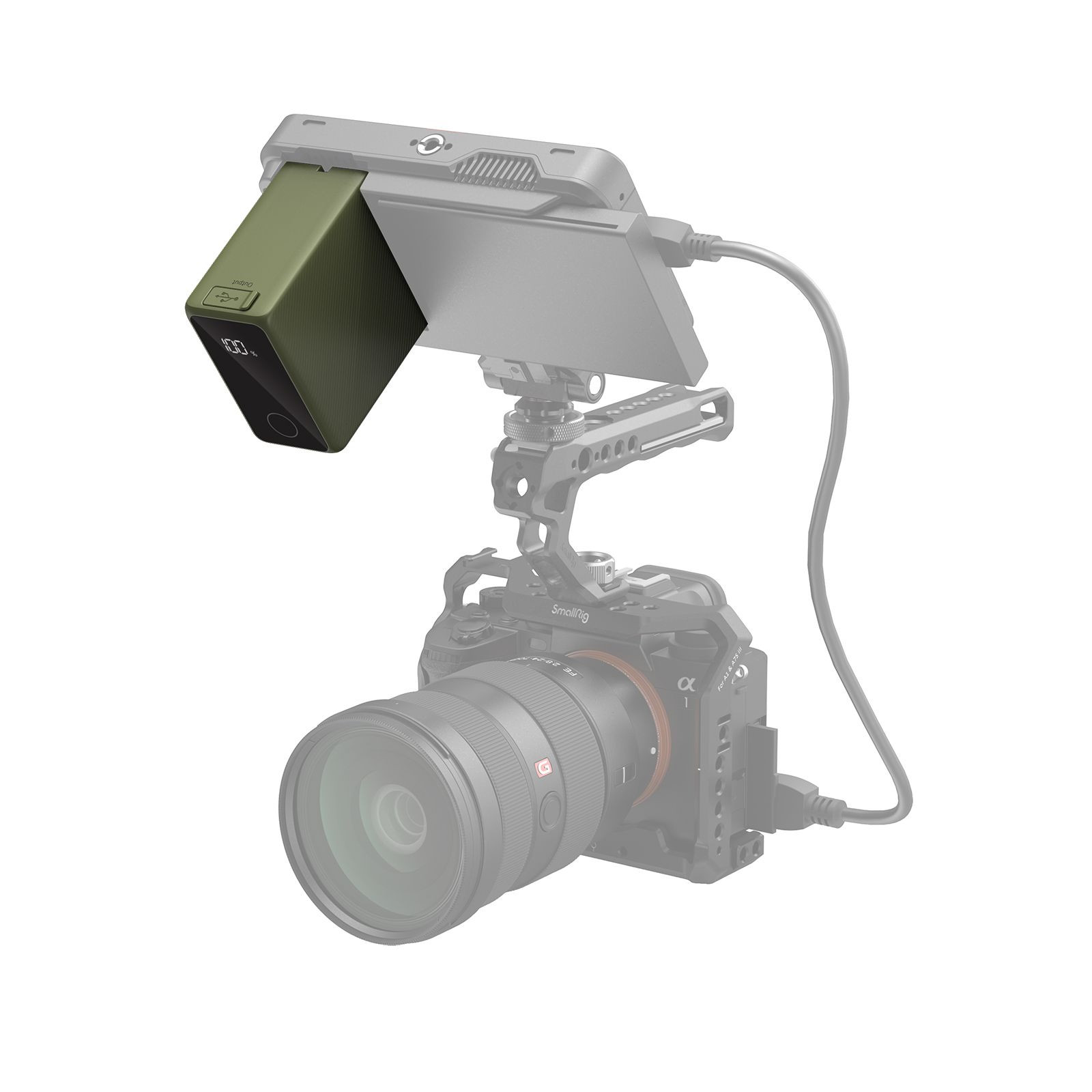

Cameras, LED video lights, monitors, motorized sliders, etc.

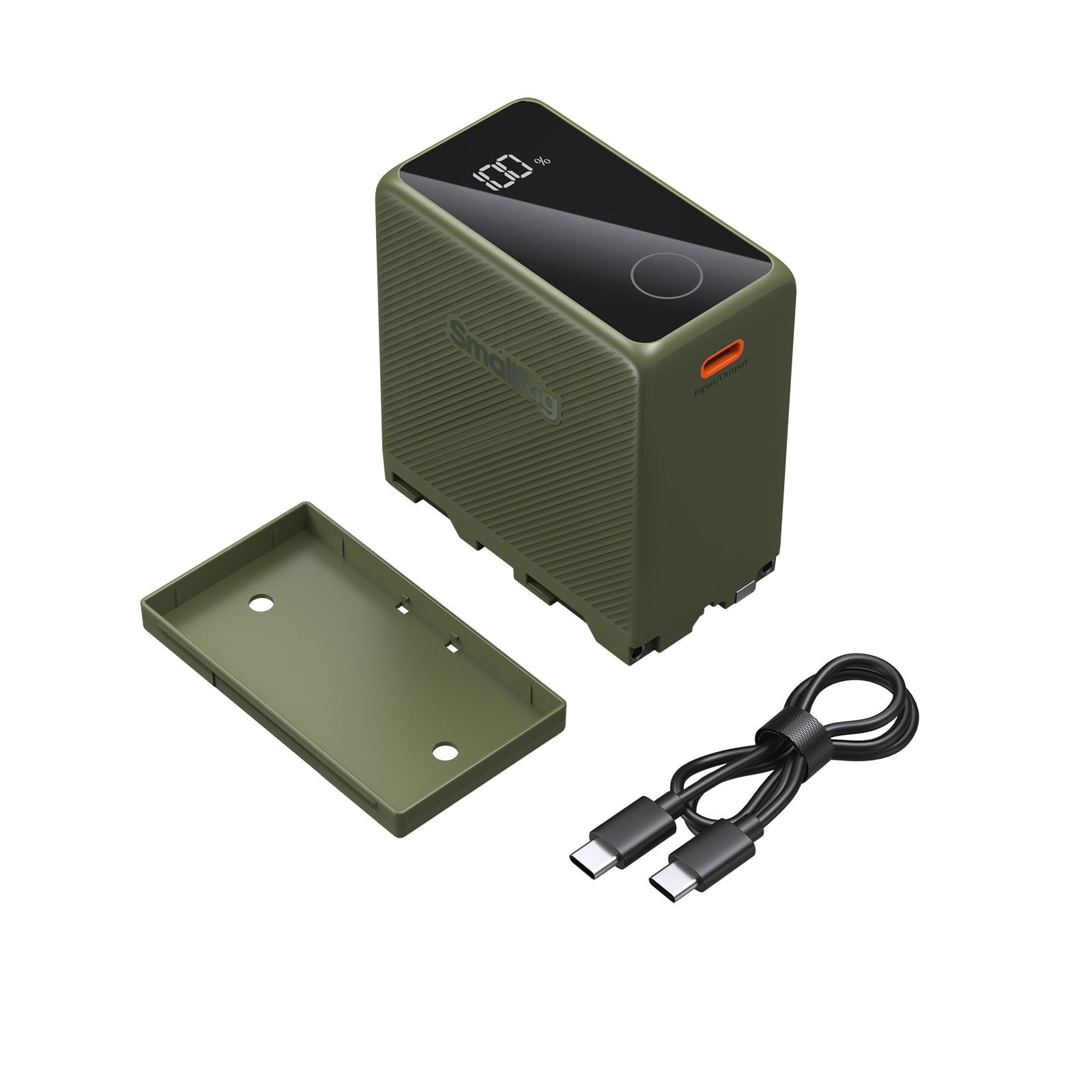

Packing List
NP-F970 USB-C Rechargeable Camera Battery x 1
Battery Cover x 1
USB-C to USB-C Charging Cable x 1
Operating Instruction x 1
User Manual x 1
Guarantee Card x 1
Technical Data

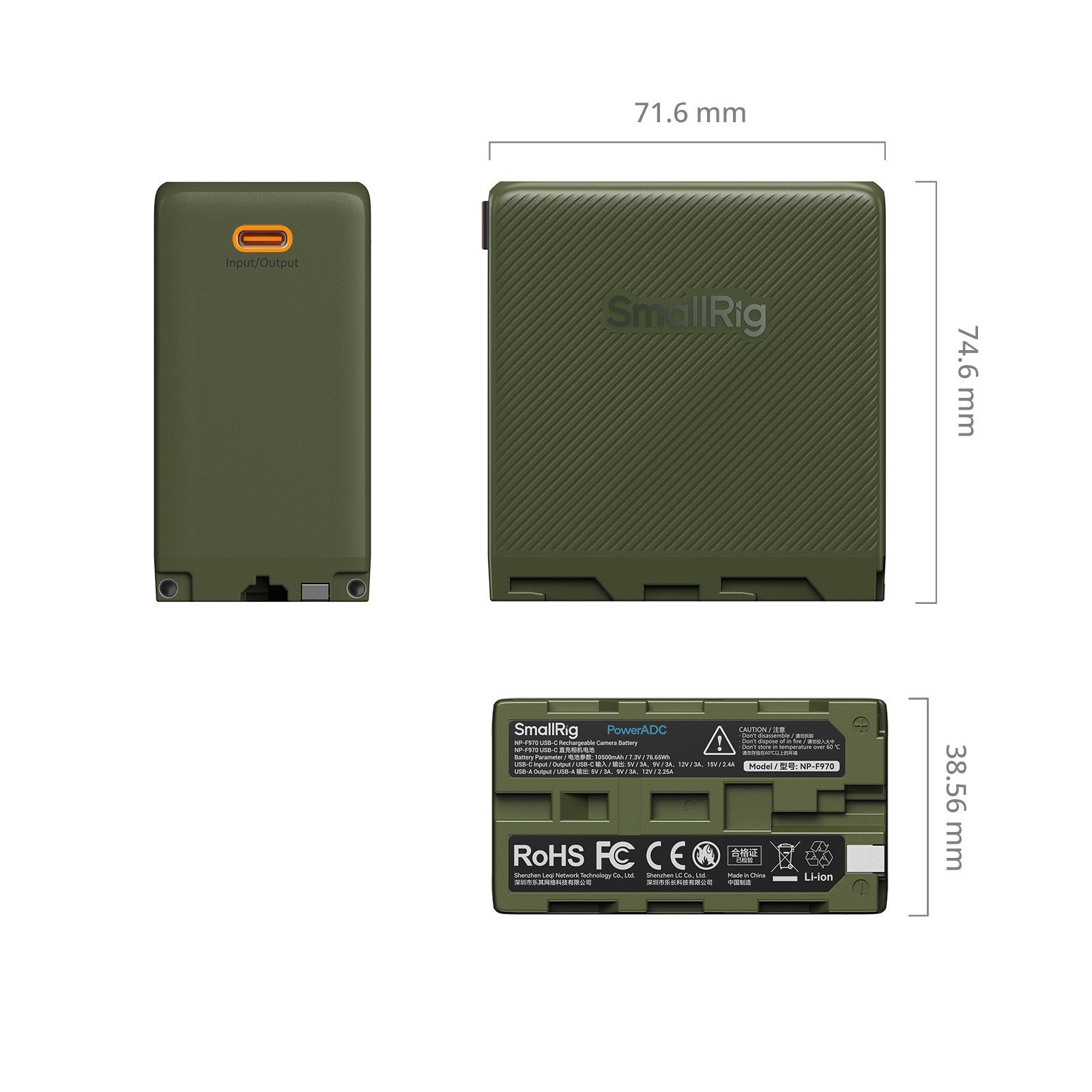

Product Dimensions: 74.6 x 71.6 x 38.5mm / 2.9 x 2.8 x 1.5in
Package Dimensions: 118 x 116 x 54mm / 4.64 x 4.56 x 2.12in
Product Weight (including cable and cover): 379 ± 10g / 13.4 ± 0.3oz
Package Weight: 550 ± 10g / 19.4 ± 0.3oz
Battery Type: Lithium-Ion
Battery Capacity Parameters: 10500mAh / 7.3V / 76.65Wh
Charging Voltage: 8.4V
Nominal Voltage: 7.3V

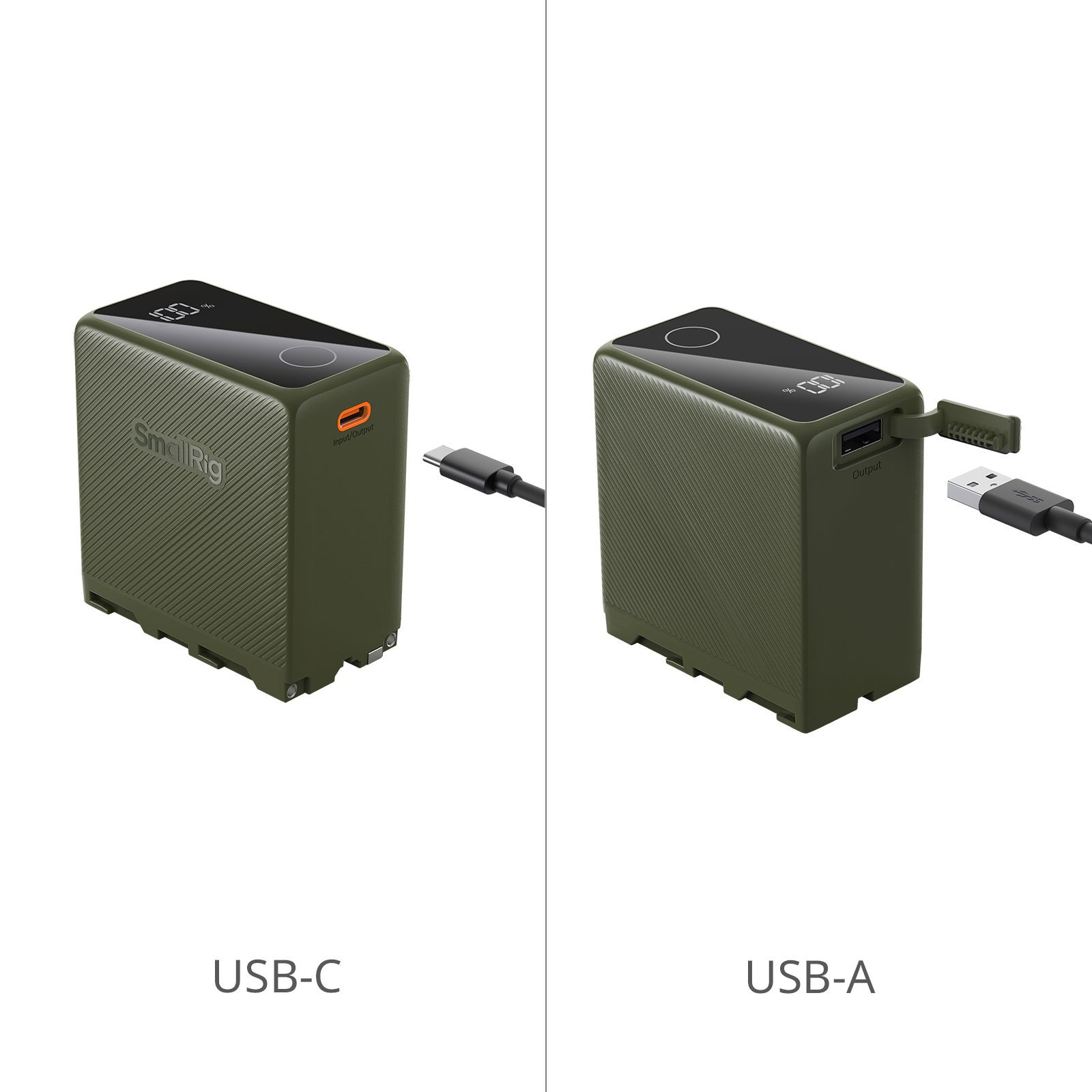

USB-C Input / Output: 5V / 3A, 9V / 3A, 12V / 3A
USB-C Protocol: PD3.0 / QC3.0 / QC2.0 / FCP / AFC / PPS
USB-A Output: 5V / 3A, 9V / 3A, 12V / 2.25A
USB-A Protocol: QC3.0 / QC2.0 / FCP / AFC
USB-C Overcurrent Protection: ≥3.5A
USB-A Overcurrent Protection: 5V / 9V≥3.5A, 12V≥2.6A
Main Port Max Discharge Current: 10A
Main Port Over-discharge Current Protection Threshold: 11A
Discharge Cut-off Voltage: 5.2V
Operating Temperature: Charge: 0℃ to 45℃ / 32°F to 113°F
Discharge: -10℃ to 45℃ / 14°F to 113°F
Battery Weight: 362.0 ± 10.0g / 12.8 ± 0.3oz
Material(s): PC+ABS
Product Dimensions: 74.6 x 71.6 x 38.5mm / 2.9 x 2.8 x 1.5in

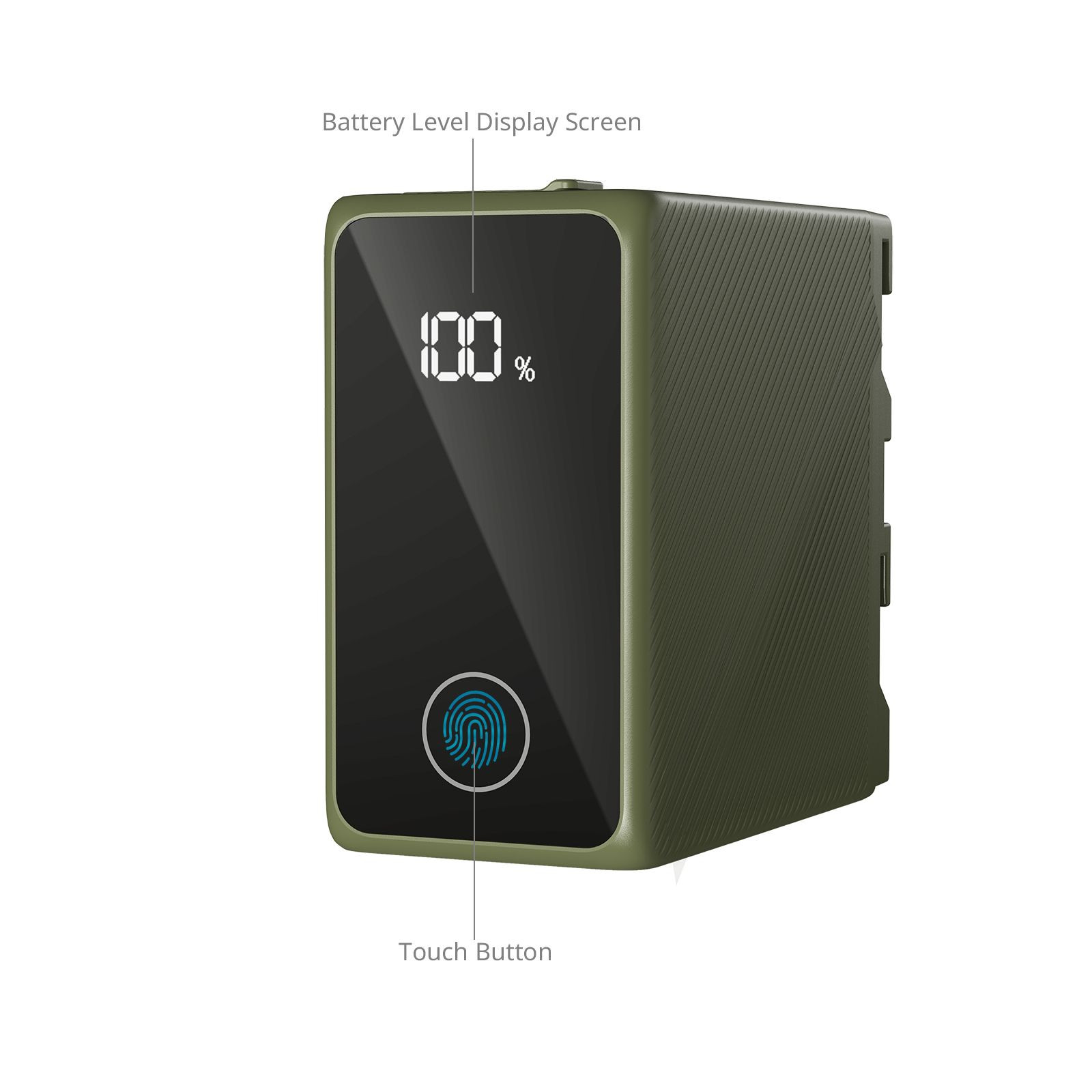

Button Function:
Single-click to display the battery percentage when not charging; press four times to turn off the USB-C and USB-A ports to enter sleep mode; single-click or re-plug to wake up the ports.
OLED Display Screen:
A lightning icon with the unit digit of the battery percentage flashing is displayed while charging.
When a device is connected to the USB-C or USB-A port, the battery level is shown for 3 seconds.
If the battery level drops below 10%, the battery level digits flash for 3 seconds.
Note: The weight and dimensions are measured manually on the actual product, we appreciate your understanding in case of any discrepancies.
