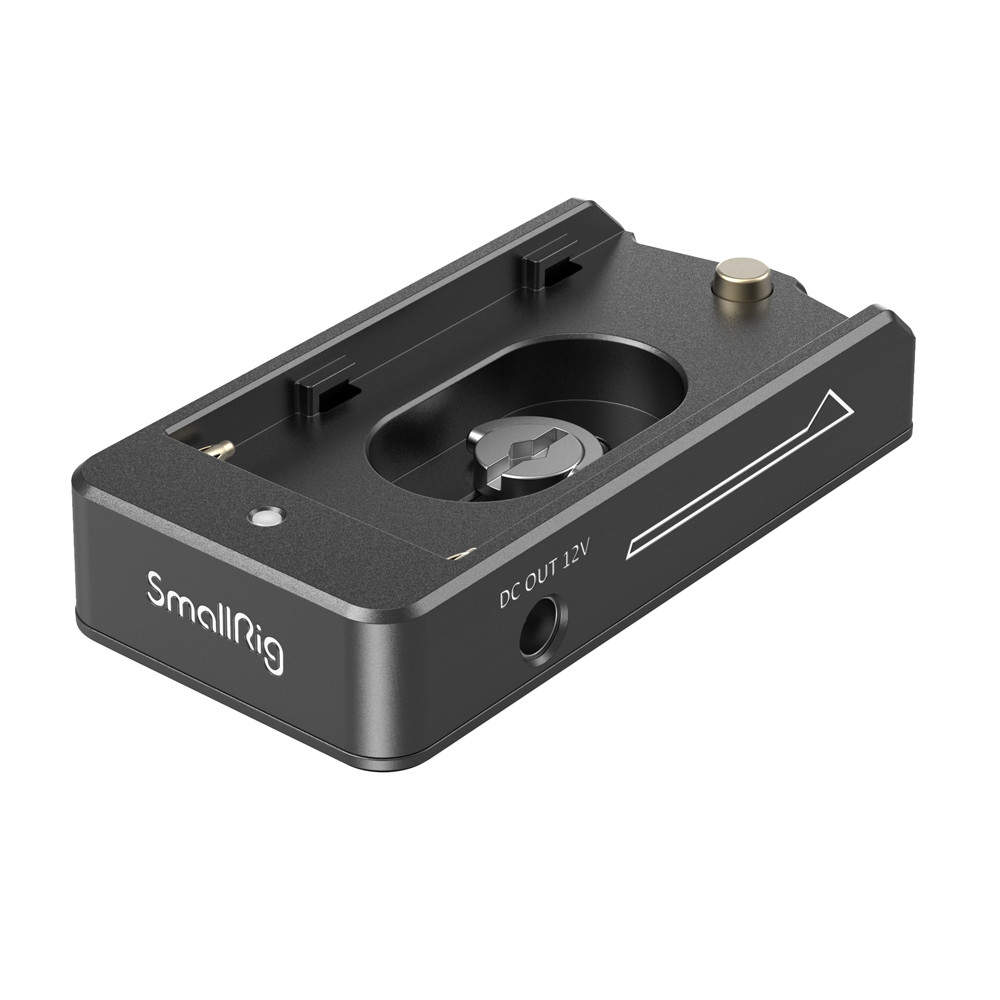

SmallRig NP-F Battery Adapter Mount Plate (Lite) 3018

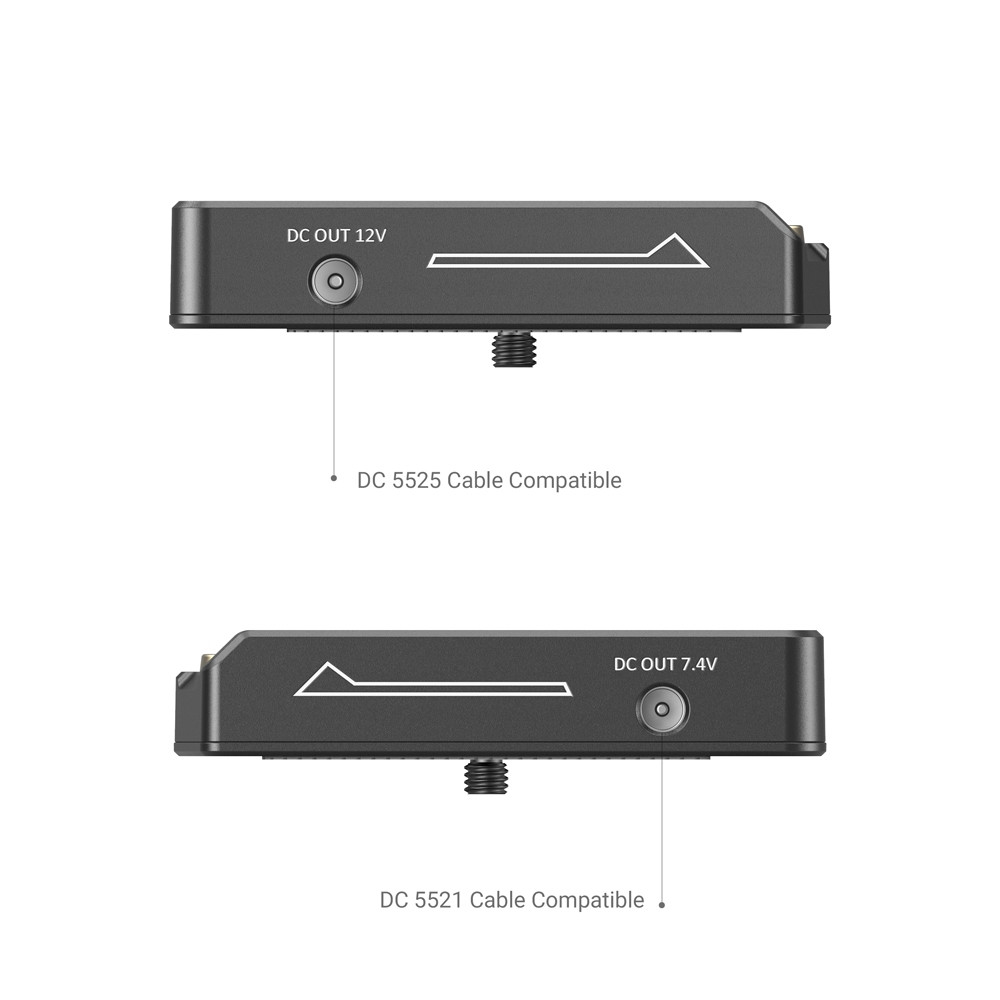

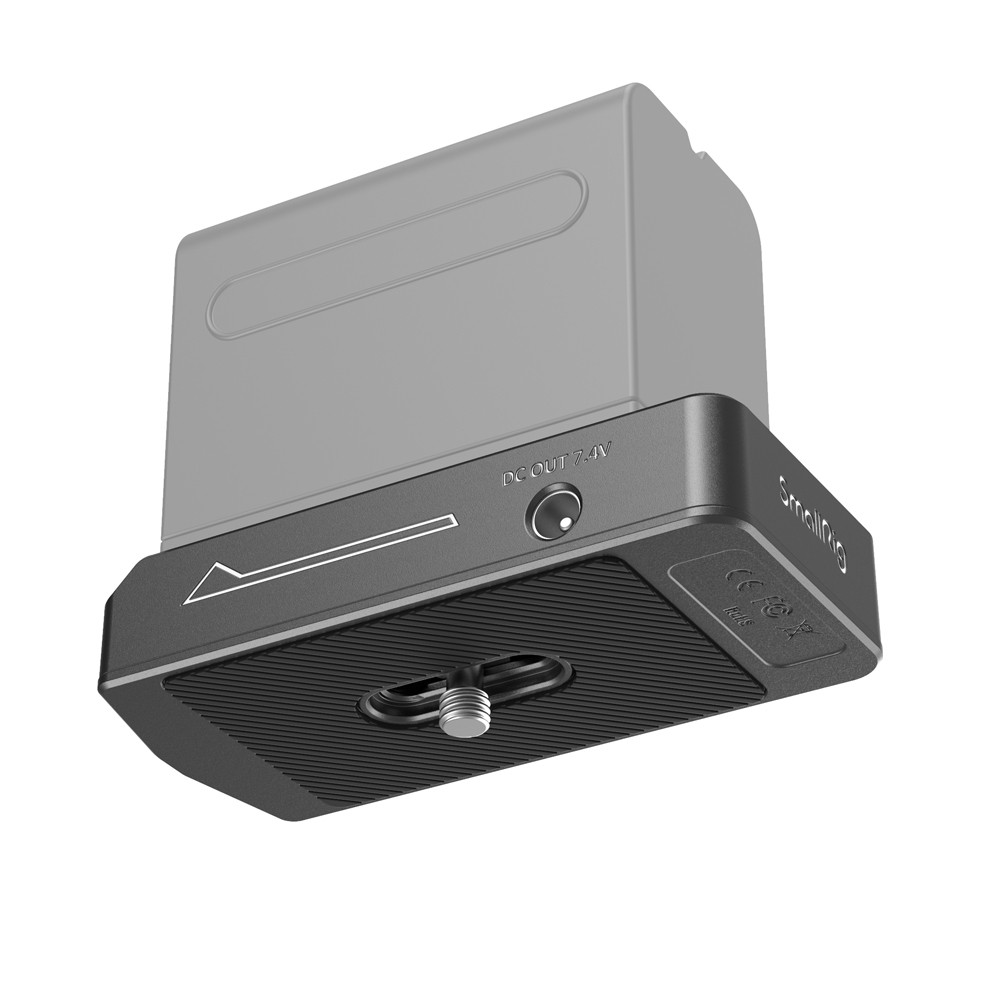

SmallRig NP-F Battery Adapter Mount Plate (Lite) 3018 is designed to provide greater battery life for your camera rig via a Sony NP-F battery. It provides different output ports, including a 12V DC (5.5/2.5mm) output port and a 7.4V DC (5.5/2.1mm) output port. It features an LED indicator that will turn red when the battery level is less than 30 percent. When the indicator flashes, it means the battery level is less than 10 percent, and you need to replace the battery. The plate features a rubber pad on the bottom for a more stable installation.
Specifications:
Maximum operating power of the whole machine: ≤ less than battery power (based on NP-F battery capacity)
DC5521 7.4V output port: 6.4V-8.4V MAX:2A
DC5525 12V output port: 12V±5% MAX:1.5A
Note:
1. Please do not use it in a damp environment to avoid a short circuit.
2. This product does NOT include charging cables or an NP-F battery.
3. Please note the product has no built-in battery.

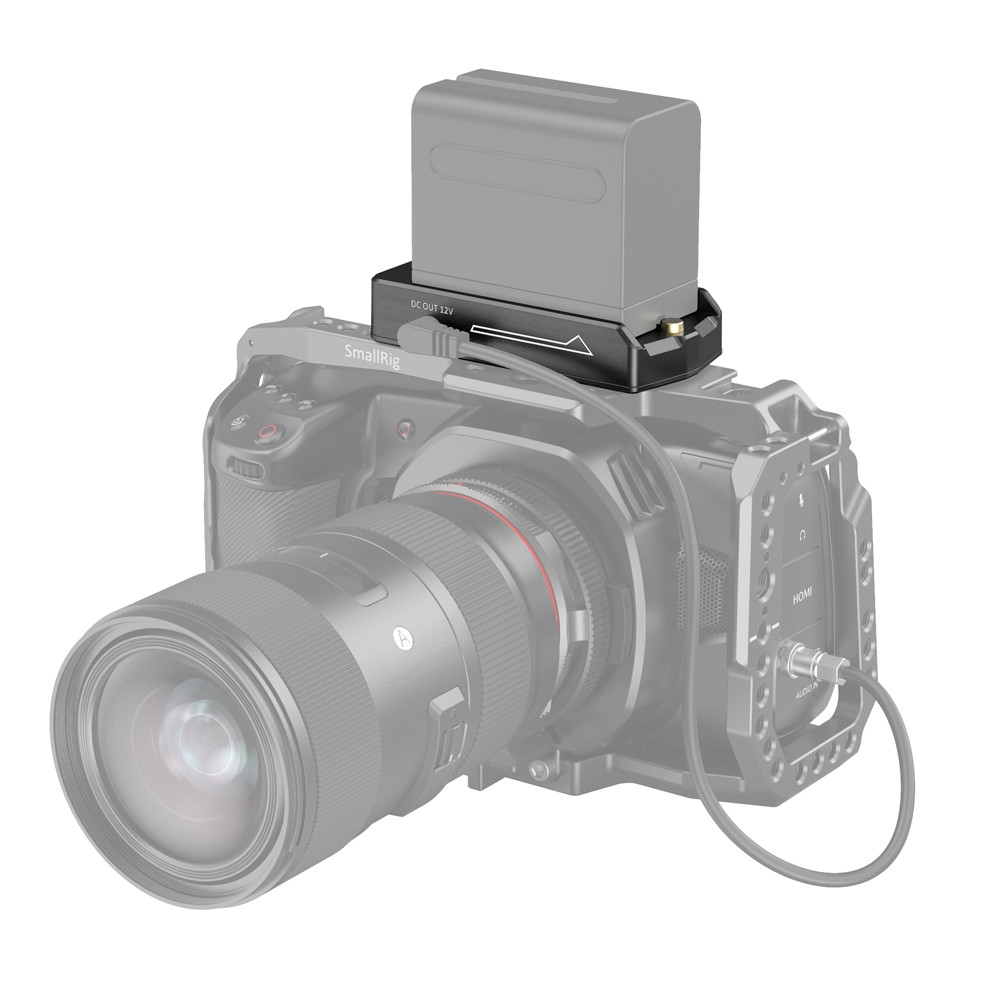

4. The 3018 base is compatible with BMPCC 4K/6K, but not compatible with BMPCC 6K Pro.
Work With

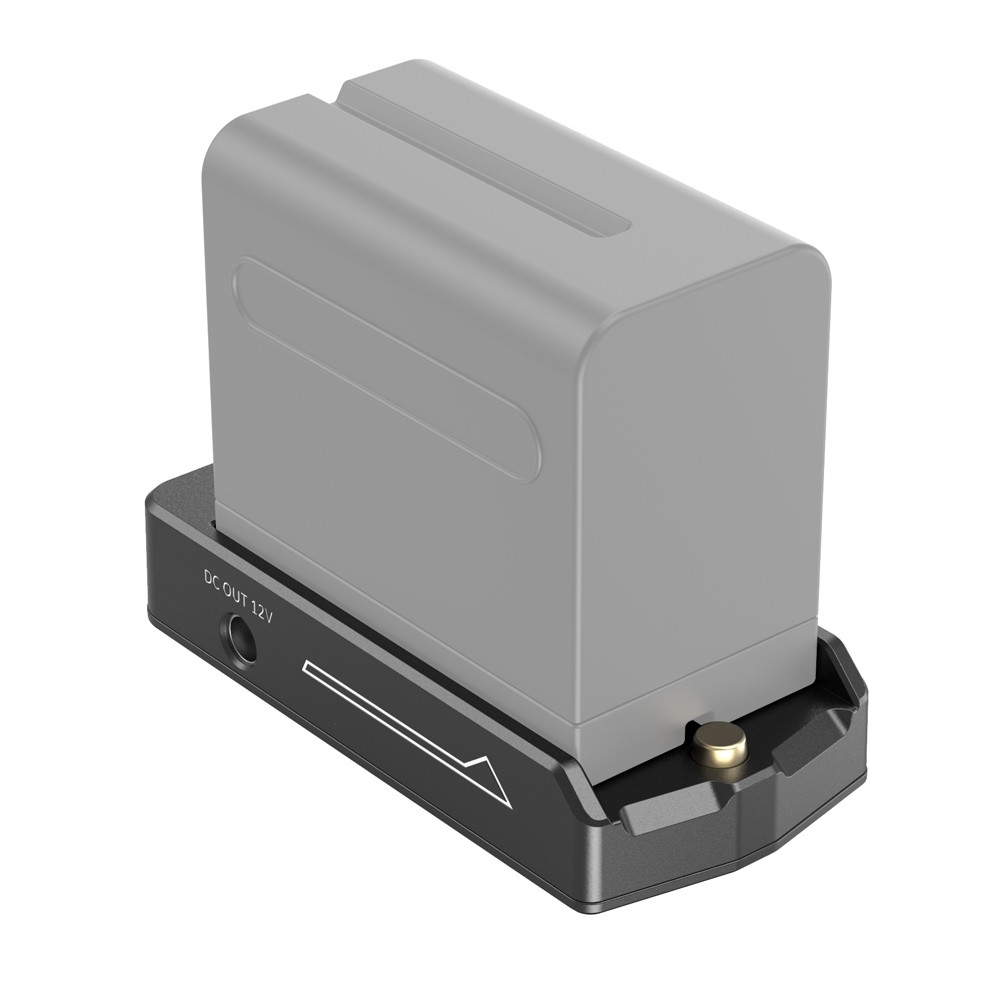

Sony NP-F battery

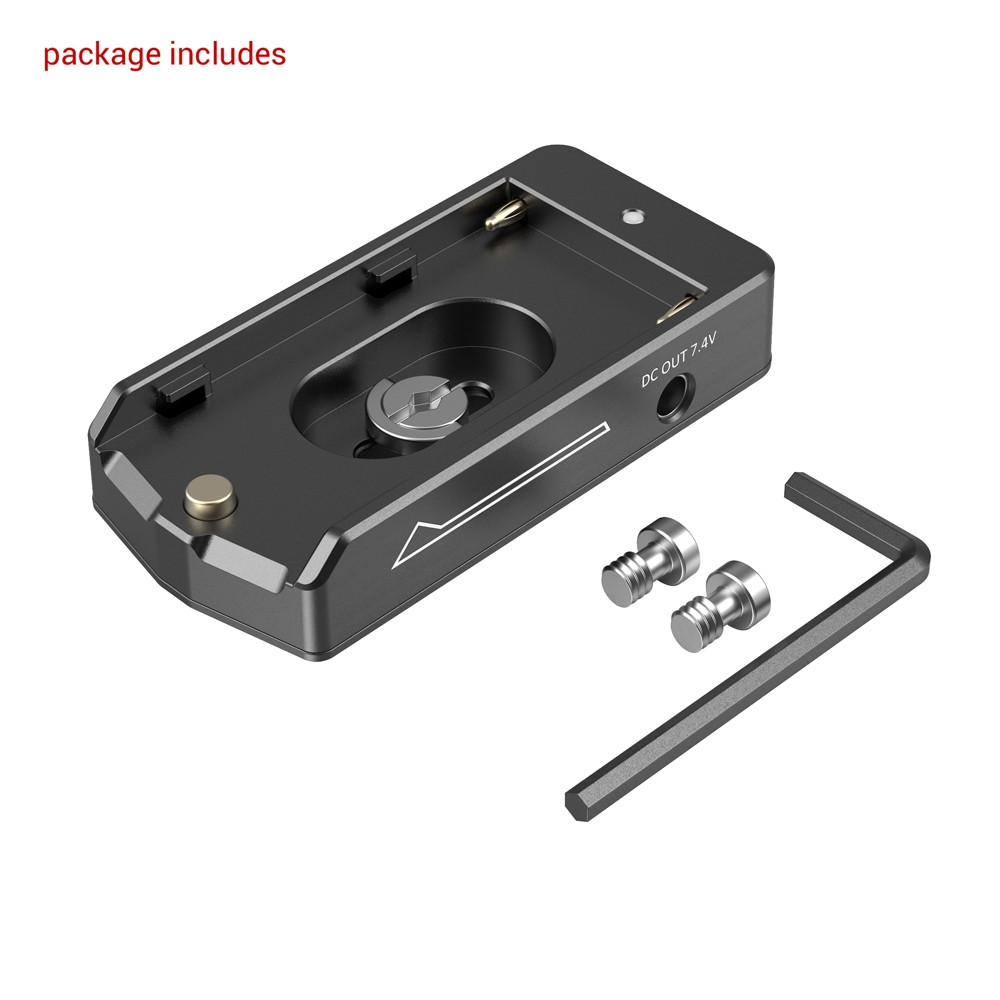

Packing List
1 x NP-F Battery Adapter Plate
2 x 1/4”-20 Mounting Screw
1 x Allen Wrench
Technical Data

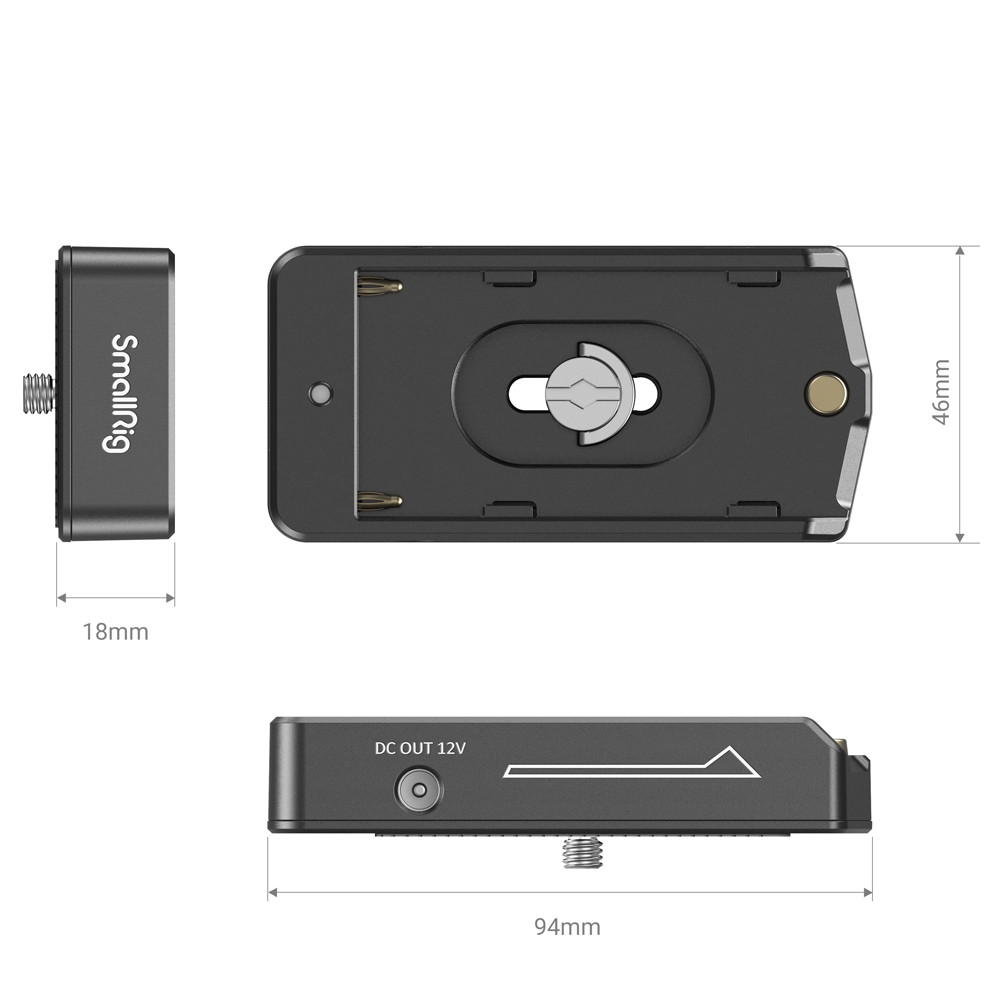

Product Dimensions: 94 x 18.7 x 45.9mm
Package Dimensions: 106 x 98.5 x 34mm
Net Weight: 48.5g±5g
Package Weight: 98.5g±5g
Material(s): ABS+PC
