SmallRig NP-F Battery Adapter Plate for BMPCC 4K & 6K Cameras EB2698

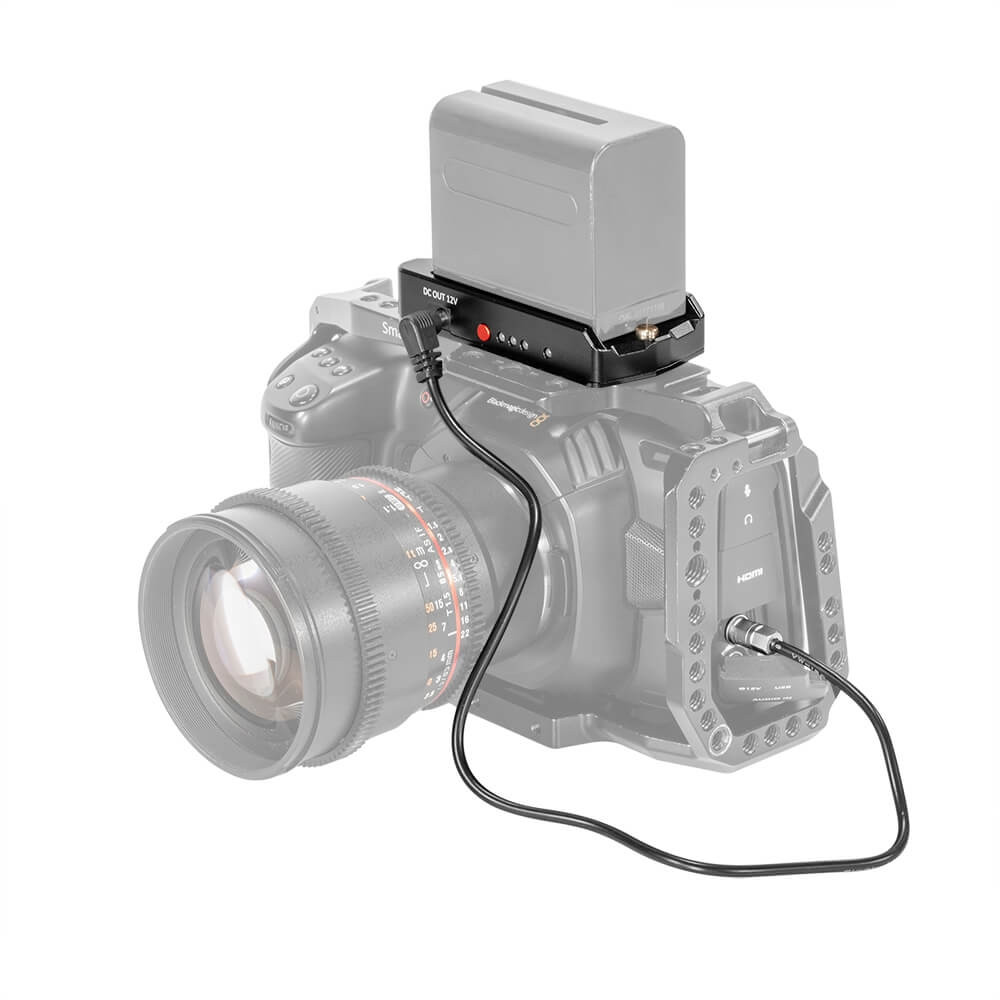

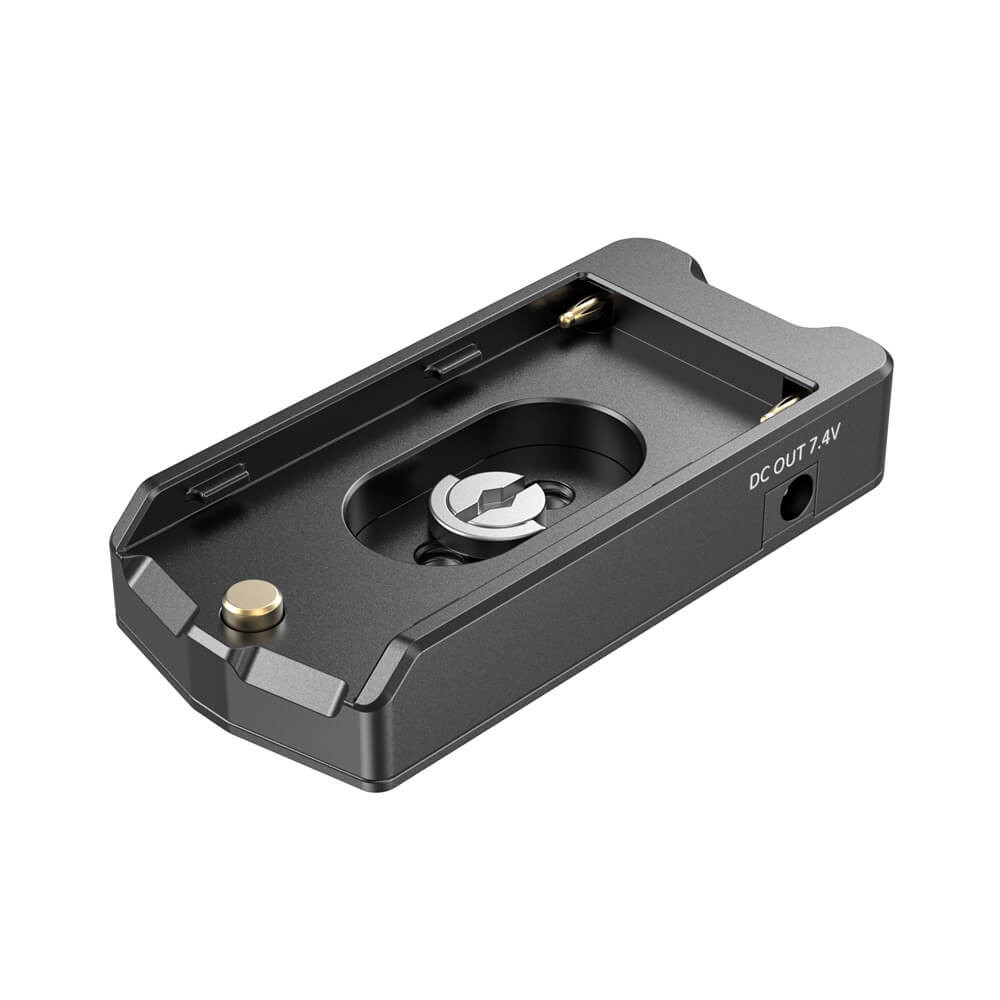

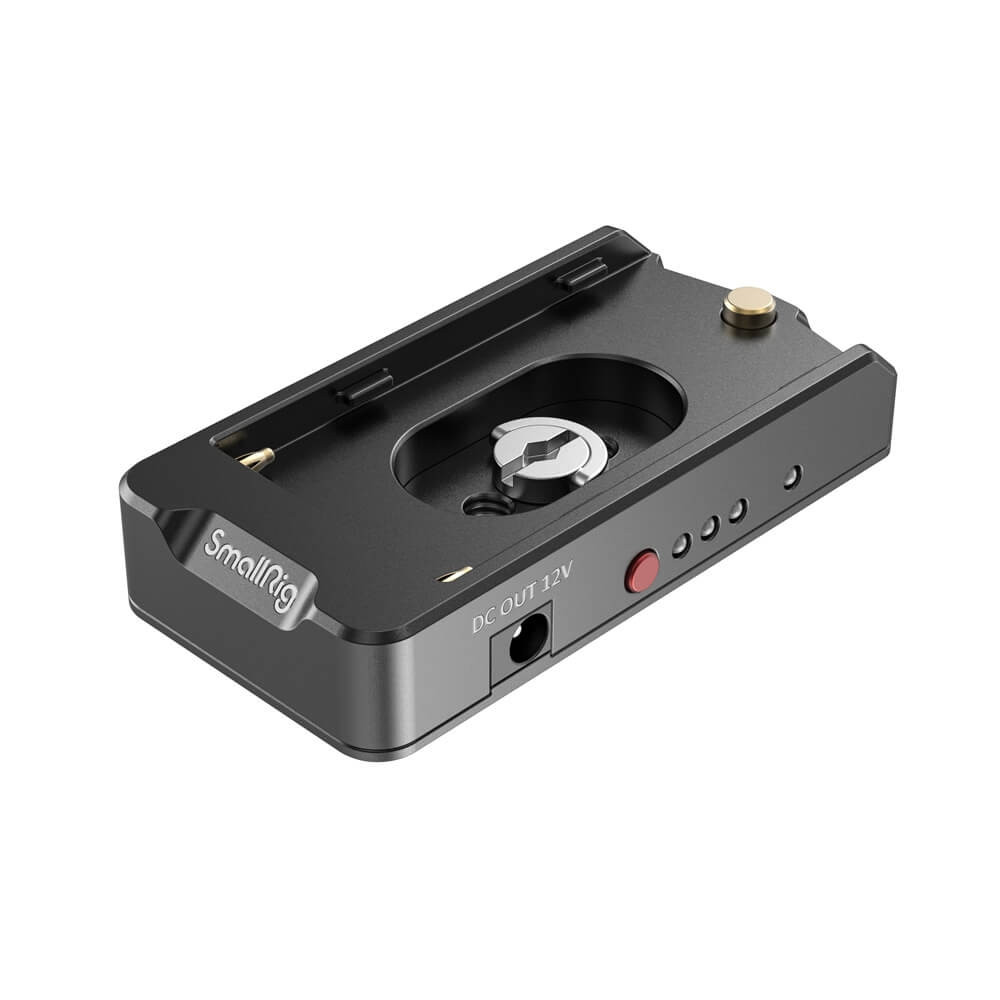

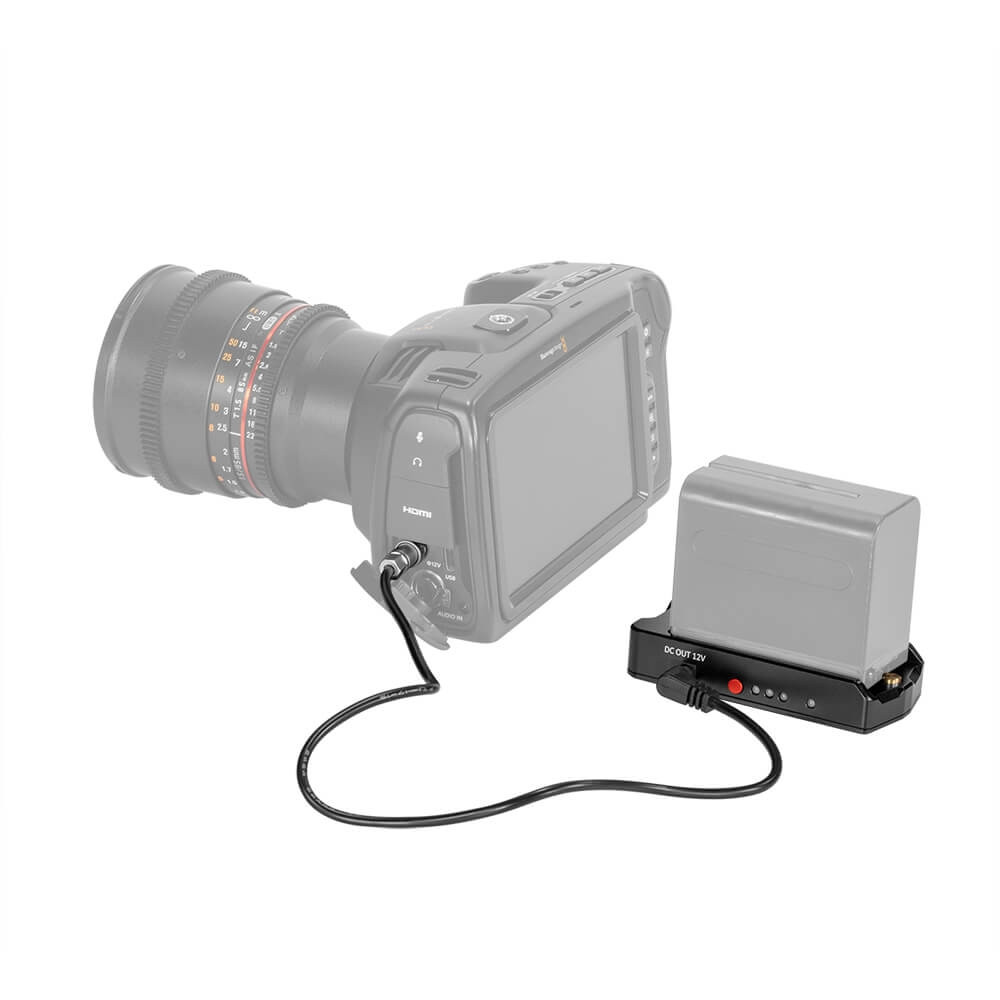

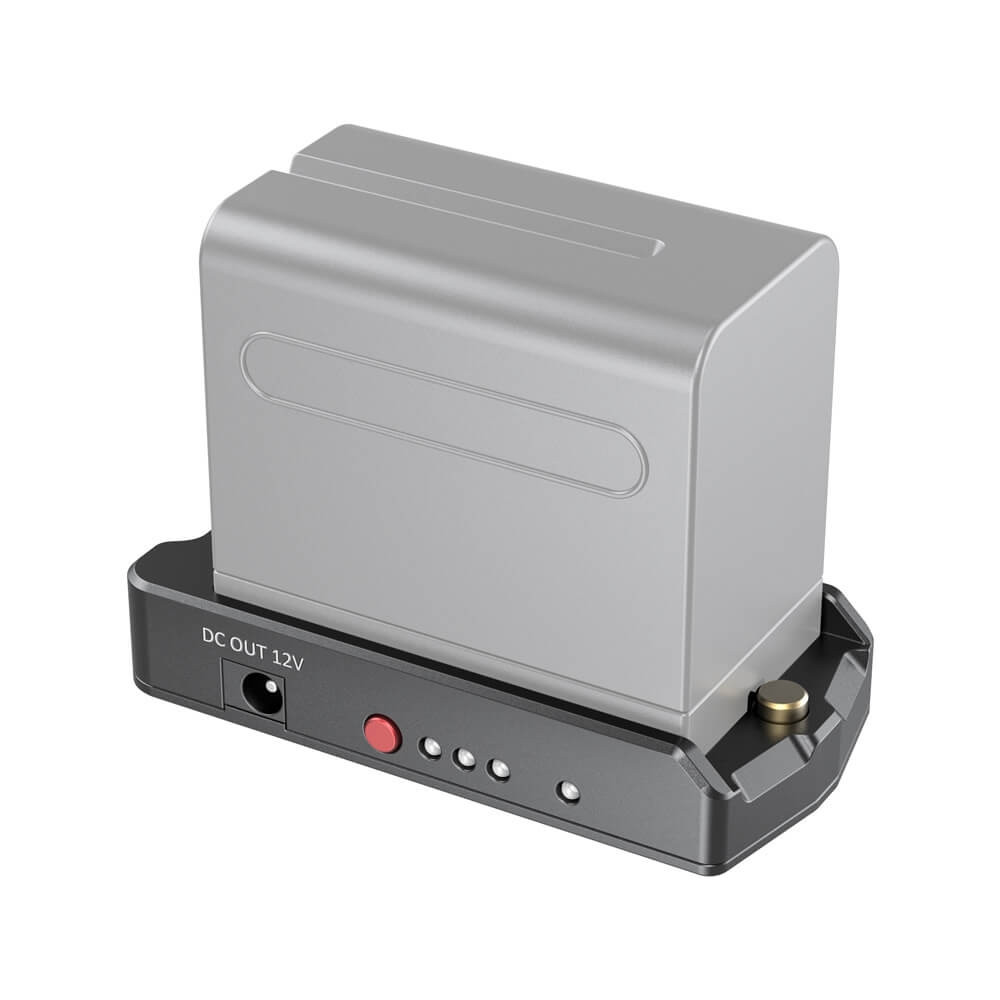

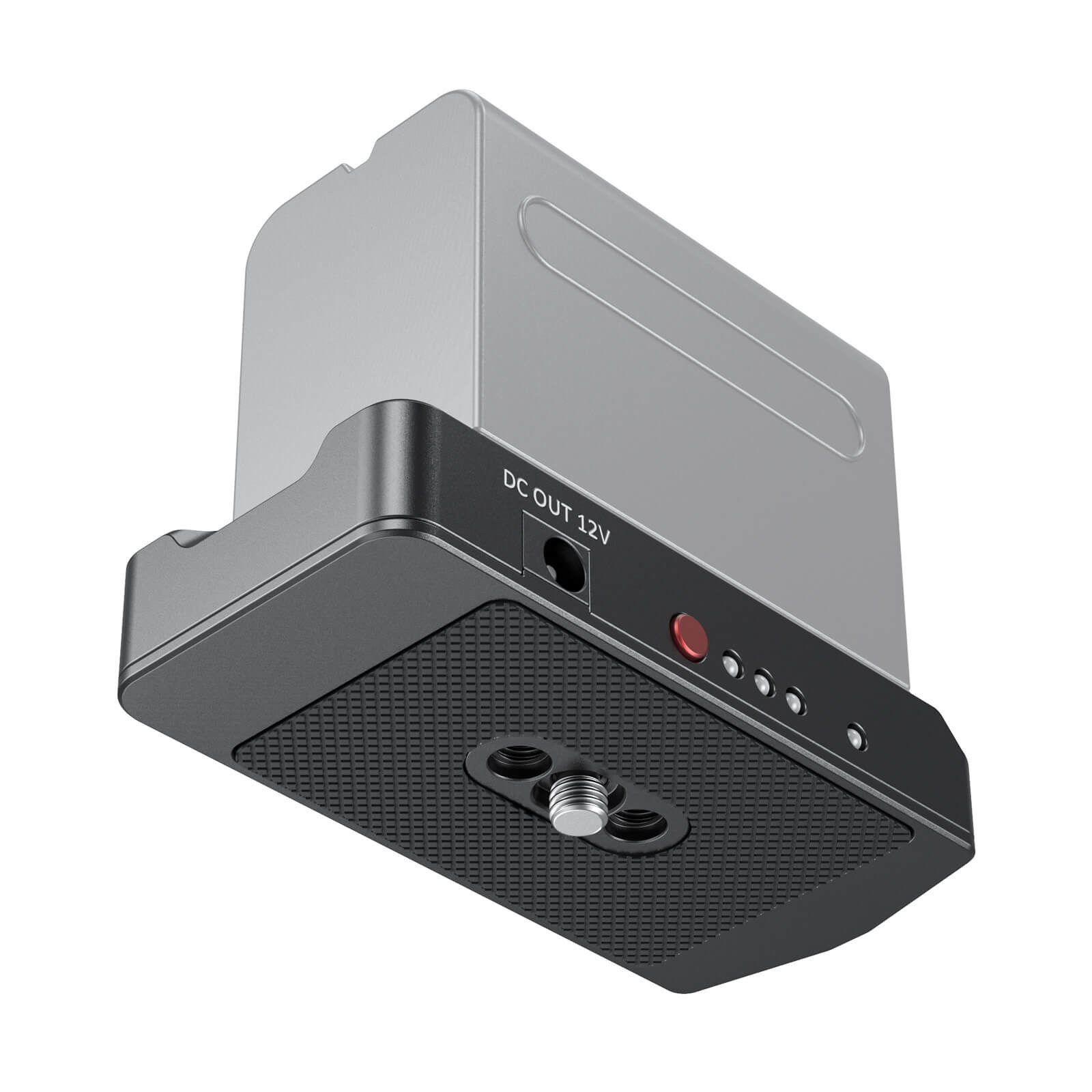

SmallRig NP-F Battery Adapter Plate for BMPCC 4K & 6K Cameras EB2698 features two DC outputs 7.4V and 12V to power your camera, greatly extending shooting time. It comes with a LP-E6 dummy battery charging cable and a DC-LEMO 2 Pin charging cable connected to your BMPCC 4K or 6K cameras. The battery plate is constructed with durable aluminum, and features a soft rubber pad on the bottom for anti-twisting purpose. You can mount the plate to your camera rig using a 1/4“-20 thumbscrew or two 1/4”-20 hex screws. On the side of the plate are the battery connection indicator (Blue) and the three-level battery life indicator (Yellow) for checking charge status. The battery life indicators will turn off after three seconds, and the last LED will begin flashing at 10% to alert you about a low battery.
NOTE:
1. Please plug the cable to the corresponding DC output: LP-E6 to 7.4V, DC-LEMO to 12V;
2. Press the button on the side of the battery plate if you want to read the battery level;
3. The NP-F battery is NOT included in the product.
Key Features
1.Sony NP-F Battery Plate for BMPCC 4K & 6K
2.Two DC Outputs – 7.4V and 12V
3.Two Charging Cables – LP-E6 Dummy Battery Cable and DC-LEMO 2 Pin Cable
4.Battery Connection Indicator and Battery Life Indicators

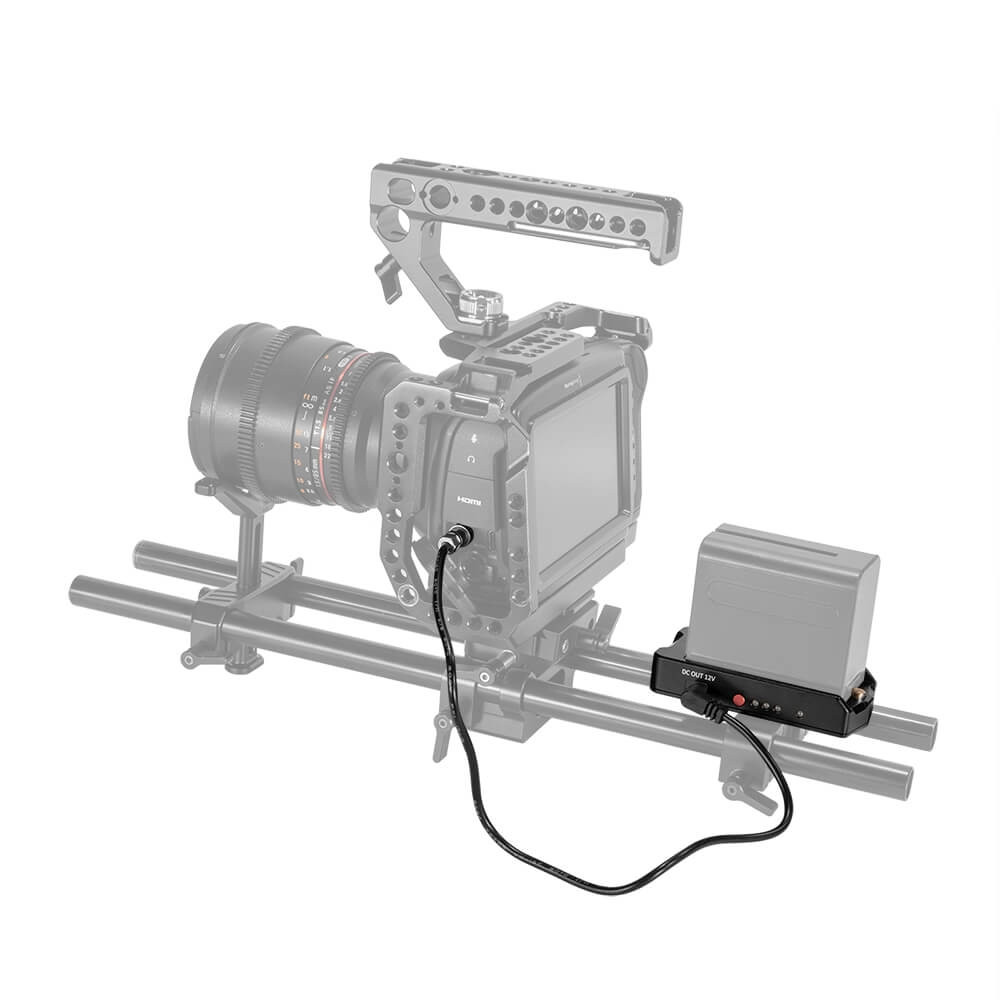

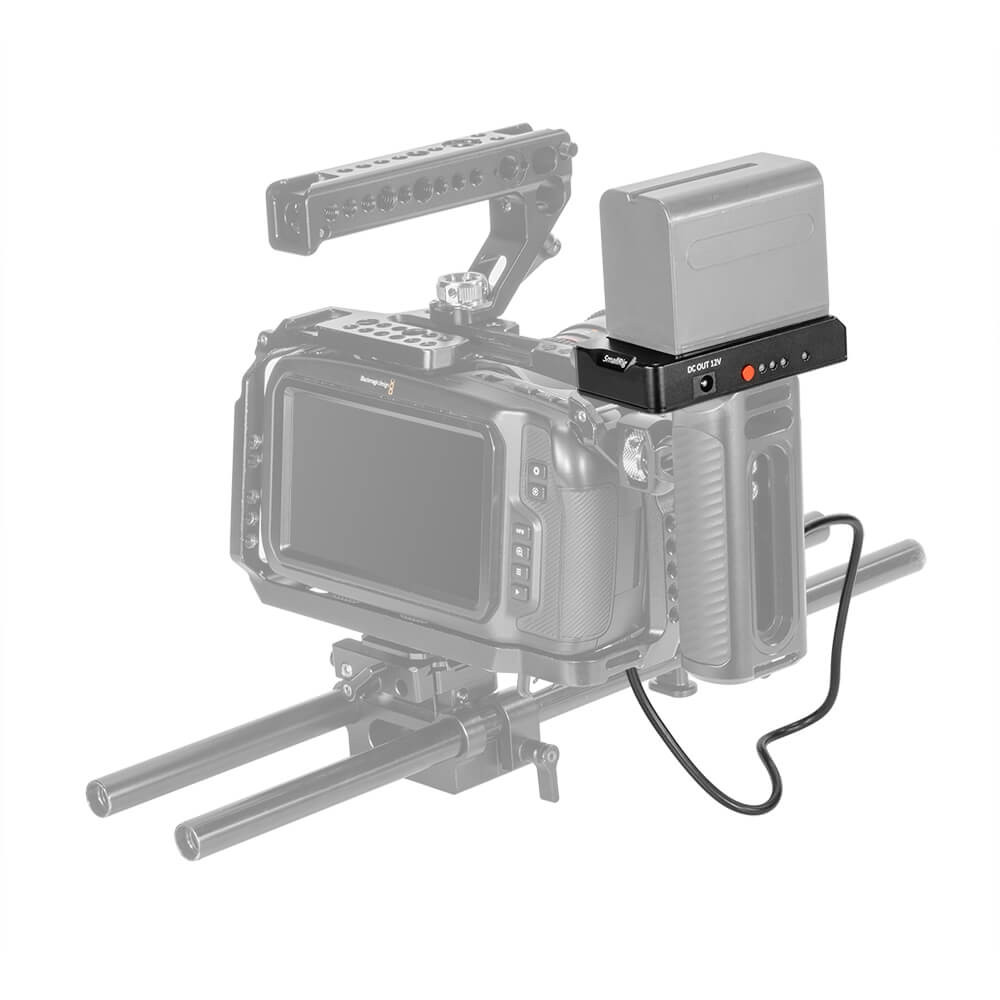

5.Mounts to Camera Rig with a 1/4 Thumbscrew or Two Hex Screws
Work With
BMPCC 4K & 6K
Sony NP-F Battery

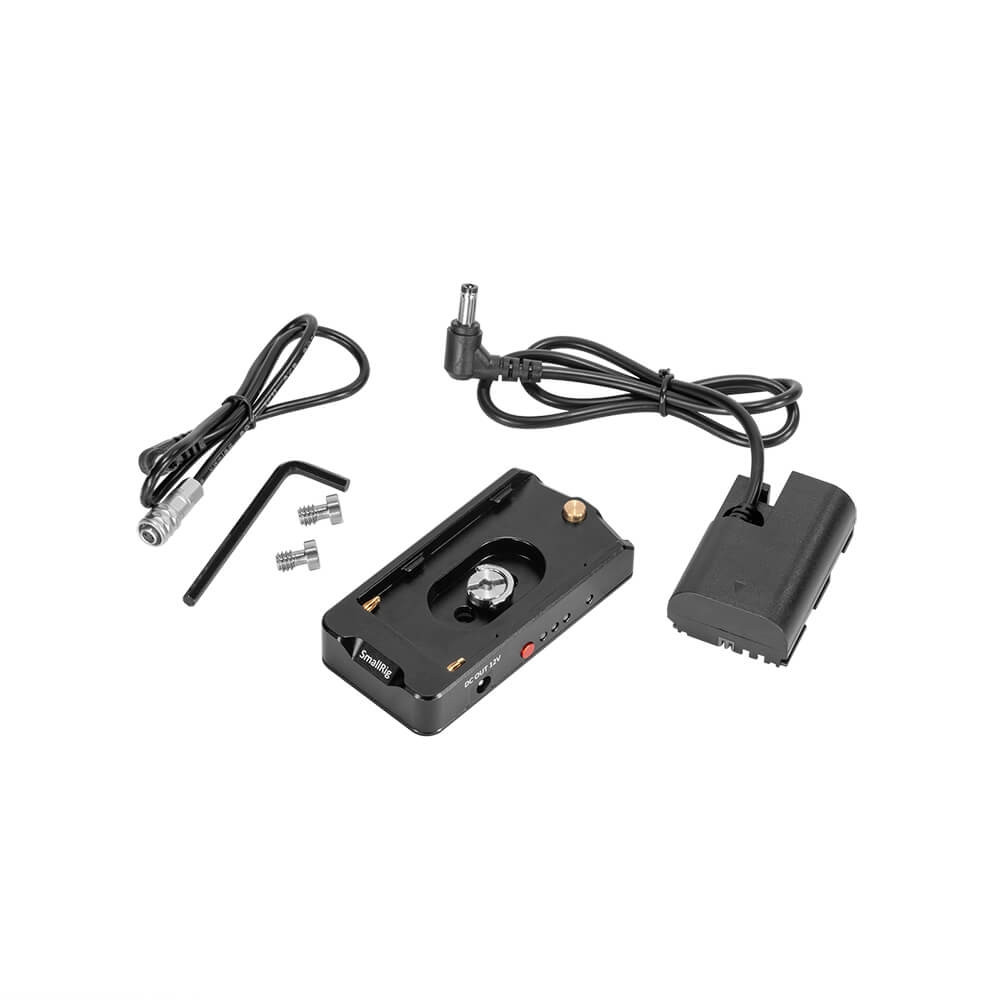

Packing List
1 x Battery Plate
1 x DC-LEMO 2 Pin Cable
2 x LP-E6 Cable
2 x 1/4 Screw
1 x Hex Spanner
Technical Data

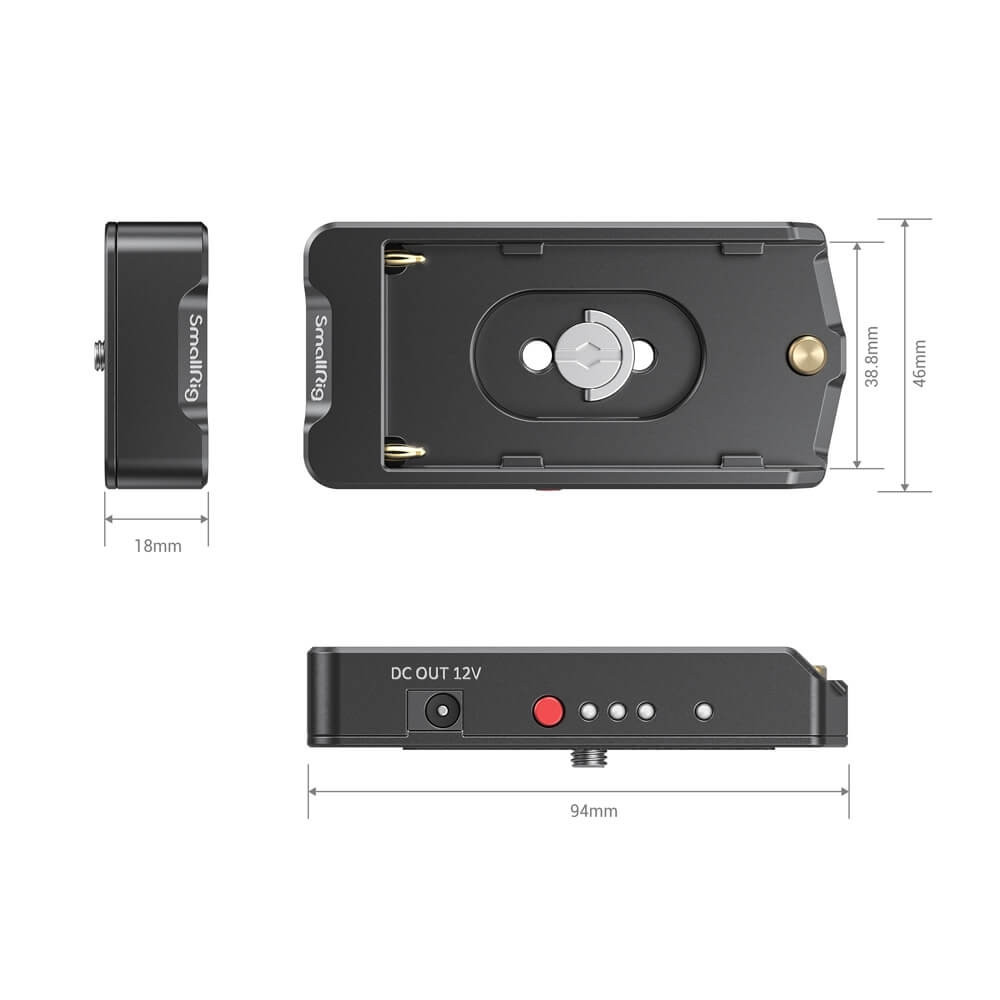

Product Dimensions: 94 x 46 x 18mm
Package Dimensions: 100 x 120 x 50mm
Net Weight: 86g±5g
Package Weight: 120g±5g
Material(s): Aluminum Alloy
