SmallRig NP-F Battery Adapter Mount Plate (Advanced Edition) 3168B

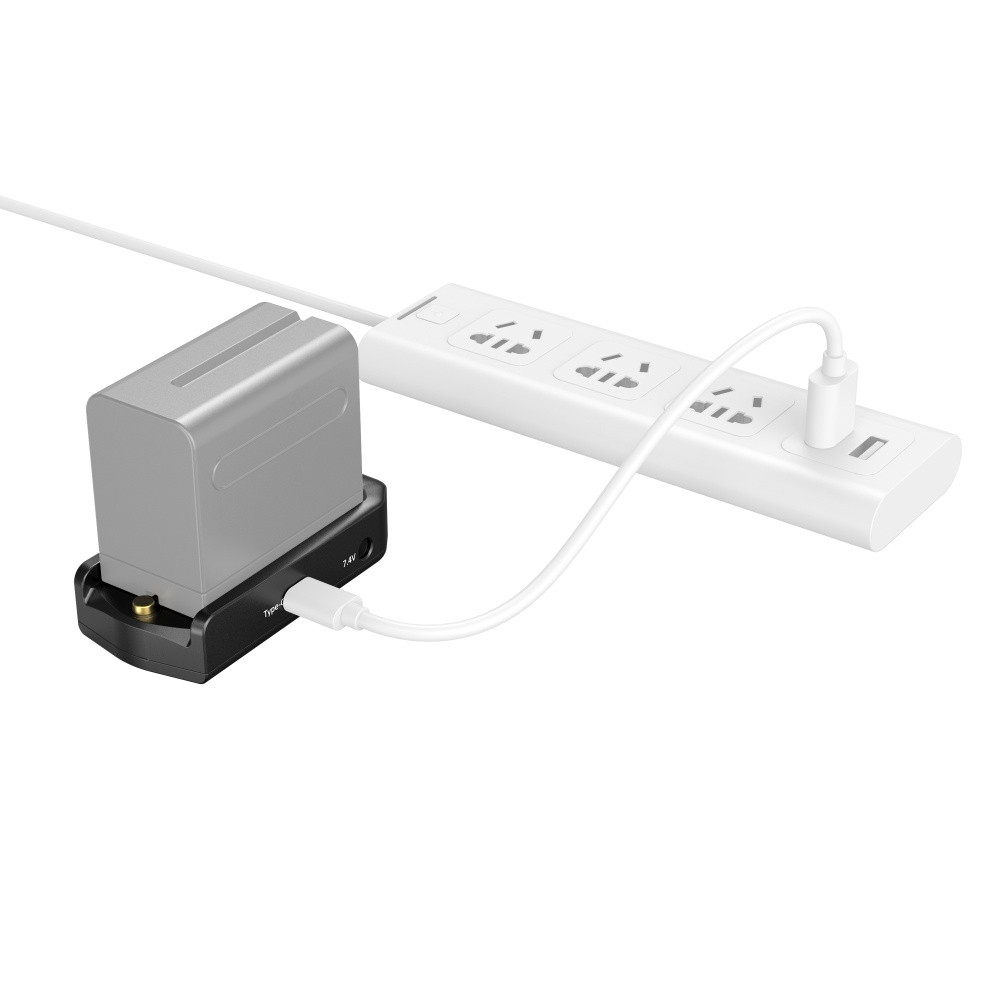

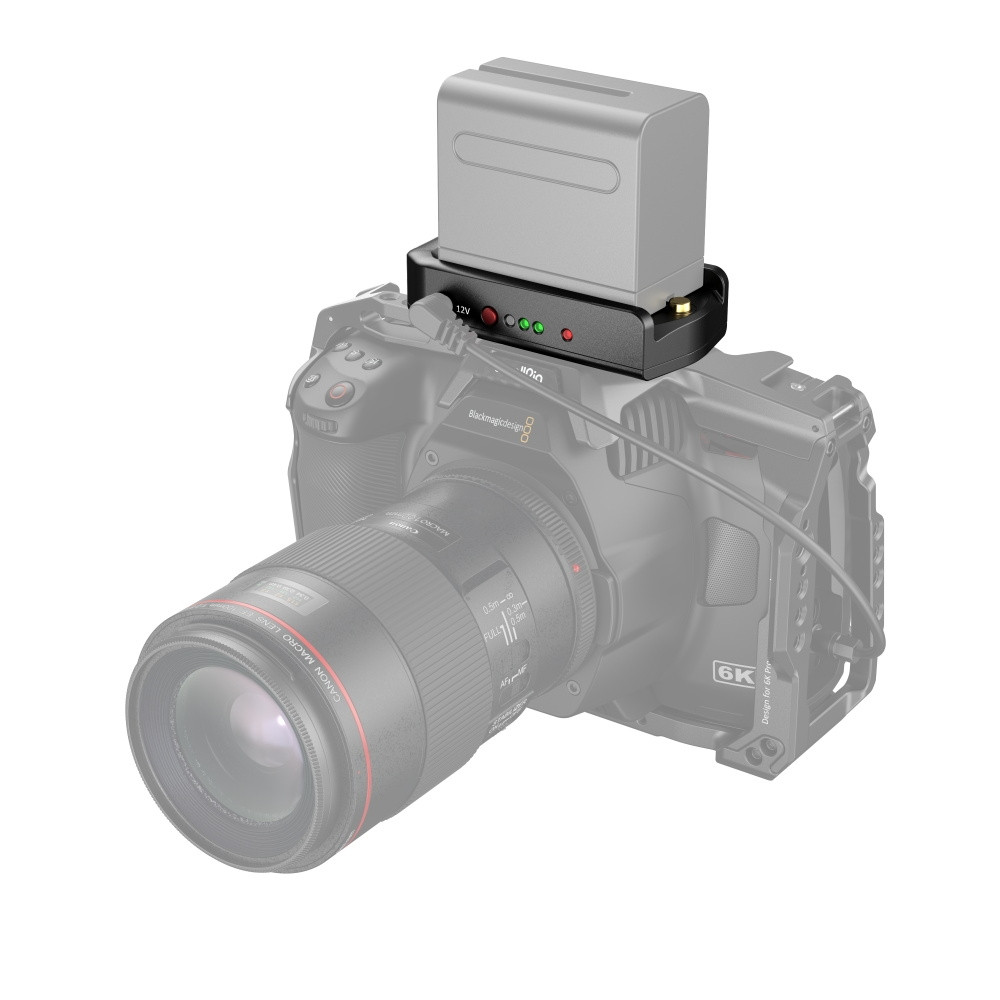

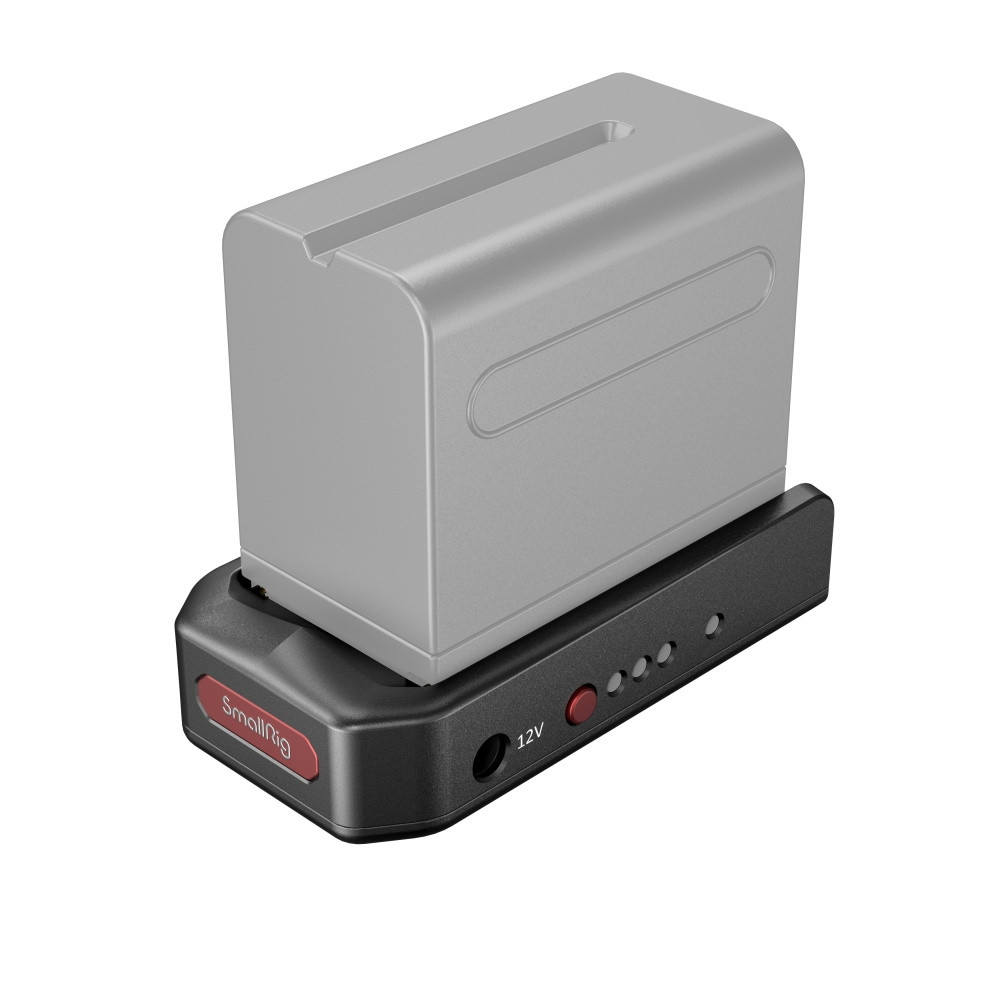

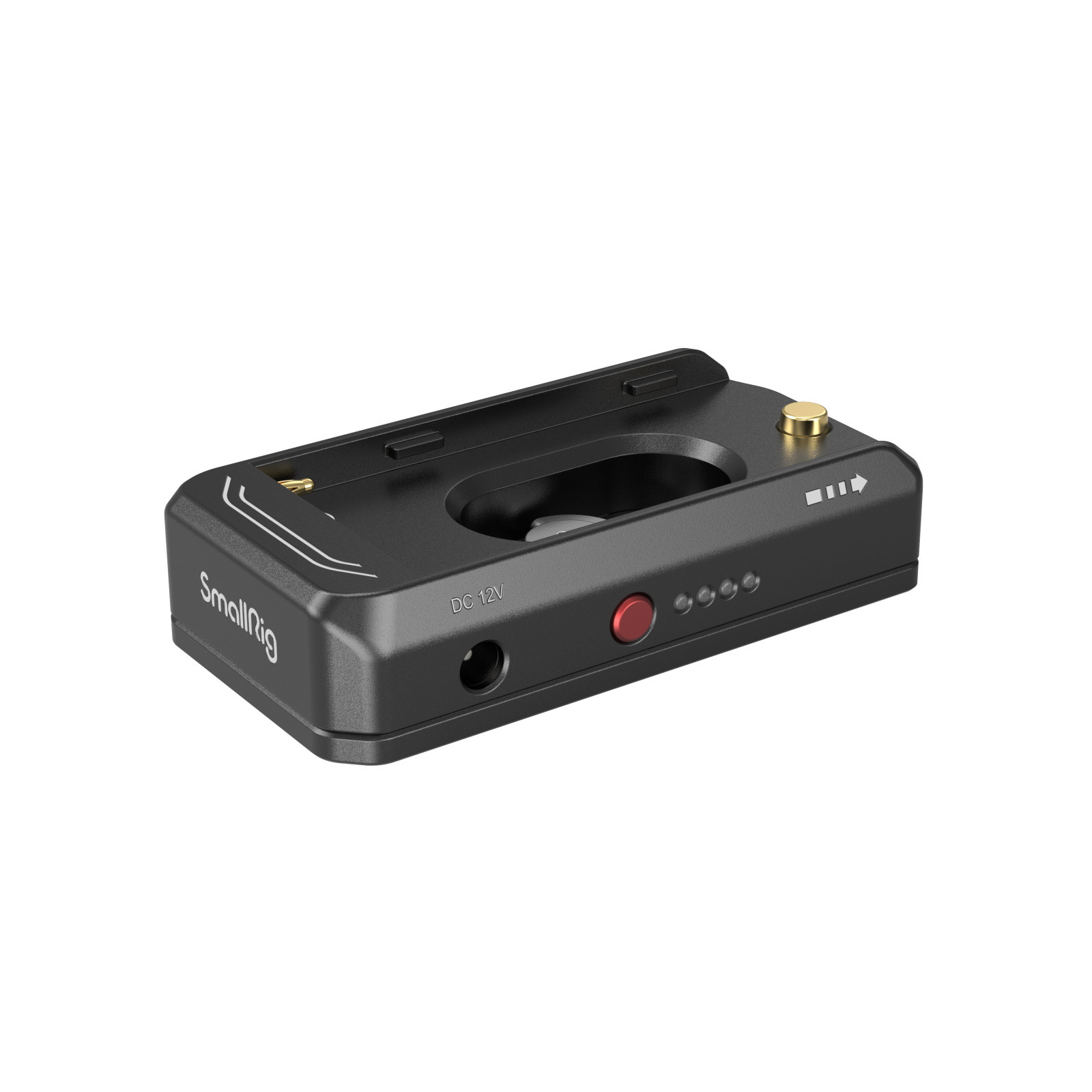

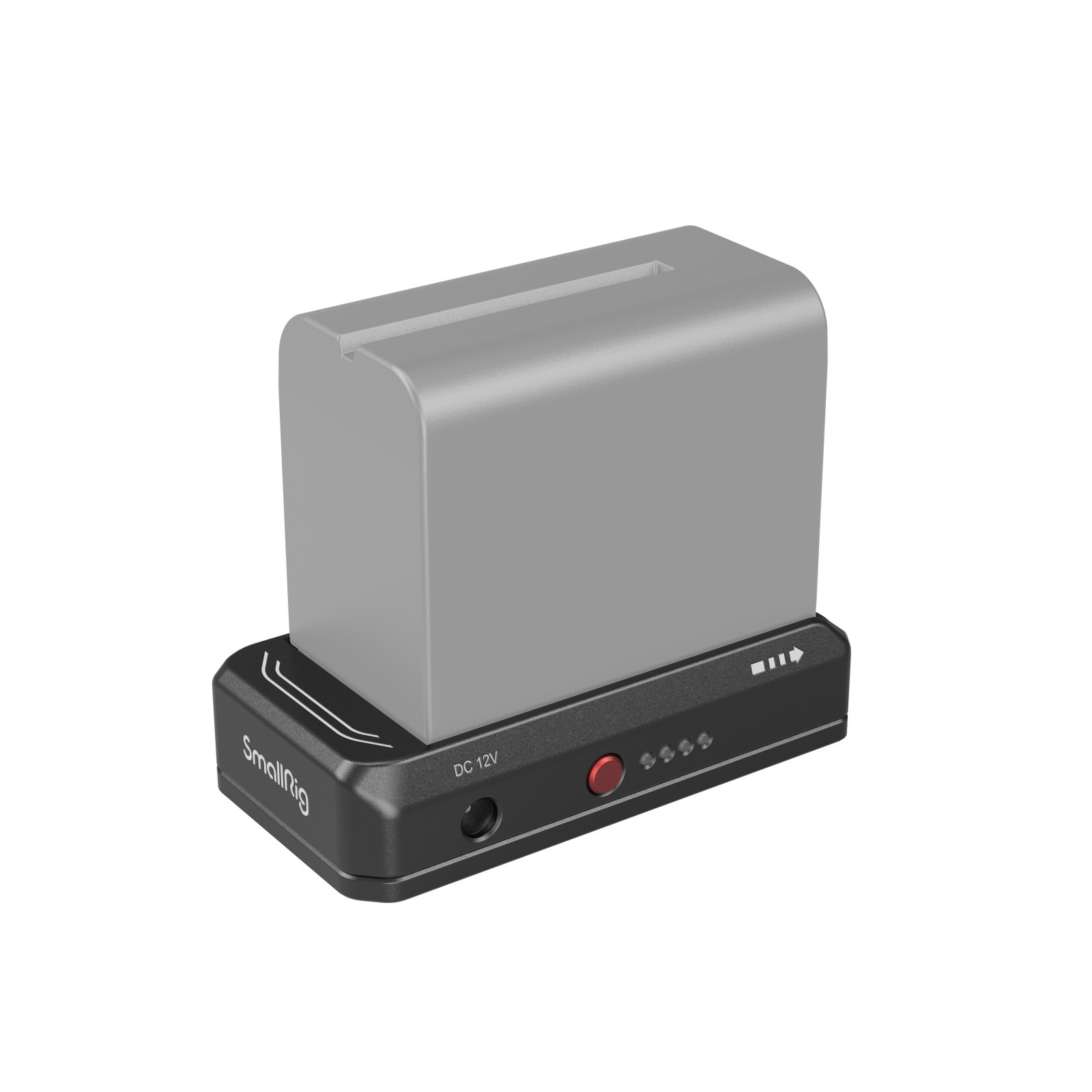

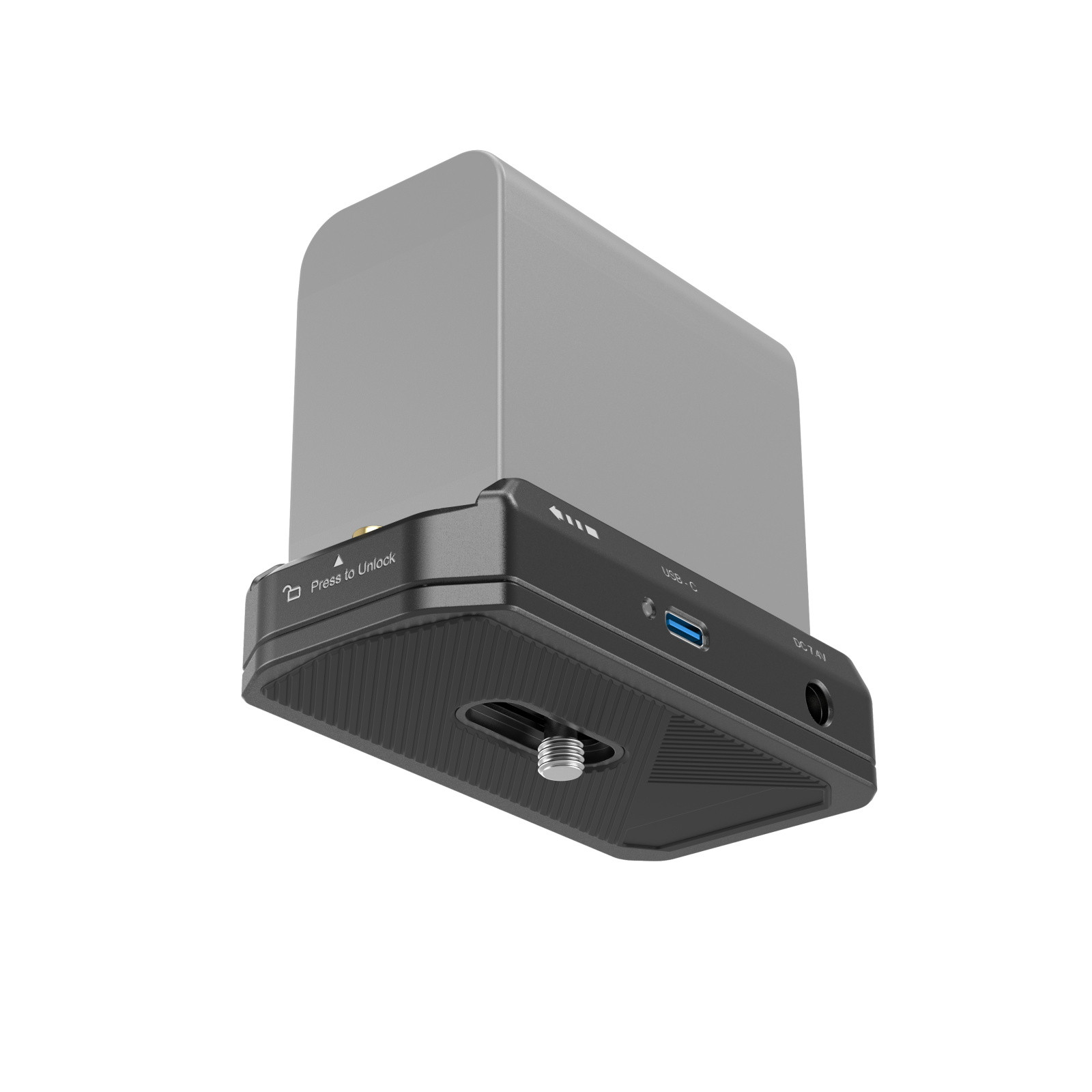

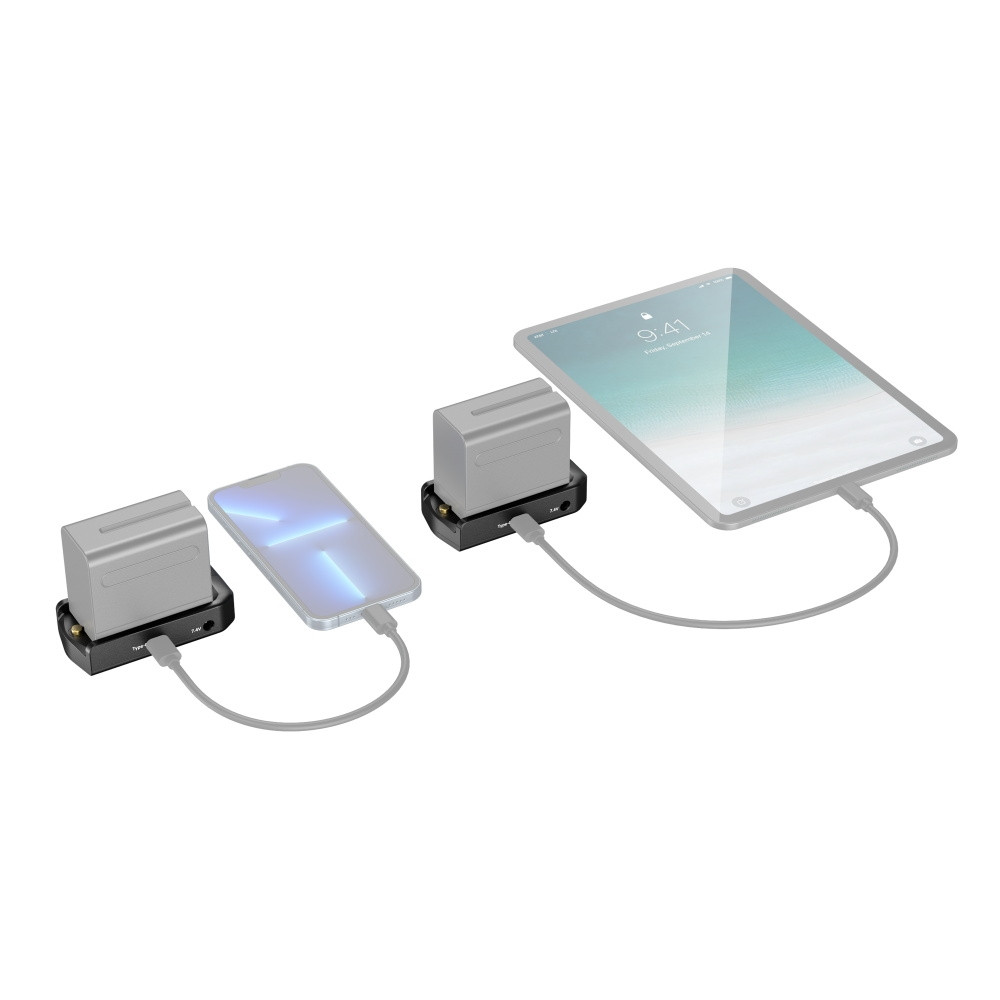

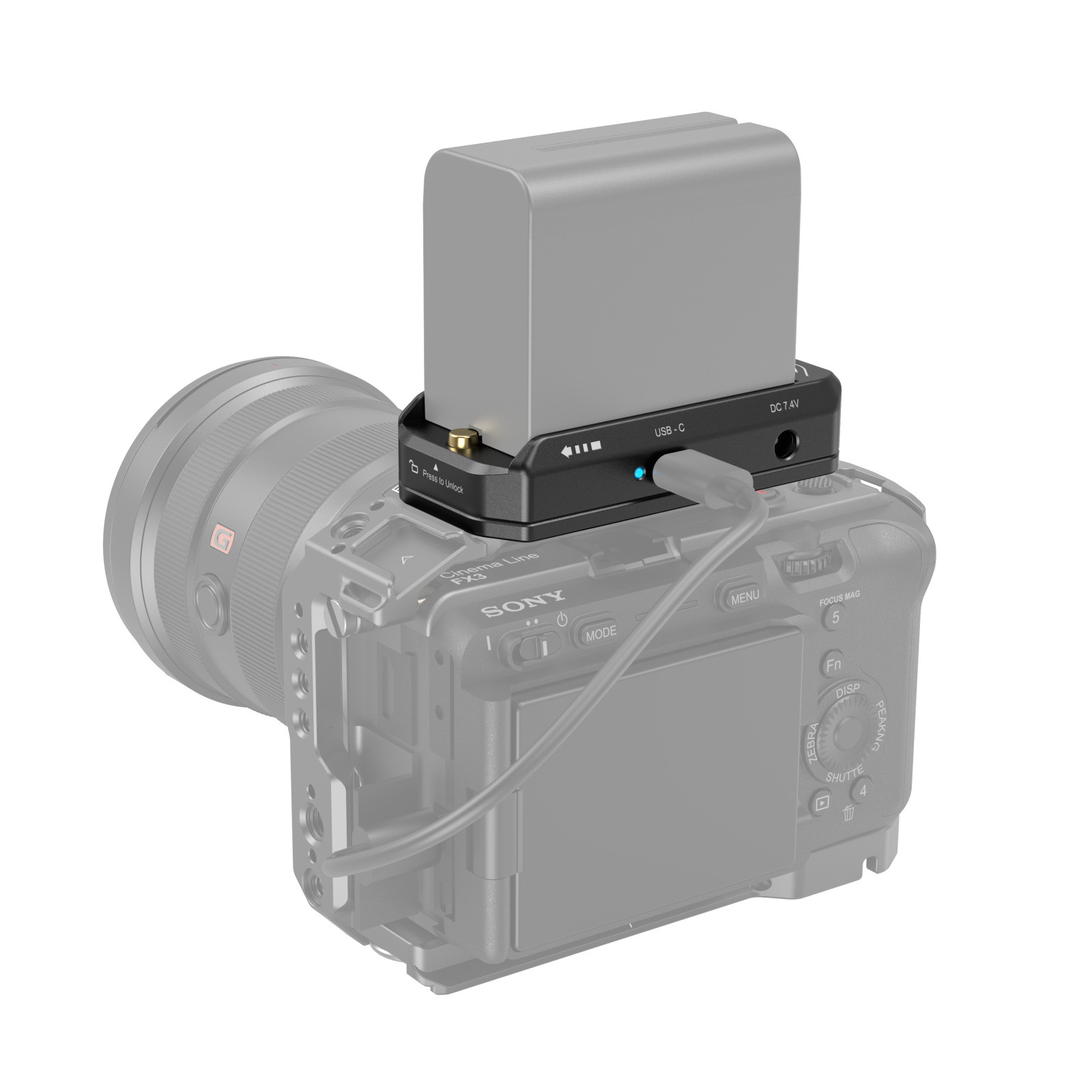

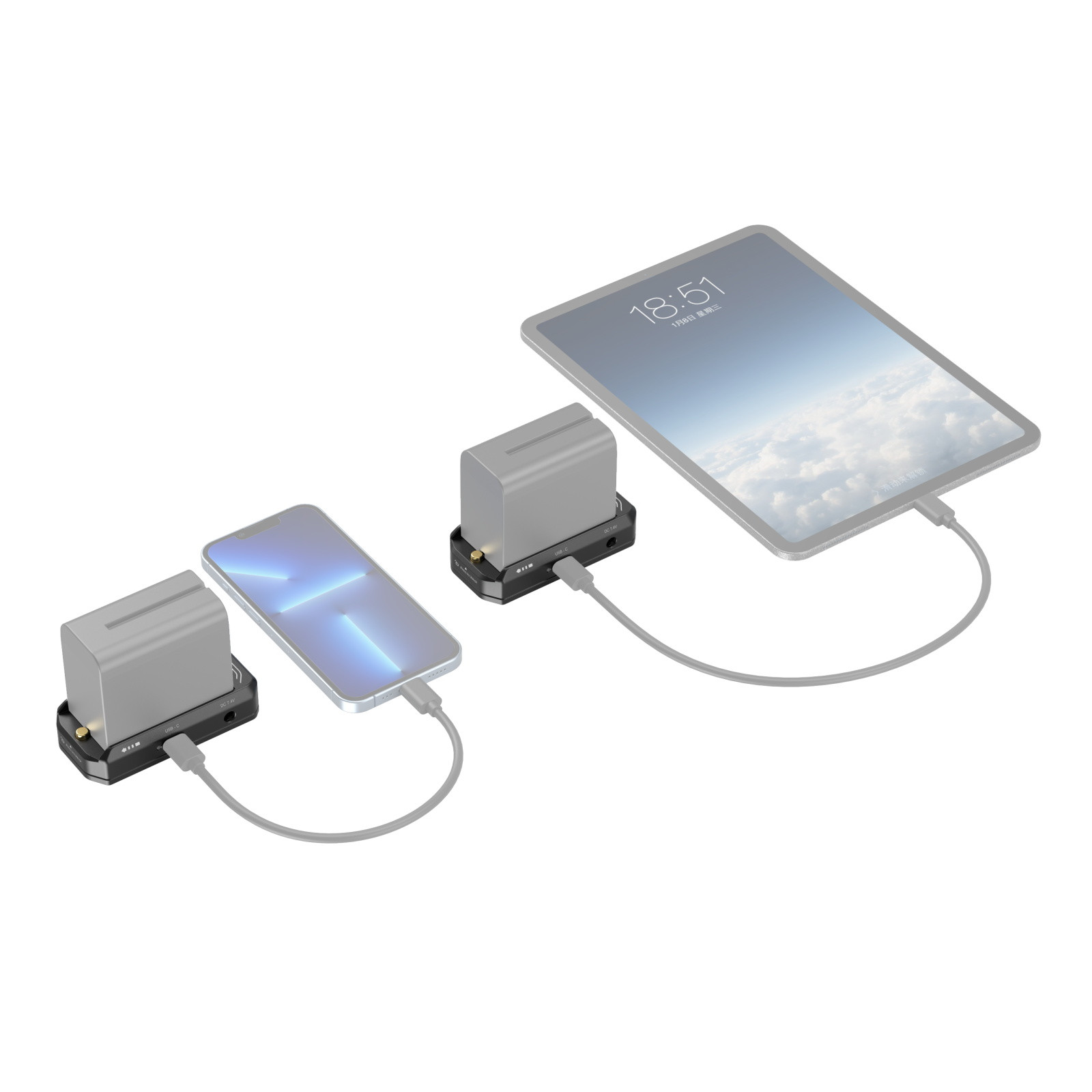

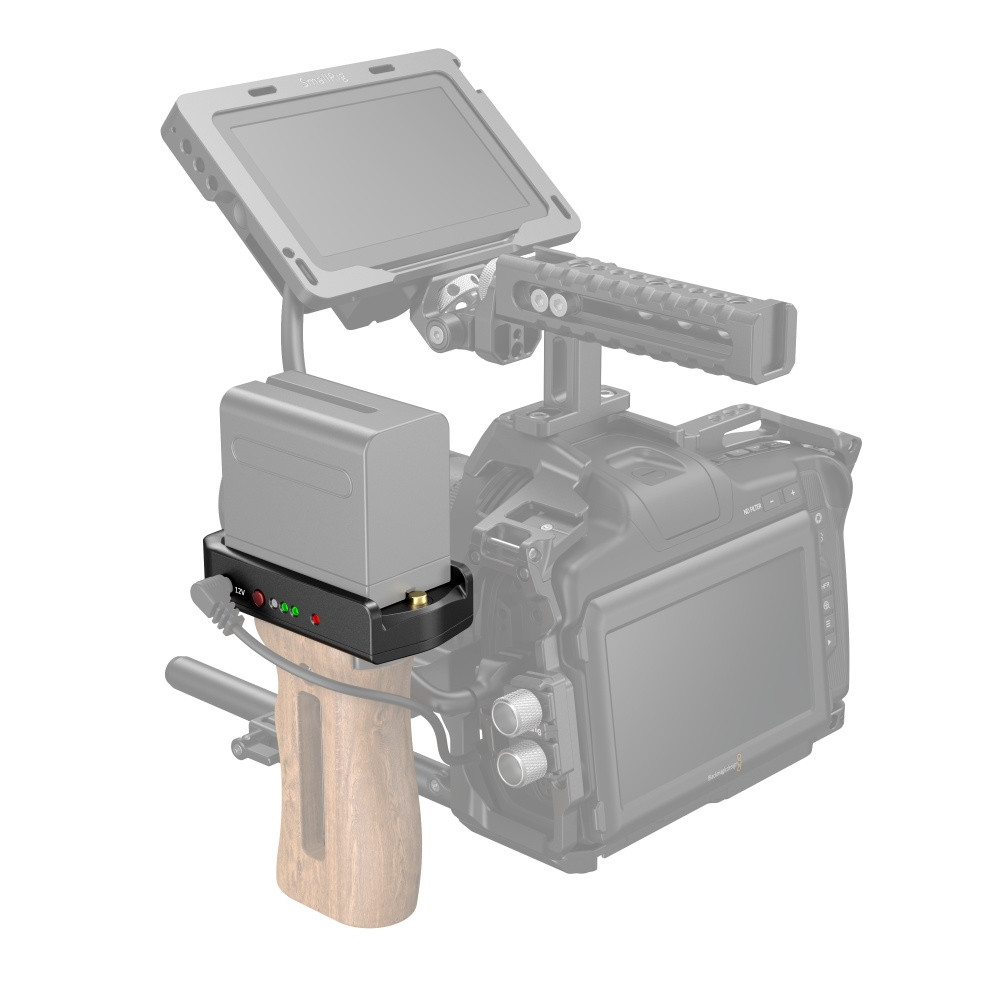

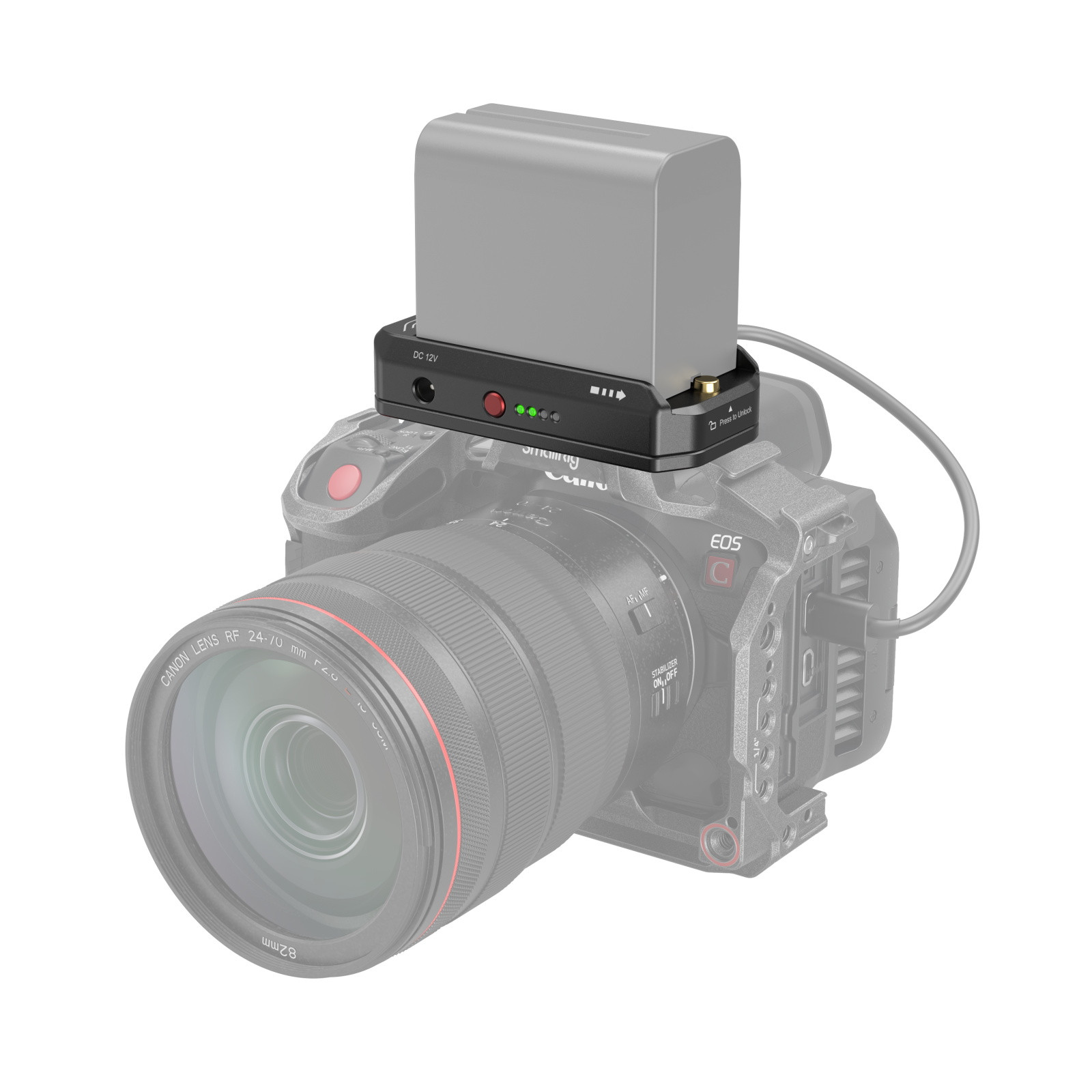

SmallRig NP-F Battery Adapter Mount Plate (Advanced Edition) 3168B is designed to enable NP-F batteries on the market (including original Sony and third-party batteries) to power BMPCC 4K/6K/6K Pro, Canon R5 C, and various mirrorless cameras and made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4''-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.
Button/Indicator Function Display:
Power Display Button: Touch to check the battery level
Working Indicator Light:
USB-C port charging and discharging indicator light: Orange - slow charge/slow discharge, ice blue light - fast charge/fast discharge
battery indicator: Four LEDs, one light flashes when below 10%, one light on when 10%-25%, two lights on when 25%-50%, three lights on when 50%-75%, four lights on when 75%-100%
Specifications:
Maximum operating power of the whole machine: ≤ less than battery power (based on NP-F battery capacity)
Standby power (static reference power): ≤0.2W

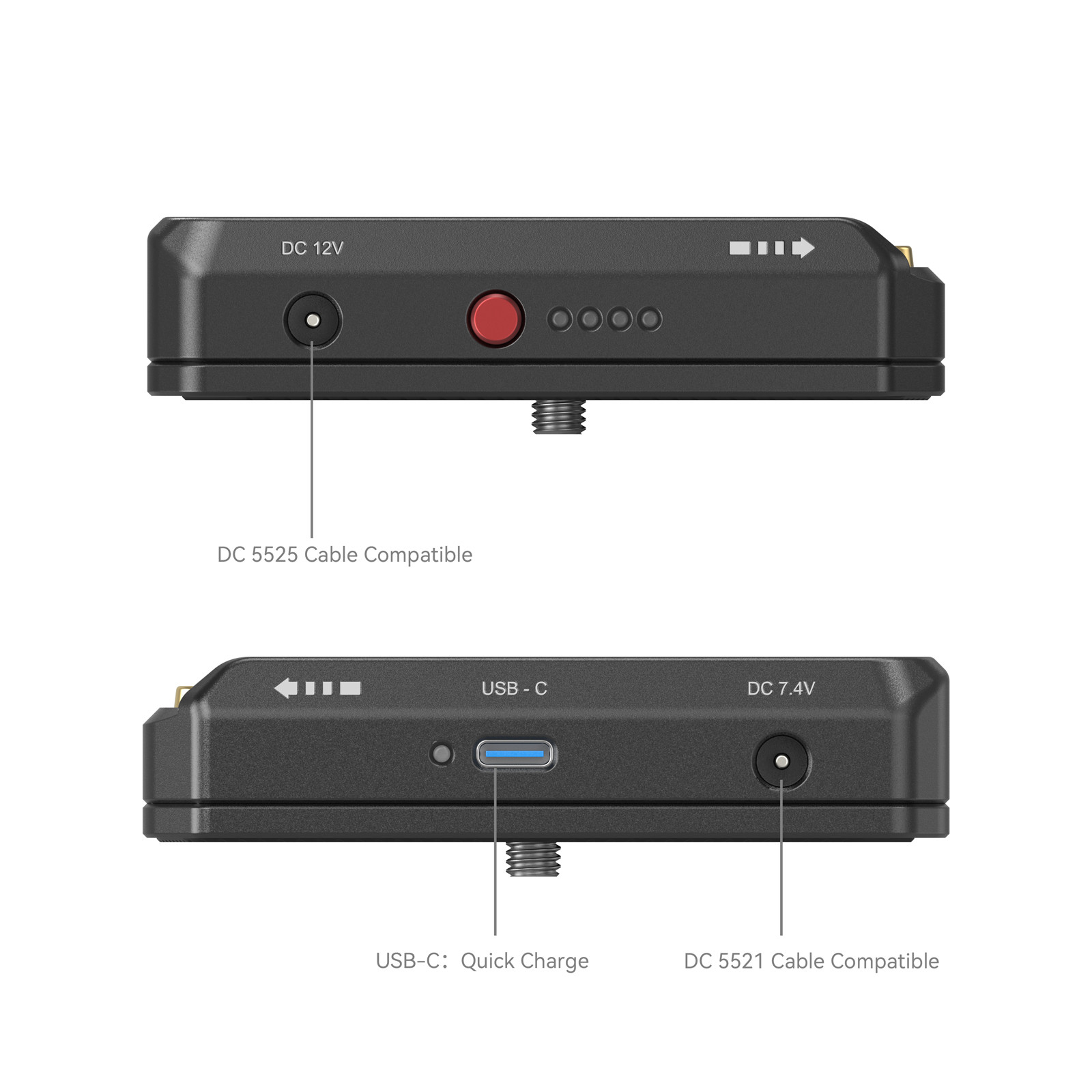

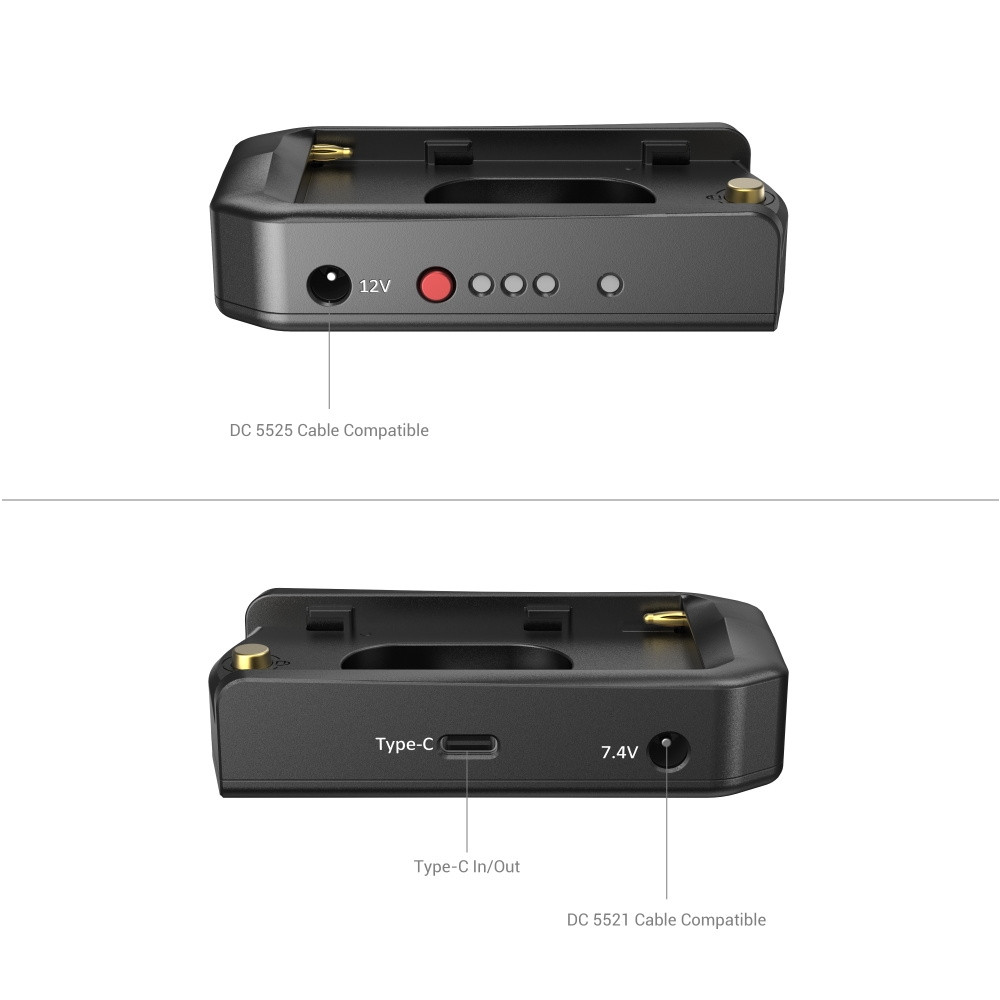

DC5521 7.4V output port: 6.4V-8.4V MAX:3A
DC5525 12V output port: 12V±5% MAX:3A
USB-C input/output port charging input: 5V / 3A,9V / 2.7A,12V / 2.1A (MAX: 25W)
USB-C input/output port discharge output: 5V/3A,9V/3A12V/3A (MAX:36W)
Charging operating temperature: 0℃~40℃
Working humidity range: Relative humidity 20%~90%RH without condensation
Storage temperature: -40℃~70℃
USB-C supports protocols:
Input: PD3.0、QC2.0、QC3.0、SCP、FCP、AFC
Output: PD3.0、QC2.0、QC3.0、SCP、FCP、AFC

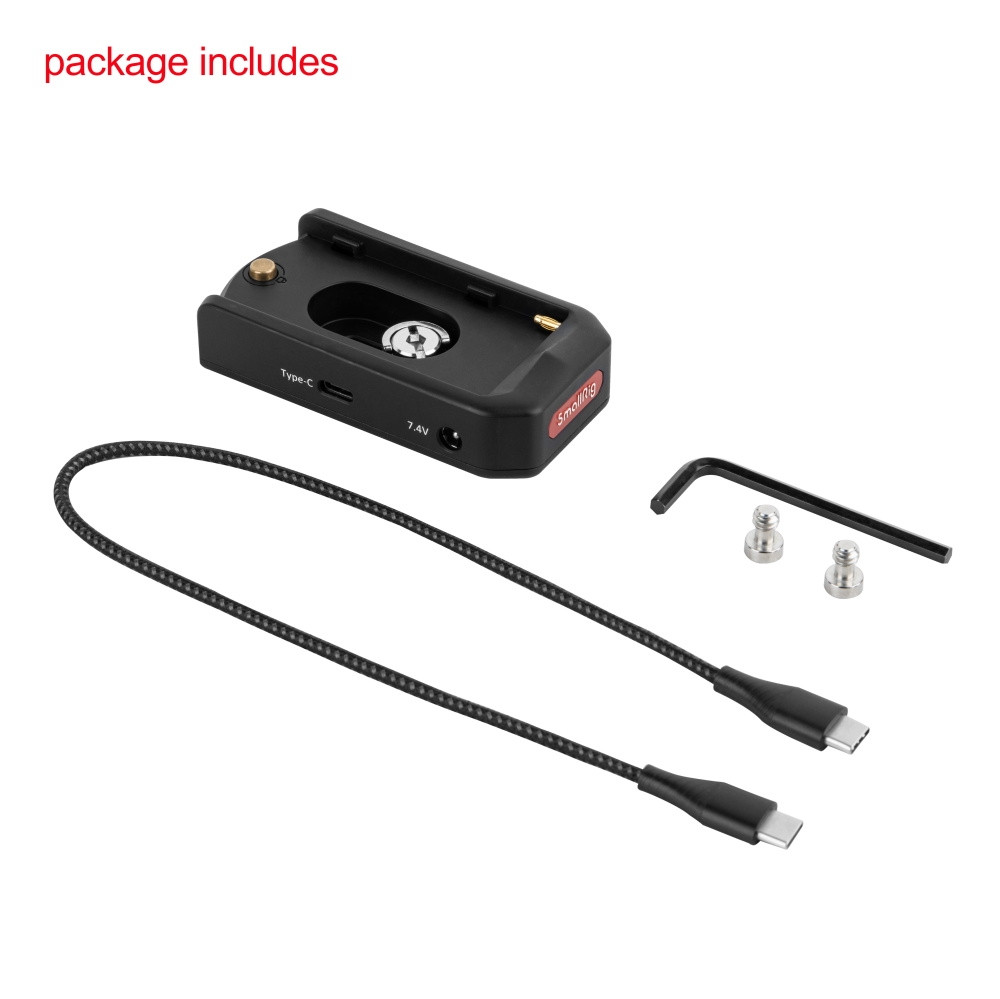

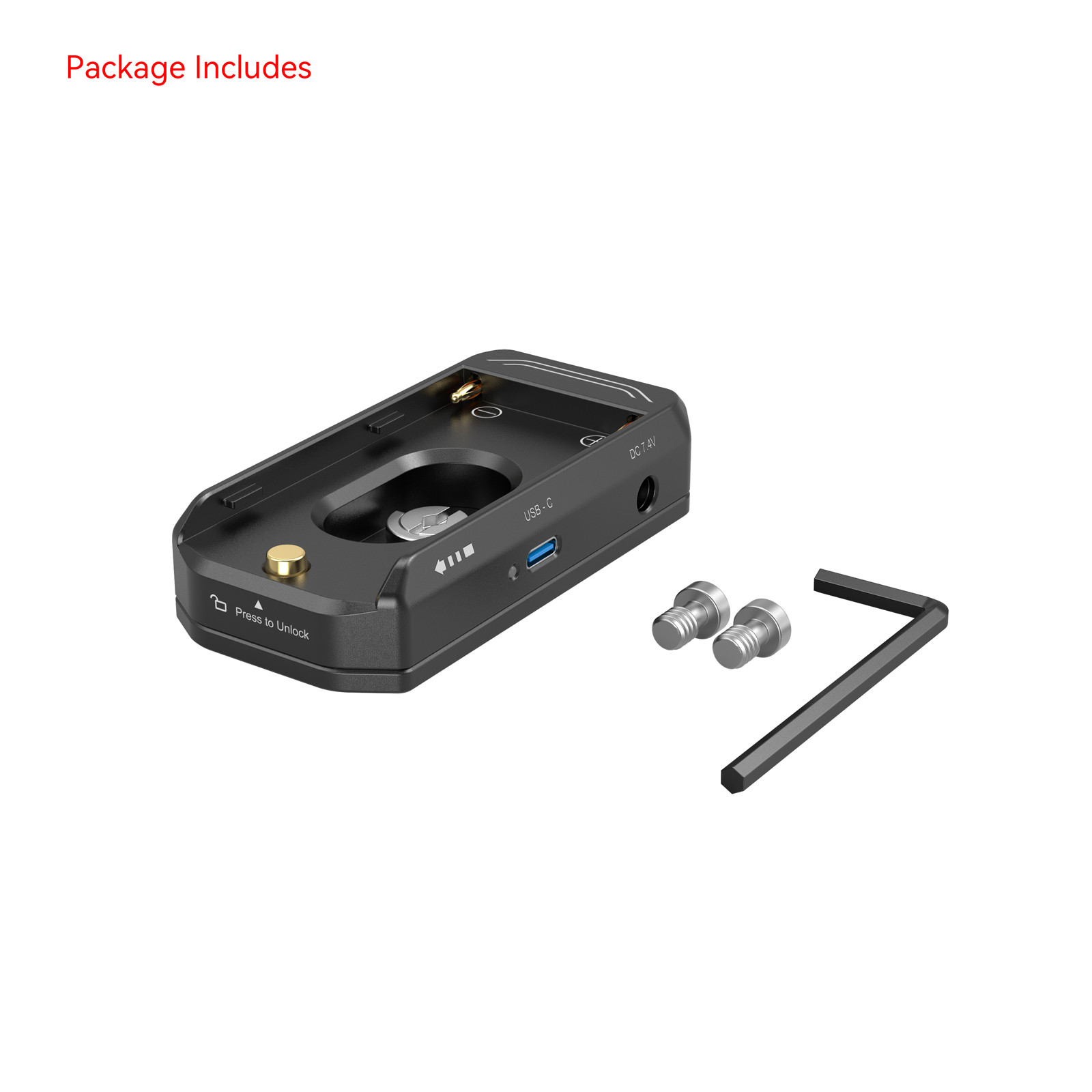

Packing List
NP-F Battery Adapter Mount Plate (Advanced Edition) x 1
1/4''-20 Screw x 1
5/32'' L-Shaped Allen Wrench x 1
User Manual x 1
Technical Data

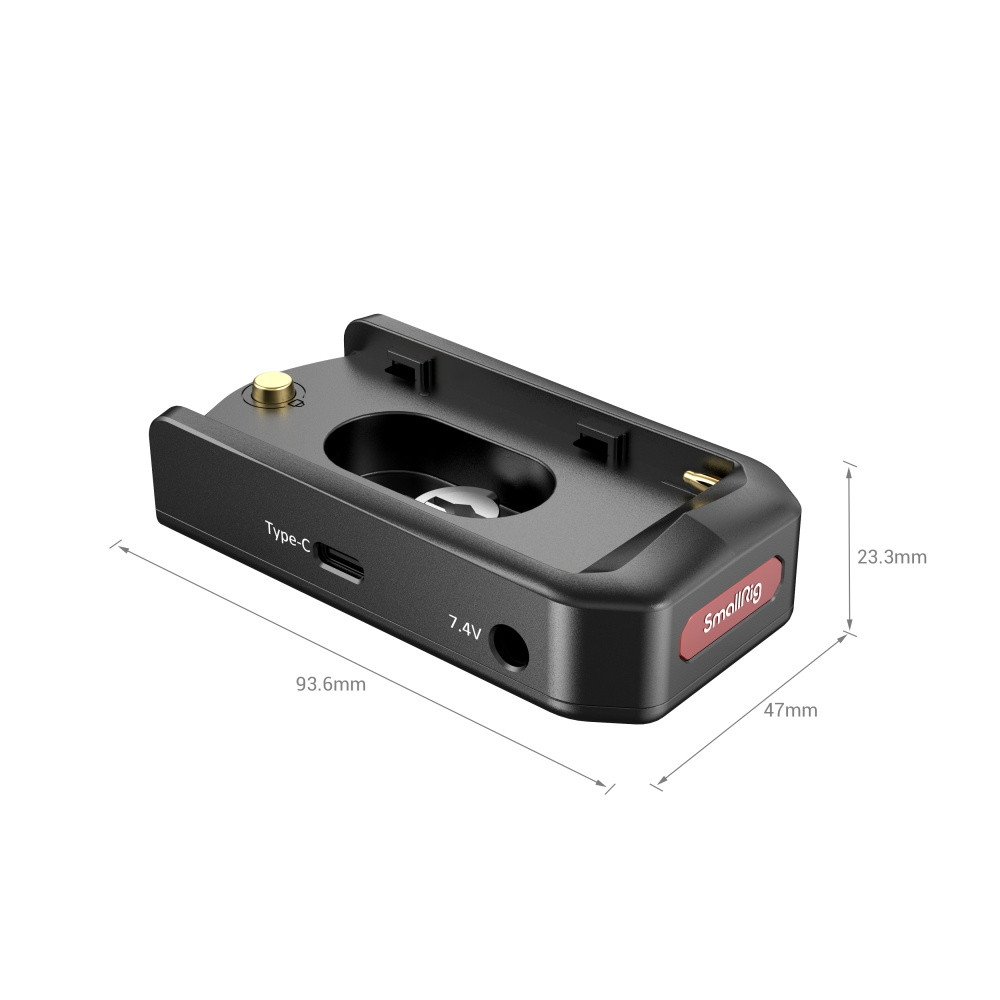

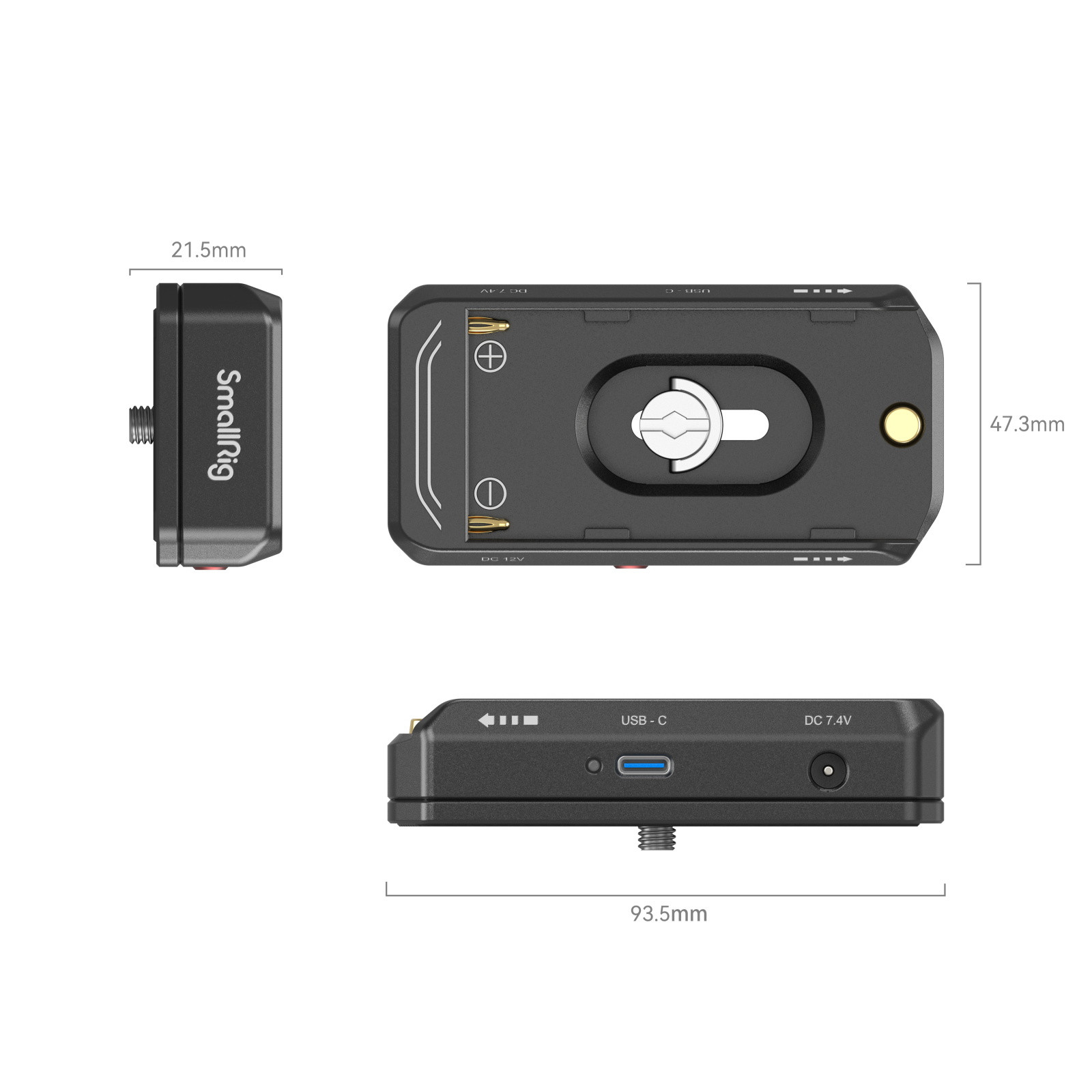

Product Dimensions: 94 x 47 x 23mm
Package Dimensions: 102 x 78 x 30mm
Product Weight: 113.5 ± 5g
Package Weight: 145.5 ± 5g
Material(s): CNC
