SmallRig LP-E6NH 4-Channel Camera Battery Charger 4838

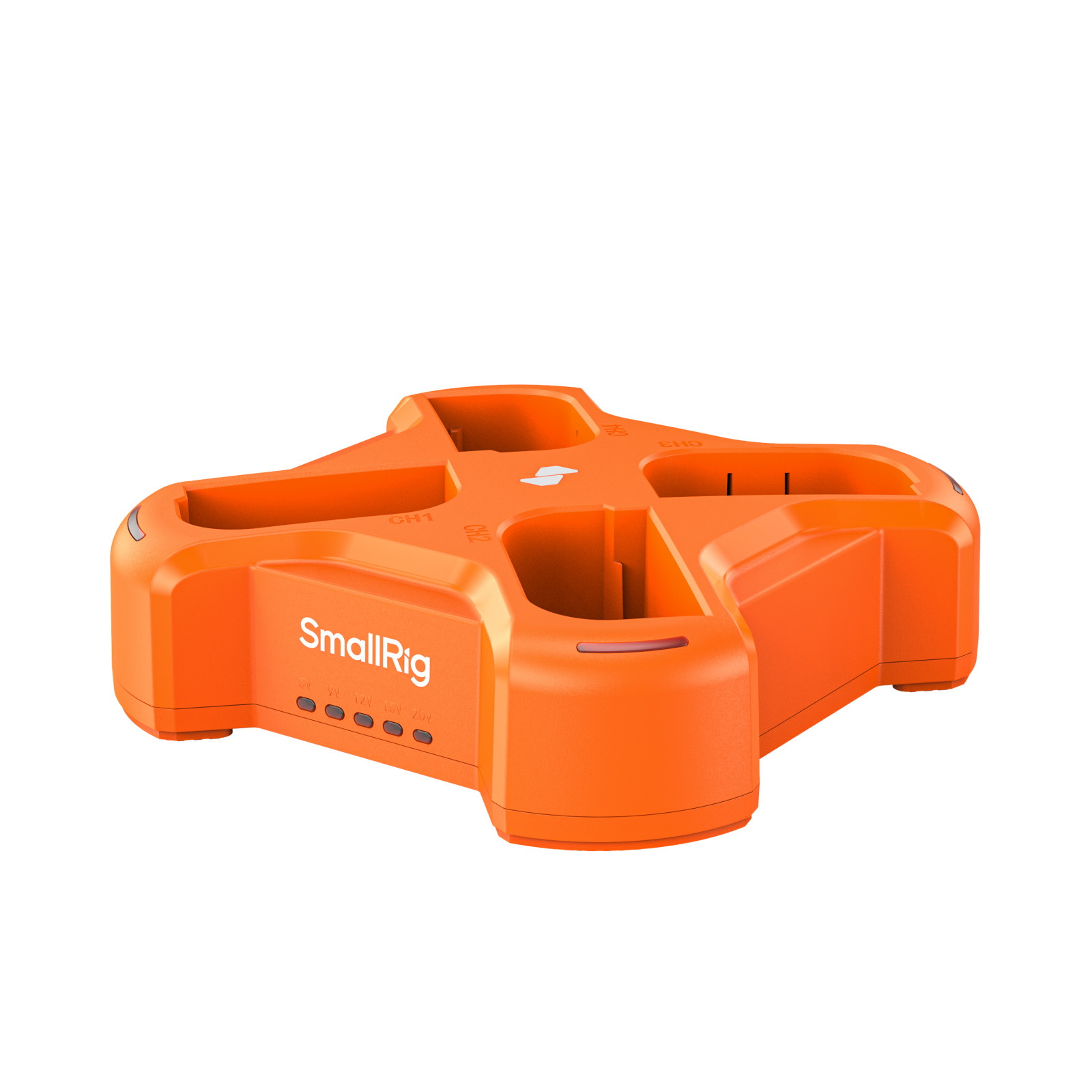

SmallRig LP-E6NH 4-Channel Camera Battery Charger 4838 is a high-efficiency, high-power charger for LP-E6 batteries. Supporting a maximum input of 60W, this charger features four LP-E6 charging ports, allowing simultaneous fast charging of four batteries.
With comprehensive safety protection, each output port is equipped with short circuit and overcurrent protection, ensuring safety during the charging process.
The compact and lightweight design makes it perfect for travel and daily use, serving as your on-the-go charging expert.
Featuring an LED display, the charger provides real-time updates on the charging status and voltage, allowing you to monitor the charging progress.
Certification: FCC / CE / PSE / RCM

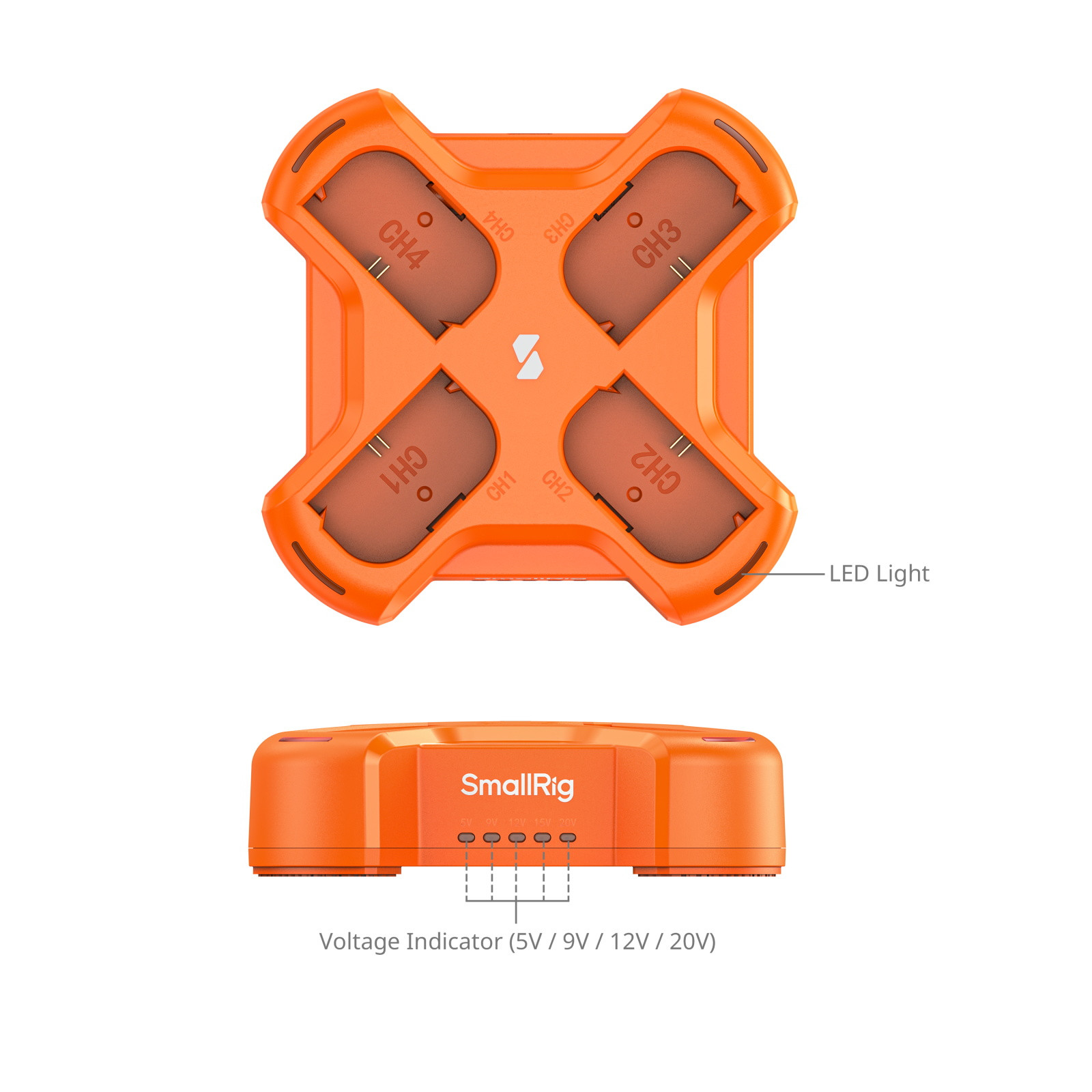

Button / Indicator Function Display:
Voltage Indicator: Displays input voltages of 5V, 9V, 12V, 15V, 20V
1. Red Light at 5V: Low voltage input, does not support charging
2. 9V / 12V Light On: Slow charging
3. 15V / 20V Light On: Fast charging
LED Indicator: Displays charging status for each channel
1. Solid Red Light: Charging in progress
2. Solid Green Light: Fully charged
3. Light Off: No battery or awaiting charging
Work With
Panel light, image transmitter, monitor, camera, camcorder

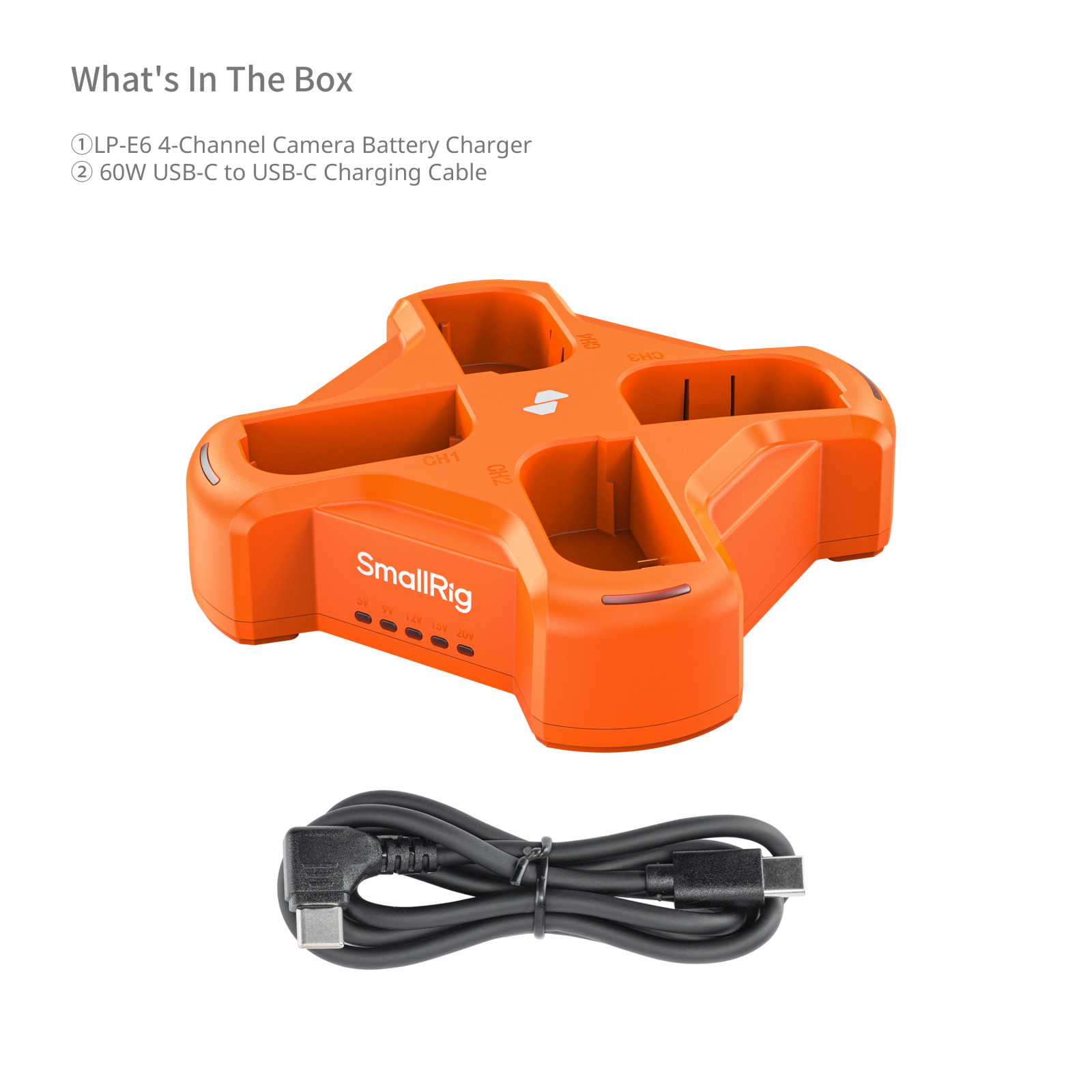

Packing List
LP-E6 4-Channel Camera Battery Charger x 1

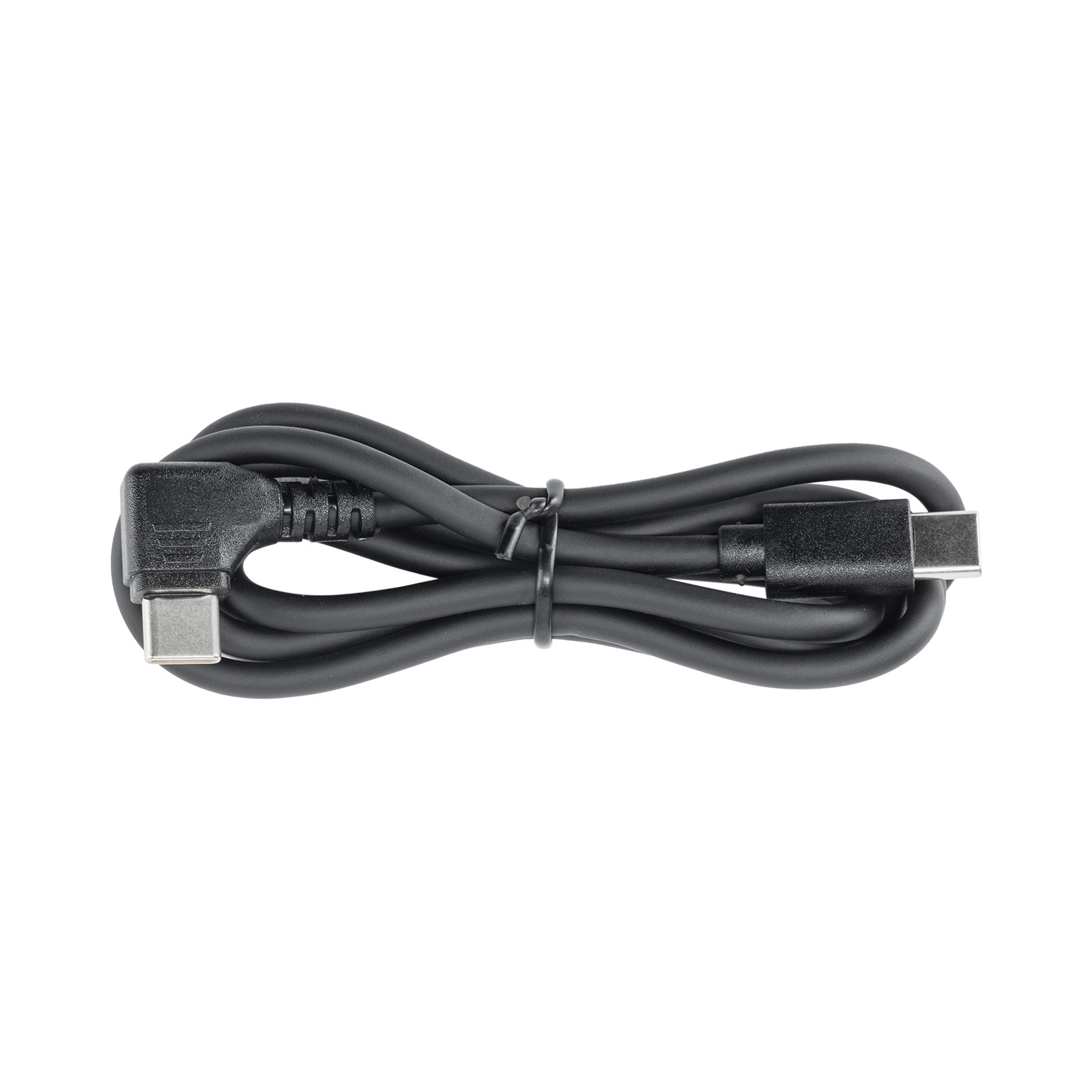

60W C to C Charging Cable x1
User Manual x 1
Guarantee Card x 1
Technical Data

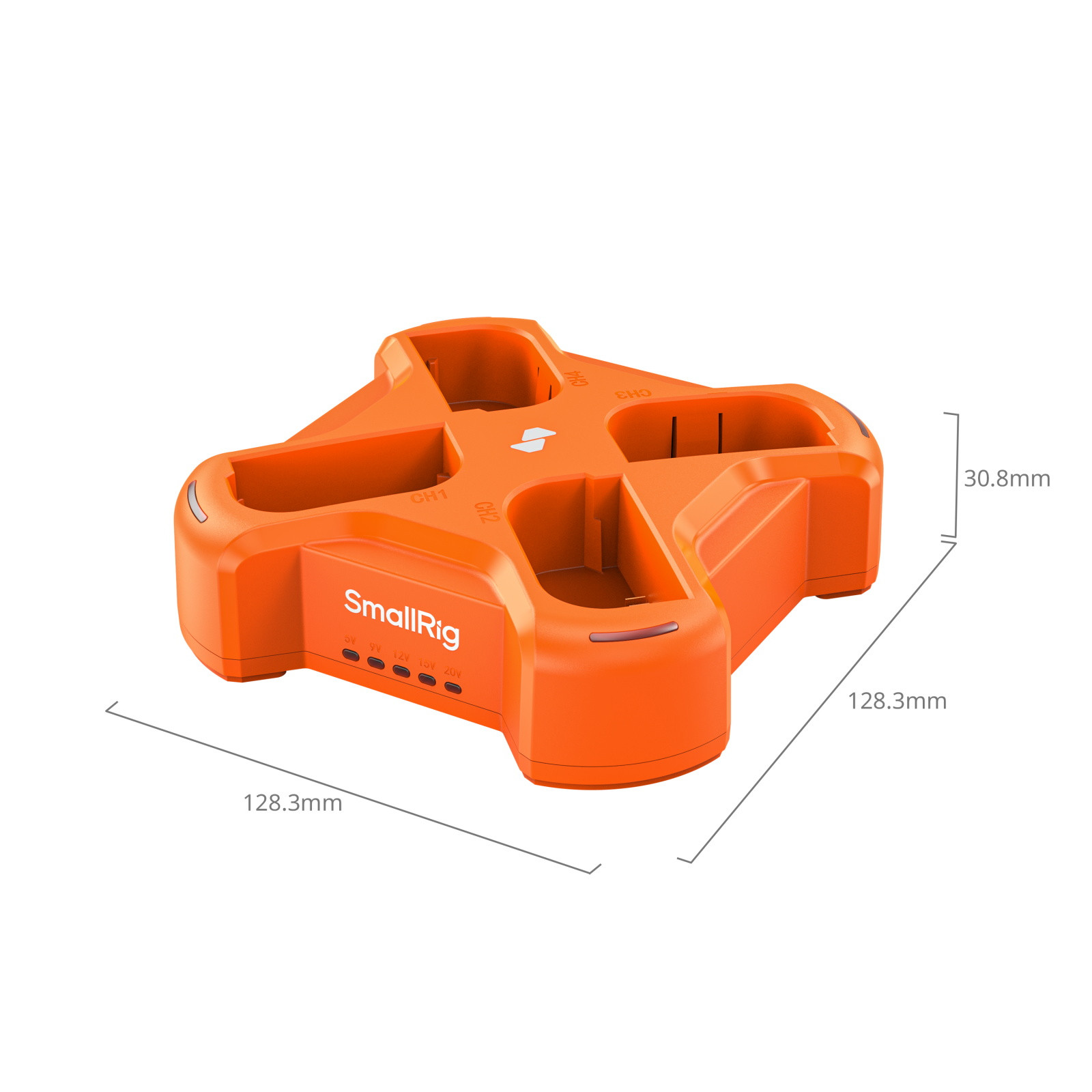

Product Dimensions: 106.0 x 106.0 x 30.0mm / 4.2 x 4.2 x 1.2in
Package Dimensions: 144.5 x 115 x 38mm / 5.69 x 4.23 x 1.5in
Product Weight: 140.0 ± 5.0g / 4.9 ± 0.2oz
Package Weight: 238g / 8.40oz
Material(s): ABS + PC

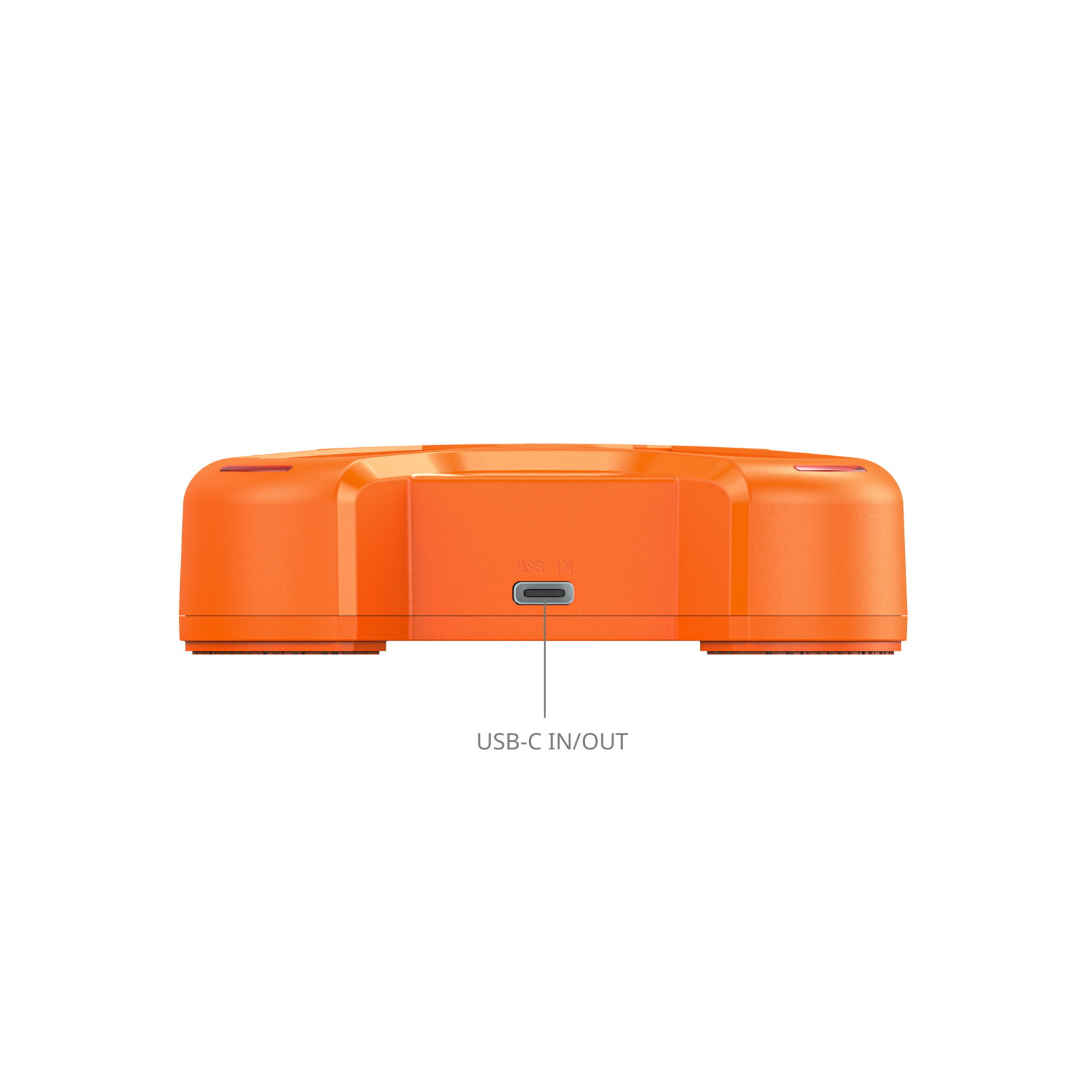

USB-C Input: 12V⎓3A, 15V⎓3A, 20V⎓3A: 60W (Max)
Output (Per Channel): 8.4V⎓1A (Max)
USB-C Protocol: PD
Charging Voltage Limit: 8.45V
Charging Environment Temperature: 5℃ to 45℃ / 41°F to 113°F
