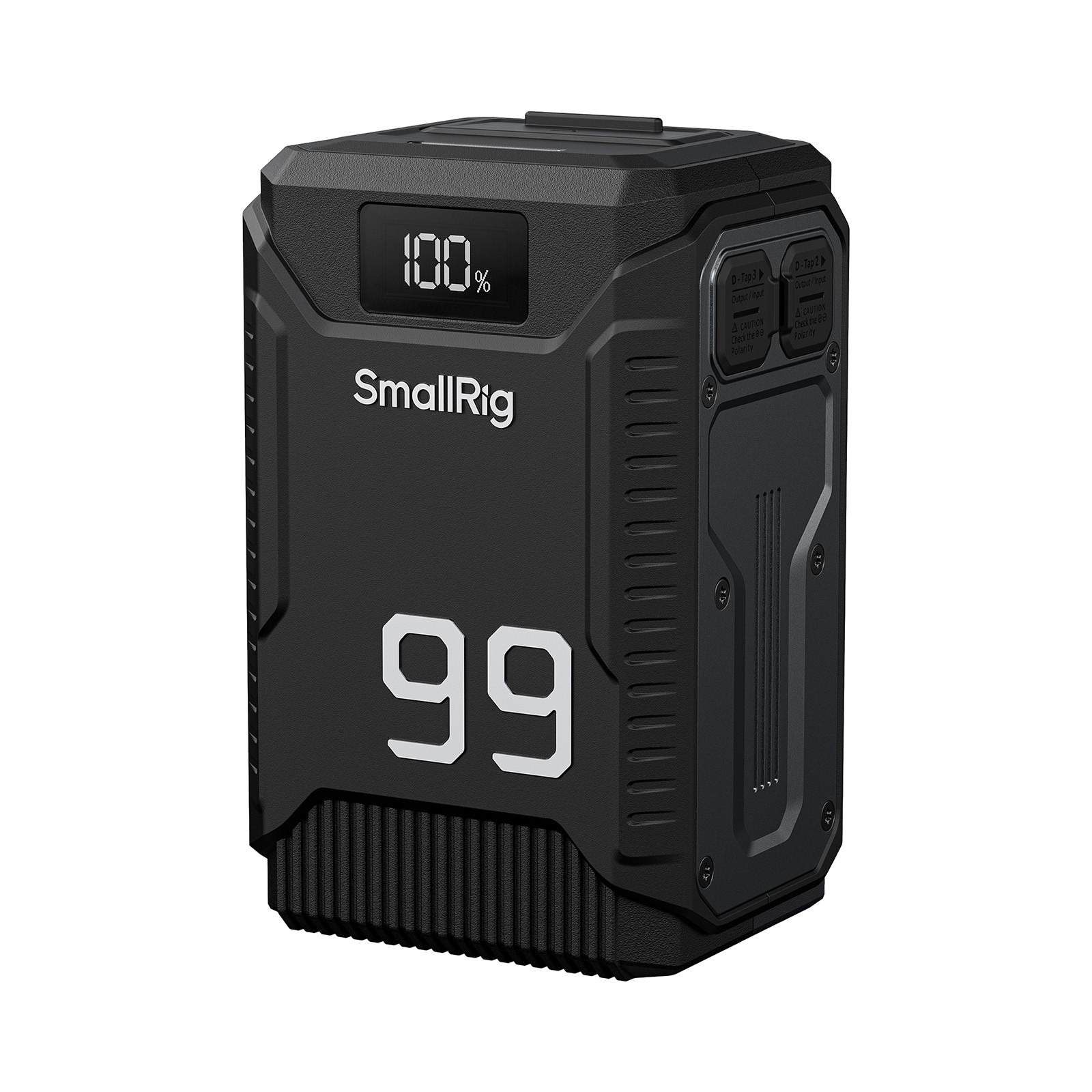

SmallRig Triple-Proof (1.8m / 5.9ft Drop-Resistant, IP54 Waterproof / Dustproof) T99 V-Mount Battery 5864
SmallRig Triple-Proof (1.8m / 5.9ft Drop-Resistant, IP54 Waterproof / Dustproof) T99 V-Mount Battery 5864 is designed for demanding professional shooting. With 99Wh of capacity, it meets shooting power needs while remaining compliant with airline carry-on regulations.
The triple-proof body features a full-wrap TPU and metal construction, while an internal support structure secures the battery cells and circuit board, enhancing durability and safety. It is drop-resistant from up to 1.8m (5.9ft) and rated IP54 for water and dust resistance, ensuring reliable operation in harsh outdoor environments.

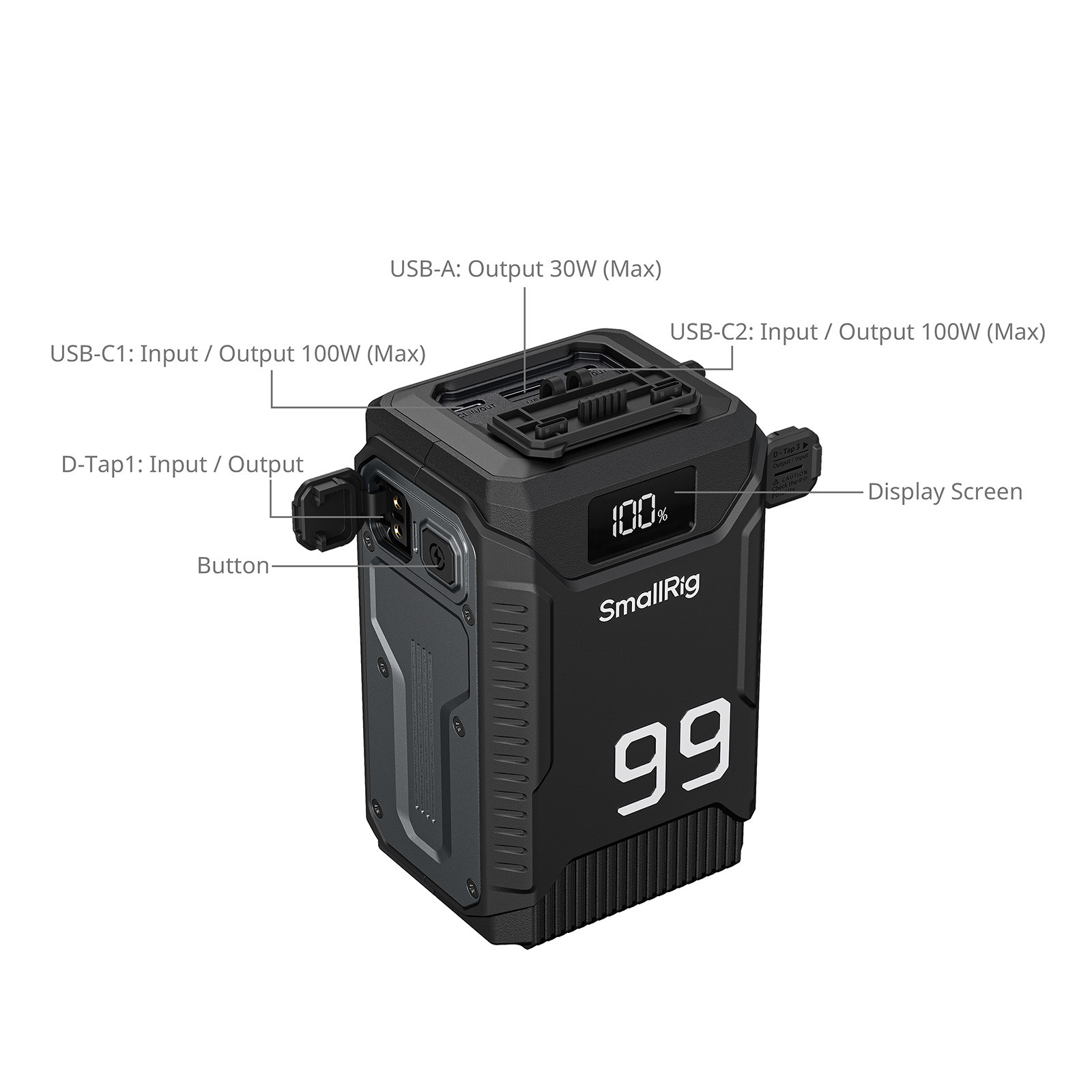

Power delivery is versatile and efficient. The battery features one BP port, three D-Tap ports, two USB-C ports, and one USB-A port, meeting the power demands of professional crews while simplifying on-set power setups and improving workflow efficiency. Both USB-C ports support 100W PD bidirectional fast charging. A composite cooling system using graphene and thermal grease supports a full recharge in 2 hours while maintaining efficient power delivery.
For safe and reliable operation, the battery uses high-quality LG battery cells, a BMS smart control chip, and precision circuitry to protect against overtemperature, overcurrent, overvoltage, short circuit, overcharge, and overdischarge.
Additional details include a rear light for easier installation and operation in low-light conditions, as well as 1/4"-20 and 3/8"-16 threaded holes for flexible mounting options.
Certifications: FCC, CE, ISED, RCM, KC, PSE
Button Functions:
Power On: Single press
Power Off: Press and hold for 2 seconds (during power-off, only USB-C, USB-A, and the screen are disabled; BP and D-Tap ports remain active)
Screen On/Off: Single press to turn off the screen when it is on; single press to turn on the screen when it is off
Port Info Switch: Double press to switch the displayed port information (voltage/power, temperature unit °C/°F)
LED Light Control: Triple press quickly when powered on to turn the LED light on or off
Device Info: Press eight times consecutively to view hardware version, firmware version, battery cycle count, health, and BMS parameters
Force Restart: Press and hold for 10 seconds to force restart the device
Work With

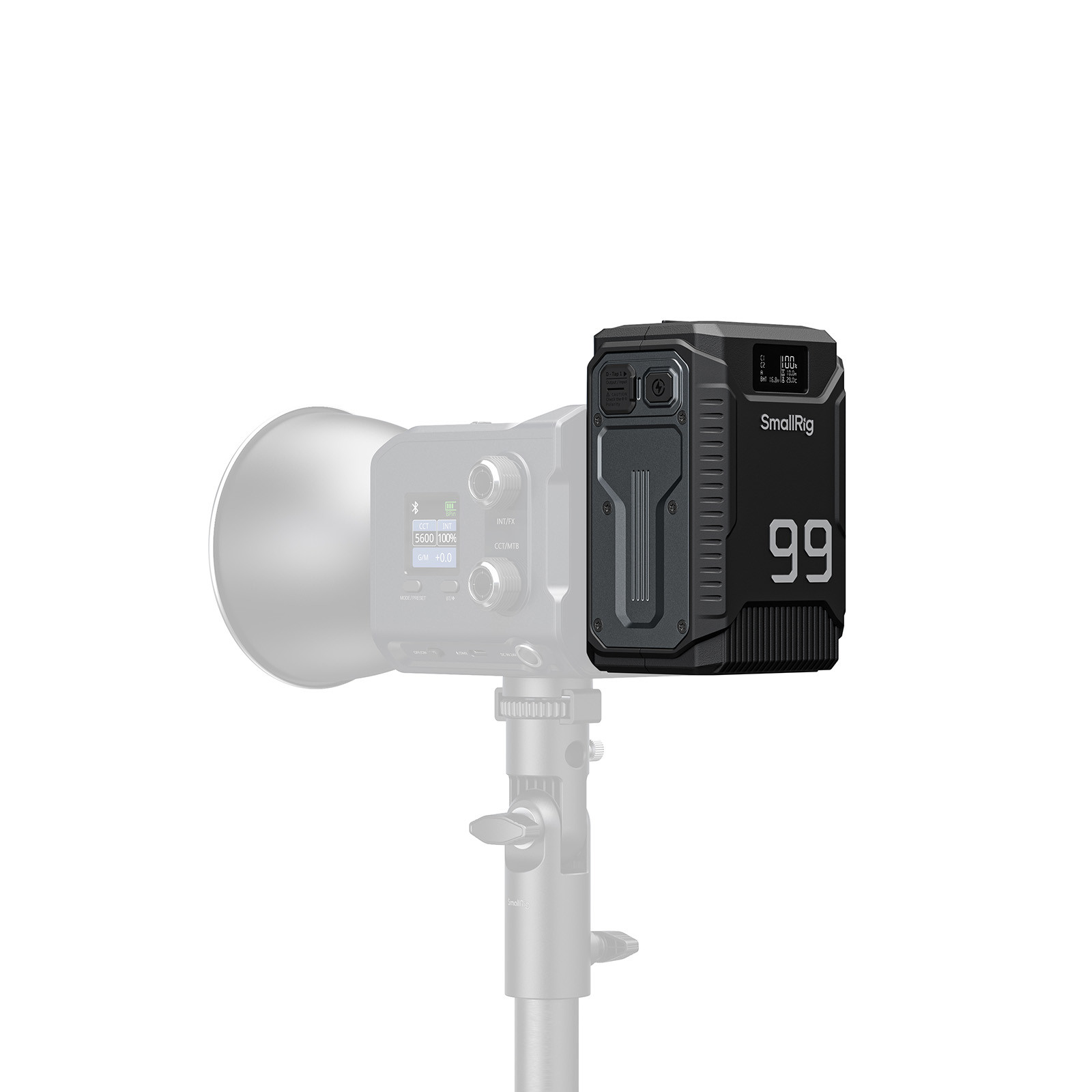

Mirrorless cameras, camcorders, cinema cameras, monitors, follow focuses, video transmitters, LED lights, smartphones, tablets, laptops, etc.

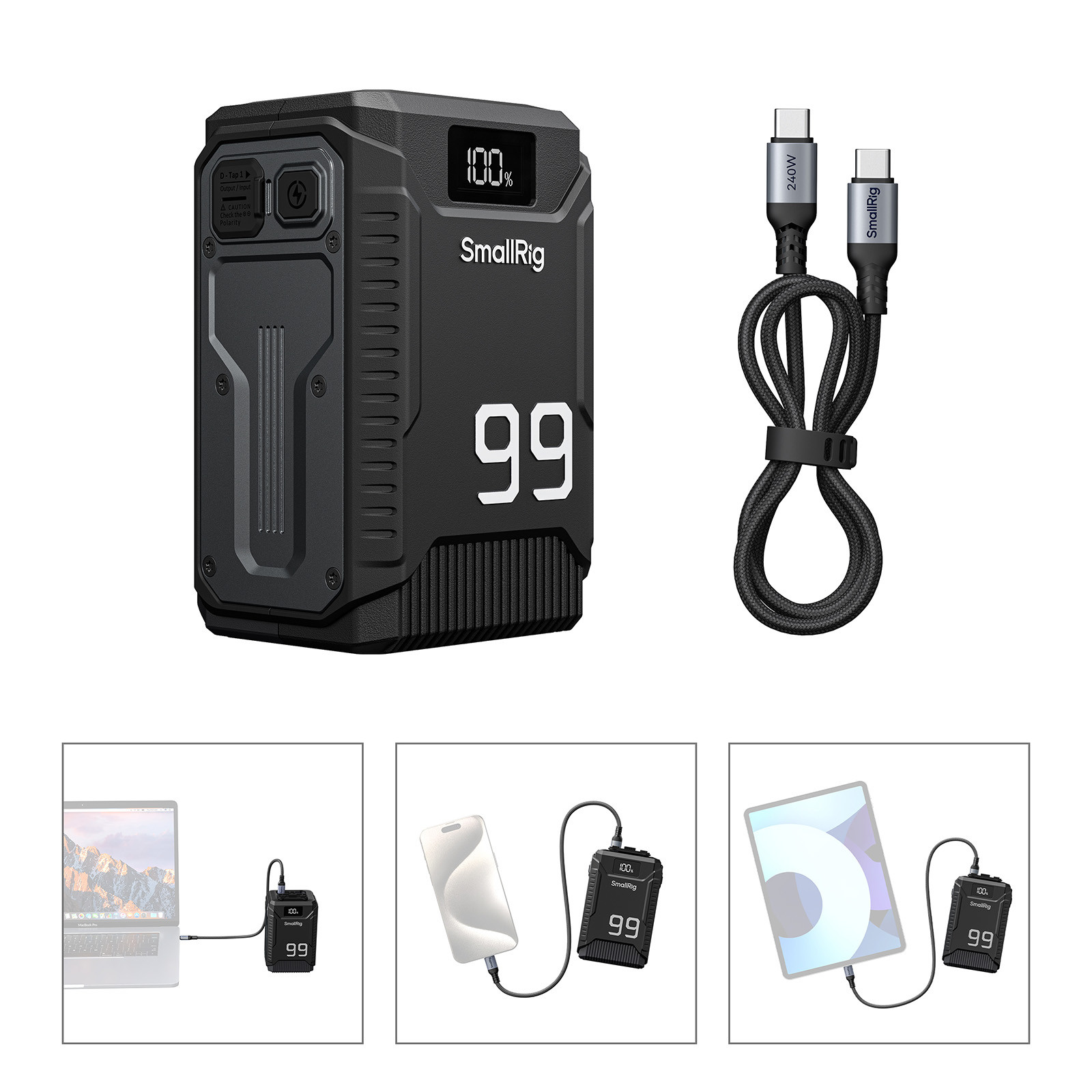

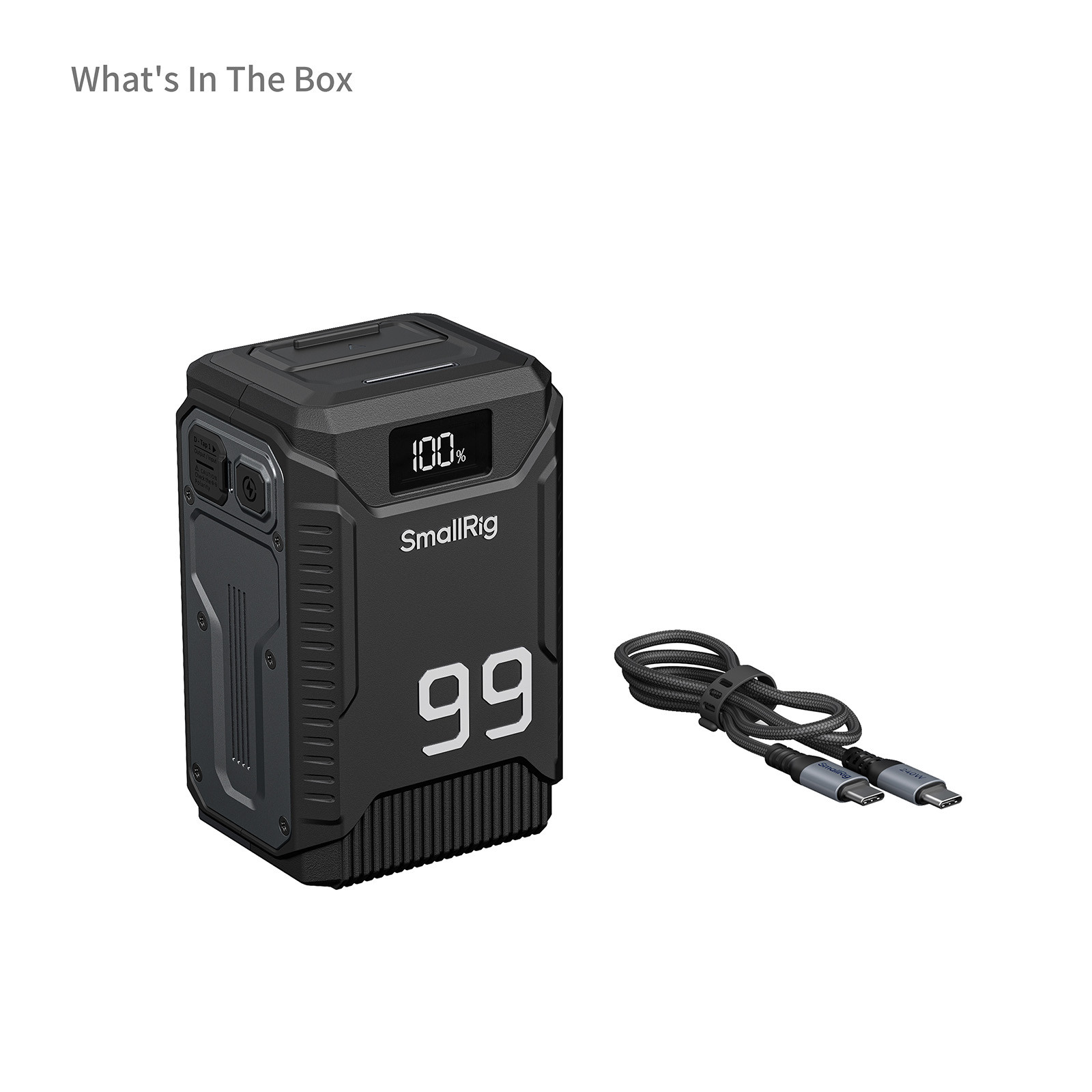

Packing List
T99 V Mount Battery × 1
240W USB-C Charging Cable × 1
Quick Start Guide × 1
User Manual × 1
Technical Data

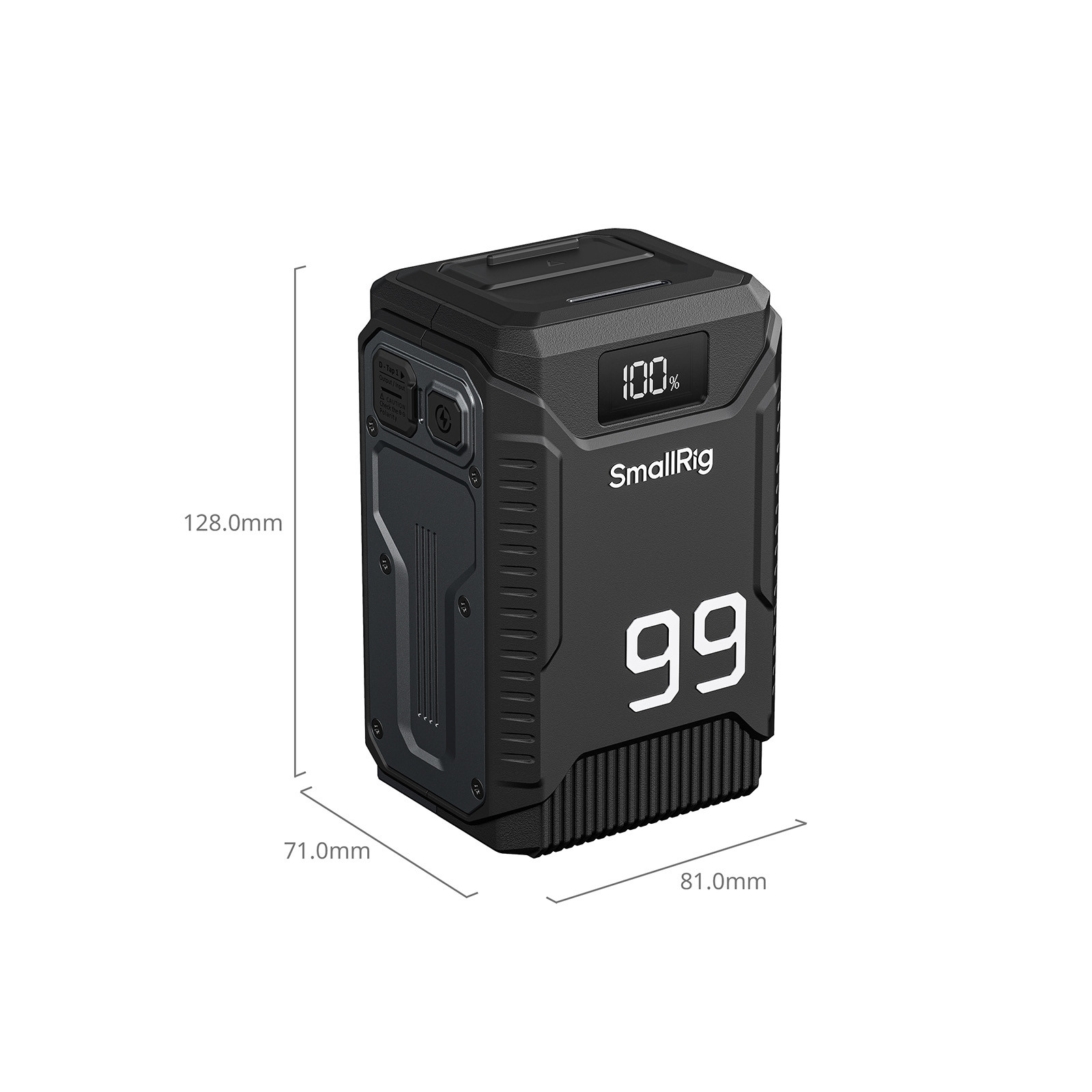

Product Dimensions: 128.0 × 81.0 × 71.0mm / 5.0 × 3.2 × 2.8in
Package Dimensions: 160.0 × 125.0 × 56.0mm / 6.3 × 4.9 × 2.2in
Product Weight: 862.0g ± 10.0g / 30.4oz ± 0.4oz
Package Weight: 1151.0g ± 10.0g / 40.6oz ± 0.4oz
Material(s): Aluminum Alloy, TPU, Silicone, PC
Battery Type: Lithium-ion Battery
Rated Battery Parameters: 14.54V / 6800mAh / 98.872Wh
Rated Total Output: 100W
Cell Capacity: 27200mAh (Cell: 3400mAh x 8)
Input:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
BP / D-Tap1 / D-Tap2 / D-Tap3: 16.8V⎓5A (Rated)
Output:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
USB-A: 5V⎓3A, 9V⎓3A, 12V⎓2.5A; 30W (Max)
BP / D-Tap1 / D-Tap2 / D-Tap3: 16.8V⎓6.8A (Rated)
Charging Protocols:
USB-C1 / USB-C2: PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, Apple 2.4A
USB-A: QC2.0, QC3.0, AFC, FCP, DCP-1.5A, Apple 2.4A
Cut-off Voltage: 11.2V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -15°C to 60°C / 5°F to 140°F
Charging Ports: BP, D-Tap, USB-C
Drop Resistance Rating: 1.8m (5.9ft)
Ingress Protection Rating: IP54
