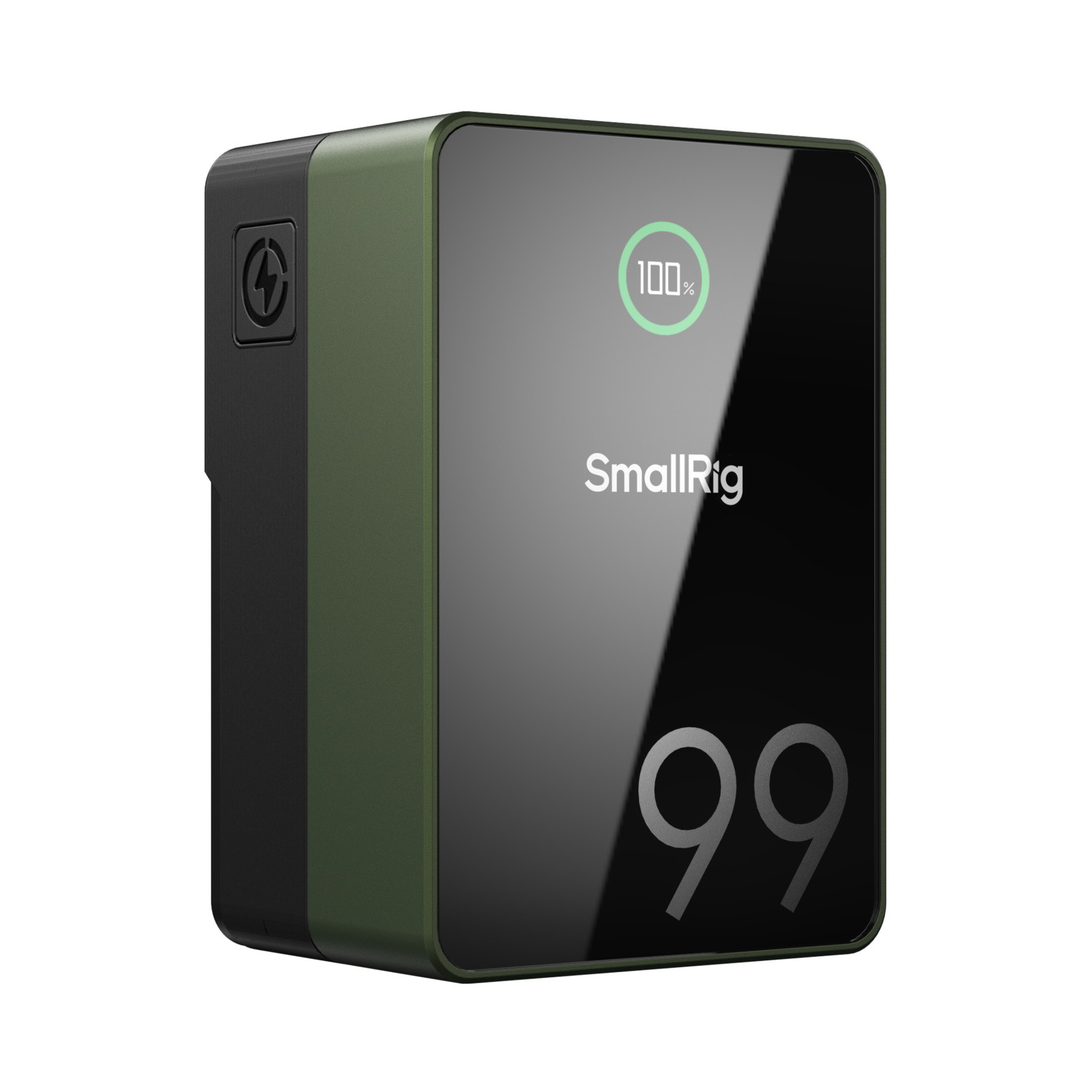

SmallRig VB99 Pro mini V Mount Battery (Green) 4974

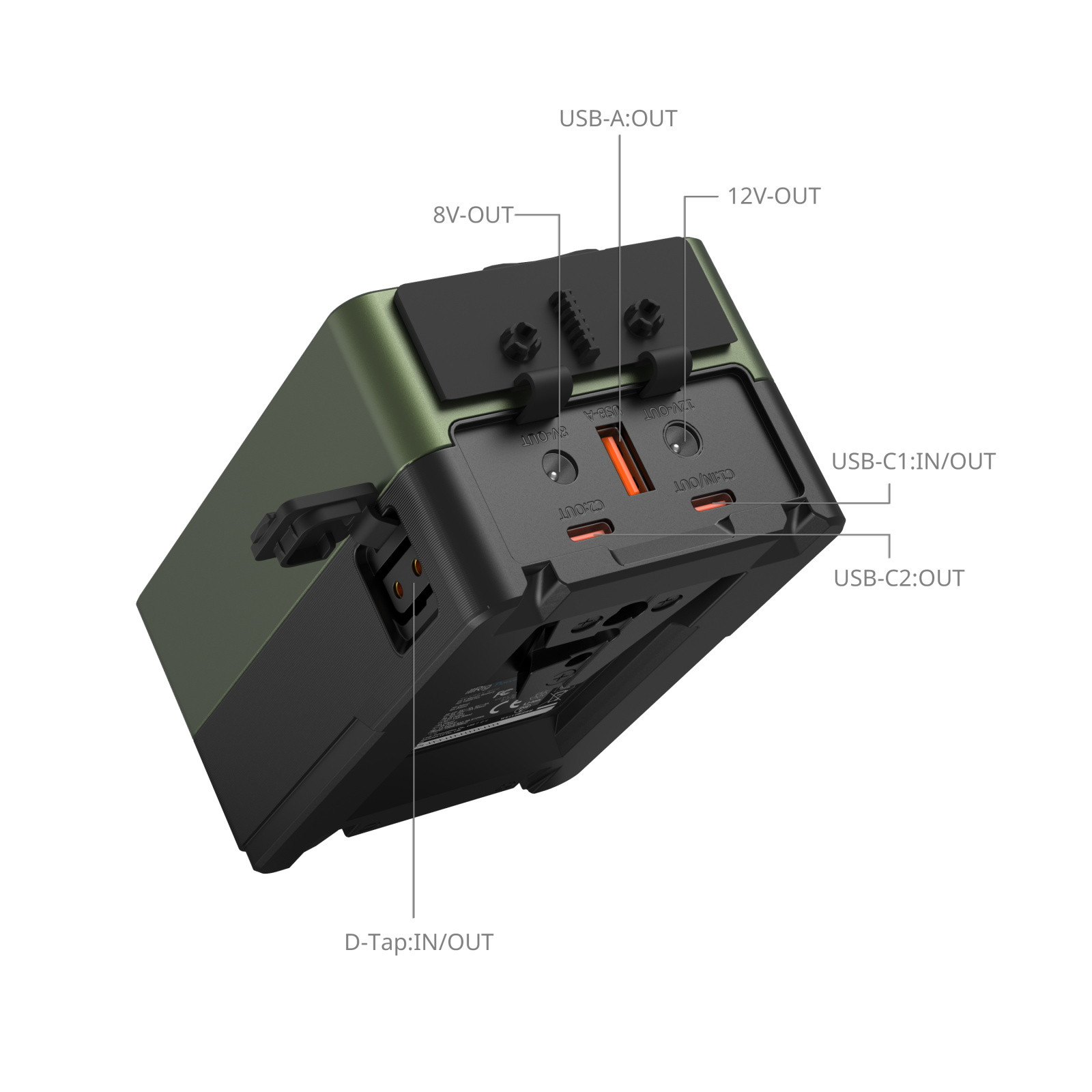

SmallRig VB99 Pro mini V Mount Battery (Green) 4974 is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, adaptive voltage boost/ adaptive current regulation, etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as D-tap / USB-C / USB-A / 8V-OUT / 12V-OUT / BP electrode are also included for efficient charging/powering of camera/camcorder/monitor / wireless video transmitter / LED video light / mobile phone/laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards. Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features a durable, scratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately. Overall, this item is safe and powerful enough for you to capture every moment without burden!
Certification: FCC CE RoHS ISED RCM PSE KC TISI
Work With
MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, tablet, laptop, etc.
Packing List
VB99 Pro mini V Mount Battery x 1
240W USB-C Charging Cable x 1
User Manual x 1
Technical Data
Product Dimensions: 107.2 × 73.2 × 55.2mm
Package Dimensions: 146 × 113 × 74mm
Product Weight (including charging cable): 660 ± 10g
Package Weight: 847 ± 10g
Material(s): Aluminum Alloy, Fireproof PC
Capacity: 14.54V 6.8Ah 98.872Wh
Rated Power: 100W
BP / D-tap Input: 8A (Max.)
BP / D-Tap Output: 14.8V / 14A (Max.)
USB-A Output QC2.0 / QC3.0: 5V / 3A, 9V / 3A, 12V / 2.5A（Max.）
USB-C1 Input / Output
Input / Output: 100W (Max.)
PD3.0 / QC2.0 / QC3.0 / PPS: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.)
USB-C2 Output
Output: 100W (Max.)
PD3.0 / QC2.0 / QC3.0 / PPS: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.)
8V-OUT: 8V / 3A (Max.)
12V-OUT: 12V / 3A (Max.)
Cut-off Voltage: 11V
Optional Charging Method: BP charger、16.8V D-TAP charger、 USB-C charger, such as GaN charger with PD fast charging tech (up to 100W)
