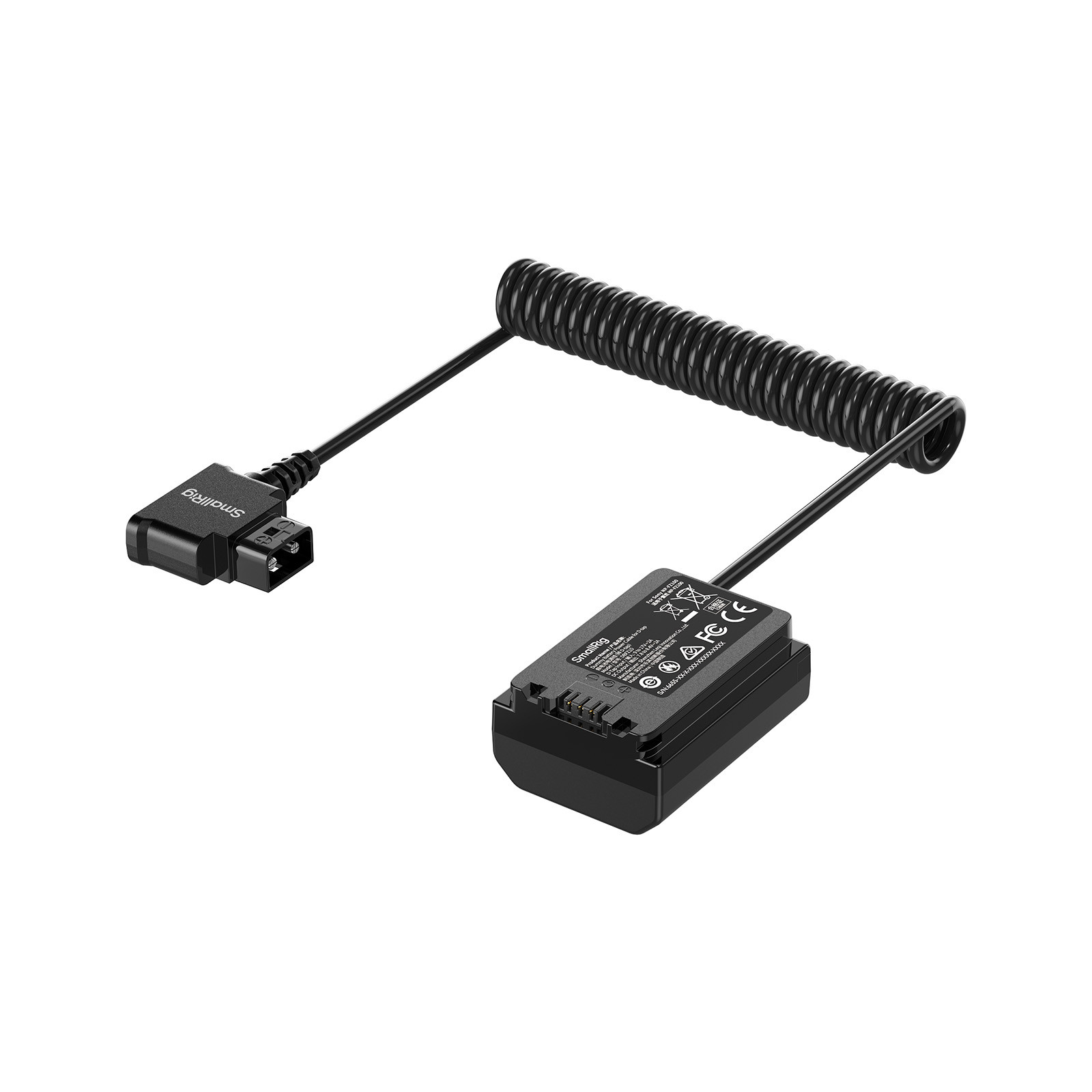

SmallRig Dummy Battery Power Cable for D-Tap for Sony NP-FZ100 6655

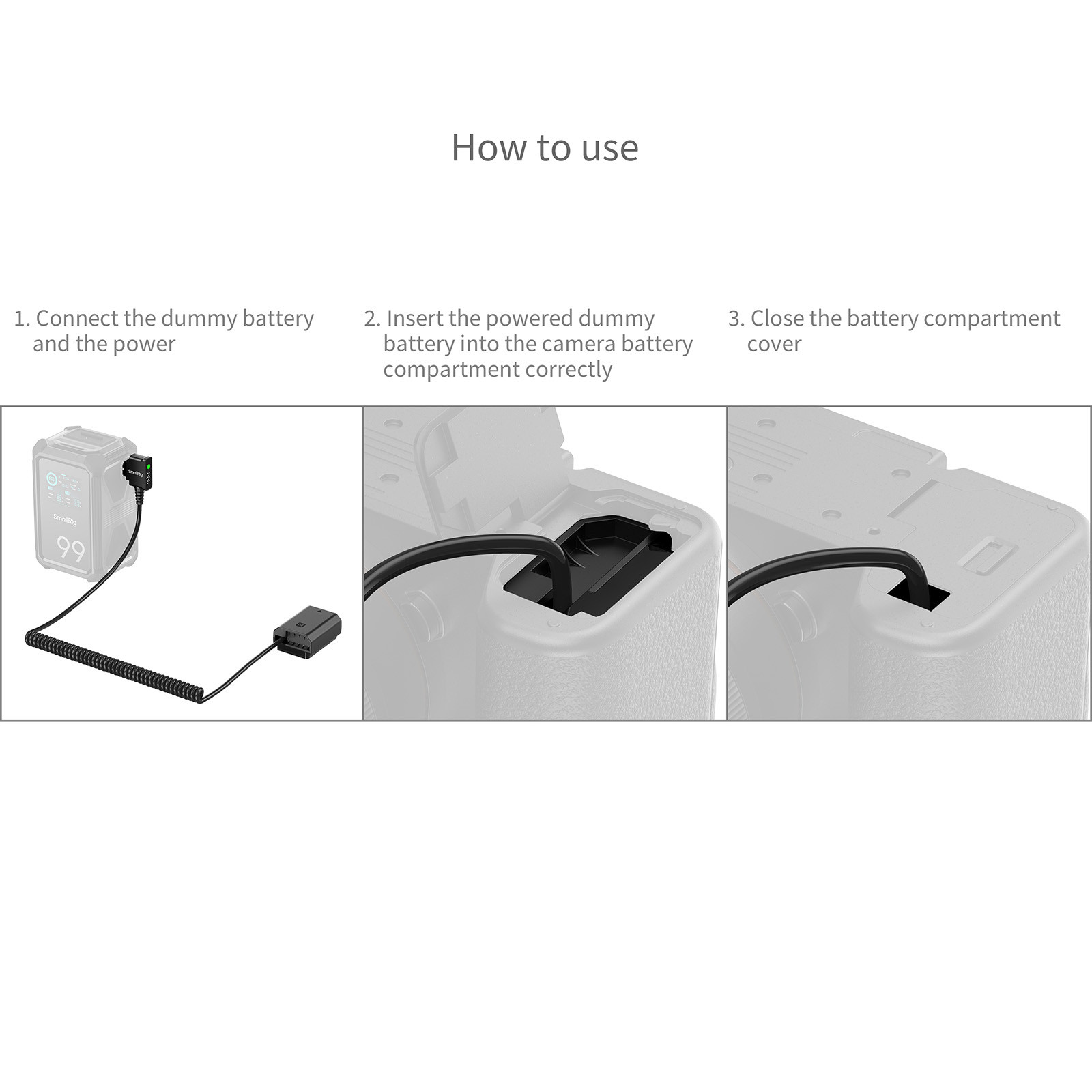

SmallRig Dummy Battery Power Cable for D-Tap for Sony NP-FZ100 6655 is designed for long video recording, livestreaming, and other extended shooting scenarios, and is easy to install and use. By connecting to an external power source, such as a V-mount battery, through the D-Tap interface, it provides continuous power to the camera, reducing the need for frequent battery changes.

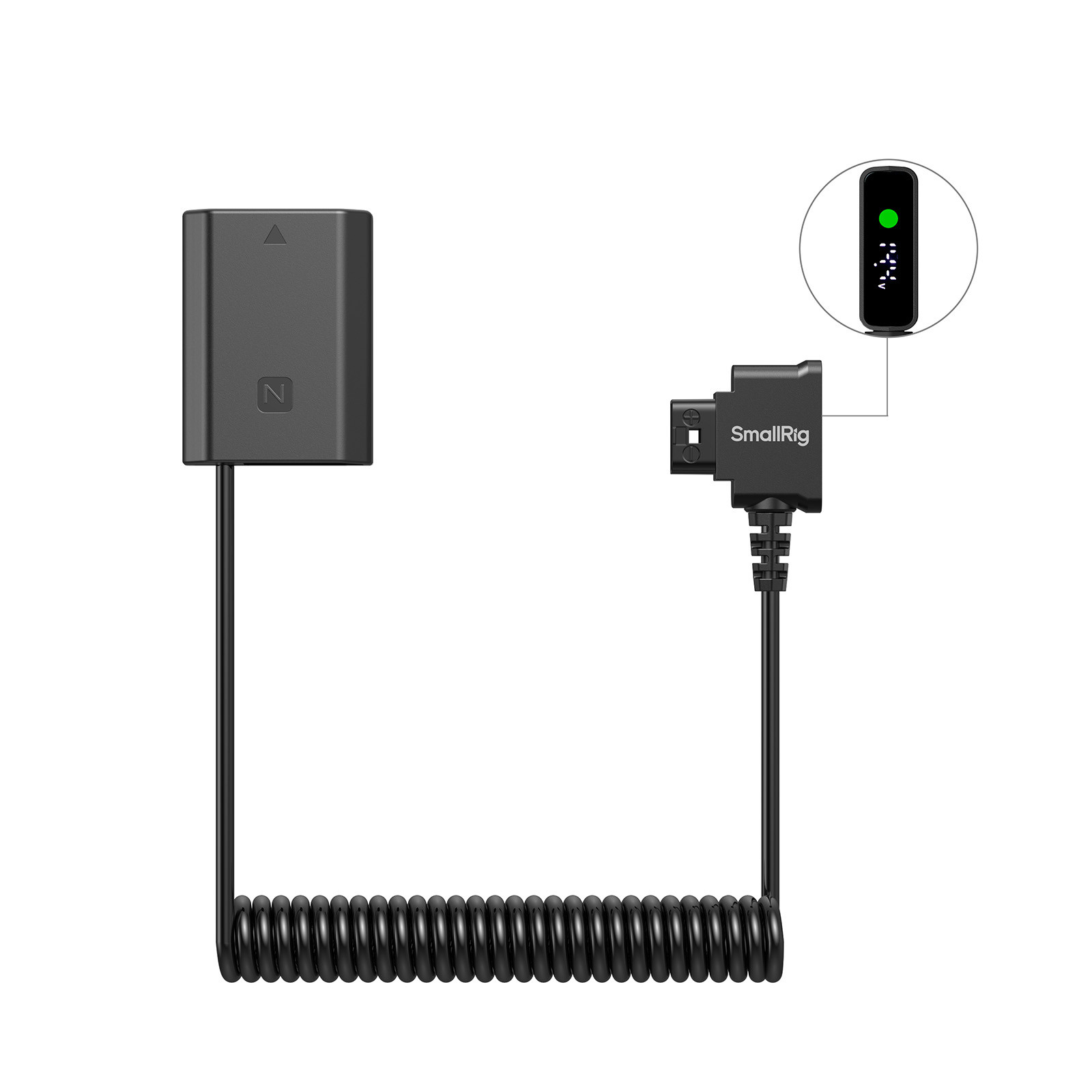

A built-in smart display screen shows input voltage and power status in real time. When the input voltage is above 13.0V, the green indicator stays on to show sufficient power. When the voltage drops below 13.0V, the red indicator provides a low-power warning. If the D-Tap connector is inserted in reverse, no voltage will be displayed, and reverse-connection protection will be triggered. Reconnect the cable in the correct direction to restore normal operation.

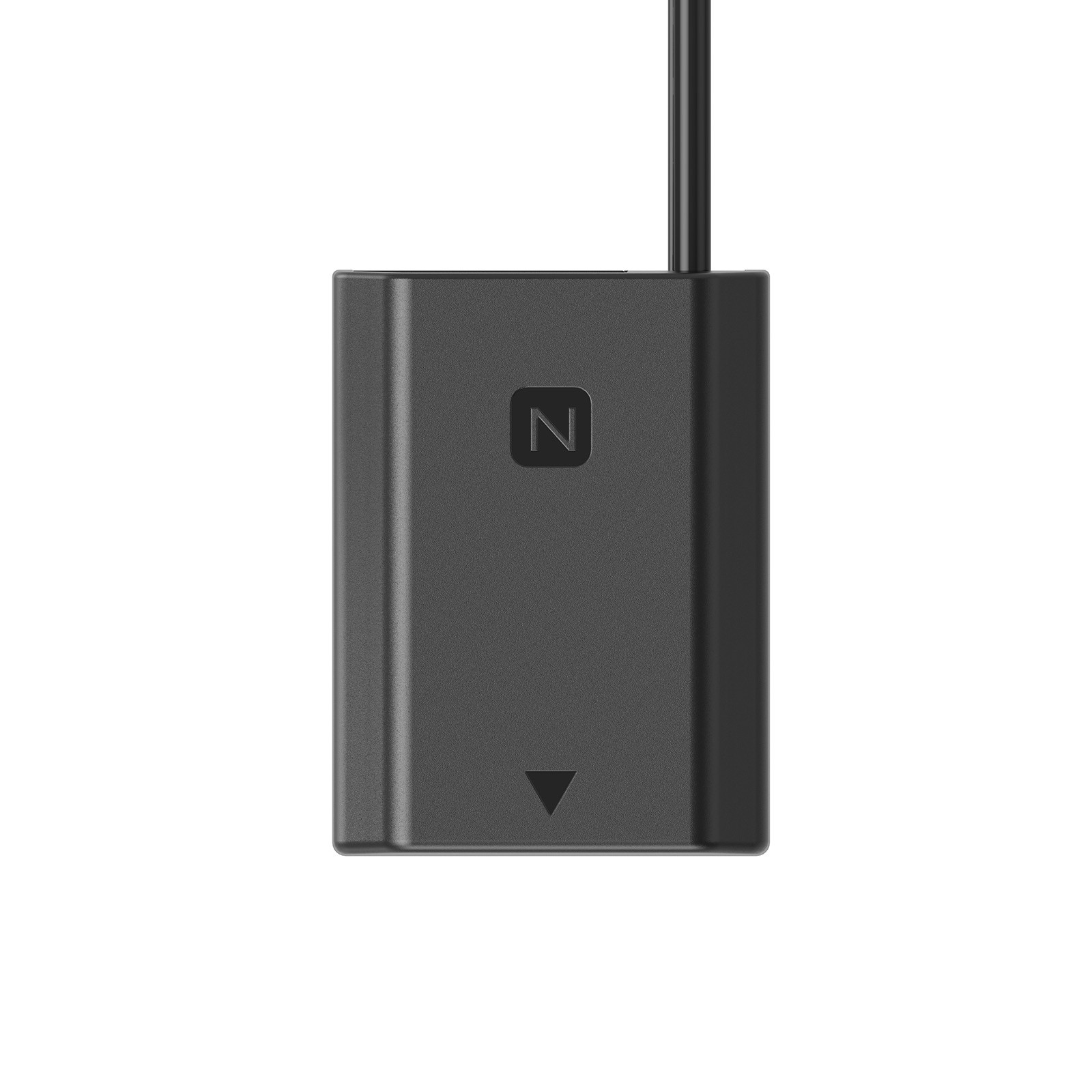

Featuring an upgraded chip, it delivers seamless camera compatibility without warning messages. The dummy battery is molded to the dimensions of the original battery for smooth installation and removal. It also includes multiple safety protections, including overvoltage, overheat, overcharge, and short-circuit protection, and features a flame-retardant ABS housing for safe, reliable long-term use.
Certifications: FCC, CE, RoHS, ISED, RCM, Quality Inspection Report, and Structural Analysis Report
Display Status:
Solid green light with voltage displayed: Input voltage is above 13.0V, and the power level is sufficient.
Solid or flashing red light with voltage displayed: Input voltage is below 13.0V, and the power level is low.
Solid red light with no voltage displayed: The D-Tap input is connected in reverse, triggering reverse-connection protection. Reconnect it in the correct direction for normal use.
Work With
Compatible with Sony ZV-E1, α1, α7 IV, α7 V, α7C II, α7R IV, α7R V, α7S III, α9, α6600, α6700, FX3, and FX30.
Packing List
D-Tap to NP-FZ100 Dummy Battery Power Cable × 1
User Manual × 1
Technical Data
Product Dimensions: 385.0 × 38.6 × 23.0mm / 15.2 × 1.5 × 0.9in
Package Dimensions: 140.0 × 100.5 × 30.5mm / 5.5 × 4.0 × 1.2in
Product Weight: 57.5 ± 5.0g / 2.0 ± 0.2oz
Package Weight: 101.7 ± 5.0g / 3.6 ± 0.2oz
Max Output Voltage: 8.4V
Min Output Voltage: 7.8V
Input Voltage: 9.0V to 17.0V
Input Current: 2.0A
Output Current: 2.0A (Continuous)
Output Protection Current: 4.5A to 5.4A
Operating Temperature: -20°C to 50°C / -4°F to 122°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Material(s): ABS
Input Specification: D-Tap male connector with a coiled cable extendable from 80.0cm to 100.0cm (31.5in to 39.4in)
