SmallRig VB99 mini V Mount Battery (Kit) 5049

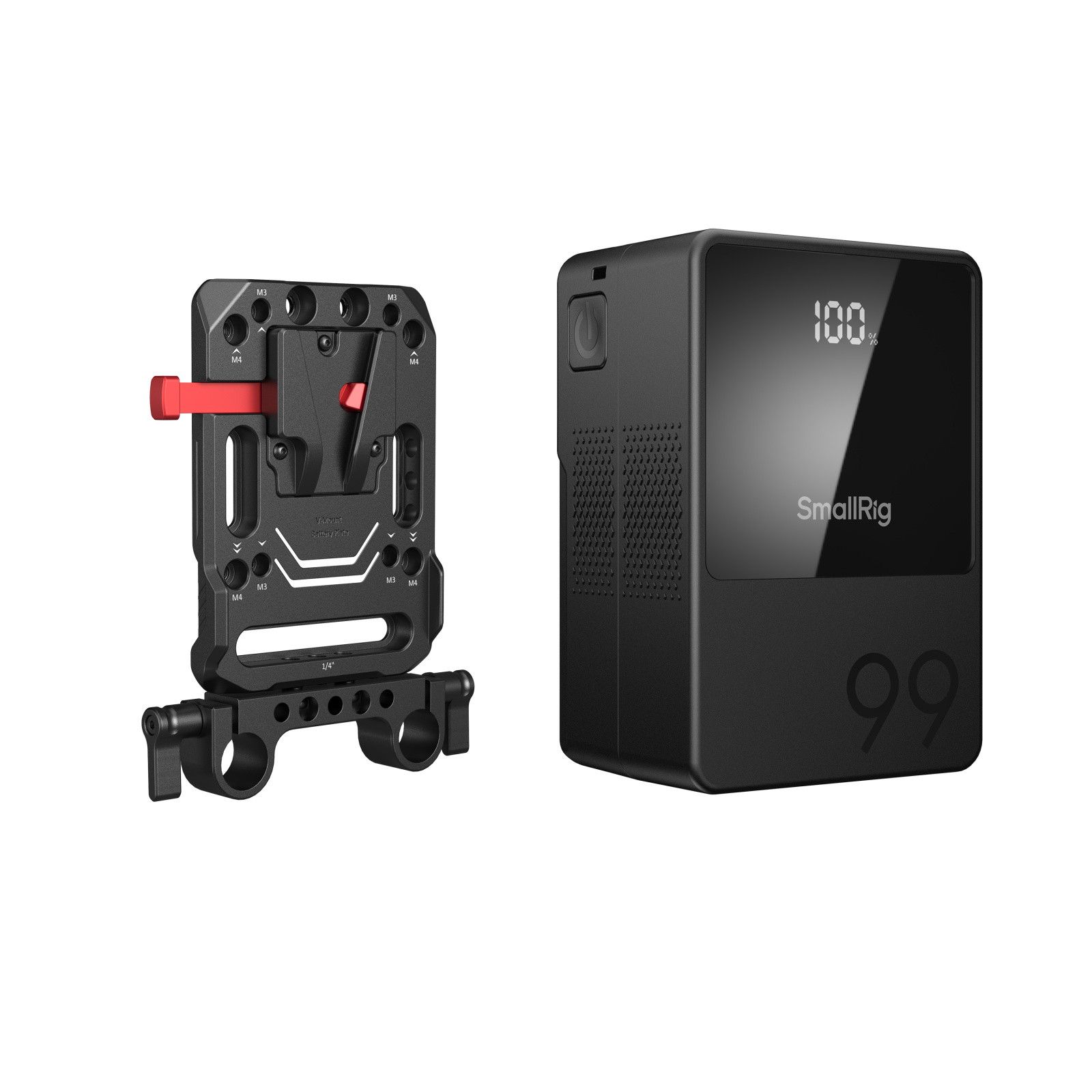

SmallRig VB99 mini V Mount Battery (Kit) 5049 includes the VB99 mini V Mount Battery with the foldable V-Mount Battery Mount Plate, providing a compact and lightweight integrated V-mount battery power solution. This kit stands out for its exceptional compatibility, adapting seamlessly to various devices and shooting environments. Its small size and portable design allow for convenient carrying and storage, providing power solutions to your devices anytime, anywhere.
The VB99 mini V Mount Battery is equipped with top-tier LG cells and features PD3.0 100W fast charging technology. It also has multiple interfaces to cater to your diverse power needs during shooting, ensuring safety and reliability.

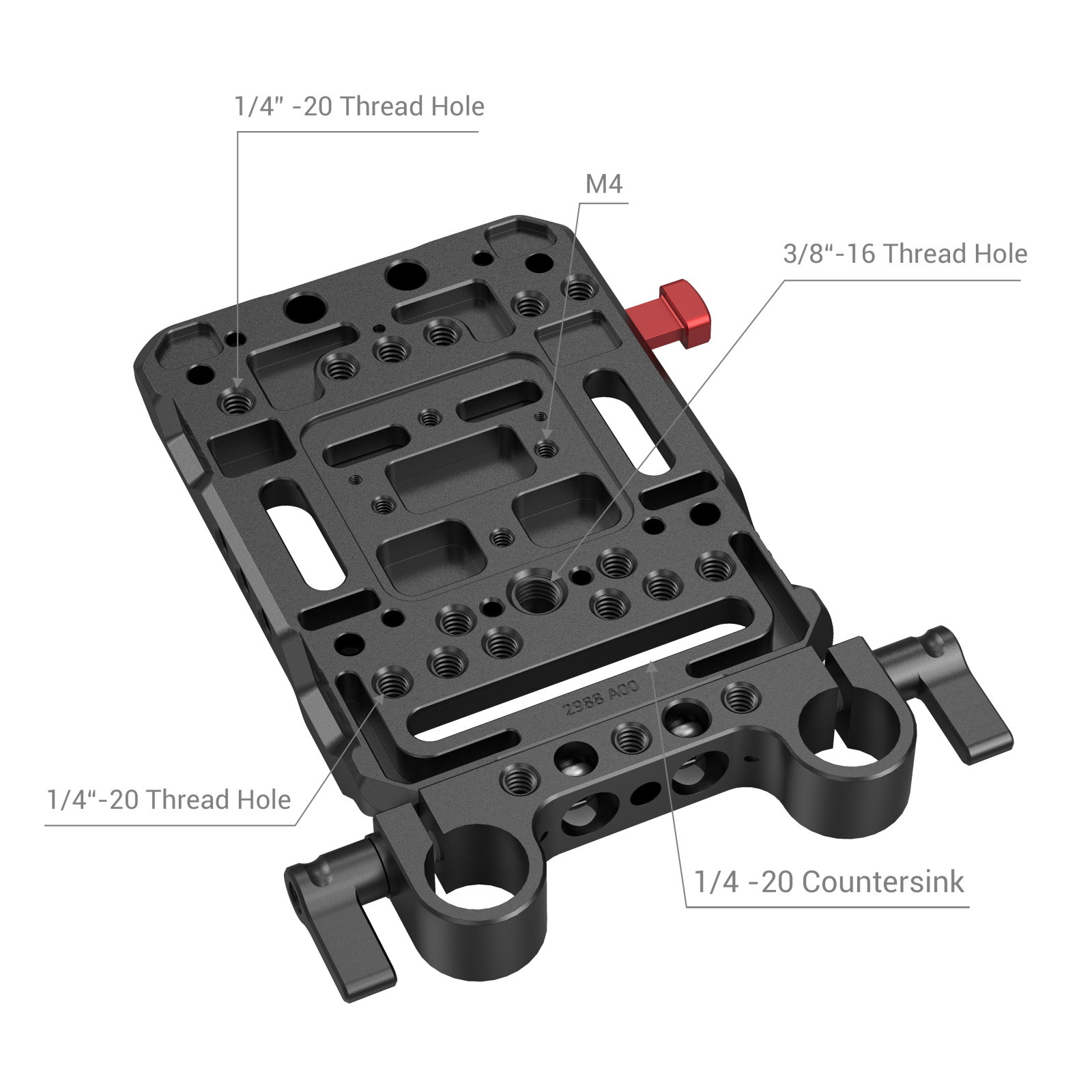

The V-Mount plate features a 15mm dual rod clamp, allowing rapid attachment to a 15mm rod ecosystem.
VB99 mini V mount battery kit is a portable, flexible, and high-performance power solution that meets creators' power needs in various situations.
Certification: CCC / FCC / CE / RoHS / ISED / RCM / PSE / KC / TISI
Button Functions:
Single Click:
Turn off the screen at normal brightness
Restore maximum brightness after dimming
Illuminate the screen after shutdown or screen blackout
Double Click: Switch between displaying voltage and power in charging and discharging mode
3-Second Press: Press and hold for 3 seconds to forcibly power off the USB-C, USB-A, and DC ports for discharging. Restore port operation by single-clicking or reinserting the plug
Work With

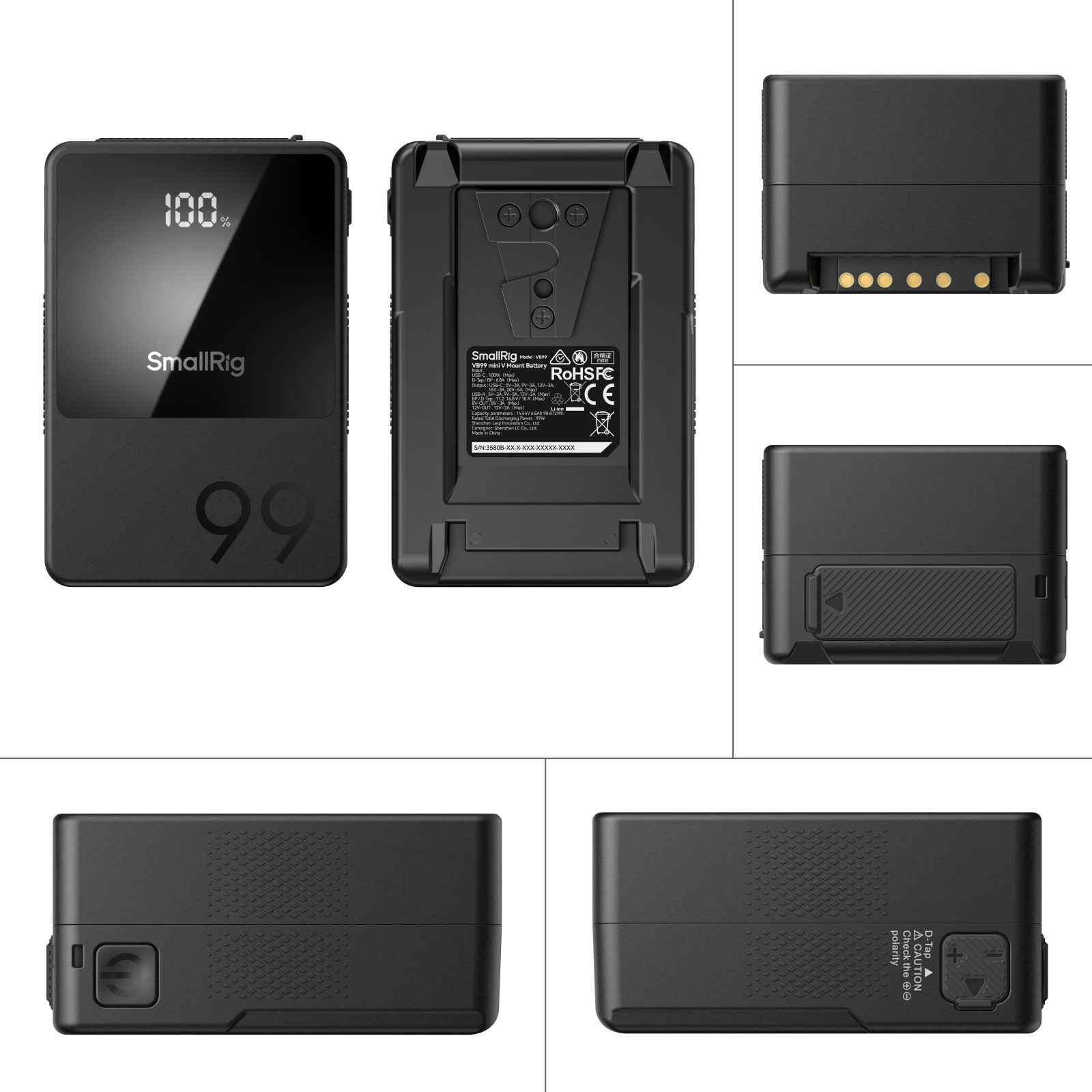

VB99 mini V Mount Battery:
MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, tablet, laptop, etc.
V-Mount Battery Mount Plate:
15mm rod ecosystem
Packing List
VB99 mini V Mount Battery x 1
V Mount Battery Mount Plate with Dual 15mm Rod Clamp x 1
SmallRig Custom Sticker Set x 1
User Manual x 1
Operation Guide x 1
Guarantee Card x 1
Technical Data

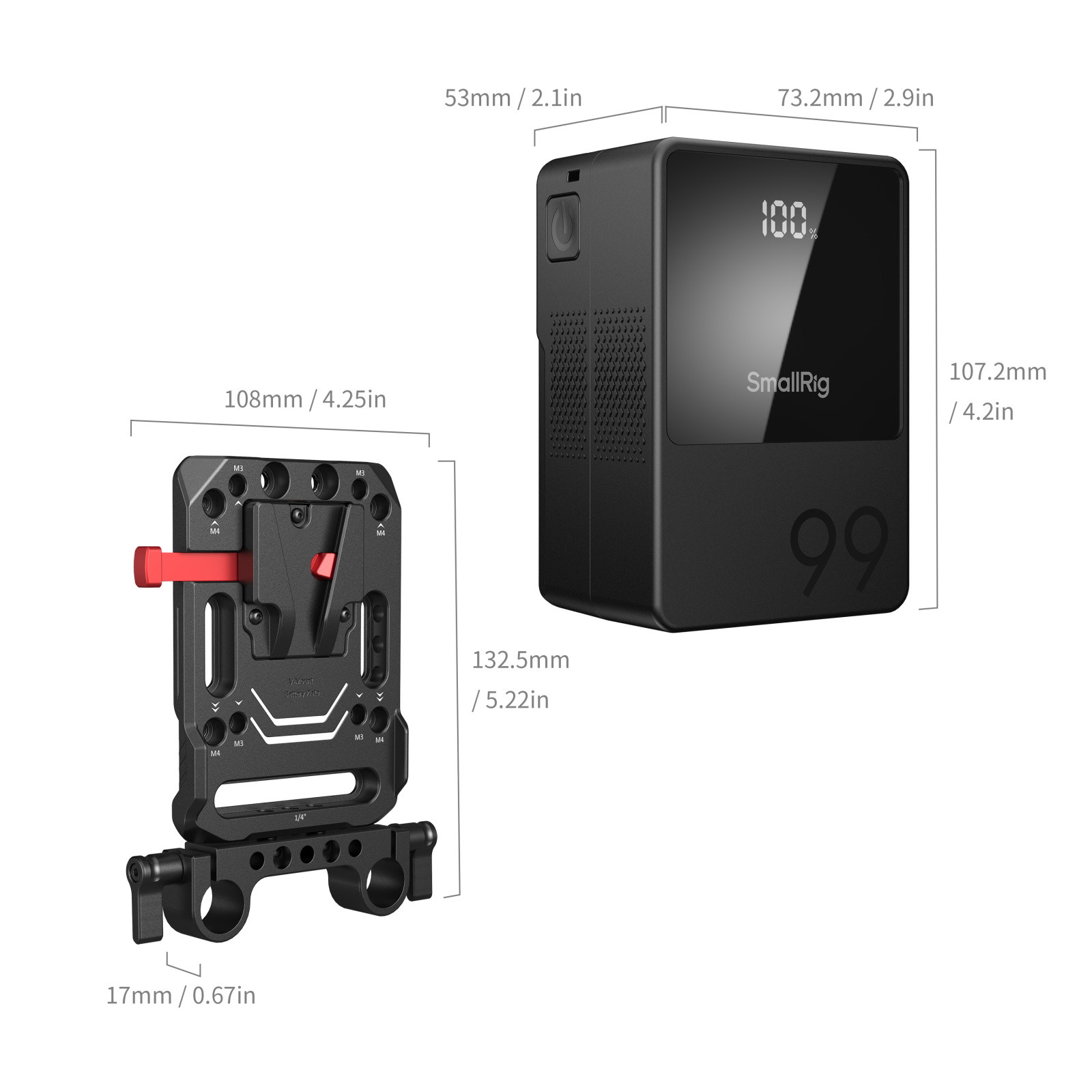

Product Dimensions: 132.5 x 108 x 53mm / 5.22 x 4.25 x 2.1in
Package Dimensions: 148 .5 x 125 x 104.5mm / 5.8 x 4.9 x 4.1in
Product Weight (Including Charging Cable): 774 ± 10.0g / 27.3 ± 0.4oz
Package Weight: 1104 ± 10.0g / 39 ± 0.4oz
Material(s): Flame Retardant PC
Capacity: 14.54V 6800mAh 98.872Wh
Rated Discharge Power: 100W
Input:
USB-C: 100W (Max)
D-Tap / BP: 6.8A (Max)

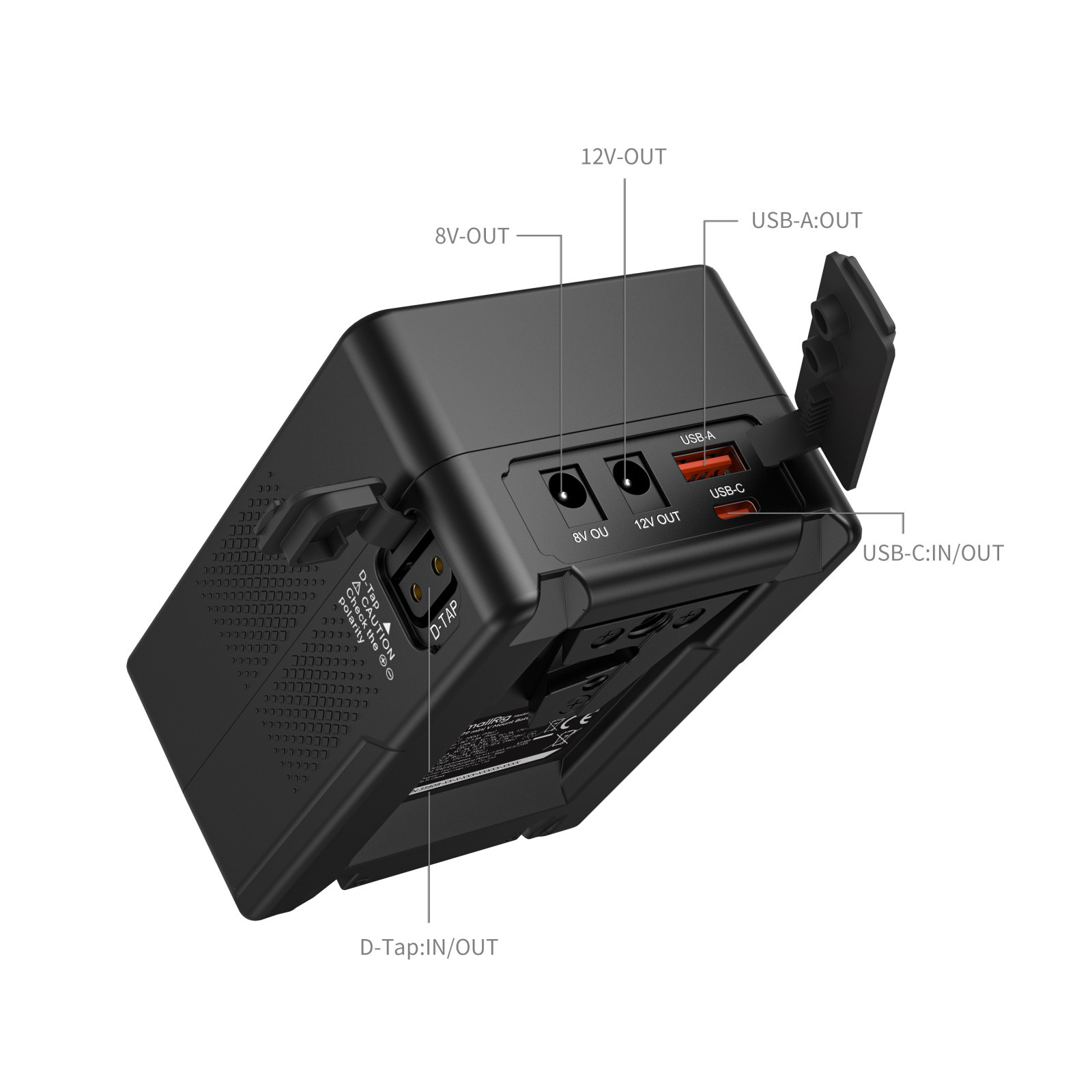

Output:
USB-C: 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A (Max)
USB-A: 5V⎓3A﹑9V⎓3A﹑12V⎓2A (Max)
BP / D-Tap: 10A (Max)
8V-OUT: 8V⎓3A (Max)
12V-OUT: 12V⎓3A (Max)
Charging Protocols:
USB-C: PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A
USB-A: QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A
Cut-Off Voltage: 11.2V
Operating Temperature: -15℃ to 60℃ / 5℉ to 140℉
Charging Temperature: 0℃ to 45℃ / 32℉ to 113℉
Optional Charging Methods: BP, 16.8V D-Tap, USB-C
