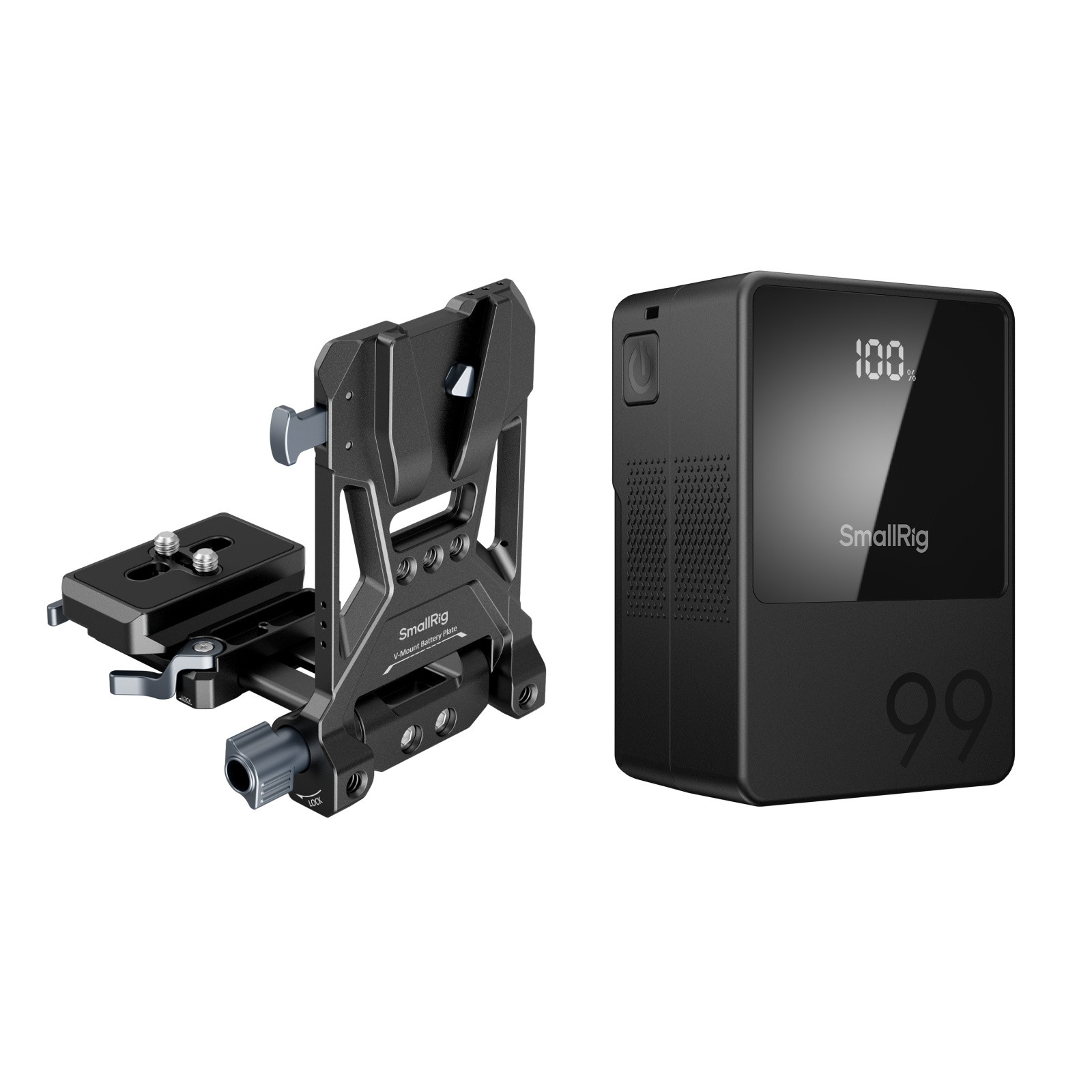

SmallRig VB99 mini V Mount Battery (Kit) 5048
SmallRig VB99 mini V Mount Battery (Kit) 5048 includes the VB99 mini V Mount Battery with the foldable V-Mount Battery Mount Plate, providing a compact and lightweight integrated V-mount battery power solution. This kit stands out for its exceptional compatibility, adapting seamlessly to various devices and shooting environments. Its small size and portable design allow for convenient carrying and storage, providing power solutions to your devices anytime, anywhere.
The VB99 mini V Mount Battery is equipped with top-tier LG cells and features PD3.0 100W fast charging technology. It also has multiple interfaces to cater to your diverse power needs during shooting, ensuring safety and reliability.
The rotatable design of the V-mount plate enables quick access to the camera flip screen, while a foldable structure facilitates storage.
VB99 mini V mount battery kit is a portable, flexible, and high-performance power solution that meets creators' power needs in various situations.
Certification: CCC / FCC / CE / RoHS / ISED / RCM / PSE / KC /TISI
Note:

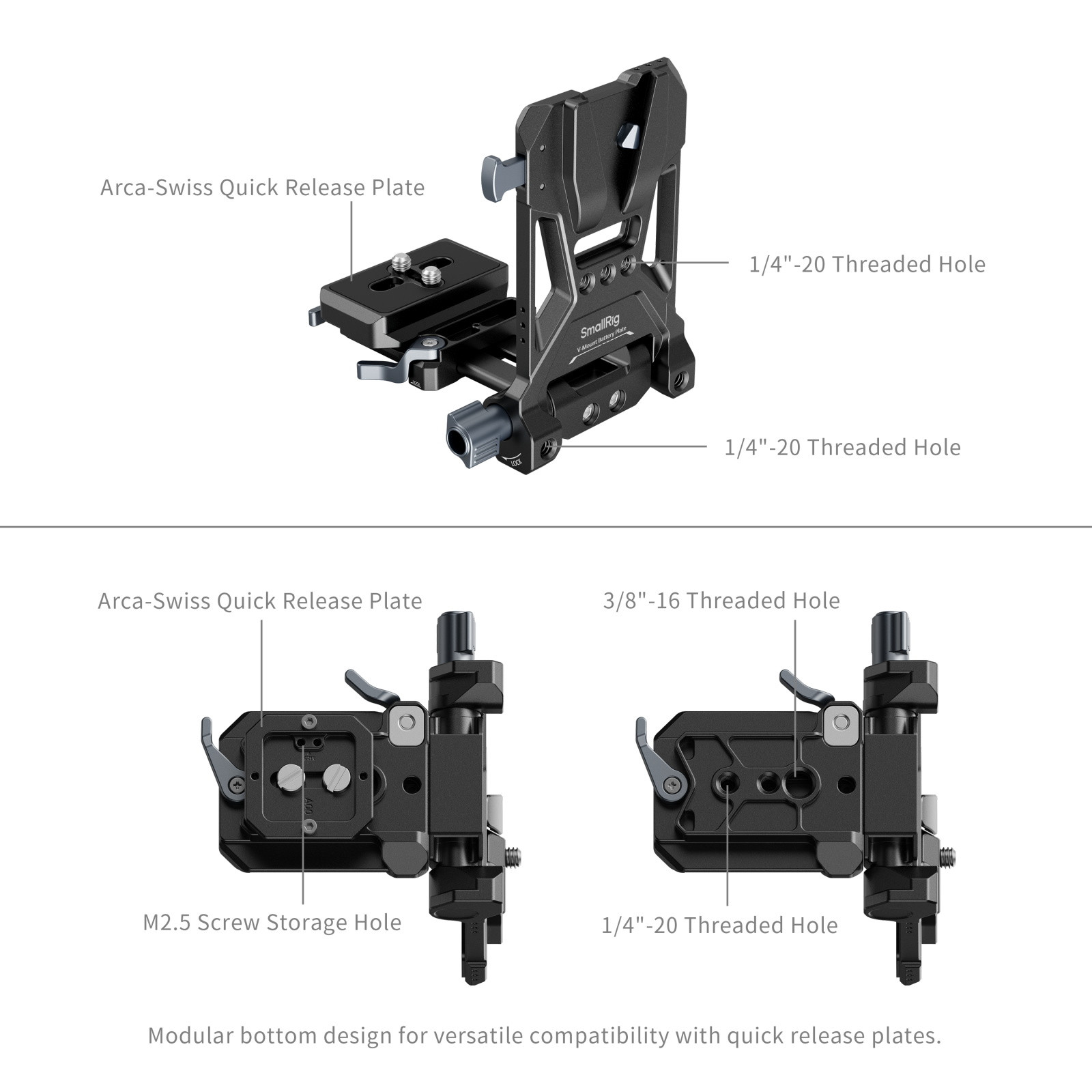

V-Mount Battery Mount Plate:
Maximum Load Capacity: 5kg / 11lb
To be used with SmallRig cages or baseplates
Button Functions:
Single Click:
Turn off the screen at normal brightness
Restore maximum brightness after dimming
Illuminate the screen after shutdown or screen blackout
Double Click: Switch between displaying voltage and power in charging and discharging mode
3-Second Press: Press and hold for 3 seconds to forcibly power off the USB-C, USB-A, and DC ports for discharging. Restore port operation by single-clicking or reinserting the plug
Work With
VB99 mini V Mount Battery:
MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, tablet, laptop, etc.
V-Mount Battery Mount Plate:
Mirrorless / DSLR cameras under 111mm (4.37in) thick, such as:
Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30
Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP
Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5

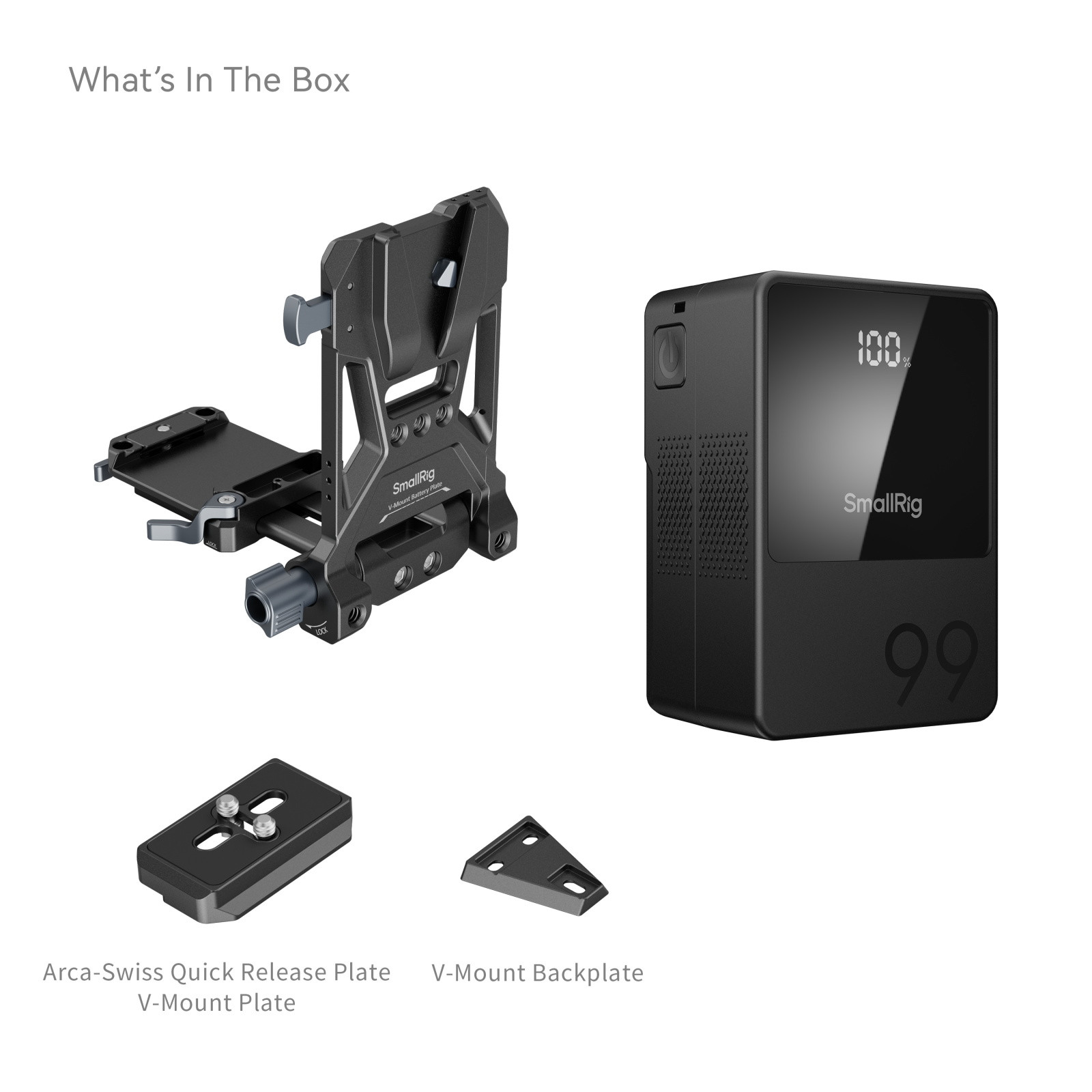

Packing List
VB99 mini V Mount Battery x 1
V-Mount Battery Mount Plate Kit x 1
SmallRig Custom Sticker Set x 1
User Manual x 1
Operation Guide x 1
Guarantee Card x 1
Technical Data

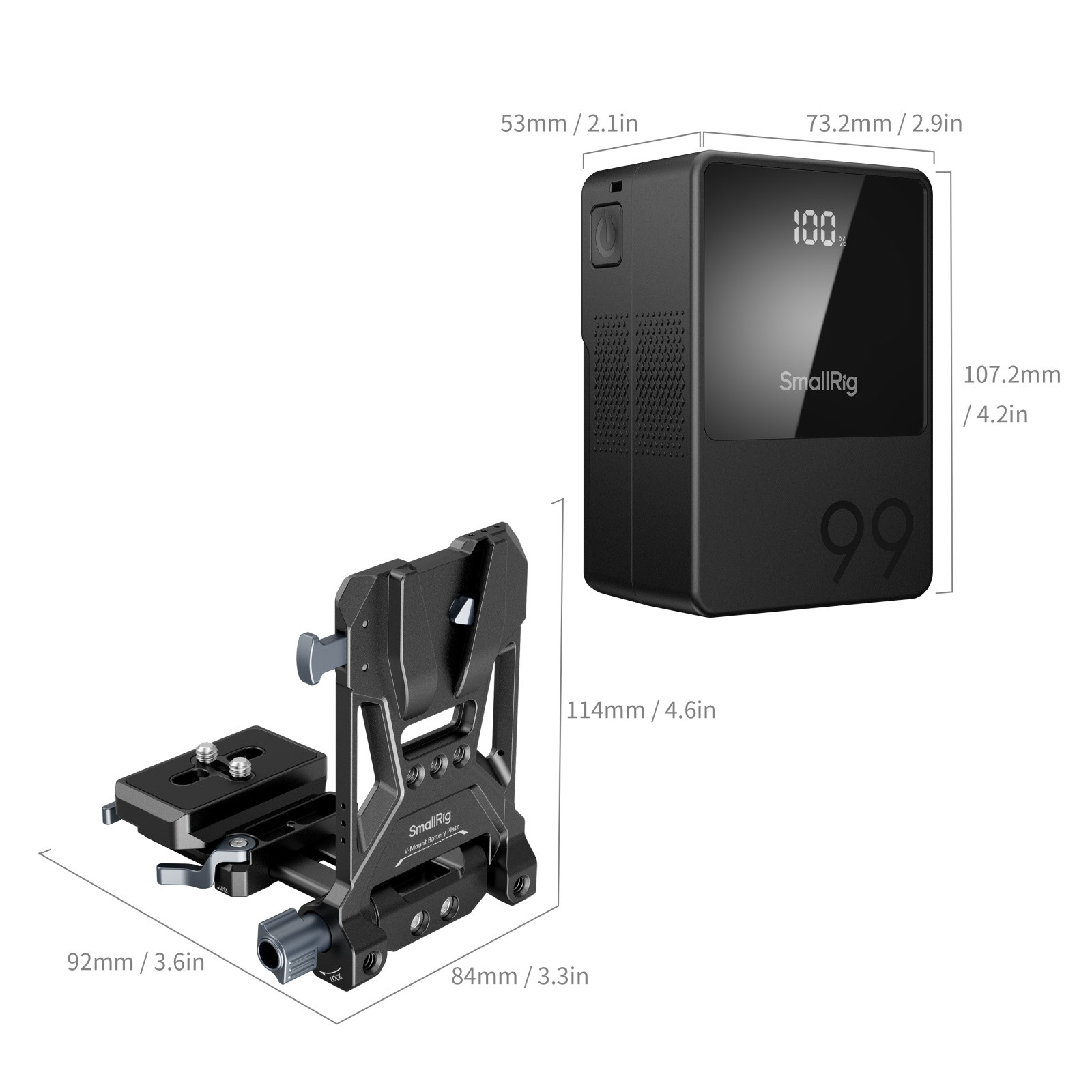

Product Dimensions: 145 x 114 x 84mm / 5.7 x 4.6 x 3.3in
Package Dimensions: 148.5 x 125 x 104.5mm / 5.8 x 4.9 x 4.1in
Product Weight: 834 ± 10.0g / 29.4 ± 0.4oz
Package Weight: 1091 ± 10.0g / 38.5 ± 0.4oz
Material(s): Flame Retardant PC
Capacity: 14.54V 6800mAh 98.872Wh
Rated Discharge Power: 100W

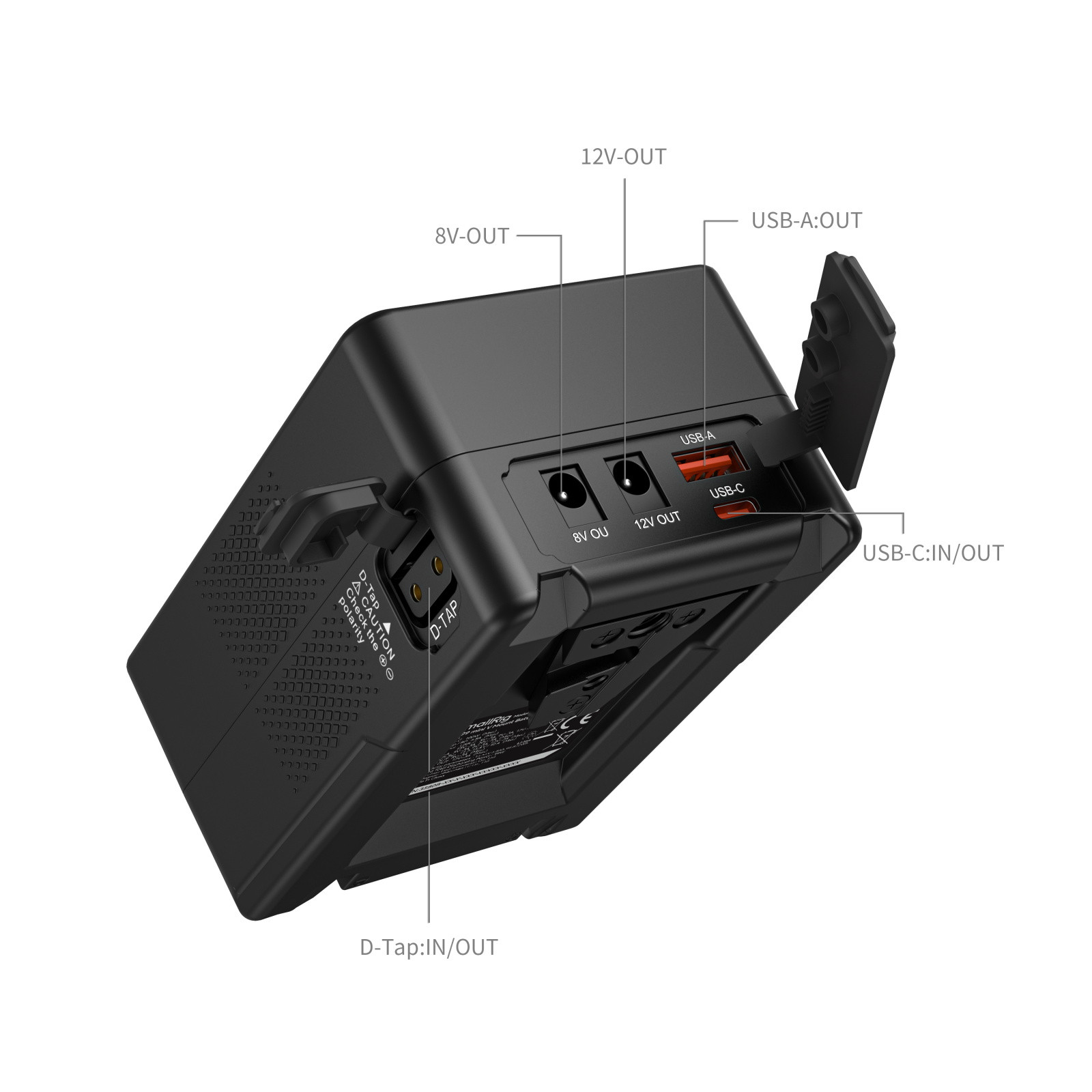

Input:
USB-C: 100W（Max）
D-Tap / BP: 6.8A (Max)
Output:
USB-C: 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A (Max)
USB-A: 5V⎓3A﹑9V⎓3A﹑12V⎓2A (Max)
BP/D-Tap: 10A (Max)
8V-OUT: 8V⎓3A (Max)
12V-OUT: 12V⎓3A (Max)
Charging Protocols:
USB-C: PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A
USB-A: QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A
Cut-Off Voltage: 11.2V
Operating Temperature: -15℃ to 60℃ / 5℉ to 140℉
Charging Temperature: 0℃ to 45℃ / 32℉ to 113℉
Optional Charging Methods: BP, 16.8V D-Tap, USB-C
