SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable 4884

SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable 4884

1. Four power outputs allow for the simultaneous charging of four devices, offering easy portability and efficient cable management.

2. Two screen displays and one indicator provide real-time monitoring of input and output status.

3. Constructed from metal, PC, and PU, the cable optimizes heat dissipation and enhances fire resistance, improving both efficiency and safety.

4. Multiple circuit protections guarantee safe charging and reliable performance during shooting.

$39.99
Sku 4884
EAN 6941590020952

Availability: In stock 67

This product has been viewed 118 times

Product Description



SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable 4884

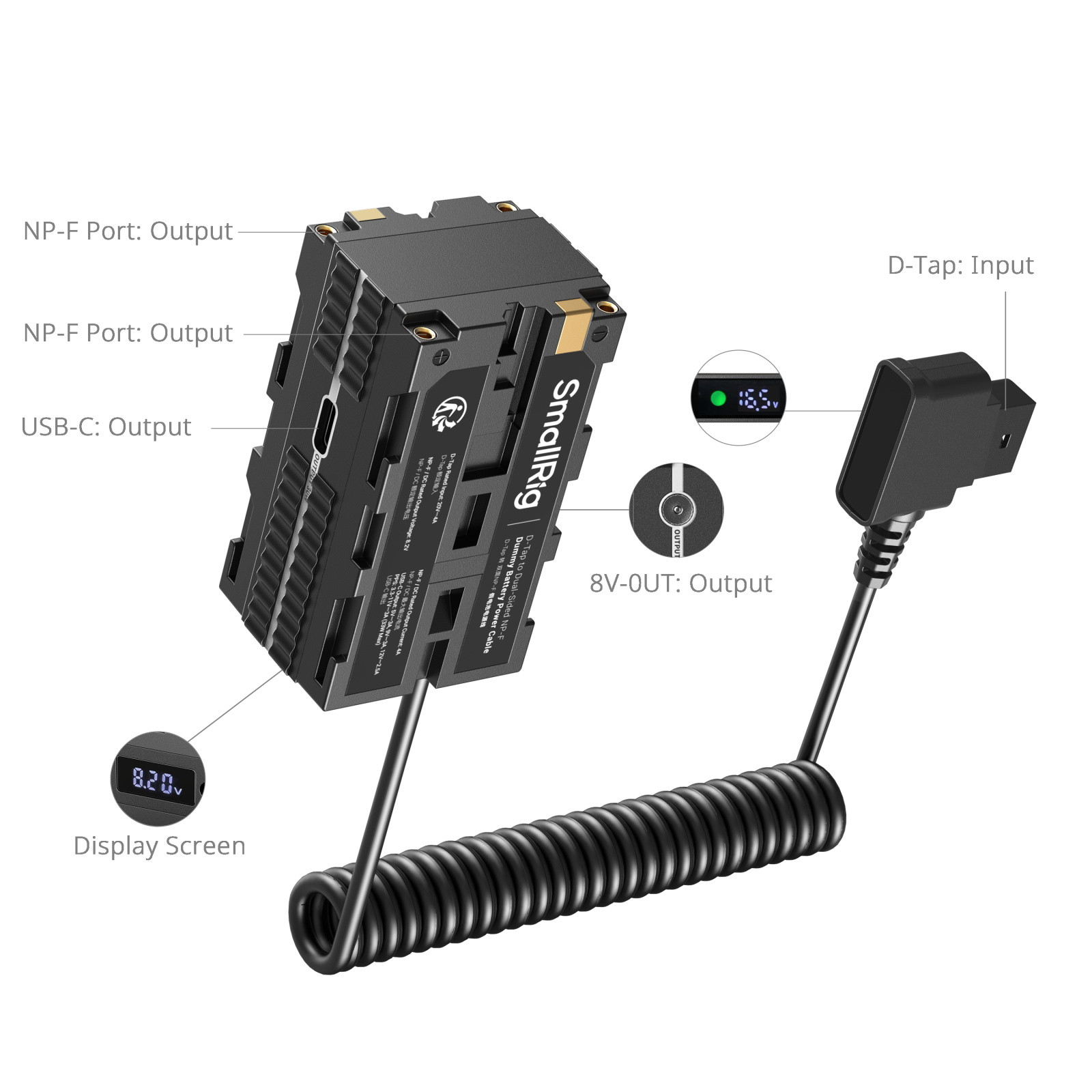

SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable 4884 is a multifunctional dummy battery power cable featuring one D-Tap input and four outputs: two NP-F outputs, one DC output, and one USB-C output, enabling simultaneous charging of four devices. The NP-F outputs power monitors and video transmitters, the DC output powers cameras via dummy batteries, and the USB-C output powers devices like follow focus motors and mobile phones.

Designed for portability and efficient cable management, this power cable is equipped with two displays and one indicator. The D-Tap port features a display for input voltage and an indicator for reverse plugging warning and input voltage range, while the dummy battery display shows NP-F and DC input voltage.

Constructed from fire-resistant PC, PU, and metal for optimal heat dissipation, this cable enhances efficiency and safety. It incorporates multiple circuit protections—overheating, short-circuit, low-voltage, and overvoltage—to ensure safe charging and reliable performance during shooting.

Certifications: FCC, CE, PSE, RoHS

Work With

Monitors, video transmitters, follow focus motors, V-mount batteries, NP-F batteries, direct-charge camera batteries, smartphones, tablets, laptops, etc.

Packing List

D-Tap to Dual-Sided NP-F Dummy Battery Power Cable x 1

User Manual x 1

Technical Data

Product Dimensions: 400 x 40 x 30mm / 15.7 x 1.57 x 1.18 in

Package Dimensions: 113 x 84.5 x 42mm / 4.4 x 3.3 x 1.65 in

Product Weight: 105 ± 5.0g / 3.7 ± 0.2oz

Package Weight: 143 ± 5.0g / 5 ± 0.2oz

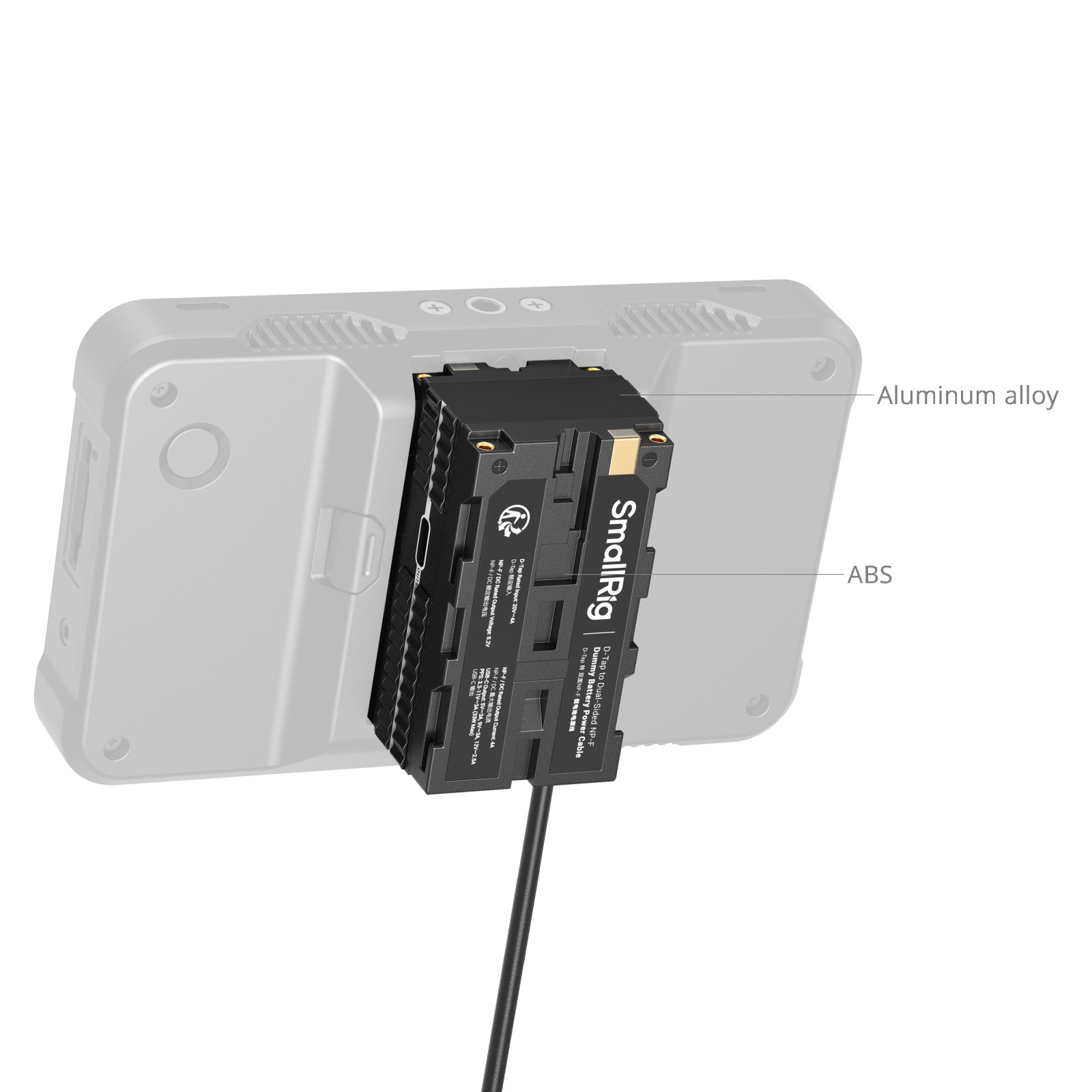

Material: ABS+Aluminum Alloy

D-Tap Rated Input: 20V / 4A

NP-F / DC Rated Output Voltage: 8.2V

NP-F / DC Output Current (Max): 4A

USB-C Output:

33W (Max)

PD: 5V / 3A,9V / 3A,12V / 2.5A

PPS: 3.3-11V / 3A (30W Max)

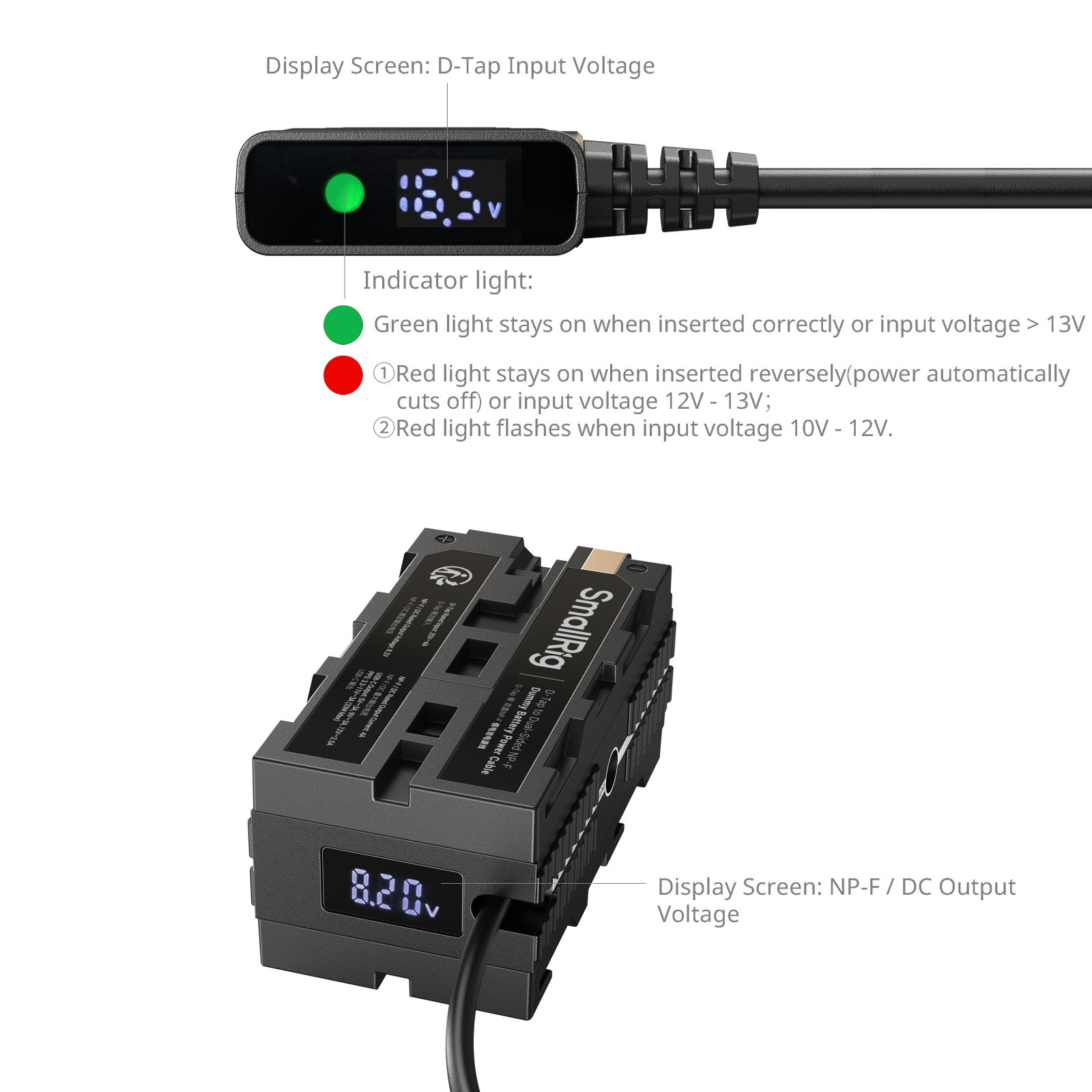

Indicator / Display Functions:

Green Light: Forward plugging

Red Light: Reverse plugging, automatically cut off the power

Flashing Red Light: Input voltage 10V-12V

Red Light: Input voltage 12V-13V

Green Light: Input voltage >13V

D-Tap Input Voltage Display

NP-F / DC Output Voltage Display

Overheating Warning (07P)

Short-Circuit Warning

Low-Voltage Warning (OC)

Overvoltage Warning (OC)

Circuit Protections:

NP-F Port Overcurrent Protection: Activates at 5.5A and resets when current drops to 5A or below

Short-Circuit Protection: Engages during a short circuit and resumes once resolved
