SmallRig Swivel and Tilt Monitor Mount with Nato Clamp(Both Sides) BSE2385

SmallRig Swivel and Tilt Monitor Mount with Nato Clamp(Both Sides) BSE2385

1.Supports 5”and 7” Monitor up to 1.2kg

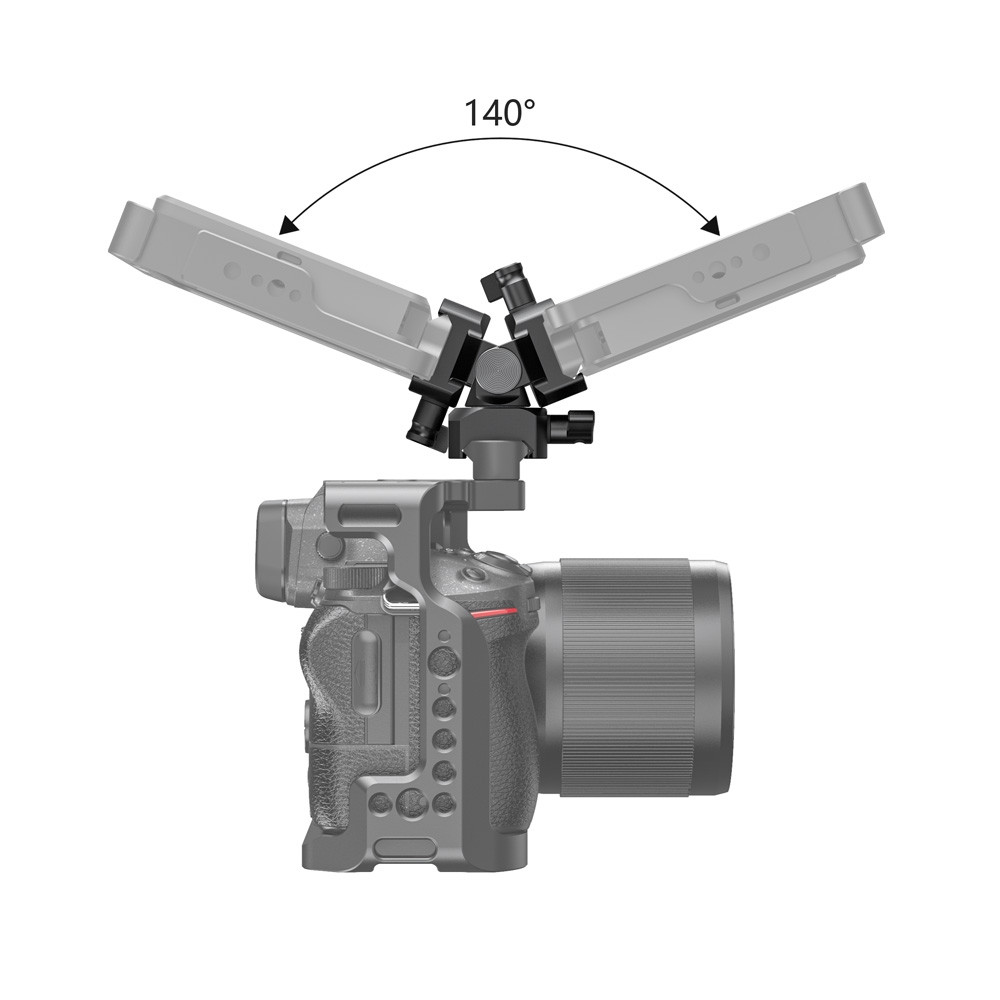

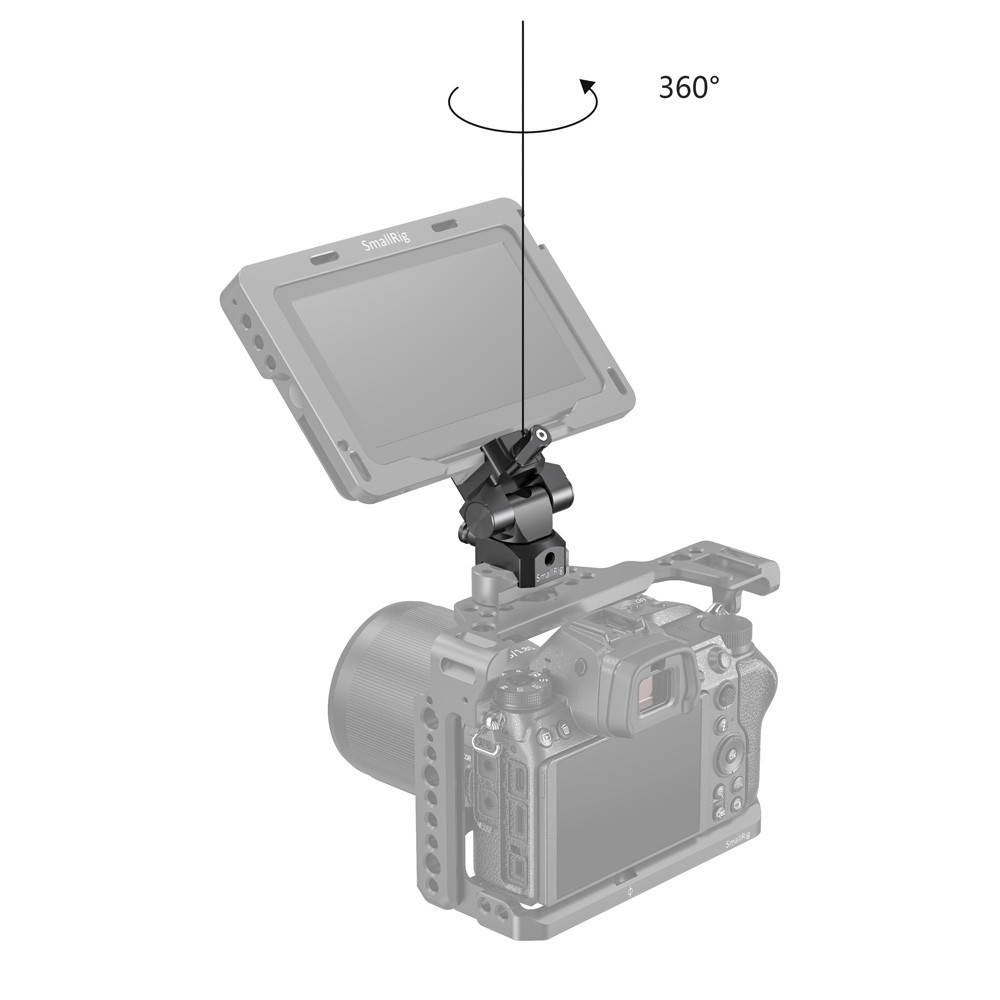

2.Swivel 360° and Tilt 140° with Free-Stop in Any Position.

3.Features Nato Clamp on Each Side to Quick Release

$69.00
Sku BSE2385
EAN 6972070627446

Availability: Discontinued Item

This product has been viewed 812 times

Product Description

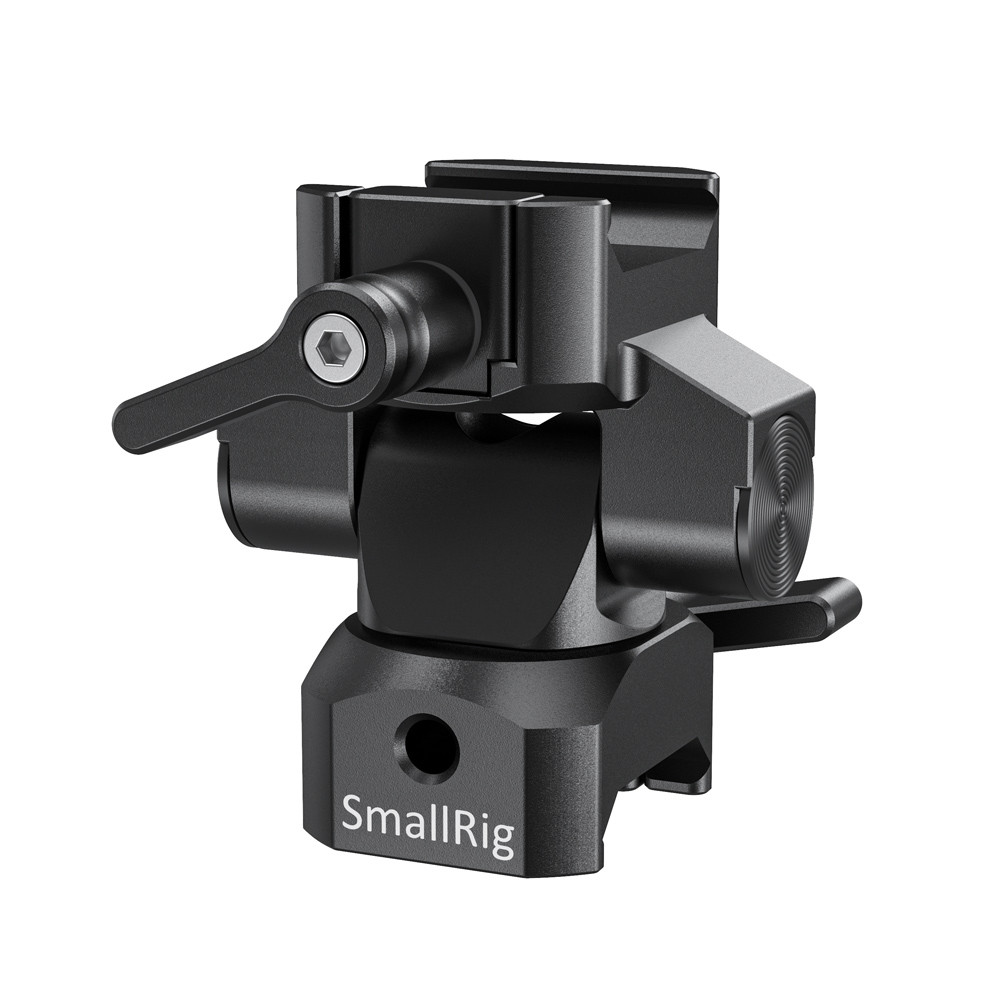

SmallRig Swivel and Tilt Monitor Mount with Nato Clamp(Both Sides) BSE2385

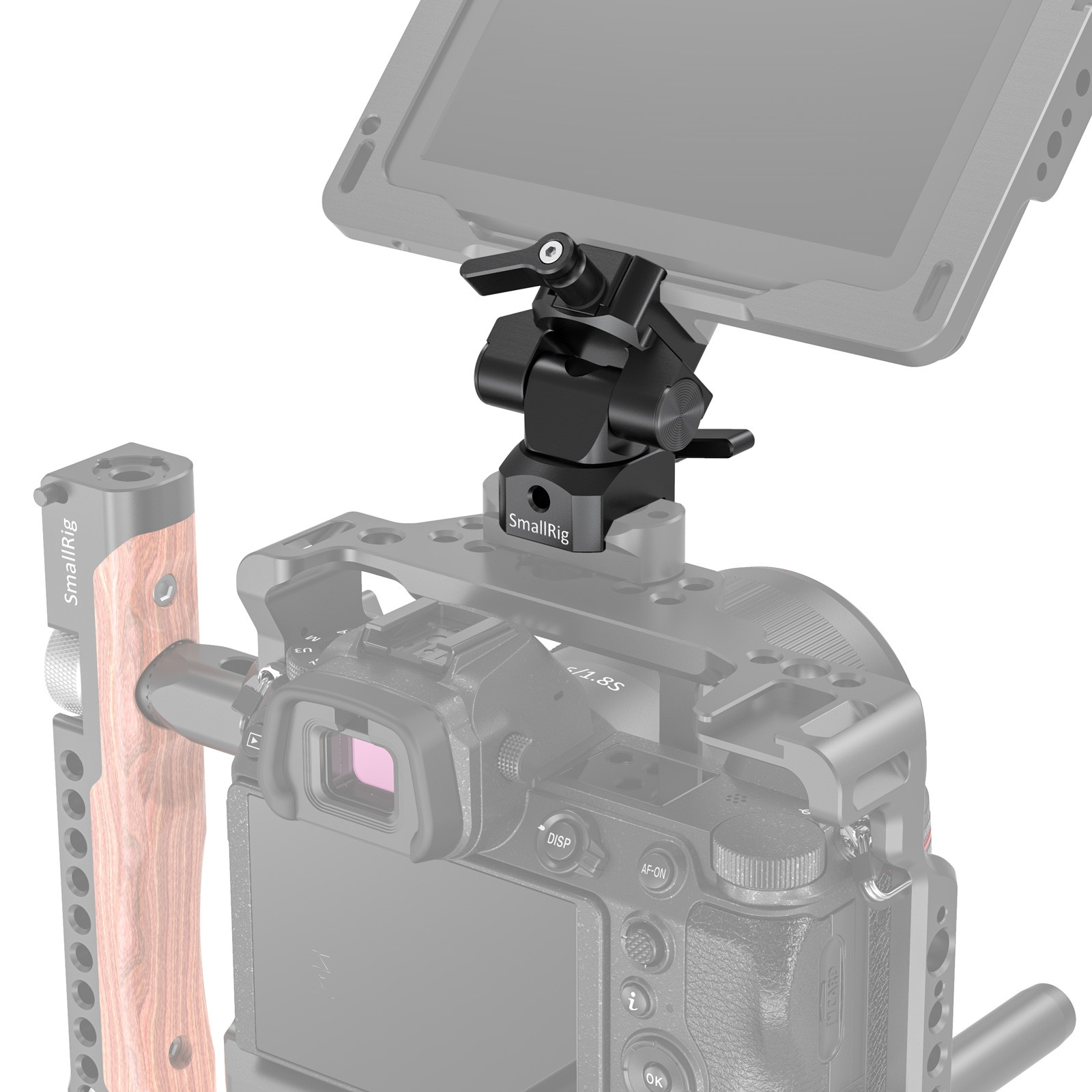

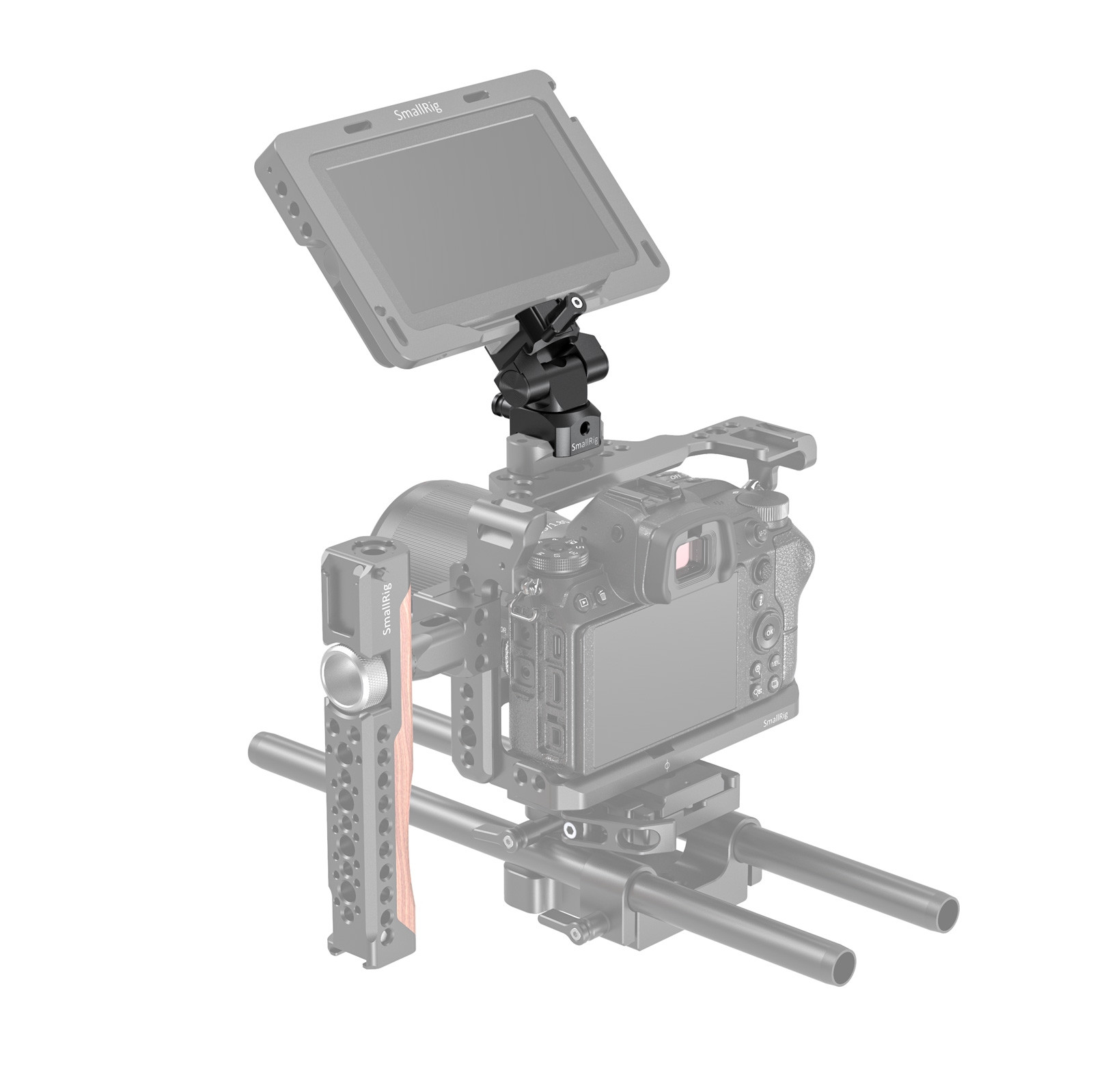

SmallRig Swivel and Tilt Monitor Mount with Nato Clamp(Both Sides)BSE2385 is specially designed to hold monitor onto any camera cage or mounting system features nato rail. Each side ends with nato clamp to fit SmallRig monitor cage which features nato rail on the bottom. The holder enables to swivel 360° sideways and tilt 140° allows to hold your monitor onto any position without using tools. It is CNC-Machined Aluminum and can support 5”and 7”monitor up to 1.2kg. For vertical (90°) payload, it can hold accessories up to 2.5kg.

Note1: Maximum payload: 1.2kg;Vertical 90° Payload:2.5kg
Note2: Please attach your monitor or light to camera body first before adjusting the angle of the monitor mount.

Key Features

1.Supports 5”and 7” Monitor up to 1.2kg

2.Swivel 360° and Tilt 140° with Free-Stop in Any Position.

3.Features Nato Clamp on Each Side to Quick Release

Work With

SmallHD Focus Series

SmallHD Focus OLED Series

SmallHD UltraBright Series

SmallHD 500 Series, 700 Series

Atomos Ninja Series

Atomos Shogun Flame

Blackmagic Video Assist 5”

Other Accessories Weights less than 1.2kg

Technical Data

1 x Monitor Mount

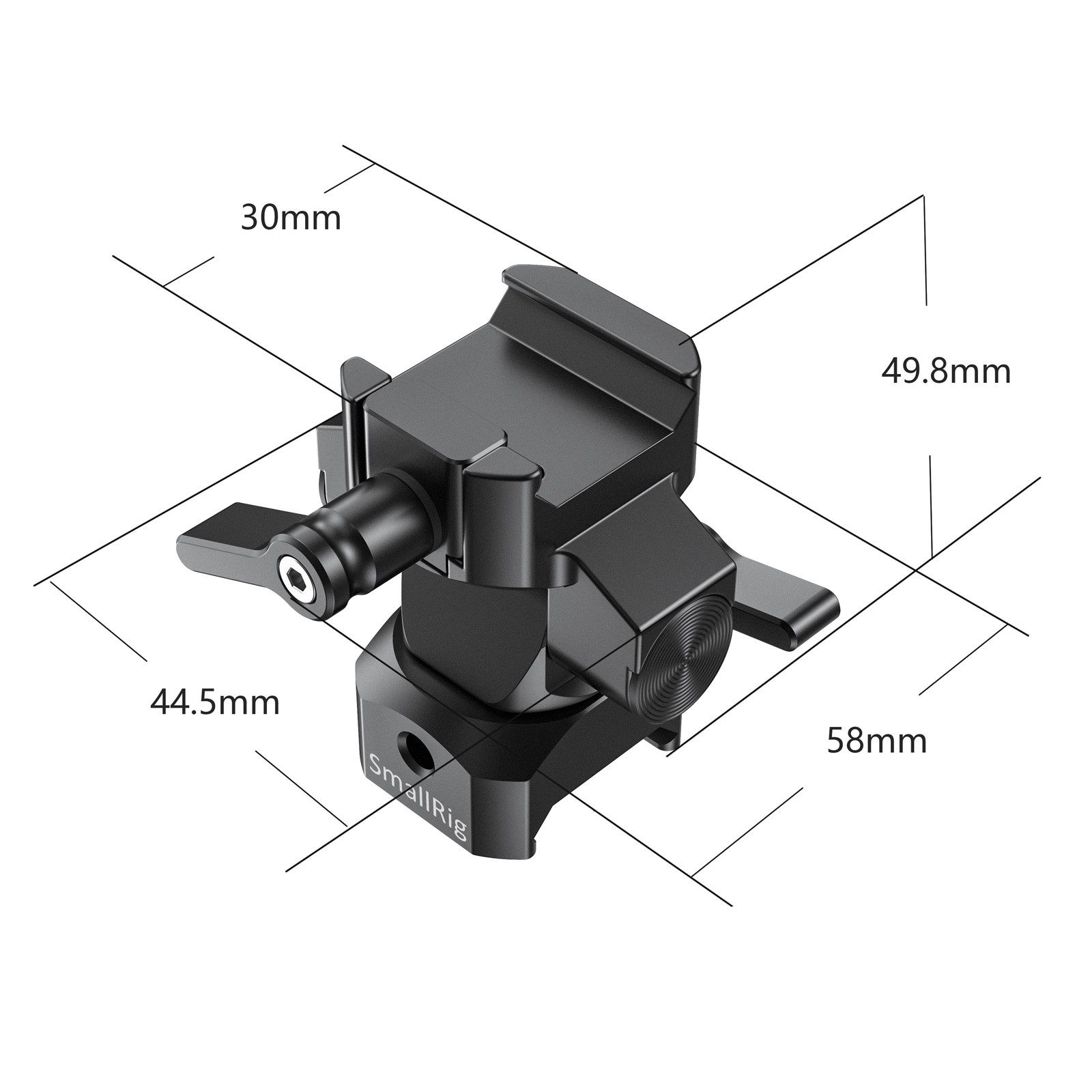

Product Dimensions: 44.5 x 49.8 x 30mm

Package Dimensions: 76 x 63 x 40mm

Net Weight: 75g

Package Weight: 105g

Material(s): Aluminum Alloy
