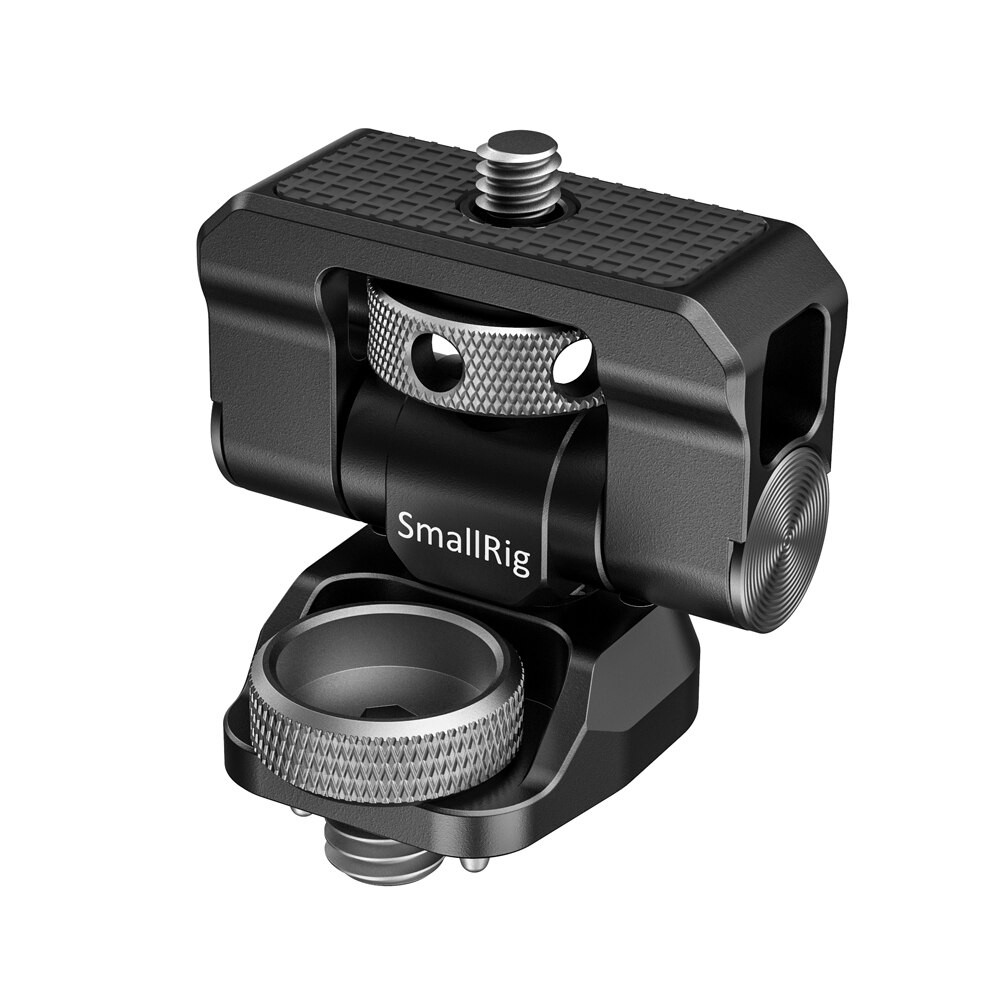

SmallRig Swivel and Tilt Monitor Mount with Arri Locating Pins BSE2348

SmallRig Swivel and Tilt Monitor Mount with Arri Locating Pins BSE2348

1.Supports 5”and 7” Monitor up to 1.2kg

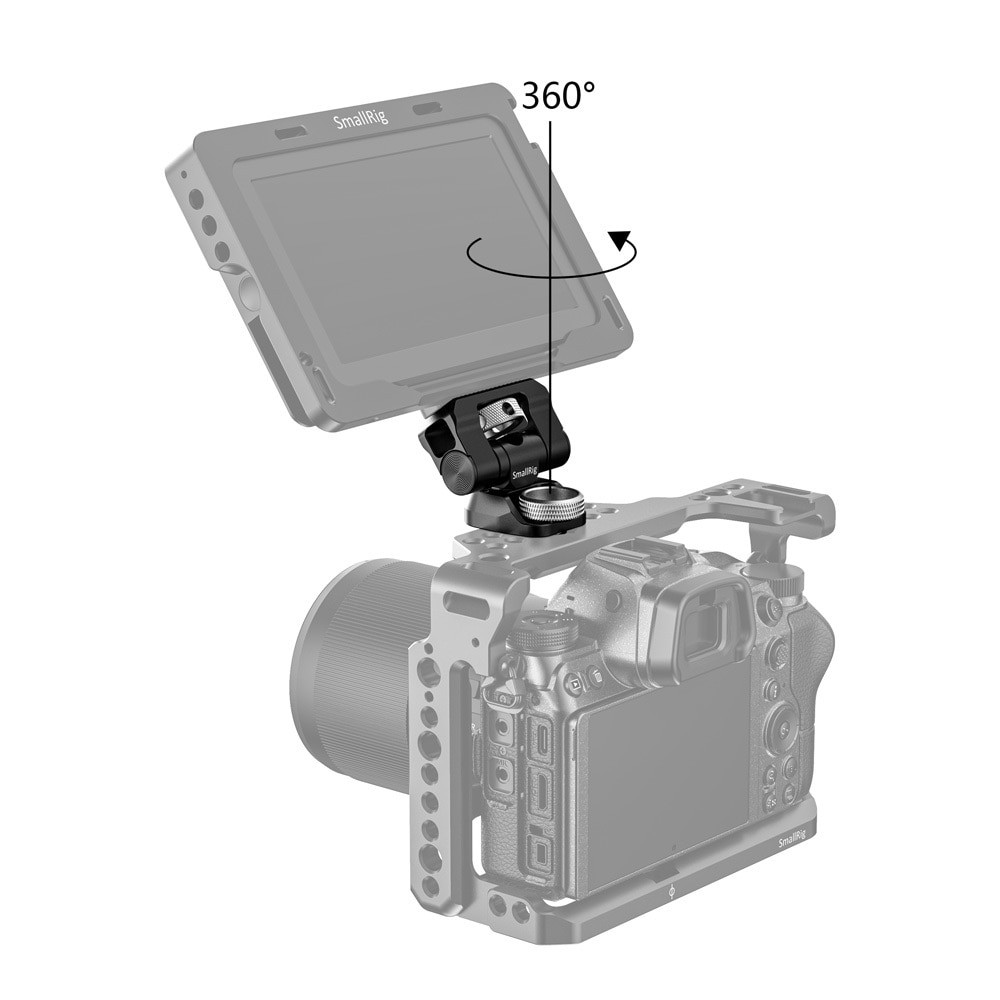

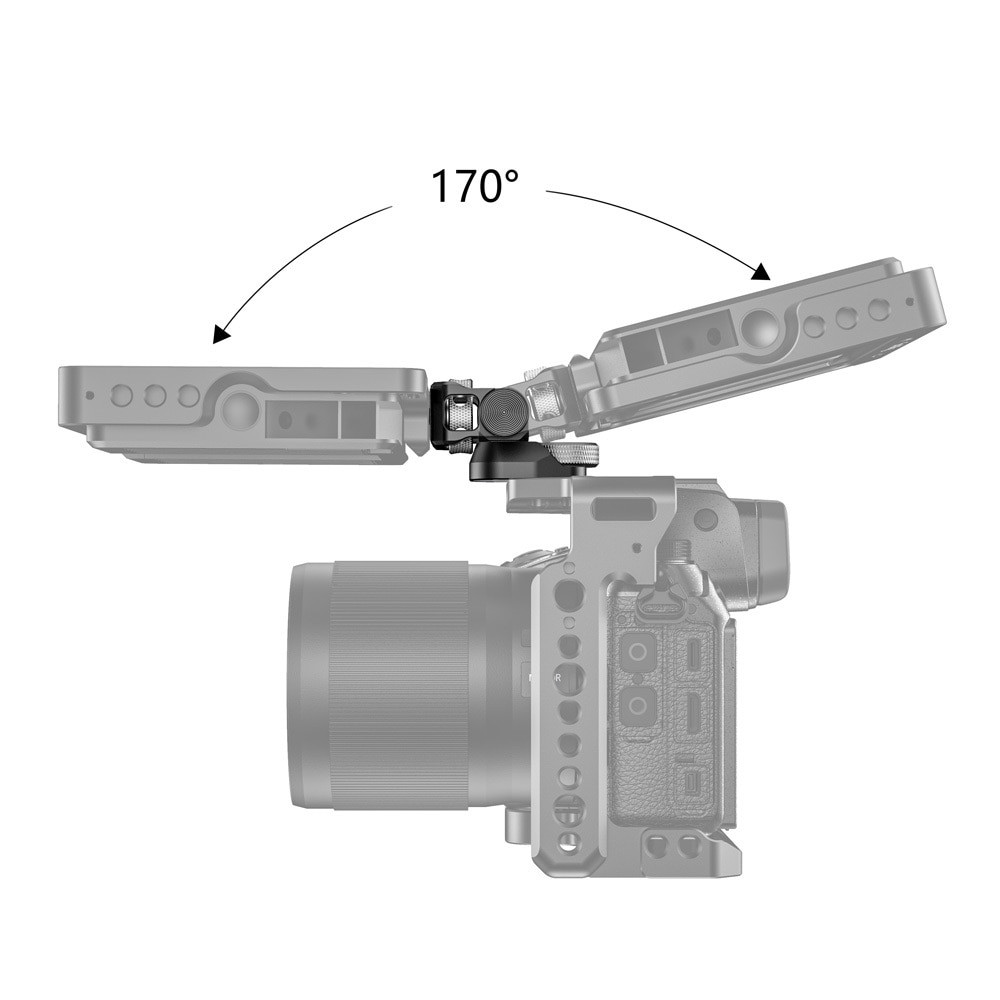

2.Swivel 360° and Tilt 170° with Free-Stop in Any Position.

3.Features holes on Thumbscrews for Hex Spanner

4.Rubber Pad on the Top to Prevent Scratching

5. Arri Locating Pins on the Bottom to Prevent Twisting

$59.00
Sku BSE2348
EAN 6972070627217

Availability: Discontinued Item

This product has been viewed 1714 times

Product Description



SmallRig Swivel and Tilt Monitor Mount with Arri Locating Pins BSE2348

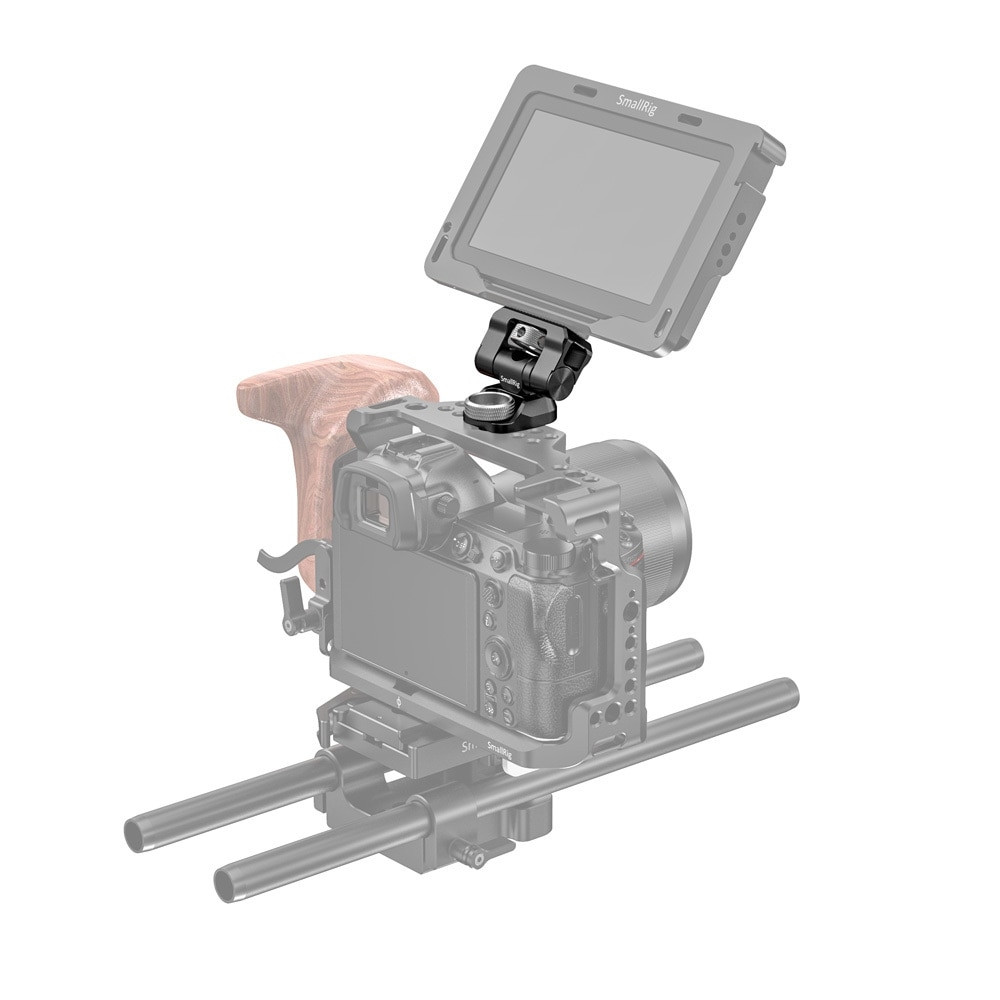

SmallRig Swivel and Tilt Monitor Mount with Arri Locating Pins BSE2348 is designed to hold your monitor onto the camera cage or other mounting system features arri 3/8”locating hole. It features arri 3/8”locating pins on the bottom and 1/4”-20 screw on the top for monitor, light or microphone.The holder enables to swivel 360° sideways and tilt 170° which allows to hold your monitor onto any position without using tools. The robust mount is CNC-Machined Aluminum and can support 5”and 7”monitor up to 1.2kg, for vertical (90°) payload, it can hold accessories up to 2.5kg. The top features rubber pad to protect your monitor and light from scratching. The thumbscrew features holes for hex spanner to secure it tight and ensure your monitor safe.

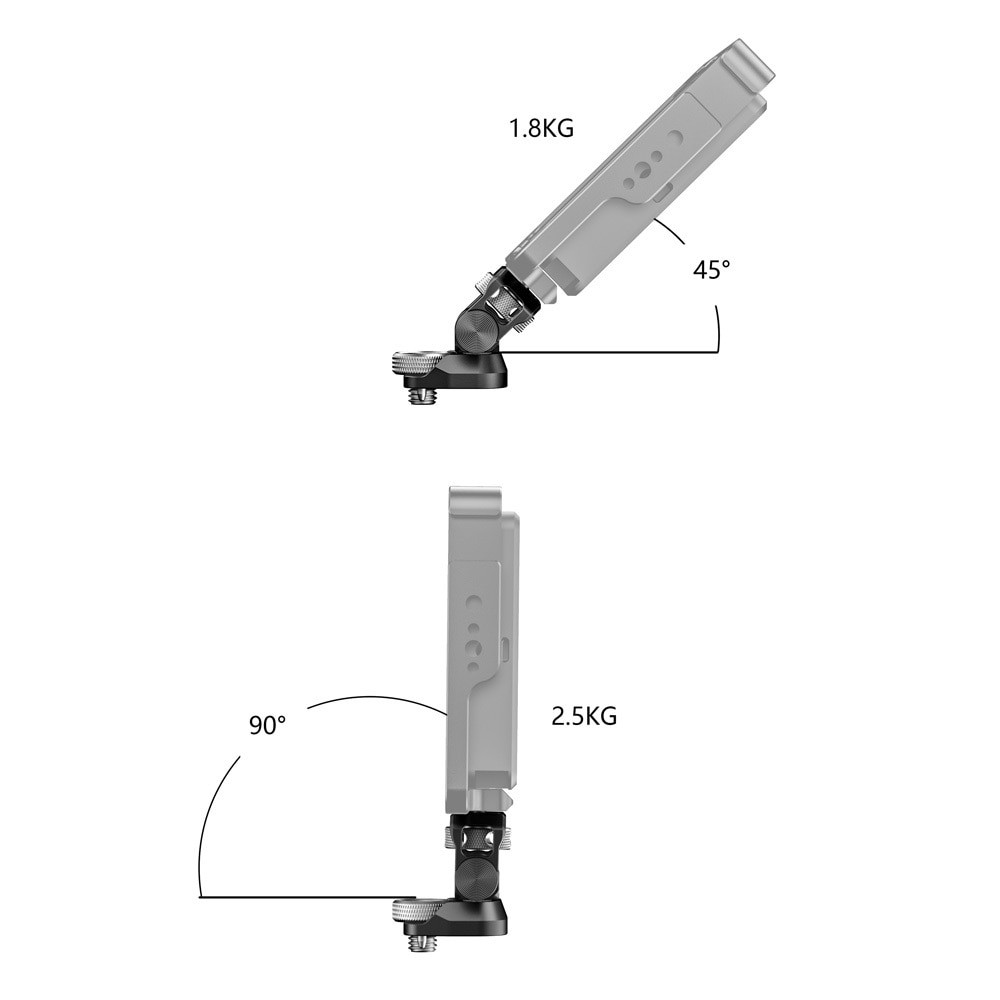

Note1: Maximum payload: 1.2kg;Vertical 90° Payload:2.5kg

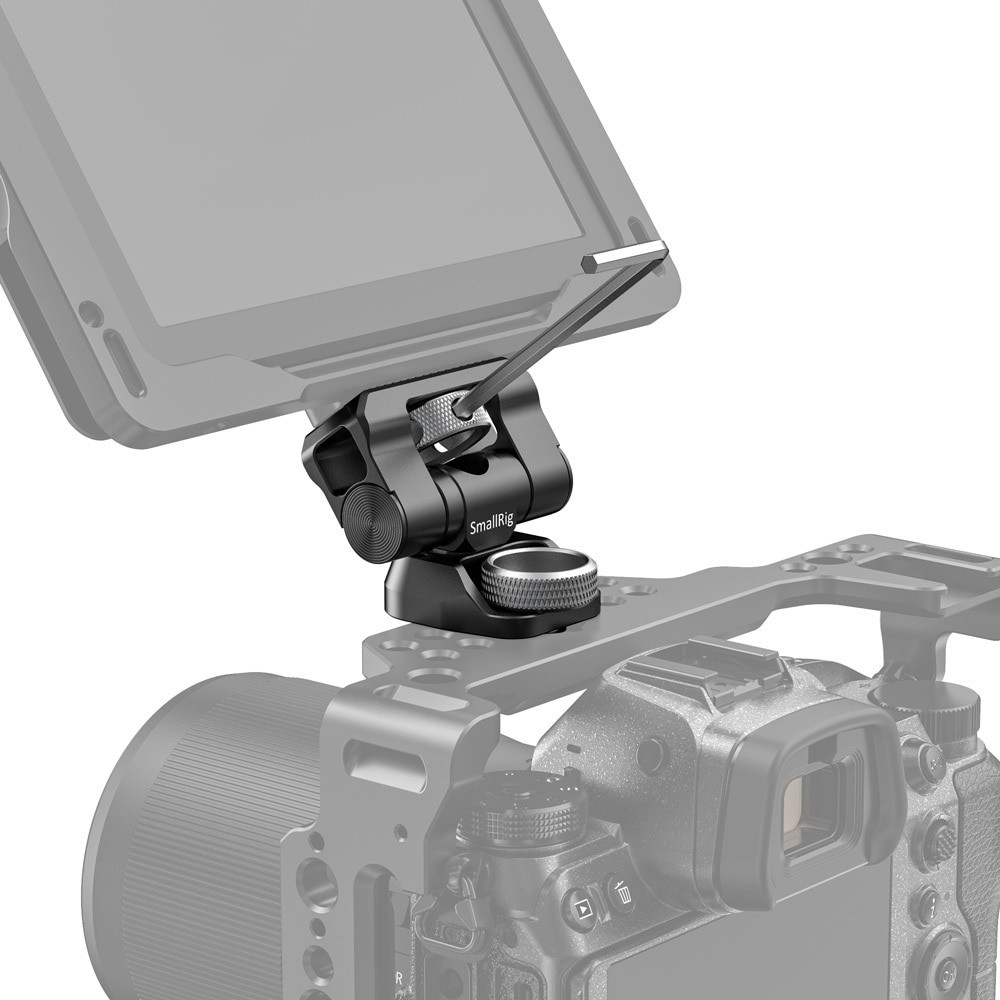

Note2: Please do use the hex spanner to re-tighten the thumbscrew to ensure safe.
Note3: Please attach your monitor or light to camera body first before adjusting the angle of the monitor mount.

Key Features

1.Supports 5”and 7” Monitor up to 1.2kg

2.Swivel 360° and Tilt 170° with Free-Stop in Any Position.

3.Features holes on Thumbscrews for Hex Spanner

4.Rubber Pad on the Top to Prevent Scratching

5. Arri Locating Pins on the Bottom to Prevent Twisting

Work With

SmallHD Focus Series

SmallHD Focus OLED Series

SmallHD UltraBright Series

SmallHD 500 Series, 700 Series

Atomos Ninja Series

Atomos Shogun Flame

Blackmagic Video Assist 5”

Other 5”or 7”Monitor Kit Weights less than 1.2kg

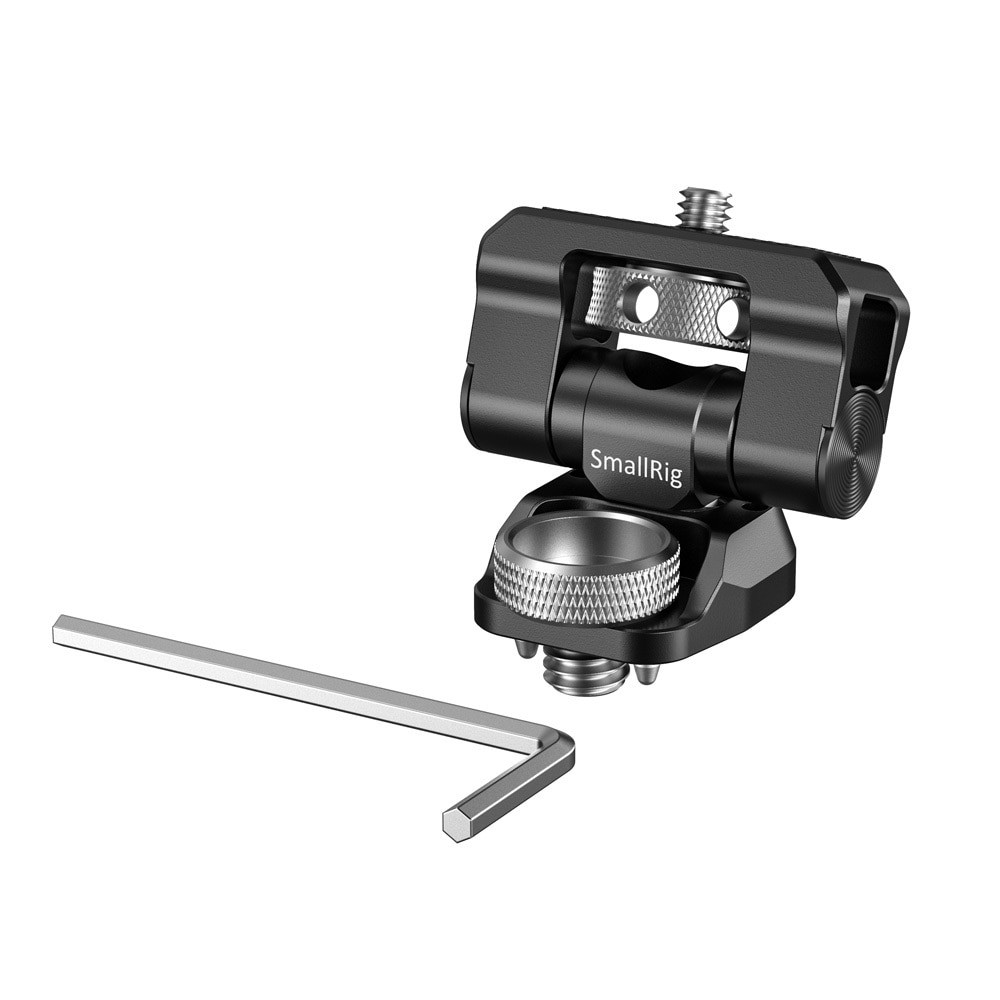

Packing List

1 x Monitor Mount

1 x Hex Spanner

Technical Data

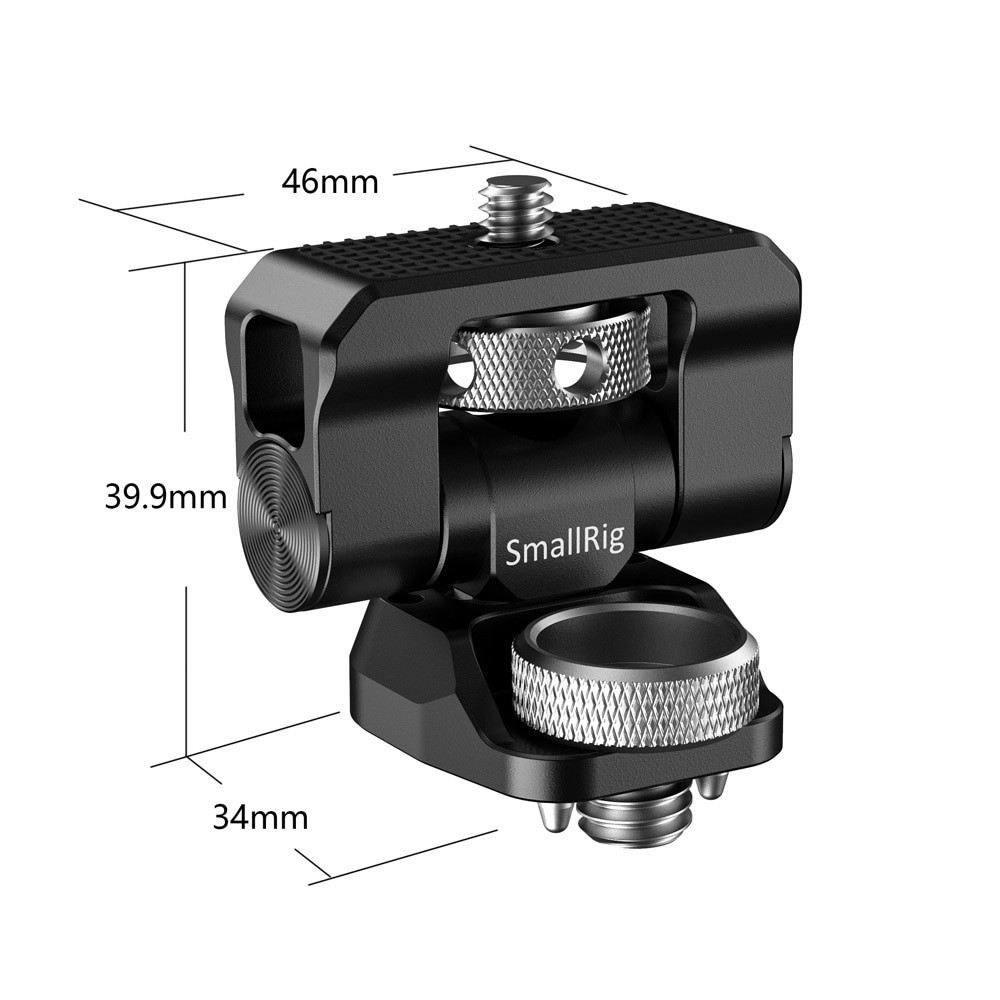

Product Dimensions: 46 x 39.9x 34mm

Package Dimensions: 76 x63 x 40mm

Net Weight: 75g

Package Weight: 106g

Material(s): Aluminum Alloy
