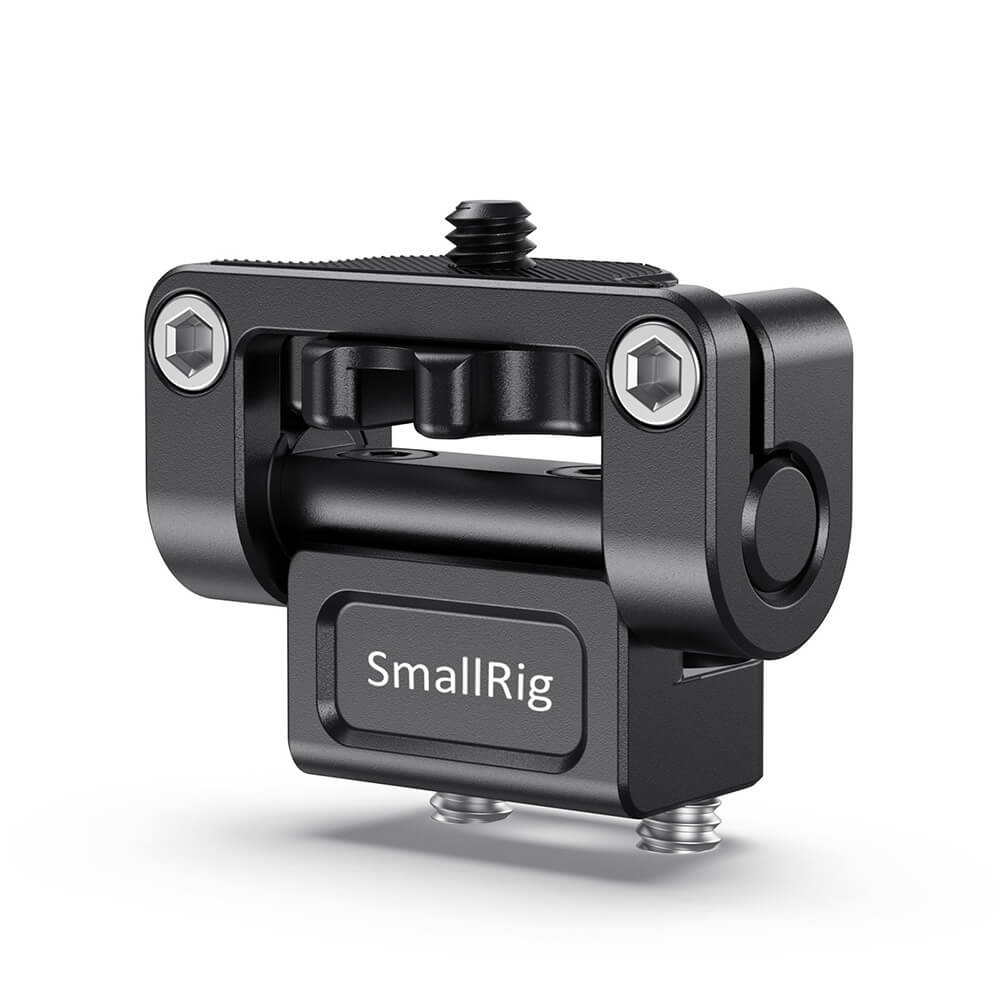

SmallRig Tilt Monitor Mount 1842B

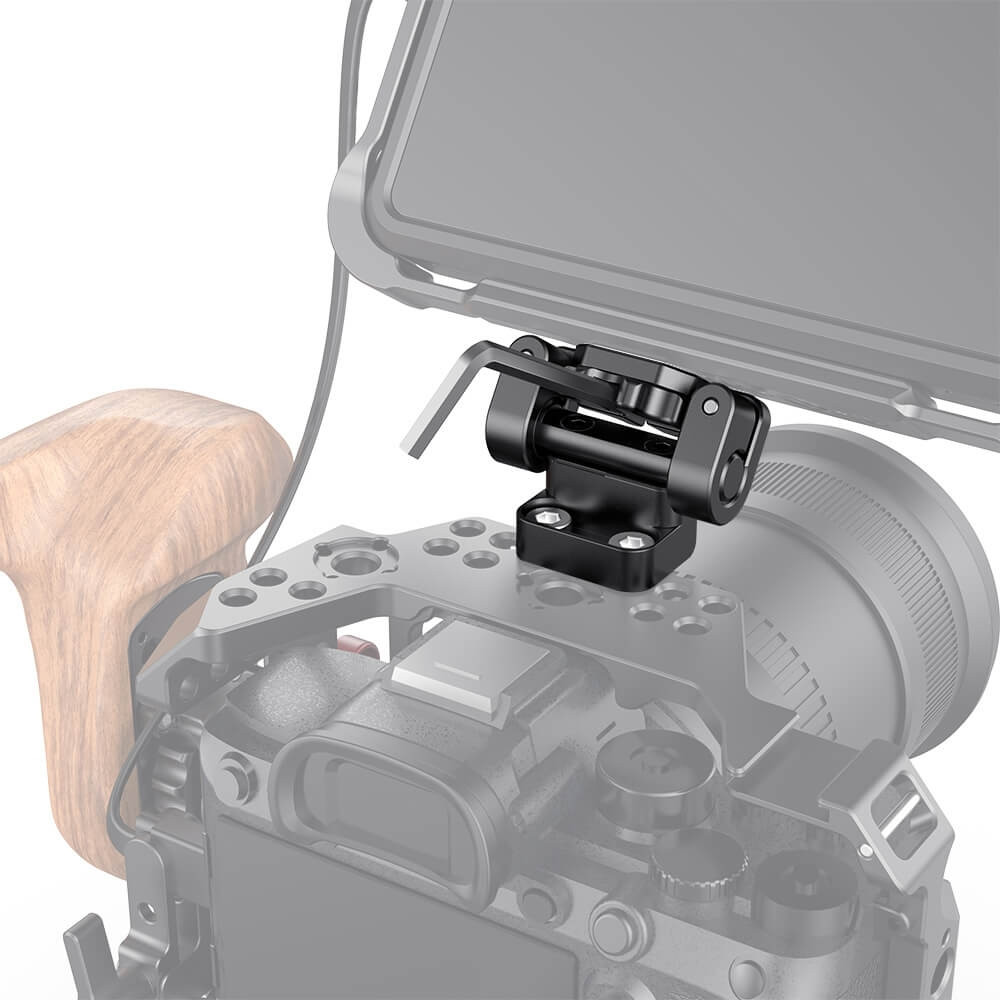

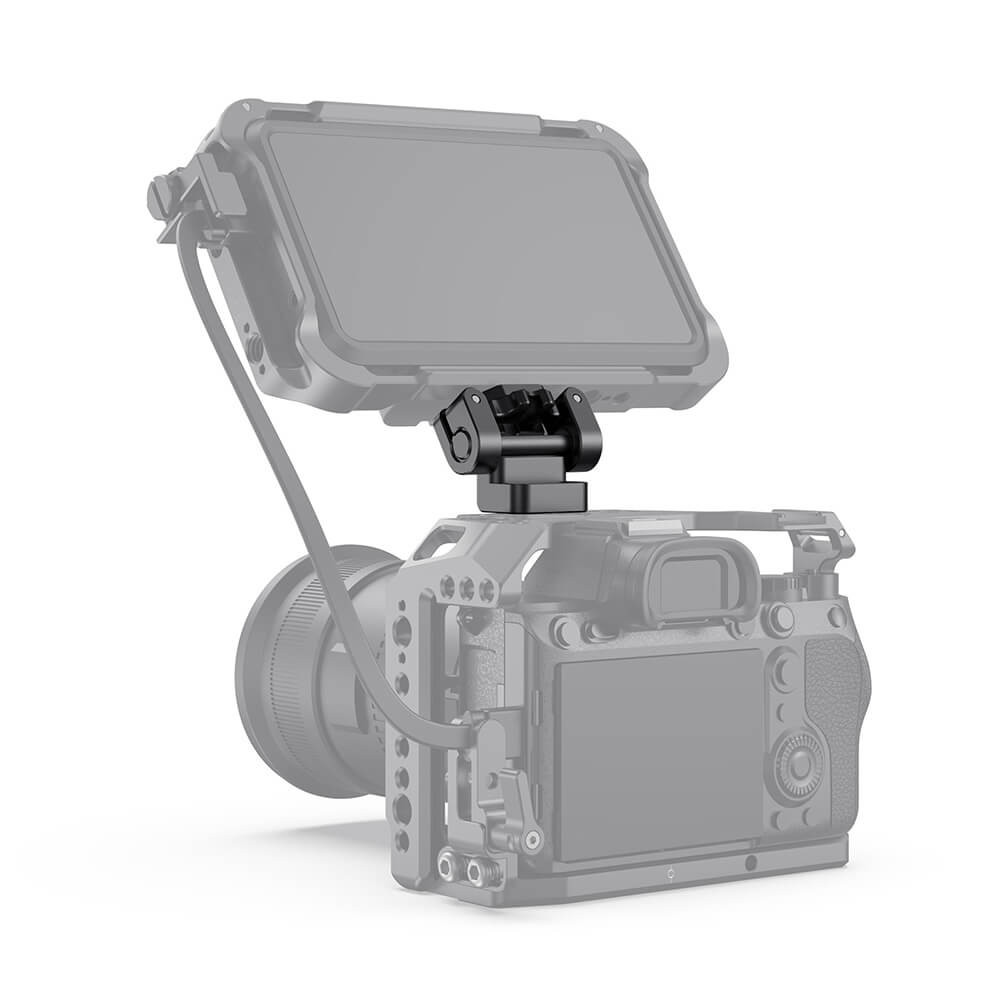

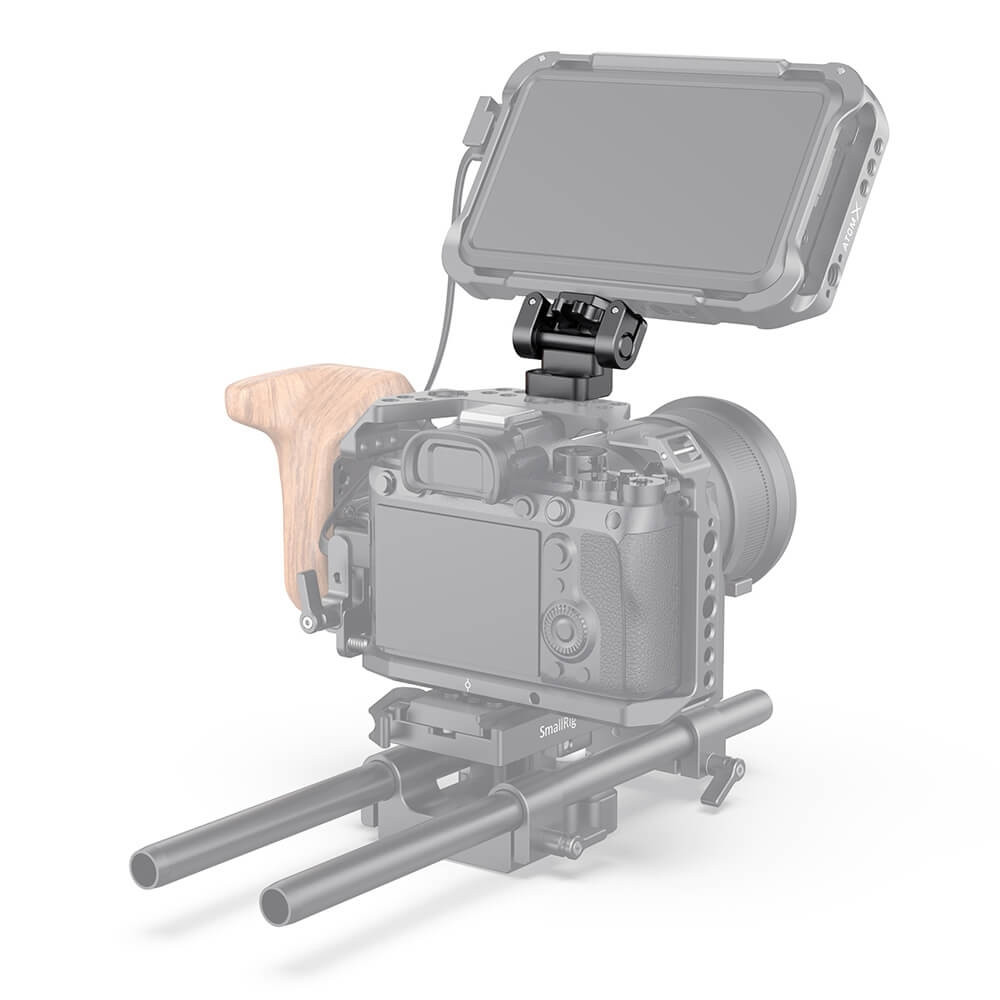

SmallRig Tilt Monitor Mount 1842B is designed to hold your monitor onto a camera cage, handle or other mounting system via two 1/4”-20 screws. The aluminum mount enables to tilt 180° without using tools and free-stop in any position. It can support 5”or 7”monitor up to 1.5kg. Featuring rubber pad on top to prevent your monitor from scratching. The thumbscrew features slots for hex spanner to lock it tight and ensure your monitor safe. You can adjust the tightness of monitor mount by adjusting the M4 screws on each side based on your needs.
Note1: Maximum payload: 1.5kg
Note2：Please do use the hex spanner to re-tighten the thumbscrew to ensure safe.
Key Features
1.Supports 5”or 7” Monitor up to 1.5kg.

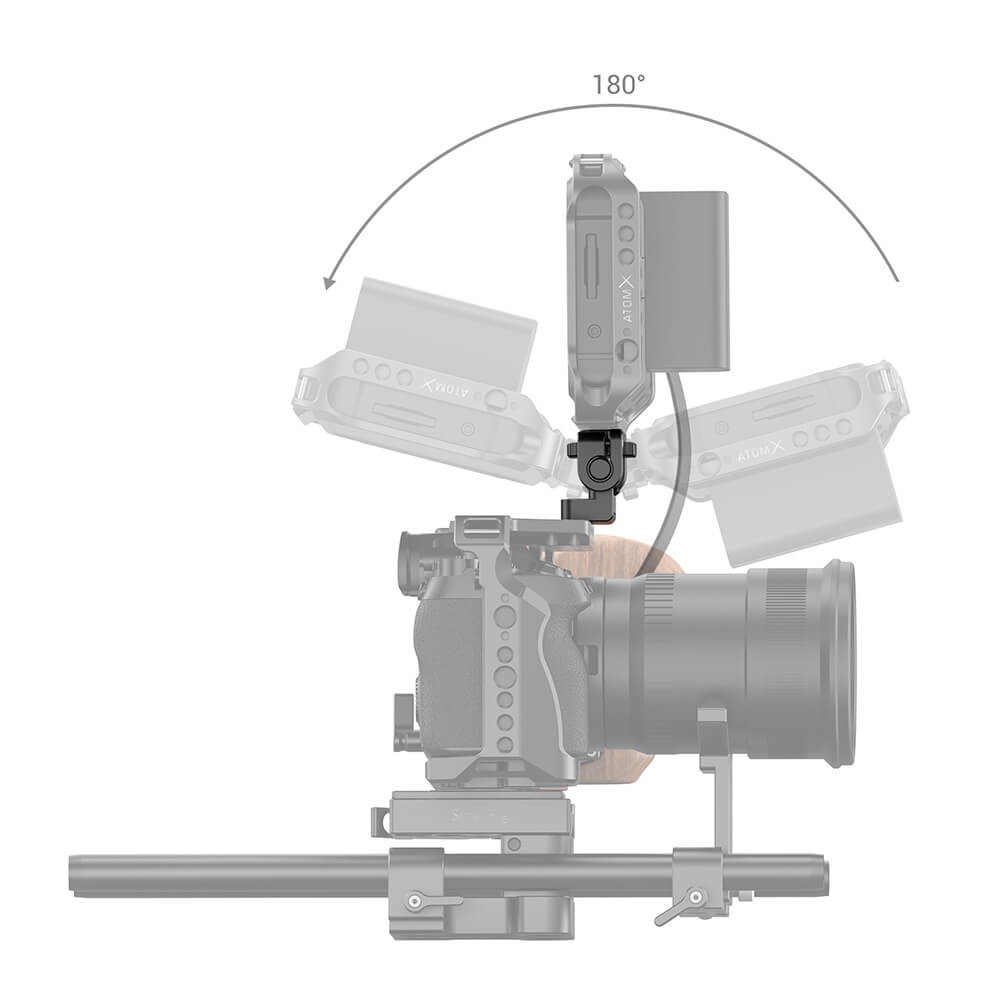

2.Tilts 180° & Lockable in Any Position
3.Includes Allen Wrench to Secure the Thumbscrew
4.Protective Rubber Padding on Top
5.Anti-off 1/4”-20 Screws
Work With
5”or 7” Onboard MonitorPacking List

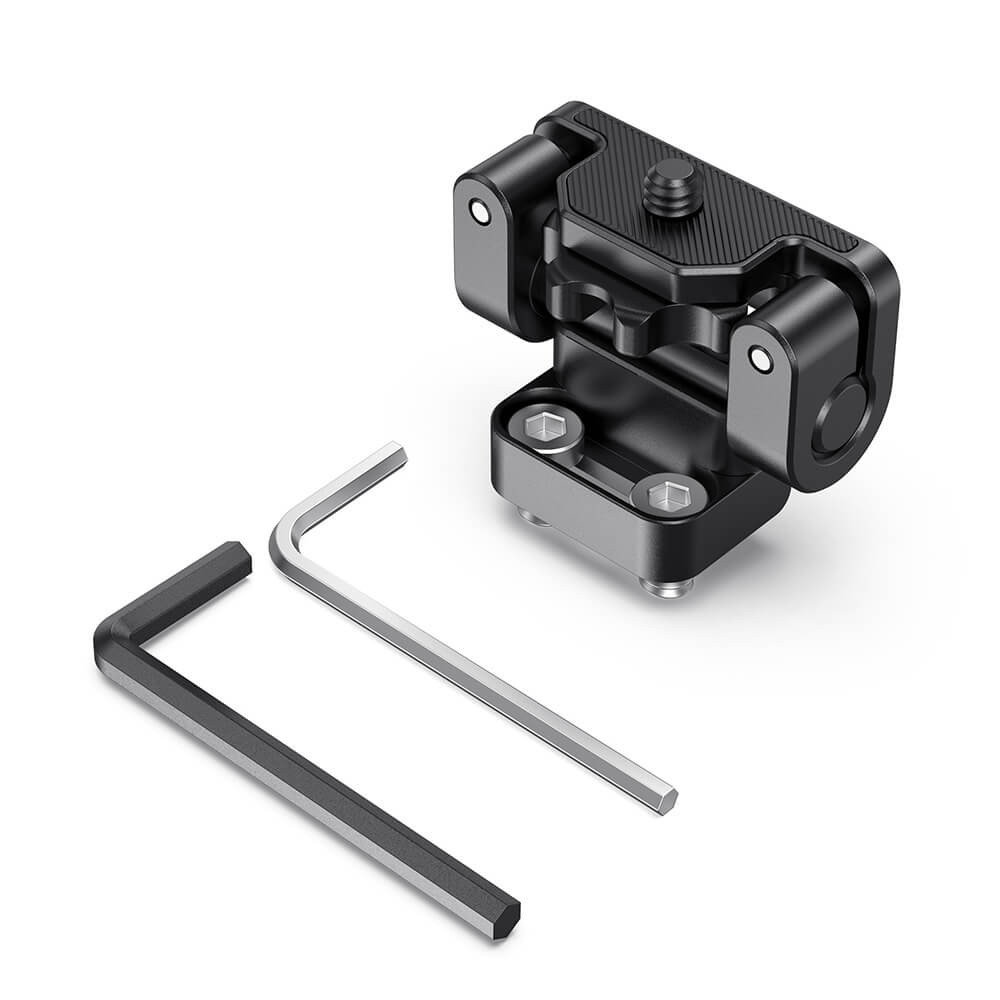

1 x Monitor Mount
2 x Hex Spanner
Technical Data

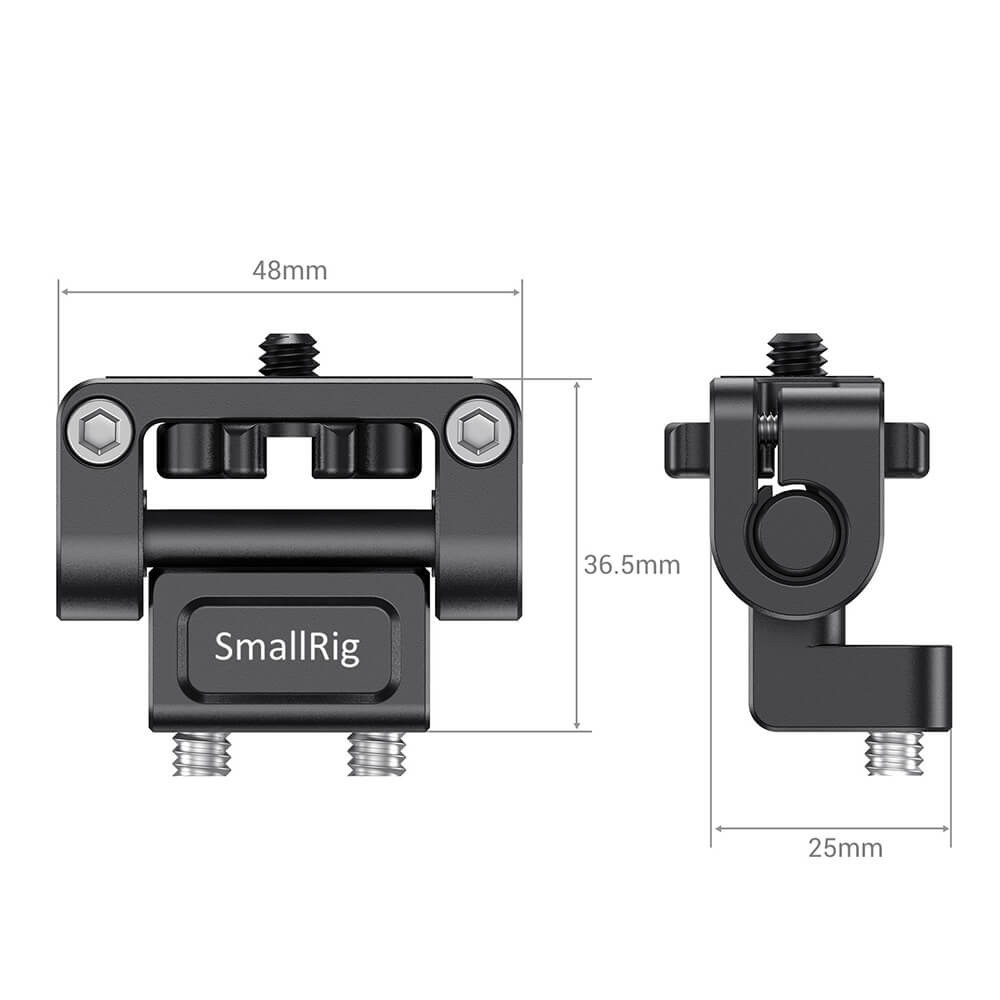

Product Dimensions: 48x 25x 36.5mm
Package Dimensions: 63 x 50 x 40mm
Net Weight: 67g
Package Weight: 87g
Material(s): Aluminum Alloy
