SmallRig Swivel and Tilt Monitor Mount BSE2294

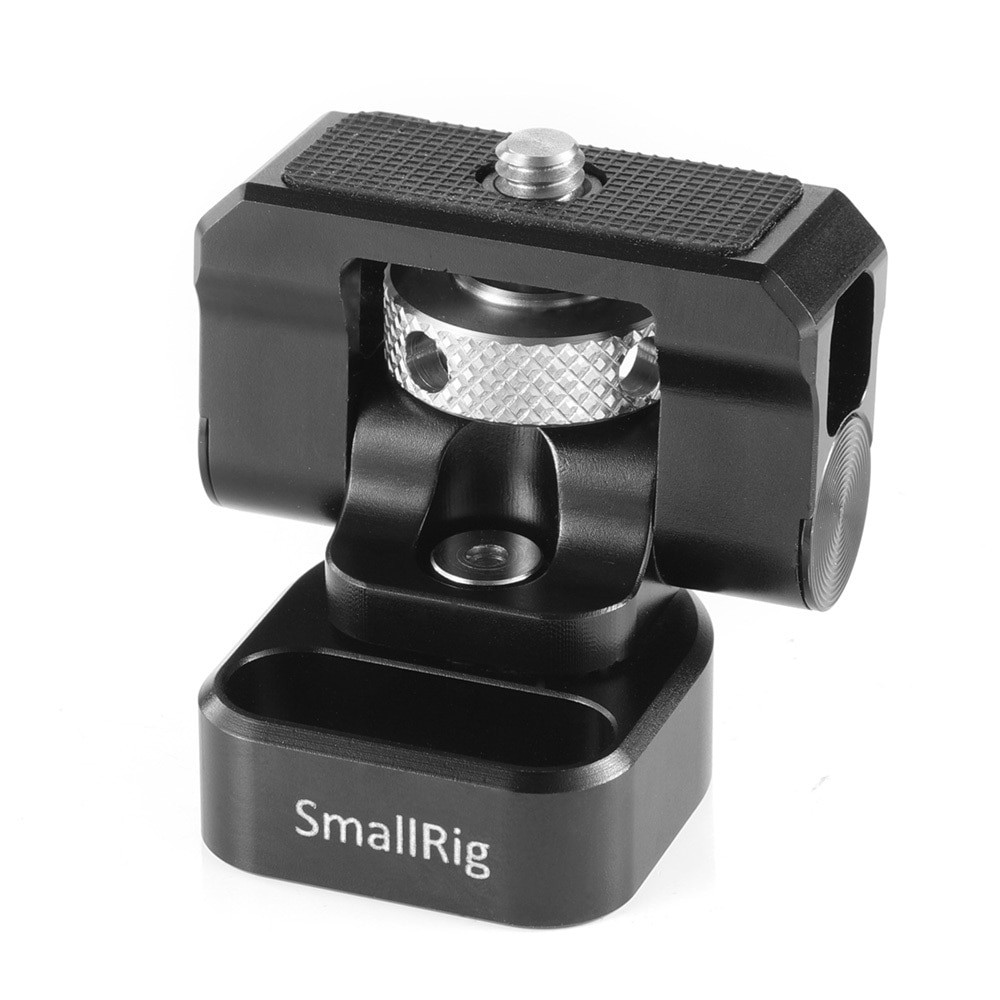

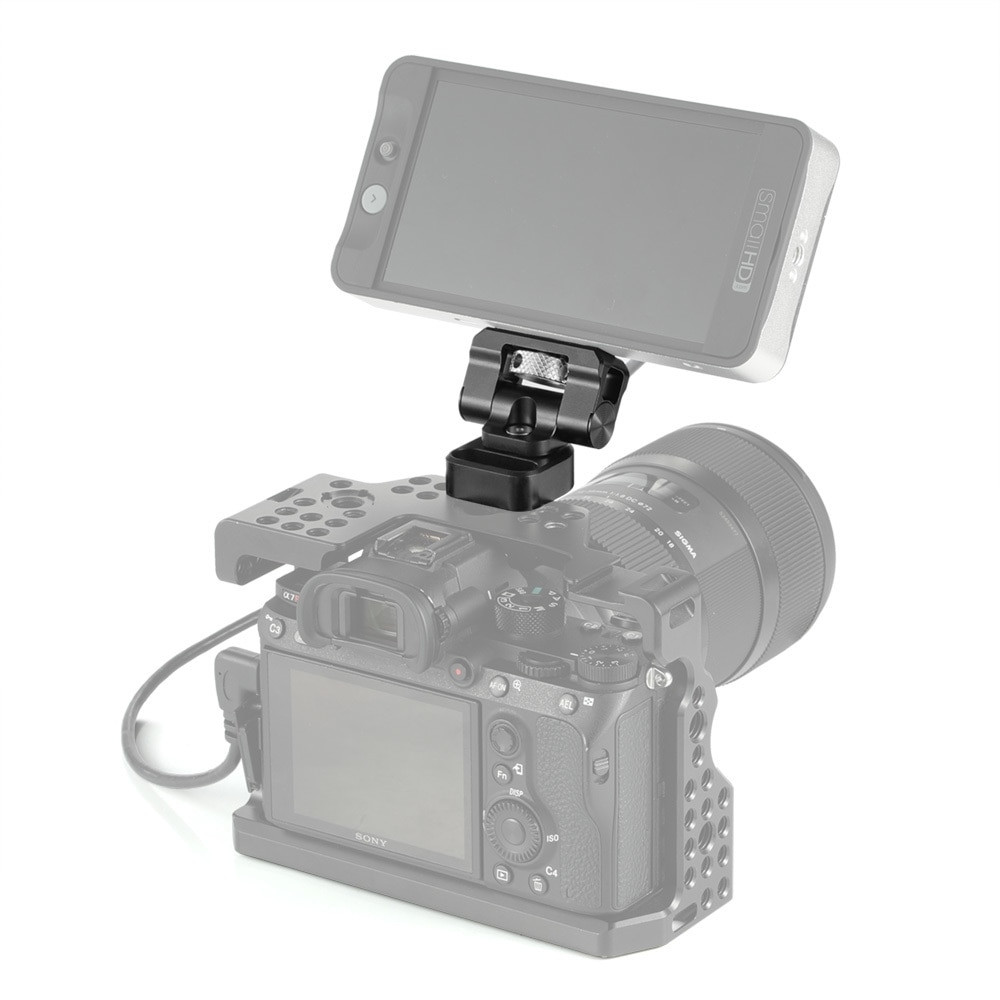

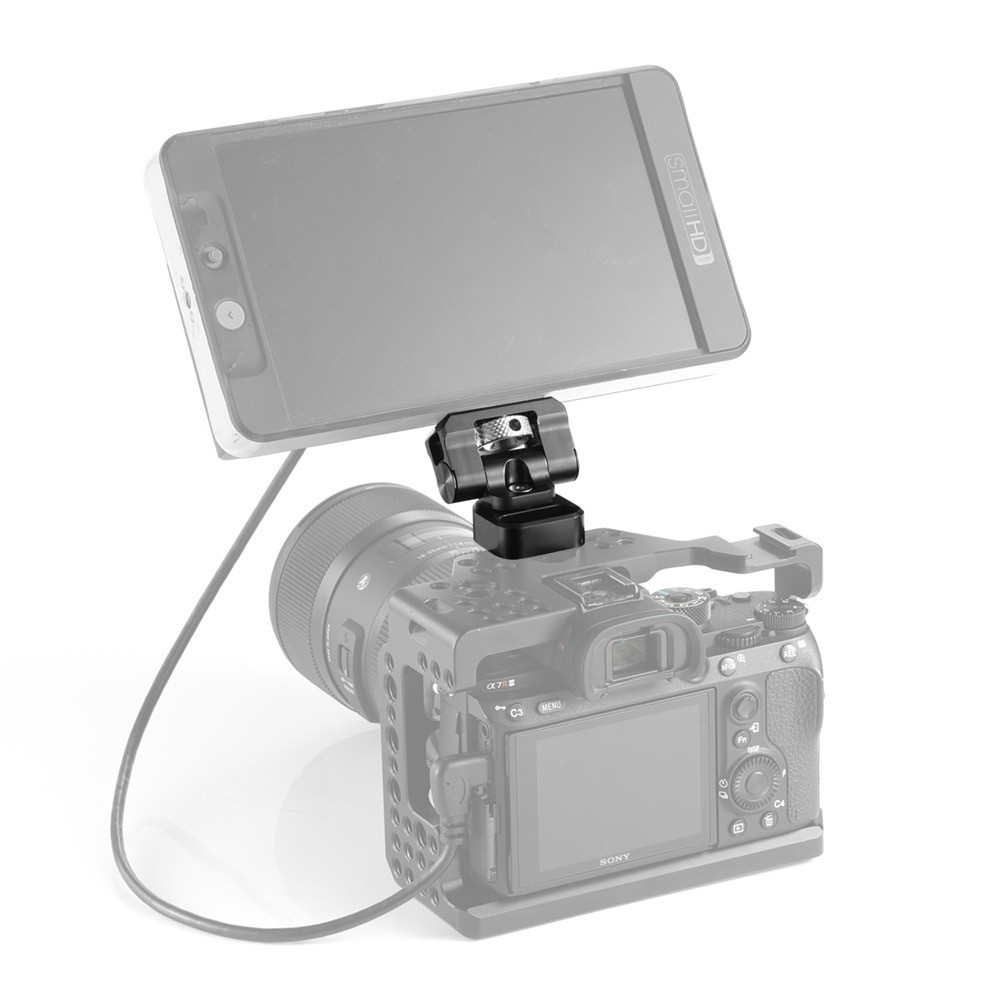

SmallRig Swivel and Tilt Monitor Mount BSE2294 is designed to hold your monitor onto a camera cage, handle or other mounting system via two 1/4"-20 screws. The sturdy aluminum mount enables to swivel 360° sideways and tilt 150° without using tools. The lightweight mount weights only 68g and can support 5"and 7"monitor up to 1.2kg. It features rubber pads on the top to prevent your monitor from scratching. The thumbscrew features hex spanner holes to re-tighten the screw to ensure your monitor safe. When not in use, the mount can simply folds away for storage.
Note1: Maximum payload: 1.2kg

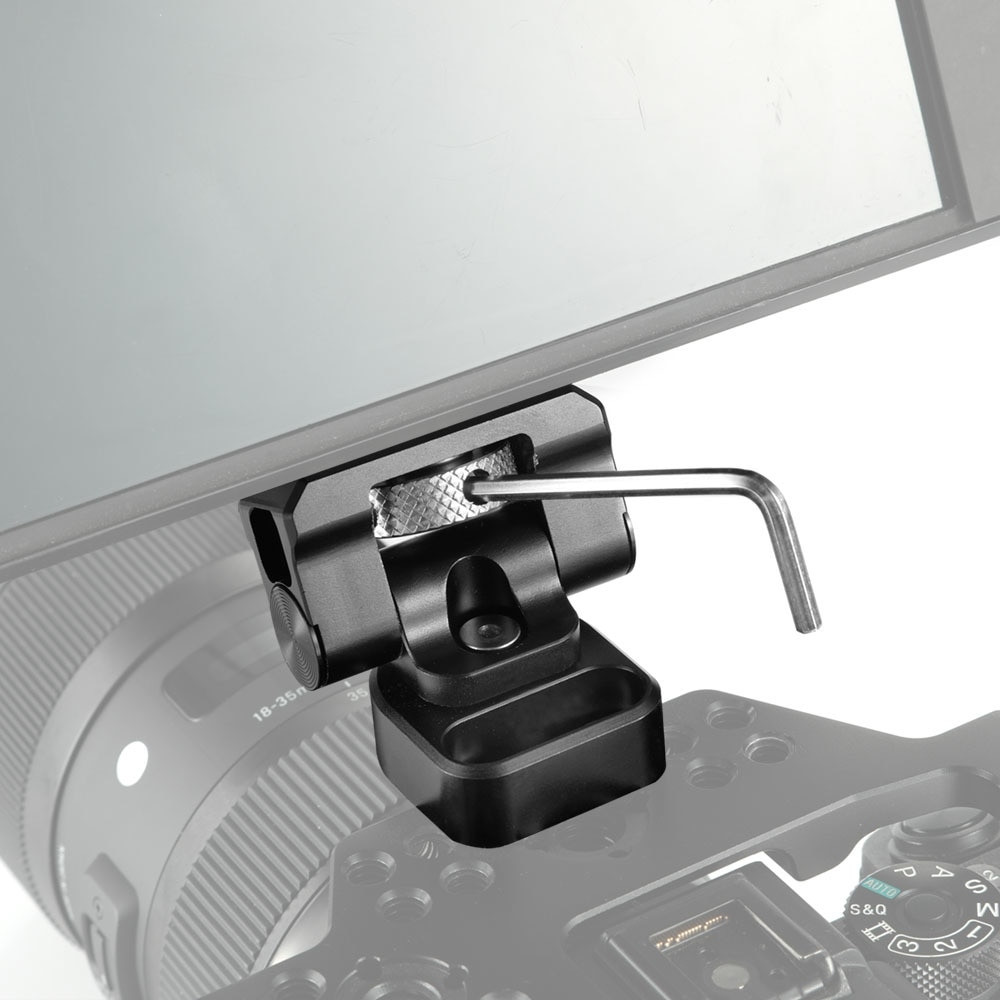

Note2：Please do use the hex spanner to re-tighten the thumbscrew to ensure safe.
Note3：Please do not adjust the monitor mount without attaching any monitor or light.
Key Features
1.Supports 5"and 7" monitor up to 1.2kg.

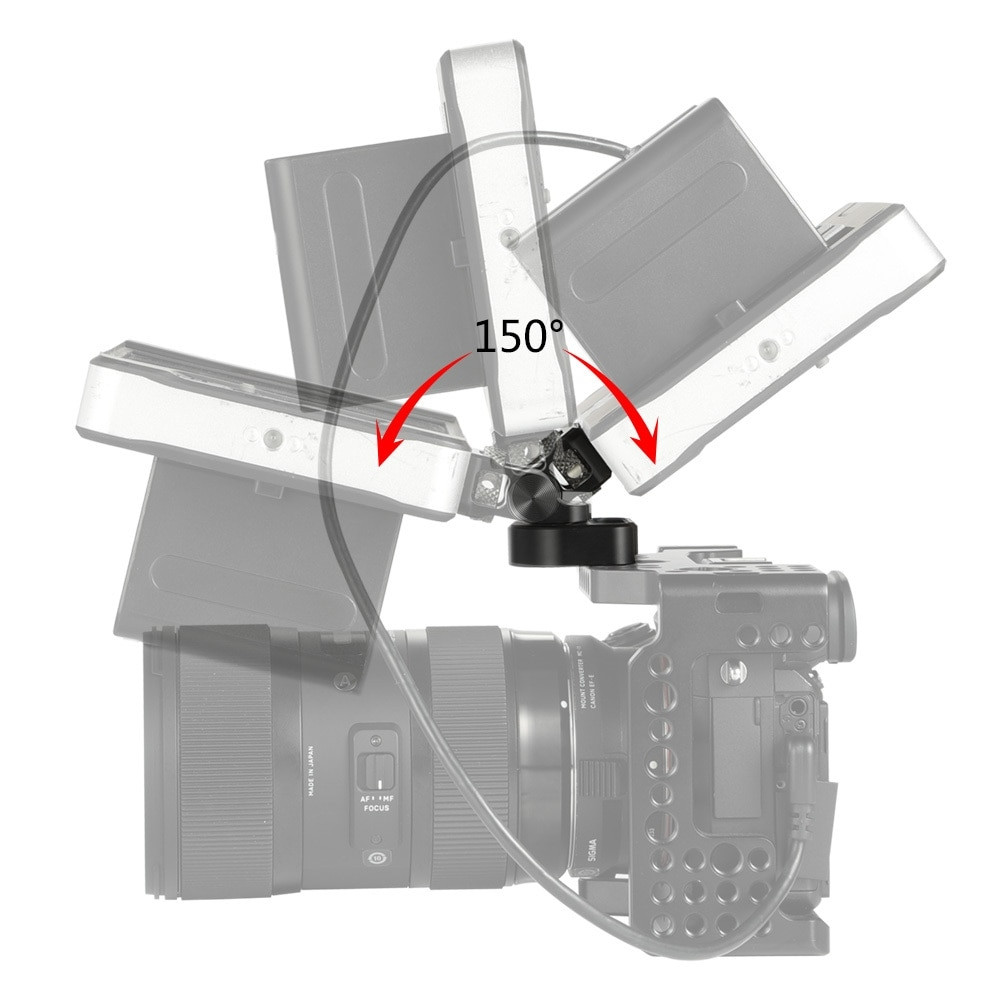

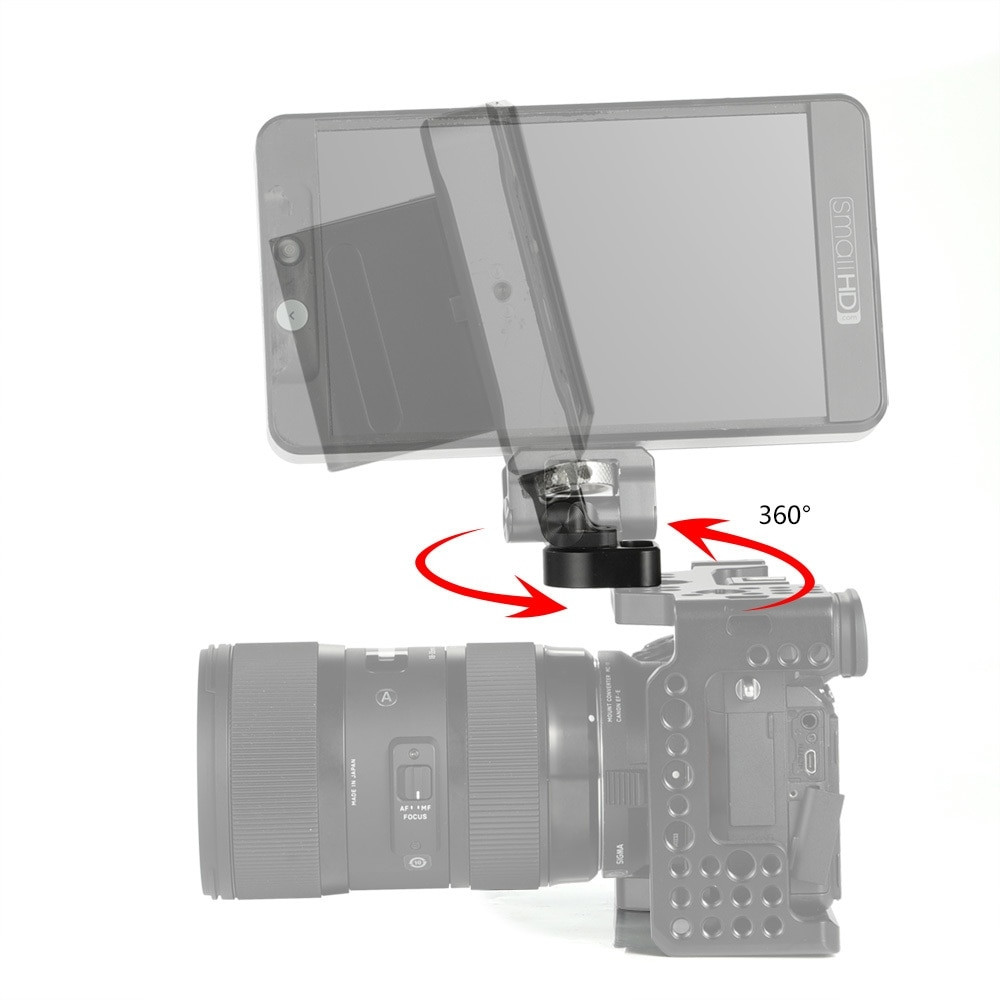

2.Swivel 360° and tilt 150° without using tools.
3. Hex spanner holes for re-tighten the screw to ensure safe.
4. Rubber pads on the top to prevent scratching your monitor.
5. Weights only 68g, easy for storage.
Work With
SmallHD Focus Series
SmallHD Focus OLED Series
SmallHD UltraBright Series
SmallHD 500 Series, 700 Series
Atomos Ninja Series
Atomos Shogun Flame
Blackmagic Video Assist 5"
Packing List

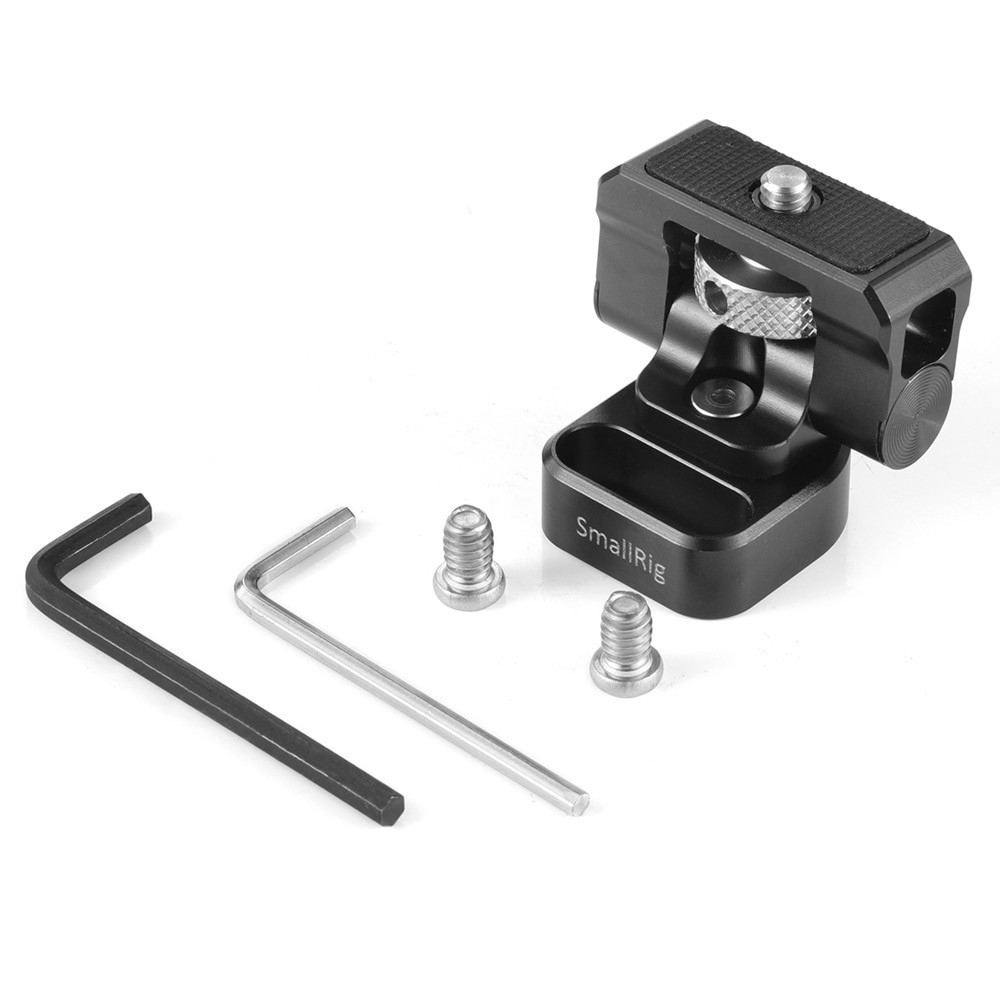

1 x Monitor Mount 2 x Hex Spanner 2 x 1/4"-20 Screw
Technical Data

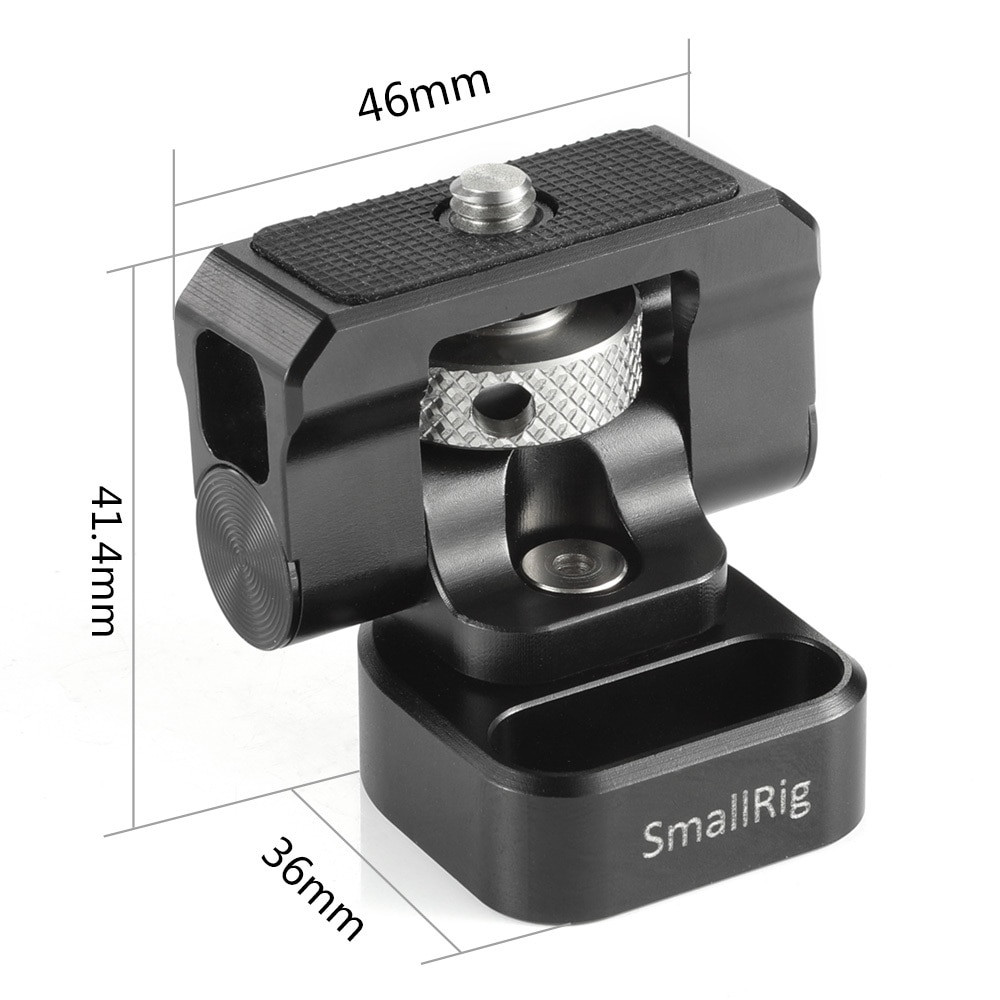

Product Dimensions: 46 x 41.4 x 38mm
Package Dimensions: 76 x 63 x 40mm
Net Weight: 68g
Package Weight: 105g
Material(s): Aluminum Alloy
