Product Description



SmallRig Swivel and Tilt Monitor Mount with Nato Clamp BSE2347

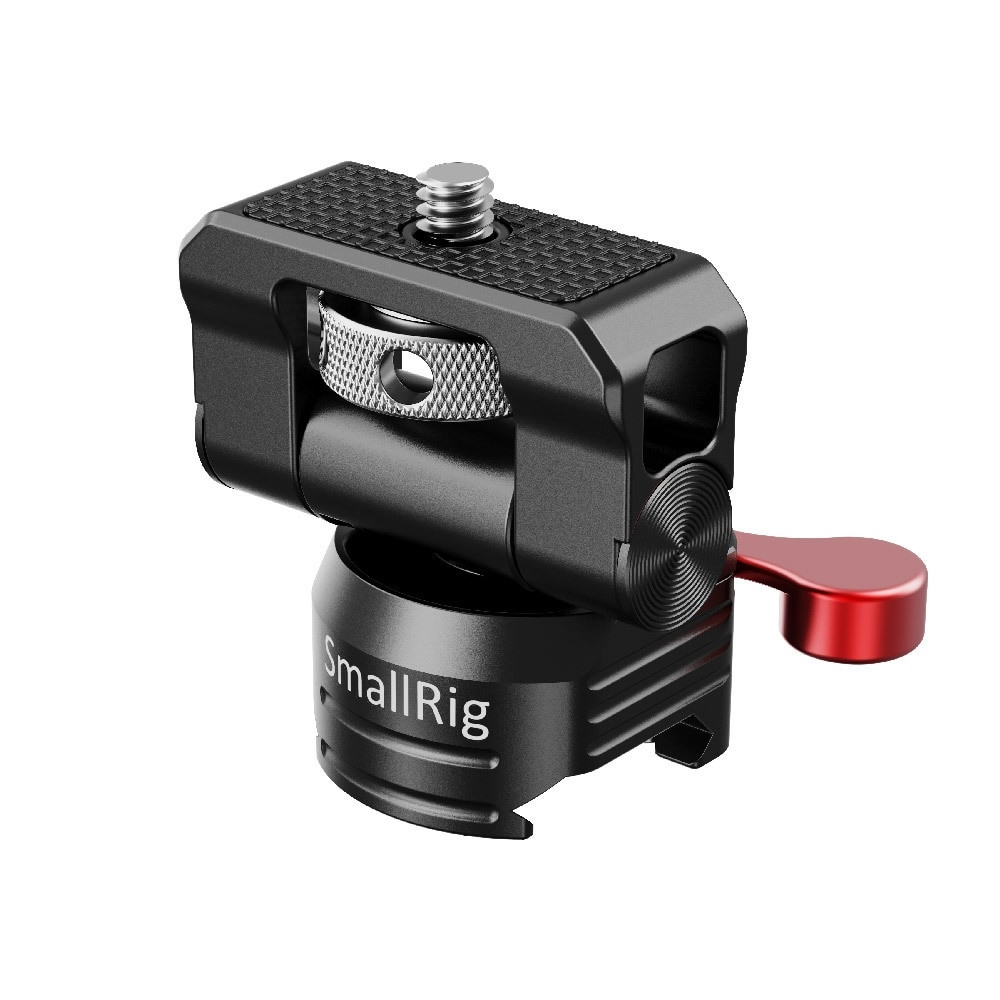

SmallRig Swivel and Tilt Monitor Mount with Nato Clamp BSE2347 is designed to hold your monitor onto the camera cage or other mounting system features nato rail via nato clamp. The holder enables to swivel 360° sideways and tilt 150° which allows to hold your monitor onto any position without using tools. The robust mount is CNC-Machined Aluminum and can support 5”and 7”monitor up to 1.2kg. The top of mount features rubber pad to protect your monitor and light from scratching. The thumbscrew features holes for hex spanner to secure it tight and ensure your monitor safe.

Note1: Maximum payload: 1.2kg
Note2: Please do use the hex spanner to re-tighten the thumbscrew to ensure safe.

Key Features

1.Supports 5”and 7” Monitor up to 1.2kg

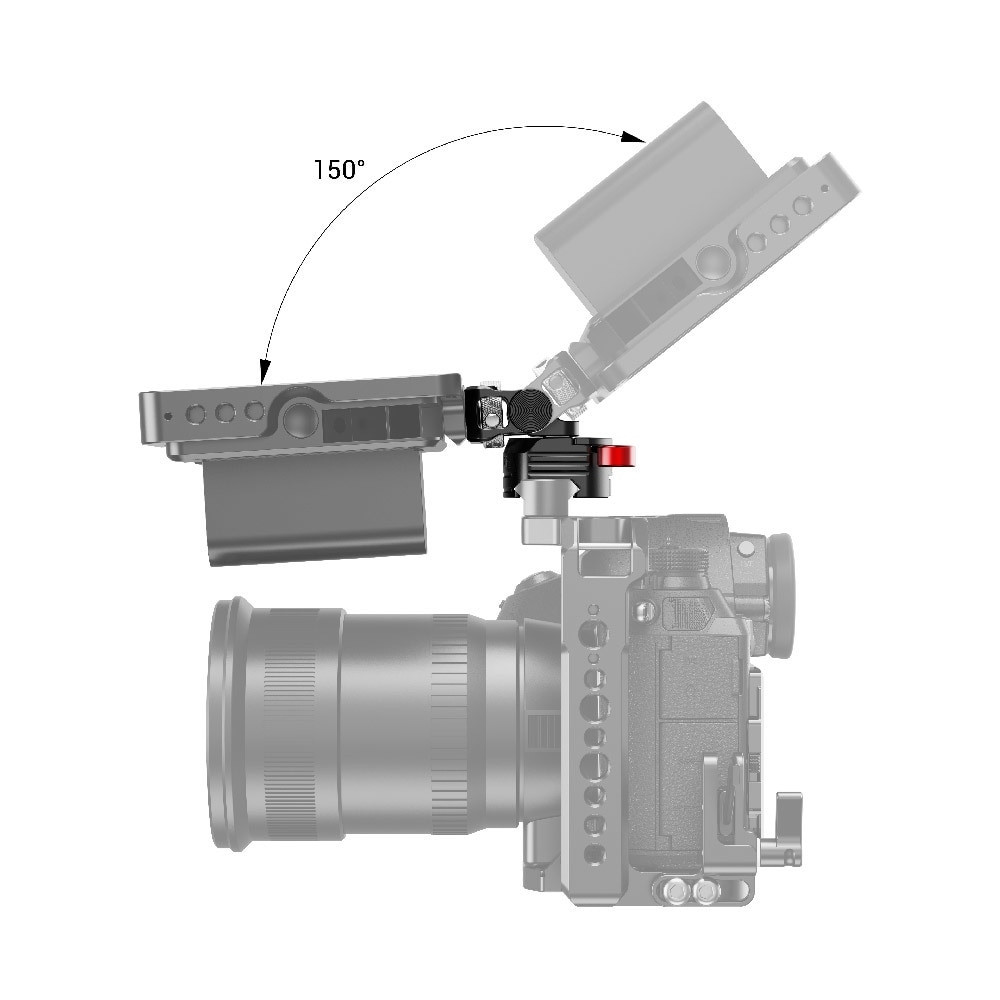

2.Swivel 360° and Tilt 150° with Free-Stop in any position.

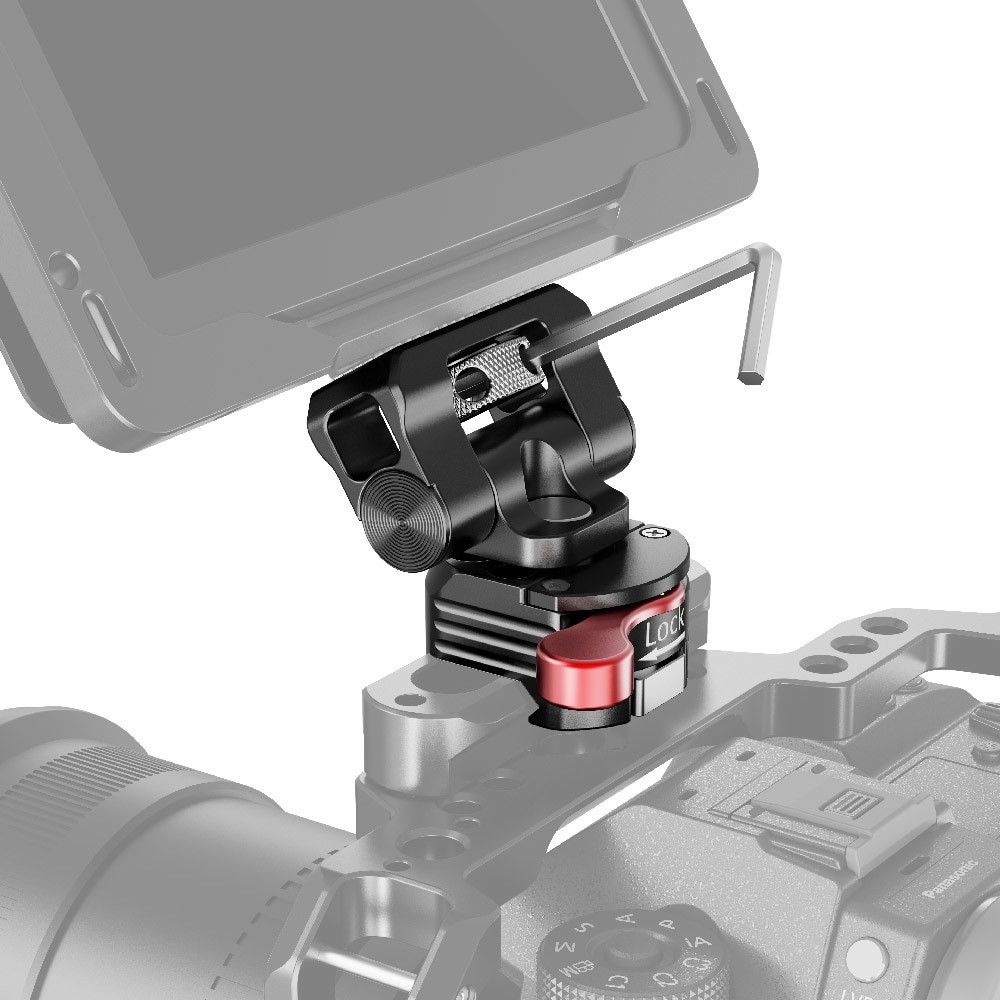

3.Features holes on Thumbscrews for Hex Spanner

4.Rubber Pad on the Top to Prevent Scratching

5. Quick Release Nato Clamp with Lever

Work With

SmallHD Focus Series

SmallHD Focus OLED Series

SmallHD UltraBright Series

SmallHD 500 Series, 700 Series

Atomos Ninja Series

Atomos Shogun Flame

Blackmagic Video Assist 5”

Other 5”or 7”Monitor Kit Weights less than 1.2kg

Packing List

1 x Monitor Mount

1 x Hex Spanner

Technical Data

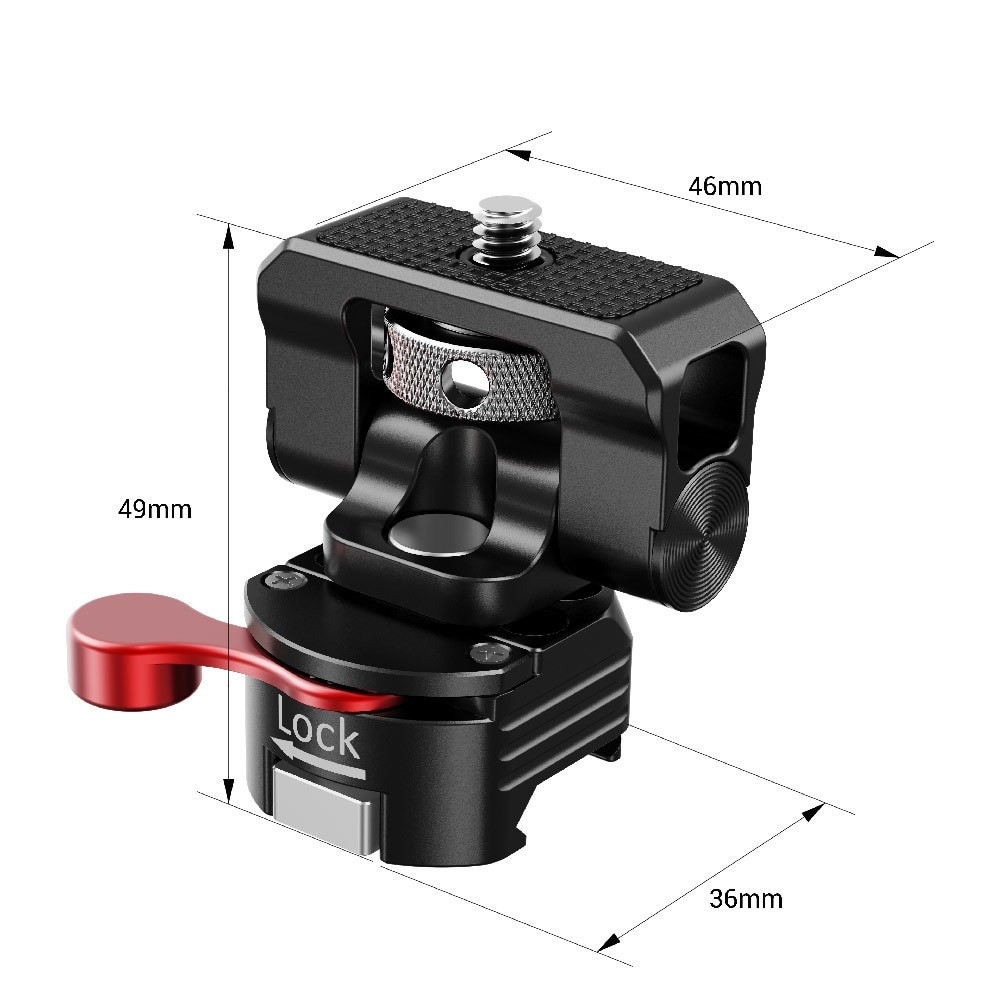

Product Dimensions: 46 x 49x 36mm

Package Dimensions: 76 x 63 x 40mm

Net Weight: 84g

Package Weight: 108g

Material(s): Aluminum Alloy
