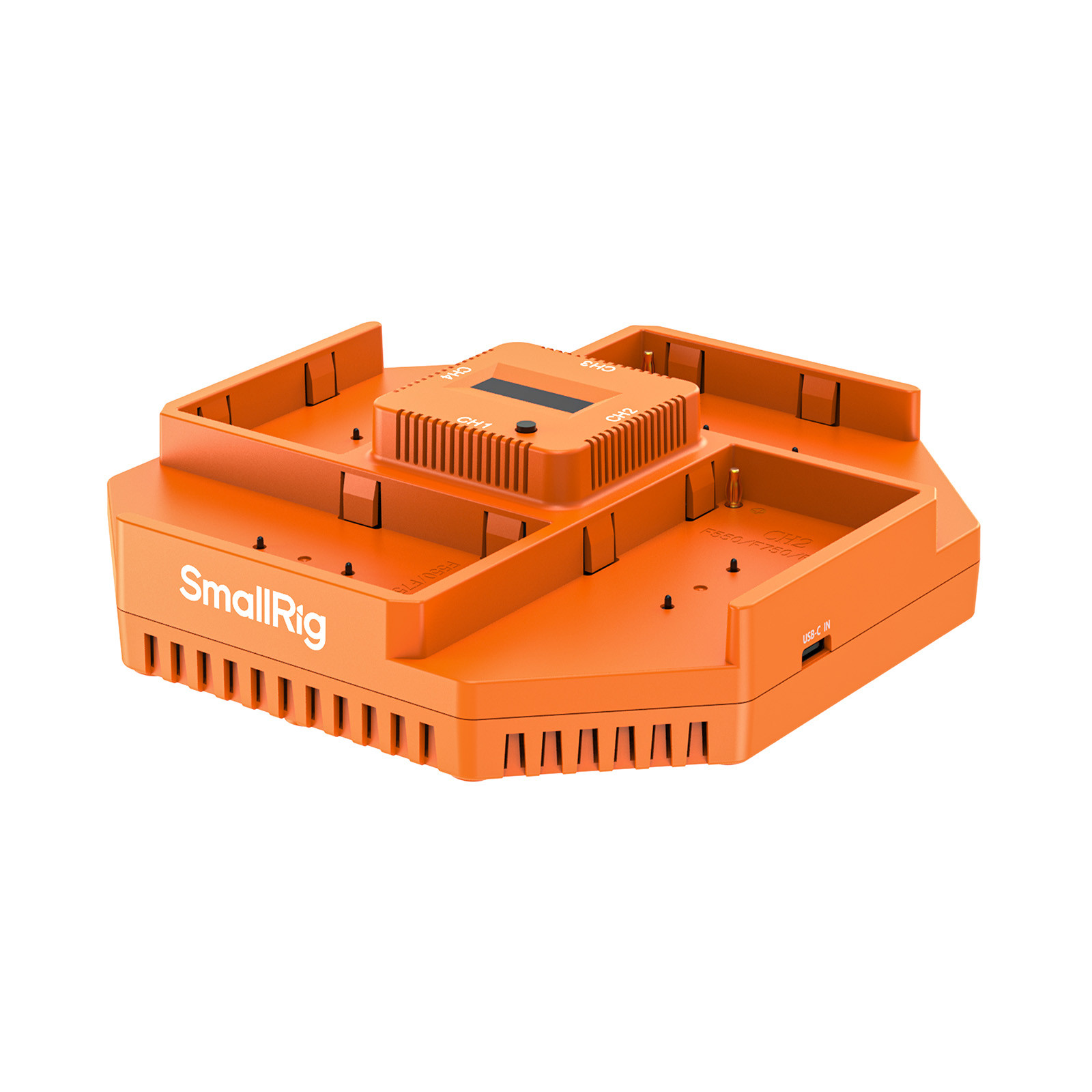

SmallRig 4-Channel Camera Battery Charger for Sony NP-F970 / F750 / F550 4837B

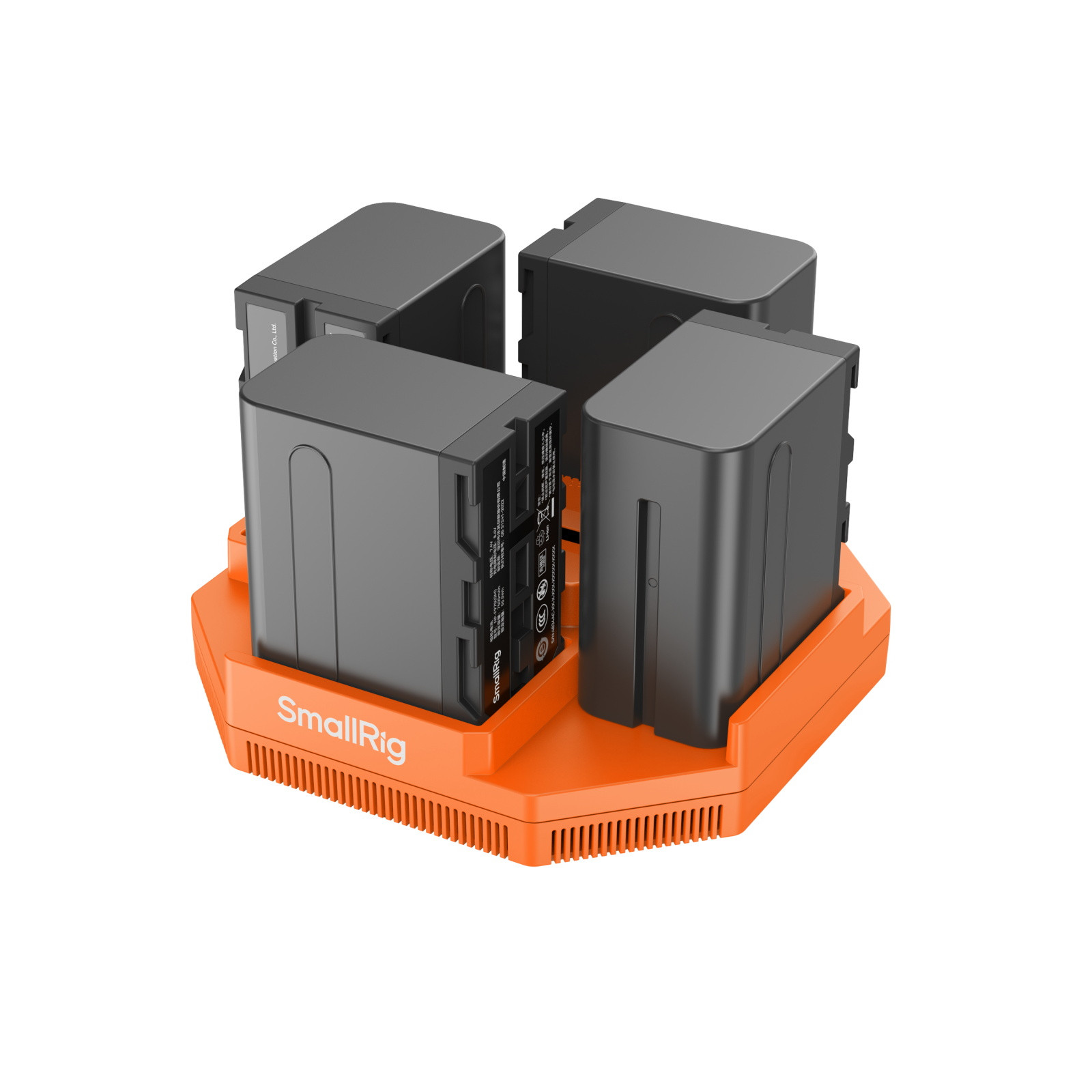

SmallRig 4-Channel Camera Battery Charger for Sony NP-F970 / F750 / F550 4837B is a high-efficiency, high-power NP-F battery charger supporting a maximum input of 100W. Featuring four NP-F ports, this charger can simultaneously charge four batteries, ensuring fast and efficient charging. The charger is compatible with NP-F550, NP-F570, NP-F750, and NP-F970 batteries. The charger automatically identifies the battery through detection contacts and matches the charging current (up to 2.5A per channel), ensuring efficient fast charging for each battery to meet your diverse battery needs.
The charger ensures comprehensive safety protection with short-circuit and overcurrent protection on each output port, guaranteeing safety during the charging process. Its portable design is compact and lightweight, ideal for travel and daily use, serving as your on-the-go charging expert.
Featuring a built-in OLED screen, the charger provides real-time updates on battery charging status and USB-C input power, allowing you to monitor the charging progress.
Certification: CE、RoHS、FCC、ISED、RCM
Note: Suggestion: Use a USB-C adapter with an output of 80W or above for the charger.
Time to full charge:
|
Battery Capacity |
7800mAh (4073) |
10500mAh (4267, 4469, etc.) |
|
Time to full charge |
4 units fully charged in 4 hours |
4 units fully charged in 4 hours and 45 minutes |

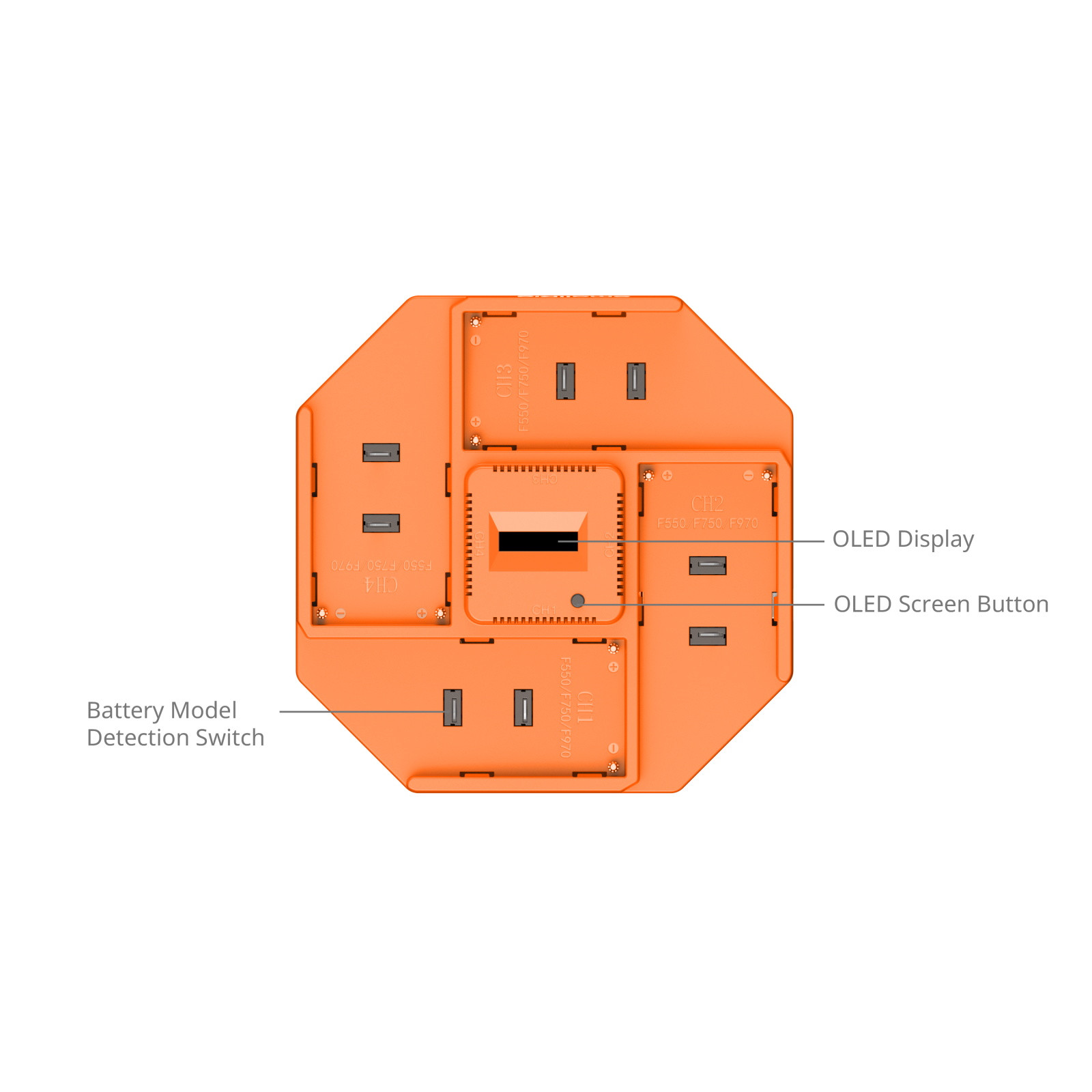

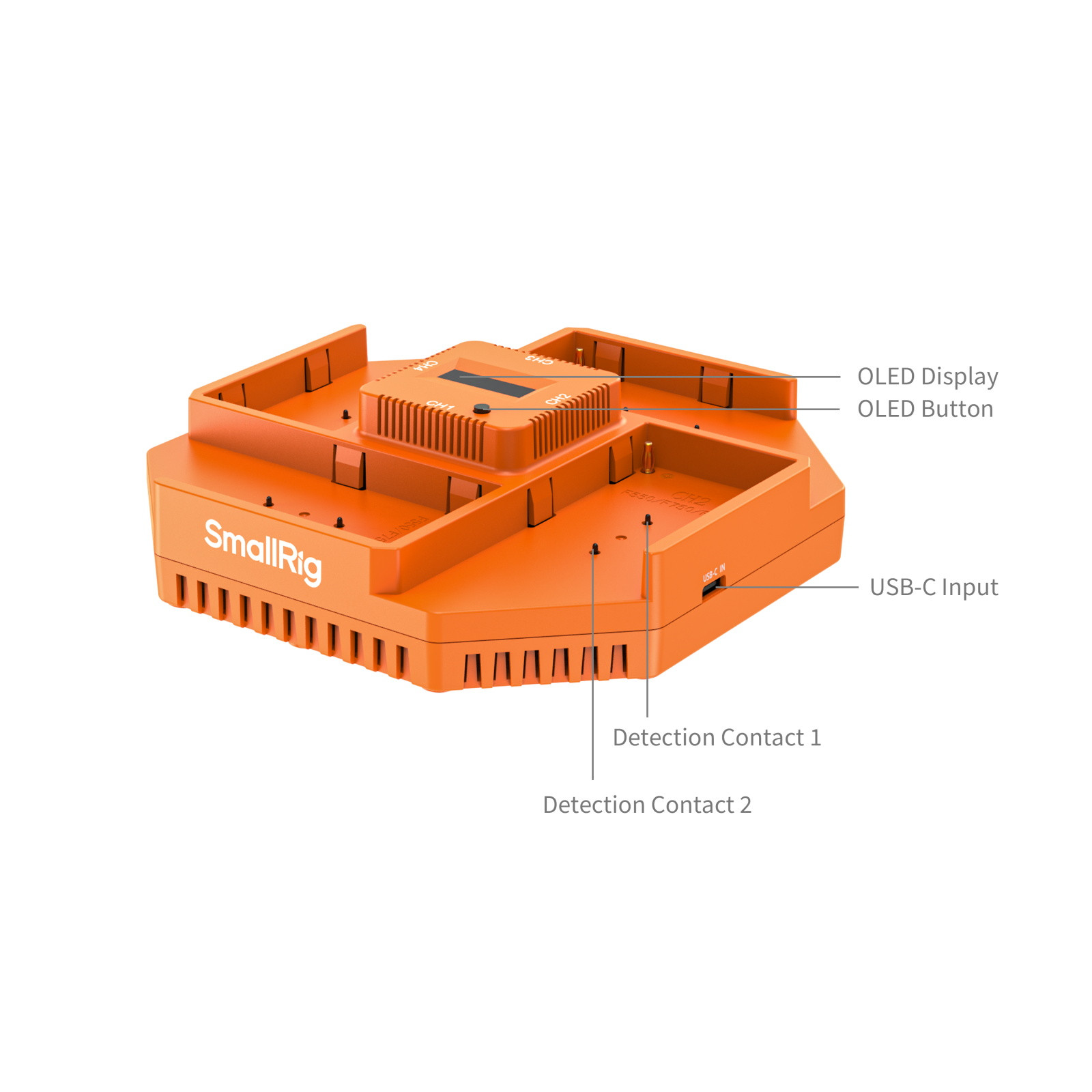

Button / Indicator Function Display:
Detection Contacts: The charger automatically adjusts the charging current based on how many of the detection contacts are triggered (by battery voltage).
OLED Display Button:
Single-click to switch display:
① Battery level per channel
② USB-C PD voltage level, current, voltage, power, and temperature.
OLED Display: Displays voltage, current, power, and temperature, as well as charging status per channel.
Work With
Panel light, image transmitter, monitor, camera, camcorder

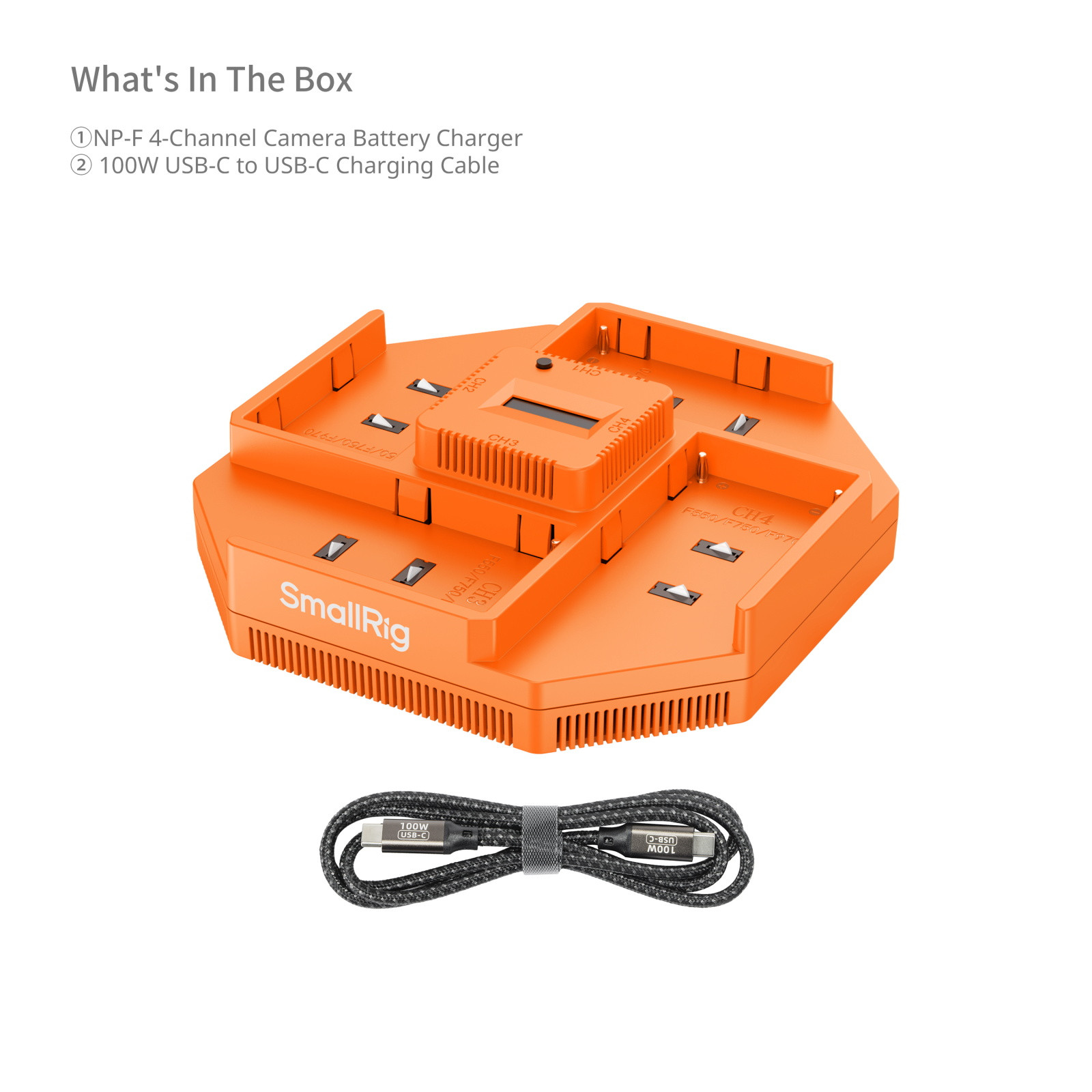

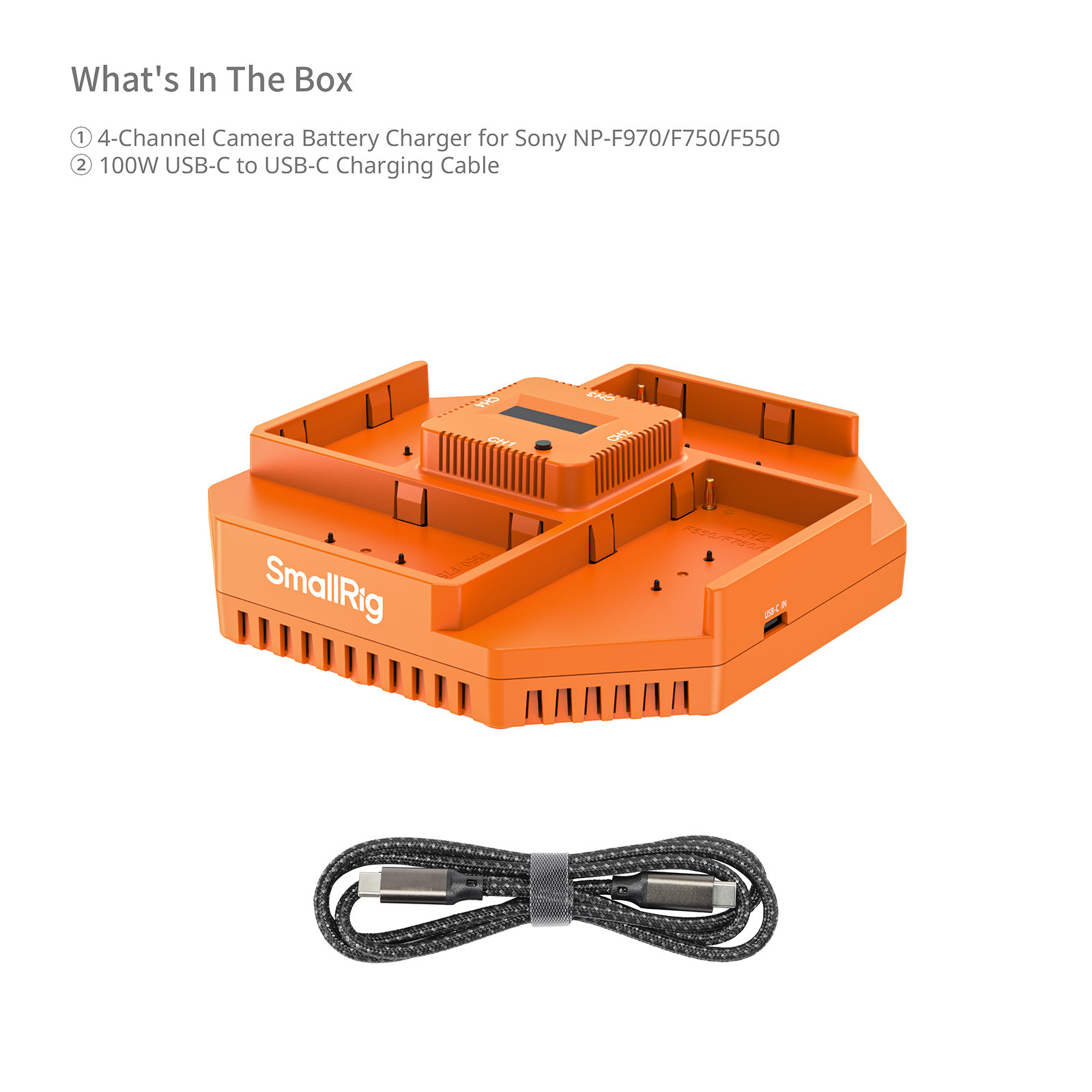

Packing List
NP-F 4-Channel Camera Battery Charger x 1
100W C-to-C Charging Cable x 1
User Manual x 1
Guarantee Card x 1
Technical Data

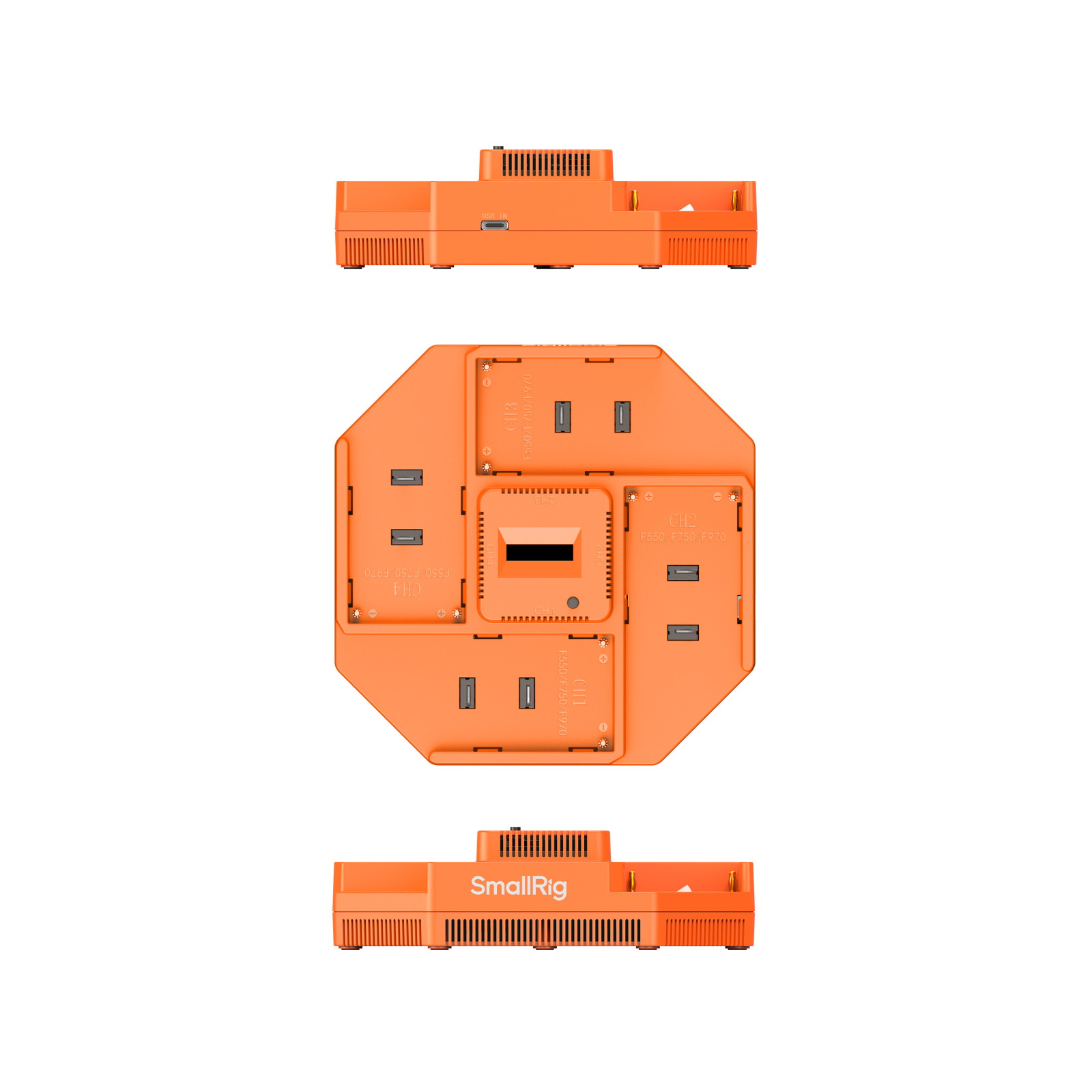

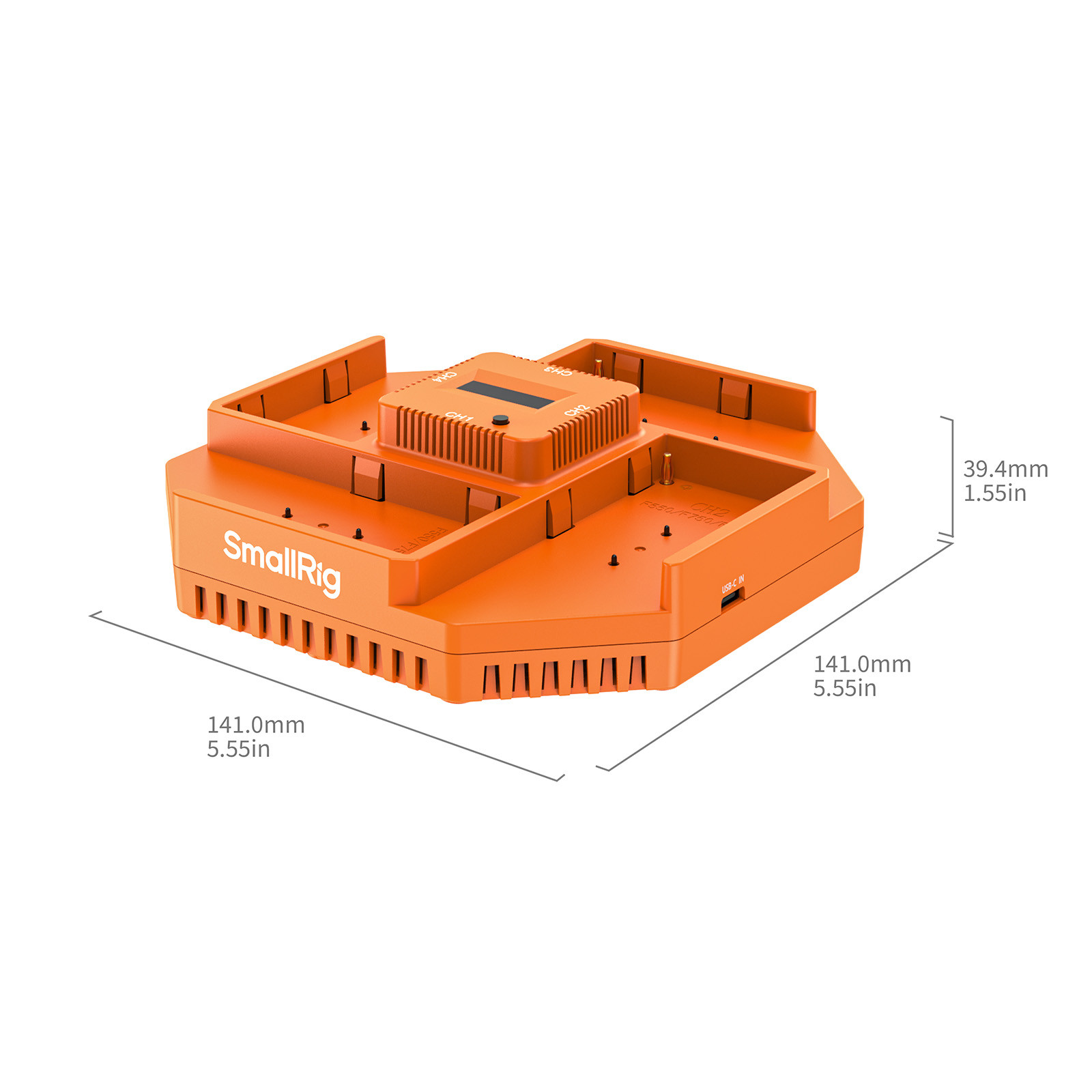

Product Dimensions: 141 × 141 × 39.4 mm / 5.55 × 5.55 × 1.55 in
Package Dimensions: 150.0 × 177.0 × 48.0 mm / 5.91 × 6.97 × 1.89 in
Product Weight: 336 ± 10 g / 11.9 ± 0.4 oz
Package Weight: 446 ± 5 g / 15.7 ± 0.2 oz
Material(s): ABS+PC
Input/Output(Per Channel):
USB-C Input: 5V⎓3A, Output 8.4V⎓1.2A×1
USB-C Input: 9V⎓3A, Output 8.4V⎓1.2A×2 or 8.4V⎓ 1.8A×1 or 8.4V⎓2.5A×1
USB-C Input: 12V⎓3A, Output 8.4V⎓1.2A×3 or 8.4V⎓1.8A×2 or 8.4V⎓2.5A×2
USB-C Input: 15V⎓3A, Output 8.4V⎓1.2A×4 or 8.4V⎓1.8A×2 or 8.4V⎓2.5A×2
USB-C Input: 20V⎓5A, Output 8.4V⎓1.2A×4 or 8.4V⎓1.8A×4 or 8.4V⎓2.5A×4
USB-C Protocol(s): PD3.0、QC 3.0
Charger Cut-Off Voltage: 8.40V
Charger Environment Temperature: 0℃ to 45℃ /32℉ to 113℉
