SmallRig Modular Cage for SIGMA fp CCM2712

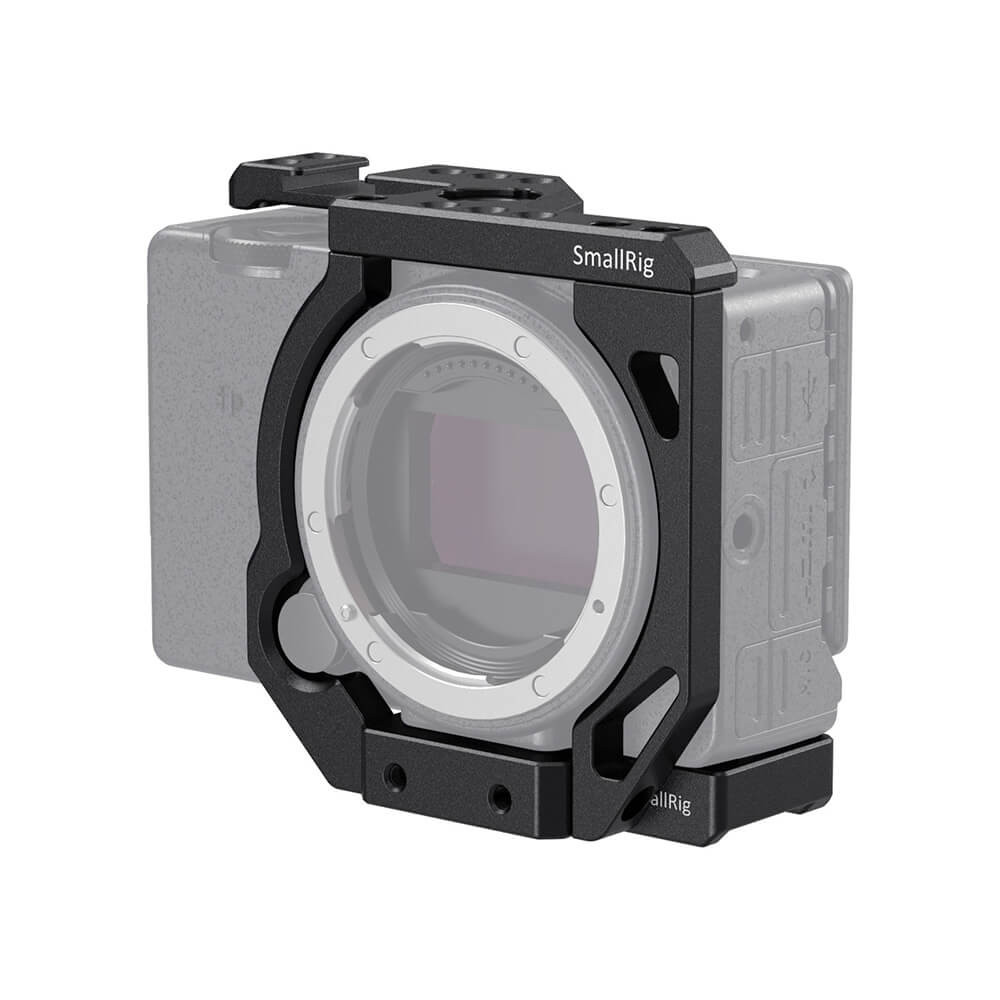

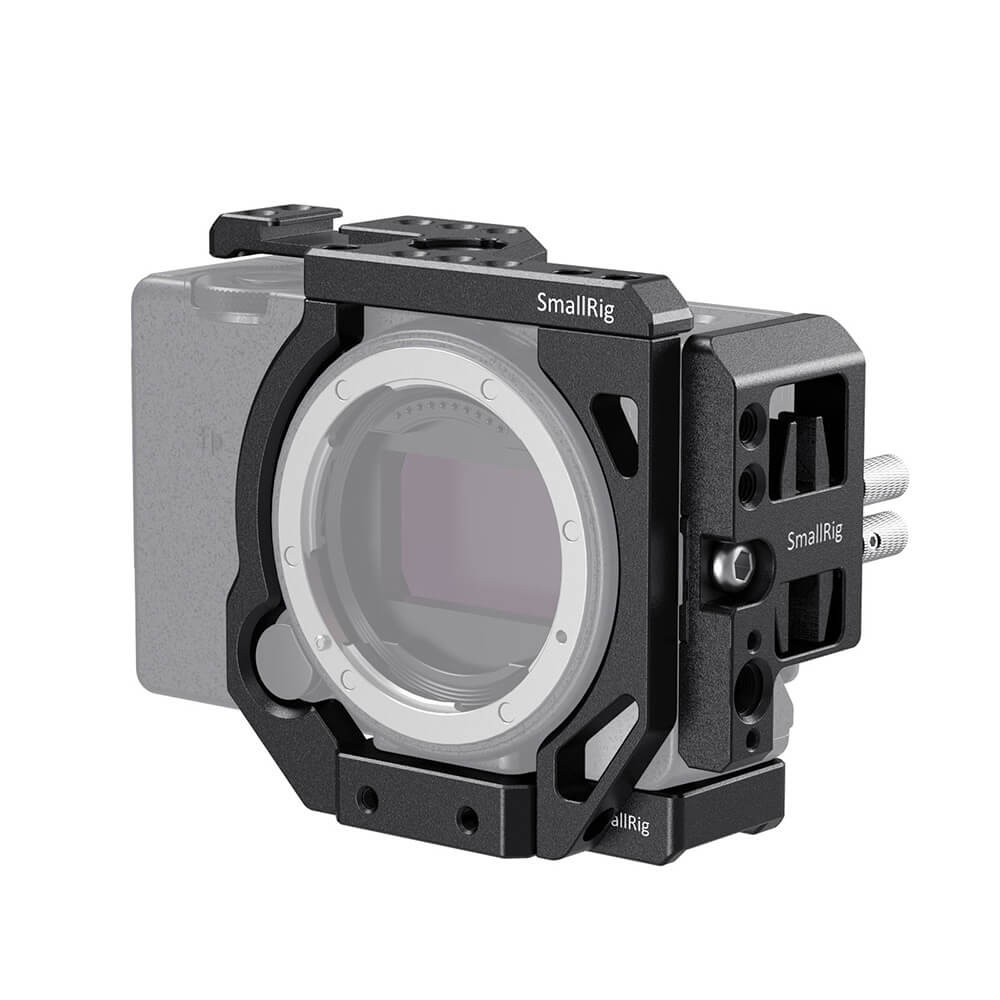

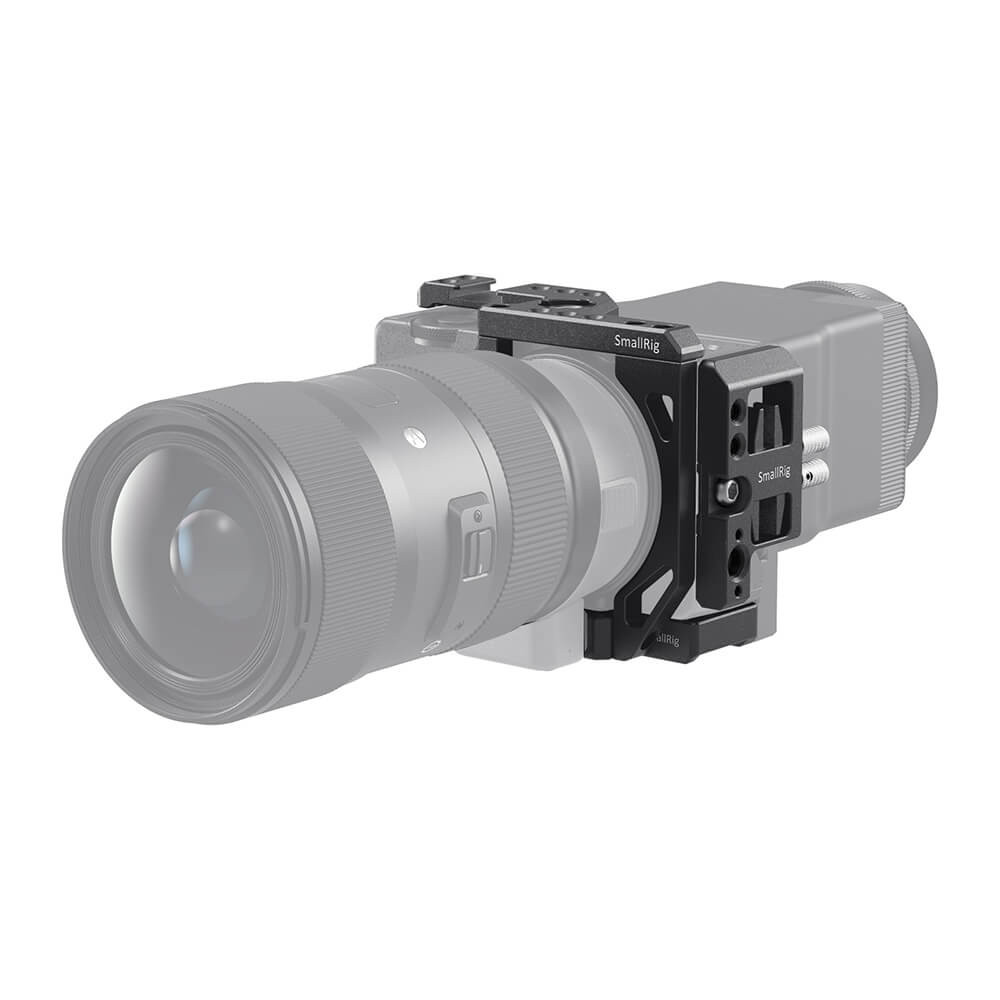

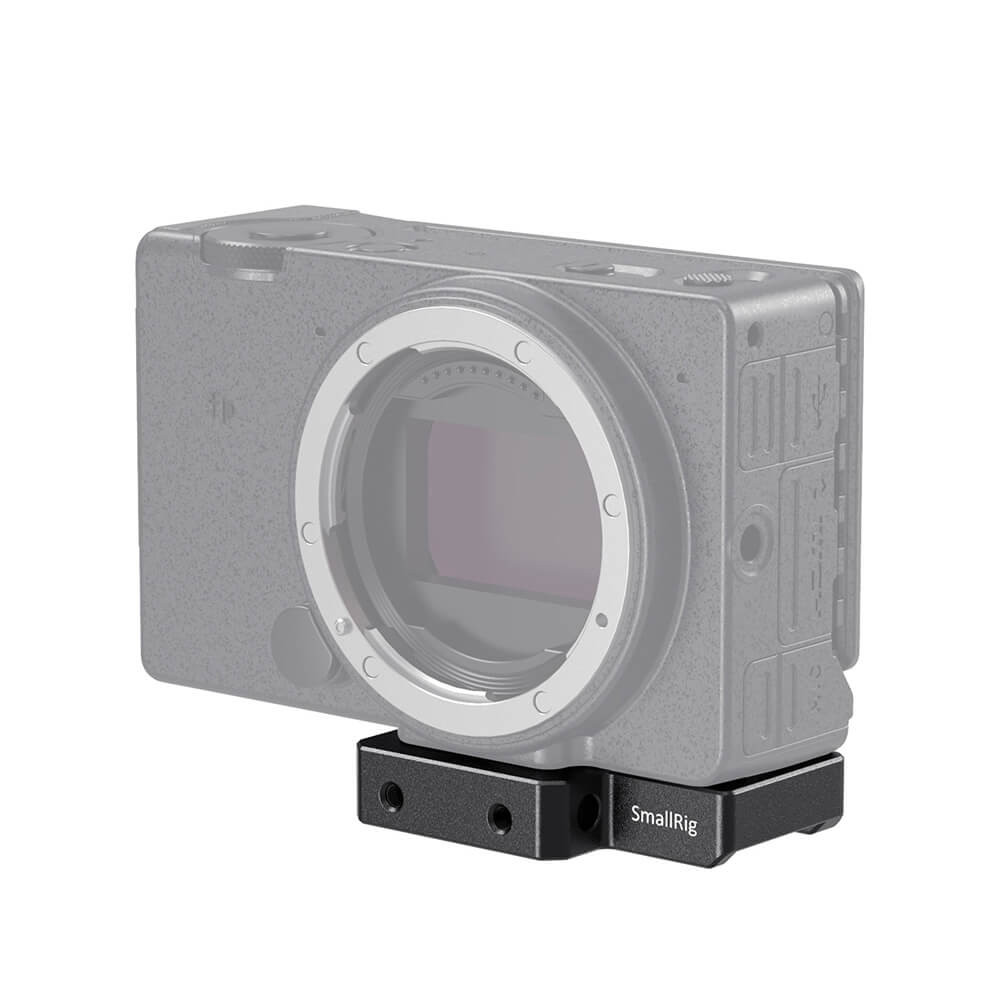

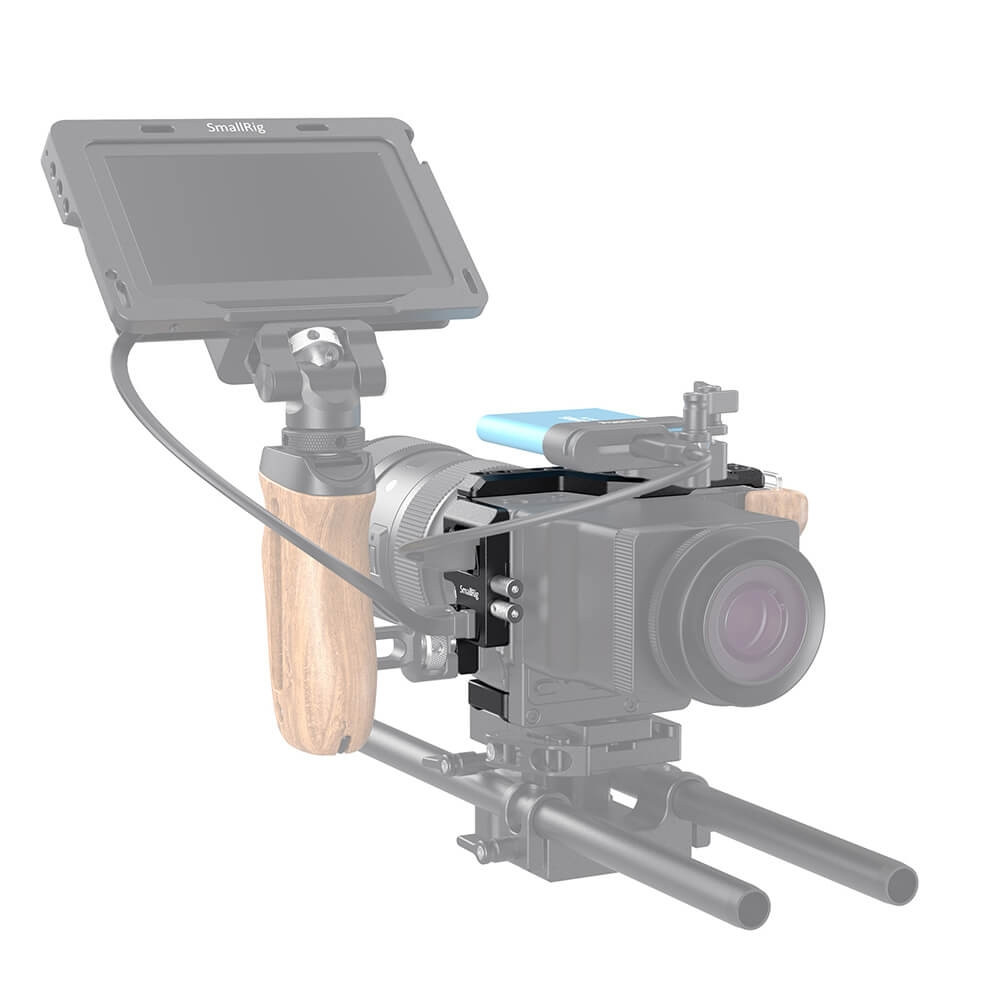

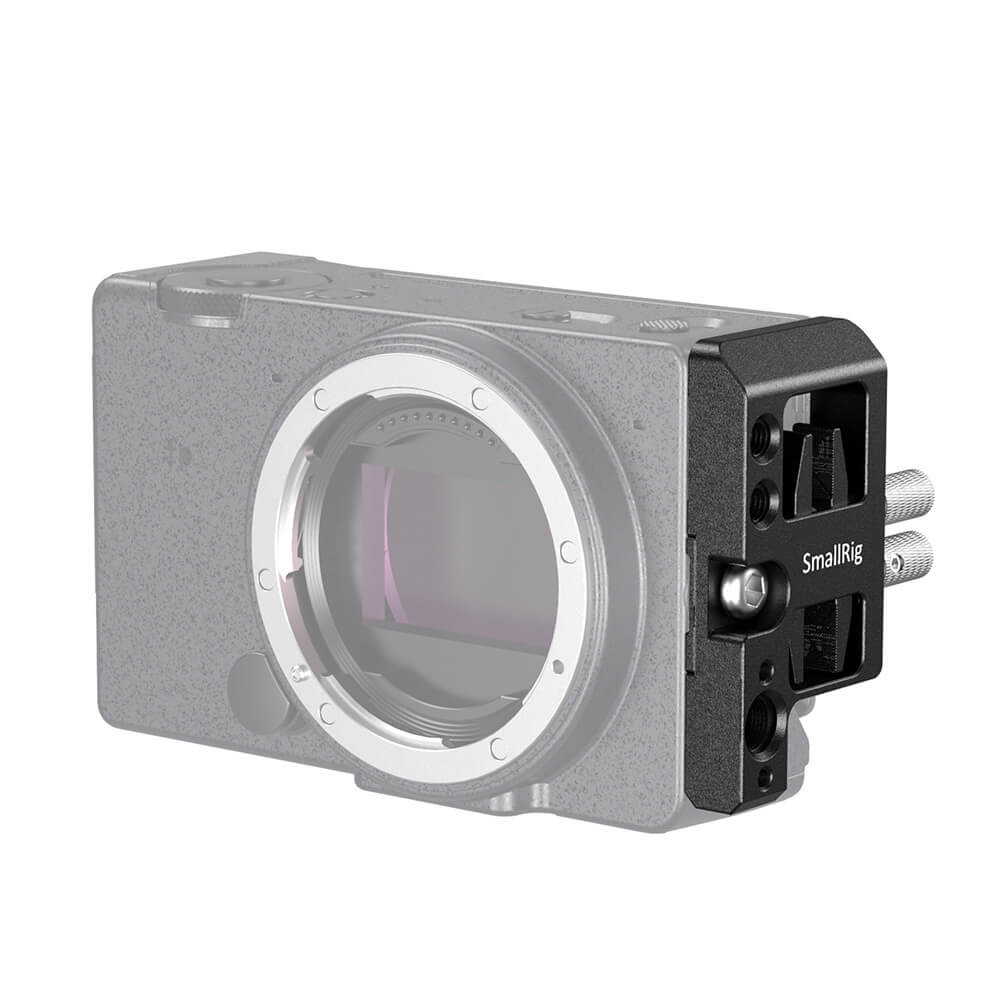

SmallRig Modular Cage for SIGMA fp CCM2712 is designed to provide protection and accessory mounts for Sigma fp. The cage mainly includes a side plate, top plate and bottom plate. The side plate and bottom plate secure to the camera with 1/4”-20 screw and an anti-twist pin for further secure to prevent twisting. The top plate connects to the bottom plate via two m3 screws directly. Featuring multiple 1/4”-20, and ARRI 3/8”-16 accessory threads allows to mount Top Handle 2165, SSD Mount 2343, Monitor Mount BSE2348 and Lens Adapter Support BSA2650. The side plate features integrated HDMI and USB cable clamps to protect your cables. There is a cold shoe on the top plate for microphone and light. A flat head screwdriver is included to secure the camera screw and stores on the bottom of the cage. Besides, the cage is compatible with the Sigma LVF-11 LCD Viewfinder and maintains access to the dummy battery cable on the right side. Optional Side Plate APS2672, Bottom Plate APB2673 and Top Plate with Bottom Plate Kit APT2671 are sold separately.
Key Features
1.Modular Cage Designed for SIGMA fp Camera
2.Multiple 1/4"-20 & ARRI 3/8”-16 Accessory Threads
3.Integrated Cold Shoe Mount for Mic or Light
4.Clamps Both HDMI and USB Cables on the Left Side
5.Built-in Flat-Head Screw Driver
6.Compatible with Sigma LVF-11 LCD Viewfinder
Work With
Sigma fp

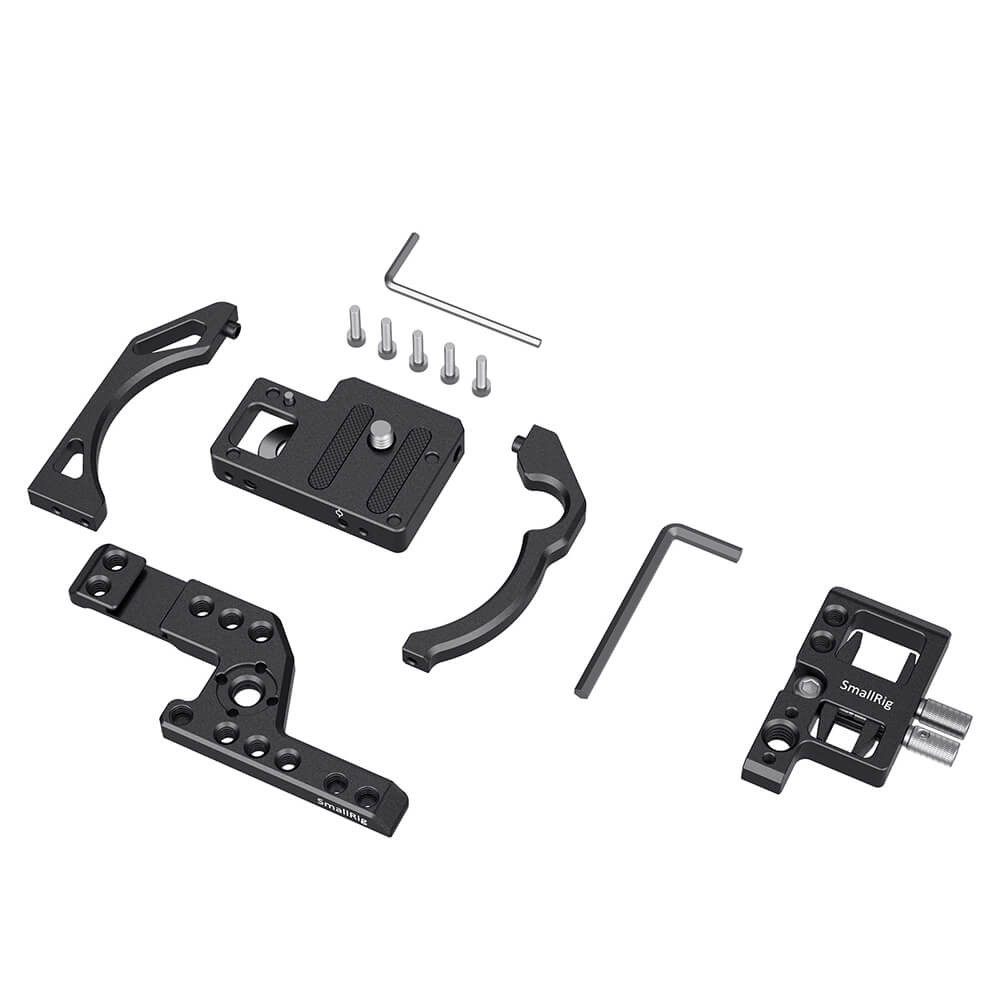

Packing List
1 x Top Plate and Bottom Plate
1 x Left Side Plate
2 x Hex Spanner
5 x M3 Screw
1 x 1/4”-20 Screw
Technical Data

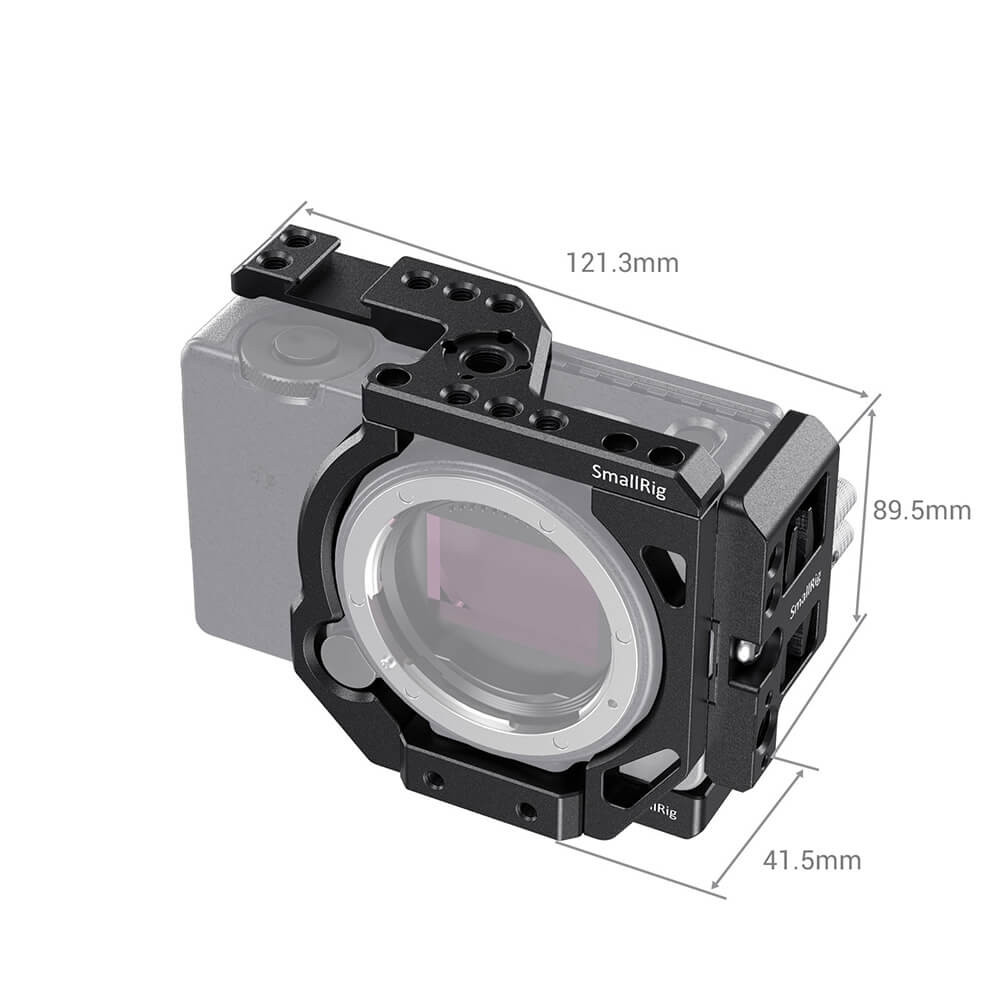

Product Dimensions: 89.5 x 111.5 x 41.5mm
Package Dimensions: 120 x 100 x 40mm
Net Weight: 185g
Package Weight: 230g
Material(s): Aluminum Alloy
