SmallRig Bottom Plate for Sigma fp Camera APB2673

SmallRig Bottom Plate for Sigma fp Camera APB2673

1.Bottom Plate for Sigma fp Camera

2.4 x 1/4"-20 Accessory Threads

3.Built-in Flat-Head Screw Driver

4.Compatible with Sigma LVF-11 LCD Viewfinder

5.Compatible with Lens Adapter Support BSA2650

6.Locks Camera with 1/4"-20 and Locating Pin to Prevent Twisting

$19.90
Sku APB2673
EAN 6972070629136

Availability: Discontinued Item

This product has been viewed 655 times

Product Description



SmallRig Bottom Plate for Sigma fp Camera APB2673

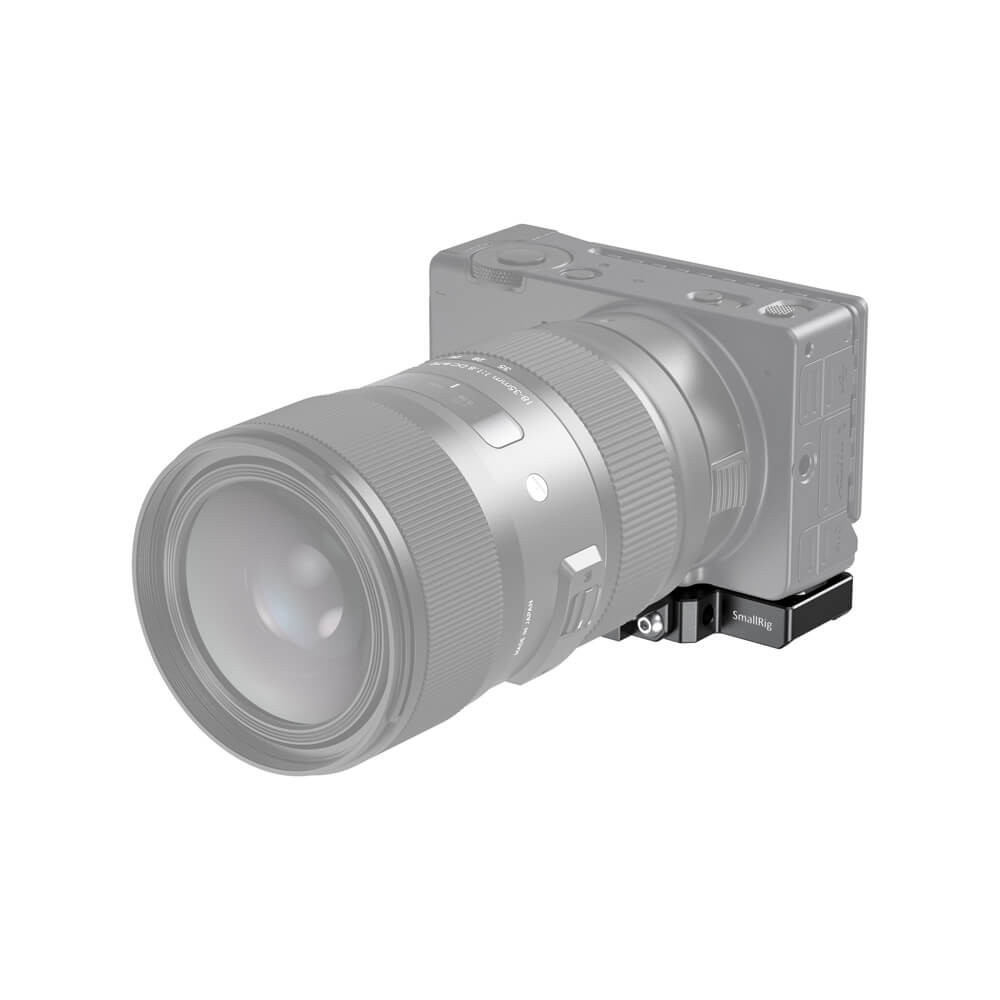

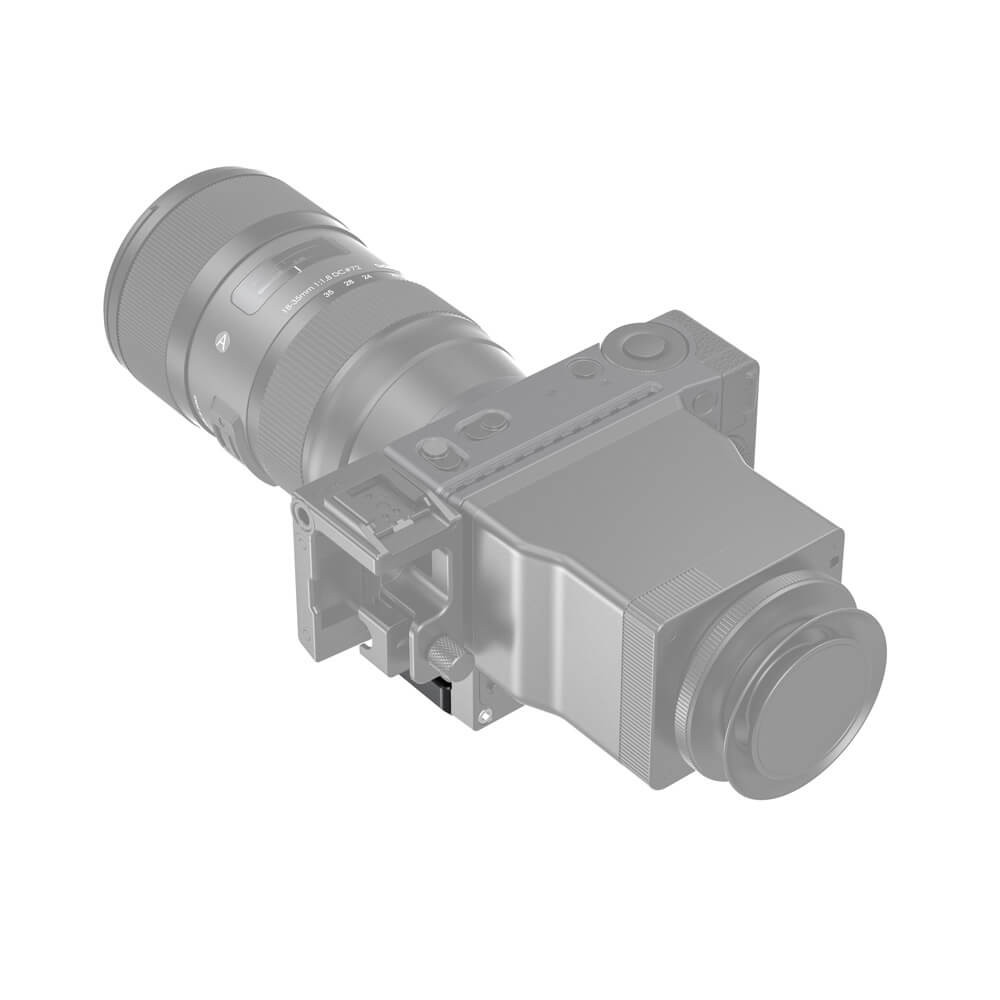

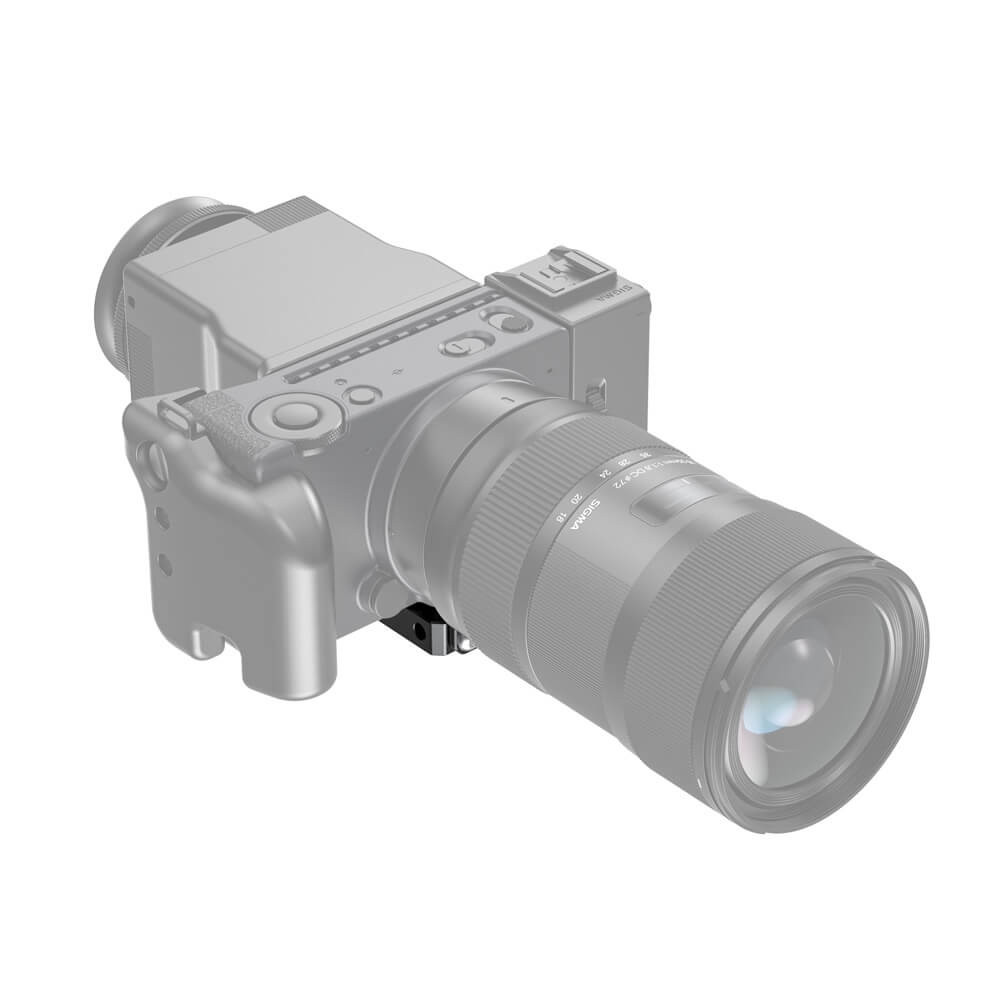

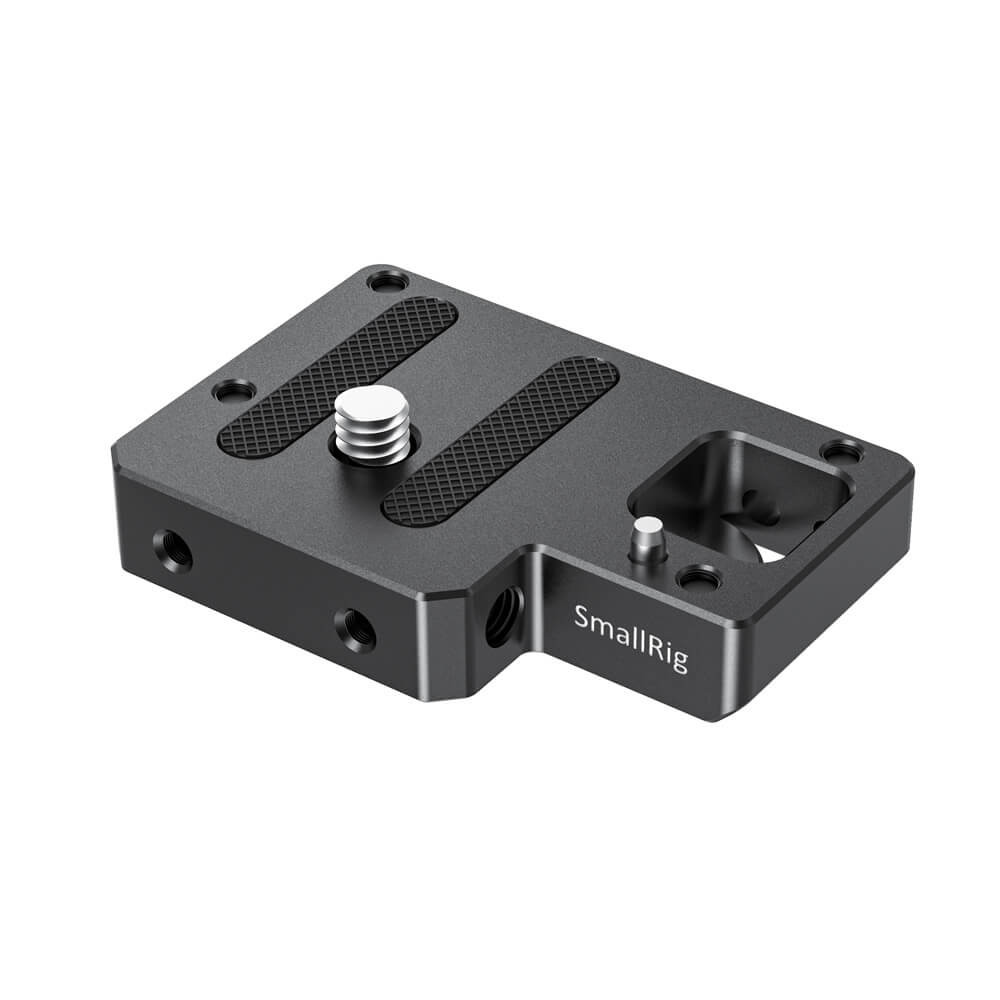

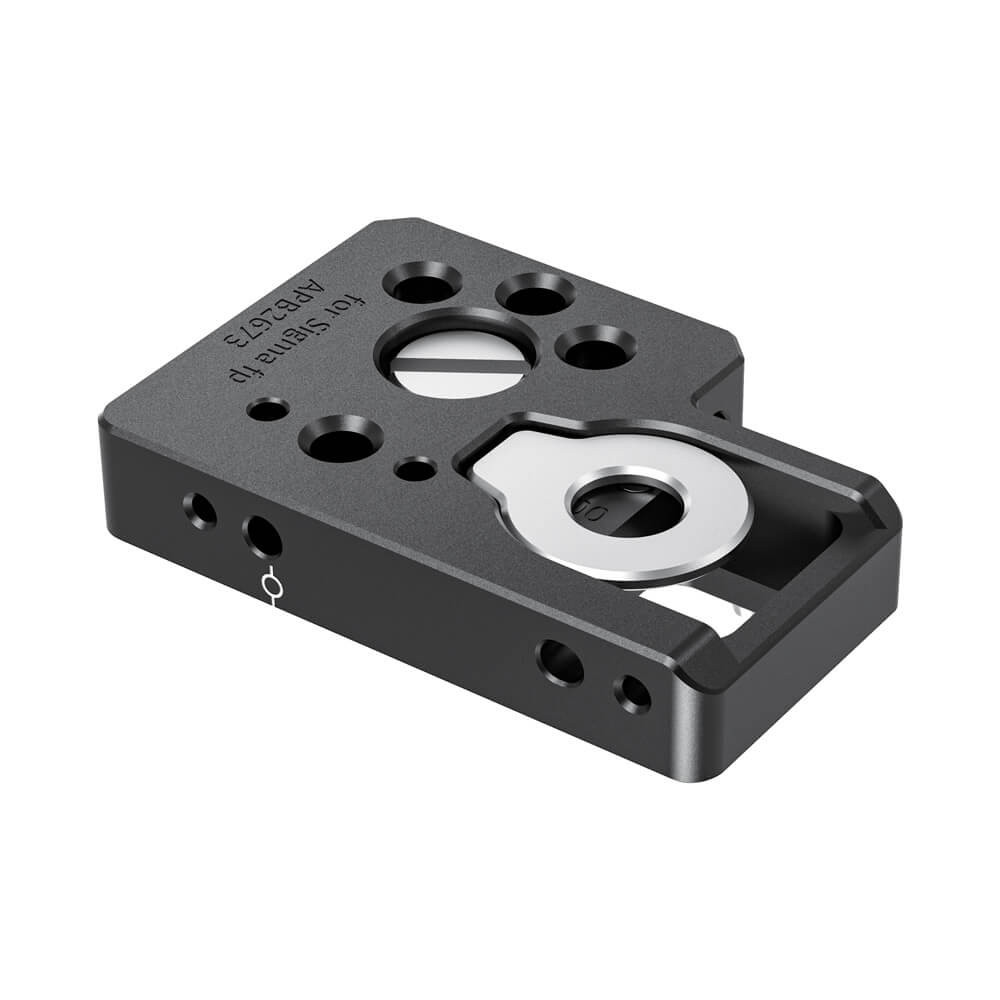

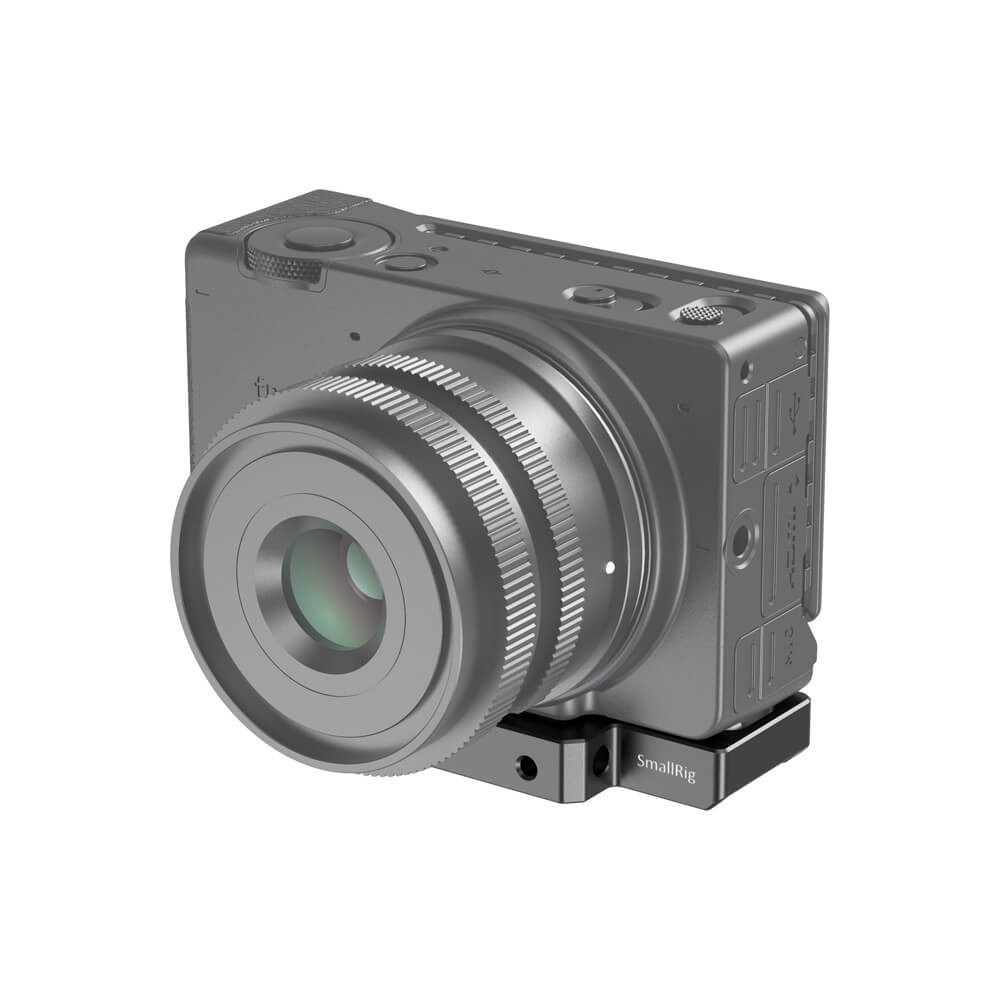

SmallRig Bottom Plate for Sigma fp Camera APB2673 is designed to provide accessory mounts on the bottom of Sigma fp. The plate secures to camera with a 1/4”-20 screw and locating pin on the bottom to prevent twisting. Featuring four 1/4”-20 accessory threads on the bottom to attach Arca or Manfrotto camera plate such as APU2389, APU2458 and 1280. The plate features two M3 threads on the back which is compatible with Sigma LVF-11 LCD Viewfinder, and comes with two M4 threads in front for optional Lens Adapter Support BSA2650. Each side features a M3 threaded hole for mounting the Top Plate Kit APT2671 (includes a top plate and bottom plate). The bottom features a built-in flat-head screw driver for quick installation.


Note: The 1/4”-20 locating hole on the bottom is for SmallRig support handle which is coming soon.



Key Features

1.Bottom Plate for Sigma fp Camera

2.4 x 1/4"-20 Accessory Threads

3.Built-in Flat-Head Screw Driver

4.Compatible with Sigma LVF-11 LCD Viewfinder

5.Compatible with Lens Adapter Support BSA2650

6.Locks Camera with 1/4"-20 and Locating Pin to Prevent Twisting

Work With

Sigma fp Camera

Packing List

1 x Bottom Plate

Technical Data

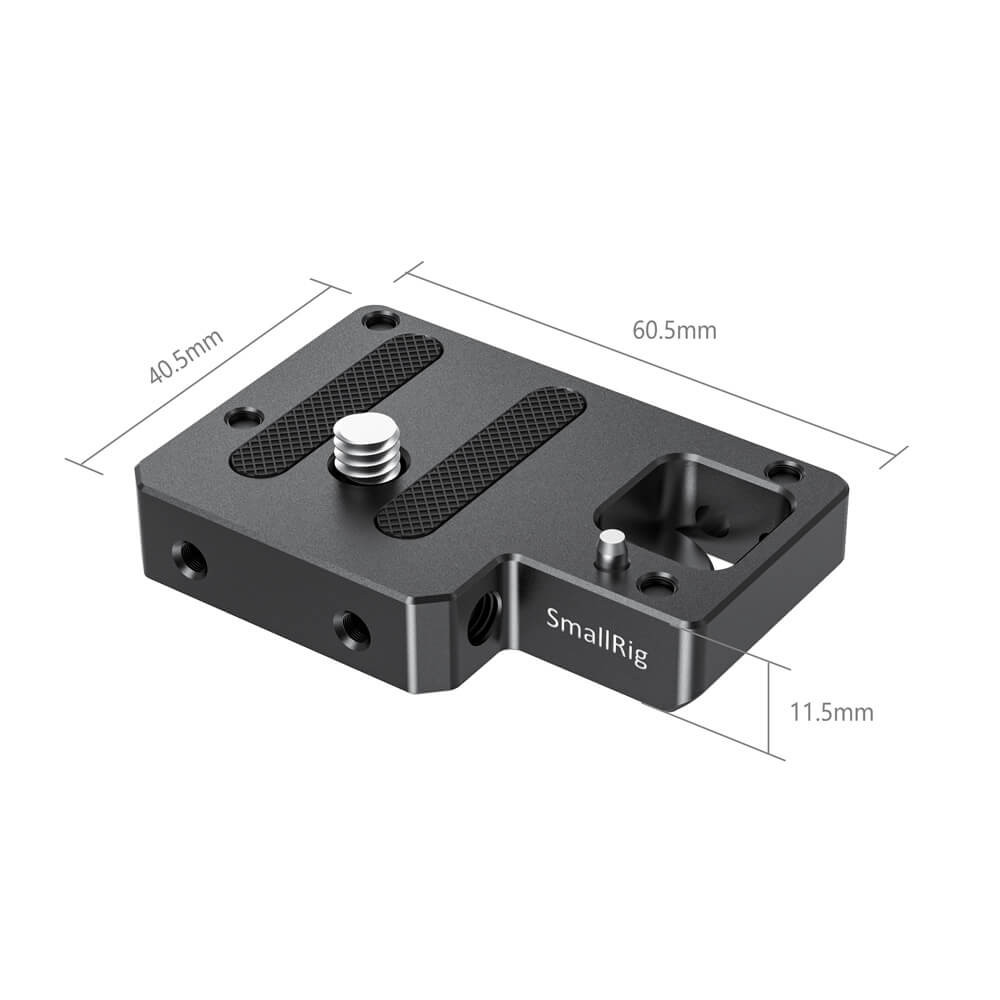

Product Dimensions: 41.5x 60.5x11.5mm

Package Dimensions: 76 x 63x 40mm

Net Weight: 59g

Package Weight: 79g

Material(s): Aluminum Alloy
