SmallRig Cage for Panasonic S1/S1R with DMW-BGS1 Battery Grip CCP2410

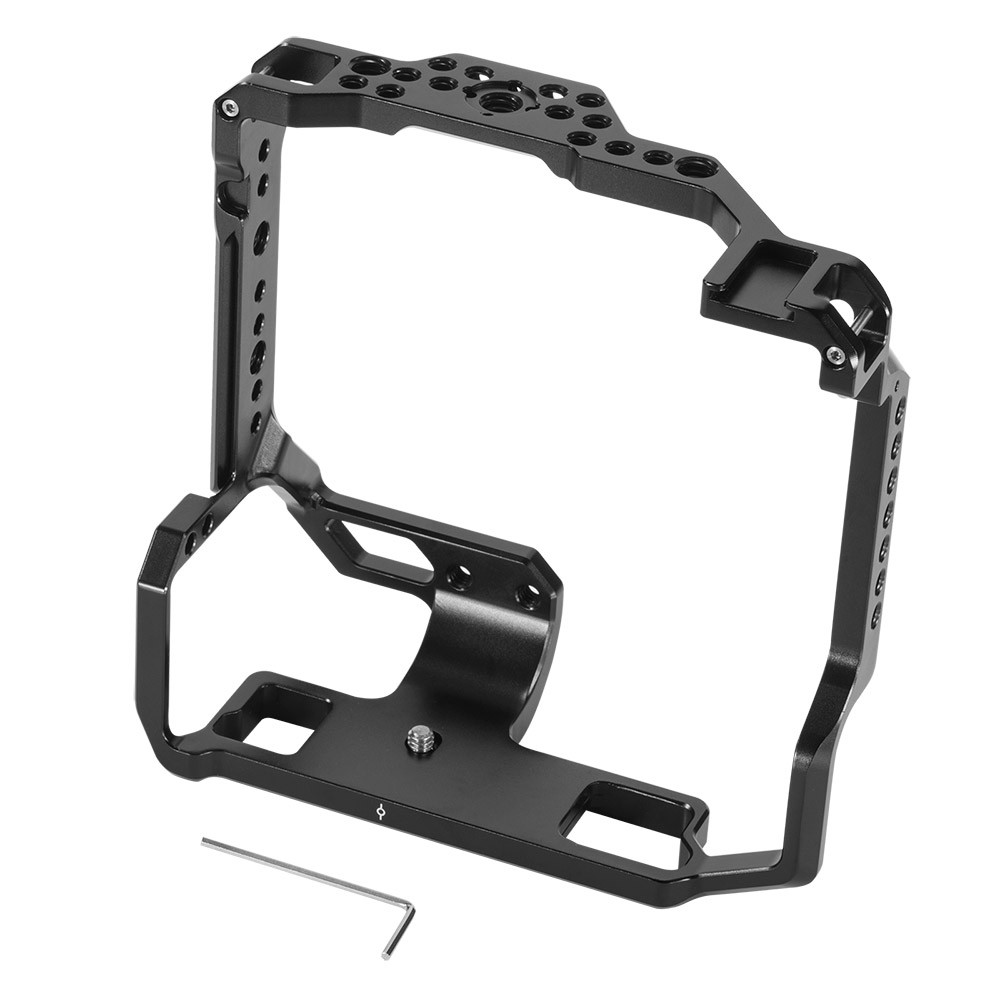

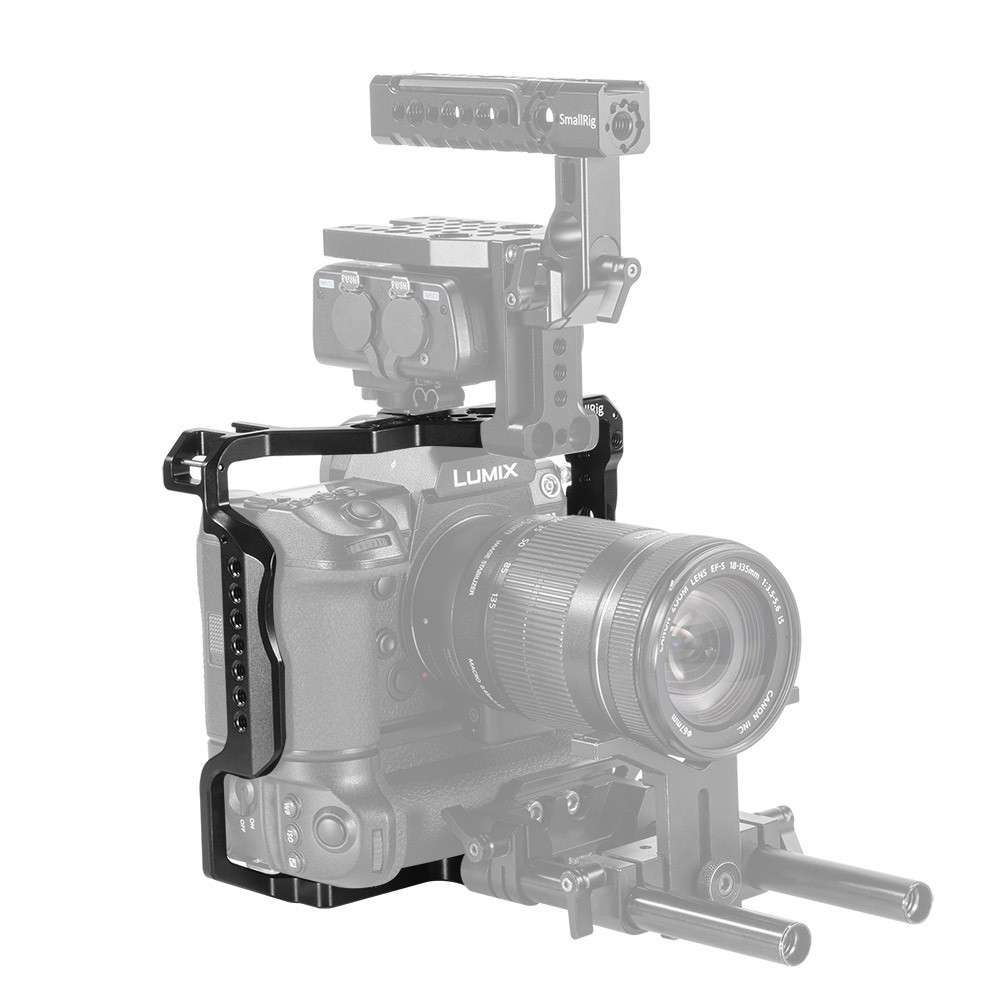

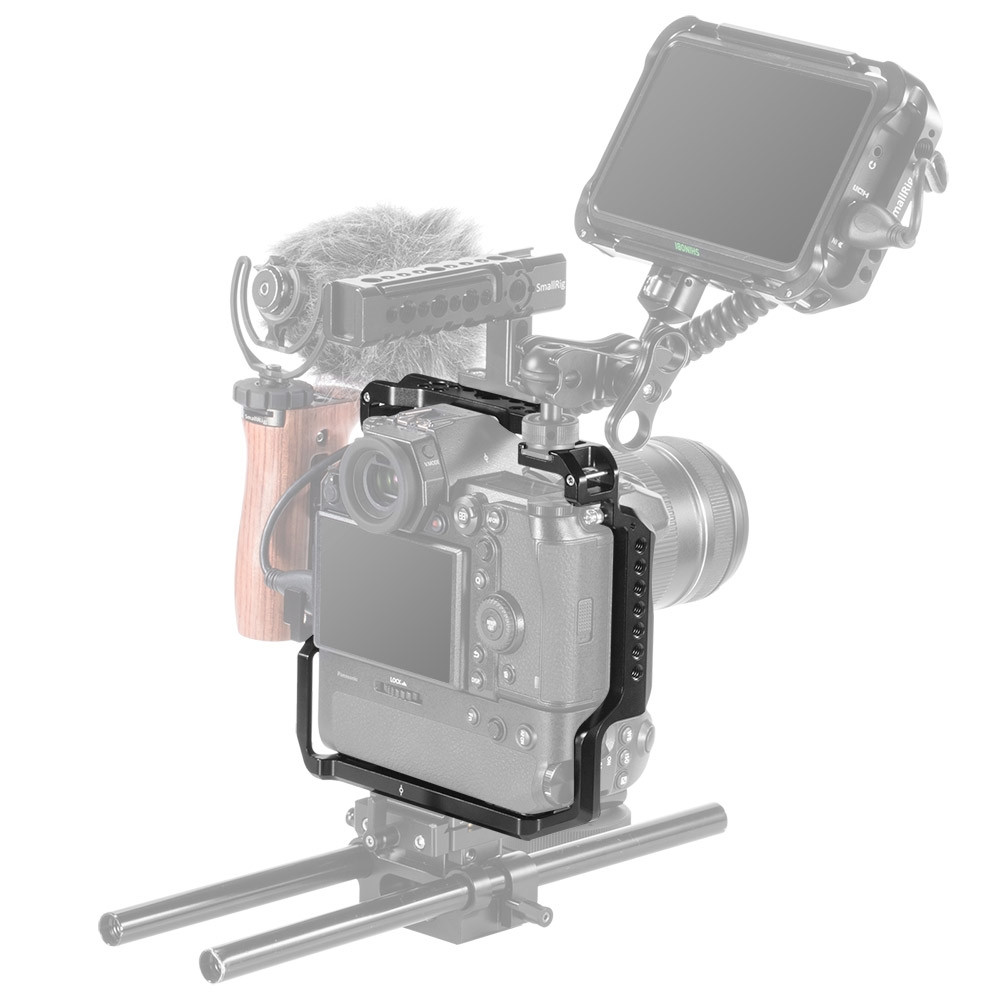

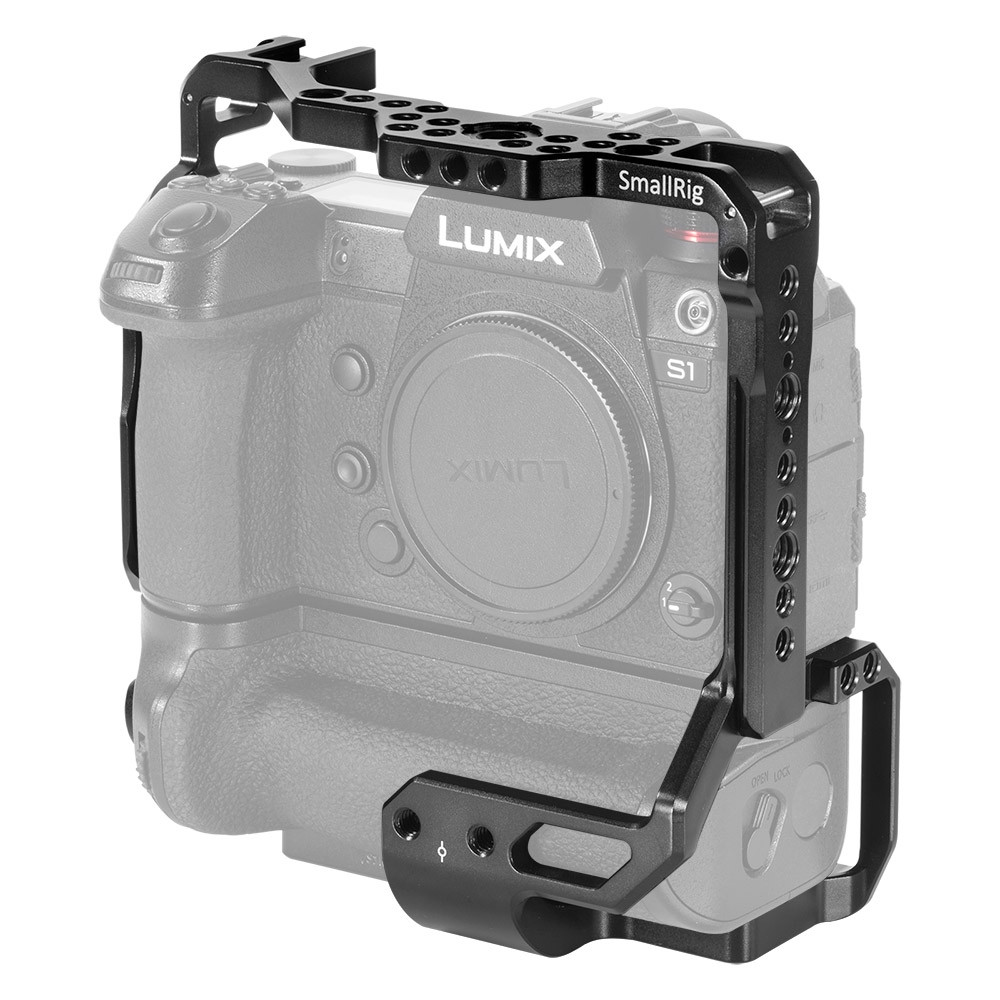

SmallRig Cage for Panasonic S1/S1R with DMW-BGS1 Battery Grip CCP2410 is designed to provide protection and mounting threads for accessories such as monitor, microphone and light. The cage secures to the bottom of camera and features a m2.5 threads as a second lock point on the right side to prevent the camera from twisting. The cage features multiple 1/4”-20, 3/8”-16 and arri 3/8”locating holes for accessory attachment, which allows you to mount accessories such as Top Handle 2165 and Monitor Mount 2294. It integrates with a cold shoe for microphone and a nato rail on the left for Nato Handle 2187 and Magic Arm 2116. Additionally, the cage features strap slot each side for carry strap. The built-in flat screw driver on the bottom allows to install and release your camera in seconds. Optional HDMI Cable Clamp 1693 are provided to protect the HDMI cable and Rod Clamp 1943 allows for mounting 15mm LWS system for Lens Support 2152 and follow focus. The cage is also compatible with XLR Helmet Kit 2367 to protect the Panasonic DMW-XLR1 XLR Microphone Adapter. The 1/4”-20 threads in front of the cage allows to mount 15mm Rod 915 for follow focus.
Note：Please take off the strap ring on the left of the camera to install the cage.
Key Features
1. For Panasonic S1/S1R with DMW-BGS1 Battery Grip
2. 1/4"-20 & 3/8"-16 & Arri 3/8”Accessory Threads

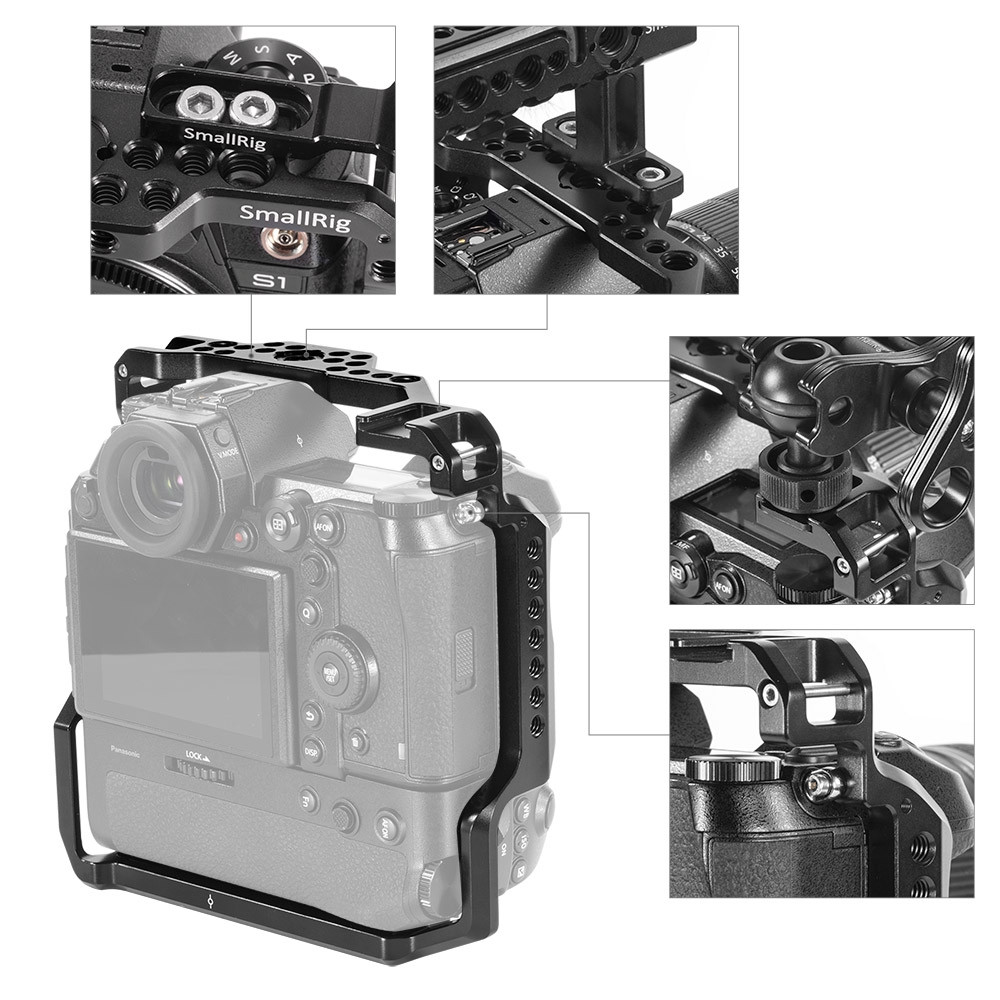

3. Integrated Cold Shoe Mounts and Nato Rail
4. Secures to the Bottom and Side of the Camera to Prevent Twisting

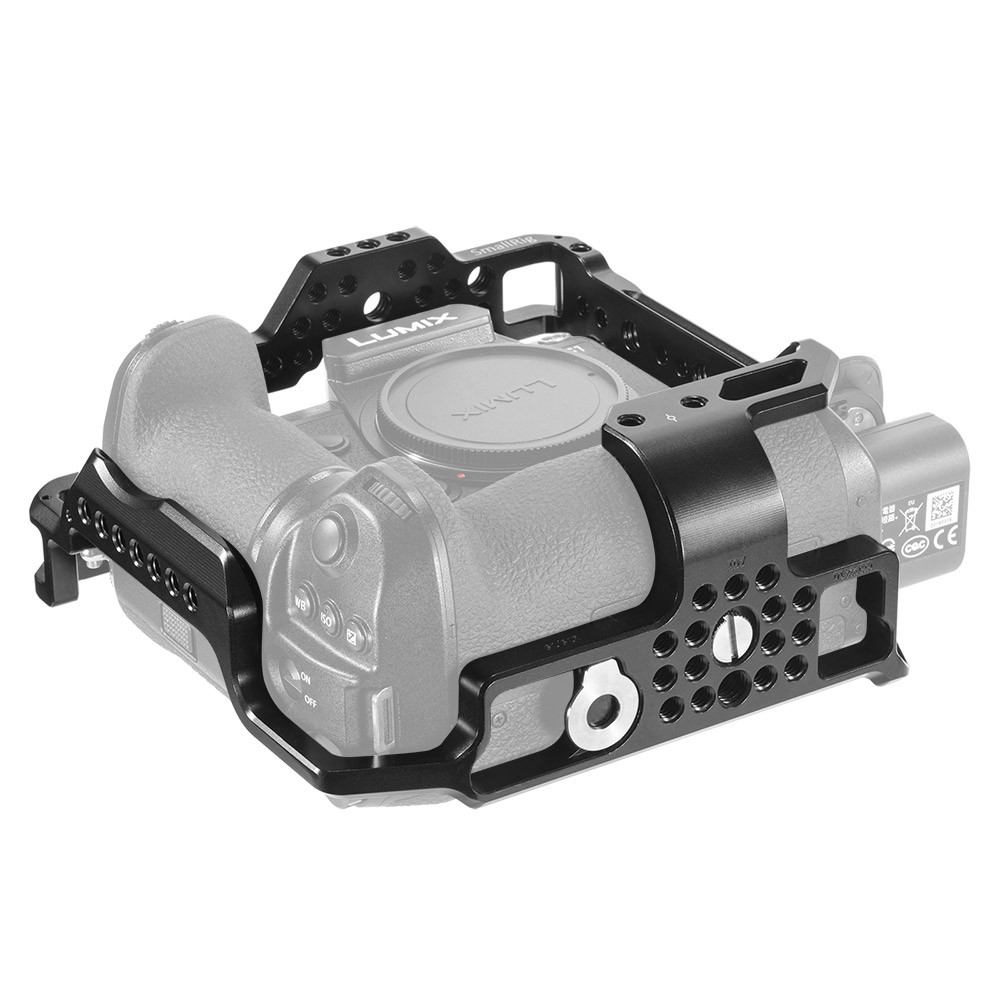

5. Built-in Flat Screw Driver on the Bottom

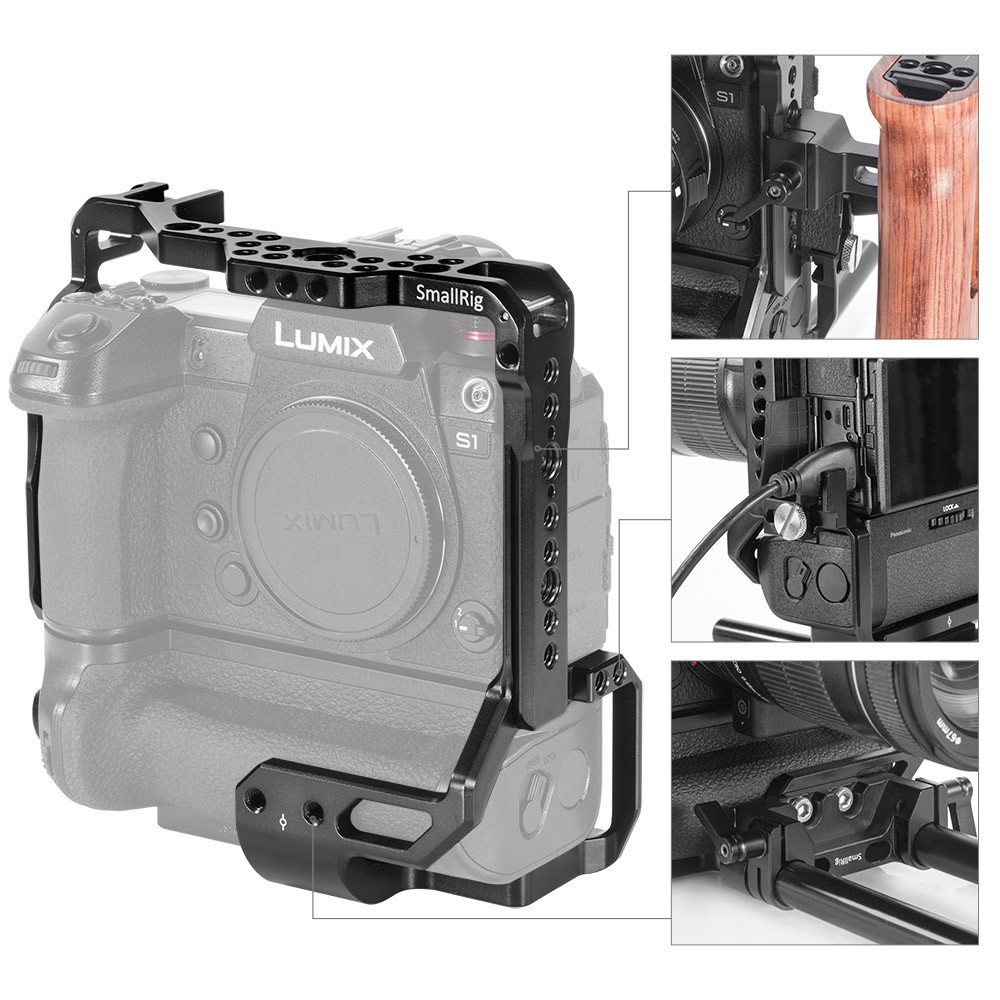

6. Optional Cable Clamp 1693, Rod Clamp 1943 and XLR Helmet Kit 2367
Work With
Panasonic S1/S1R with DMW-BGS1 Battery Grip
Packing List
1 x Cage
1 x M2.5 Screw
1 x Hex Spanner
Technical Data

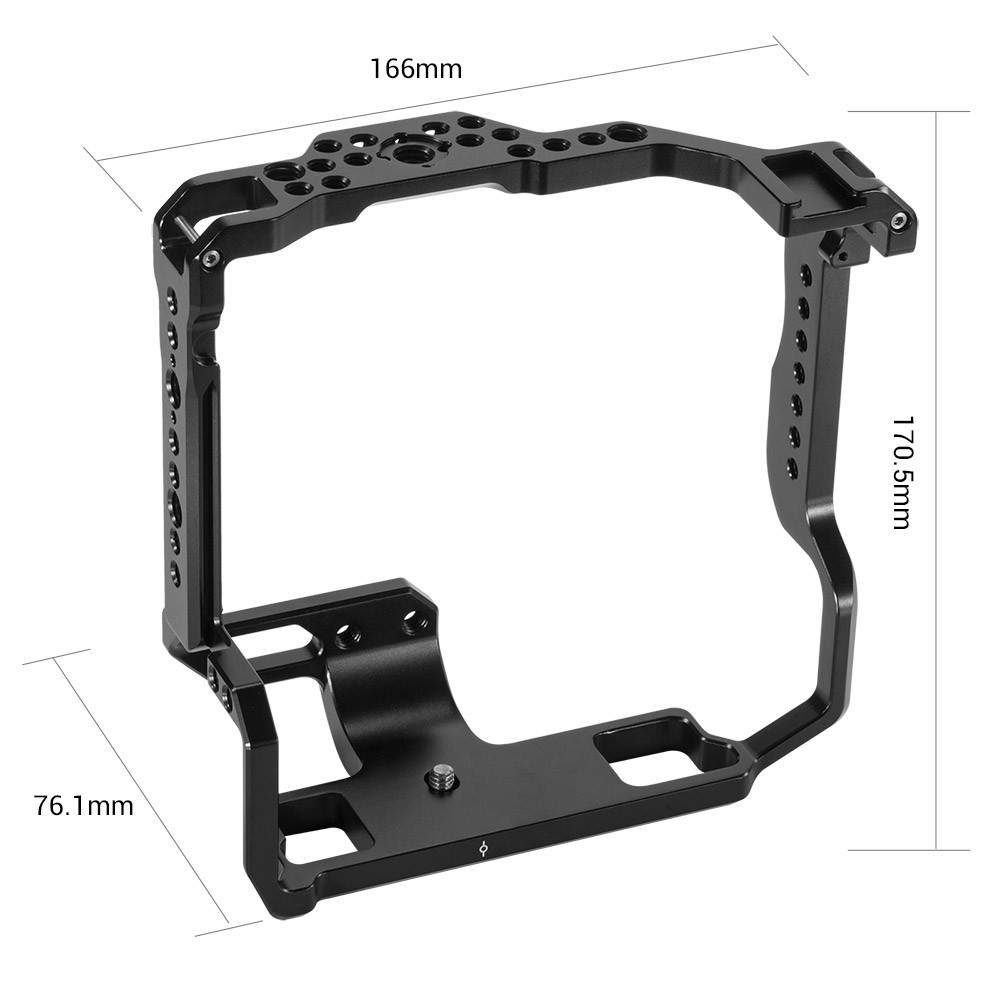

Product Dimensions: 166 x 170.50x 76.10mm
Package Dimensions: 180 x 180 x 80mm
Net Weight: 292g
Package Weight: 422g
Material(s): Aluminum Alloy
