SmallRig Cage for Panasonic Lumix DC-S1 and S1R CCP2345

SmallRig Cage for Panasonic Lumix DC-S1 and S1R CCP2345
$89.00
Sku CCP2345

Availability: In stock 10

This product has been viewed 88 times

Product Description

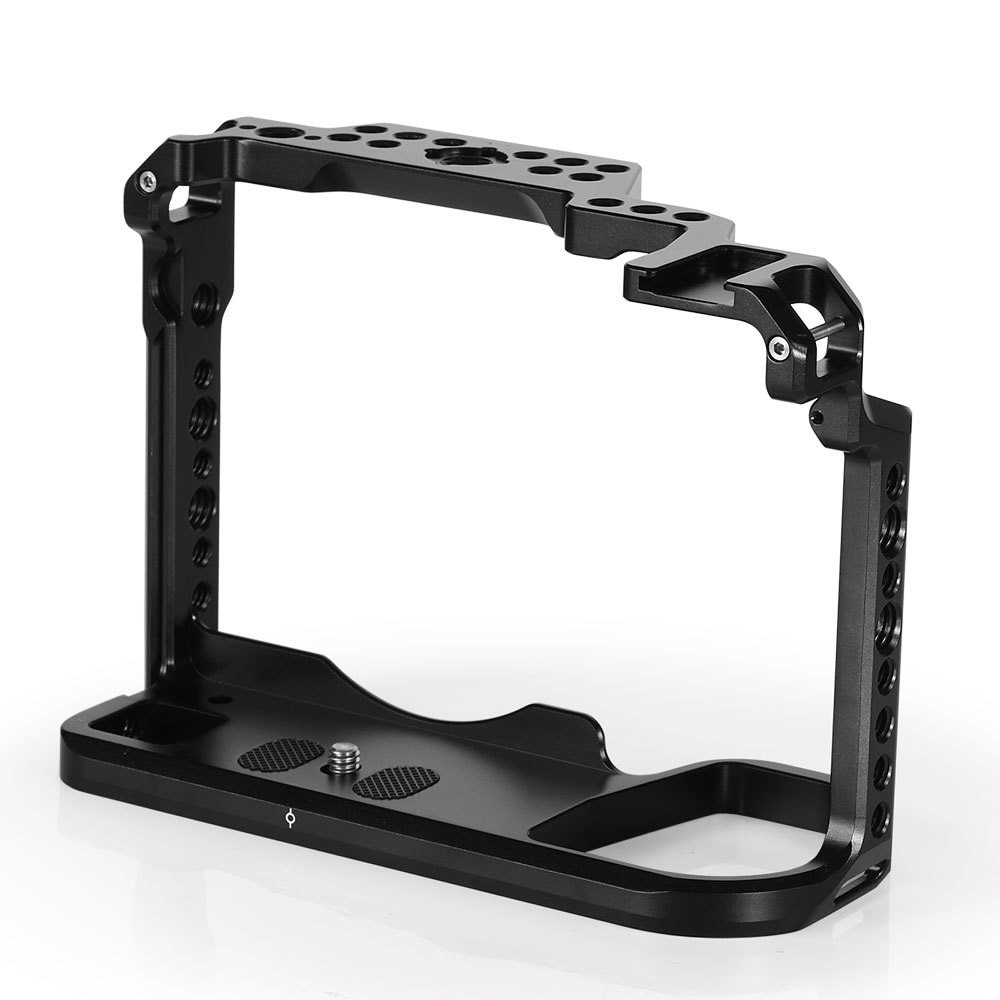

SmallRig Cage for Panasonic Lumix DC-S1 and S1R CCP2345

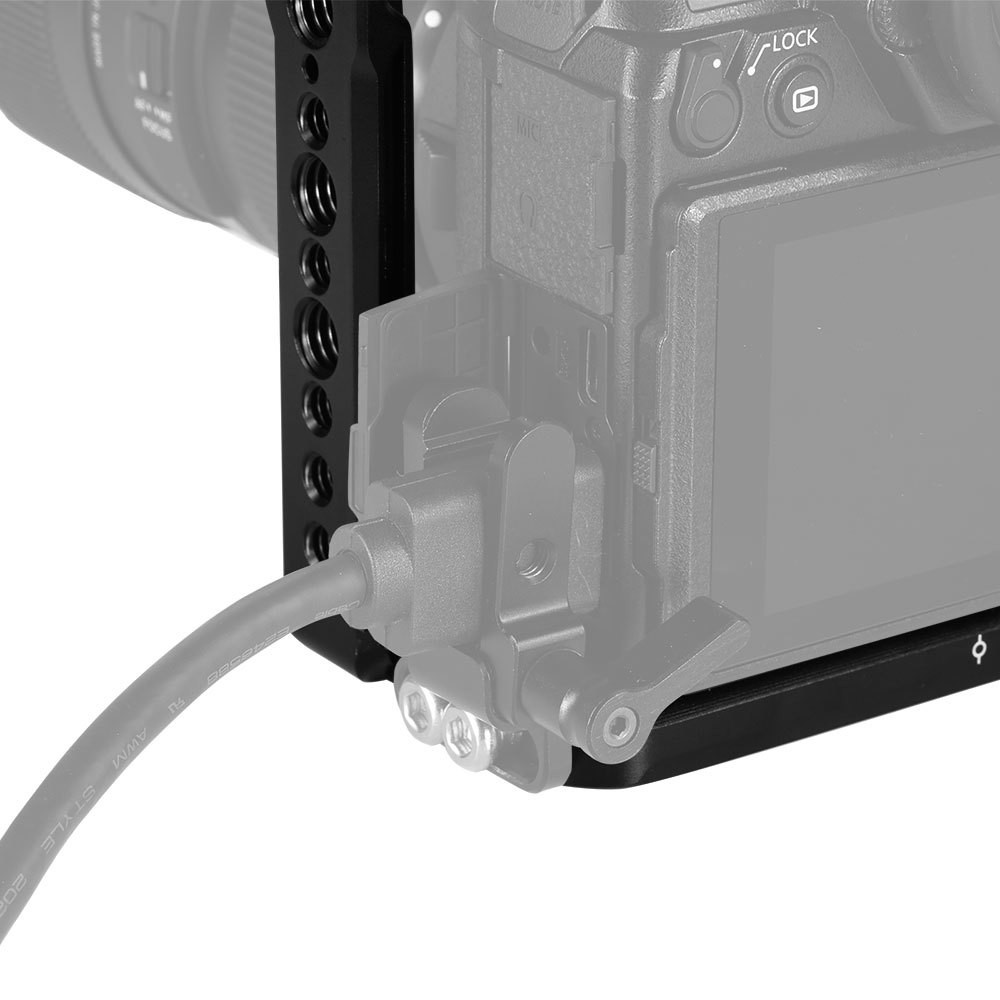

SmallRig Cage for Panasonic Lumix DC-S1 and S1R CCP2345 is designed to provide protection and mounting threads for accessories such as to monitor, microphone, and light. It secures the camera via a 1/4"-20 screw on the bottom and an M2.5 screw on the side to prevent twisting. The cage features multiple 1/4”-20 and ARRI 3/8”-16 locating holes for accessory attachment, which allows you to mount accessories like Top Handle 2165 and Monitor Mount 2294. It integrates with a cold shoe for microphone and features a NATO rail on the left for NATO Handle 2187 and Magic Arm 2116. Additionally, the cage features strap slots on both sides for carrying the strap. The bottom of the cage provides 3/8”-16 and 1/4”-20  threads for tripod plates and a built-in flat head screw driver for quick installation. Optional HDMI Cable Clamp 1679 and XLR Top Handle 3082 is separately available to protect HDMI cable and Panasonic DMW-XLR1.

Note: 1.Please take off the strap ring on the right side of the camera to install the cage.

*Please note the import tax may occur.

Key Features

1. Form-fitted full cage for Panasonic S1 and S1R

2. Integrated 1/4"-20 & ARRI 3/8"-16 accessory threads

3. Built-in cold shoe mount and NATO rail

4. Secures to the camera via 1/4"-20 screw and M2.5 screw to prevent twisting

5. Built-in flat-head screwdriver on the bottom

Work With

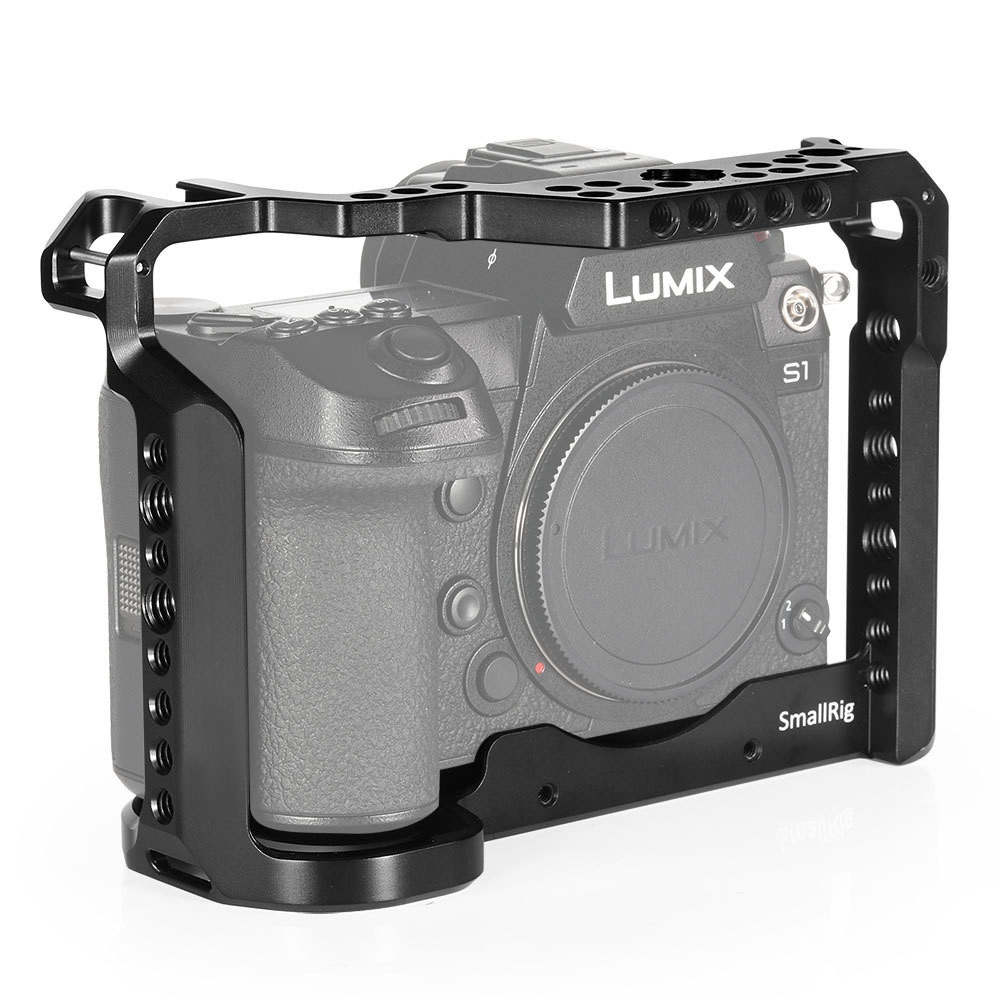

Panasonic Lumix DC-S1 and S1R

Packing List

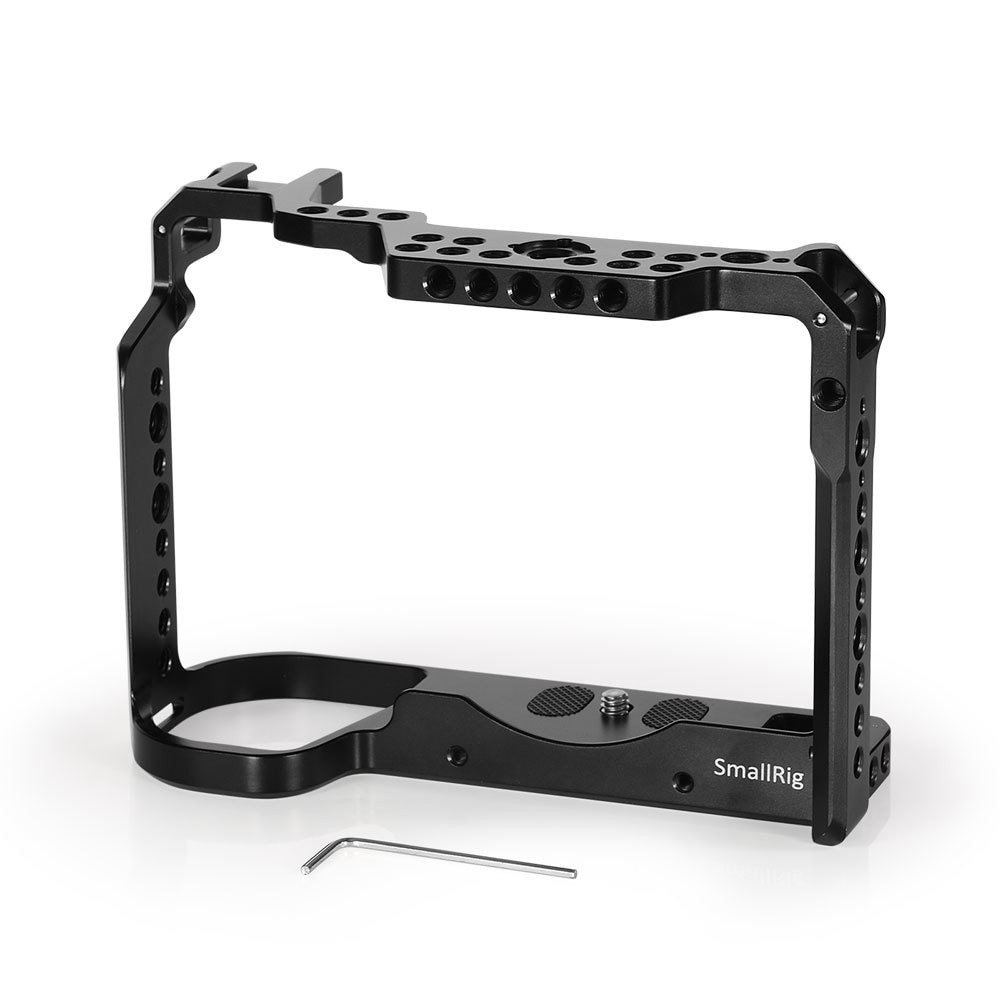

1 x Cage

1 X M2.5 Screw

1 x Hex Spanner

Technical Data

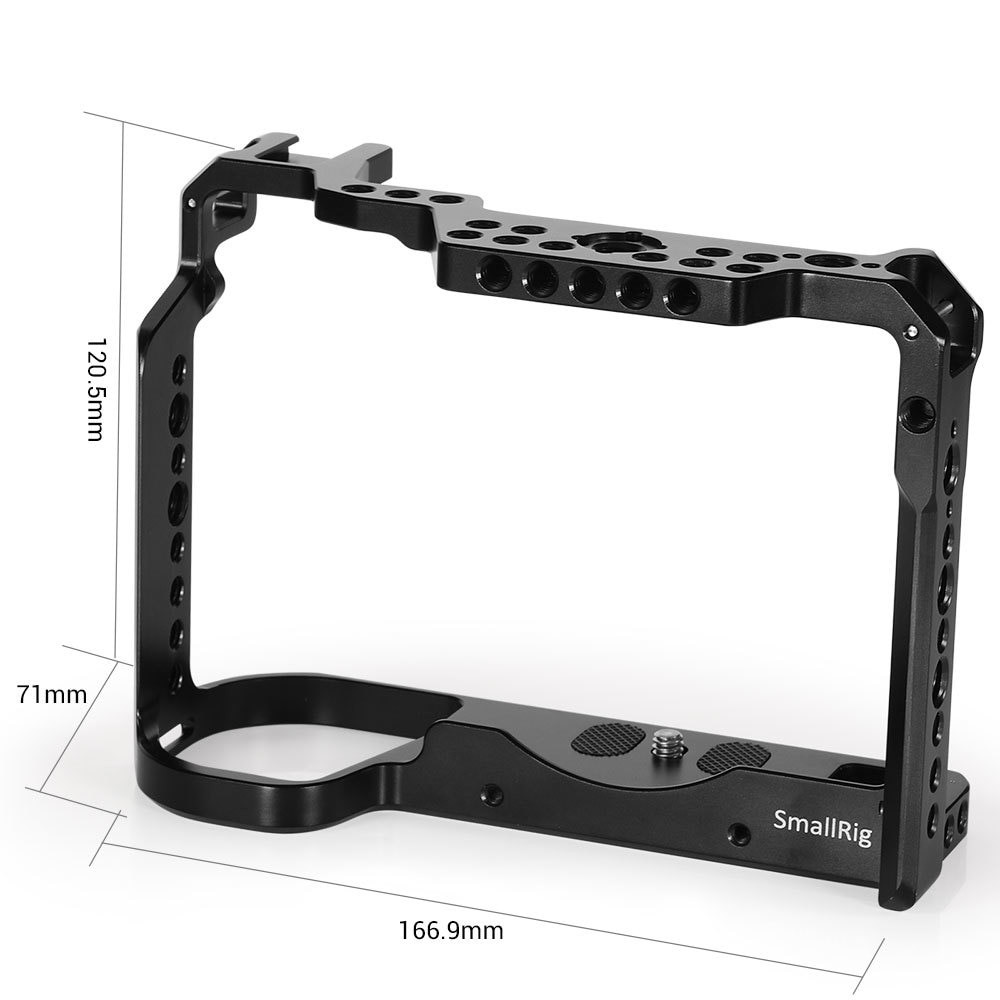

Product Dimensions: 166.9 x 120.5 x 71.0mm

Package Dimensions: 120 x 100 x 40mm

Net Weight: 234g

Package Weight: 344g

Material(s): Aluminum Alloy
