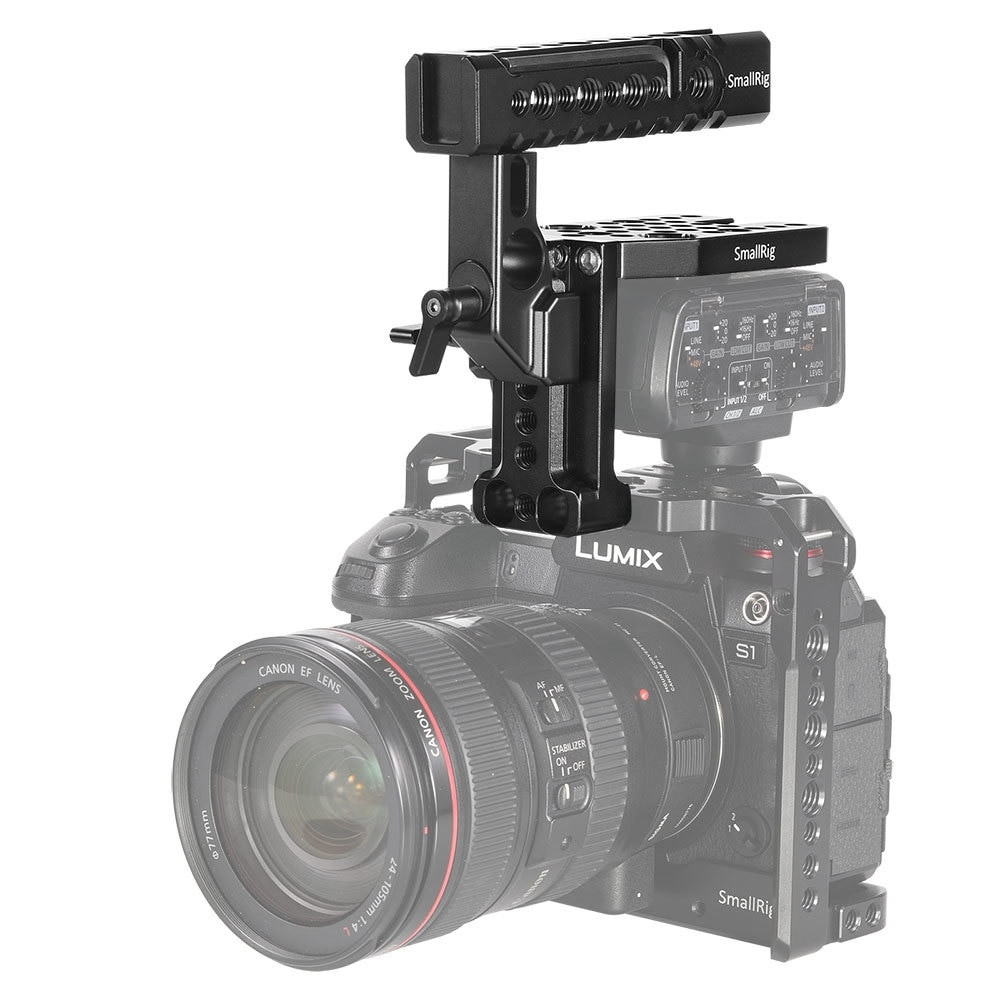

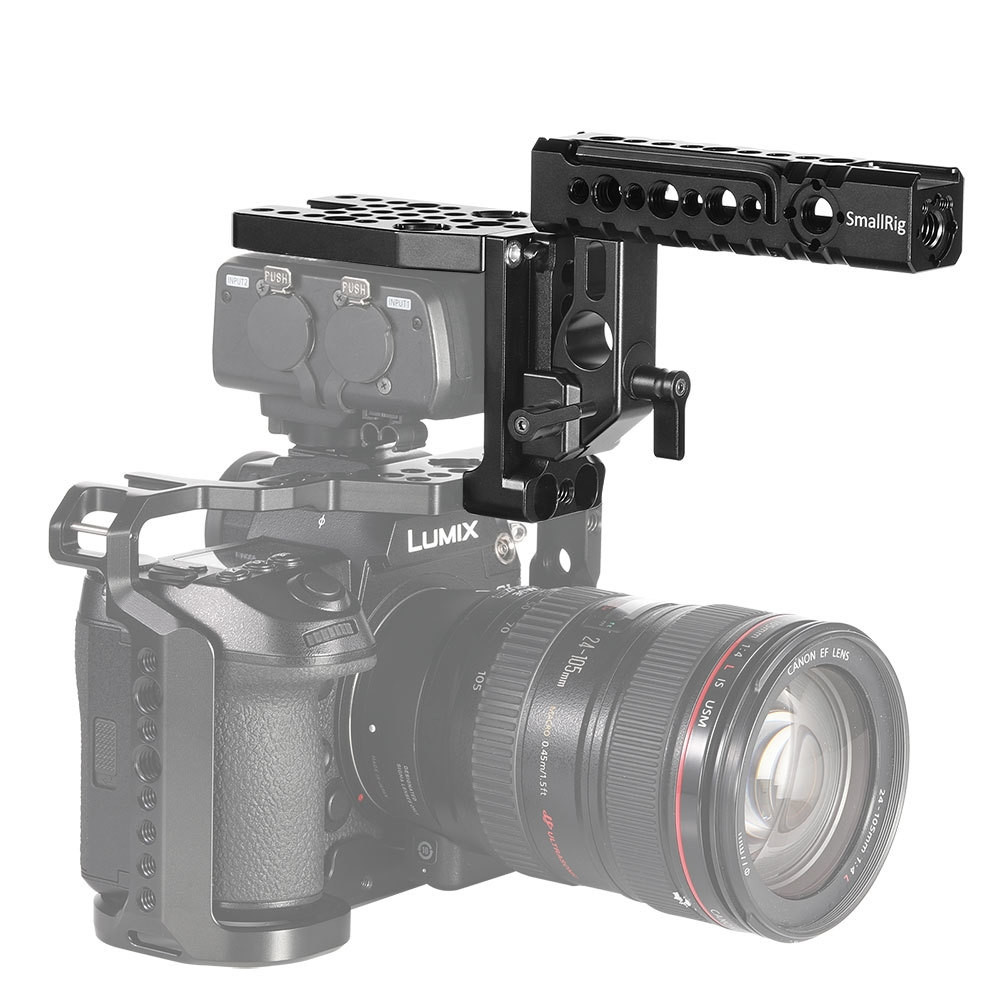

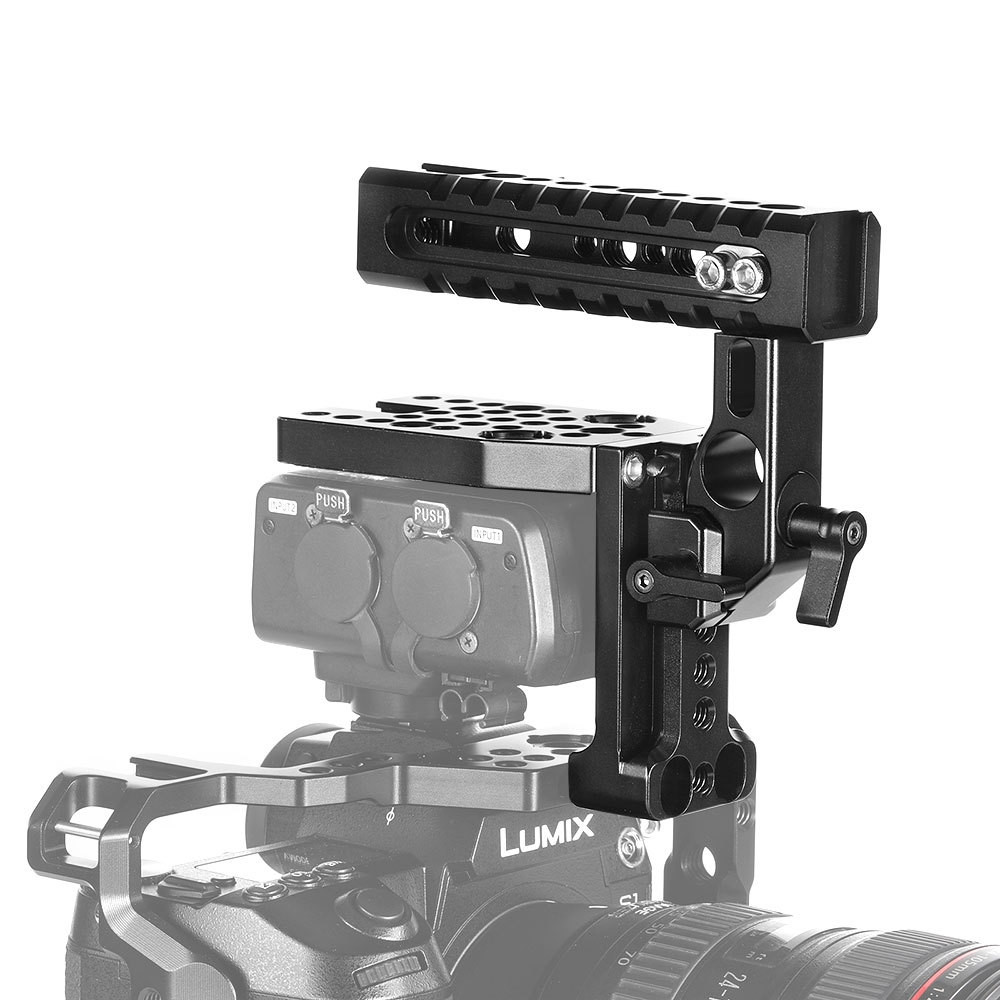

SmallRig DMW-XLR1 Helmet Kit for Panasonic S1/S1R and GH5/GH5S HTS2367

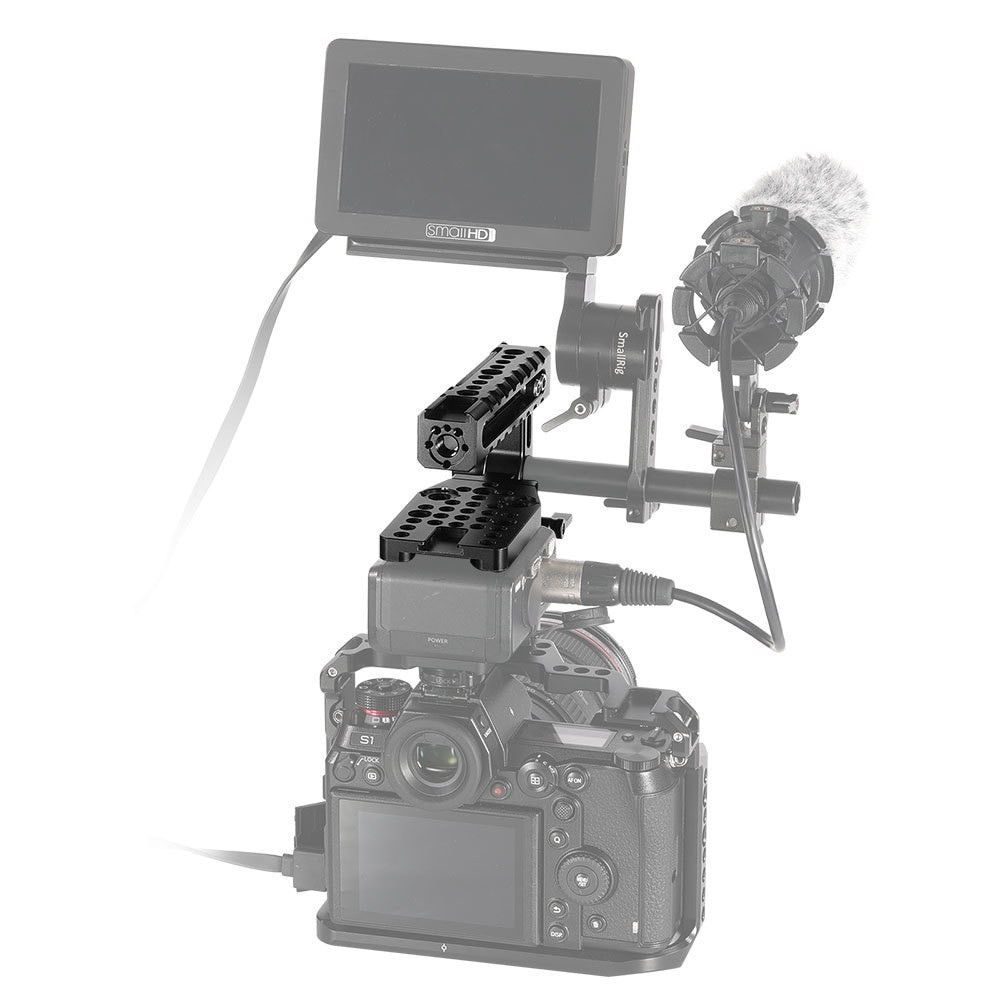

SmallRig DMW-XLR1 Helmet Kit for Panasonic S1/S1R and GH5/GH5S HTS2367 is designed to provide protection and mounting solutions for Panasonic DMW-XLR1 Microphone Adapter. The kit secures on the front of Smallrig S1/S1R Cage 2345 and GH5/GH5S Cage 2049 via two 1/4"-20 screws. It comes with multiple 1/4”-20 and arri 3/8”locating holes for accessory attachment, such as Magic Arm 2115 for monitor and Cold Shoe 2260 for microphone. The kit integrates with a cold shoe on the top for microphone and a rod clamp for 15mm rod 1587 for EVF mount. The quick release nato handle is adjustable with a range of 27.5mm.
Key Features
1.Designed to Protect Panasonic DMW-XLR1 Microphone Adapter
2.Fits for Smallrig GH5/GH5S Cage 2049 and S1/S1R Cage 2345
3.1/4"-20, 3/8"-16 Threaded Holes & Arri Locating Holes
4.Cold Shoe, Nato Rail & 15mm Rod Clamp

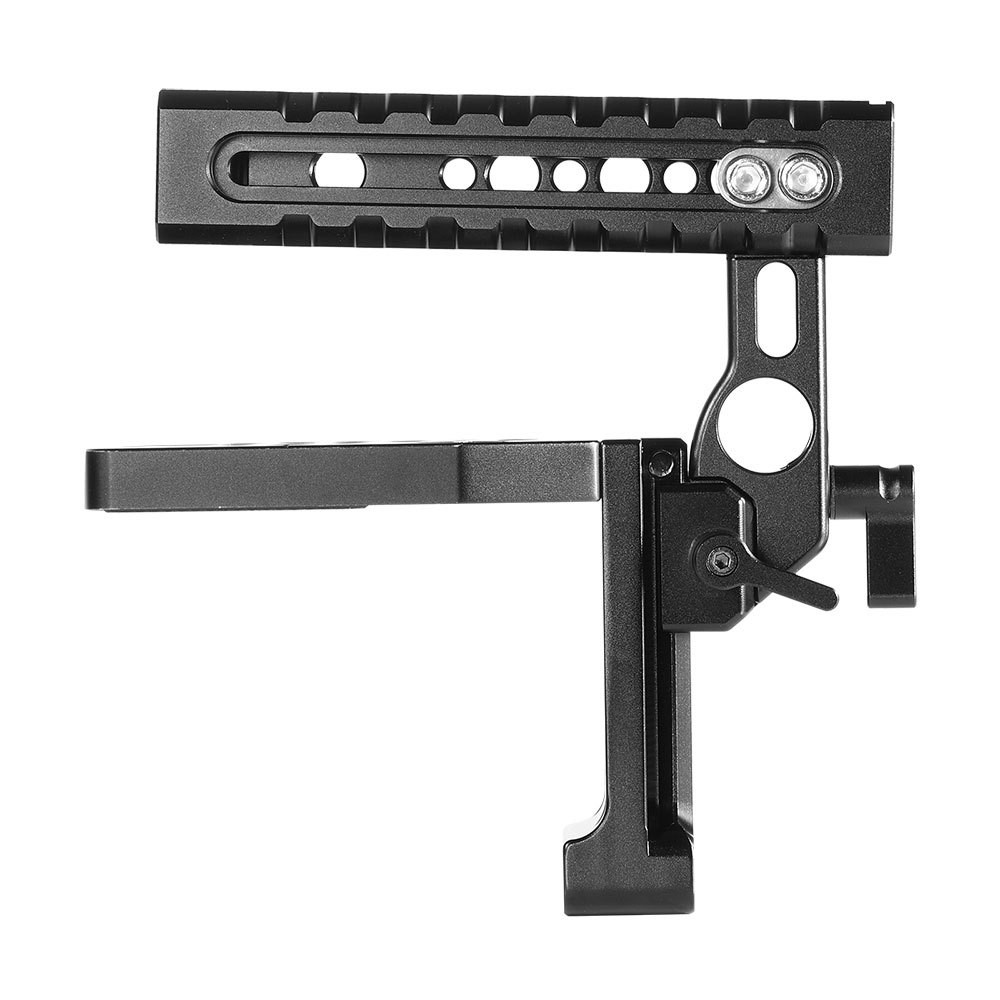

5.Height Adjustable QR Nato Handle
Work With

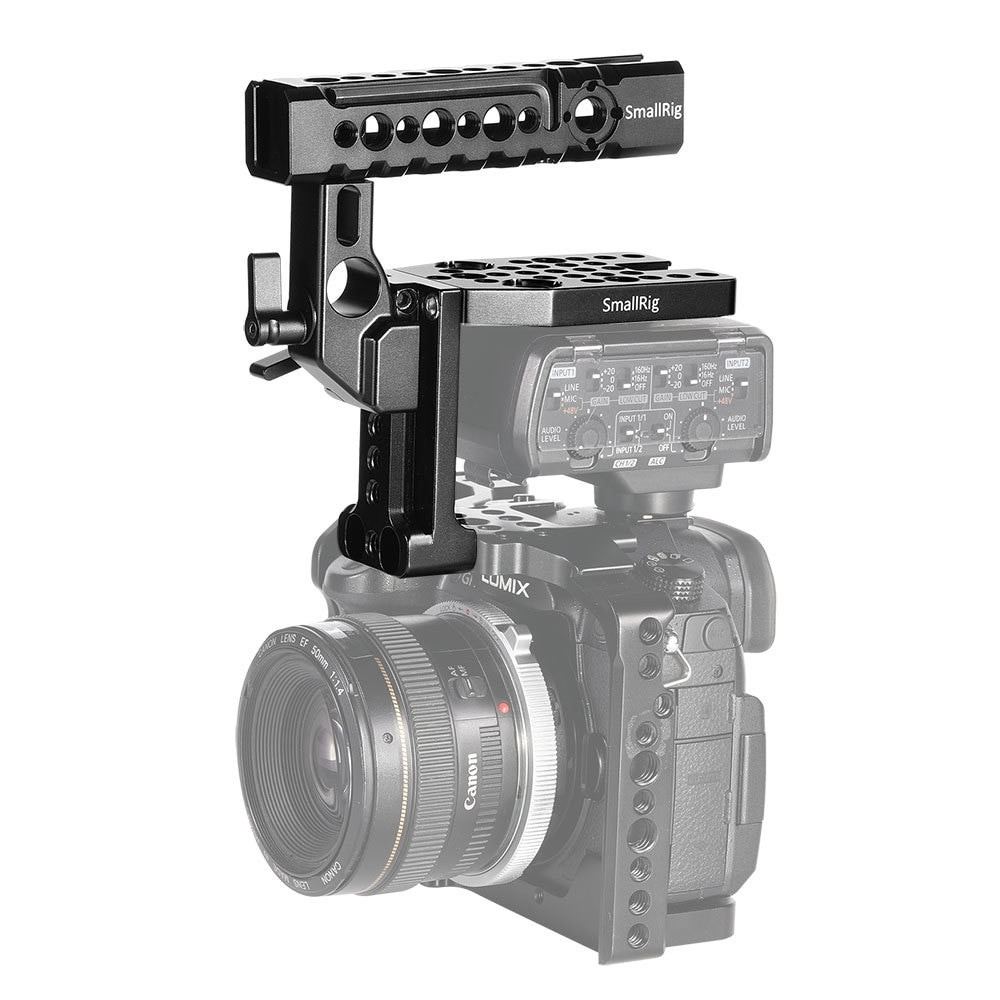

SmallRig Cage for Panasonic Lumix GH5/GH5S 2049
SmallRig Cage for Panasonic Lumix DC-S1 and S1R CCP2345

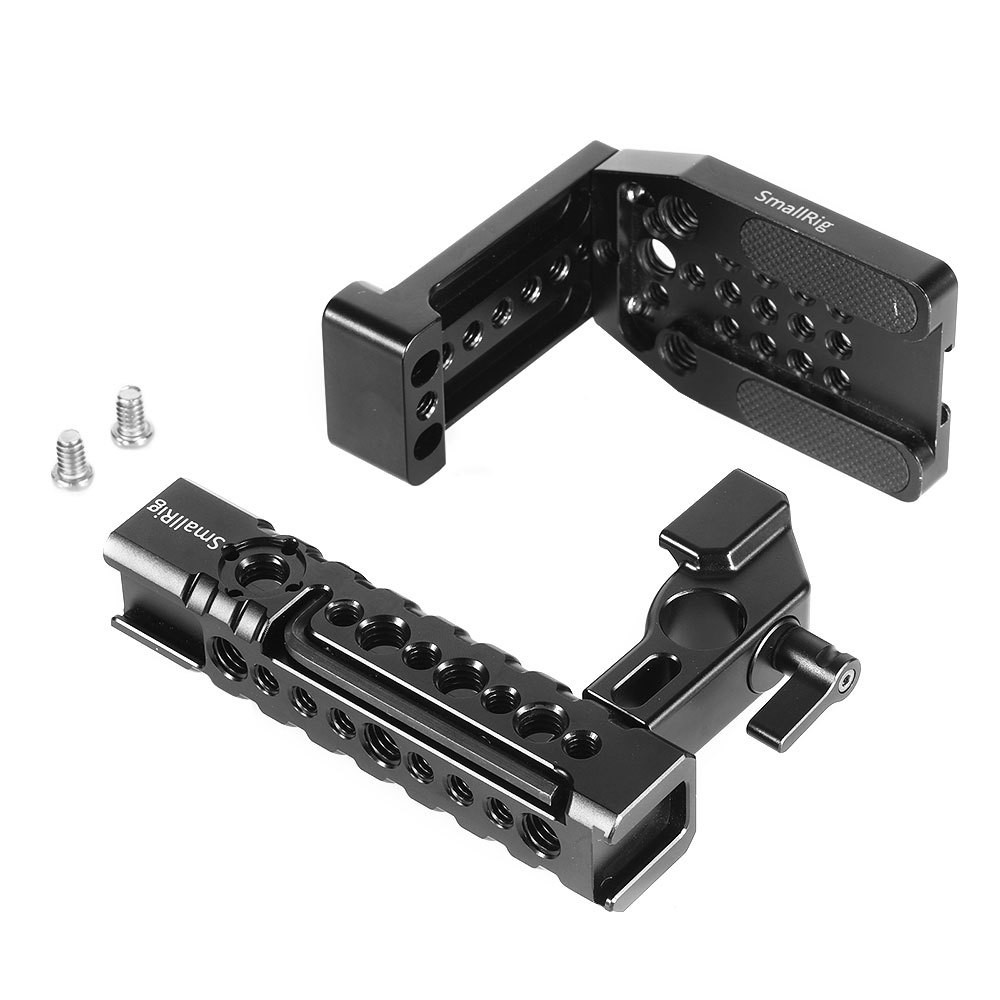

Packing List
1 x Helmet Kit
1 x Hex Spanner
2 x 1/4 Screw
Technical Data
Product Dimensions: 132 x 55 x 102mm
Package Dimensions: 160 x 120 x 68mm
Net Weight: 321g
Package Weight: 389g
Material(s): Aluminum Alloy
