SmallRig Cage for Panasonic Lumix GH5/GH5 II and GH5S CCP2646

SmallRig Cage for Panasonic Lumix GH5/GH5 II and GH5S CCP2646
Sku CCP2646
EAN 6972070629464

Availability: In stock 47

This product has been viewed 3276 times

Product Description

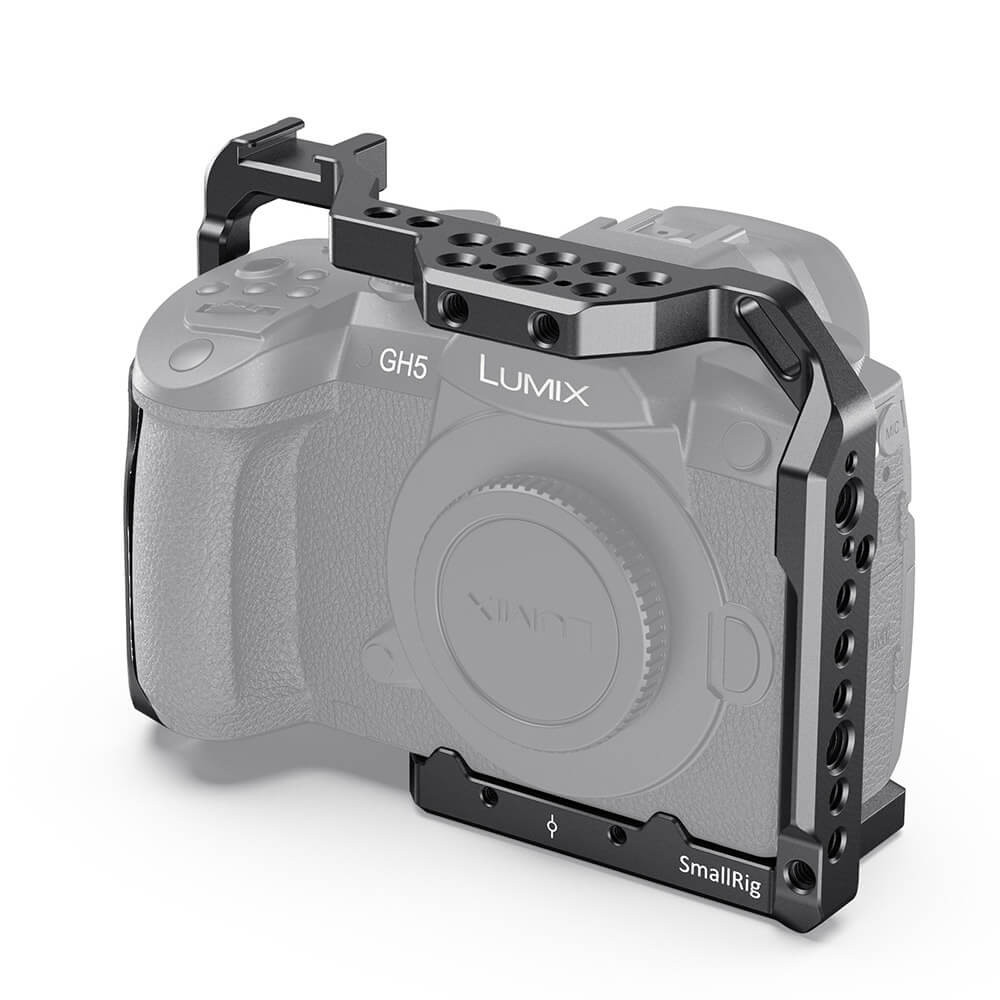

SmallRig Cage for Panasonic Lumix GH5/GH5 II and GH5S CCP2646

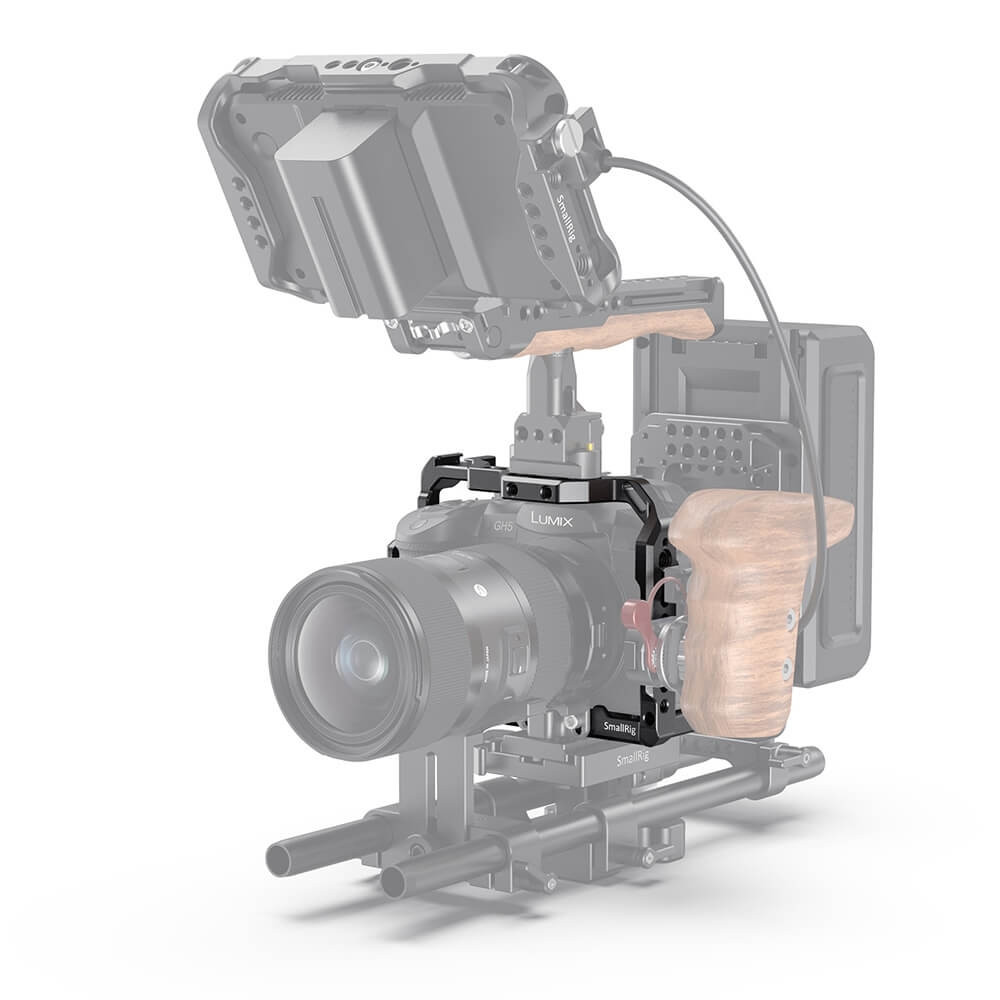

SmallRig Cage for Panasonic Lumix GH5/GH5 II and GH5S CCP2646 is a formfitting full cage designed to provide protection and accessory mounts for GH5/GH5S. The cage secures to the camera via a 1/4”-20 screw and each side features an m2.5 thread for further security to prevent twisting. Featuring multiple 1/4”-20, 3/8”-16, and ARRI 3/8”-16 accessory threads for accessories, such as Top Handle 2165Side Handle 2093and Monitor Mount BSE2348. You can also attach the HDMI Cable Clamp 1822 to protect the HDMI cable. The cage integrates with a cold shoe on the top for microphone and light and features a NATO rail on the left side for NATO Handle 2187. A flat head screwdriver is included to secure the camera screw and stores it on the bottom of the cage. The 1/4”-20 threaded hole in the bottom front is for attaching a 15mm Rod 915 for follow focus. Besides, the cage provides a strap slot on each side for carrying the strap. Optional DMW-XLR1 Helmet Kit HTS2367 are sold separately allows for mounting more accessories on the top.

Note: Please take off the triangle split ring on each side of the camera before installing the cage.

Key Features

1. Formfitting Full Cage for Panasonic GH5/GH5 II and GH5S

2. Multiple 1/4"-20 & 3/8"-16 & ARRI 3/8”-16 Accessory Threads

3. Integrated Cold Shoe & NATO Rail

4. Locks Camera via 1/4"-20 & M2.5 Screw to Prevent Twisting

5. Built-in Flat Head Screw Driver on the Bottom

6. Compatible with HDMI Cable Clamp 1822 and DMW-XLR1 Helmet Kit HTS2367

Work With

Panasonic Lumix GH5/GH5 II

Panasonic Lumix GH5S

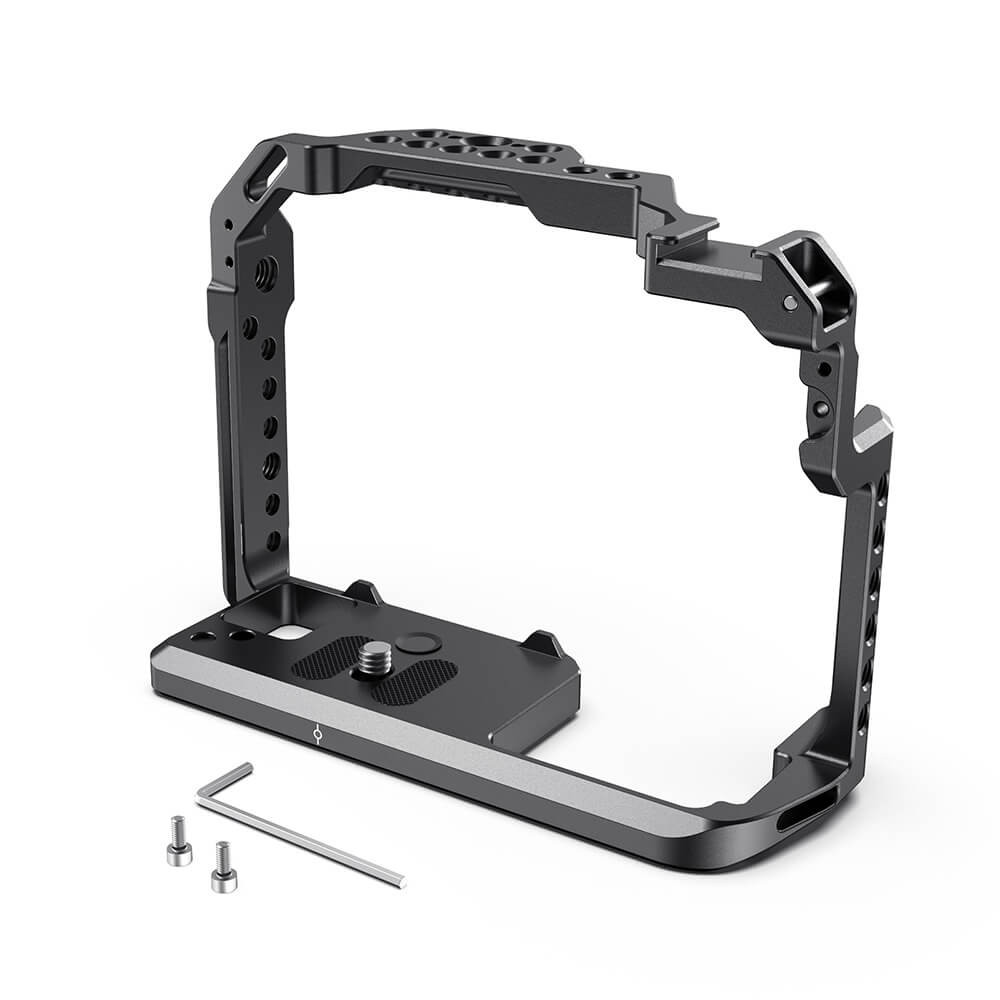

Packing List

1 x Cage

2 x M2.5 Screw

1 x Allen Wrench

Technical Data

Product Dimensions: 111.50x 152x 65.80mm

Package Dimensions: 165 x 155 x 85mm

Net Weight: 190g

Package Weight: 305g

Material(s): Aluminum Alloy
