SmallRig Mini Matte Box 3196
SmallRig Mini Matte Box 3196 is designed for DSLRs and mirrorless cameras to prevent sunlight or other light from causing glare and flare for controlling images on the screen. Its clamp connector works with adapter rings in various sizes (Φ52-95mm; Φ55-95mm; Φ58-95mm; Φ62-95mm; Φ67-95mm; Φ72-95mm; Φ77-95mm; Φ82-95mm; Φ86-95mm) or can be attached directly to Φ95mm lens; its adapter ring fits circular CPL, ND filter and other circular filters of up to Φ92.5mm. The filter tray 3319 can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4 x 5.65" plug-in filters of up to 4mm in thickness. The filter tray 3320（purchase separately）can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4 x 4" plug-in filters of up to 4mm in thickness at the same time. It is easy to store and prevent scratches and fingerprints while replacing plug-in filters. The adjustable carbon-fiber top flag blocks sunlight or strong light and also prevents internal reflections with its anti-reflective design. Top 1/4"-20 threaded holes enable easy attachment of other accessories and anti-twist 1/4"-20 threaded holes on the bottom suit 15mm LWX Rod Support 2663.
Note:
1. Not 100 x 100mm filters compatible.
2. Adapter ring kit (Φ52/55/58/62/86-95mm) 3383 needs to be purchased separately.
3. Max load capacity: 1kg.
4. Filter frame ID: 3320, please purchase separately.
5. Round filters with an outer diameter of more than 92.5 mm cannot be mounted on the matte box.
Key Features
1. Portable and compact.
2. Hold plug-in filters and round filters at the same time.
3. Compatible with CPL, ND filter, etc, easy assembly and disassembly.
4. Supports multiple 4 x 5.65” and 4 x 4" filters.
5. Fits various lenses (52/55/58/62/67/72/77/82/86mm).

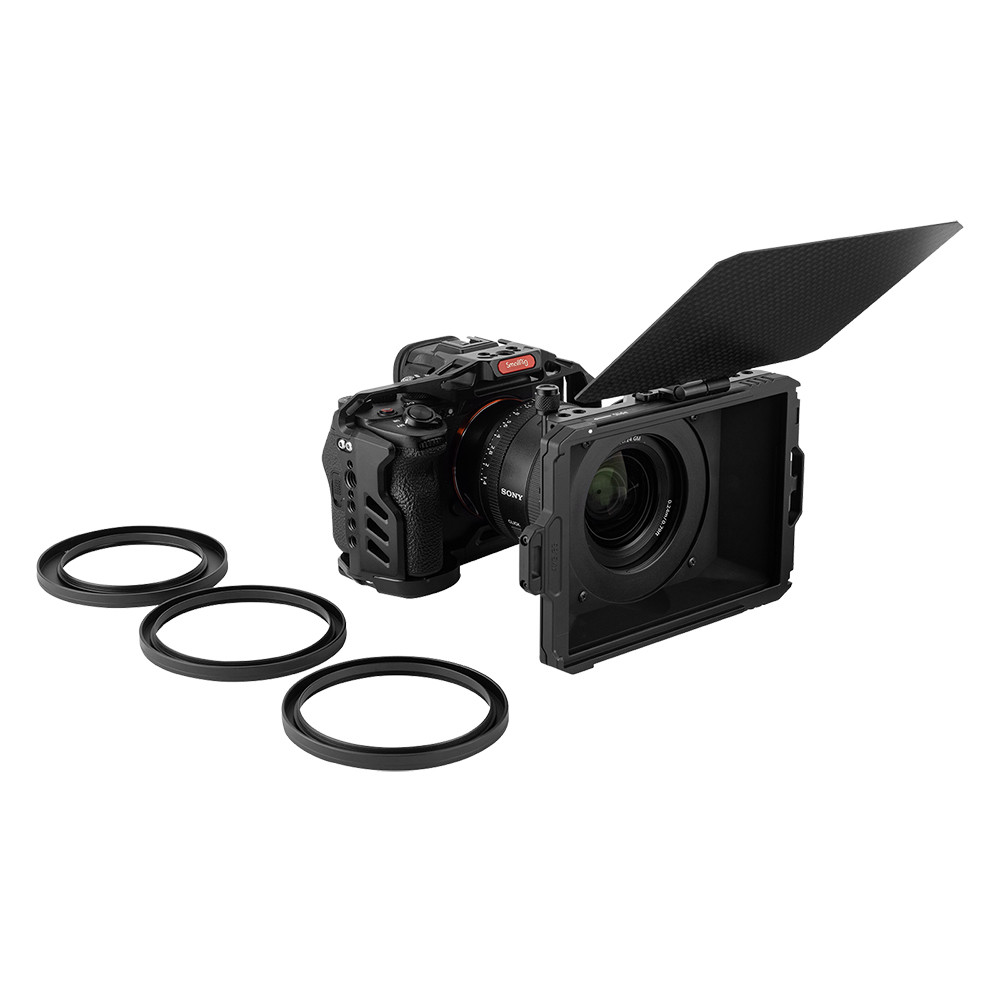

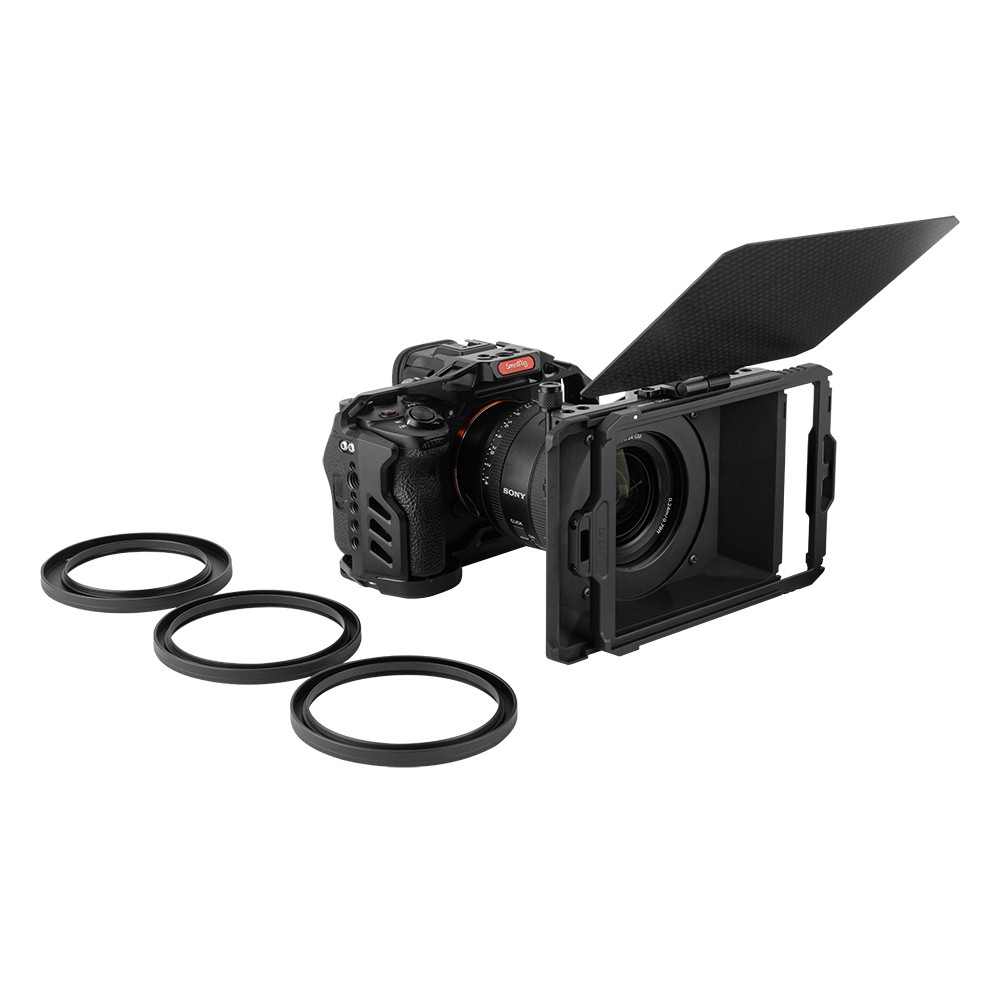

6. Comes with 4 adapter rings (67/72/77/82mm), meeting users' common shooting needs.
7. Features 1/4“-20 threaded holes for additional accessories on the top and anti-twist design on the bottom.
Work With
1：Standard Φ52/55/58/62/67/72/77/82/86mm lens
2：Round filters of up to Φ92.5mm
3：Φ52/55/58/62/67/72/77/82/86-95mm adapter ring
4：4 x 5.65" /4 x 4" plug-in filters of 4mm in thickness

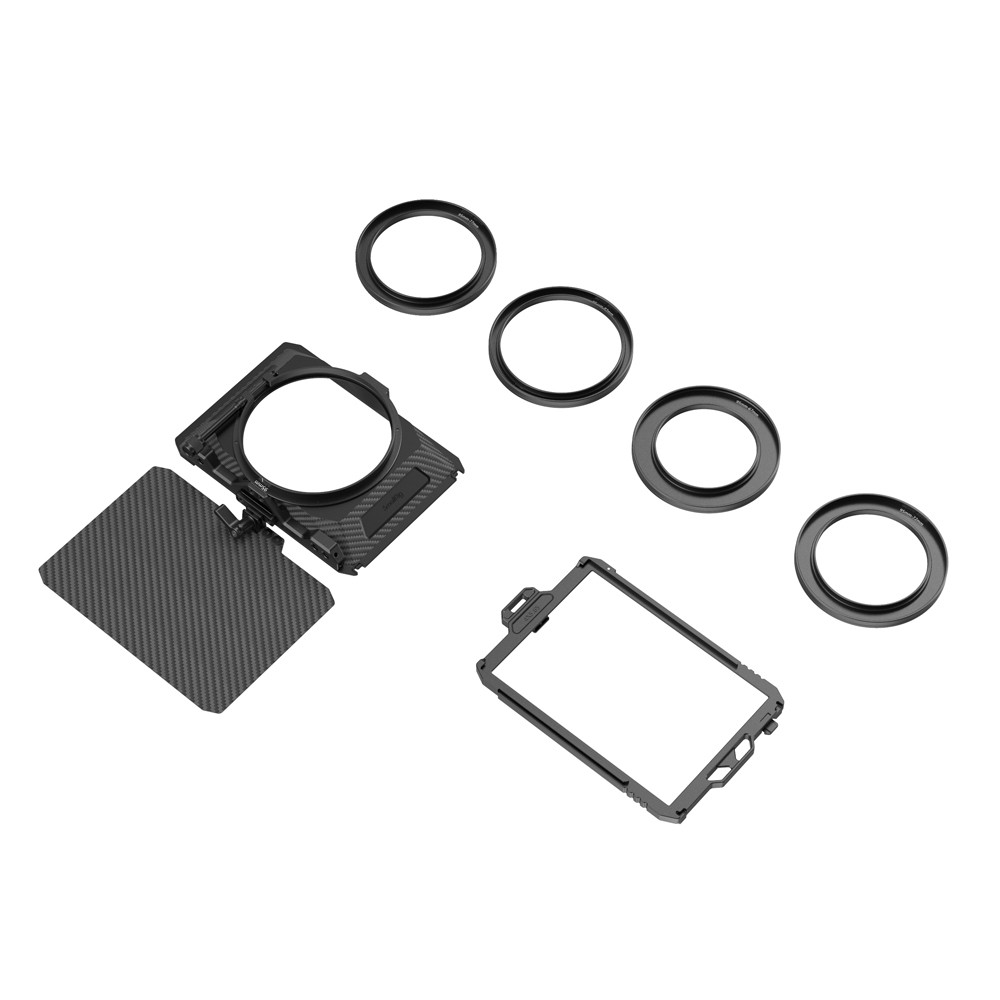

Packing List
1 x Mini Matte Box
1 x Φ67/72/77/82-95mm Adapter Ring
1 x Filter Tray (4 x 5.65)
Technical Data

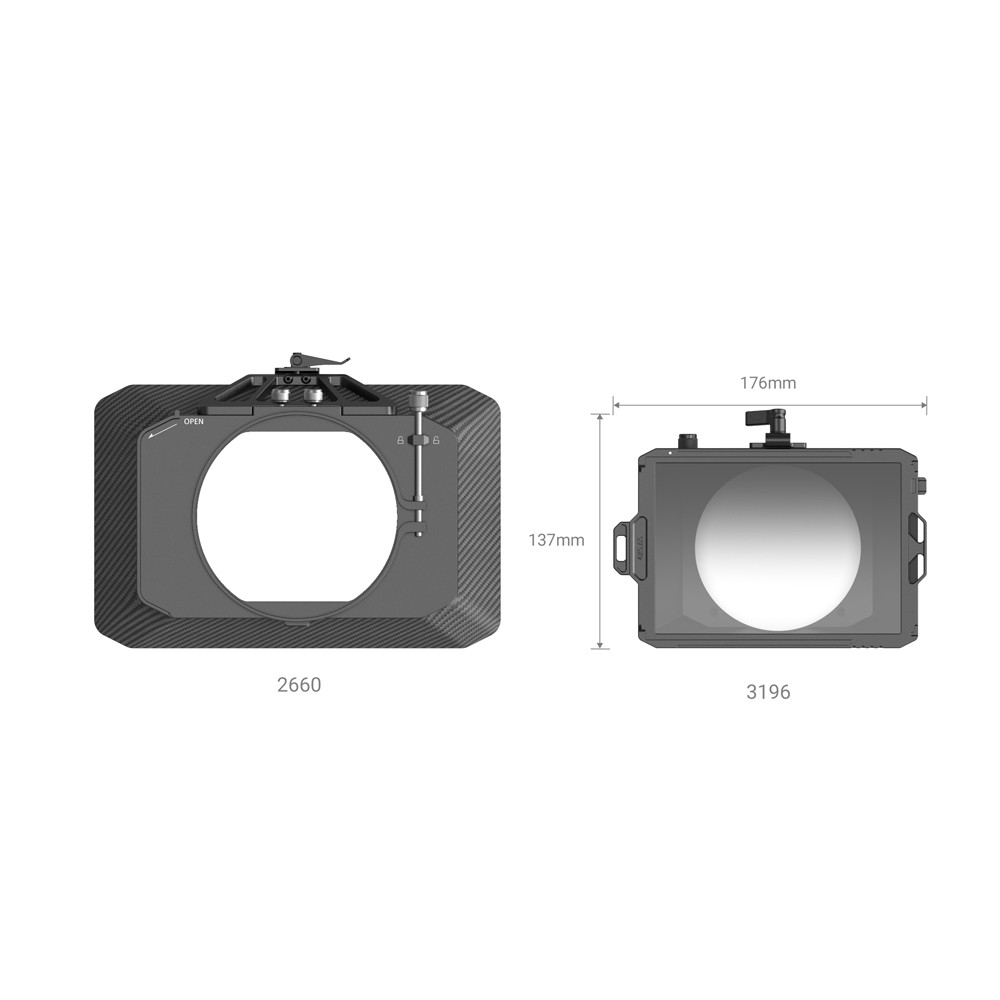

Product Dimensions: 176 x 137 x 42.7mm
Package Dimensions: 228 x 170 x 72.5mm
Net Weight: 150g±5g (excluding adapter rings)
Package Weight: 470g±5g
Material: AL6061+PC+Carbon Fiber
