SmallRig Mini Matte Box Pro 3680

SmallRig Mini Matte Box Pro 3680

1. All-round protection against glare and flare.

2. Pouch for easy storage of accessories.

3. Upgraded quick release module.

$139.00
Sku 3680

Availability: In stock 136

This product has been viewed 496 times

Product Description



SmallRig Mini Matte Box Pro 3680

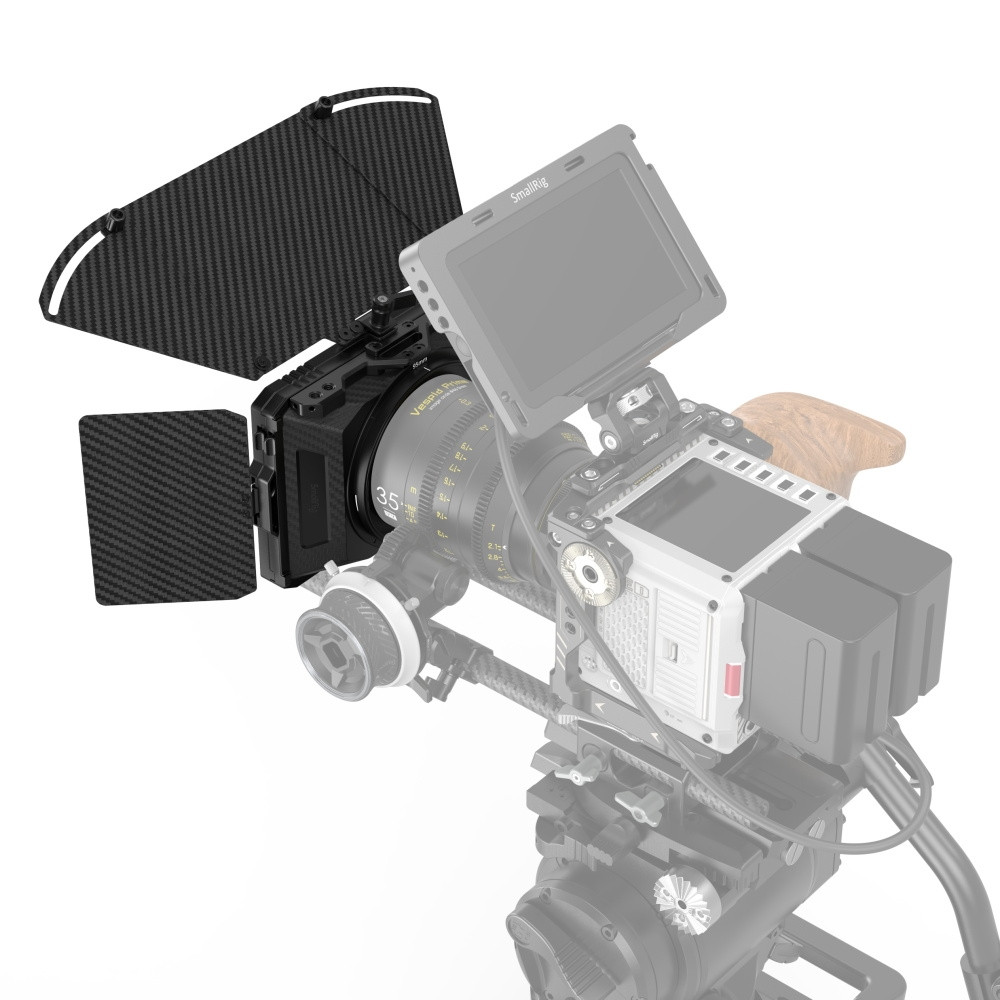

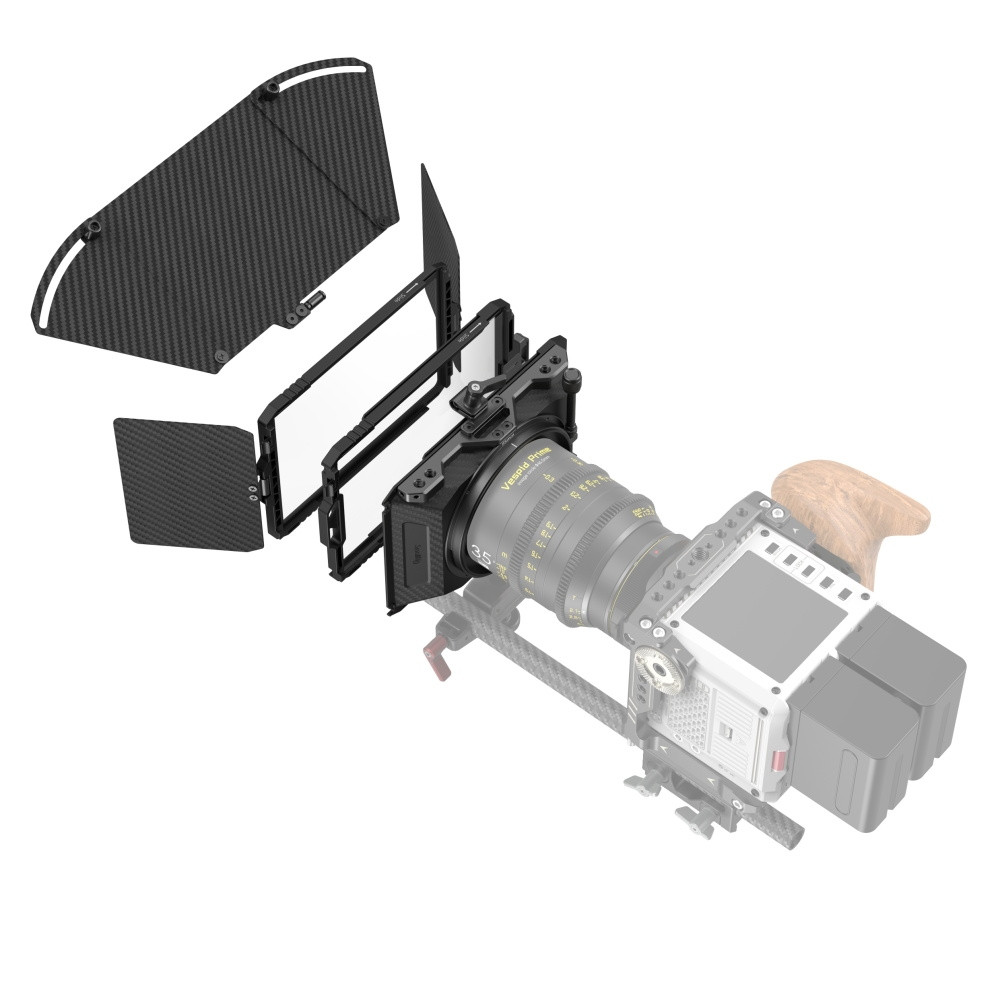

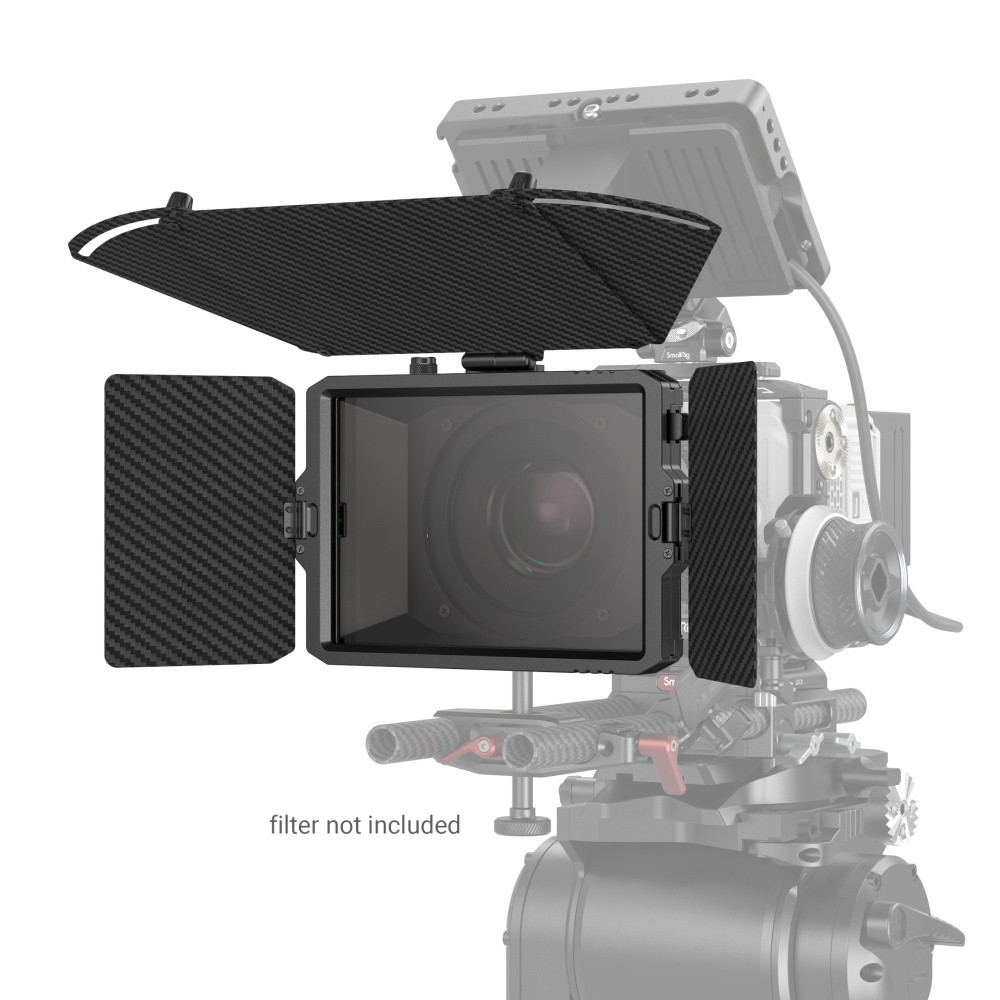

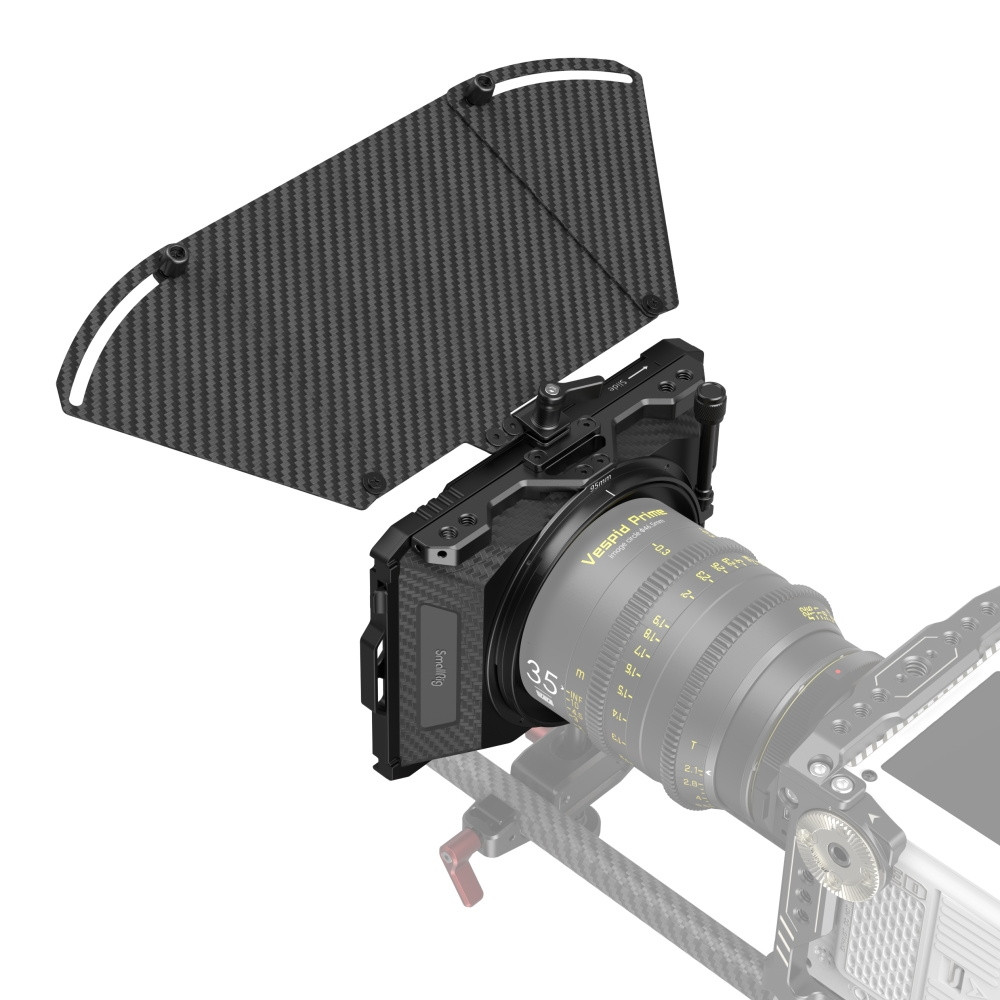

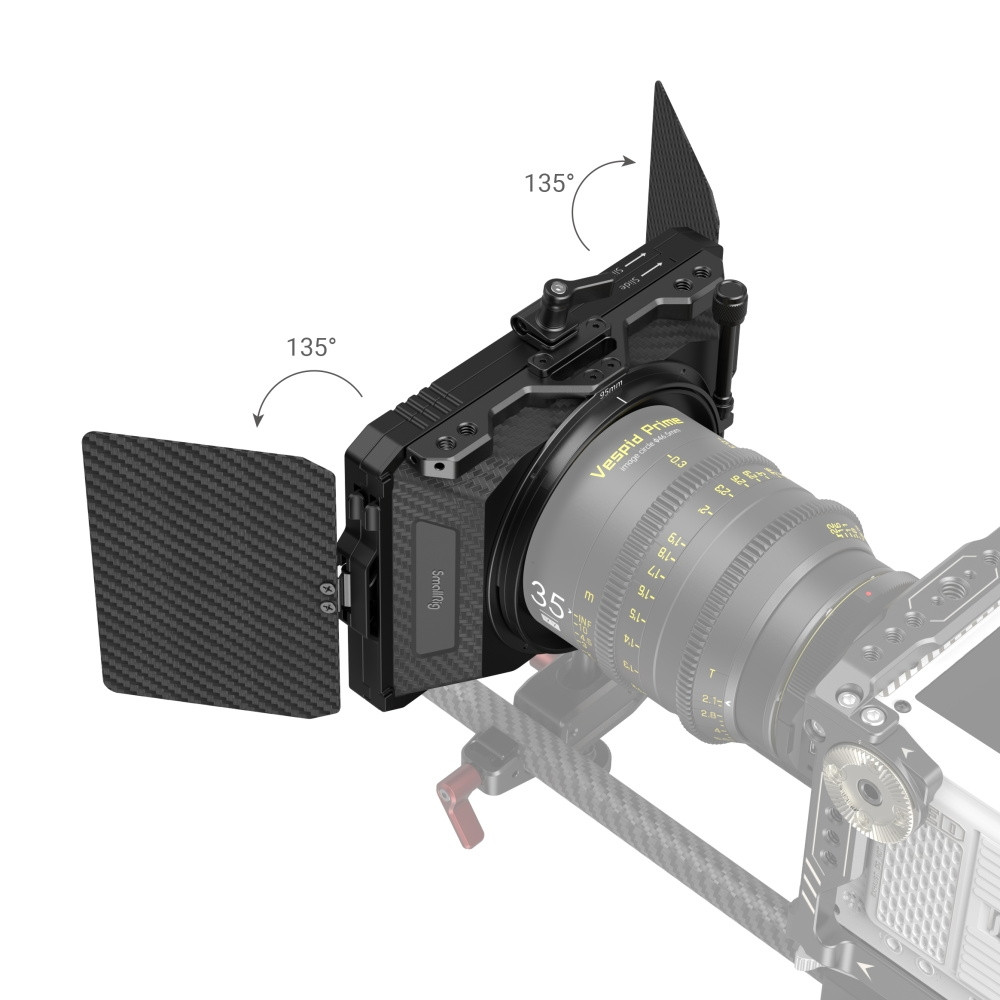

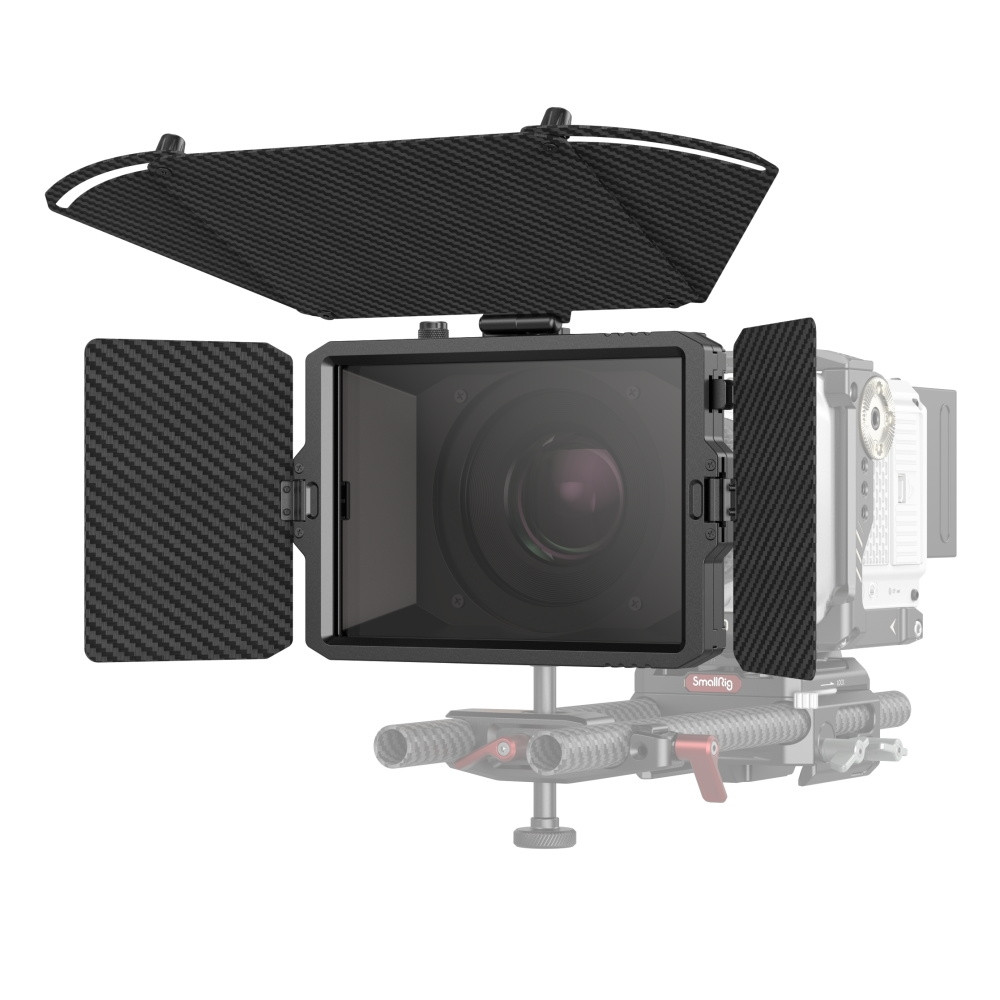

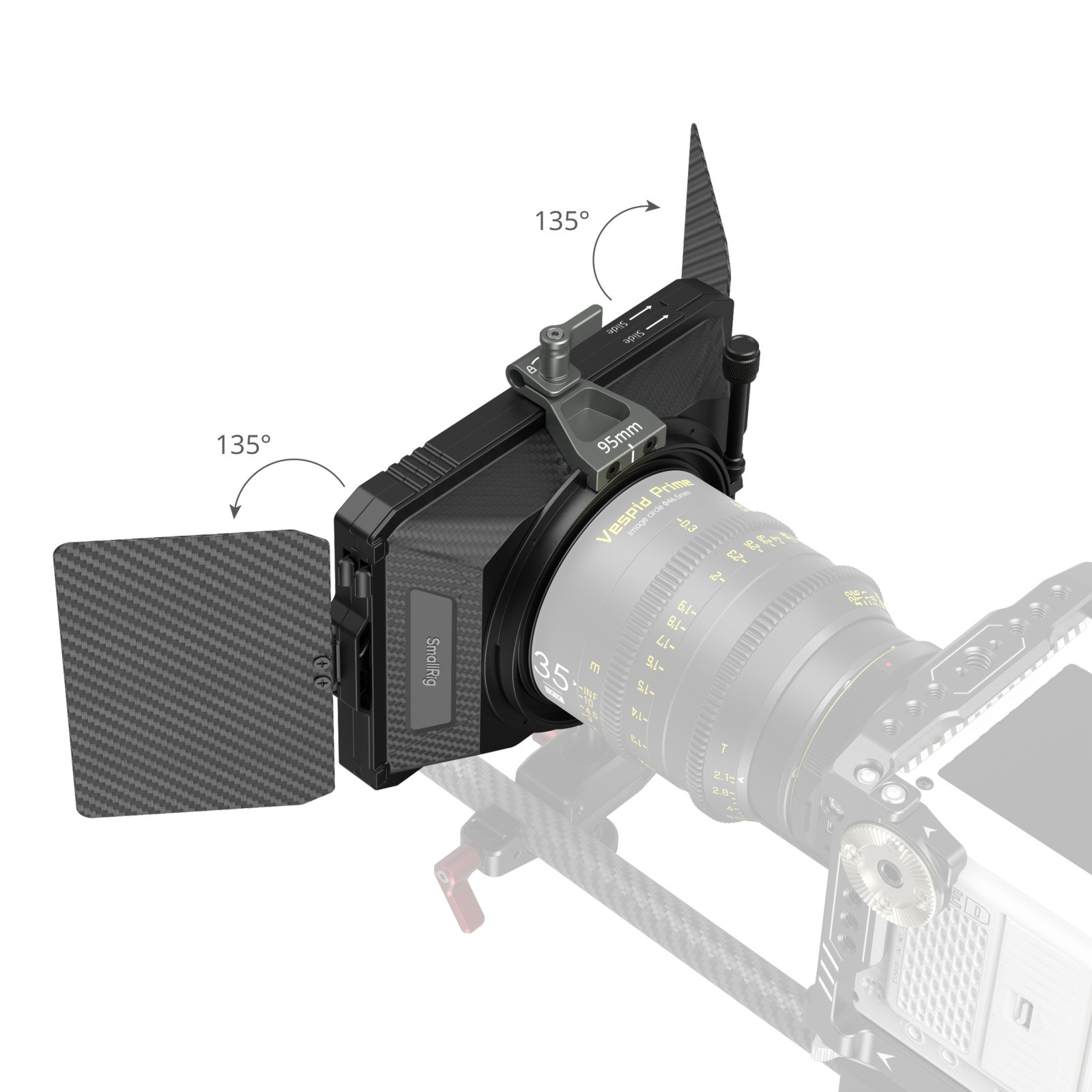

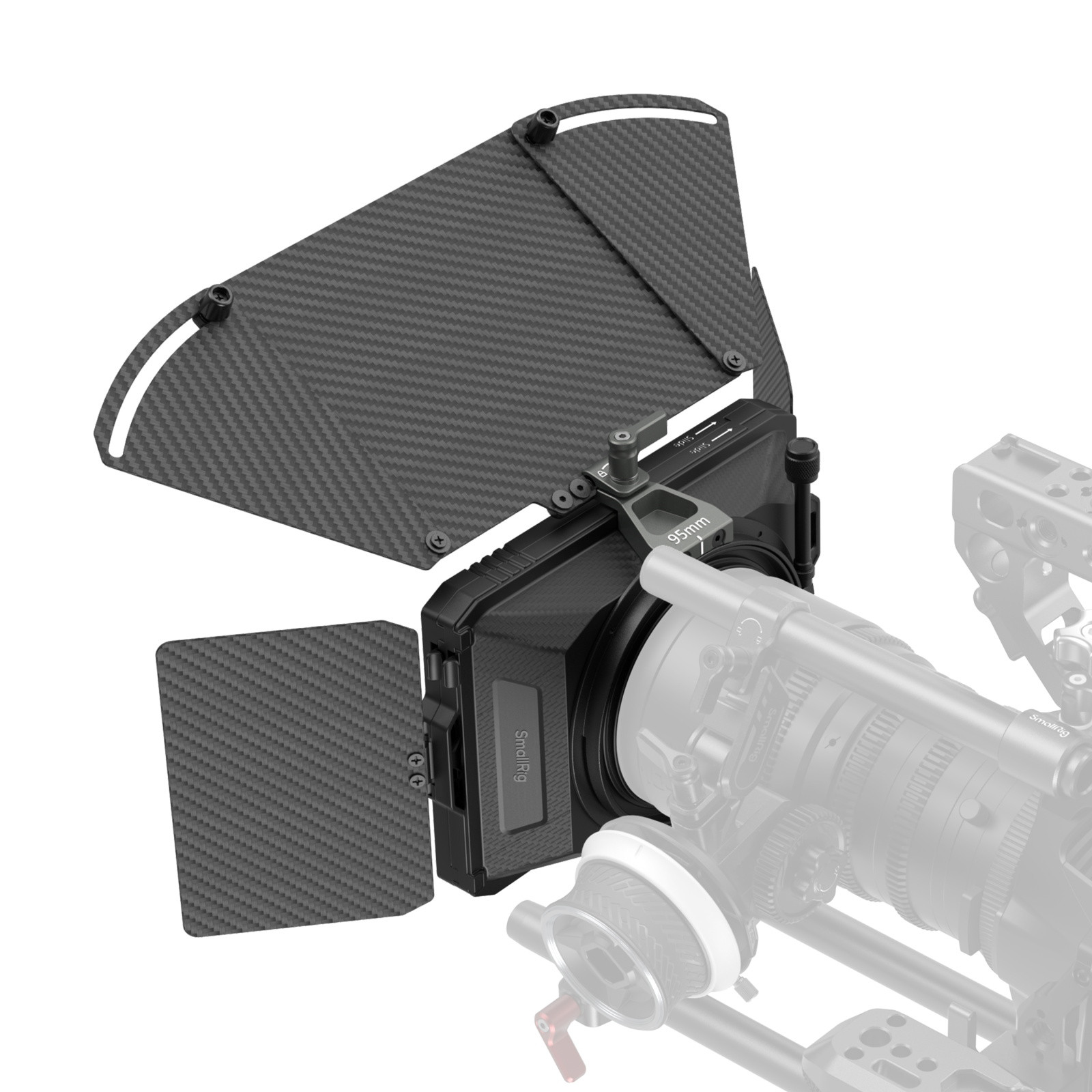

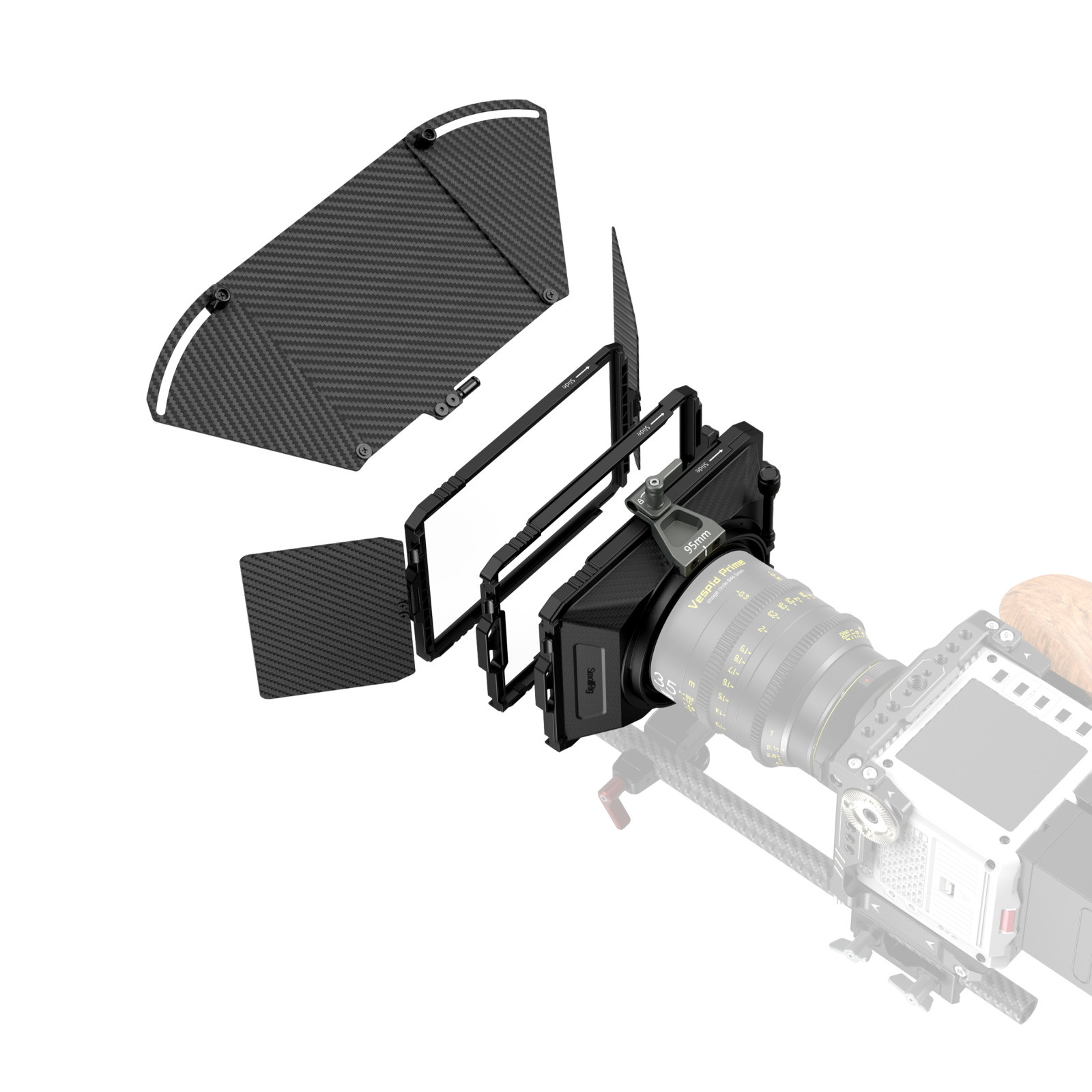

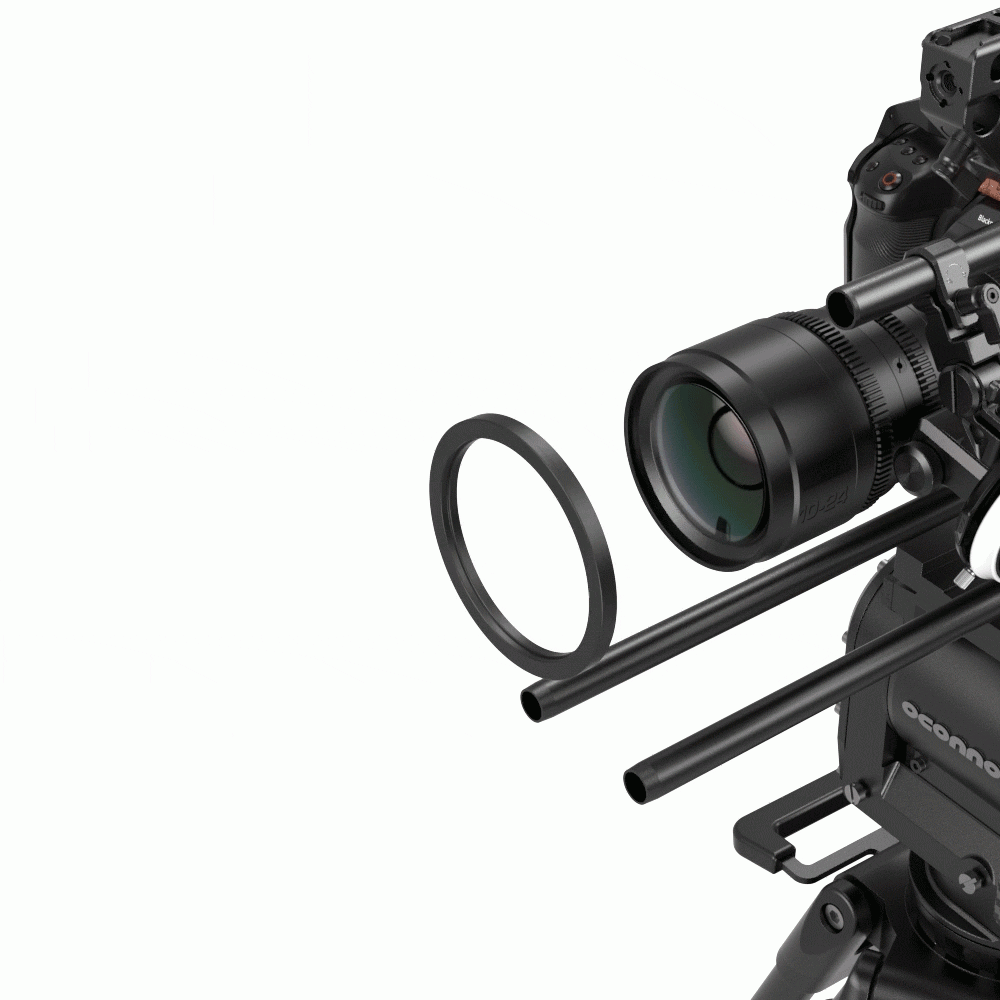

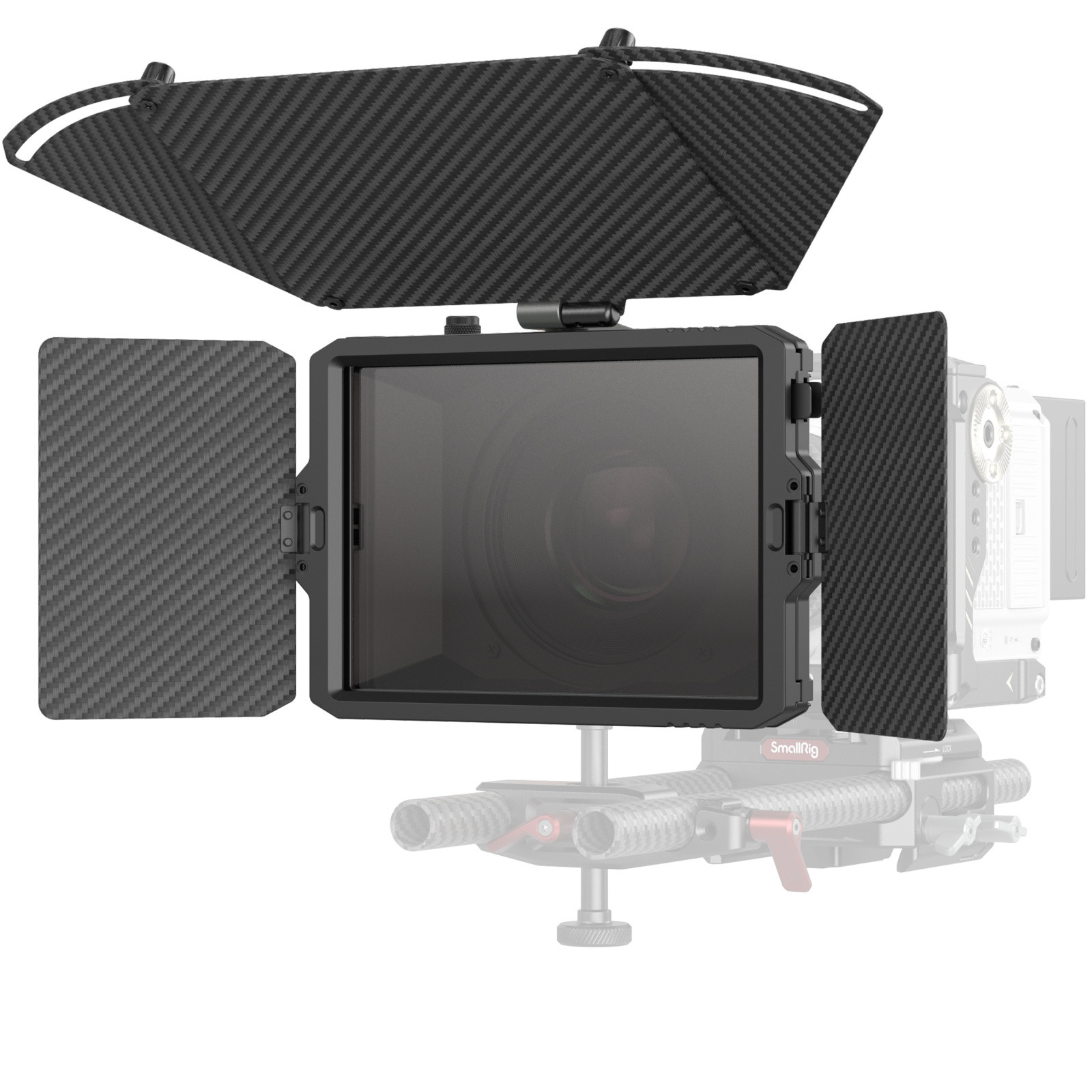

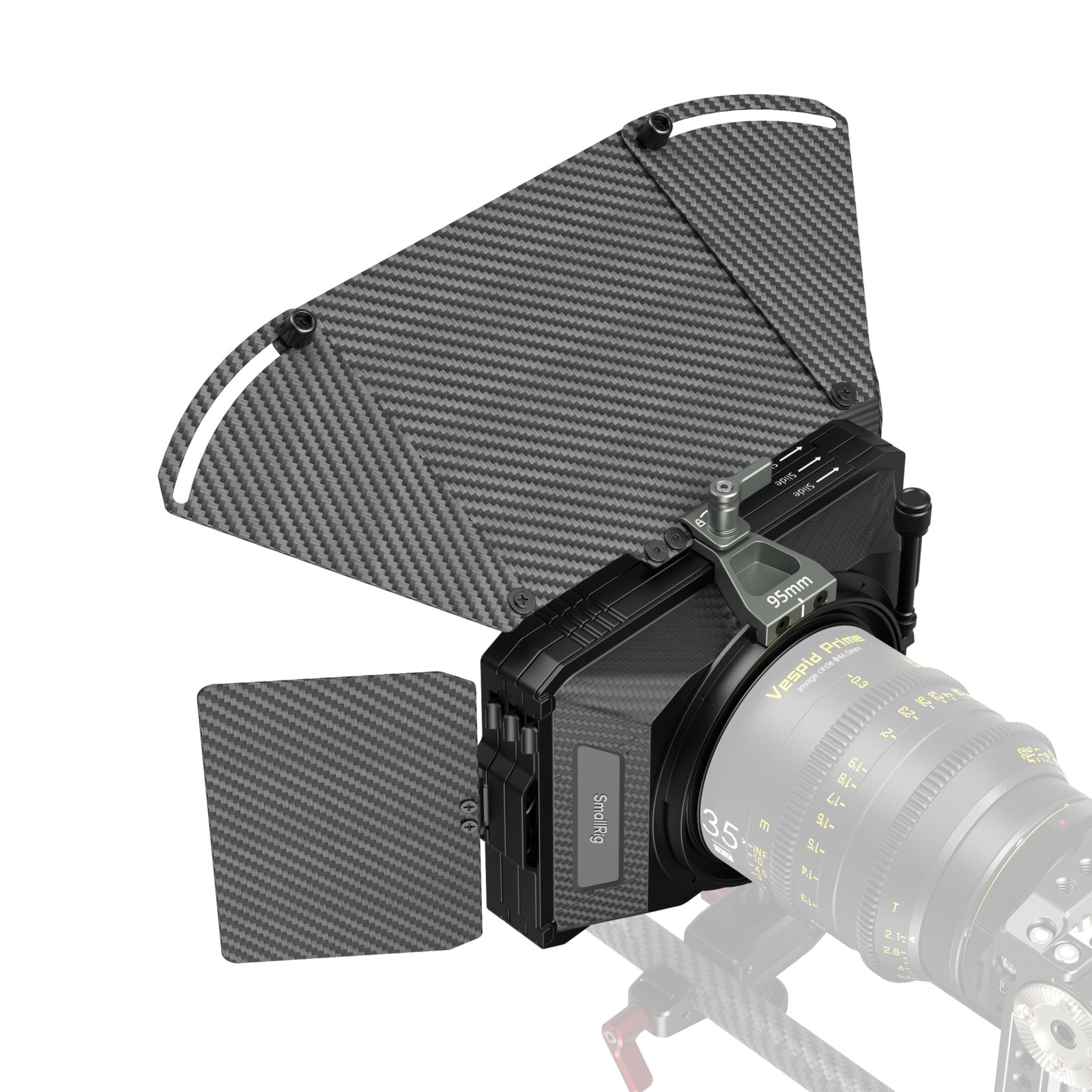

SmallRig Mini Matte Box Pro 3680 is designed for mirrorless cameras to prevent sunlight or other light from causing glare and flare and to control images on the screen. It comes standard with two 4 x 5.65" filter trays, which can be quickly mounted via slots, and supports multiple plug-in filters at the same time. The top flag opens 180° and its side wings extend 40° for additional light blocking; the side flag is attached to either the matte box or the filter tray via slots and opens 180° to block stray light. The matte box is suitable for various adapter rings (Φ52-95mm, Φ55-95mm, Φ58-95mm, Φ62-95mm, 58-95mm, Φ62-95mm, Φ67-95mm, Φ72-95mm, Φ77-95mm, Φ82-95mm, Φ86-95mm) as well as Φ95mm lenses. Its adapter rings allow quick release of circular filters (including CPL and ND) of up to Φ92.5mm. To secure the lens and prevent shaking, a separately available 15mm LWS Rod Support (ID: 2663) is recommended. This product also comes with a storage bag for quick storage of the matte box and filter trays.

Note:

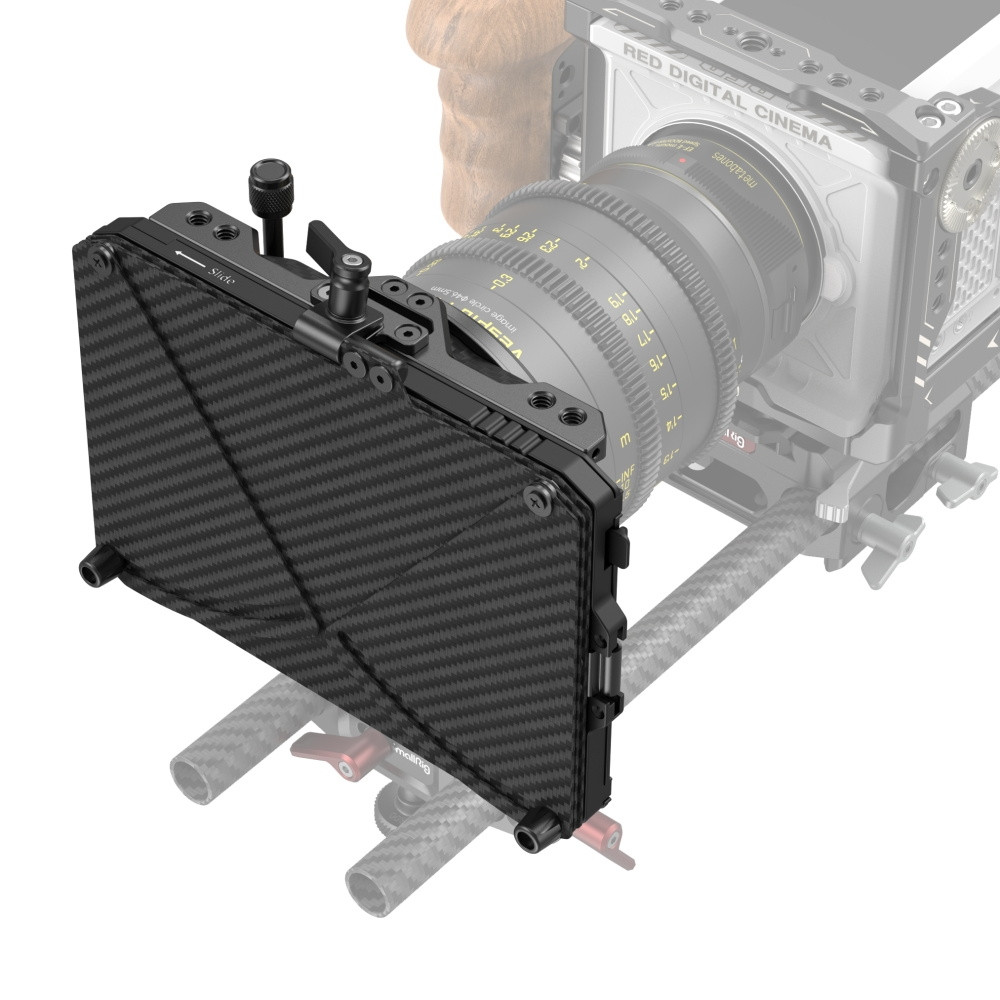

1. The top flag cannot be closed when more than 2 filter trays are installed.

2. Filter frame ID: 3320, please purchase separately.

3. Round filters with an outer diameter of more than 92.5 mm cannot be mounted on the matte box.

Key Features

1. All-round protection against glare and flare.

2. Pouch for easy storage of accessories.

3. Upgraded quick release module.

Work With

1: Φ95mm cine lens

2: Any 4 x 4”/4 x 5.65”, 4mm thick filters

3: Φ52-Φ55-Φ58-Φ62-Φ67-Φ72-Φ77-Φ82-Φ86 filter and any ND, GDN, CPL, UV filter of up to Φ92.5mm

4: Any Φ52-Φ55-Φ58-Φ62-Φ67-Φ72-Φ77-Φ82-Φ86 lens

5: Φ15 rod

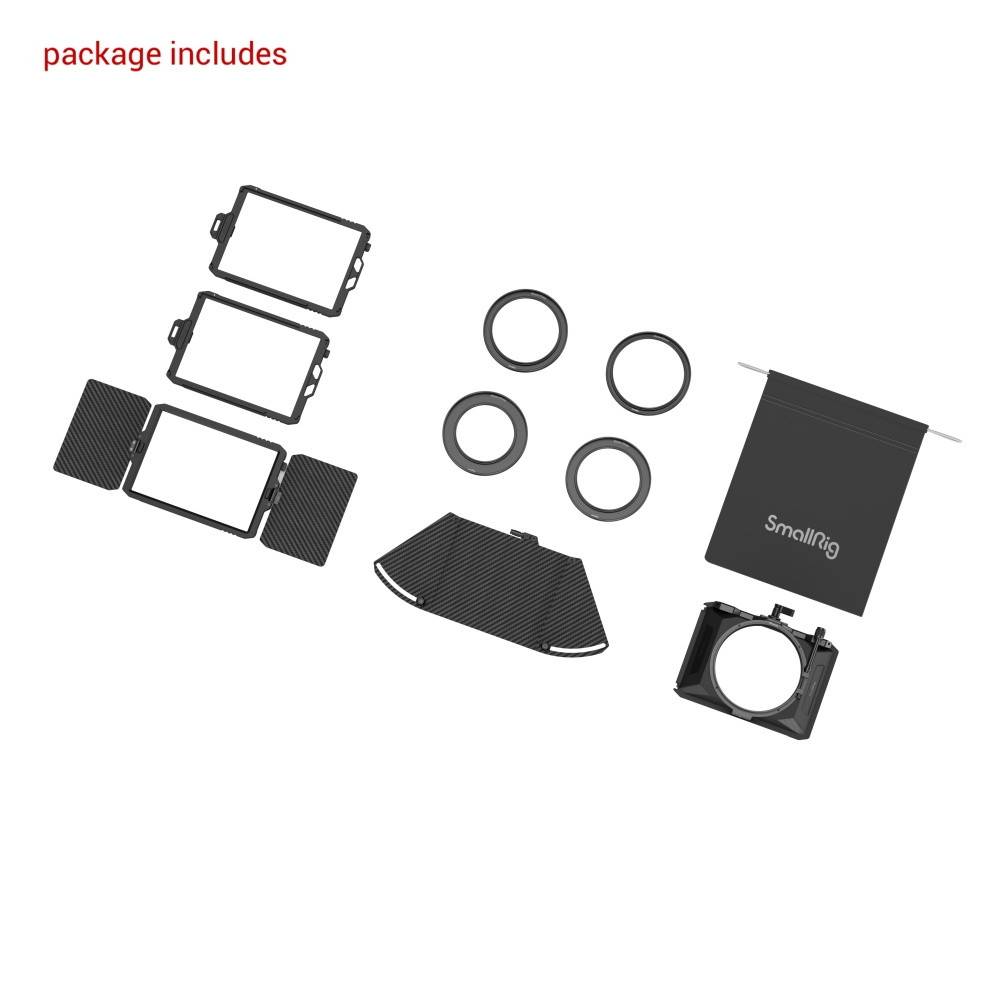

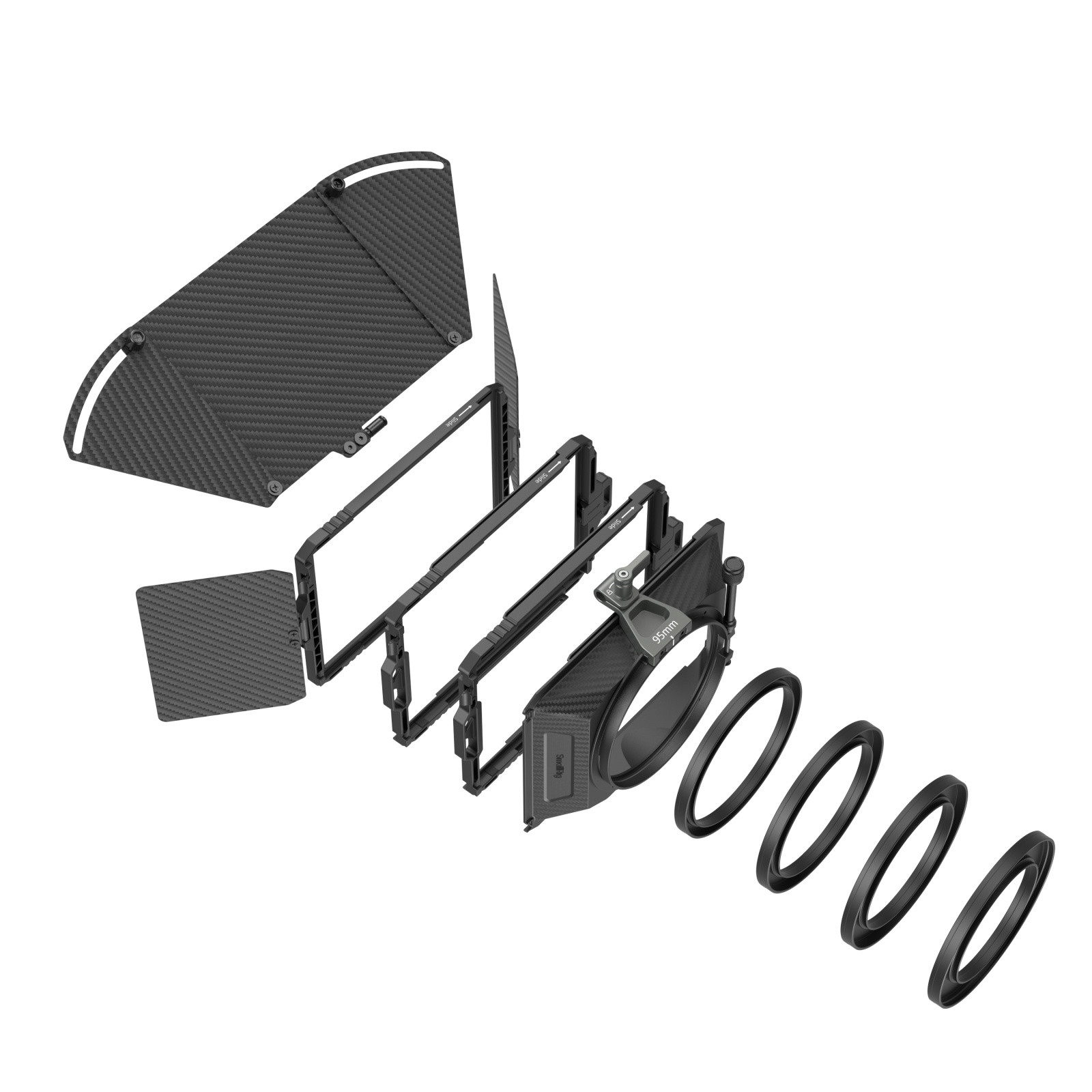

Packing List

1 x Mini Matte Box Pro

1 x Side Flag

1 x Top Flag

1 x Φ67/72/77/82-95mm Adapter Ring

2 x Filter Tray (4 x 5.65)

1 x Storage bag

Technical Data

Product Dimensions: 167 x 137 x 54 mm

Package Dimensions: 225×167×103 mm

Net Weight: 368g±5g

Package Weight780g±5g

Material: PC+ Fiberglass +Carbon Fiber
