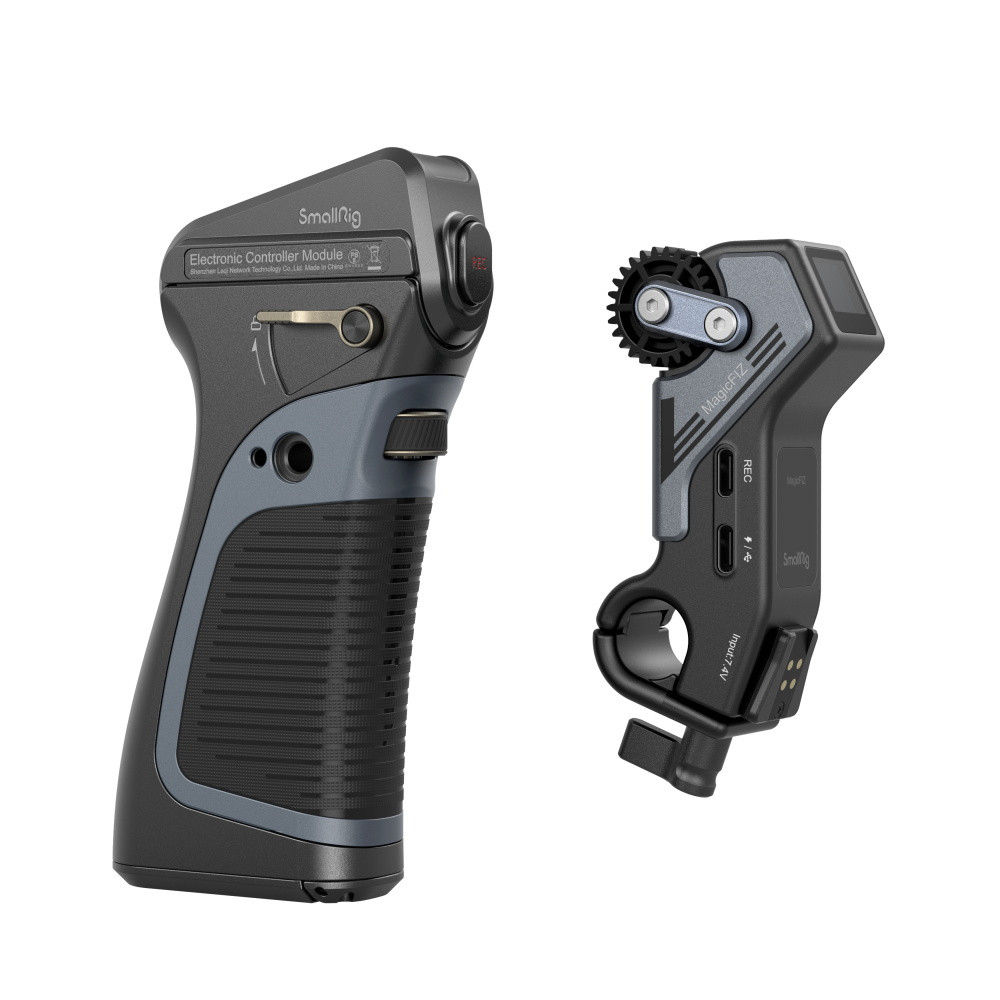

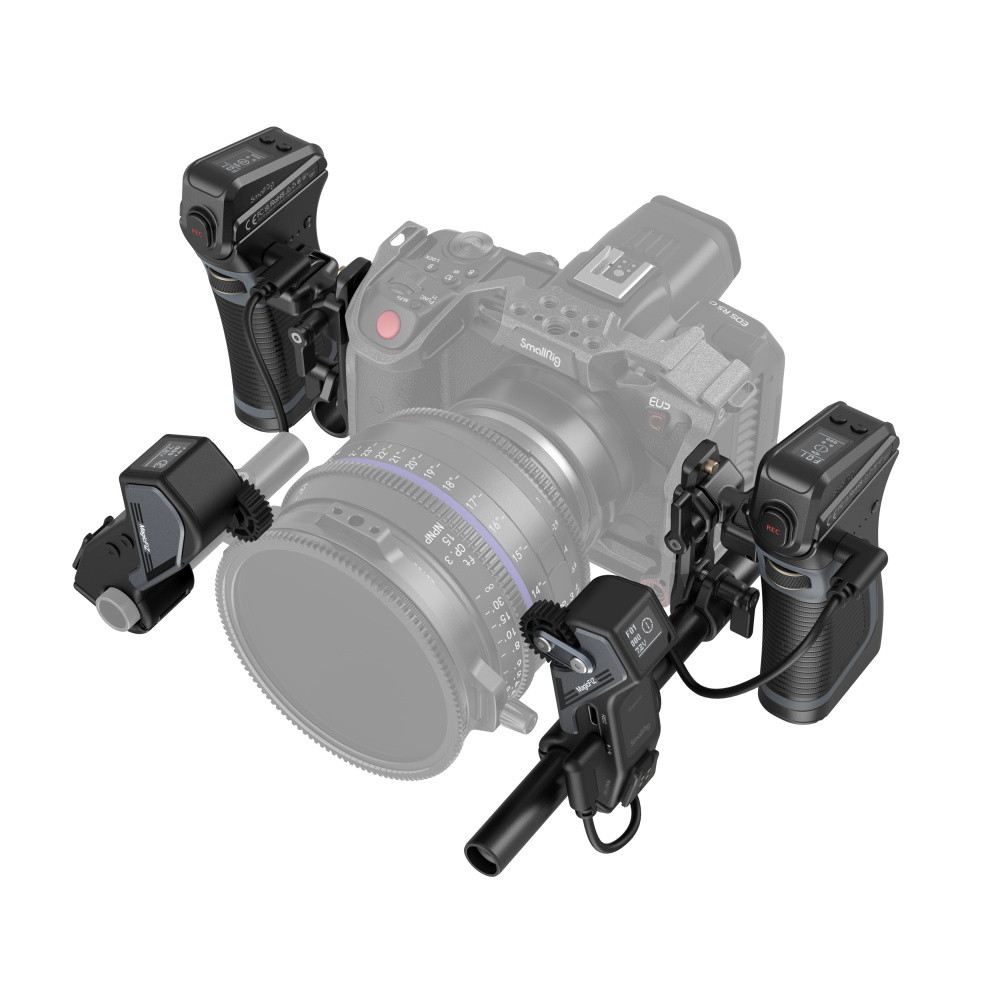

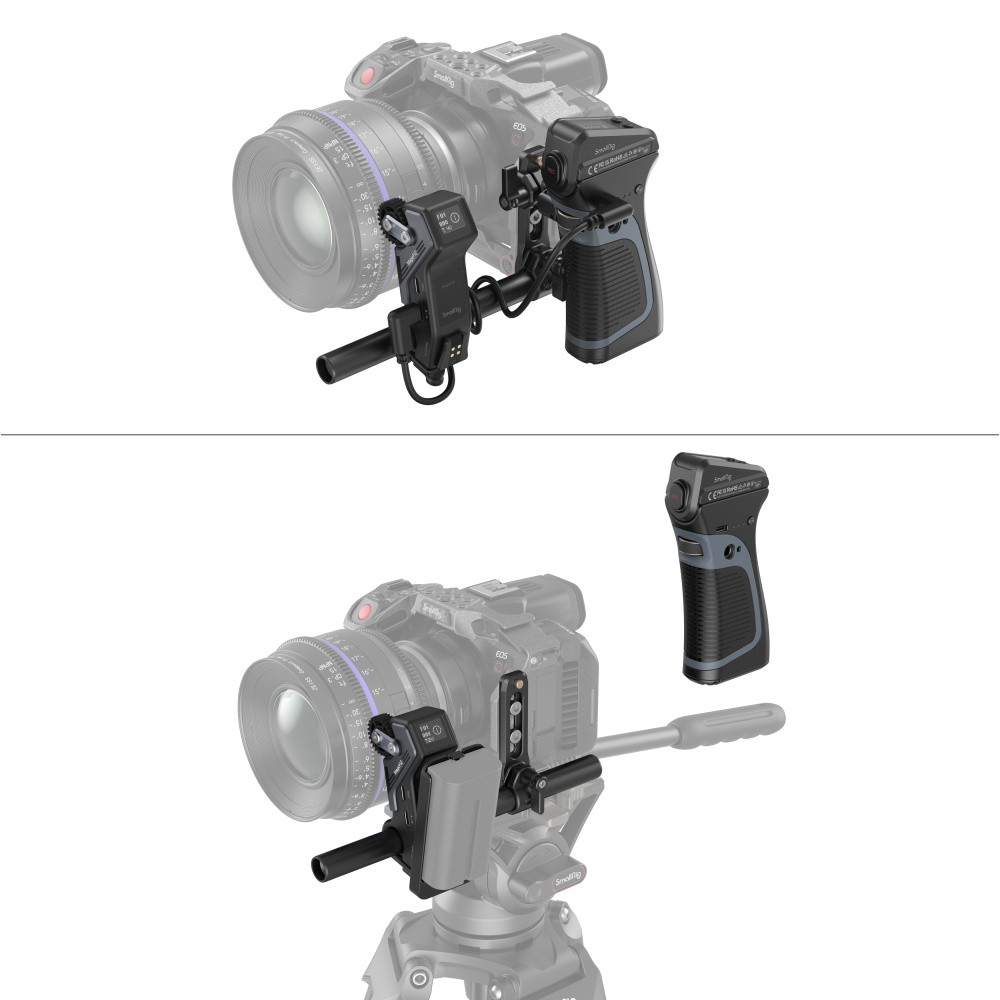

SmallRig MagicFIZ Wireless Follow Focus Handgrip Kit 3782
SmallRig MagicFIZ Wireless Follow Focus Handgrip Kit 3782 is designed to provide a precise and low-latency follow focus experience for video shooting. It comes with a power-failure memory function that spares you from repeated lens calibration and AB point settings, thus improving shooting efficiency, and an ultra-low-power 0.96" OLED screen with a vibration warning that provides a simple but efficient interaction experience. Among these accessories, the Wireless Handgrip has an ergonomic and modular design for a comfortable grip and anti-twist 1/4''-20 holes on both sides for Handgrip Adapter, making it suitable for both right hand and left hand. It is compatible with LP-E6 batteries for longer battery life which can power the focus motor via USB-C cables. It also supports fast charging and 5V-16.8V wide input voltage and offers 9V/18W and 0.5N.m torque output. The Wireless Receiver Motor can be powered by the included Battery Plate (ID: 3777) with NP-F batteries or by D-Tap to USB-C Power Cable (ID: 3266) and DC to USB-C Power cable (ID: 3268) with V-Mount batteries. The whole system has a remote control range of up to 100m in open areas and also supports lower-latency USB-C cable control for more stability. Its BLE module helps in wireless REC start/stop which can also be realized by control cables (ID: 3325, 2971, 2970, depending on your camera type) with Wireless Receiver Motor. Besides, high precision BLDC control algorithm and anti-interference encryption algorithm further guarantee low latency and stable focus.
Note:
1. Wireless Receiver Motor and Electronic Controller Module can be operated only under the same frequency band and number.
2. Calibration is required when Wireless Receiver Motor reverses rapidly or the Wireless Handwheel Controller screen displays abnormal location information.
3. Please check anomalies when there is a vibration warning from the electronic control module.
4. For instructions, please refer to the Wireless Follow Focus System User Manual.
Supports different camera types via control cables
Supports different camera types via BLE
Work With
1: Φ49/Φ52/55/58/62/Φ67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens
2: Φ15 rail support system
3: M0.8 lens and follow focus gear ring
4: Incompatible with non-SmallRig wireless follow focus system
5: NP-F batteries
6: Supports fast charging
7: Cameras with REC function

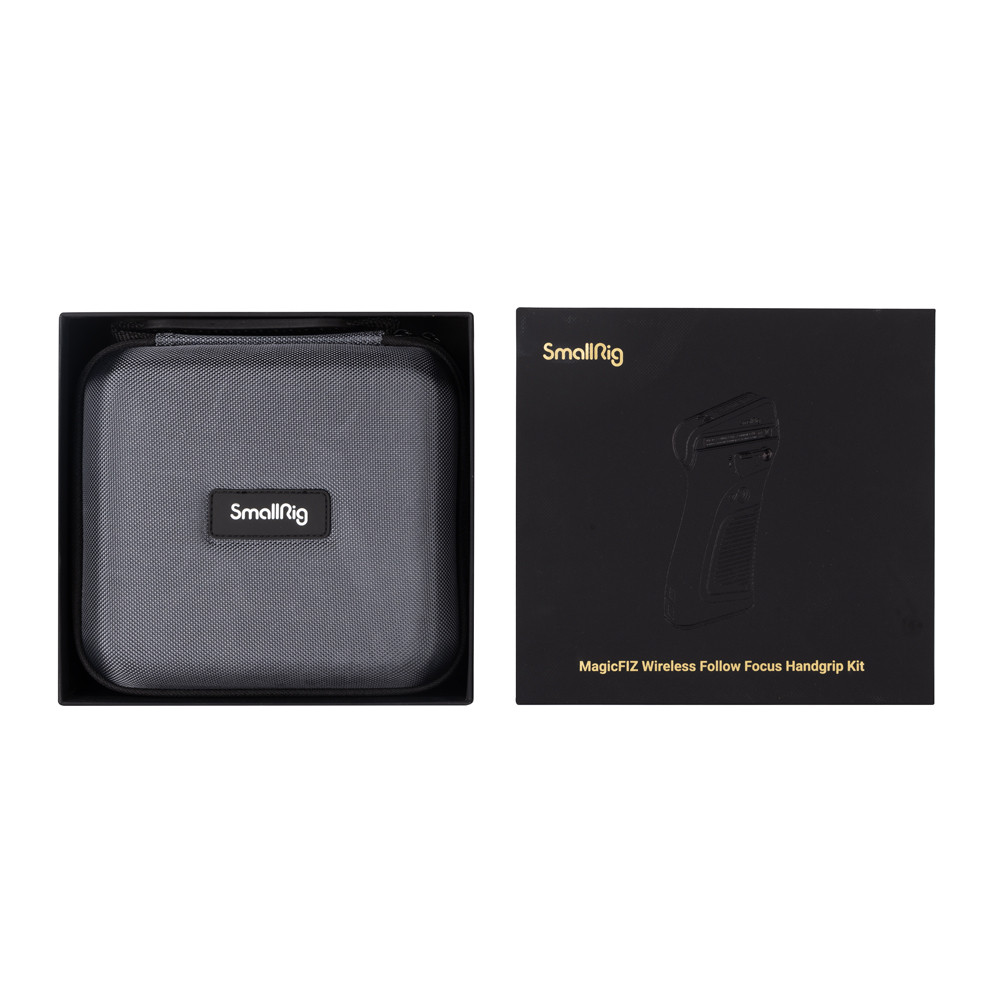

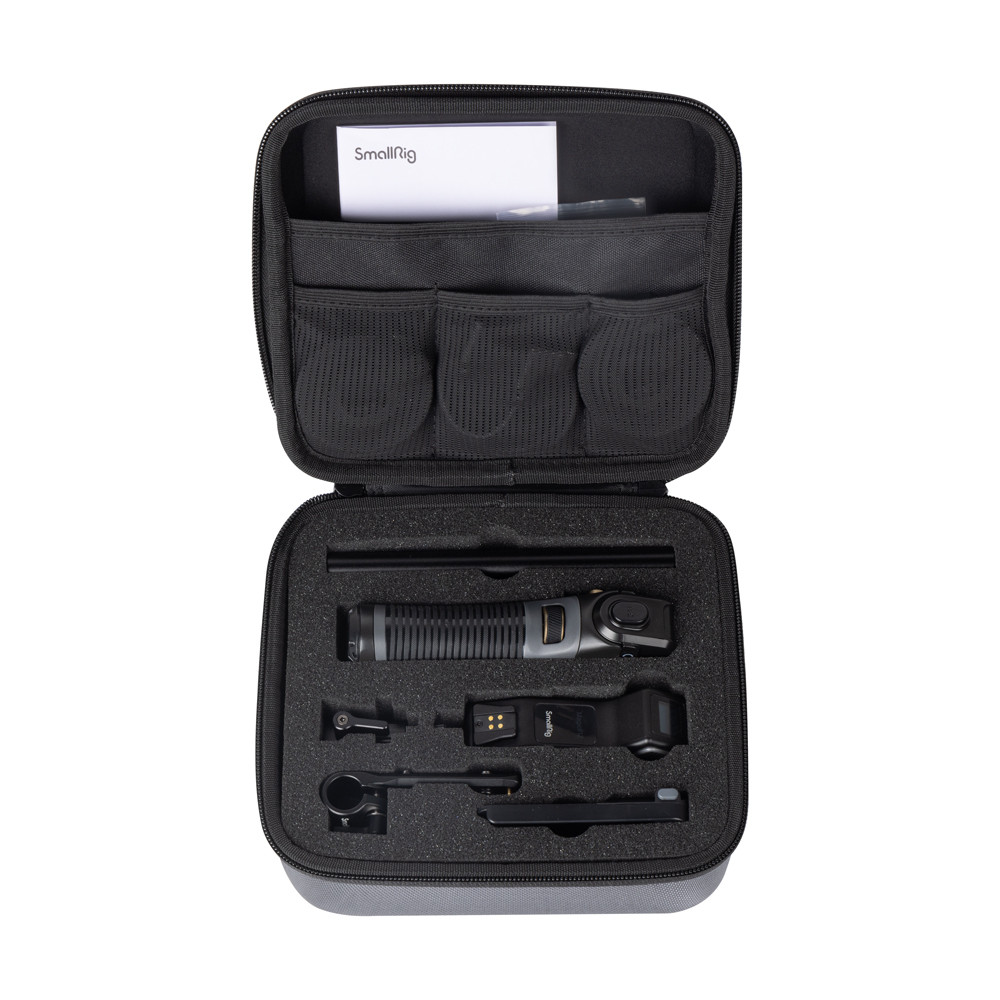

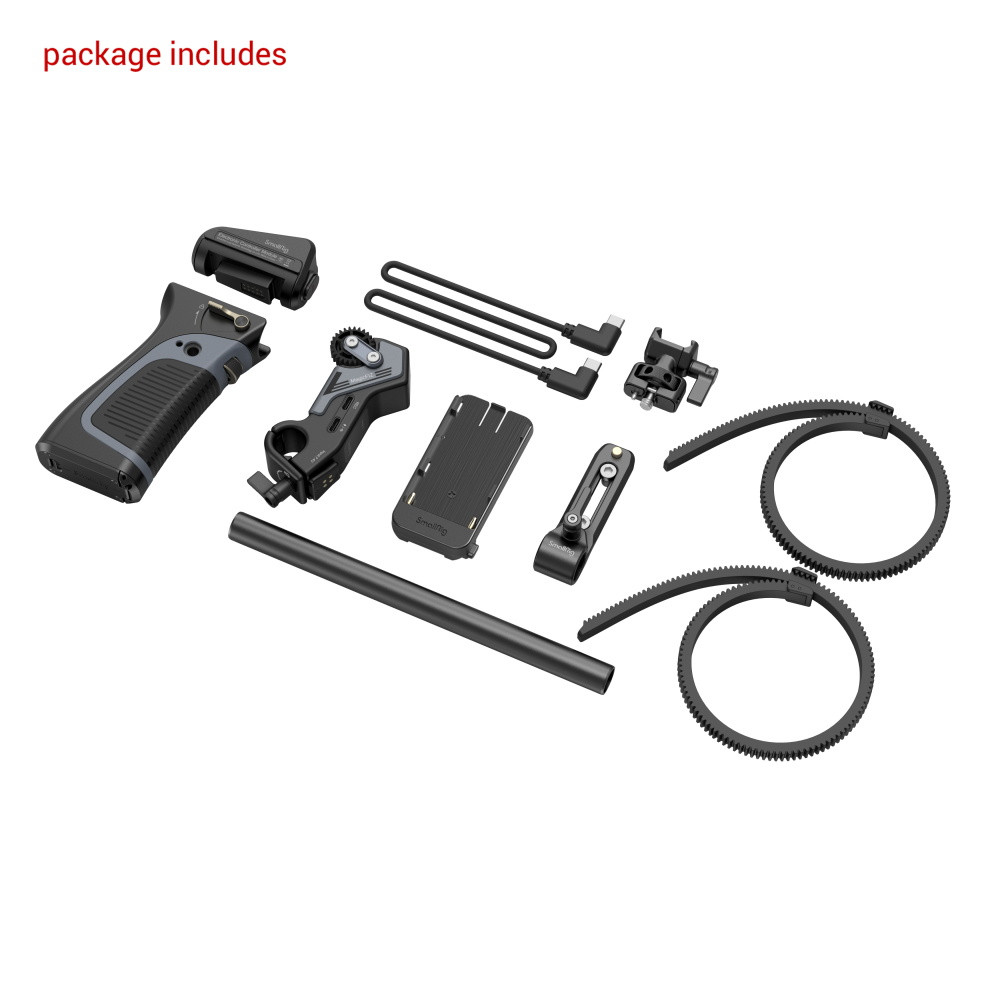

Packing List
1 x Electronic Controller Module
1 x Wireless Receiver Motor
1 x Wireless Handgrip
1 x Battery Plate
1 x Handgrip Adapter
1 x Φ15 Rod
1 x Rod Clamp with NATO rail
2 x Snap-on Follow Focus Gear Ring
1 x USB-C to USB-C Cable
1 x Spanner
1 x User Manual

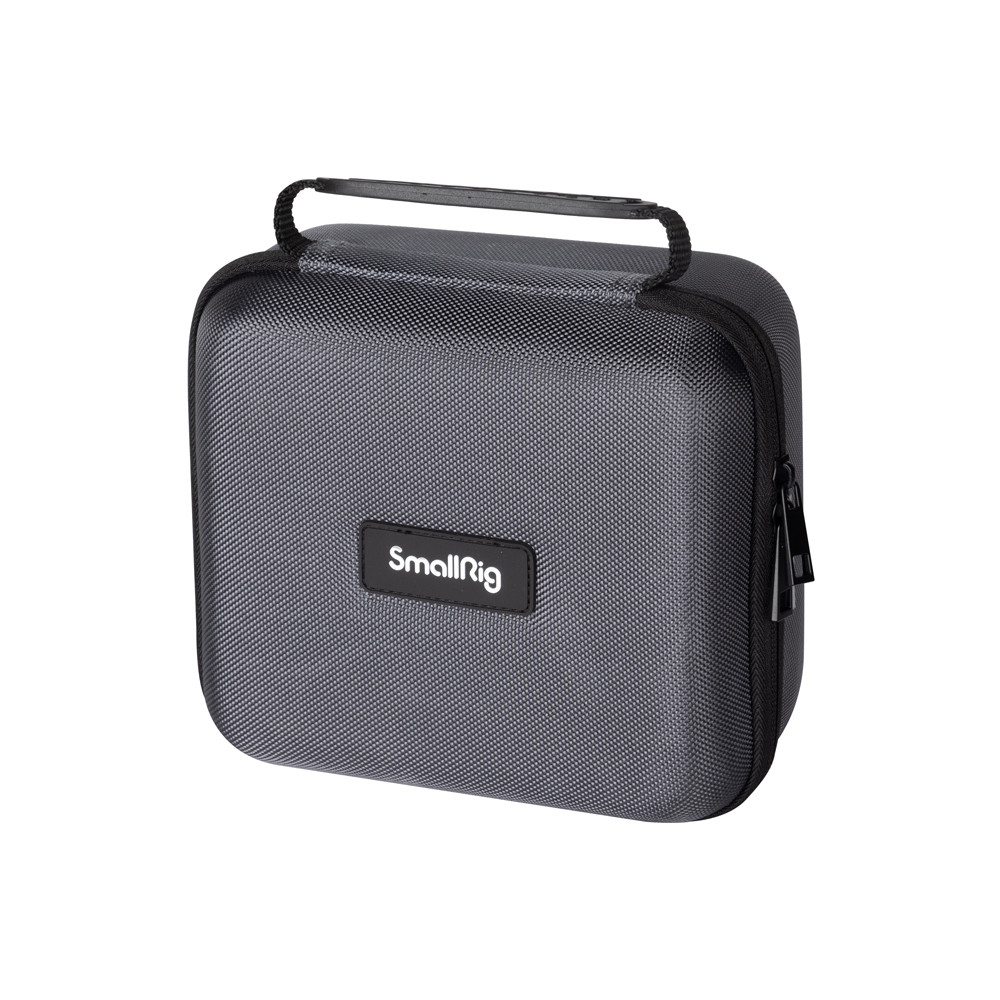

1 x Carrying Bag
Technical Data
Product Dimensions
Wireless Handgrip: 114 x 73 x 33.5 mm
Electronic Controller Module: 64.5 x 27 x 35 mm
Wireless Receiver Motor: 105 x 48.5 x 32.5 mm
Package Dimensions: 212 x 202 x 95mm
Product Weight: 458g±5g
Package Weight: 1068g±5g
Material(s): AL6061, ABS, PC, 304 Stainless Steel, Silicone
