SmallRig MagicFIZ Wireless Follow Focus Two Motor Kit 3918

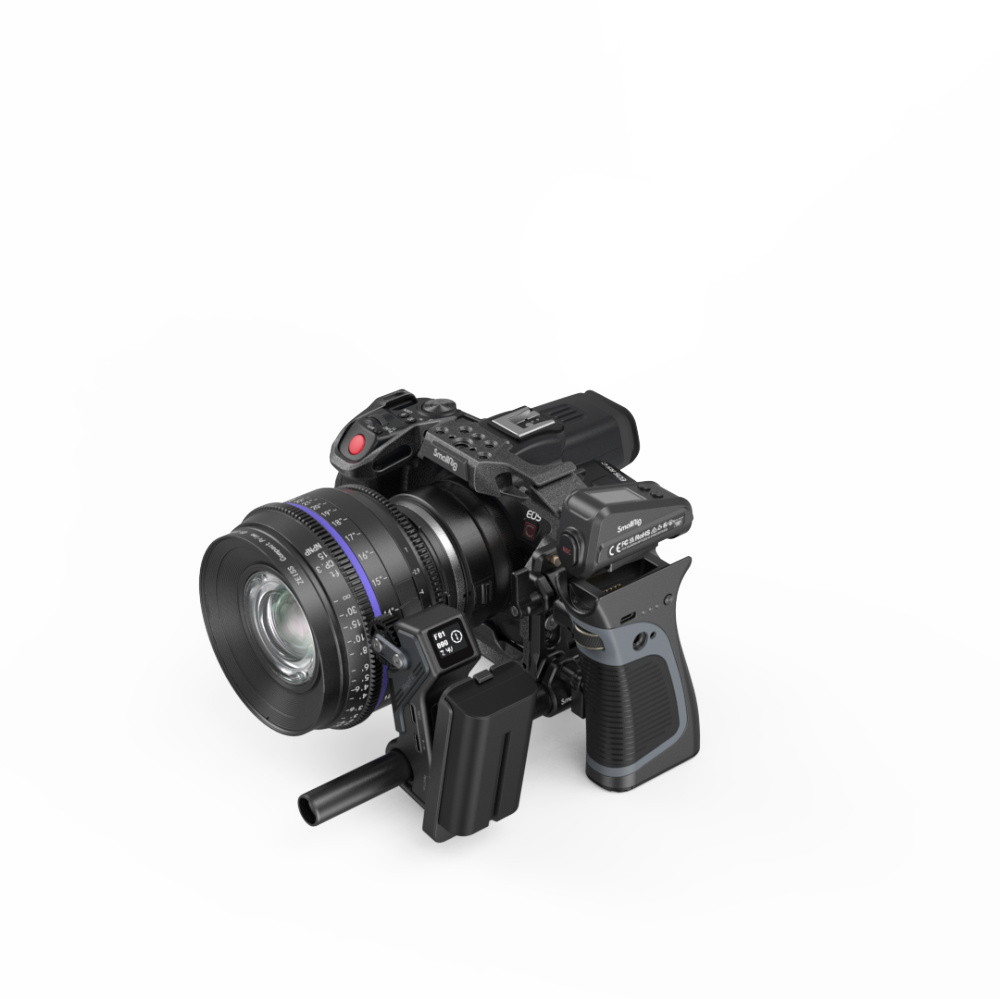

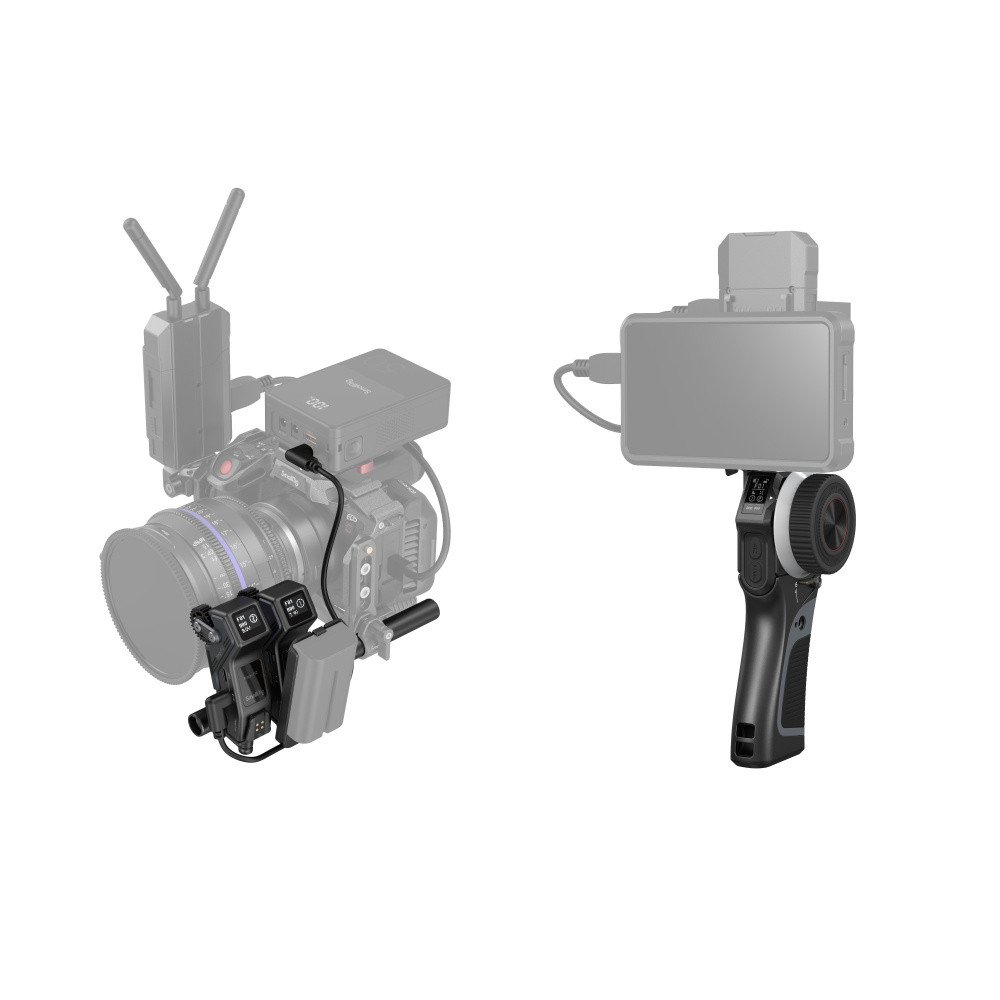

SmallRig MagicFIZ Wireless Follow Focus Two Motor Kit 3918 is designed to provide a single photographer or photography team with precise follow focus solutions in hand-held, over-the-shoulder shooting, and monitoring. The Wireless Handwheel Controller has a 1400mAh battery and lasts up to 40 hours when working with Wireless Handgrip. It, alongside the electronic control module, comes with a power-failure memory function that spares you from repeated lens calibration and AB point settings, thus improving shooting efficiency. Ultra-low-power 0.96" OLED screen with RGB lighting effect and vibration warning provides a simple but efficient interaction experience. Wireless Handgrip (ID: 3780) not only fits the Wireless Handwheel Controller (ID:3262) well for dual control of the Wireless Receiver Motor but works with an electronic control module for single-channel wireless and cabled control of the Wireless Receiver Motor. The Wireless Receiver Motor supports fast charging and provides 9V/18W and 0.25N.m torque output. It can be powered by Battery Plate (ID: 3777) with NP-F batteries or by D-Tap to USB-C Power Cable (ID: 3266) and DC to USB-C Power cable (ID: 3268) with V-Mount batteries. The whole system has a remote control range of up to 100m in an open area and also supports lower-latency control with Wireless Handgrip 3780 and USB-C cables for more stability. Its BLE module helps in wireless REC start/stop which can also be realized by control cables (ID: 3325, 2971, 2970, depending on your camera type) with a Wireless Receiver Motor. The Two Motor Kit also includes a shoulder rig adapter, handgrip adapter, and monitor adapter (ID: 4092) for hand-held, over-the-shoulder shooting and monitoring. With freely switchable modular, the wireless follow focus system brings you quick release and precise, stable focus experience for handheld, head, tripod shooting, and director monitoring.
Note:
1. Wireless Receiver Motor and Wireless Handwheel Controller can be operated only under the same frequency band and number.
2. Calibration is required when the focus motor reverses rapidly or the Wireless Handwheel Controller screen displays abnormal location information.
3. Please check anomalies when there is a vibration warning from the electronic controller module.
4. For instructions, please refer to the Wireless Follow Focus System User Manual.
Supports different camera types via control cables
Supports different camera types via BLE
Work With
1: Φ49/Φ52/55/58/62/Φ67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens
2: Φ15 rail support system
3: M0.8 lens and follow focus gear ring
4: Incompatible with non-SmallRig wireless follow focus system
5: LP-E6 and NP-F batteries
6: Supports fast charging
7: NATO rail and ARRI rosette
8: Cameras with REC function

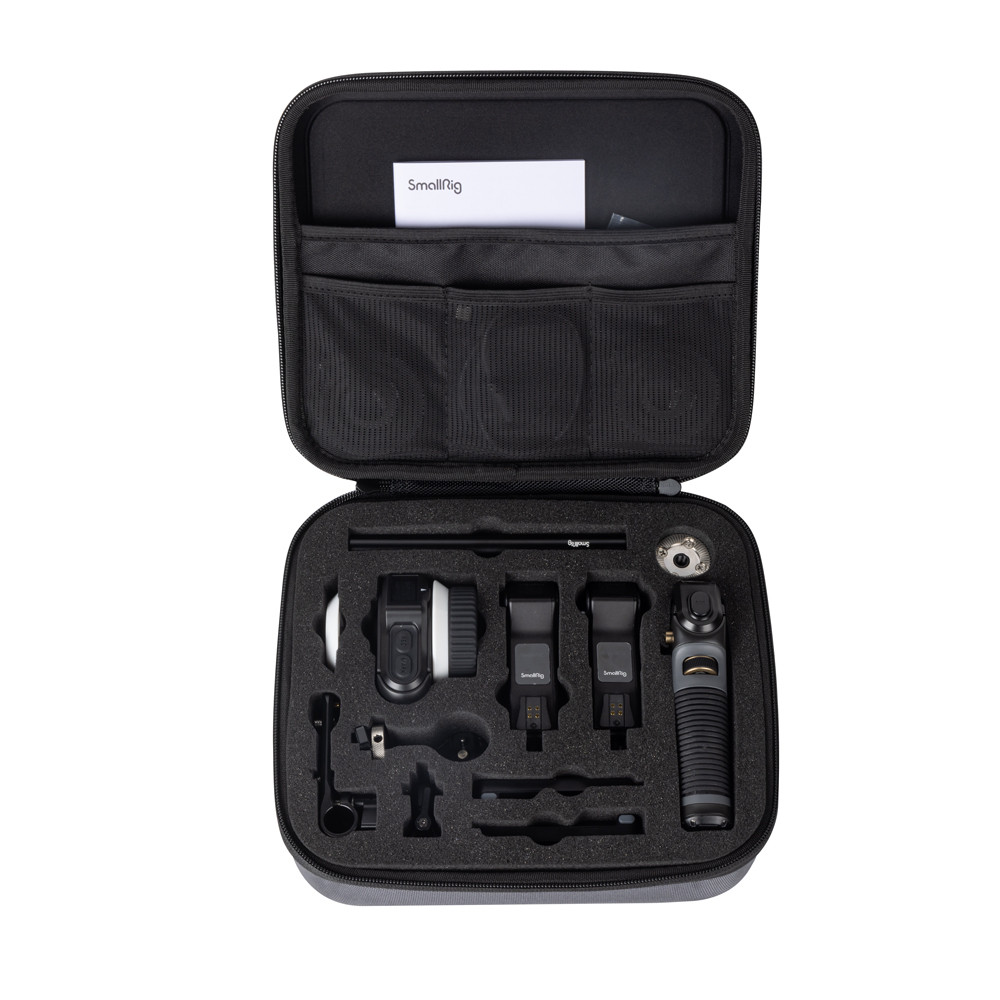

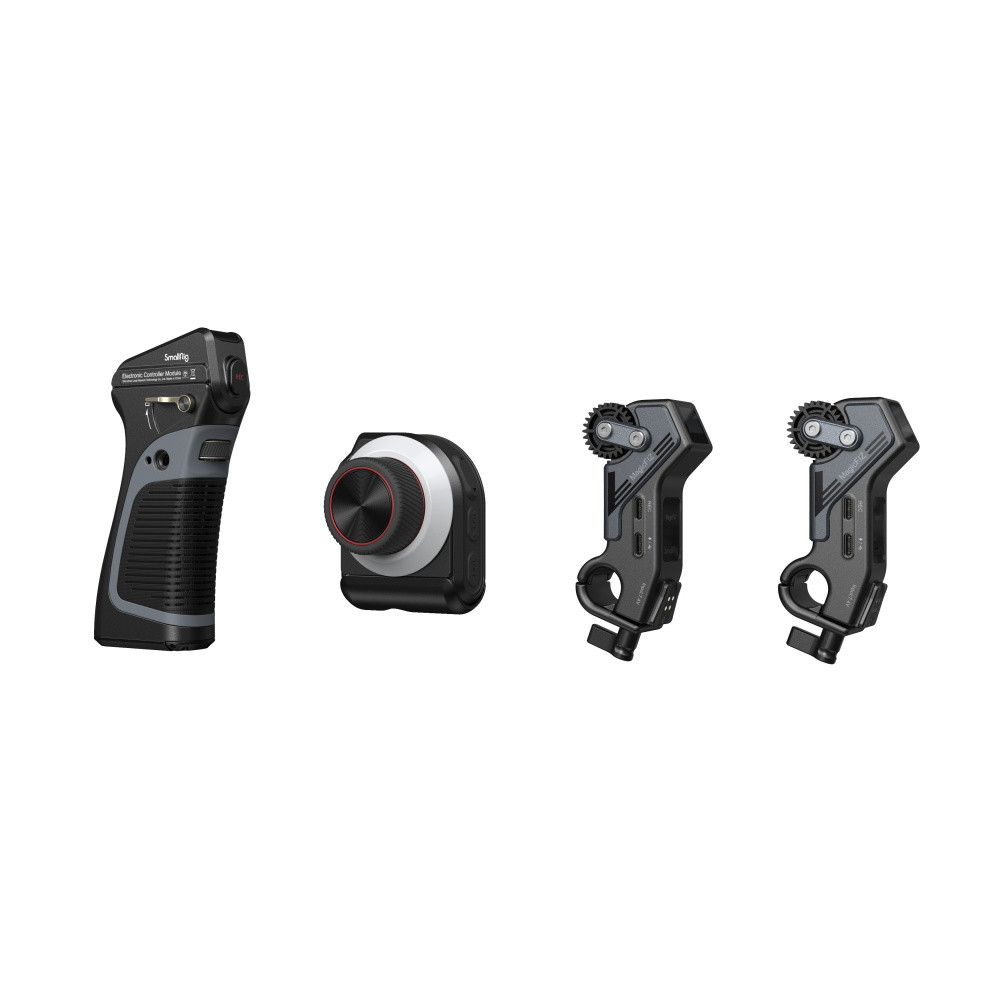

Packing List
1 x Wireless Handwheel Controller
1 x Wireless Handgrip
1 x Electronic Controller Module

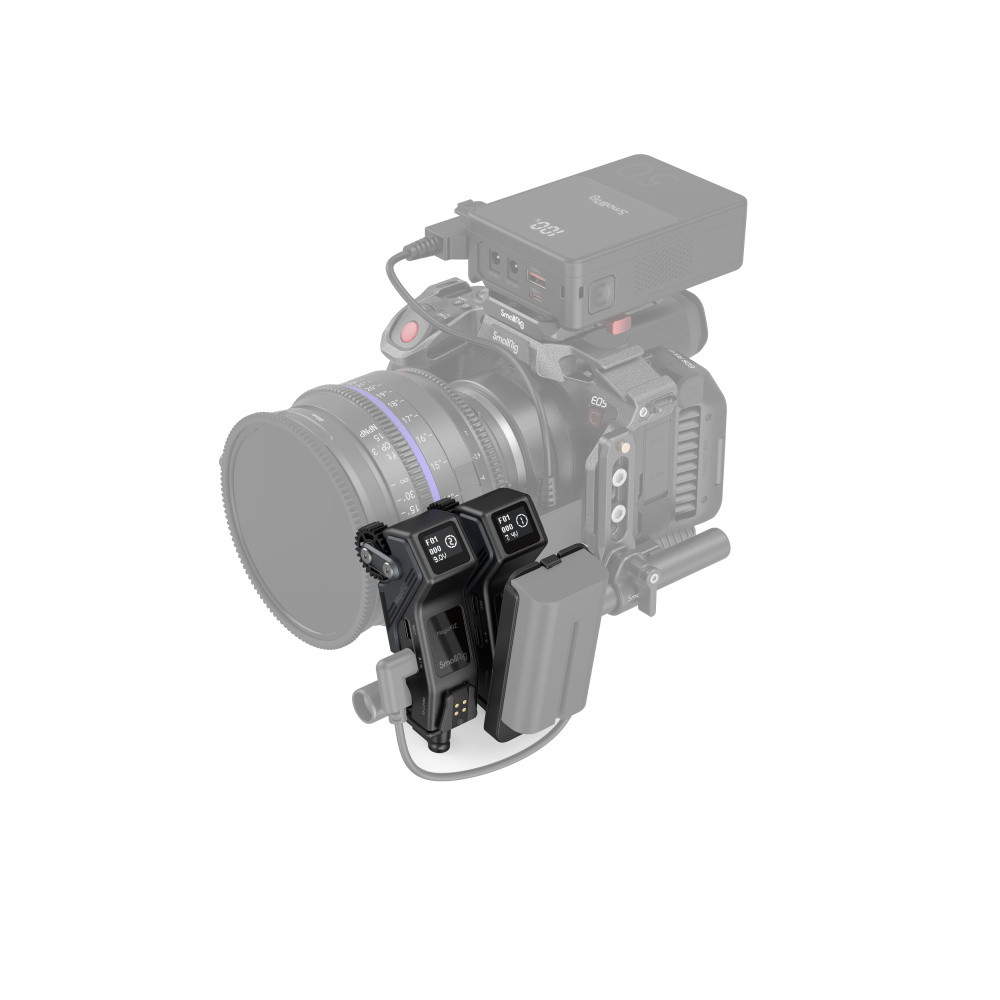

2 x Wireless Receiver Motor
2 x Battery Plate
1 x Handgrip Adapter

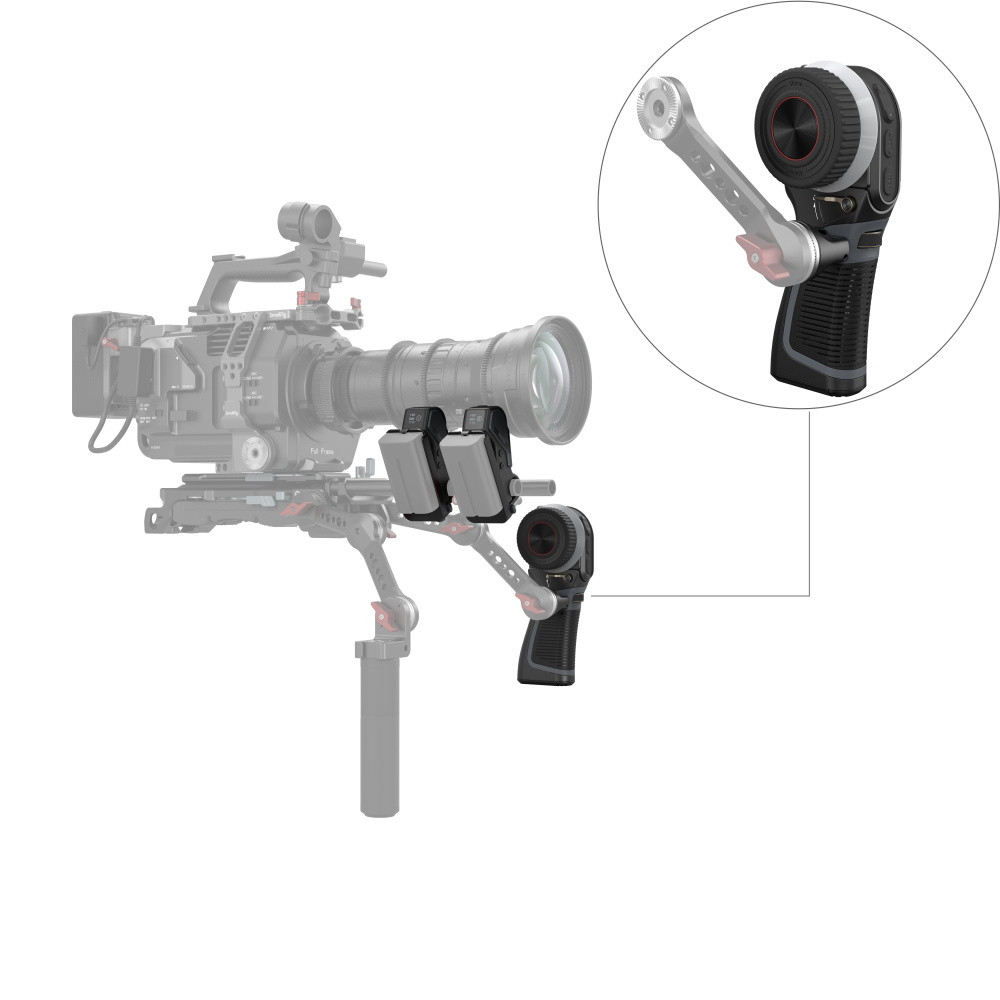

1 x Shoulder Rig Adapter

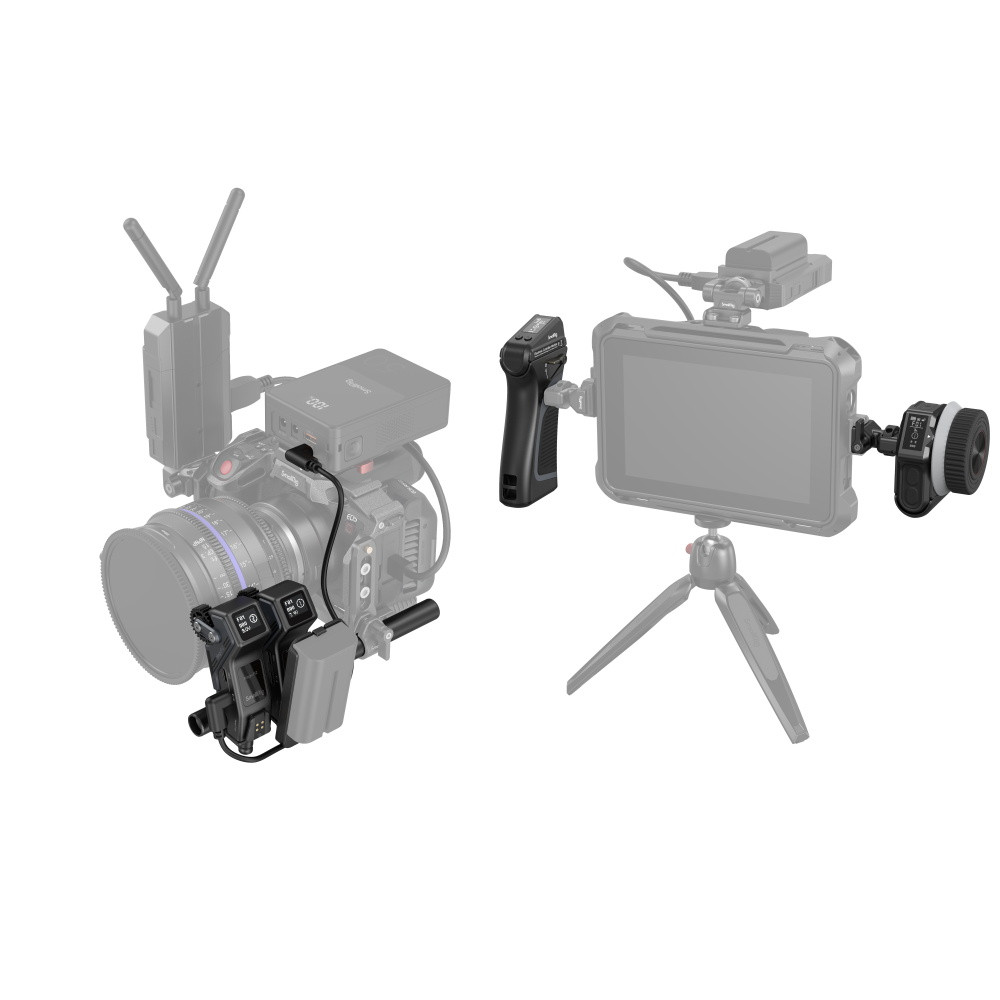

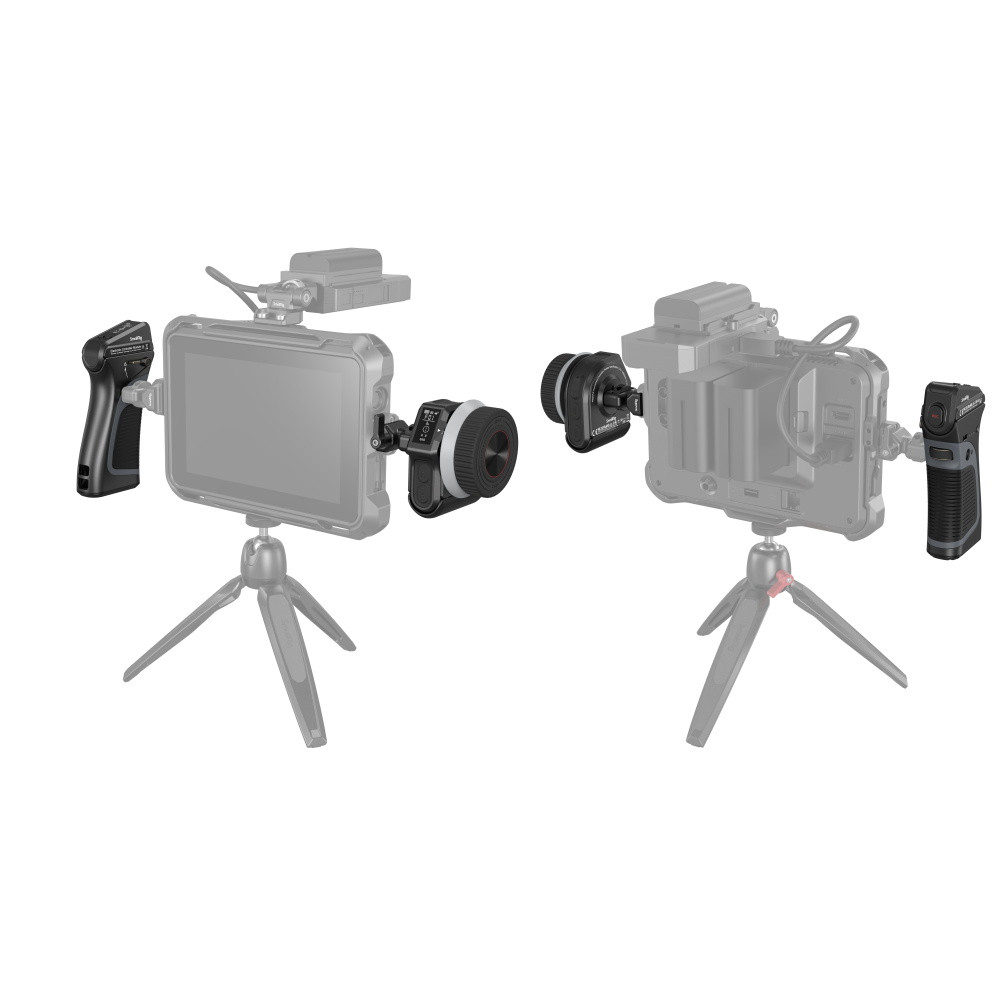

1 x Monitor Adapter
1 x Φ15 Rod
1 x Rod Clamp with NATO rail
1 x Snap-on Follow Focus Gear Ring
1 x USB-C to USB-C Cable
1 x Follow Focus Marking Disk (Silicone)
1 x Spanner
1 x User Manual

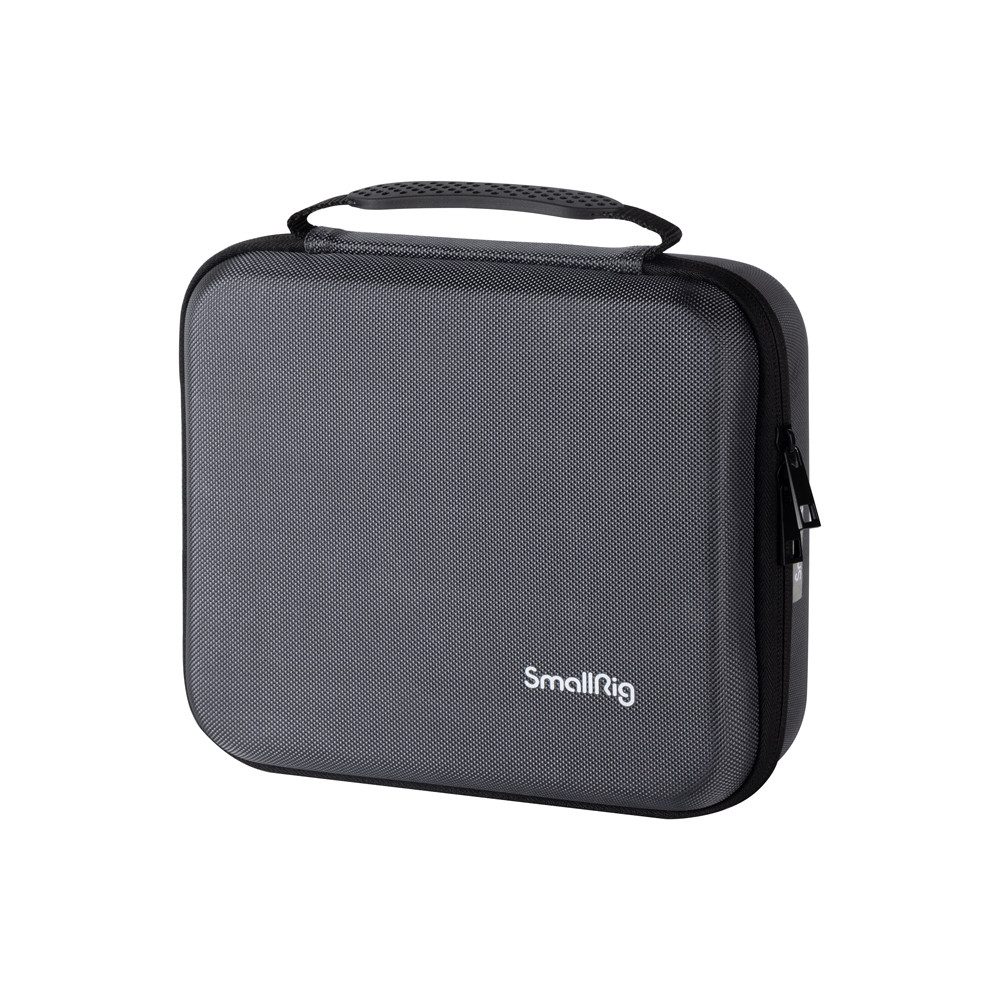

1 x Carrying Bag
Technical Data

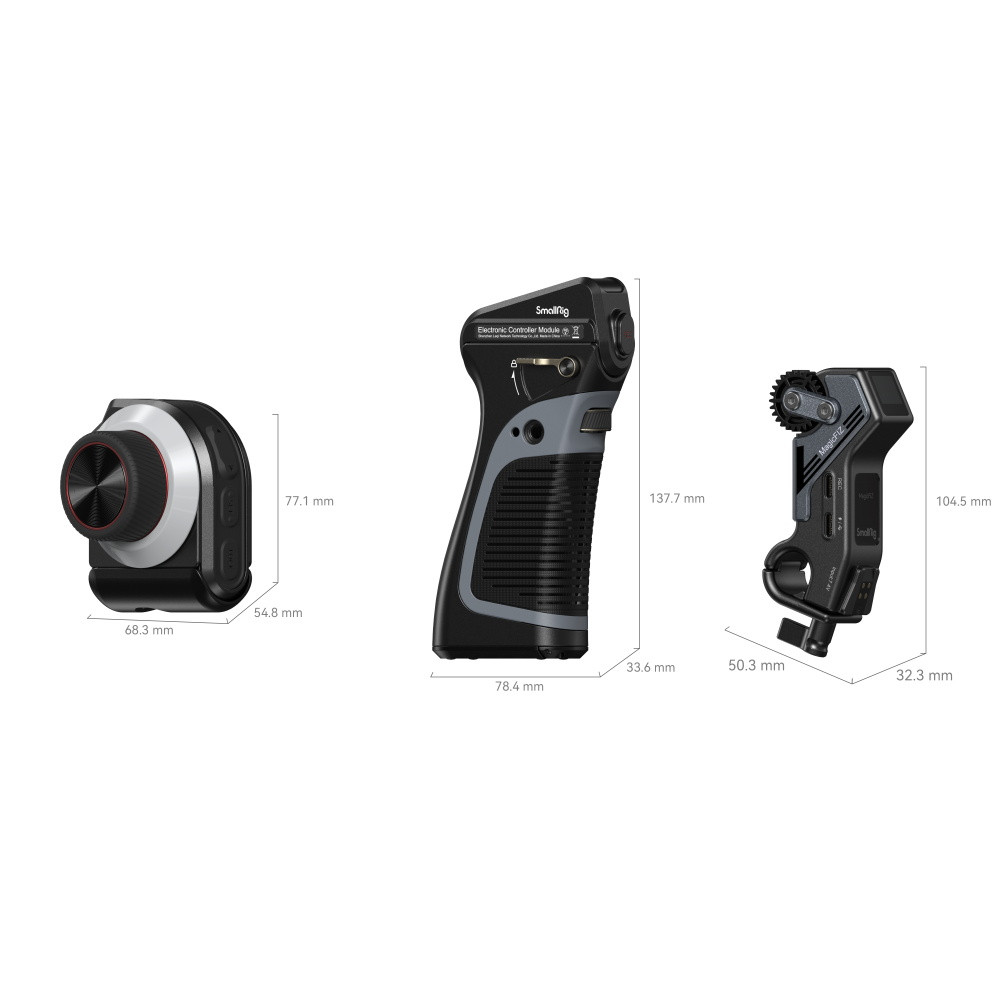

Product Dimensions
Wireless Handwheel Controller: 77 x 69 x 54.7 mm
Wireless Handgrip: 114 x 73 x 33.5 mm
Electronic Controller Module: 64.5 x 27 x 35 mm
Wireless Receiver Motor: 105 x 48.5 x 32.5 mm
Package Dimensions: 255 x 230 x 90 mm
Product Weight: 851g±5g
Package Weight: 1451g±5g
Material(s): AL6061, ABS, PC, 304 Stainless Steel, Silicone
