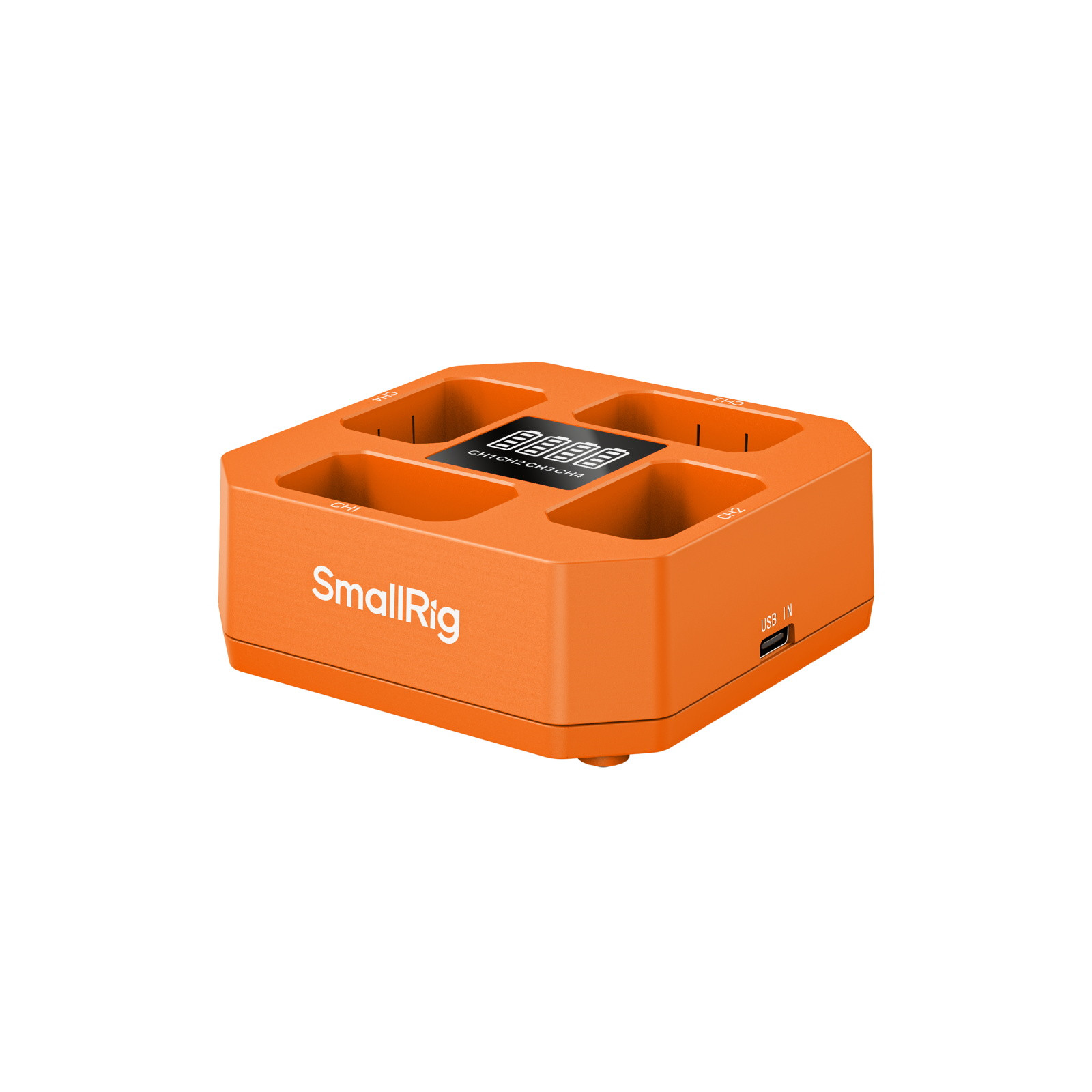

SmallRig Four-Channel Camera Battery Charger for NP-FW50 5749

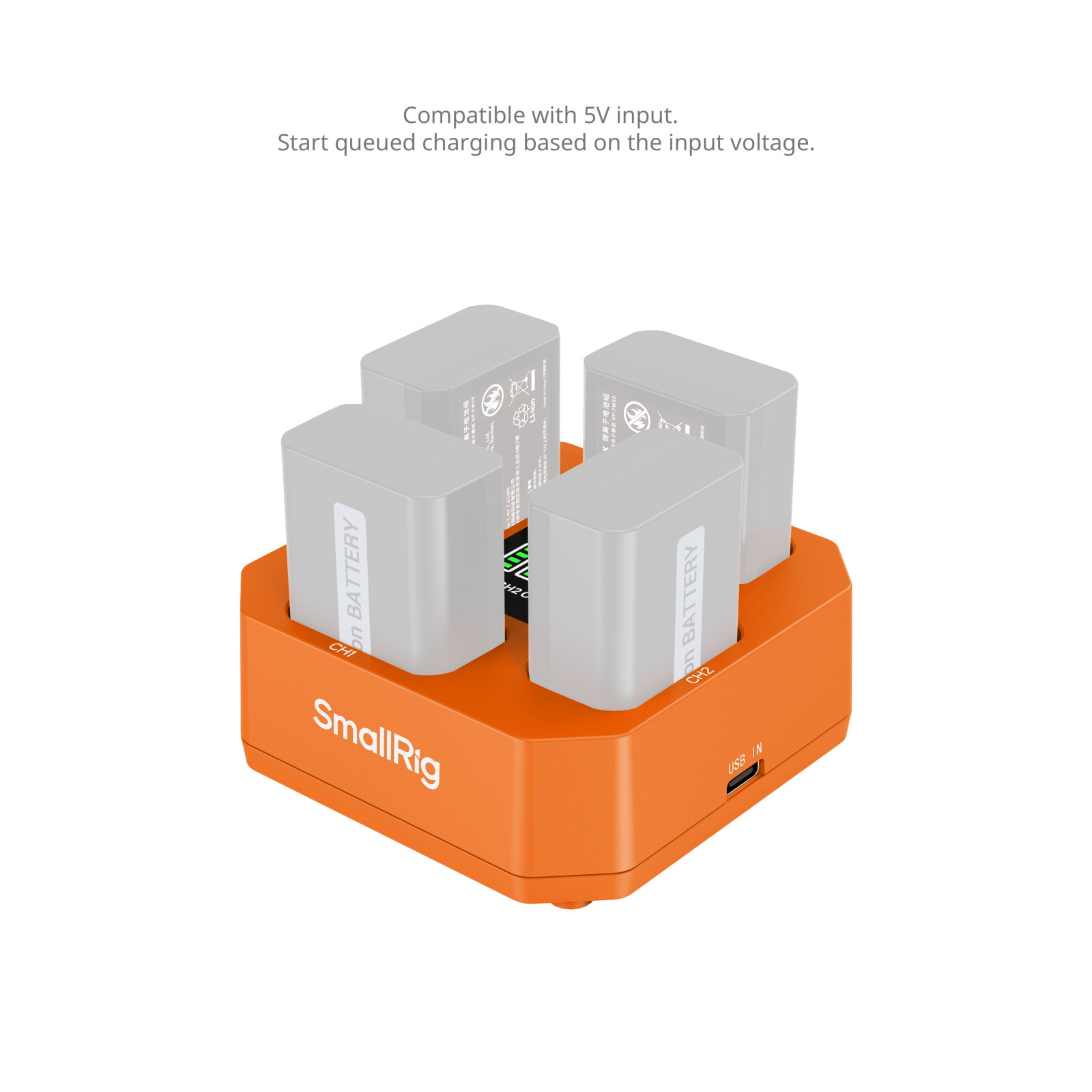

SmallRig Four-Channel Camera Battery Charger for NP-FW50 5749 is a high-efficiency, high-power charger designed for NP-FW50 batteries. With a 24W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power.

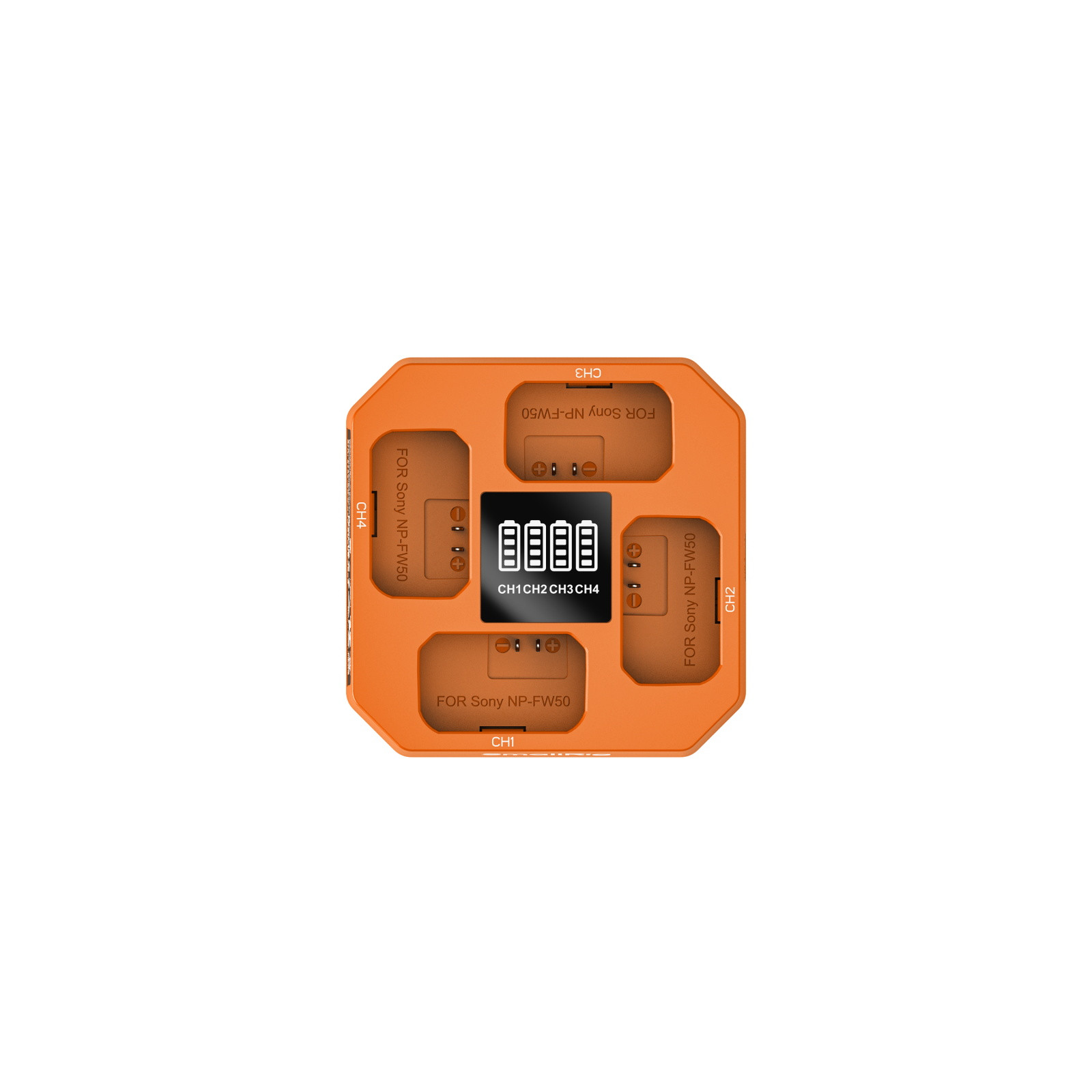

The four dedicated channels allow for simultaneous charging of four NP-FW50 batteries, delivering efficient fast charging to meet demanding shooting schedules.
Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.
Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.
Charging Time:
Battery Capacity: 1030mAh (e.g., ID 4965, 4330, 4330AC)
Full Charge: 4 batteries in 2 hours
Note: It is recommended to use a USB-C power adapter supporting Power Delivery (PD) with an output of 27W or higher for optimal performance.
Certifications: Quality Inspection Report / FCC / CE / KC / RCM / ISED
Work With
Alpha 7 II, Alpha 6100, Alpha 6400, ZV-E10, 5000, Alpha 7S II, 7R, 6500, 6000, 7, 5100, 6300, 7S, 7R II, DSC-RX10M2, RX10M3, RX10, RX10M4, ILCE-QX1, and other cameras using NP-FW50 batteries.
Packing List
NP-FW50 Four-Channel Charger × 1
65W USB-C to USB-C Charging Cable × 1
User Manual × 1
Guarantee Card × 1
Technical Data
Product Dimensions: 78.0 × 78.0 × 31.0mm / 3.1 × 3.1 × 1.2in
Package Dimensions: 87.0 × 119.0 × 38.0mm / 3.4 × 4.7 × 1.5in
Product Weight: 97.0 ± 5.0g / 3.4 ± 0.2oz
Package Weight: 104.0 ± 5.0g / 3.7 ± 0.2oz
Material(s): ABS + PC

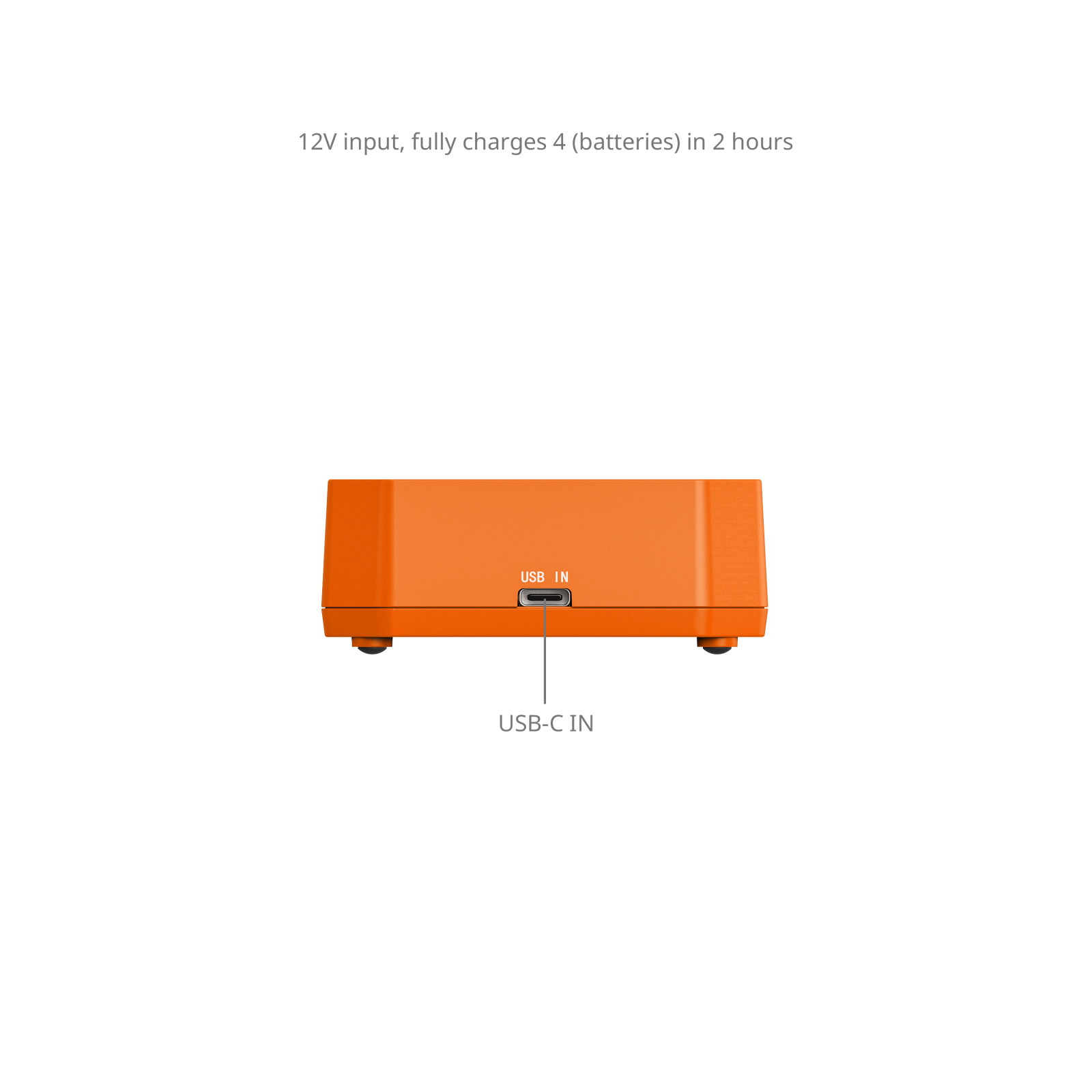

USB-C Input: 5V⎓2A, 9V⎓2A, 12V⎓2A, 15V⎓1.5A (Max 24W)
Output (per channel): 8.4V⎓0.56A
USB-C Protocol: PD
Charge Limit Voltage: 8.45V
Operating Temperature: 0°C – 45°C / 32°F – 113°F
