SmallRig Turbo Charging Kit for NP-FW50 Camera Batteries 5488
SmallRig Turbo Charging Kit for NP-FW50 Camera Batteries 5488 includes two batteries and a dual-channel fast charger. Featuring a full decoding chip, this kit ensures full compatibility with Sony NP-FW50 batteries, eliminating pop-up warnings while supporting in-camera power display and original charger use.
Each battery delivers a true-rated output of 1030mAh, providing extended shooting time for demanding workflows. The charger’s dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 1.5 hours for optimal efficiency.
Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.

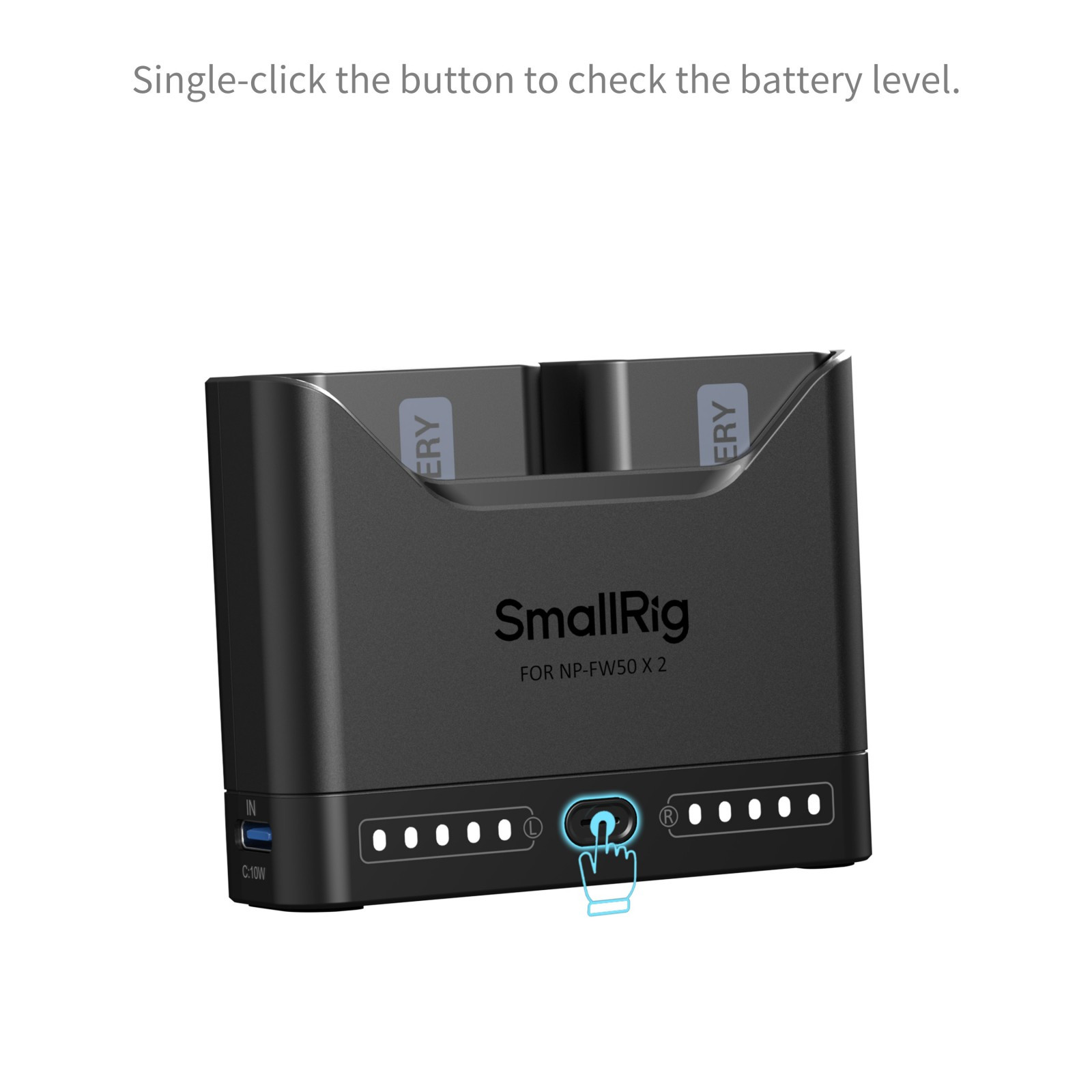

Each charging channel features five LED indicators that display power levels in 20% increments, even without external power. A red warning light activates when battery levels are critically low. Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.
Certifications: FCC, CE, RoHS
Note:

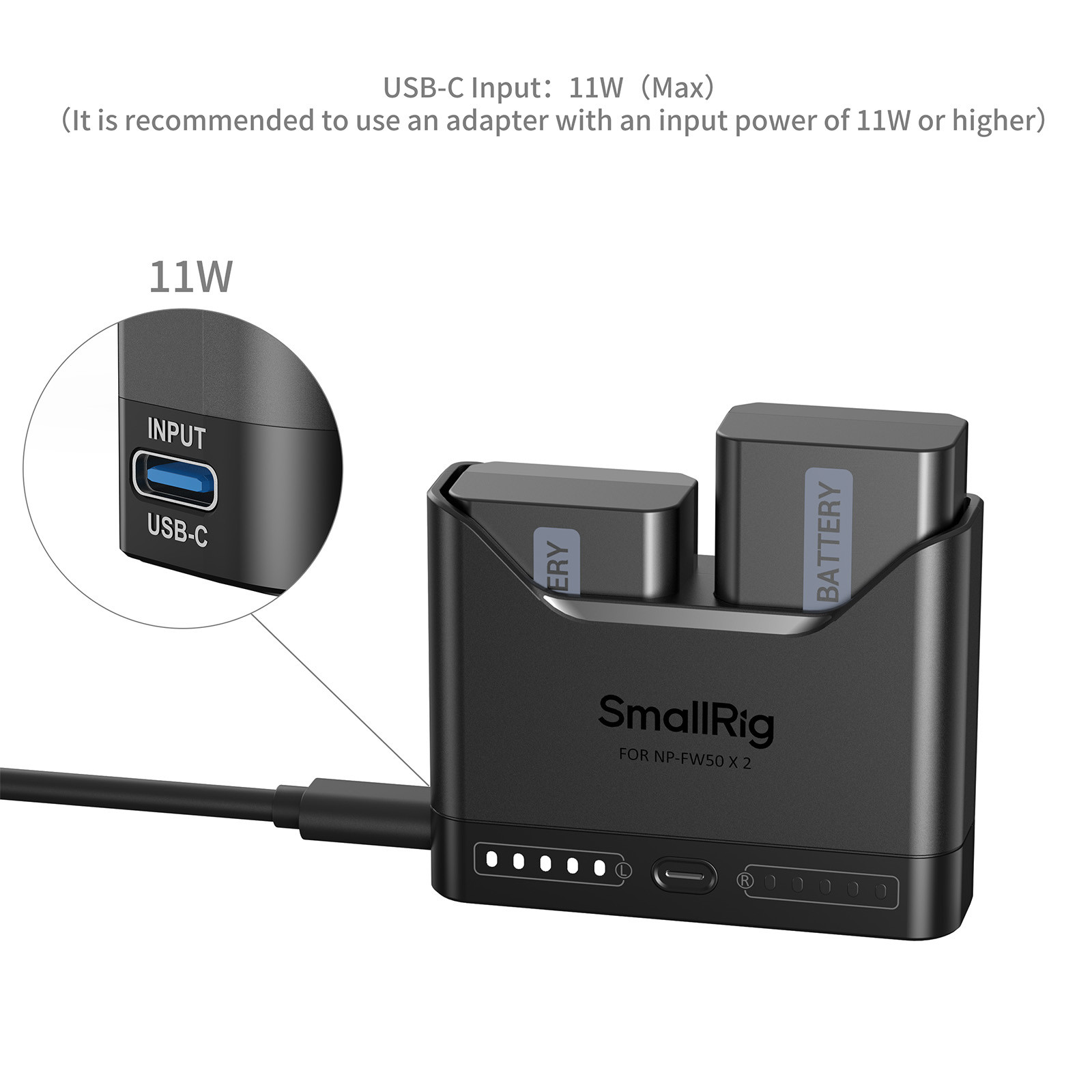

1. Recommended to use a power adapter with 11W or higher output.
2. When using a 5V / 1A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.
Work With
Sony Alpha 7 II / Alpha 6100 / Alpha 6400 / ZV-E10 / 5000 / Alpha 7S II / 7R / 6500 / 6000 / 7 / 5100 / 6300 / 7S / 7R II / DSC-RX10M2 / RX10M3 / RX10 / RX10M4 / ILCE-QX1

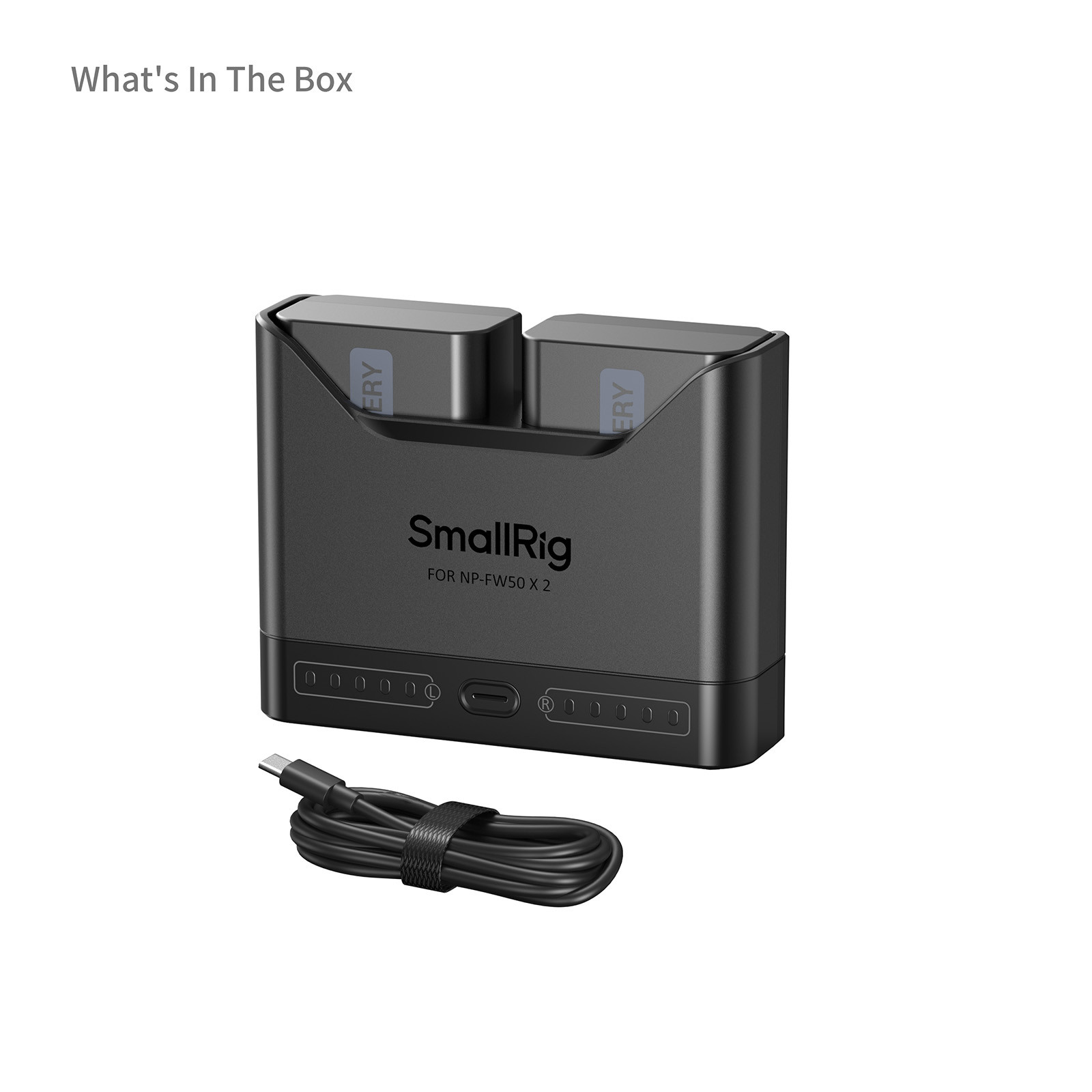

Packing List
Camera Battery Charger for NP-FW50 x 1
Camera Battery for NP-FW50 x 2
Battery Cover x 2
60W USB-C to USB-C Cable (1m / 3.3ft) x 1
Technical Data

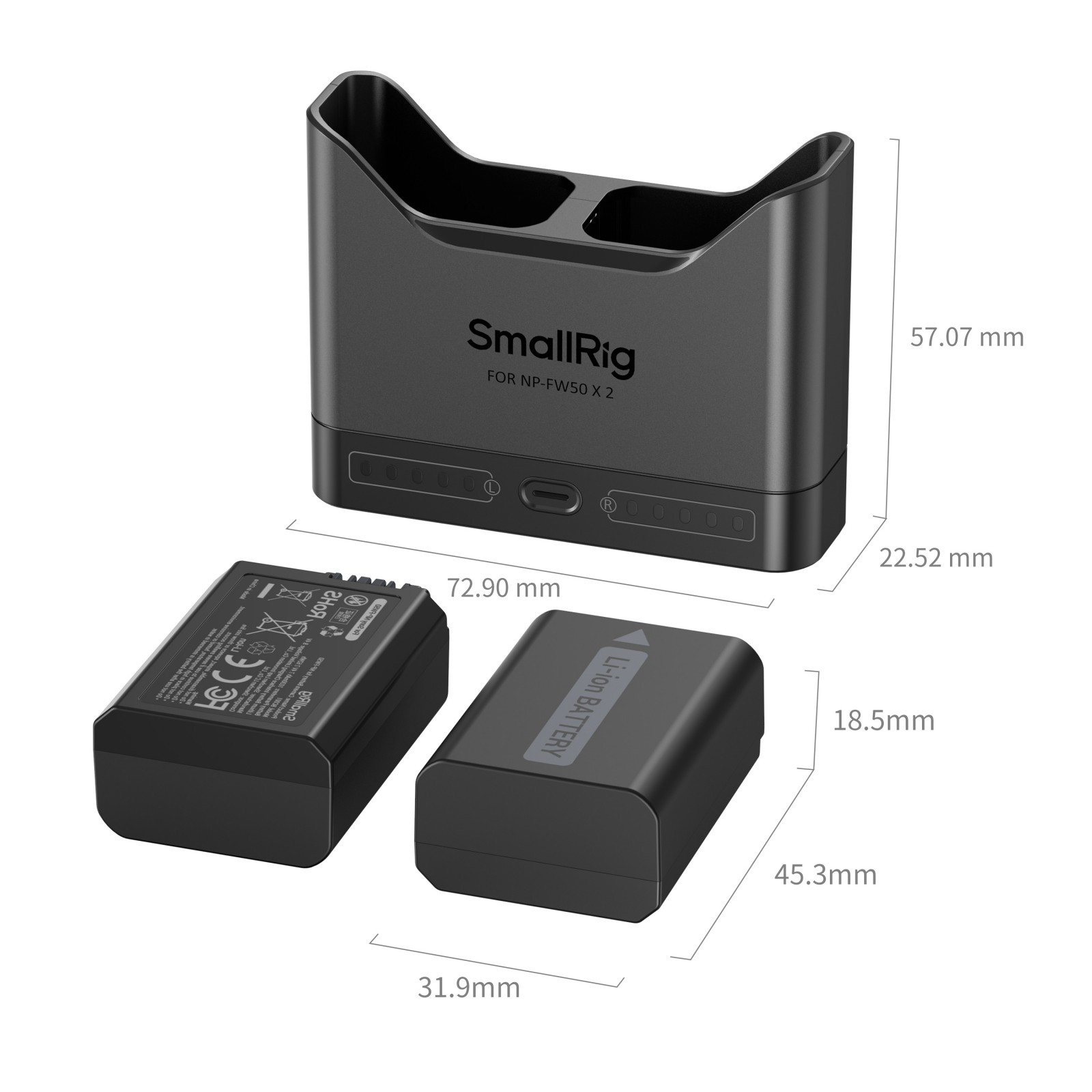

Product Dimensions: 72.9 x 57.1 x 22.5mm / 2.9 x 2.2 x 0.9in
Package Dimensions: 137.0 x 123.0 x 32.0mm / 5.4 x 4.8 x 1.3in
Product Weight: 125 ± 10g / 4.4 ± 0.4oz
Package Weight: 193 ± 10g / 6.8 ± 0.4oz
Charger Specifications:
Material(s): PC + ABS
USB-C Input: 5V / 2.2A; 11W (Max)
Rated Output (Per Channel): 8.4V / 0.5A
Operating Temperature: 0°C to 45°C / 32°F to 113°F
Battery Specifications:
Battery Type: Lithium-ion Battery
Nominal Voltage: 7.2V
Cell Capacity: 1030mAh
Rated Energy: 7.62Wh
Charging Limit Voltage (Li-ion Battery Interface): 8.4V
Charging Current (Li-ion Battery Interface): Standard Charge: 0.2C (206mA)
Fast Charge: 0.7C (515mA)
Maximum Discharge Current: 1.03A
Discharge Cut-off Voltage: 5.5V
Charging Temperature: 0°C to 55°C / 32°F to 131°F
Discharging Temperature: -10°C to 60°C / 14°F to 140°F
Material(s): PC + ABS
