SmallRig Drop-in HawkLock mini Quick Release Monitor Mount with NATO Clamp 3601C

SmallRig Drop-in HawkLock mini Quick Release Monitor Mount with NATO Clamp 3601C

1. Optional dowel pins effectively prevent device deflection.

2. Quickly locked and unlocked  through a click  without jamming.

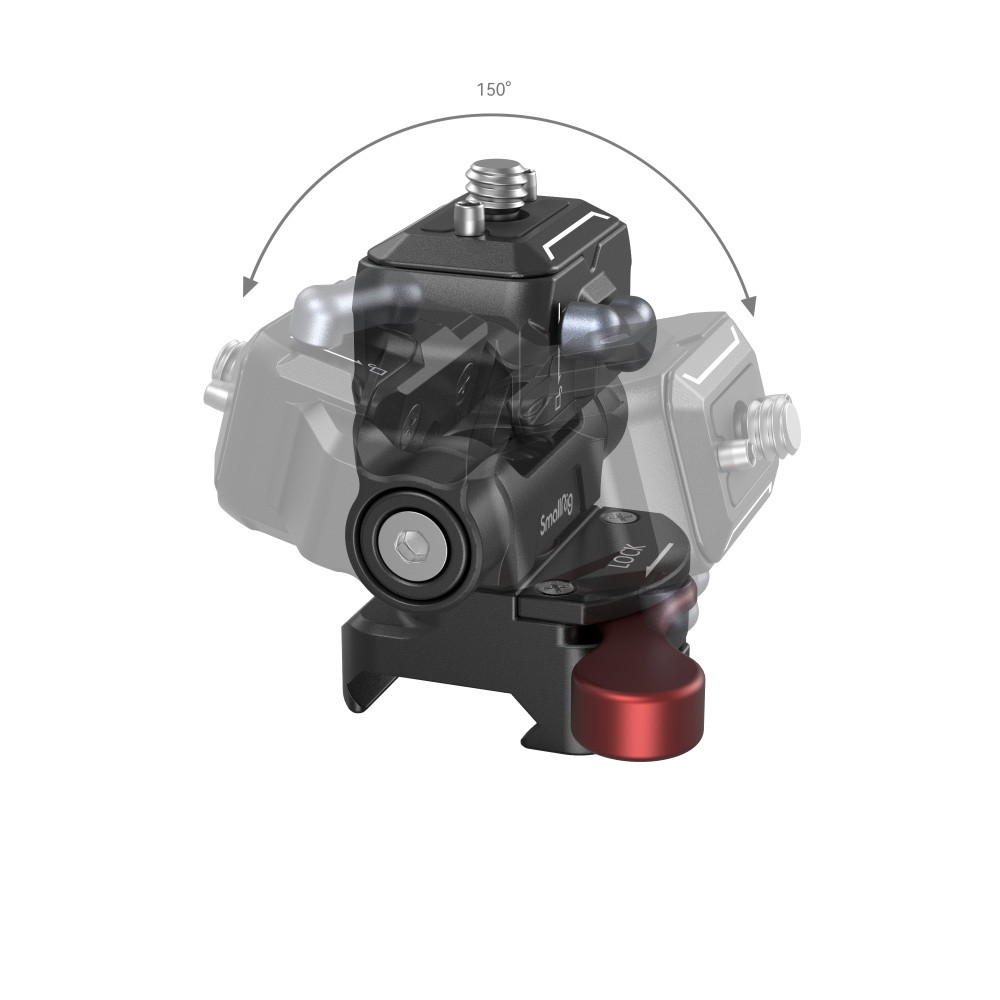

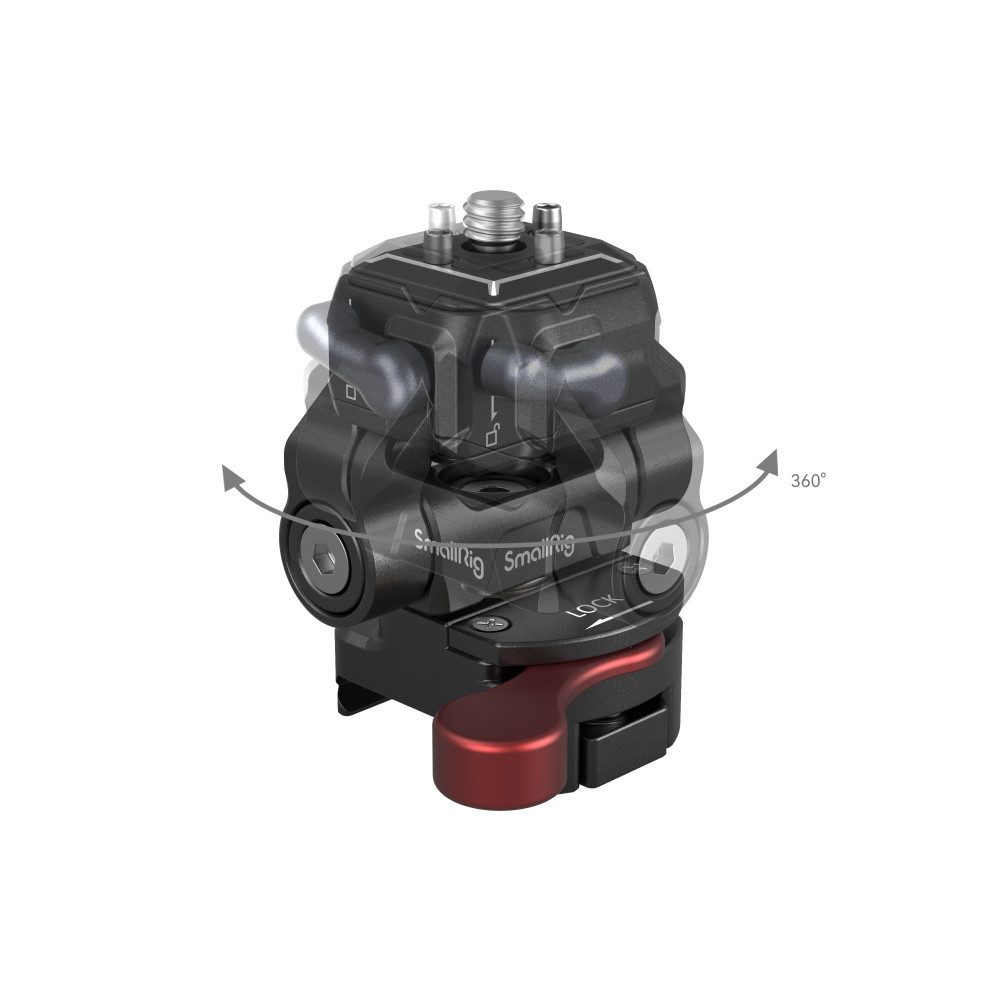

3. 360° swivel and 150° tilt adjustable angle.

4. Adjustable damping, maximum dynamic load capacity of 1.5kg.

$47.90
Sku 3601C
EAN 6941590012865

Availability: In stock 19

This product has been viewed 591 times

Product Description



SmallRig Drop-in HawkLock mini Quick Release Monitor Mount with NATO Clamp 3601C

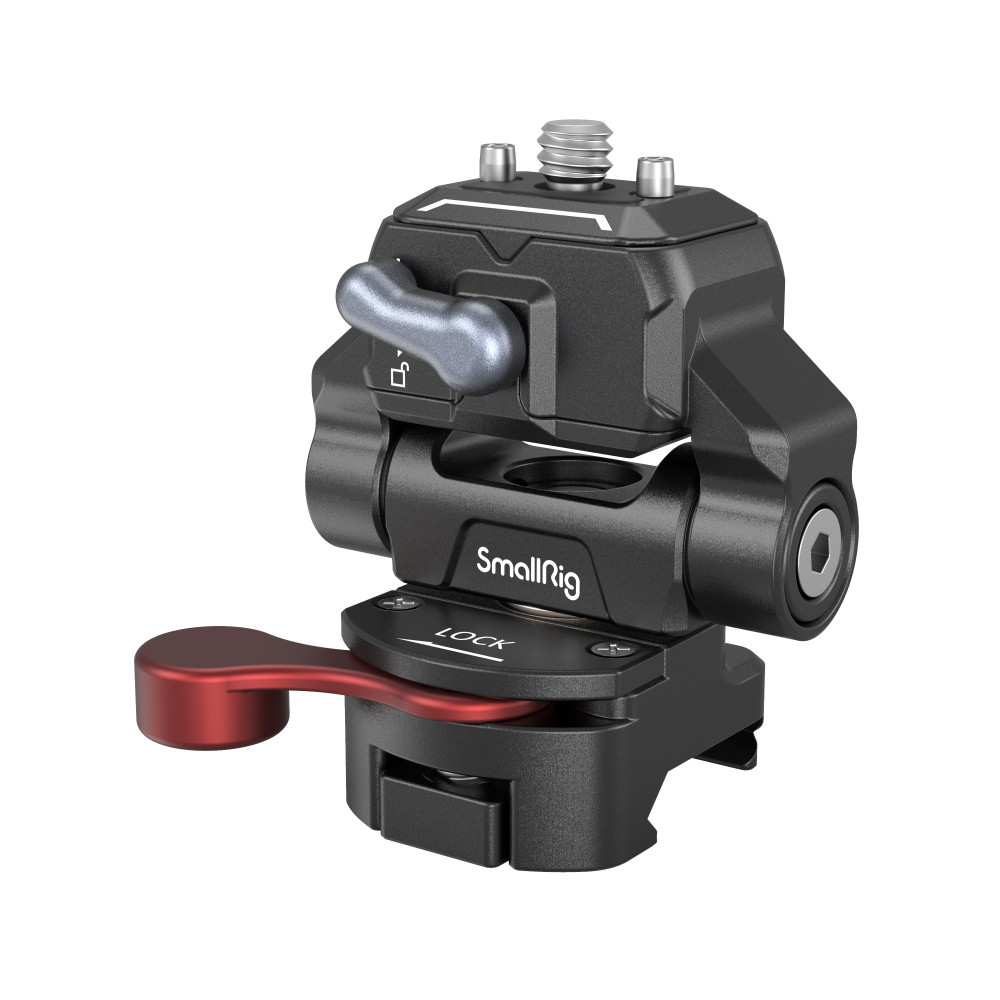

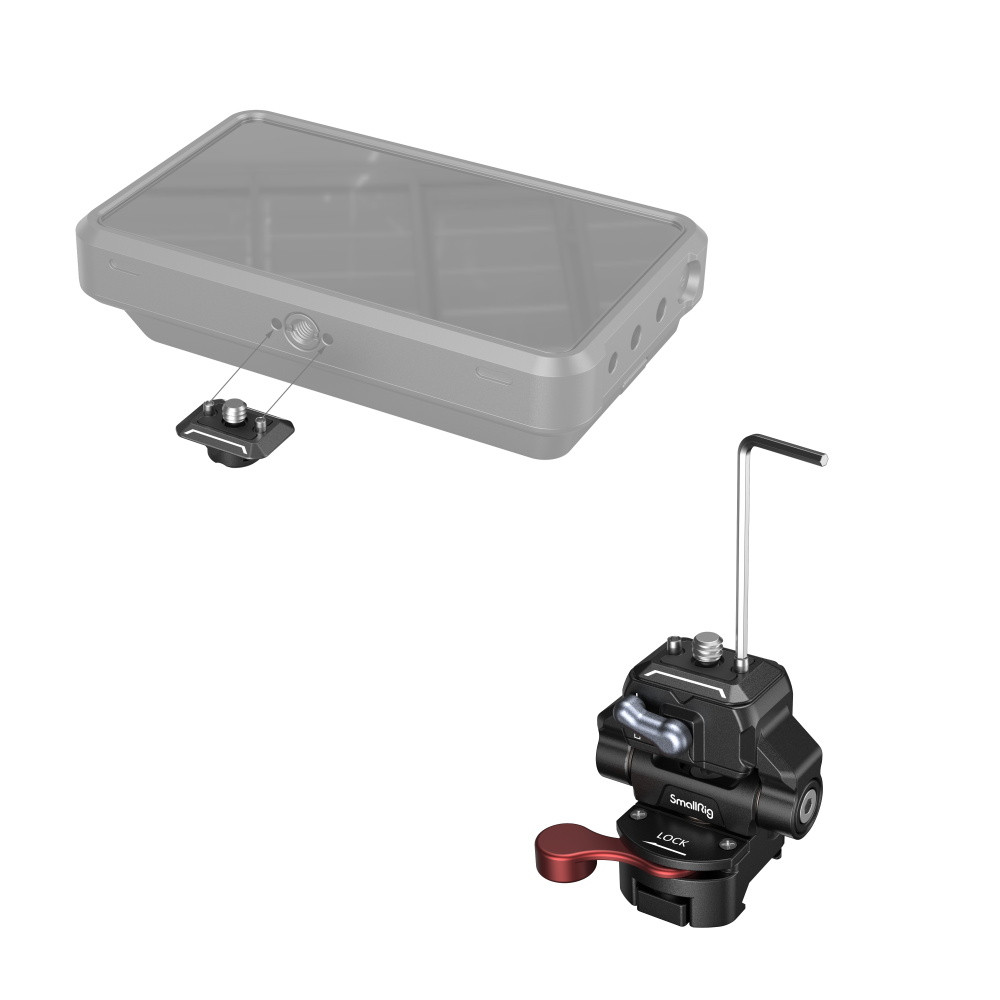

SmallRig Drop-in HawkLock mini Quick Release Monitor Mount with NATO Clamp 3601C locks into place via a NATO clamp at one end and attaches to a monitor via a unique SmallRig quick-release plate at the other end. The quick-release plate is reserved for 2 optional dowel pins, which can be removed and installed as needed to effectively prevent the devices from deflection. It swivels 360° and tilts 150° and thus stops at any angle. 3601C has a dynamic load capacity of 1.5kg and its damping of pivot is adjustable through the spanner. Comes with silicone pads on the top to prevent scratches and increase friction.

Note:

1. In order to prevent accidental contact from causing unlocking, the structure of HawkLock Quick Release is designed to prevent accidental contact, and the wrench also has a certain free movement in the locked state. The situation mentioned above is not a quality problem without affecting normal use.

2. The dowel pins are only compatible with Atomos Ninja V, Ninja V +, and Atomos Shinobi 7; The dowel pins need to be removed when using other brands of monitors.

Work With

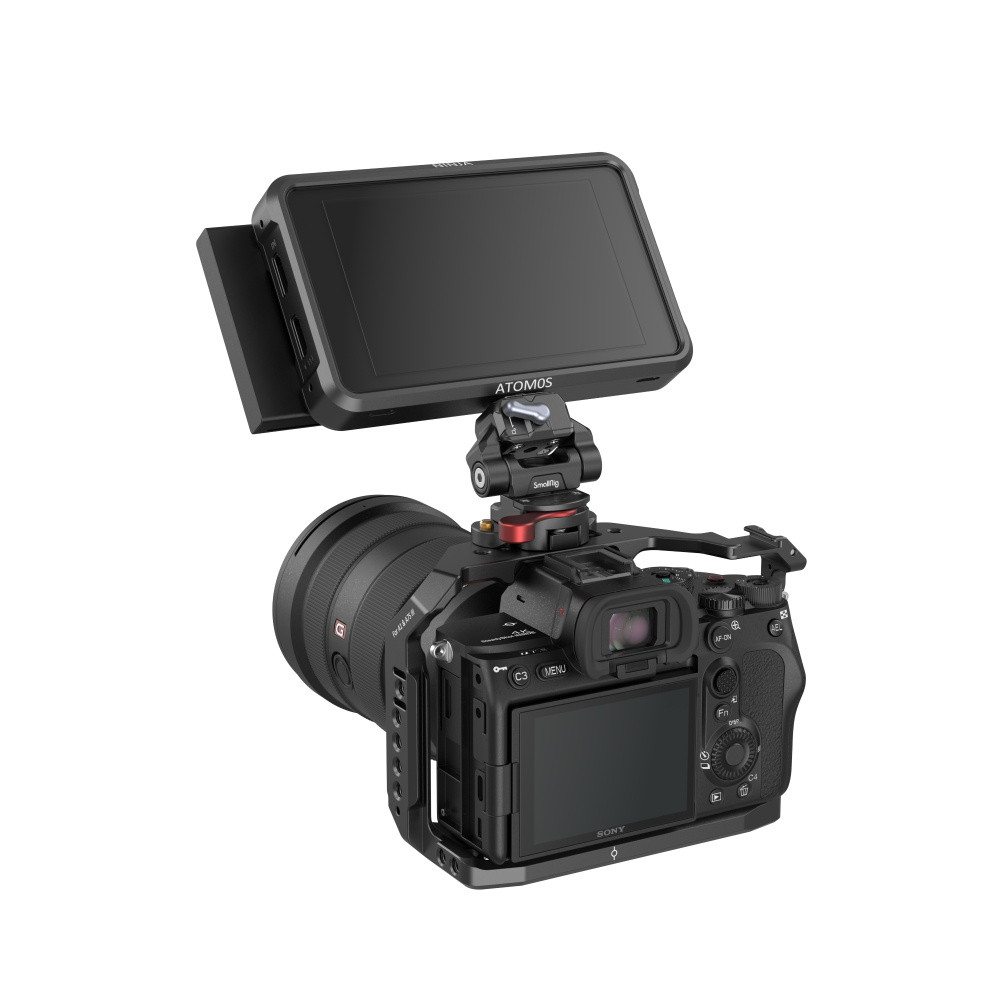

SmallHD Focus Series, Focus OLED Series, UltraBright Series, 500 Series, 700 Series; Atomos Ninja Series, Shogun Series; Blackmagic Video Assist 5”, Blackmagic Video Assist 4K 7”, Odyssey7Q+, Odyssey7Q, etc.

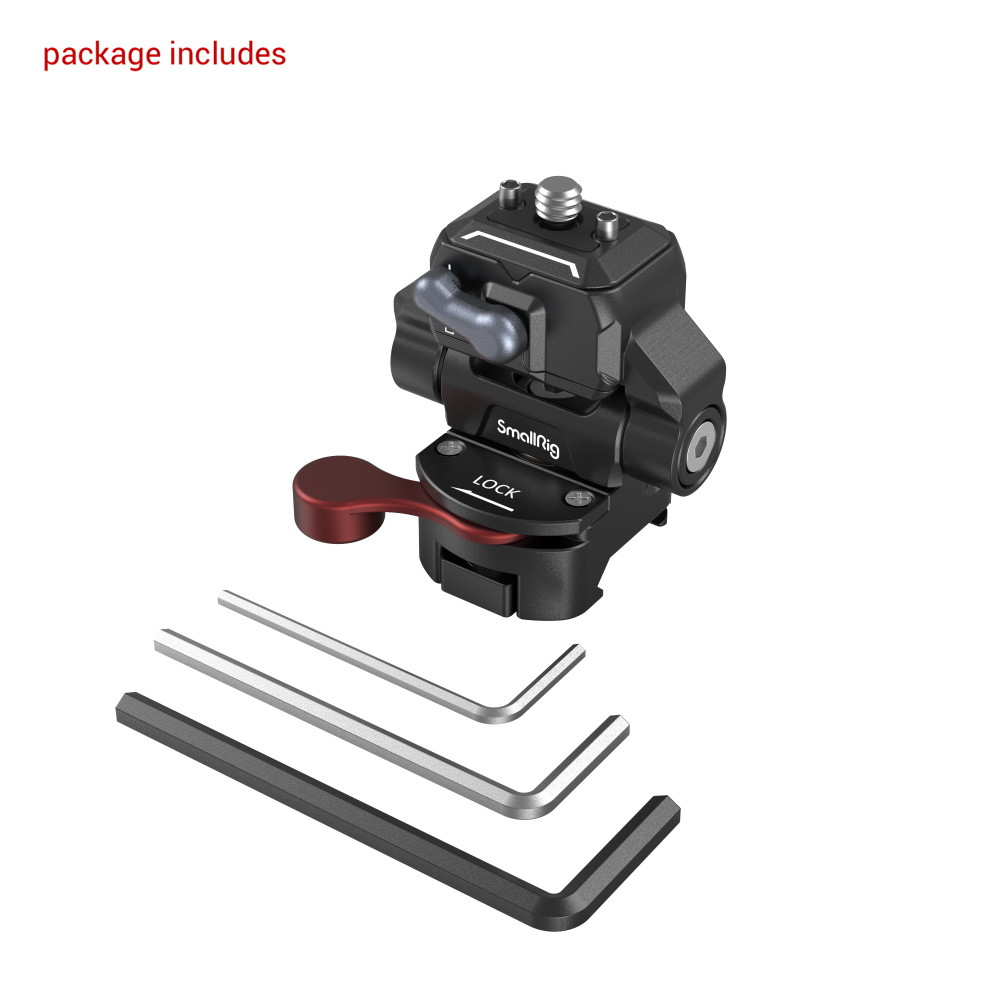

Packing List

1 x QR Monitor Mount

3 x Allen Wrench

Technical Data

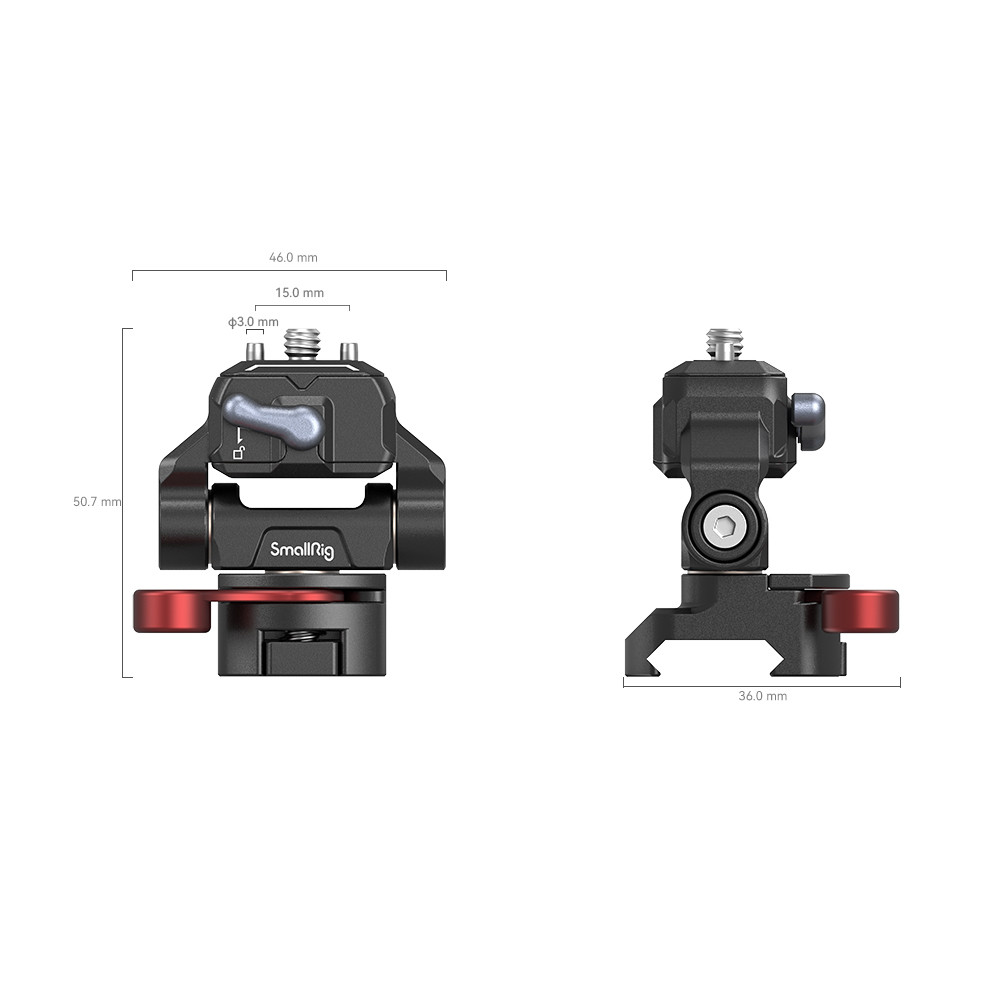

Product Dimensions: 52.5x 46 x 36mm

Package Dimensions: 76X63X40mm

Net Weight: 121g±5g

Package Weight: 166g±5g

Material: Aluminum Alloy, Stainless Steel
