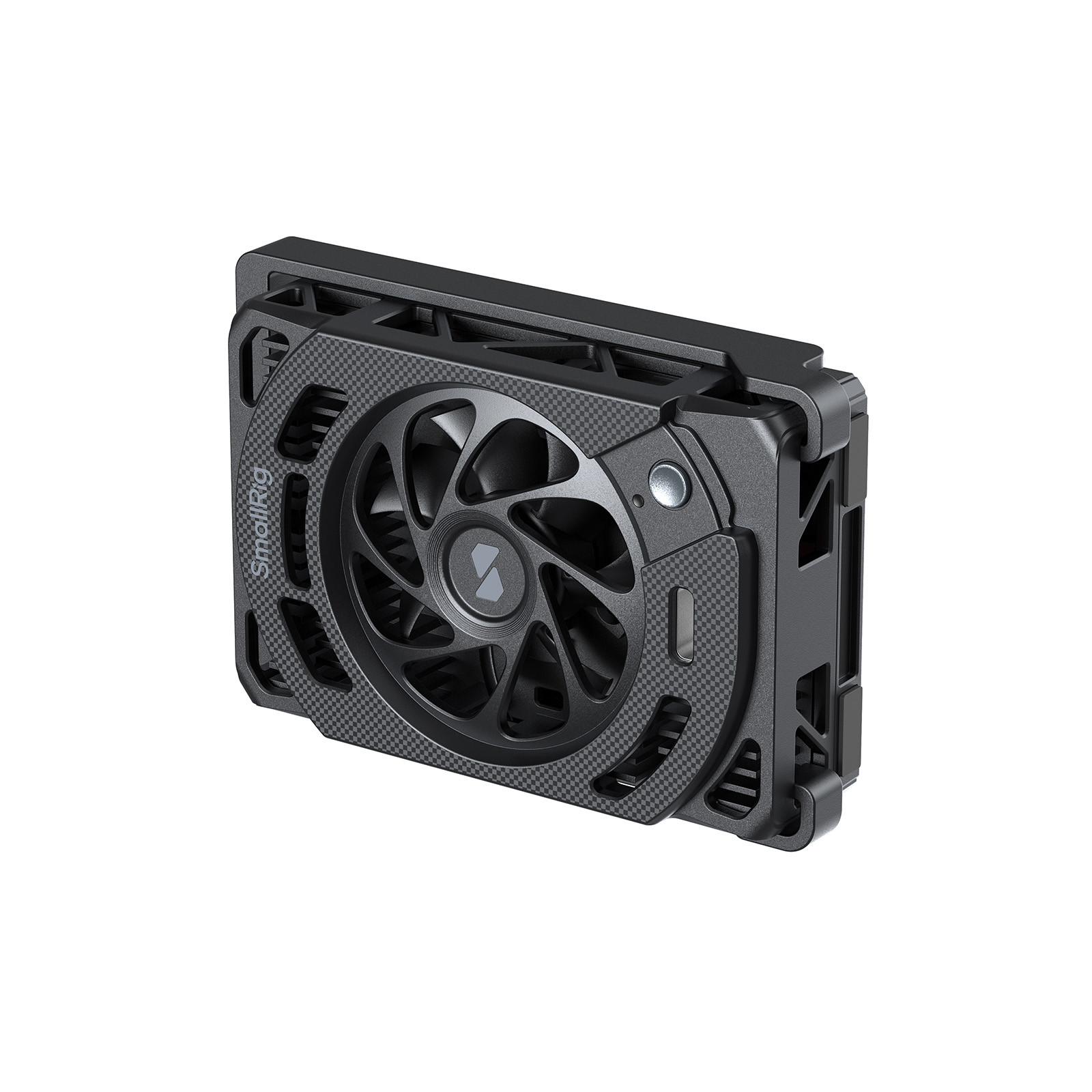

SmallRig Cooling Fan for Panasonic LUMIX S1 II / S1 IIE / S1R II 5875
SmallRig Cooling Fan for Panasonic LUMIX S1 II / S1 IIE / S1R II 5875 is engineered to mitigate overheating in the Panasonic LUMIX S1 II / S1 IIE / S1R II camera, enabling extended recording times for high-resolution video. Its advanced cooling system combines a 7000 RPM high-speed fan with a TEC (Thermoelectric Cooler) chip for superior heat dissipation, effectively preventing thermal shutdown.

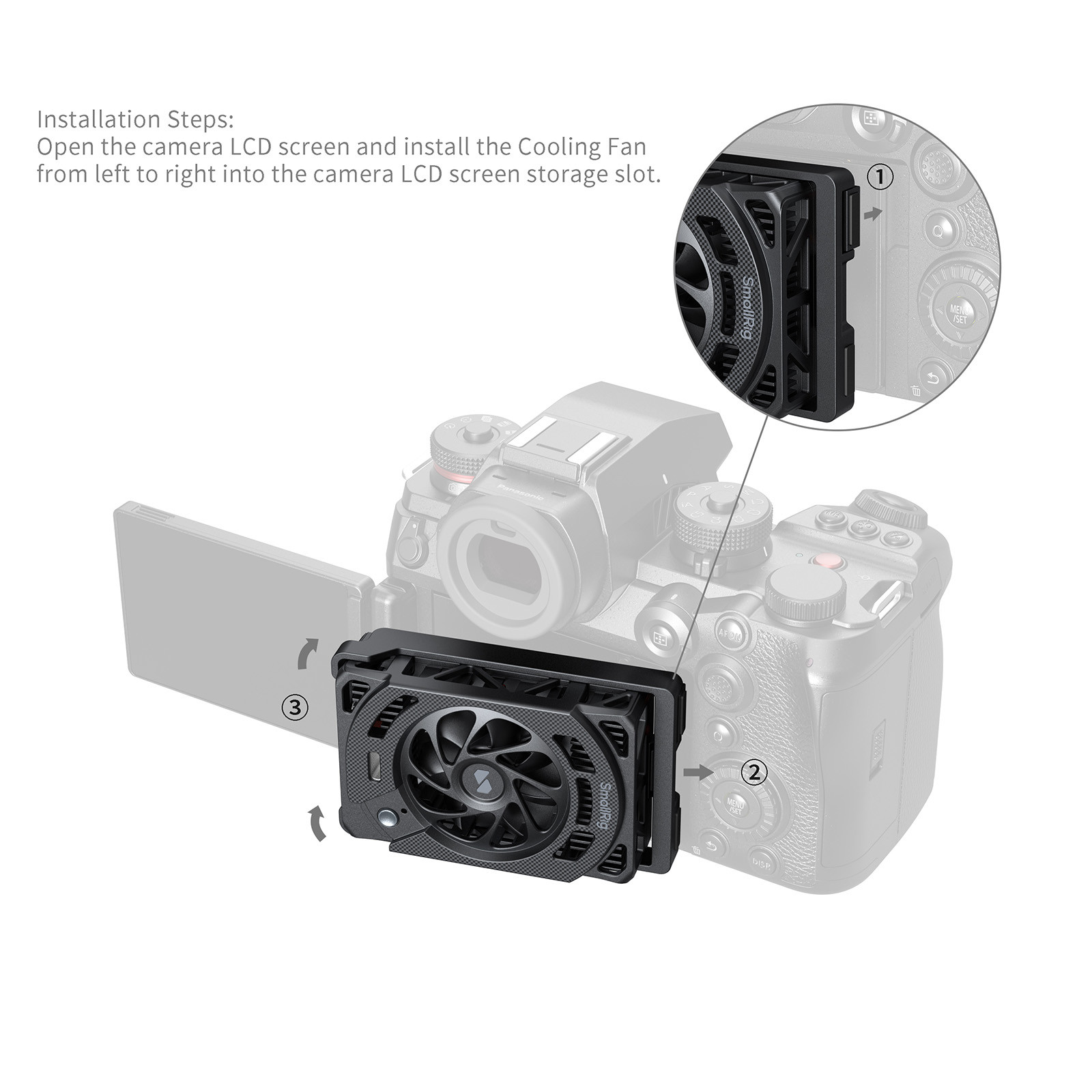

The fan offers two speed settings (high and low) to accommodate various shooting scenarios. Its innovative, tool-free snap-on mount allows for swift installation or removal, ensuring effortless operation and unimpeded access to the camera's LCD screen.

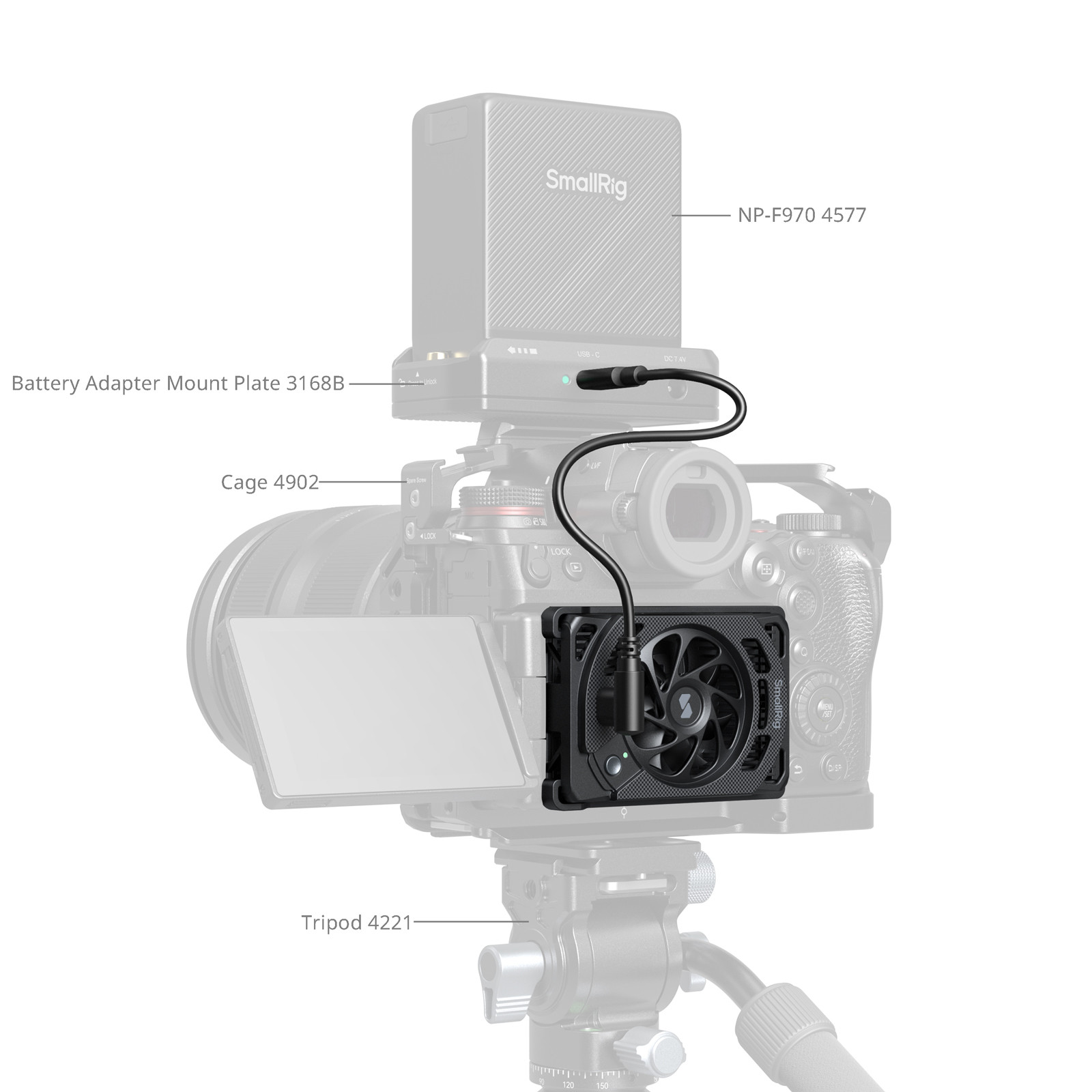

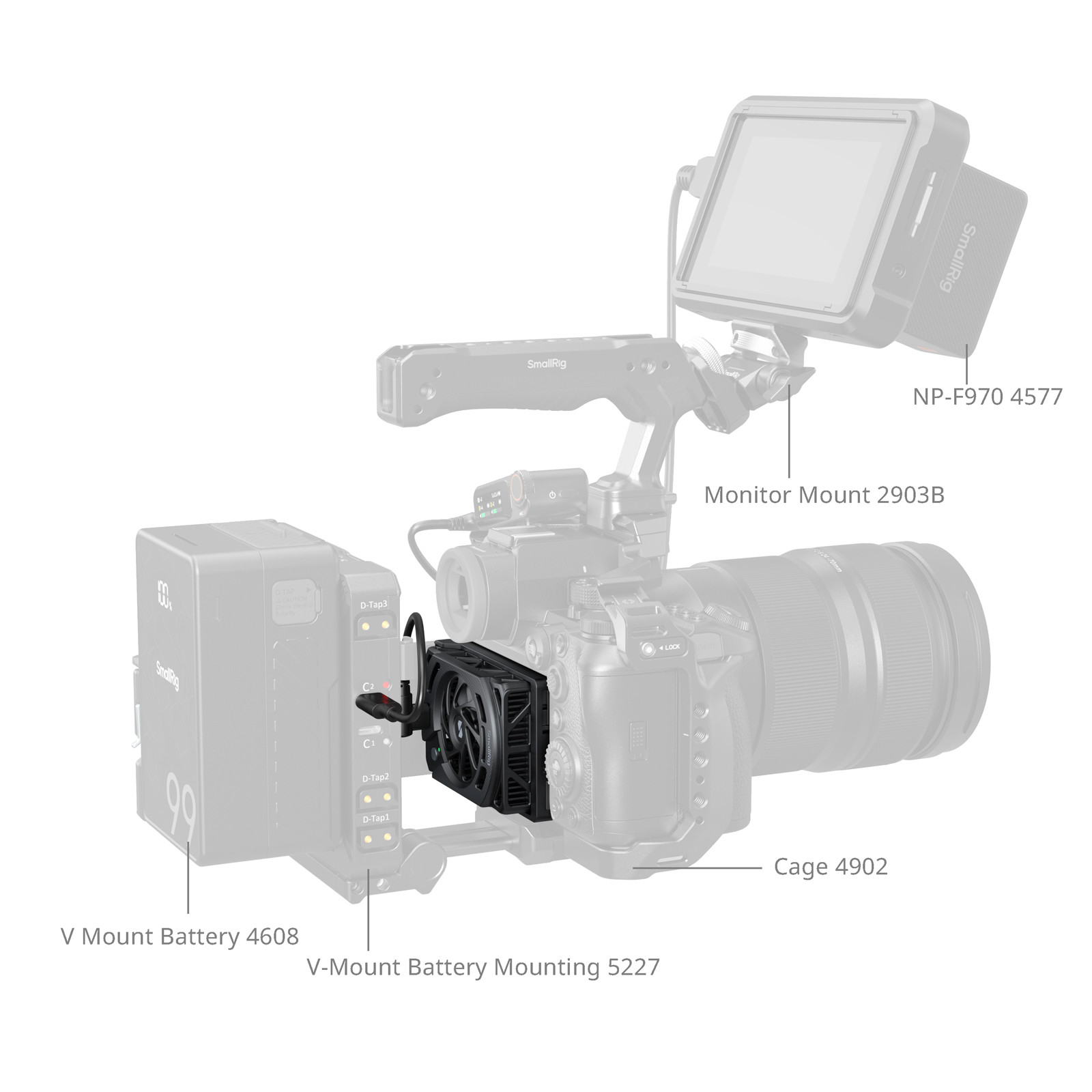

For extended power and continuous cooling, the unit is compatible with SmallRig V-Mount battery mount plate kits (ID 4064B, 4063B, 5315, 5227) and V-Mount batteries (ID 3579, 4608, 4292).
|
Test Temperature |
Camera Model |
Recording Specs |
Recording Time Improvement (vs. without cooler) |
|
25℃ / 77°F |
Panasonic LUMIX S1R II |
MOV 8K 30P 420/10-bit LongGOP |
Approx. 200% |
|
Panasonic LUMIX S1 II |
MOV 5.1K 60P 420/10-bit LongGOP |
||
|
35℃ / 95°F |
Panasonic LUMIX S1R II |
MOV 8K 30P 420/10-bit LongGOP |
Approx. 30% |
|
Panasonic LUMIX S1 II |
MOV 5.1K 60P 420/10-bit LongGOP |
Data sourced from SmallRig Lab. Actual performance may vary depending on shooting mode and environment.
Note:
1. After installing this product, the camera's LCD screen cannot be retracted. Please remove the cooling fan before retracting the LCD screen.
2. This product does not include a built-in battery and must be connected to an external power source to operate.
3. This product is not waterproof. Do not store or use it in humid environments.

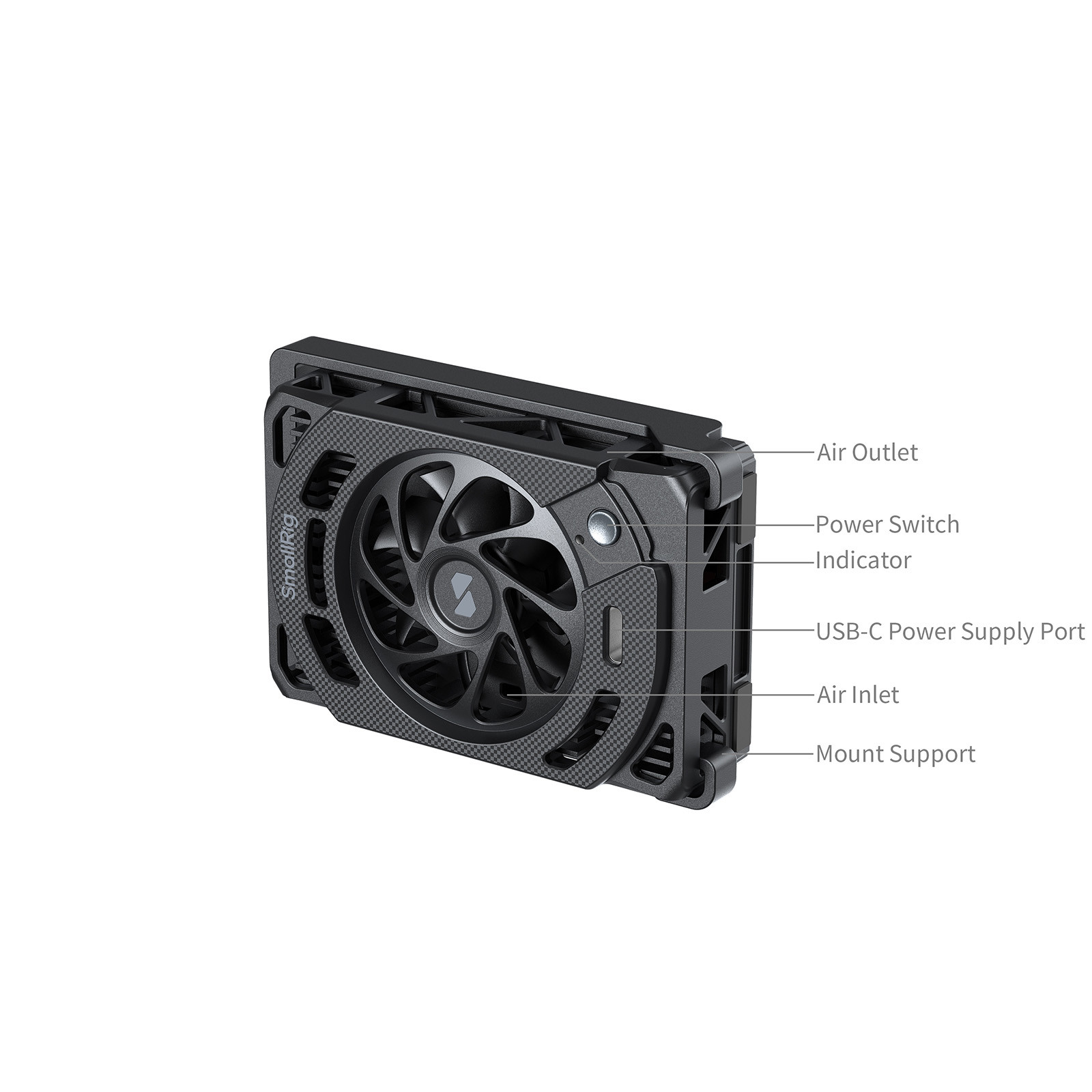

4. Do not obstruct the air inlet or outlet while the cooling fan is in operation.
5. Do not use the cooling fan when the camera is inactive to avoid internal condensation.
6. When the fan is not in use, press and hold the power button for about 2 seconds to enter standby mode, or unplug the power cable to turn it off completely.
7. In ambient temperatures of 40°C (104°F) or higher, the cooler's effect on lowering the host device's temperature may be limited.
8. When shooting in a quiet environment, the microphone may pick up fan noises. Before use, monitor the audio through the camera's headphone jack or a similar monitoring interface.
Work With
Panasonic LUMIX S1 II / S1 IIE / S1R II
Compatible with the following Sony cameras when the mounting bracket is removed:
Sony ZV-E1 / ZV-E10 II / ZV-E10 / ZV-1 / ZV-1F / Alpha 7 IV / Alpha 7S III / Alpha 7C / Alpha 7C II / Alpha 7CR / Alpha 6700 / FX3 / FX30

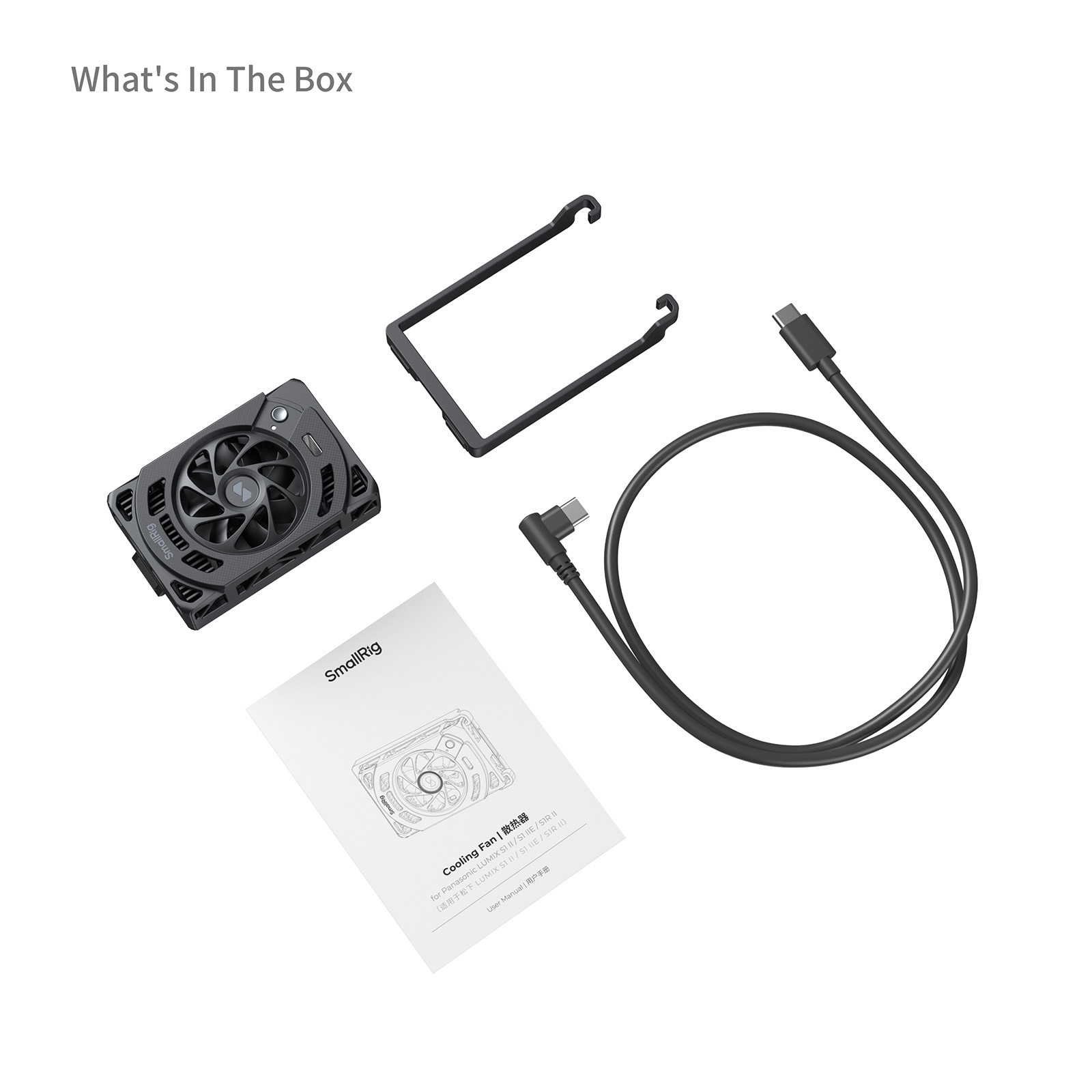

Packing List
Cooling Fan x 1
Mounting Bracket x 1
USB-C Cable x 1
Operating Instruction x 1
Guarantee Card x 1
Technical Data
Operating Voltage: 4 - 10.8V
Operating Current: 1 - 2A
Cooling Power: 5 - 18W
Operating Temperature: 0 to 45℃ / 32 to 113°F
Cooling Technology: Thermoelectric Cooler (TEC)
Noise Level: Normal Mode: < 40 dB
Boost Mode: < 50 dB
Fan Speed: Normal Mode: 4500RPM
Boost Mode: 7000RPM

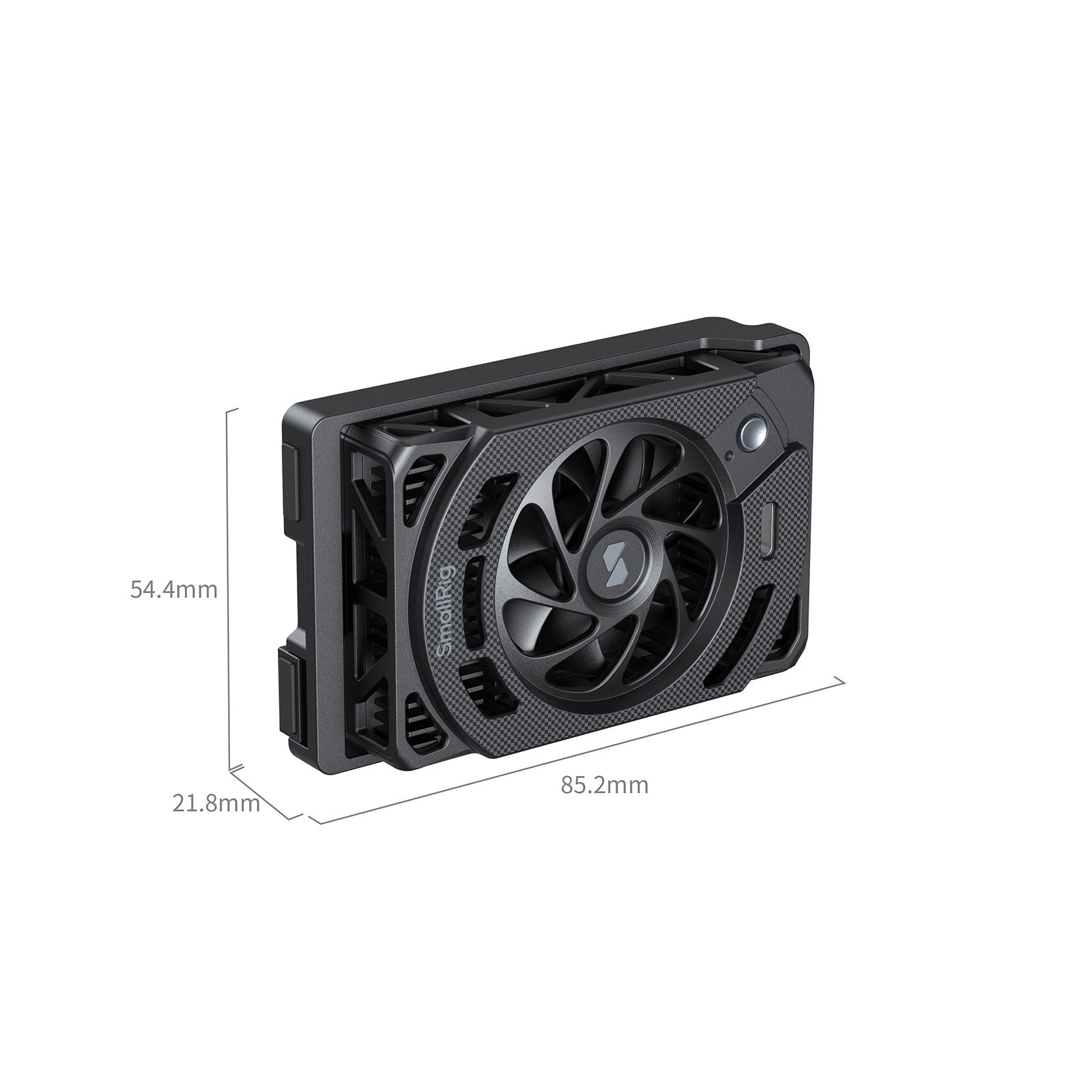

Product Dimensions: 85.2 x 54.4 x 21.8mm / 3.4 x 2.1 x 0.9in
Package Dimensions: 136.0 x 102.5 x 51.0mm / 5.4 x 4.0 x 2.0in
Product Weight: 103.5 ± 5.0g / 3.7 ± 0.2oz
Package Weight: 154.1 ± 5.0g / 5.4 ± 0.2oz
Materials: Aluminum Alloy, Silicone, PC
