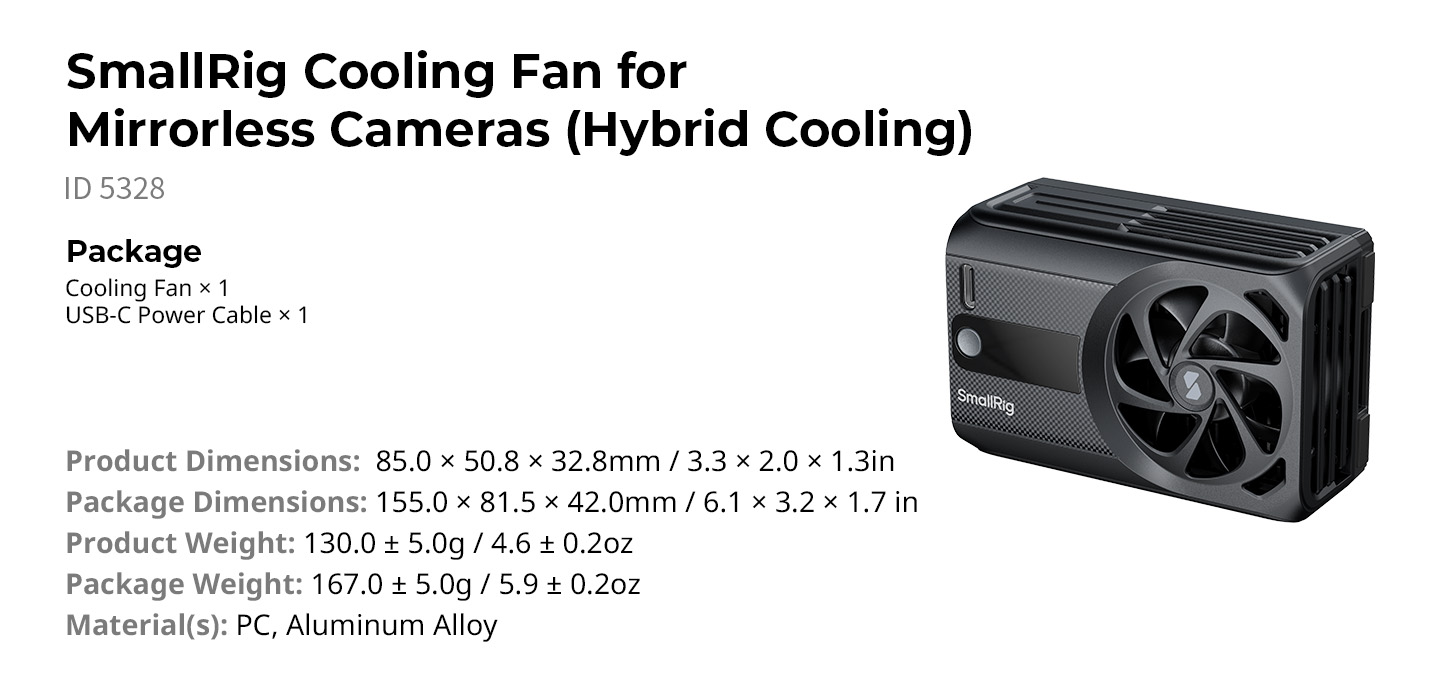

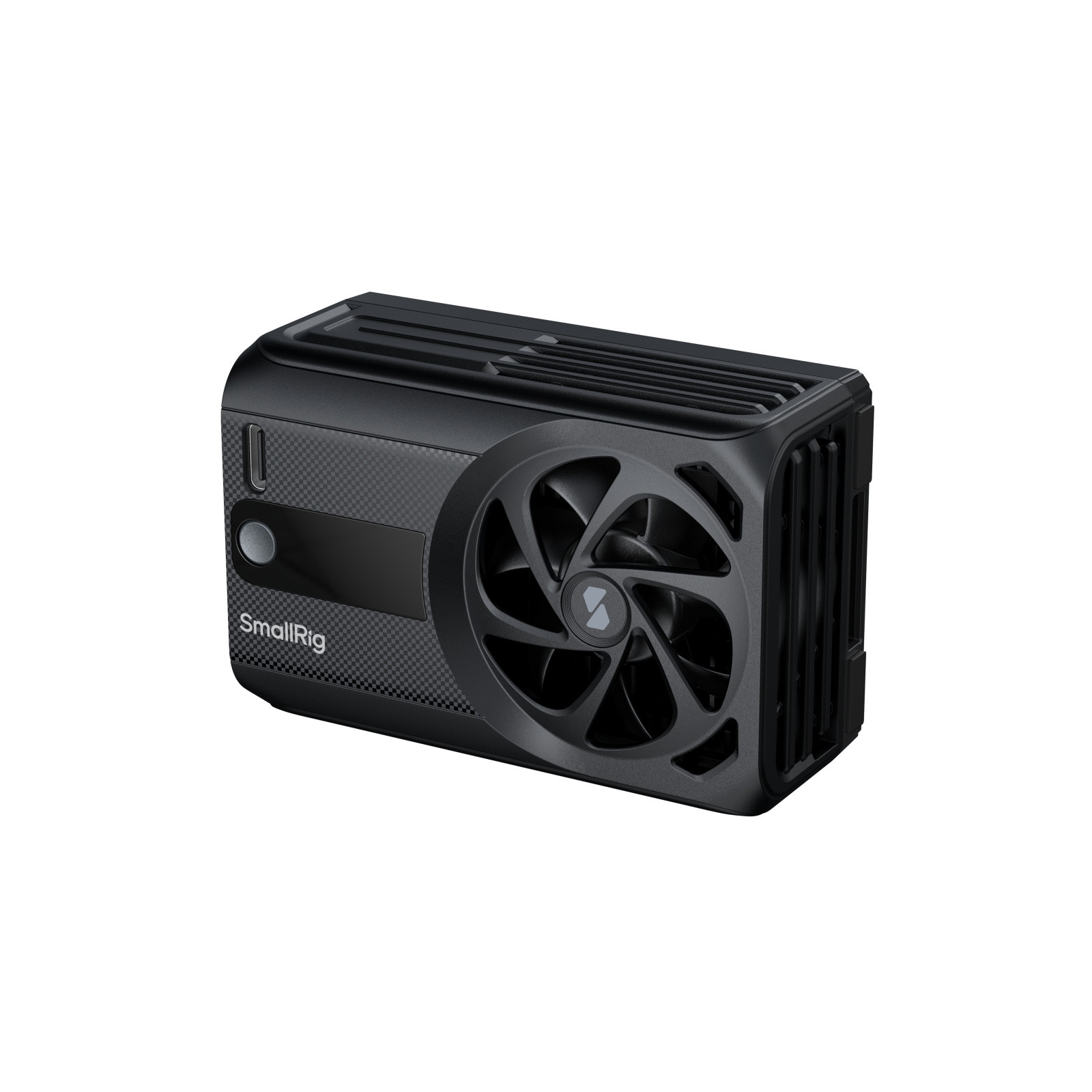

SmallRig Cooling Fan for Mirrorless Cameras (Hybrid Cooling) 5328

SmallRig Cooling Fan for Mirrorless Cameras (Hybrid Cooling) 5328

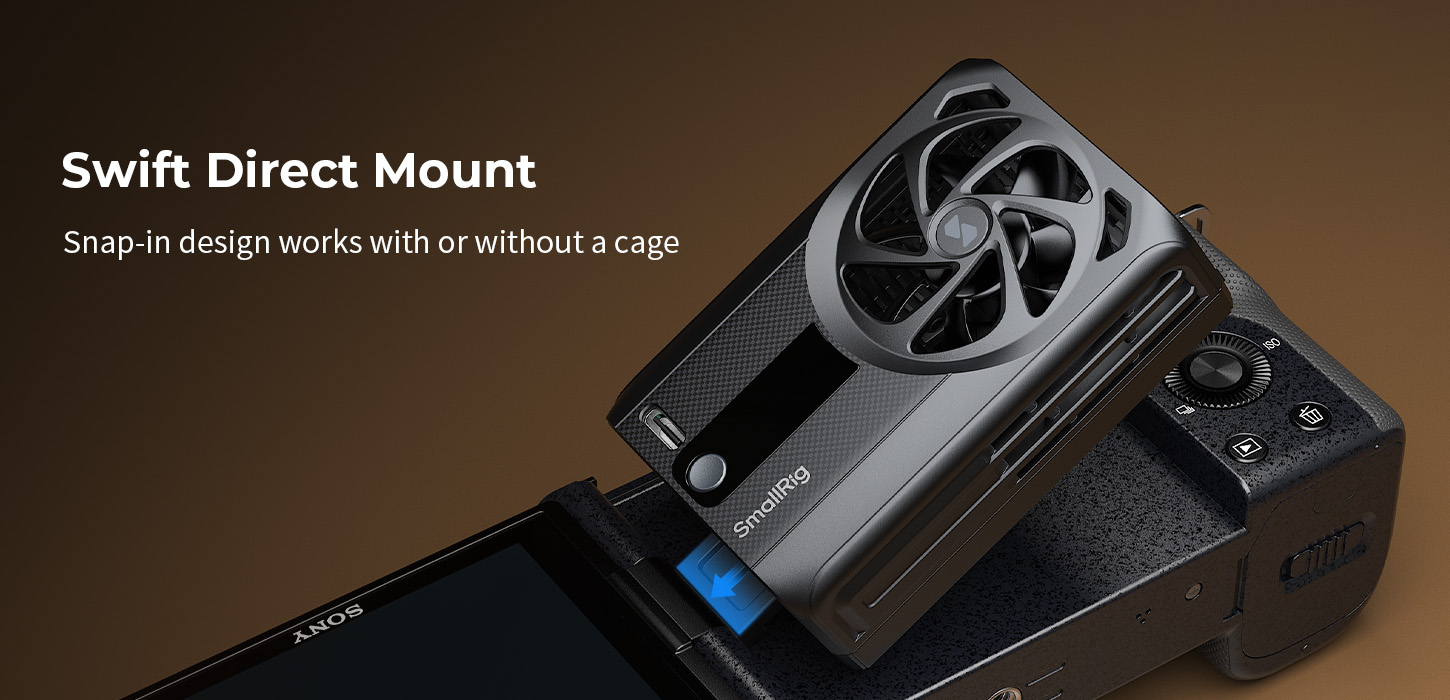

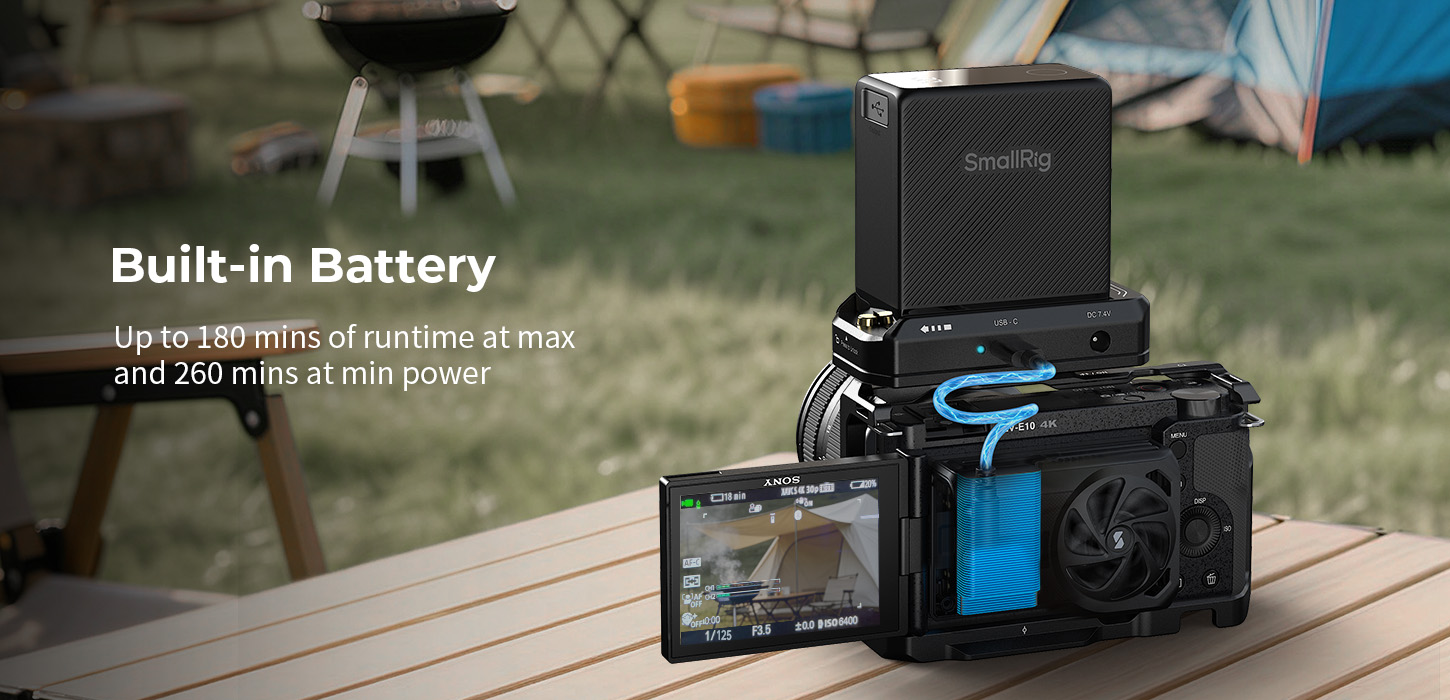

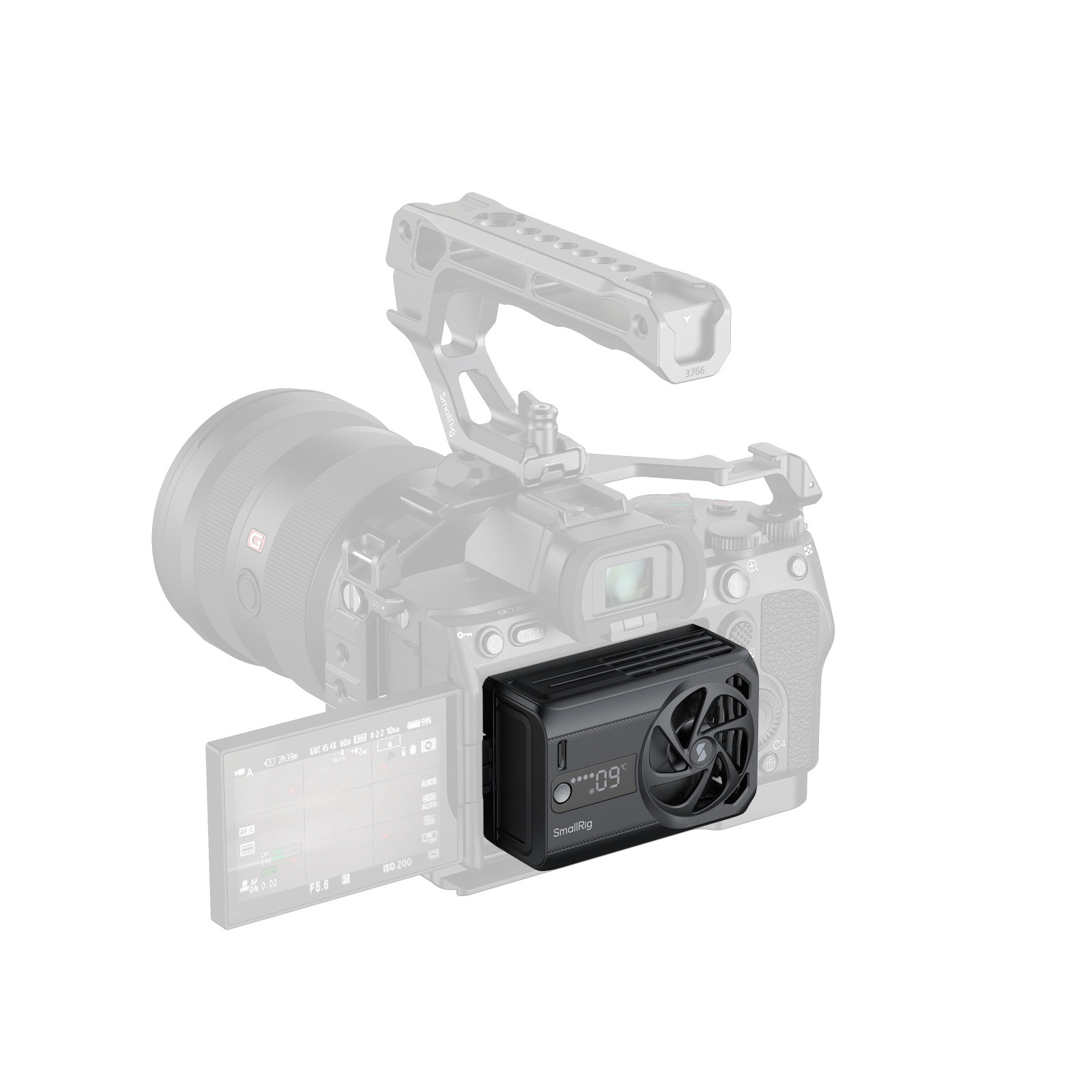

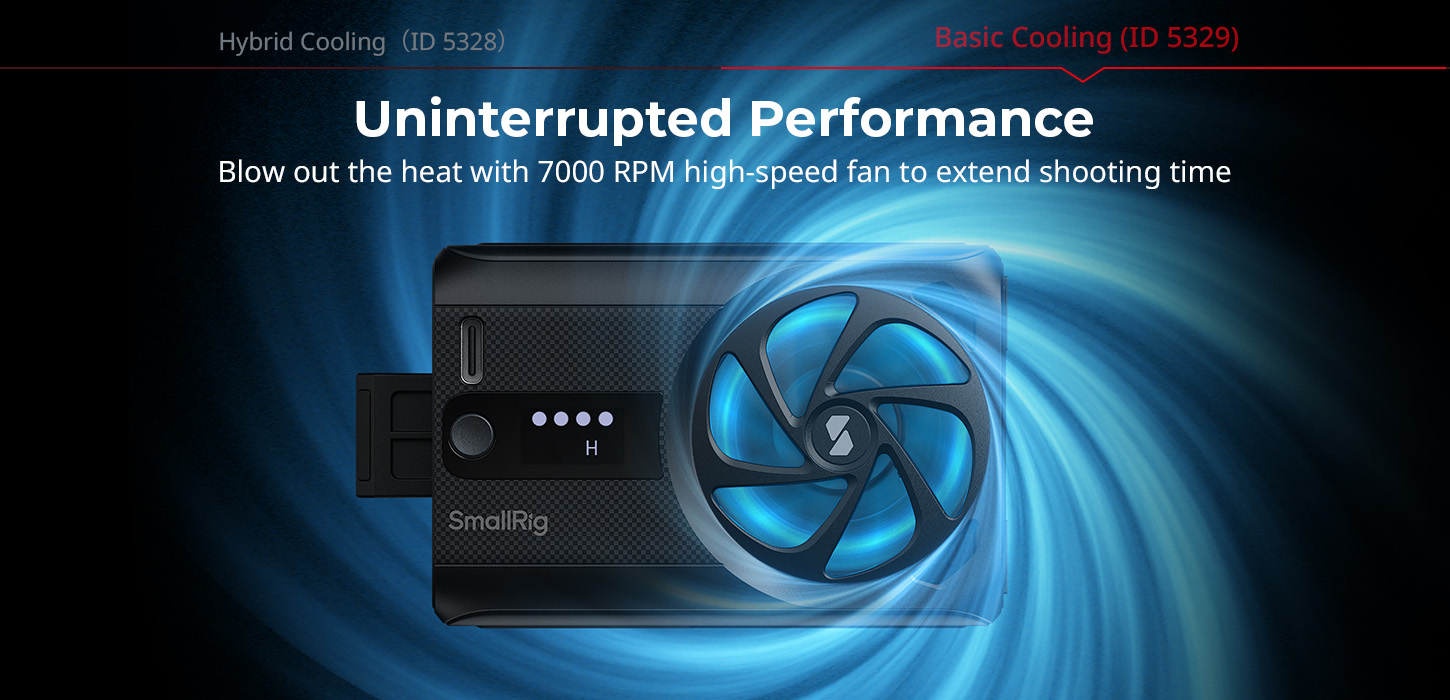

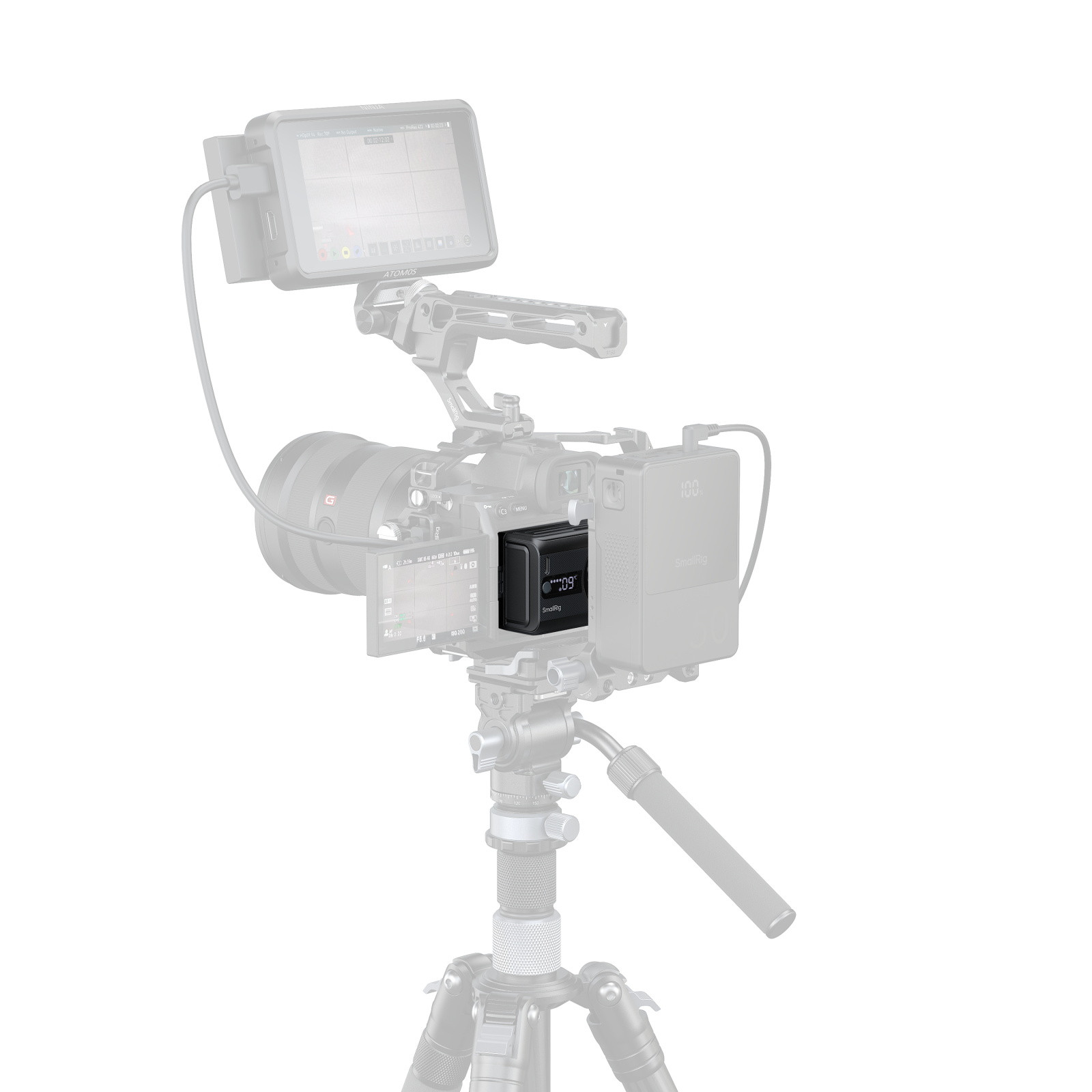

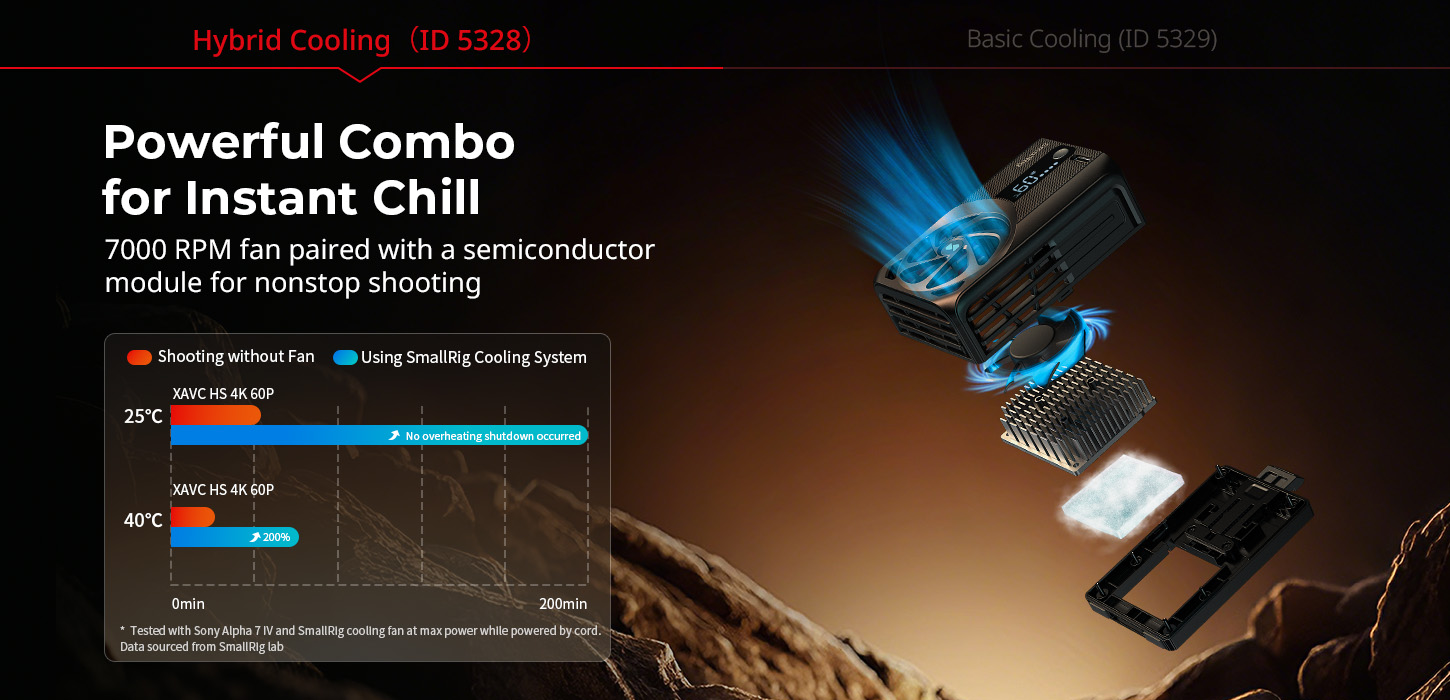

SmallRig Cooling Fan for Mirrorless Cameras (Hybrid Cooling) 5328 is designed to cool down mirrorless cameras and enhance the recording duration of high specification videos. The cooling fan utilizes a high speed fan with a TEC cooling module to quickly cool the camera and effectively alleviate overheating problems. The built-in battery supports approximately 70 minutes of runtime at maximum power, and can be used while charging, eliminating battery life concerns. The cooling system offers three adjustable modes—High, Low, and Auto—to meet heat dissipation needs in various shooting scenarios. Built-in protection against overvoltage, overcurrent, and overheating, along with fan malfunction alerts, ensures safer and more reliable operation.Spring-loaded snap-in mounting design for quick mounting and dismounting, easy access to the cooling fan and storage of the camera’s LCD screen. Can be used with or without camera cage, lighter and freer to use.

Note:

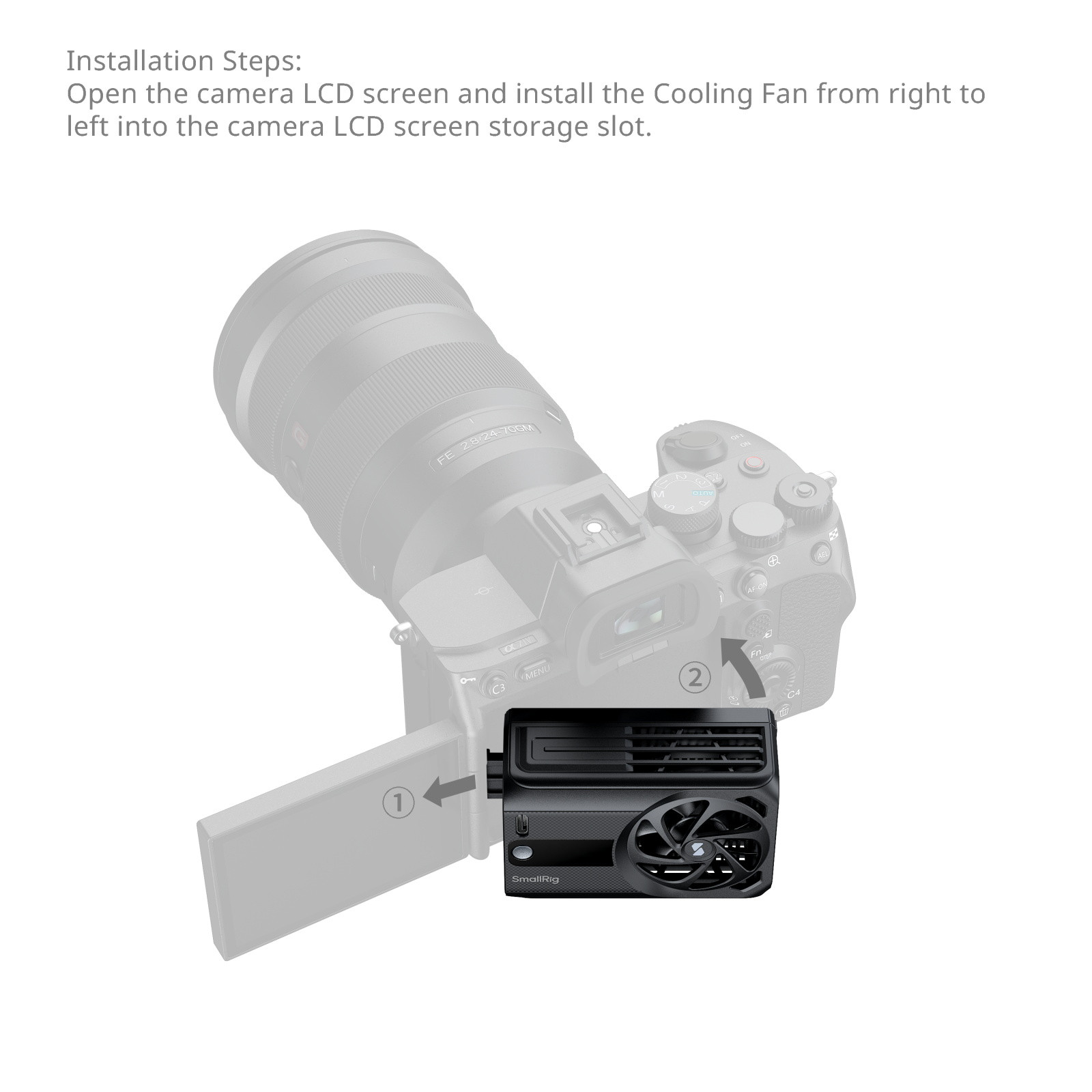

1. After installing this product, the camera's LCD screen will not be able to be stowed. If you need to store the LCD screen, please remove the cooling fan first.

2. This product is not waterproof; please do not store or use it in a humid environment.

3. Do not block the air inlet or outlet when the cooling fan is in operation.

4. Do not use the cooling fan to continue cooling the camera when the camera is not operating, to prevent condensation inside the camera.

5. When not in use, press and hold the power switch for about 3 seconds to turn off the device.

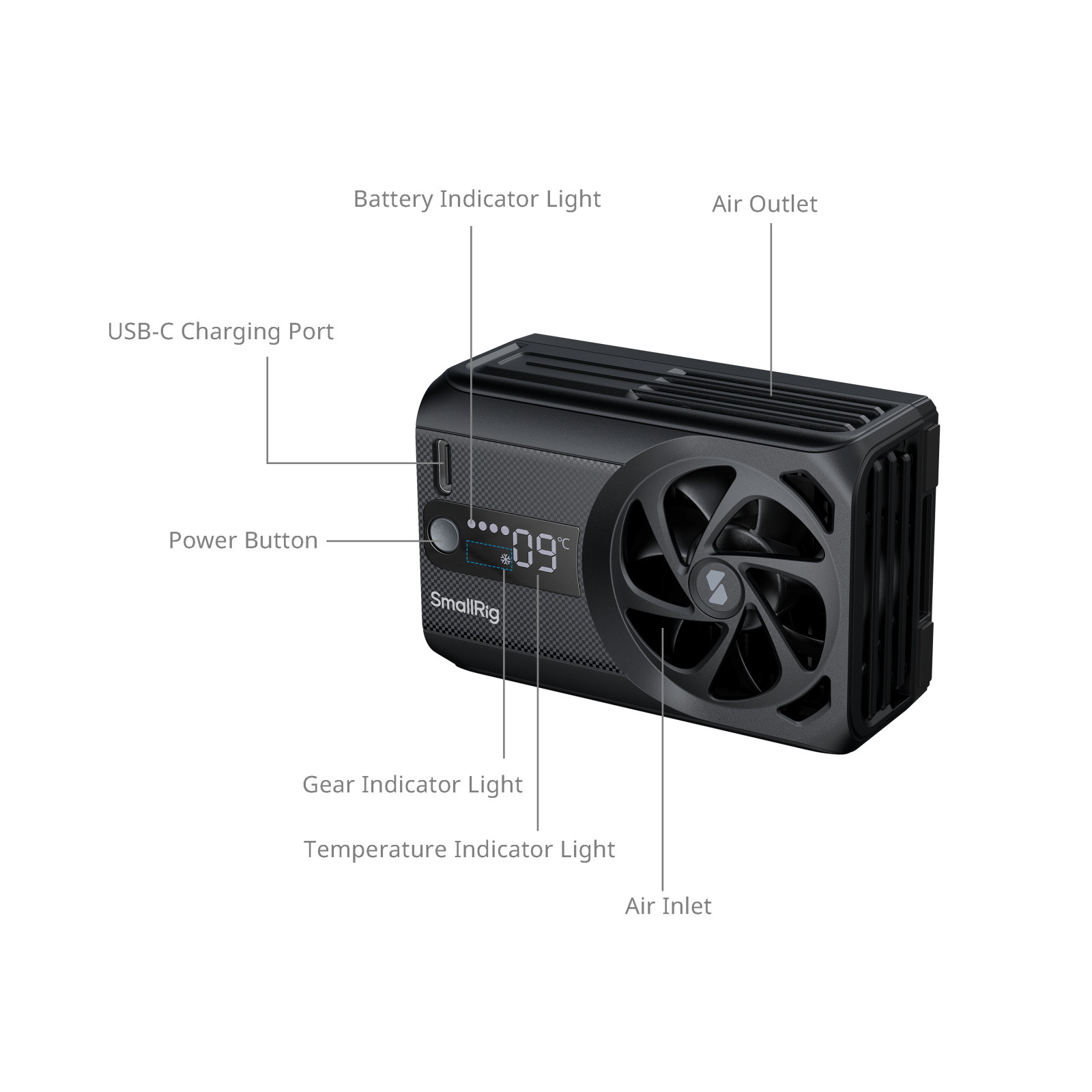

Power Switch:

Click to display battery level.

Press and hold for about 3 seconds to switch the cooling fan on or off.

Battery Indicator Light:

Operating Status:

4 lights illuminated: Battery level 75%–100%

3 lights illuminated: Battery level 50%–75%

Two lights illuminated: Battery level 25%–50%

One light illuminated: Battery level 10%–25%

One light flashing: Battery level <10%

Charging Status:

Four indicator lights illuminate sequentially, then one of them flashes: Charging in progress.

All four lights steady: Fully charged

Gear Indicator Light:

AI: Auto Mode

L: Normal Mode

H: Enhanced Mode

Three indicator lights flashing simultaneously: Abnormal condition
