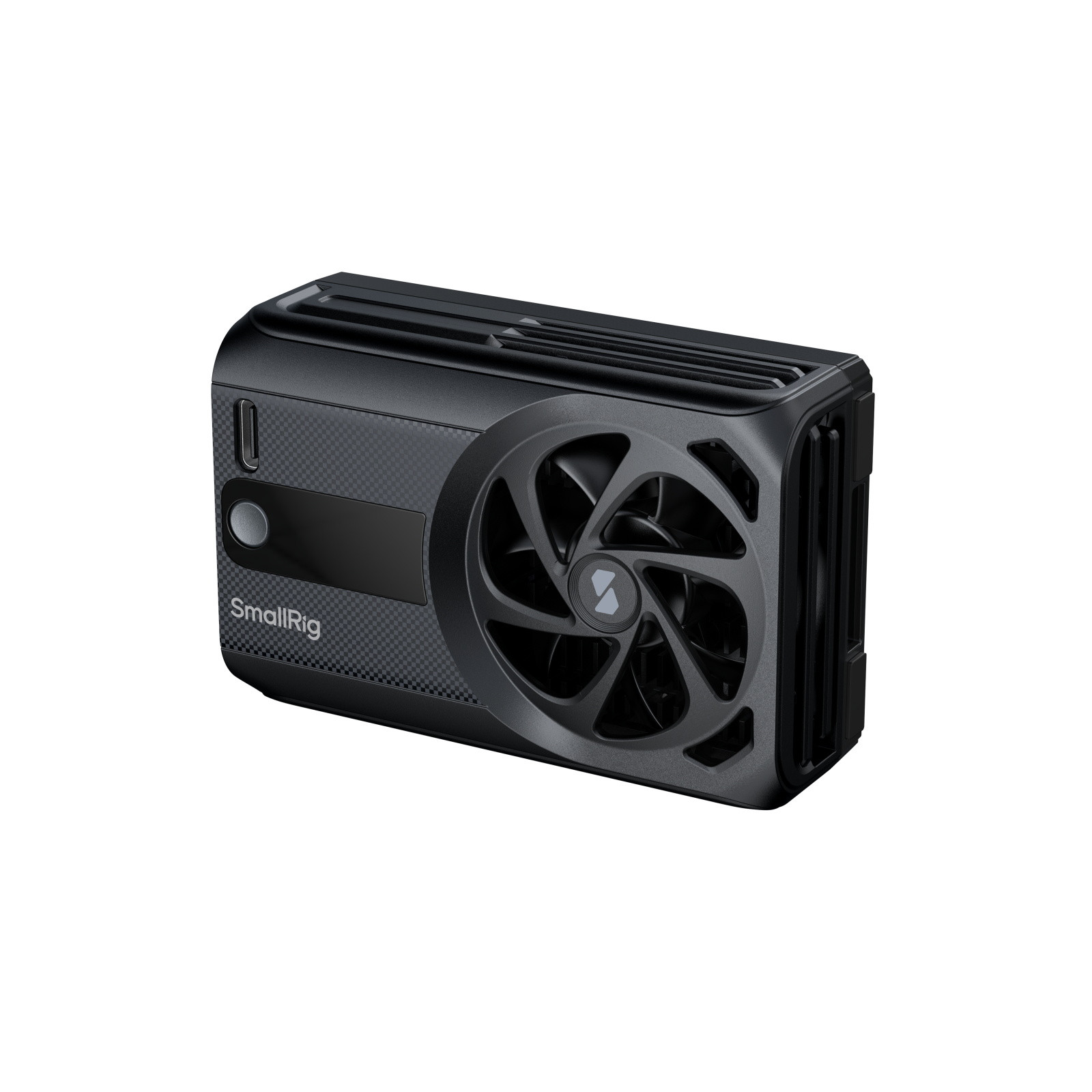

SmallRig Cooling Fan for Mirrorless Cameras (Basic Fan) 5329

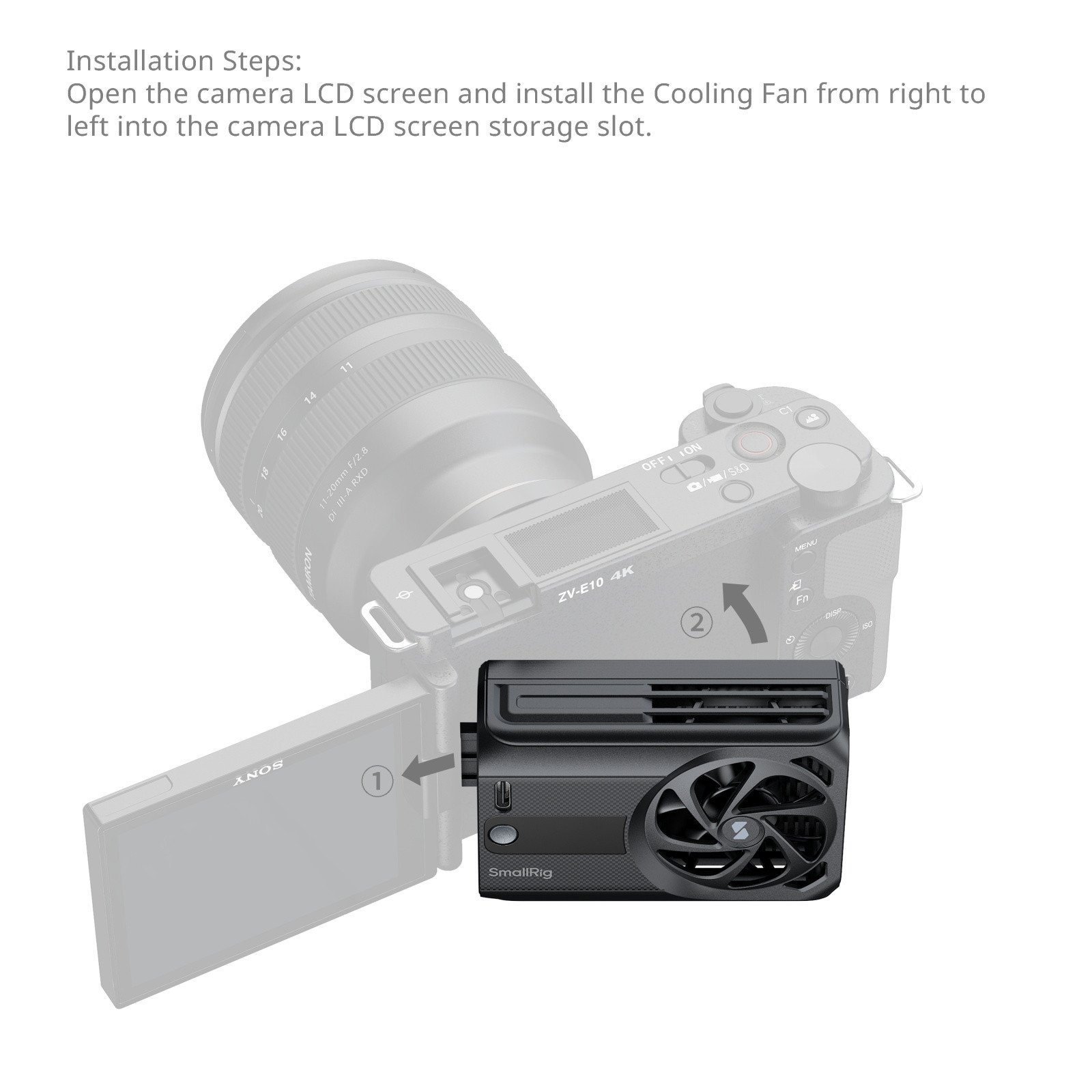

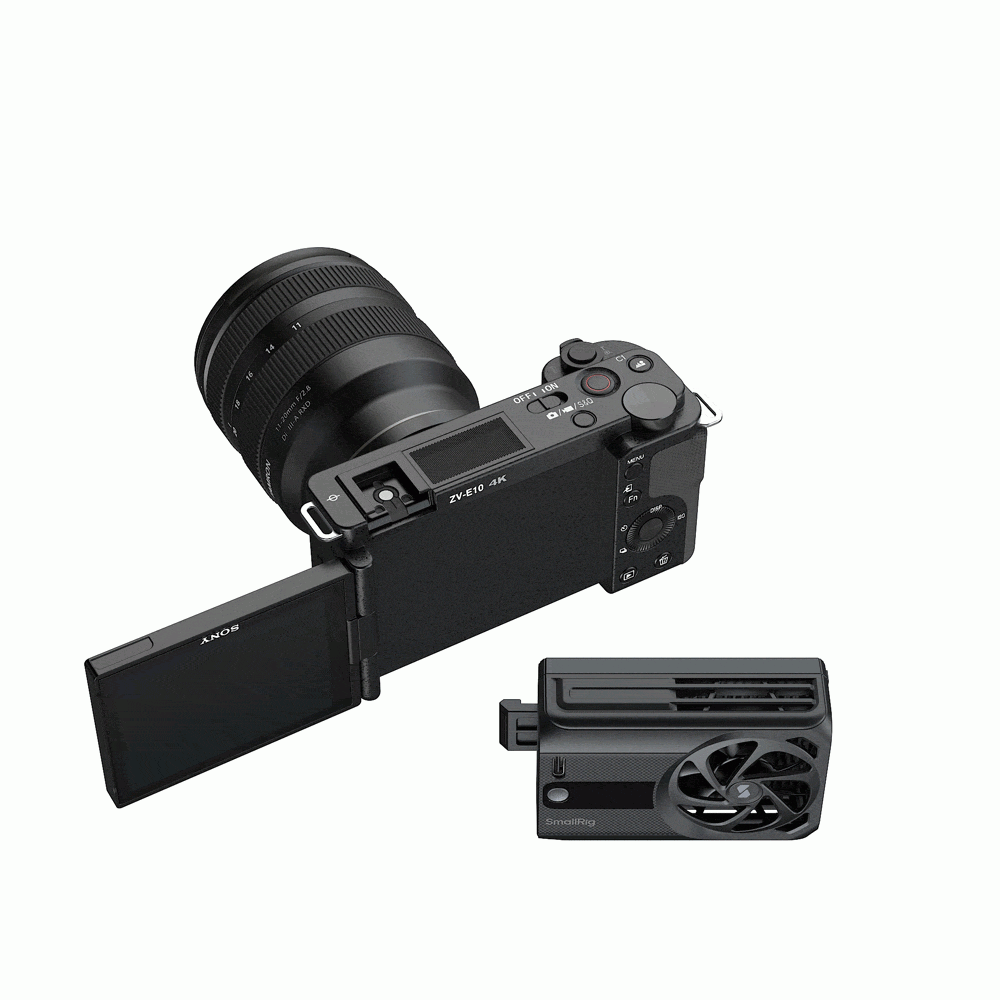

SmallRig Cooling Fan for Mirrorless Cameras (Basic Fan) 5329 is designed to cool down mirrorless cameras and enhance the recording duration of high specification videos. The cooling fan utilizes a high speed fan to quickly cool the camera and effectively alleviate overheating problems. The built-in battery supports approximately 180 minutes of runtime at maximum power, and can be used while charging, eliminating battery life concerns. The cooling system offers three adjustable modes—High, Low—to meet heat dissipation needs in various shooting scenarios. Built-in protection against overvoltage, overcurrent, and overheating, along with fan malfunction alerts, ensures safer and more reliable operation.Spring-loaded snap-in mounting design for quick mounting and dismounting, easy access to the cooling fan and storage of the camera’s LCD screen. Can be used with or without camera cage, lighter and freer to use.
Note:
1. After installing this product, the camera's LCD screen will not be able to be stowed. If you need to store the LCD screen, please remove the cooling fan first.
2. This product is not waterproof; please do not store or use it in a humid environment.
3. Do not block the air inlet or outlet when the cooling fan is in operation.
4. When not in use, press and hold the power switch for about 3 seconds to turn off the device.

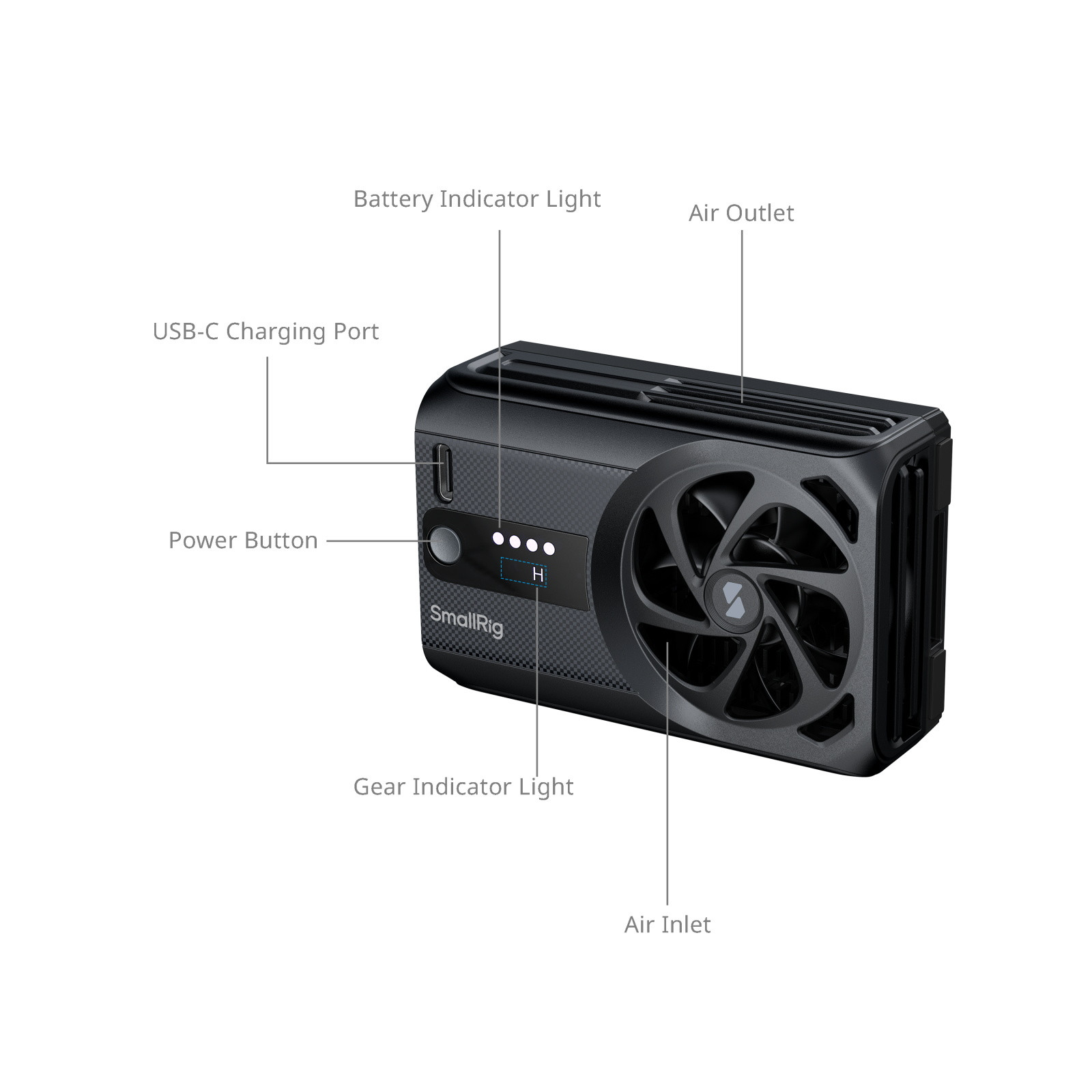

Power Switch:
Click to display battery level
Press and hold for about 3 seconds to switch the cooling fan on or off.
Battery Indicator Light:
Operating Status:
4 lights illuminated: Battery level 75%–100%
3 lights illuminated: Battery level 50%–75%
Two lights illuminated: Battery level 25%–50%
One light illuminated: Battery level 10%–25%
One light flashing: Battery level <10%
Charging Status:
Four indicator lights illuminate sequentially, then one of them flashes: Charging in progress.
All four lights steady: Fully charged
Gear Indicator Light:
L: Normal Mode
H: Enhanced Mode
Both indicator lights flashing simultaneously: Abnormal condition
Work With
Sony: FX3 / FX30 / Alpha 7 IV / Alpha 7S III / Alpha 7C II / Alpha 7CR / Alpha 7C / Alpha 6700 / ZV-E1 / ZV-E10 / ZV-E10 II / ZV-1 / ZV-1F
Canon: EOS R5 / R5 Mark II / R6 Mark III / R7

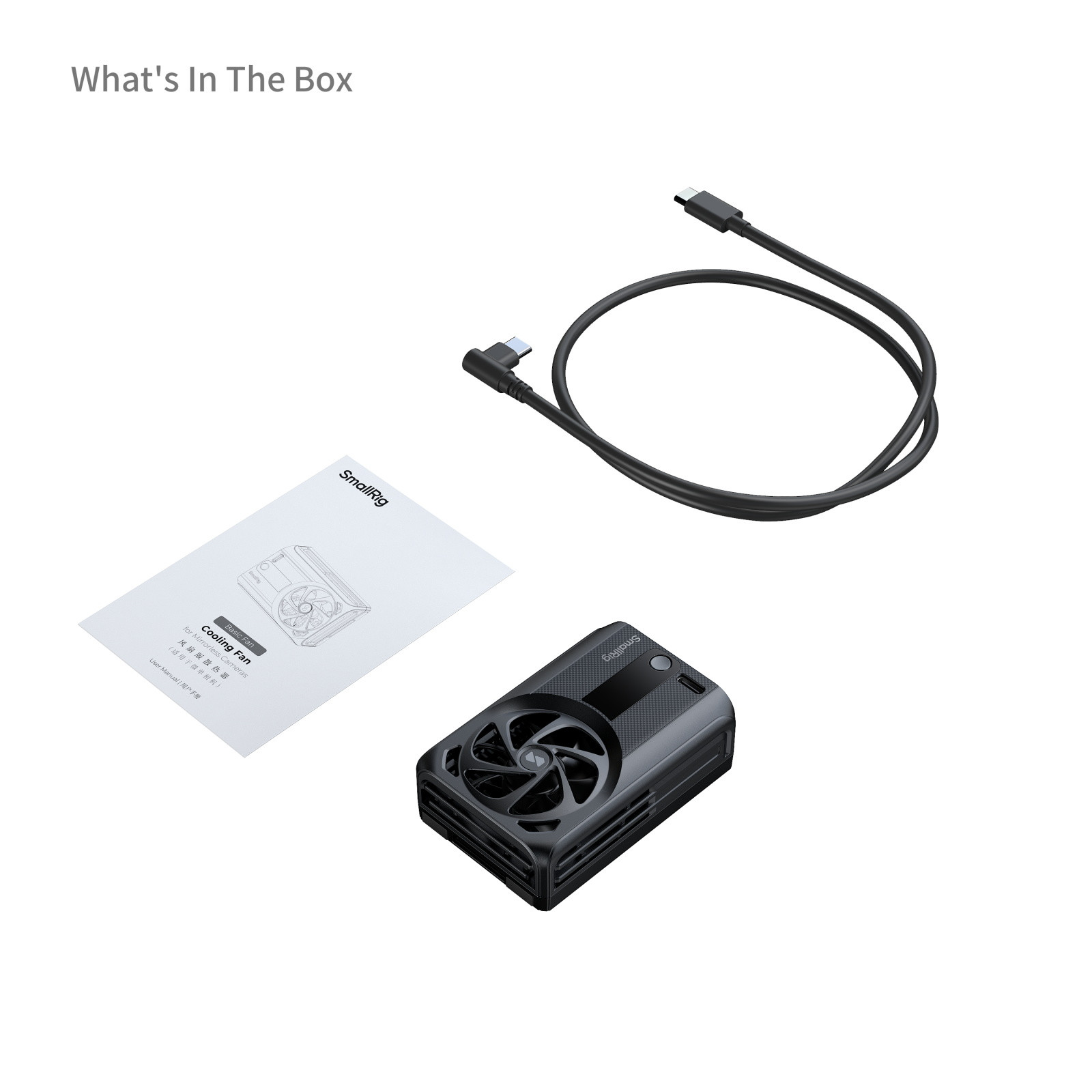

Packing List
1 x cooling fan
1 x USB-C Cable
1 x Operating Introduction
1 x Guarantee Card
Technical Data
Battery Parameter: 3.7V / 1100mAh / 4.07Wh
Input: 5V=2A;10W
Operating Voltage: 5V
Operating Current: 0.2~0.4A
Operating Power: 1~2W
Fan Noise: 36.6~40.9dB
Fan Speed: 4500~7000RPM
Operating Temperature:
Charging Temperature: 0℃ to 45℃ / 32°F to 113°F
Discharging Temperature: -15℃ to 60℃ / 5°F to 140°F

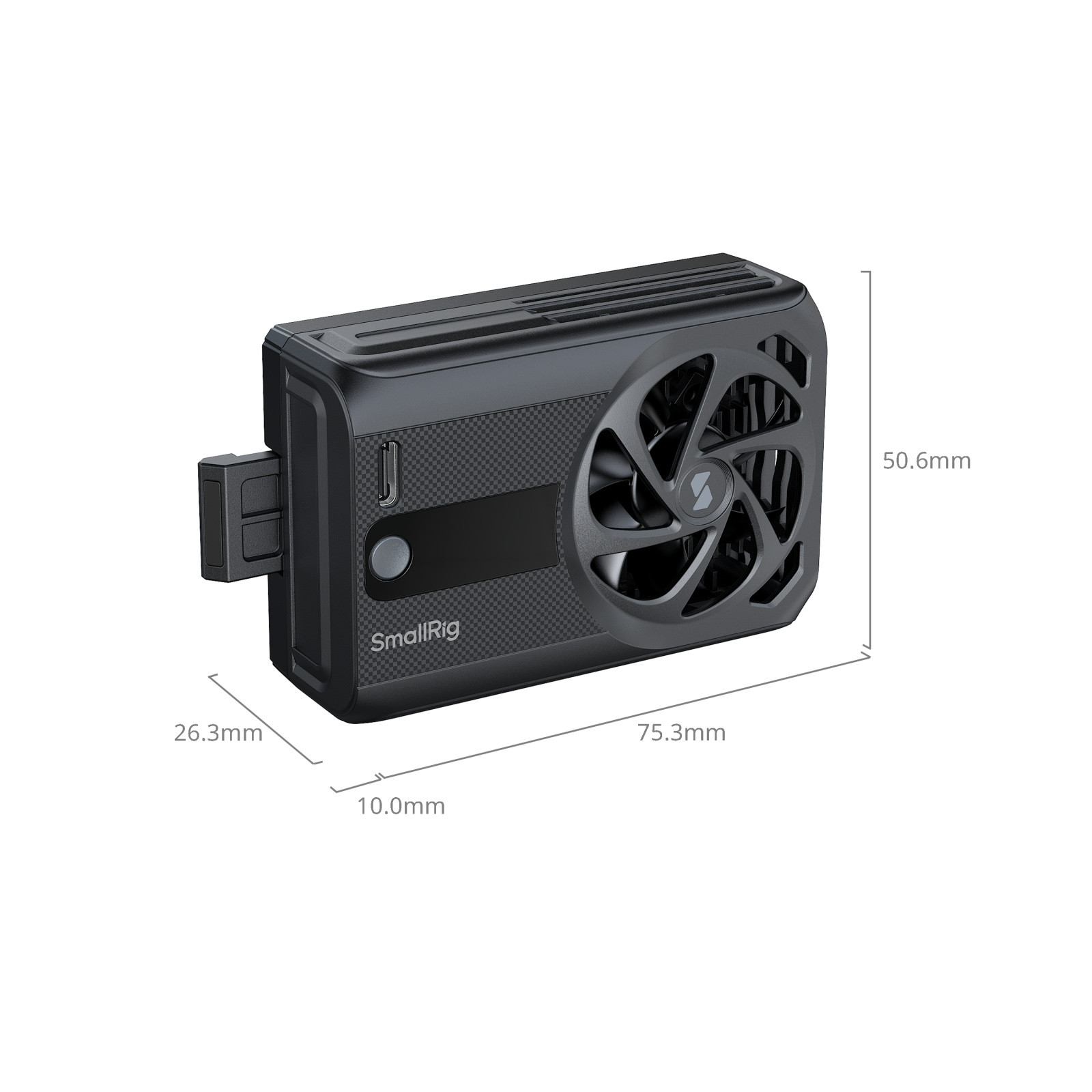

Product Dimensions: 85.0 × 50.8 × 25mm / 3.3 × 2.0 × 1.0 in
Package Dimensions: 155.0 × 81.5 × 42.0mm / 6.1 × 3.2 × 1.7 in
Product Weight: 102.5 ± 5.0g / 3.6 ± 0.2oz
Package Weight: 139.5 ± 5.0g / 4.9 ± 0.2oz
Material(s): PC, Aluminum Alloy
