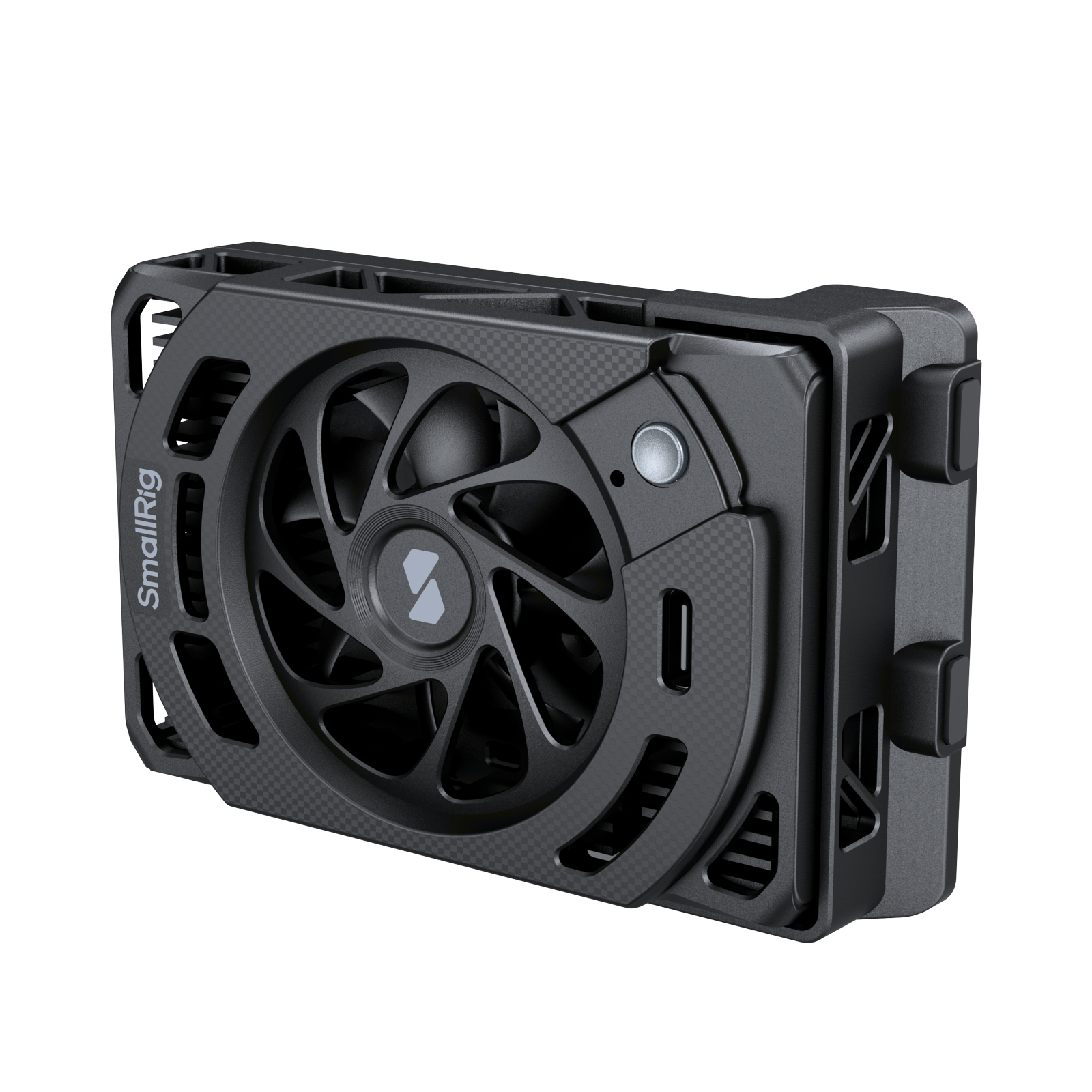

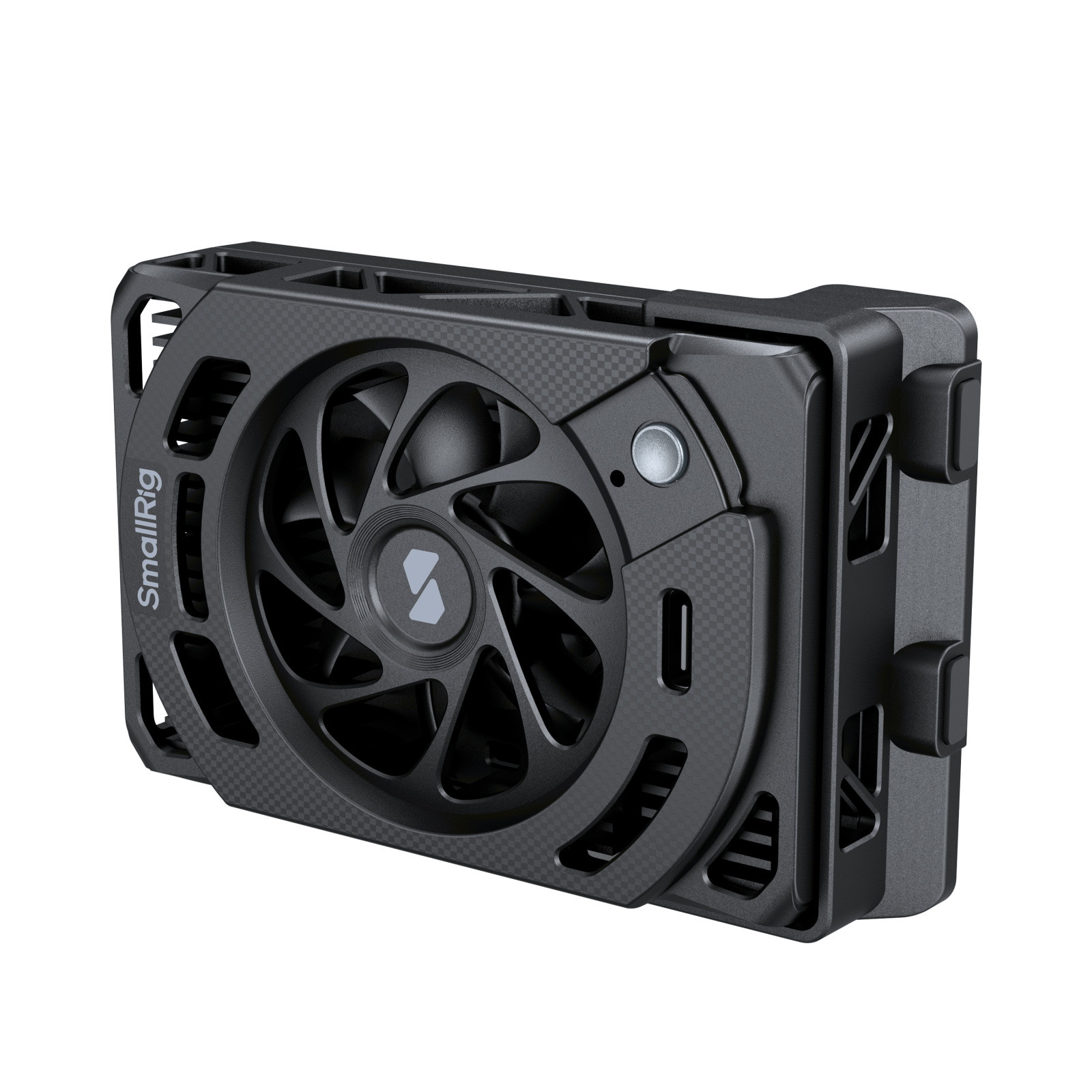

SmallRig Cooling Fan for Canon EOS R5 Mark II & R5 5063

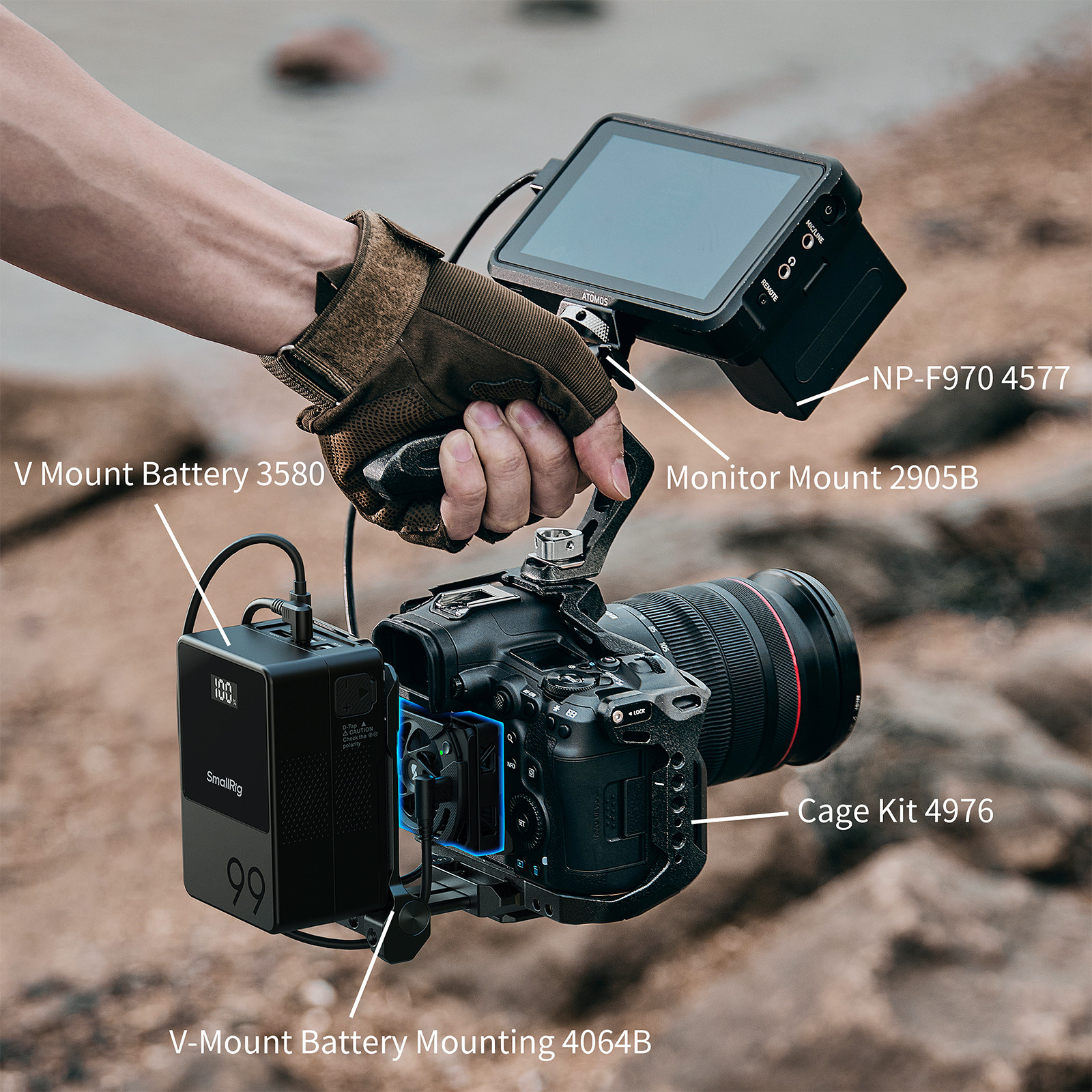

SmallRig Cooling Fan for Canon EOS R5 Mark II & R5 5063 is engineered to address overheating issues in Canon mirrorless cameras, enabling extended high-quality video recording sessions. Its advanced cooling system, which pairs a 7000 RPM fan with TEC cooling technology, ensures optimal heat dissipation and prevents camera overheating. The dual-speed fan features high-speed and low-speed modes to accommodate various shooting scenarios. Its tool-free snap-on design enables quick installation and removal, ensuring easy access to both the fan and the camera’s LCD screen. Additionally, it comes with a mount bracket for attaching Canon, Sony, and other mirrorless cameras. The cooling fan is also compatible with V-mount battery mount plate kits (ID 4064B, 4063B) and V-mount batteries (ID 3579, 4608, 4292) for efficient cooling and power supply.
Note:

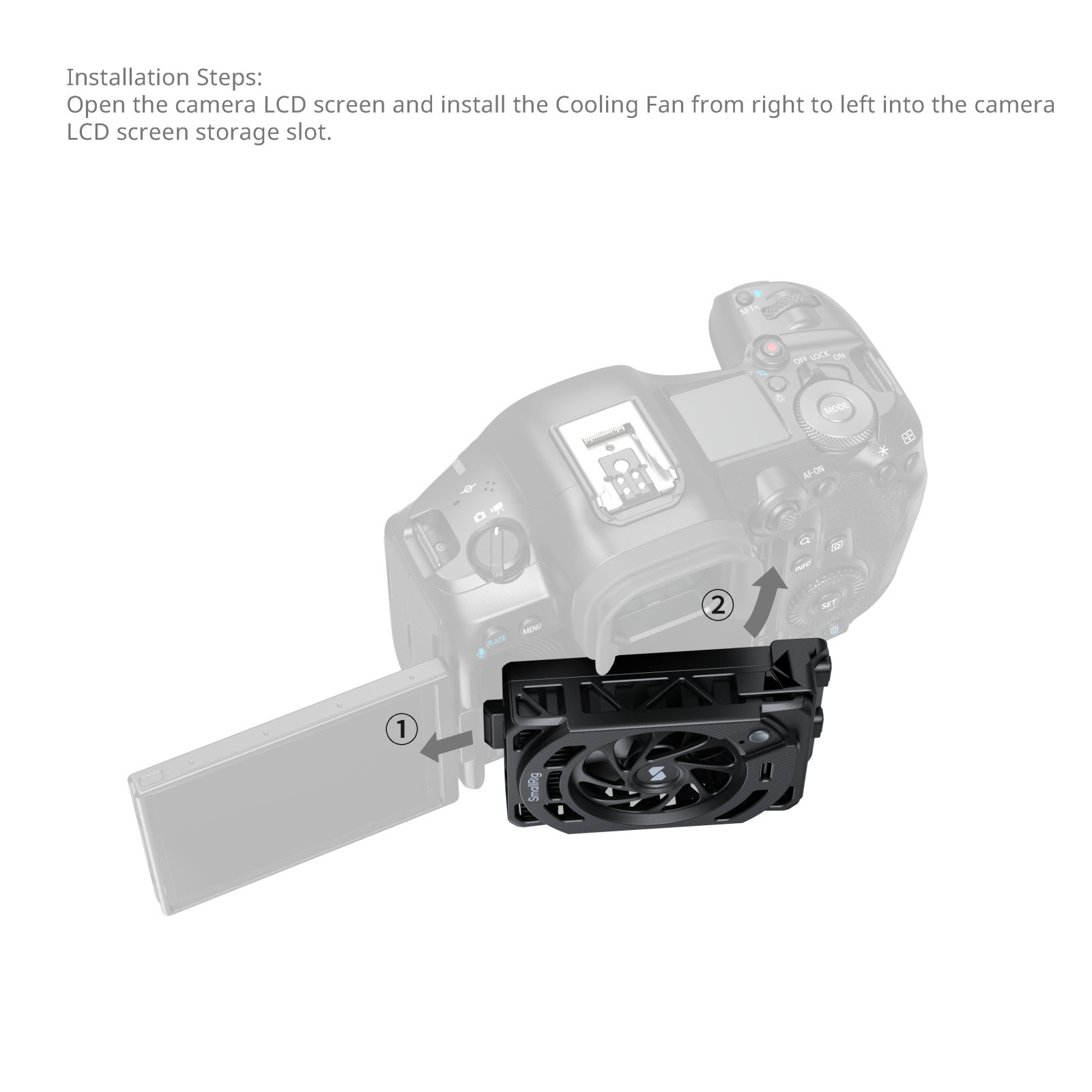

1. After installing this product, the camera's LCD screen cannot be folded. Please remove the cooling fan before storing the LCD screen.
2. This product does not include a built-in battery and must be connected to an external power source to operate.
3. Avoid using or storing the product in humid environments, as it is not waterproof.

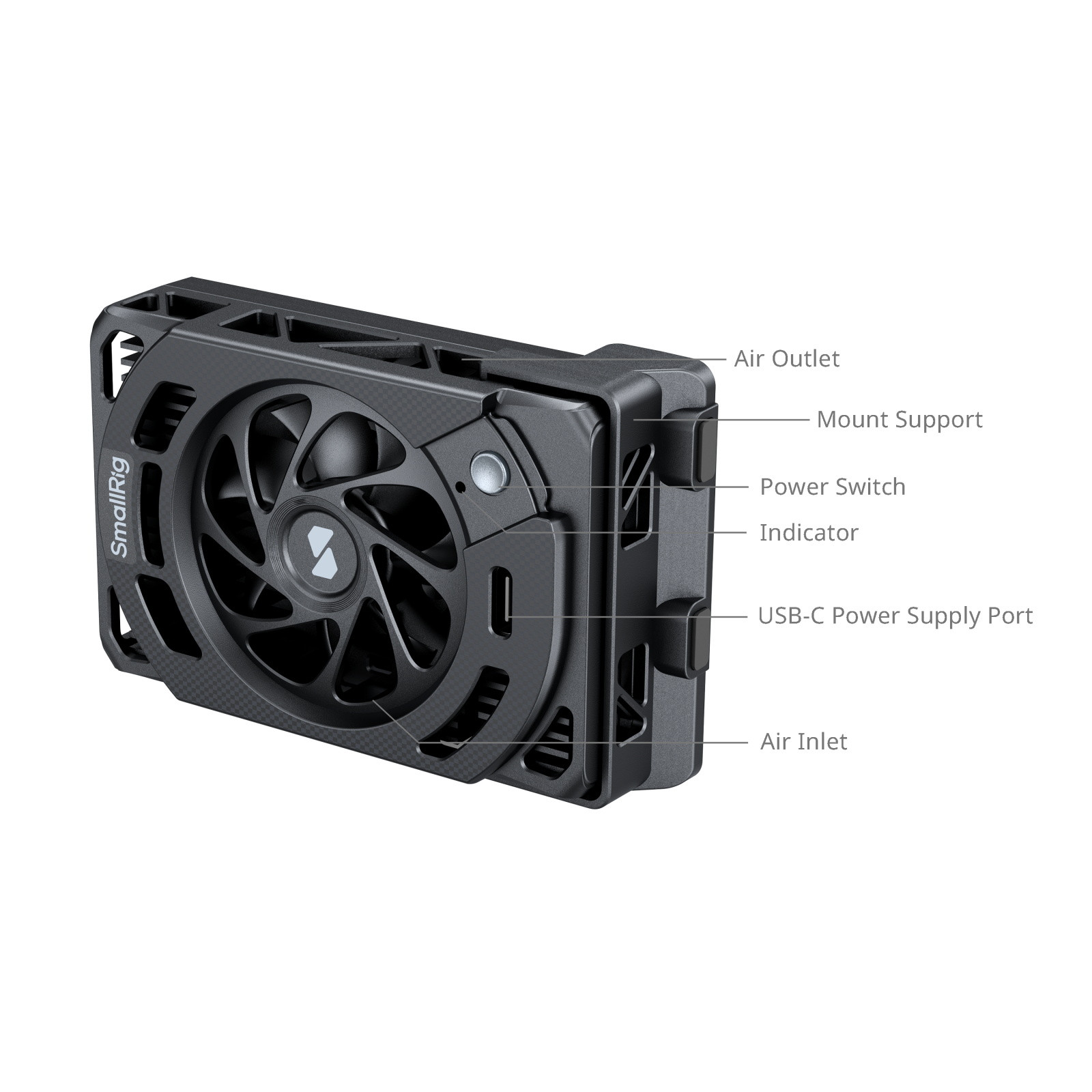

4. Do not obstruct the air inlet or outlet while the cooling fan is in operation.
5. Do not use the cooling fan when the camera is inactive to avoid internal condensation.
6. When not in use, press and hold the power button for about 2 seconds to enter standby mode or disconnect the power cable to turn off the device.
Work With
Canon EOS R5 Mark II & R5& R50 V & PowerShot V1
Compatible with the following Sony cameras when the mount bracket is removed:
Sony ZV-E1, ZV-E10 II, ZV-E10, ZV-1, ZV-1F, Alpha 7 IV, Alpha 7S III, Alpha 7C, Alpha 7C II, Alpha 7CR, Alpha 6700, FX3, FX30

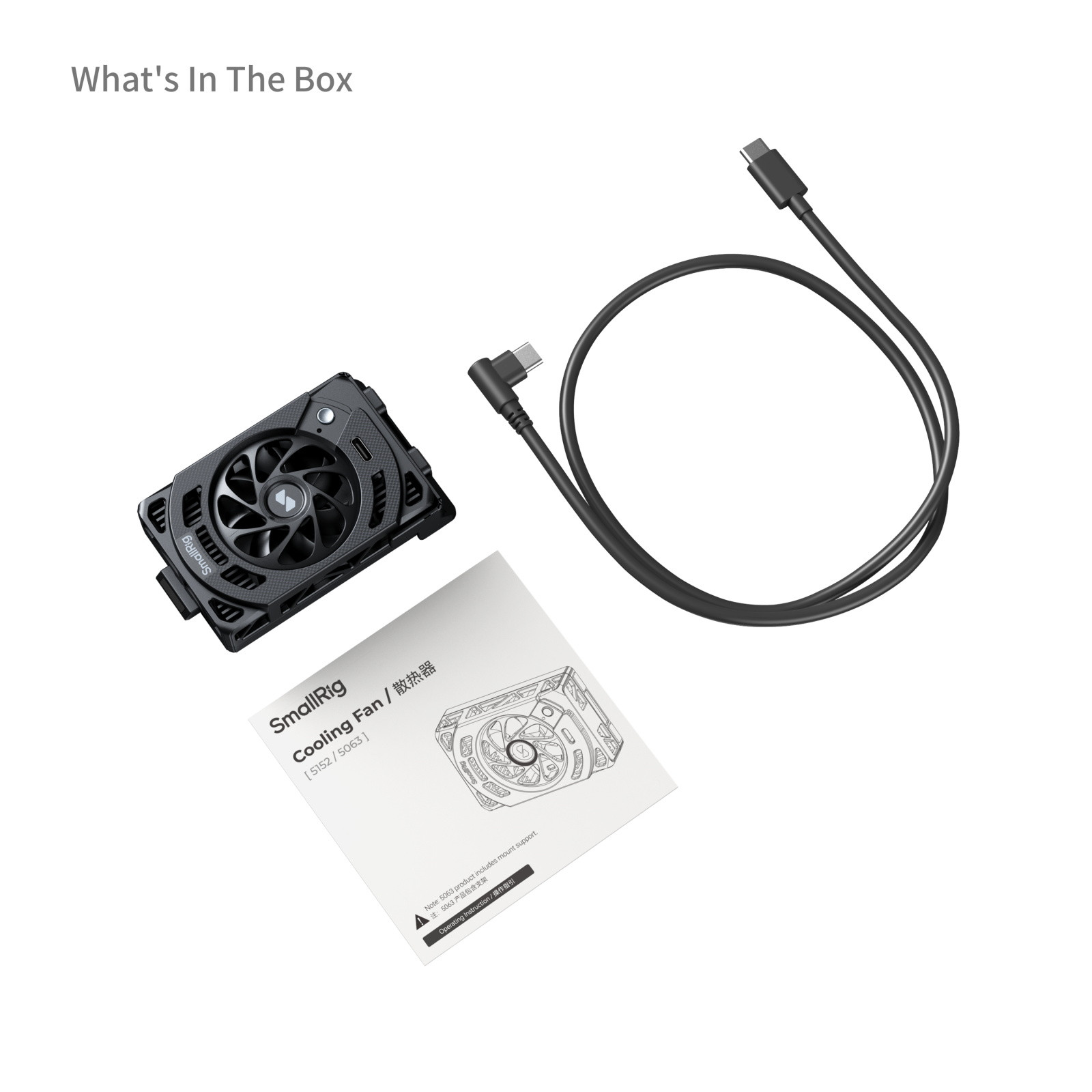

Packing List
Cooling Fan x 1
USB-C Cable x 1
Operating Instruction x 1
Guarantee Card x 1
Technical Data
Operating Voltage: 4 - 10.8V
Operating Current: 1 - 2A
Operating Power: 5 - 18W
Operating Temperature: 0℃ to 45℃ / 32°F to 113°F
Cooling Technology: TEC Cooling
Noise Levels:
Low-Speed Mode: ＜40dB
High-Speed Mode: ＜50dB
Fan Speed:
Low-Speed Mode: 4500RPM
High-Speed Mode: 7000RPM

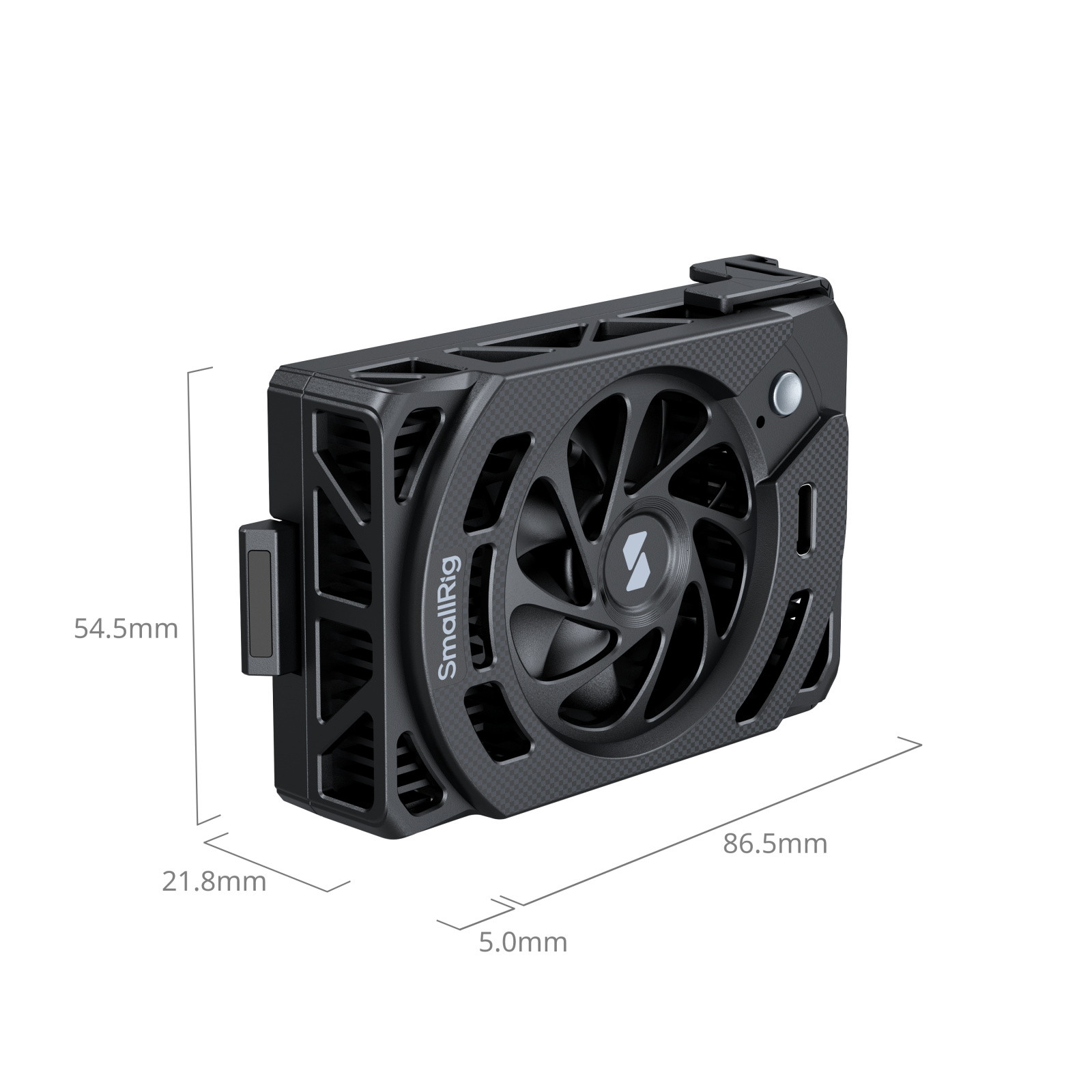

Product Dimensions: 86.5 x 54.5 x 21.6mm / 3.4 x 2.1 x 0.8in
Package Dimensions: 105.0 x 97.5 x 32.0mm / 4.1 x 3.8 x 1.3in
Product Weight: 101.0 ± 5.0g / 3.6 ± 0.2oz
Package Weight: 134.0 ± 5.0g / 4.7 ± 0.2oz
Materials: Aluminum Alloy + ABS-PC
