SmallRig Adapter Plate Kit for NP-F Type Batteries for 15mm LWS Rods (Supports UPS) 5537

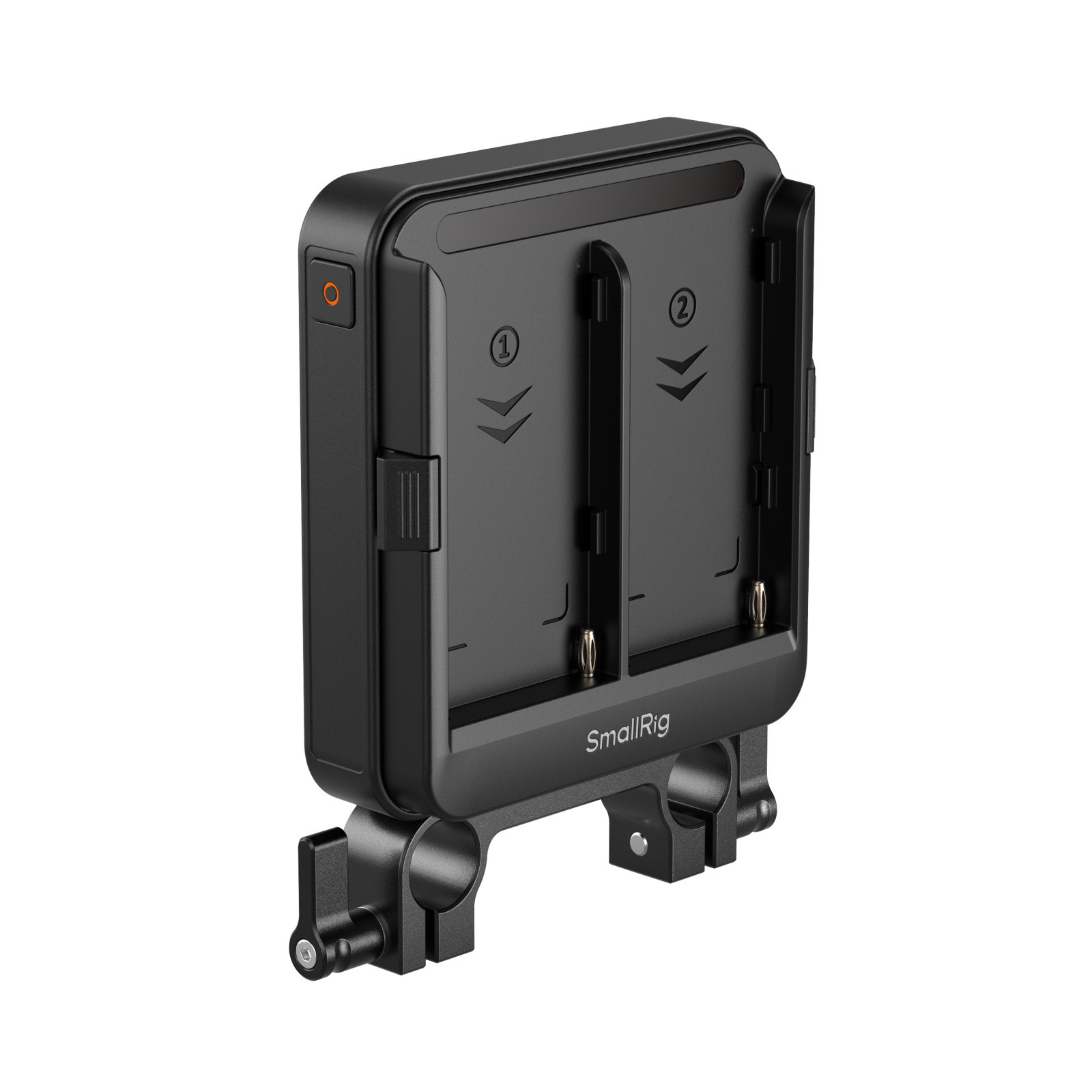

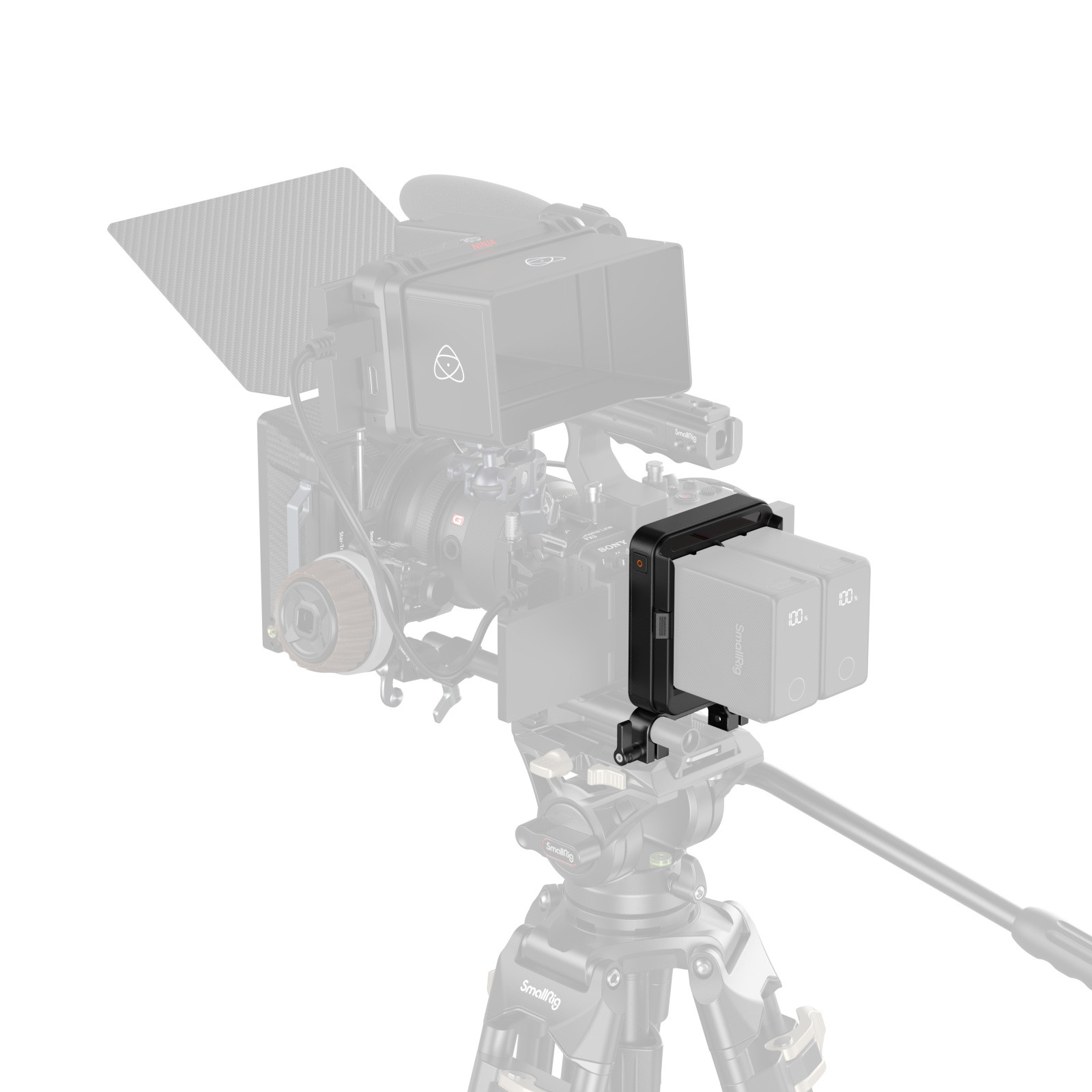

SmallRig Adapter Plate Kit for NP-F Type Batteries for 15mm LWS Rods (Supports UPS) 5537 is designed to provide continuous power for mirrorless cameras, monitors, and other equipment using NP-F series batteries. This plate can be mounted using a V-mount plate, 15mm dual rod clamp, or the bottom 1/4"-20 threaded hole and accommodates one or two NP-F batteries to power your gear. When two batteries are installed, the hot-swap feature allows you to replace one battery without shutting down connected devices, ensuring an uninterrupted power supply (UPS).
Equipped with multiple output ports—D-Tap, DC (5521), and USB-C—this adapter plate allows you to power several devices simultaneously. The ports are strategically placed to avoid interference with camera operation and the use of top handles. The USB-C port supports up to 36W of input, enabling the plate to function as a charging dock.
An integrated intelligent management chip optimizes both discharging and charging: during discharging, it drains the battery with the lower charge first, switching to parallel output when the voltage is low to enable hot-swaps and power high-demand devices. For charging, it prioritizes the higher-charge battery and then switches to simultaneous charging to enhance efficiency.
An independent power switch allows you to check the power status and activate with a single press, while a long press (2s) disables output for all connected devices. This simplifies operation and conserves power by eliminating the need to unplug cables after a shoot. Independent LED indicators for each channel provide clear, at-a-glance battery status updates.
|

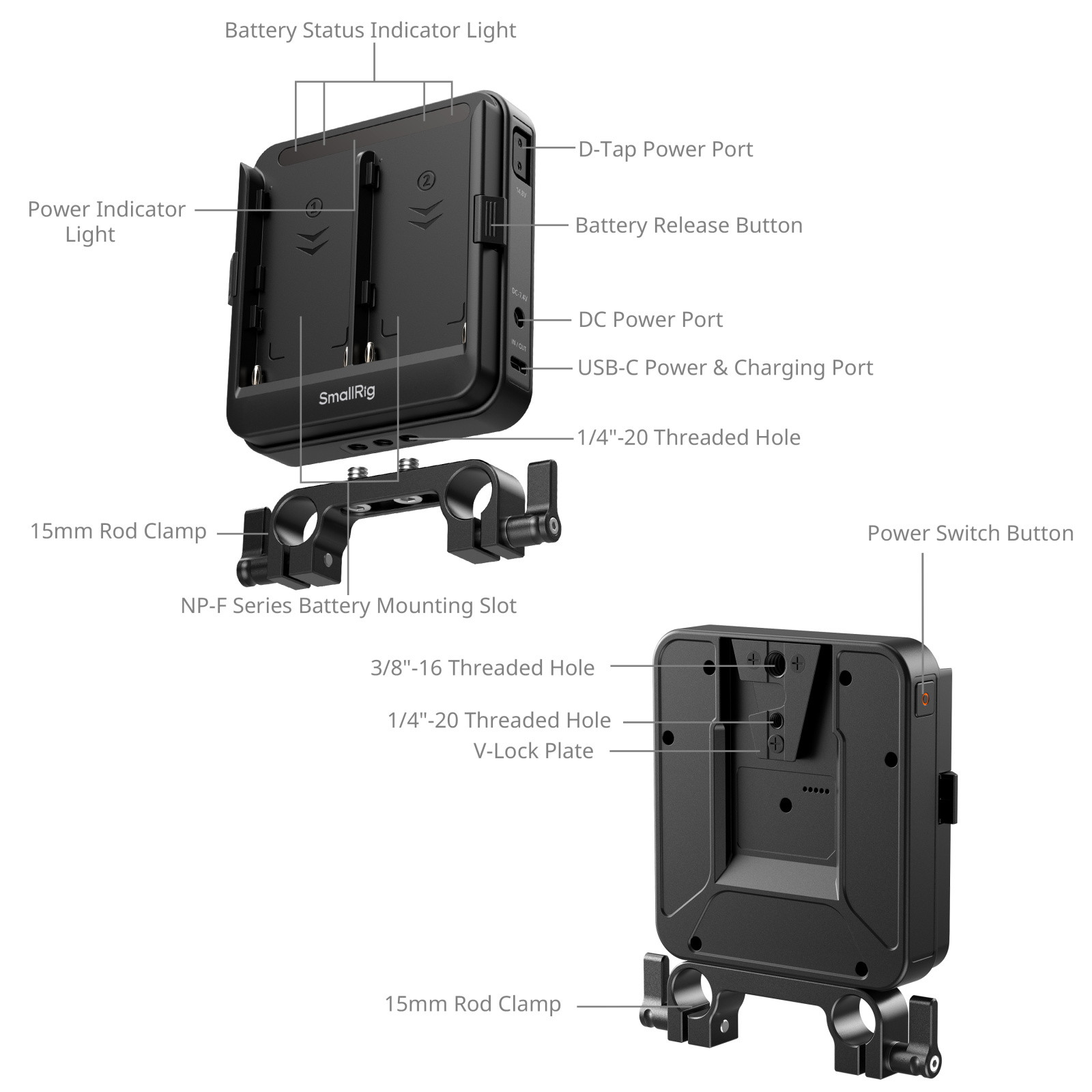

Power Switch |
Single Press: Displays battery level & enables output. |
|
Power Indicator (Red) |
Lights up when powered on; turns off after ~10 seconds if no load is detected |
|
Battery Status Indicator |
Lights up when powered on; turns off after ~10 seconds if no load is detected. Remains on if a load is connected. During Discharge: Solid Green: Battery level ≥ 20% Solid Red: Battery level 10%–20% During Charge: |
Note: When not in use or after use, please remove the batteries or press and hold the power switch for 2 seconds to disable output.
Work With
NP-F550 / 570 / 750 / 770 / 950 / 970...
Accessories with a V-mount interface or 1/4"-20 screw, or 15mm dual rods with 60mm on-center spacing

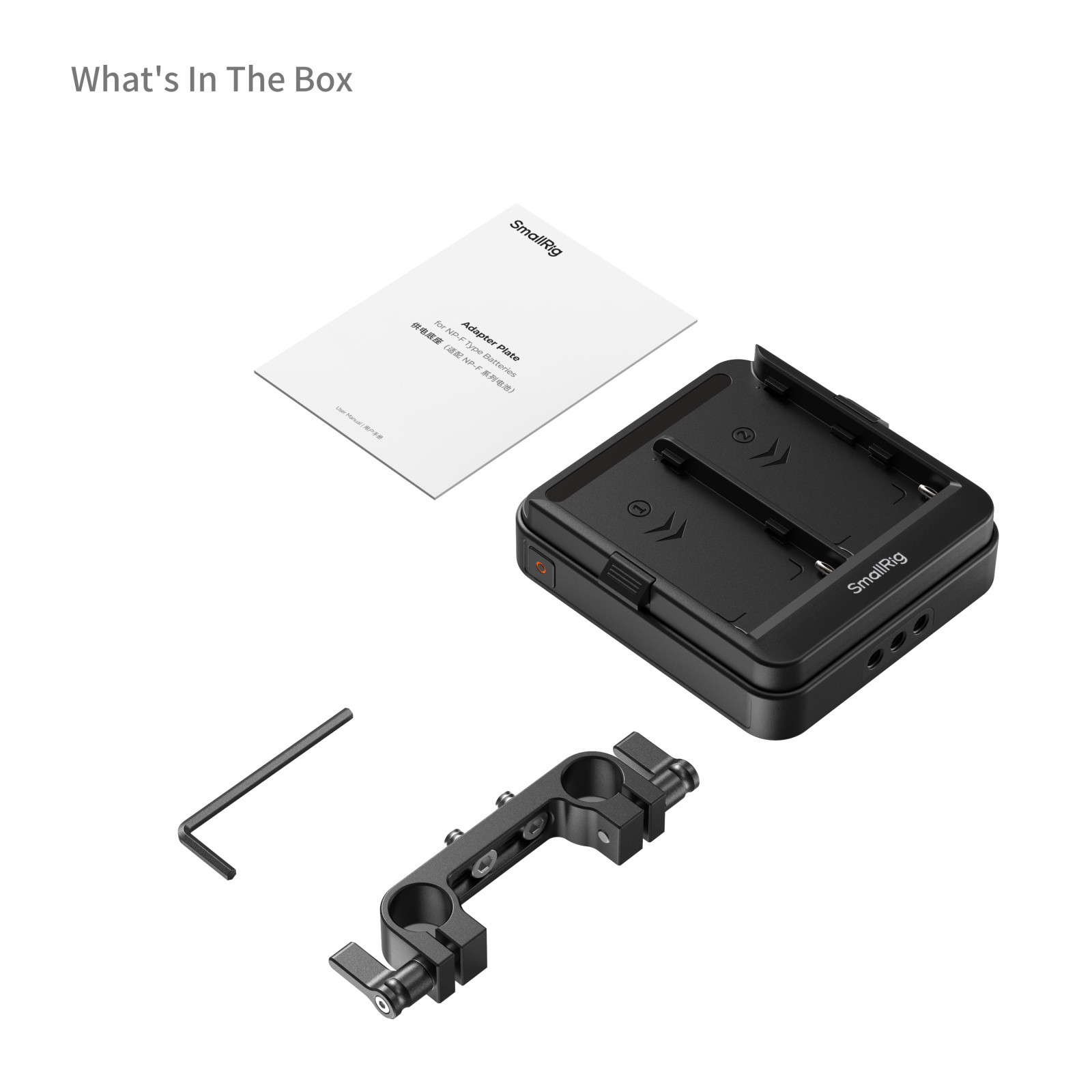

Packing List
Adapter Plate x 1
15mm Dual Rod Clamp x 1
Allen Wrench x 1
User Manual x 1
Technical Data
Compatible Battery Type: NP-F Series Batteries
External NP-F Battery Voltage Range 5.2–8.4V
Recommended Battery Rated Capacity Range: 3400–10200mAh / 7.4V (Nominal)
D-Tap (Output Only): 14.8V ⎓ 2A (MAX)
DC (Output Only): 5.2-8.4V ⎓ 3A (MAX)
USB-C (Input & Output):
Output:
PD3.0: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 2.25A
QC2.0 / FCP: 5V ⎓ 3A, 9V ⎓ 3A
QC3.0: 5V ⎓ 3A, 9V ⎓ 3A
AFC: 5V ⎓ 2A, 9V ⎓ 2A
DCP-1.5A: 5V ⎓ 0.5A, 5V ⎓ 1.5A
PPS: 3.3-9V ⎓ 3A, 9-12V ⎓ 2.25A
APPLE-2.4A: 5V ⎓ 2.4A
Input:
5V ⎓ 0.5-3A
9V ⎓ 0.5-3A
12V ⎓ 0.5-3A
Discharge Cut-off Current:
D-Tap: 2.5A
DC: 3A
USB-C: 5V/9V ≥3.5A, 12V ≥3.0A
Operating Temperature:
Charging: 0°C–45°C / 32℉–113℉
Discharging: -15°C–60°C / 5℉–140℉
Storage Temperature & Humidity:
Stored for 1 month: -20°C–60°C / -4℉–140℉
Stored for 3 months: -20°C–45°C / -4℉–113℉
Stored for 1 year: -20°C–20°C / -4℉–68℉
※ At standard humidity conditions
Product Dimensions: 128.7 x 107.4 x 27.8mm / 5.1 x 4.2 x 1.1in
Package Dimensions: 134.0 x 45.5 x 177.0mm / 5.3 x 1.8 x 7.0in
Product Weight: 202.3 ± 5.0g / 7.1 ± 0.2oz
Package Weight: 282.3 ± 5.0g / 10.0 ± 0.2oz
Material(s): PC, Aluminum Alloy, Stainless Steel
