SmallRig 4-Arm Suction Cup Camera Mount Kit SC-15K 3565

SmallRig 4-Arm Suction Cup Camera Mount Kit SC-15K 3565

1. Load capacity of 120 kg.

2. Quick release  via a NATO clamp.

3. A comprehensive solution to the power supply and image  transmission.

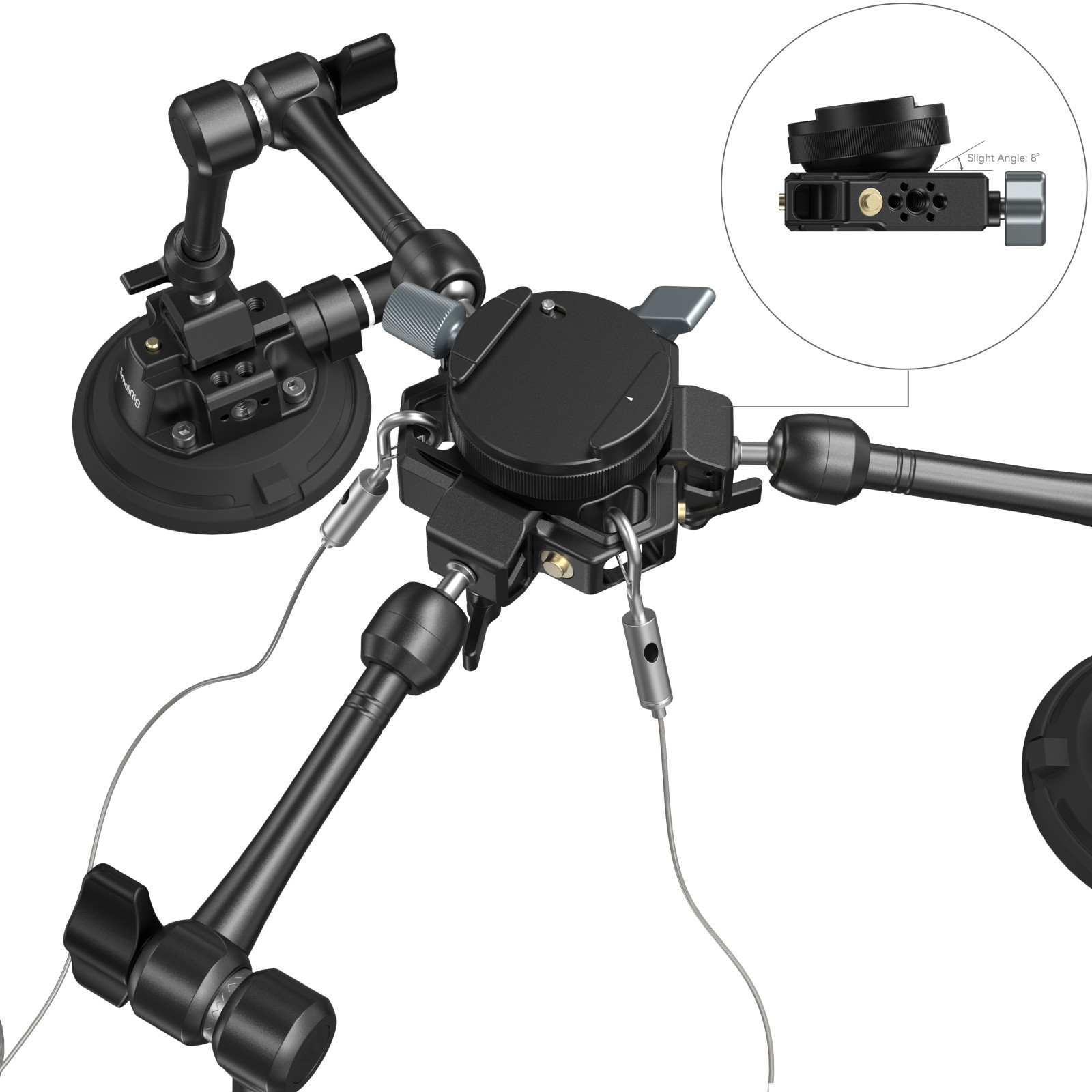

4. The Half-ball head locks the mount while  allowing for fine adjustment of shooting angles.

5. Supports  Arca-Swiss and DJI RS stabilizer quick-release plate for quick switch between  car, handheld, and stabilizer shooting.

$449.00
Sku 3565

Availability: Available soon

This product has been viewed 216 times

Product Description



SmallRig 4-Arm Suction Cup Camera Mount Kit SC-15K 3565

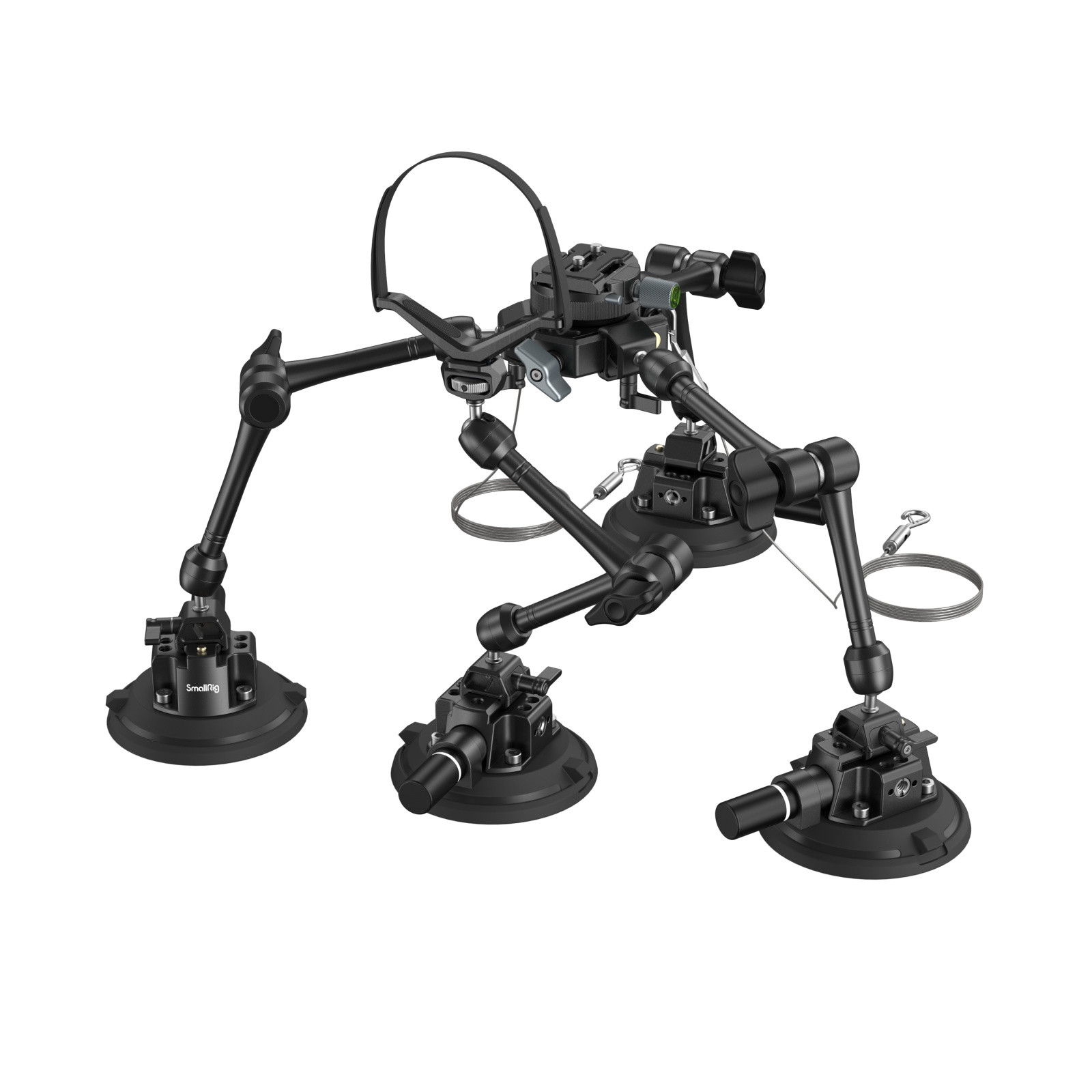

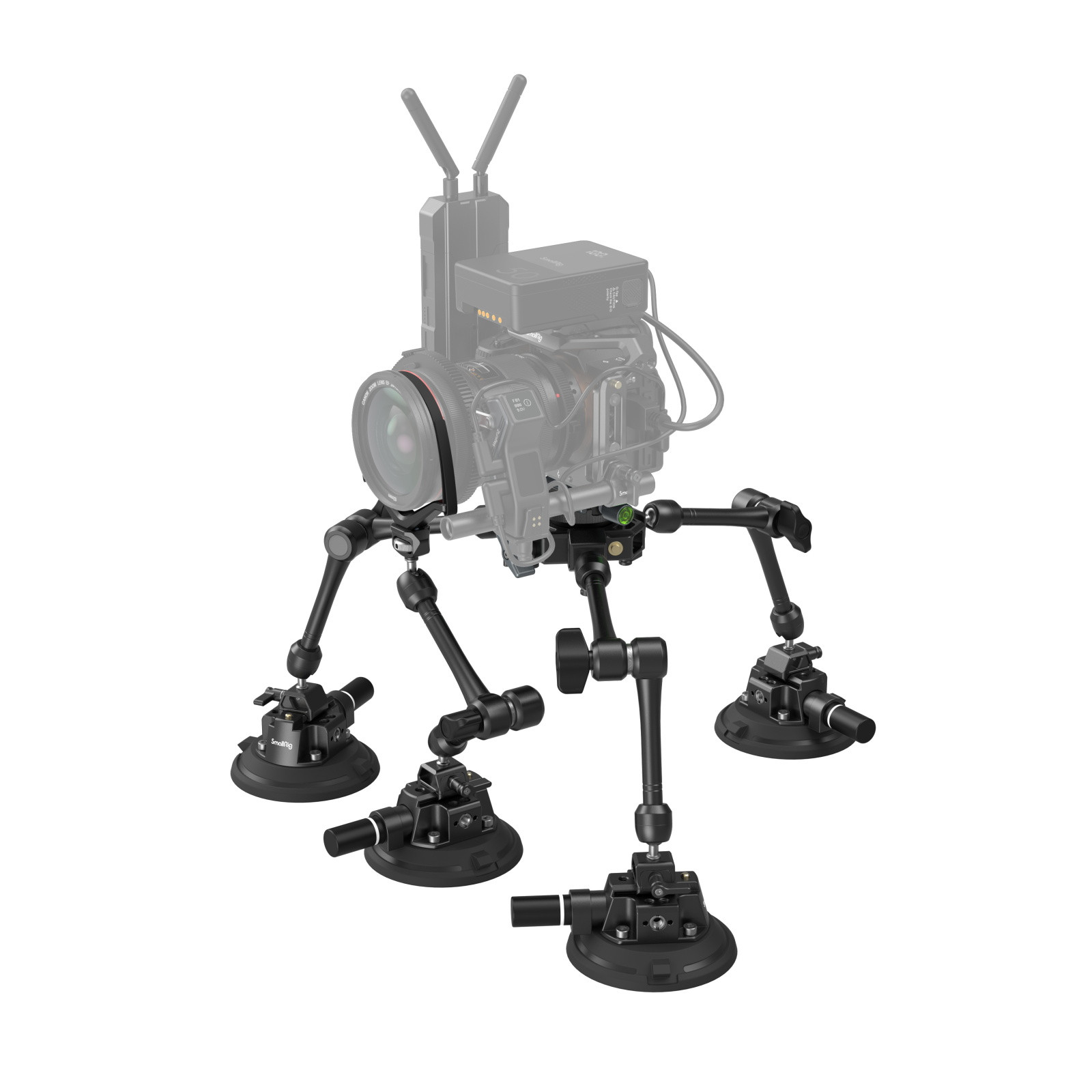

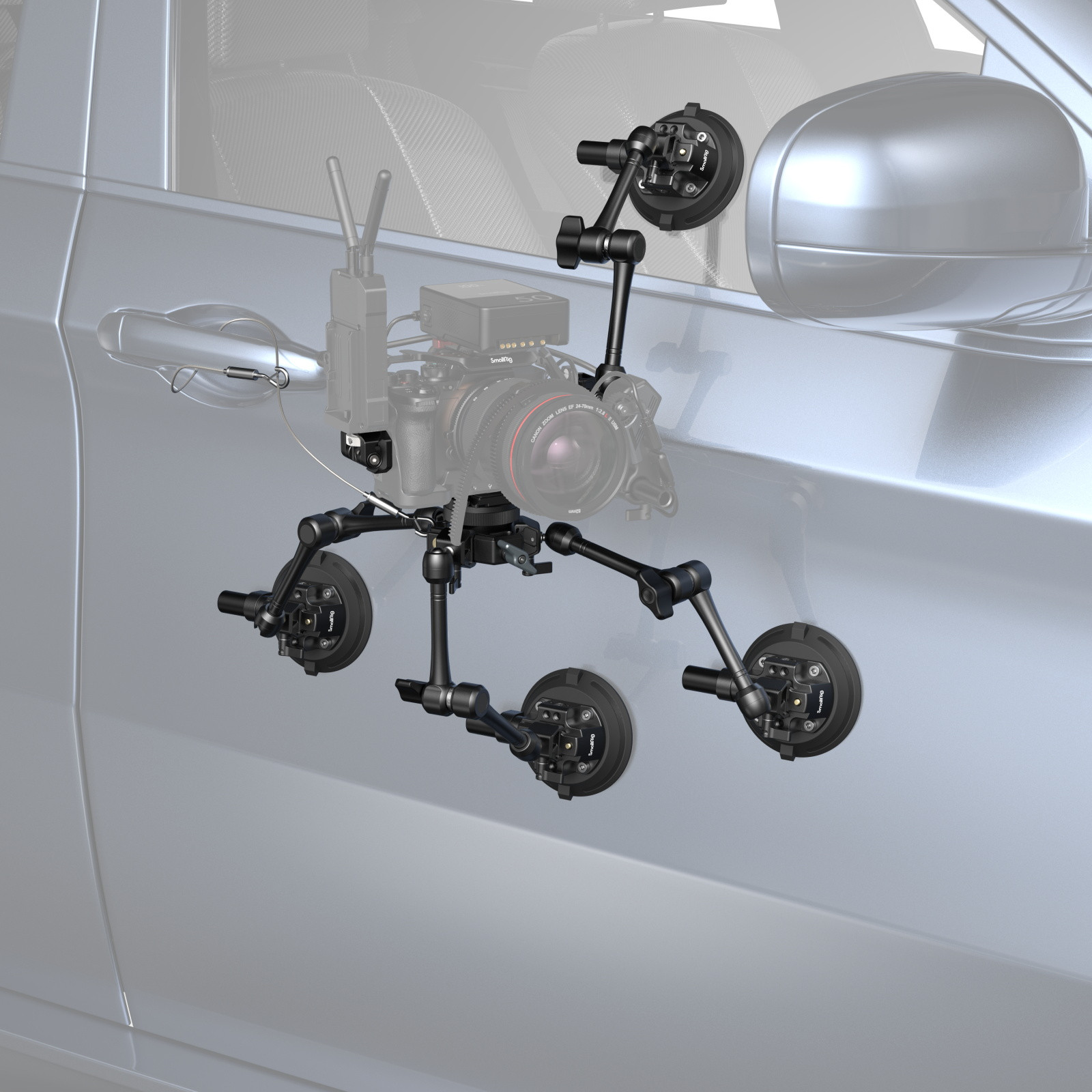

SmallRig 4-Arm Suction Cup Camera Mount Kit SC-15K 3565 represents a professional and reliable solution to vehicle-based or other personalized photography. With powerful suction force, the mount has maximum horizontal suction of 120 kg and maximum vertical suction of 30 kg. The suction cup camera mount, with great air-tightness and wear resistance, can work at -20° C to 60° C,  suitable for clean, dry, smooth, and even curved surfaces. The kit consists of 4 suction cups, 4 x 11" magic arms, 1 lens support, 1 half ball head, and 2 cable tethers. Among them, the suction cup quickly attaches the magic arm via a NATO clamp to prevent twisting; the half ball head, which is -8°/+8° adjustable, supports Arca-Swiss and DJI RS stabilizer quick release plate for quick switch between cars, handheld, and stabilizer shooting; and the cable tether ensures your gear is safe. The kit also comes with an integrated storage case, which is resistant to dust, abrasion, and rain in complex outdoor environments.

DisclaimerPlease mount it onto recommended surfaces and check at least every four hours.

Note:

1. Suitable for clean and glossy surfaces, not for rough, uneven, dirty, or fragile surfaces.

2. Please always keep the sucker and filter cotton intact and clean.

3. Please apply it carefully to coated surfaces.

4. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.

5. It better work with a camera cage.

Key Features

Warnings:

1. The 4-Arm Suction Cup Camera Mount Kit, when adhering to a still object, has a tested maximum horizontal suction of 120 kg and maximum vertical suction of 30 kg. Please check the suction force every 24 hours.

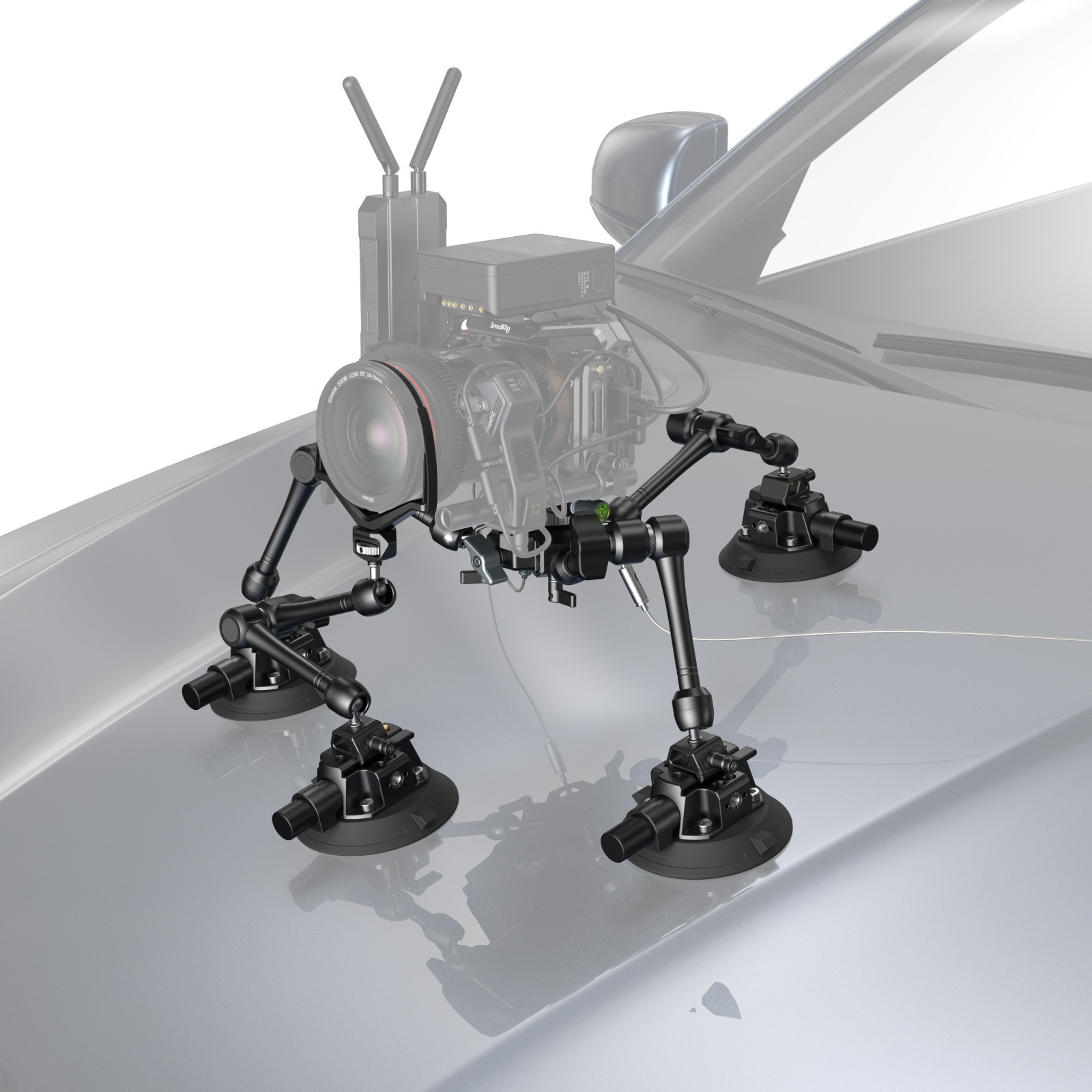

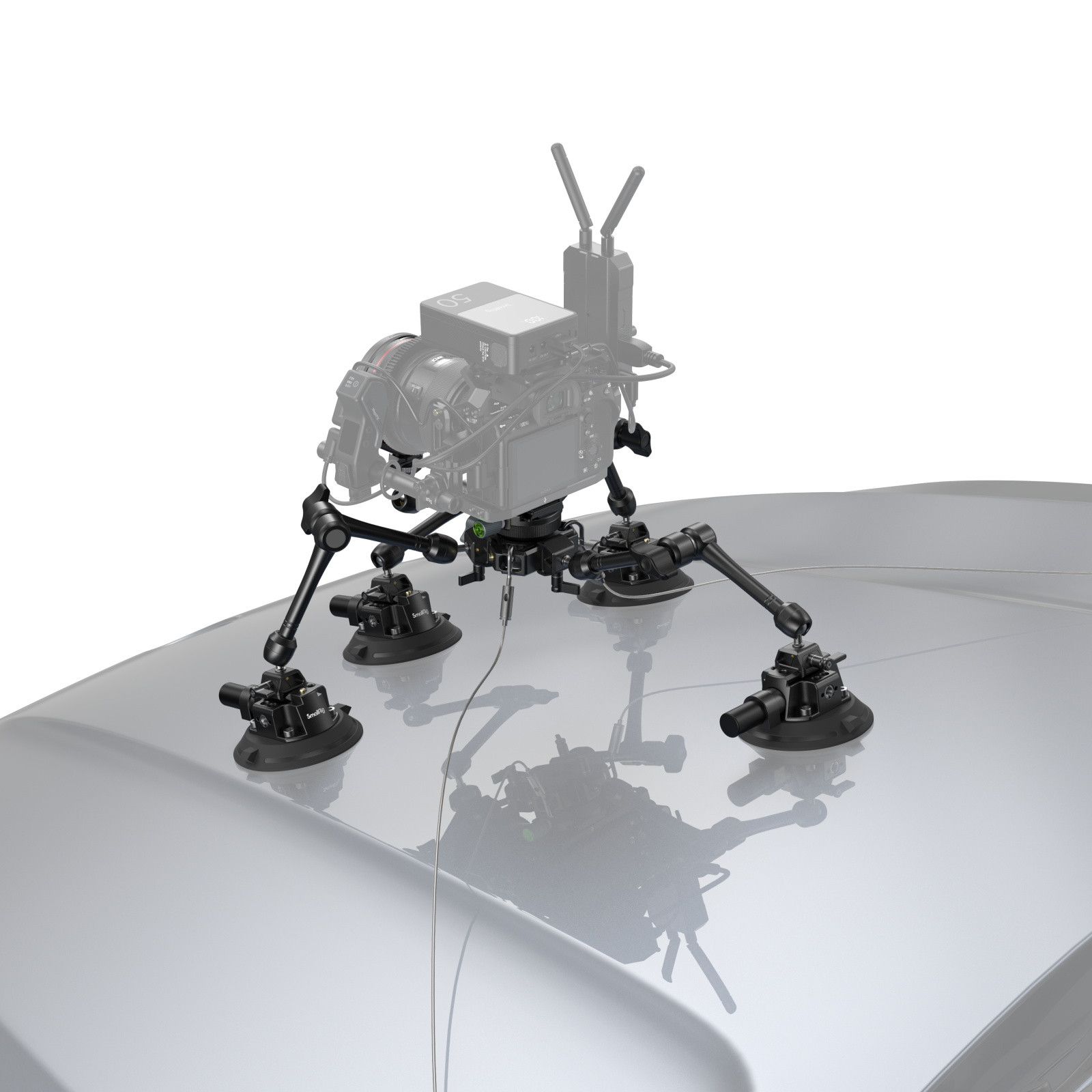

2. It is recommended, when adhering to a vehicle, the 4-Arm Suction Cup Camera Mount Kit works with a cable tether and bears no more than 15kg. Please run the vehicle smoothly at a speed of below 80km/h and check the suction force every 2 hours.

3. Suitable  for dry, flat, glossy, solid surfaces, not for painted surfaces, natural marble, old tiles, breathable wallpaper, diatom mud walls, unpainted wood,  frosted glass, and other rough or breathable materials.

4. Works at -20°C to 60°C.

5. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.

6. Please follow the instructions.  Products that are damaged due  to improper use are not eligible for after-sales service.

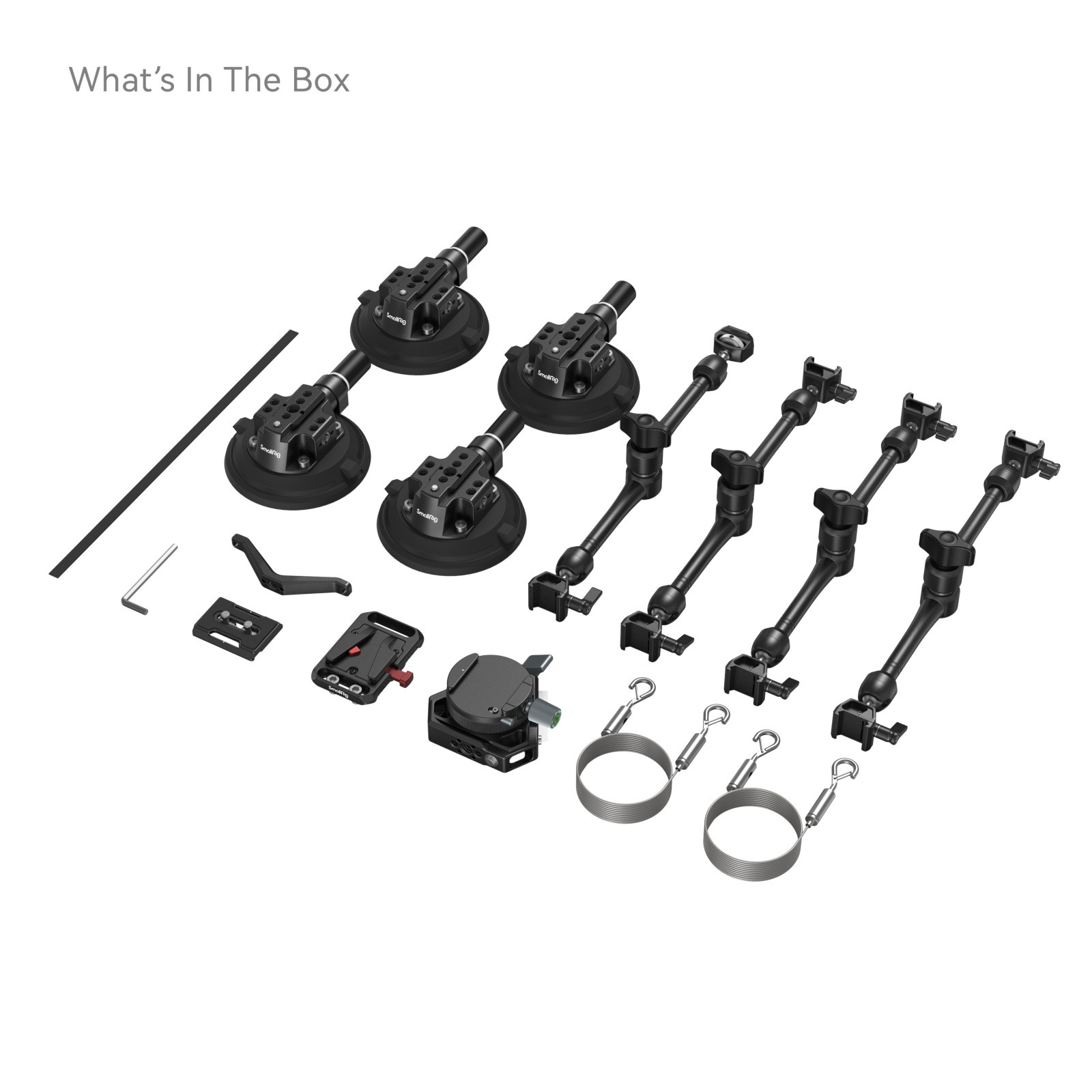

Packing List

4 x 4″ Vacuum Suction Cup

3 x Magic Arm

1 x Half Ball Head

1 x Magic Arm with Lens Support

1 x Battery Adapter Plate

2 x Cable Tether

1 x Velcro

1 x Storage Case

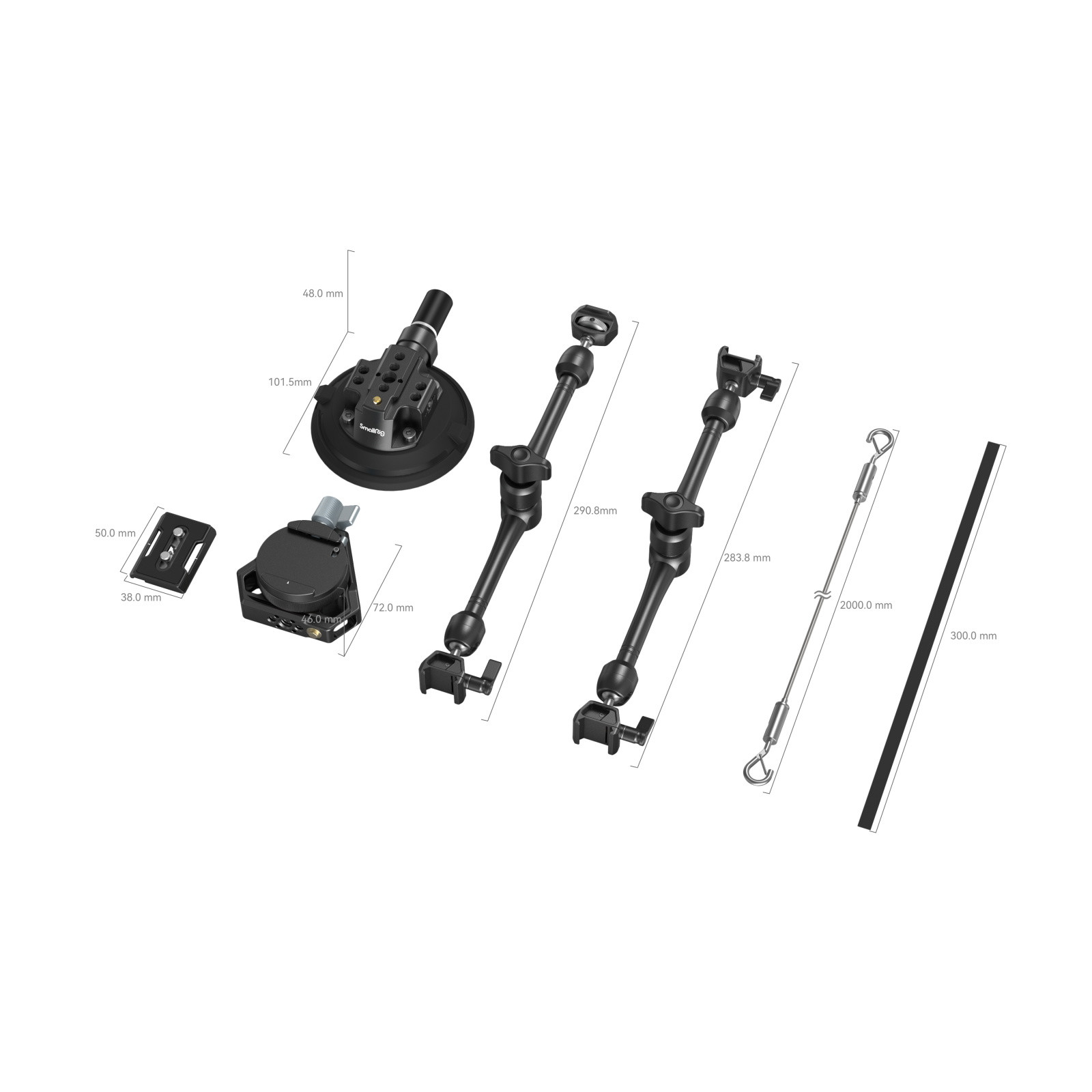

Technical Data

Product Dimensions: 424.8 x 300.0 x 58.8mm

Package Dimensions: 363 x 271 x 142mm

Product Weight: 3433g±5g

Package Weight: 4328g±5g

Material(s): Aluminum Alloy, NBR, ABS, Stainless Steel
