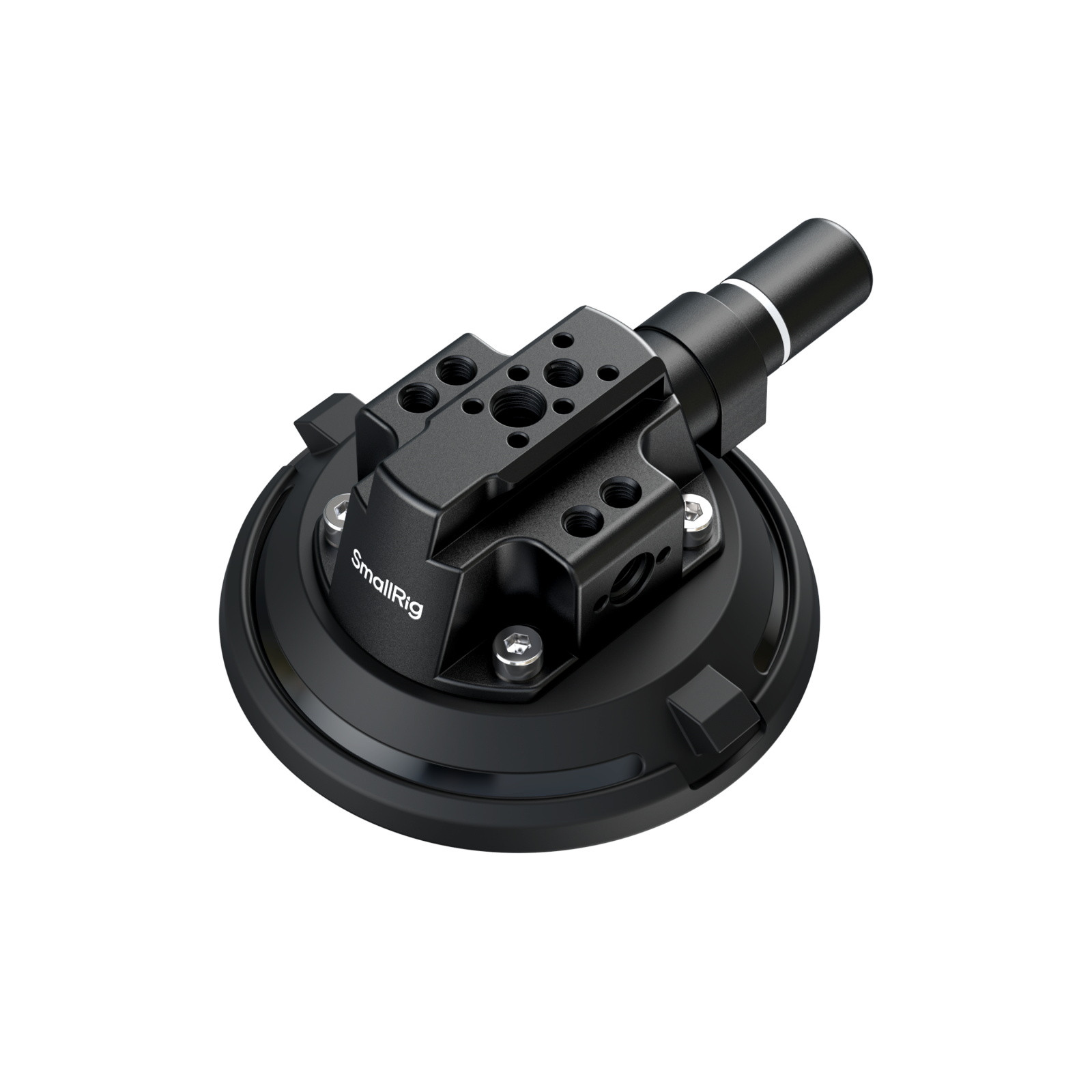

SmallRig 4'' Suction Cup Camera Mounting Support for Vehicle Shooting 4122B

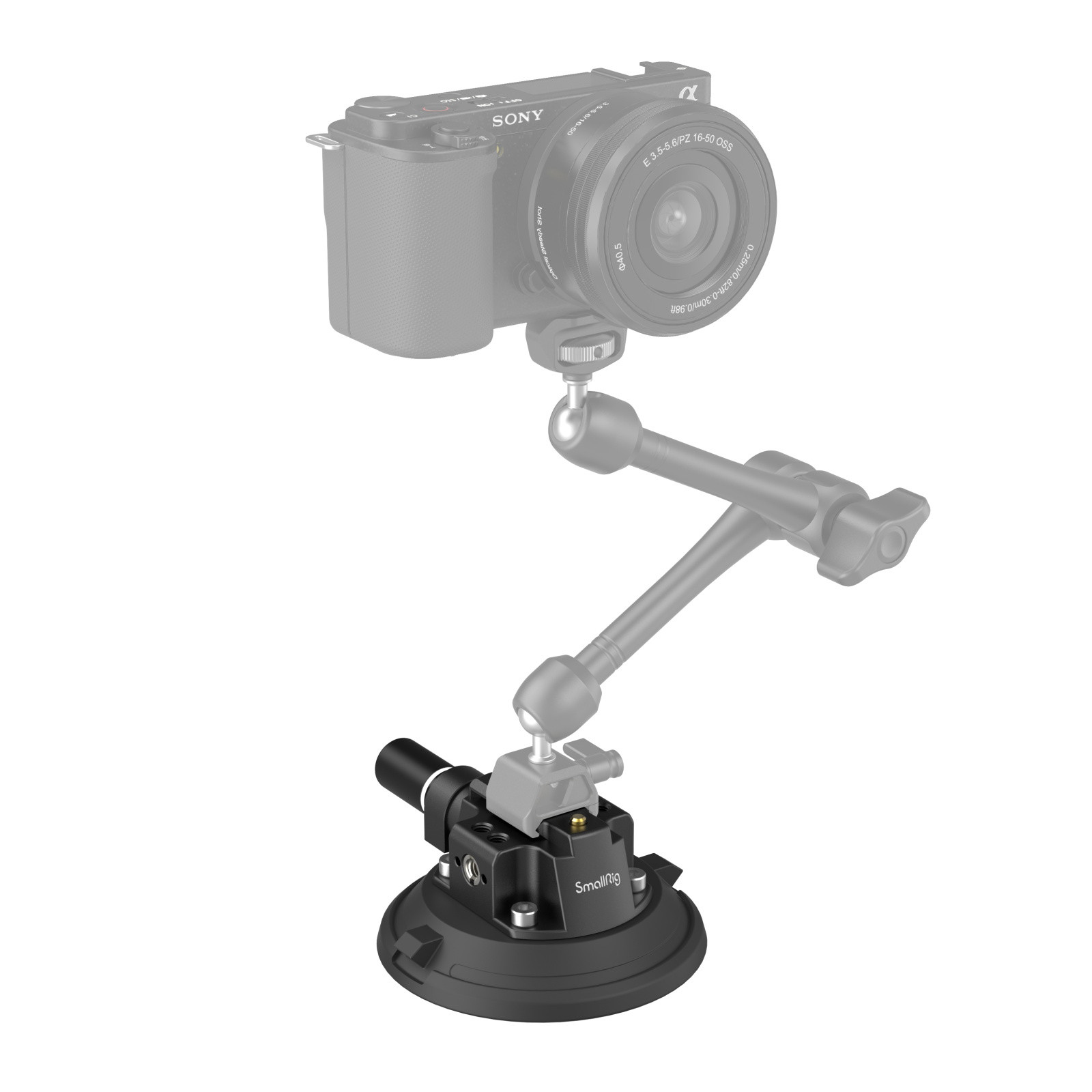

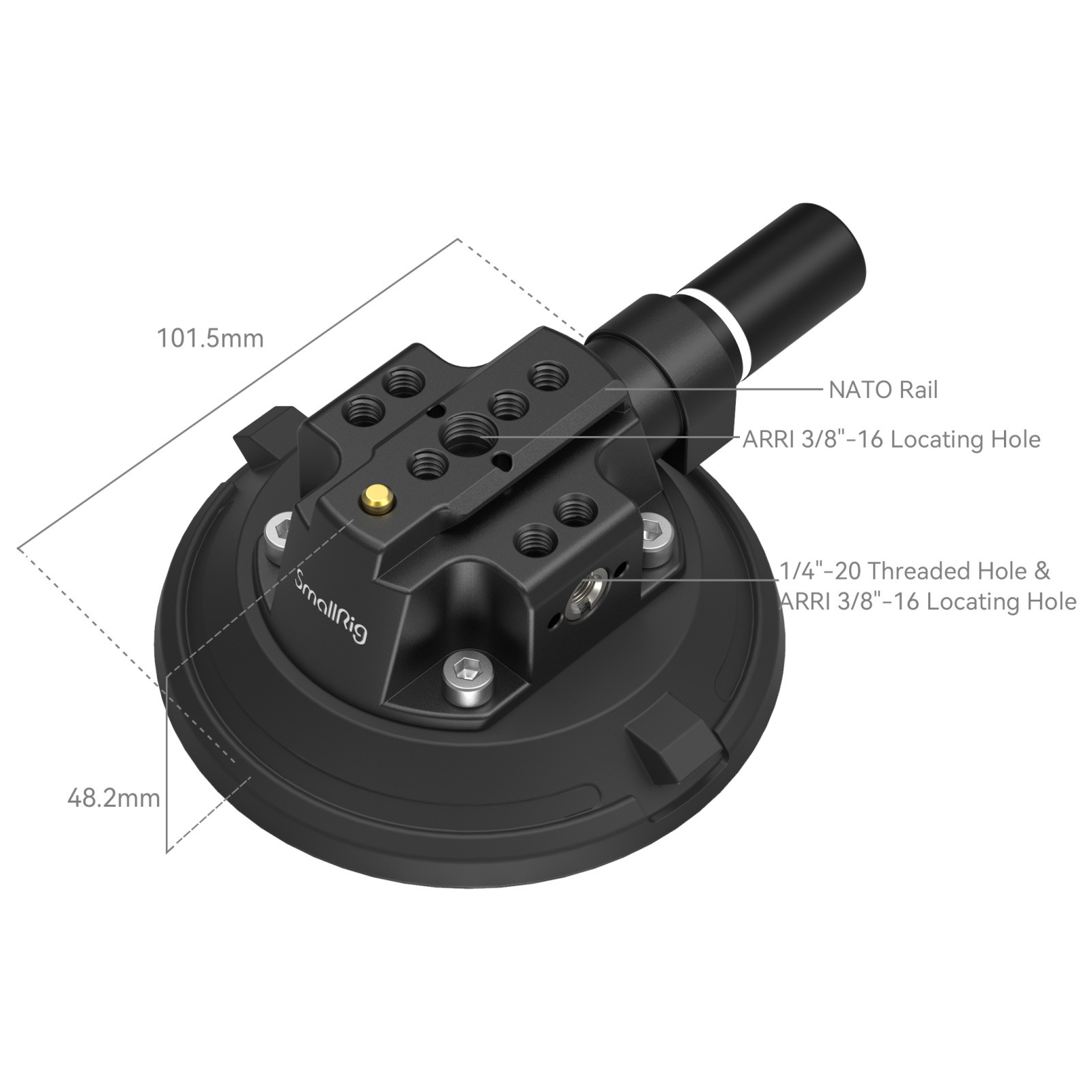

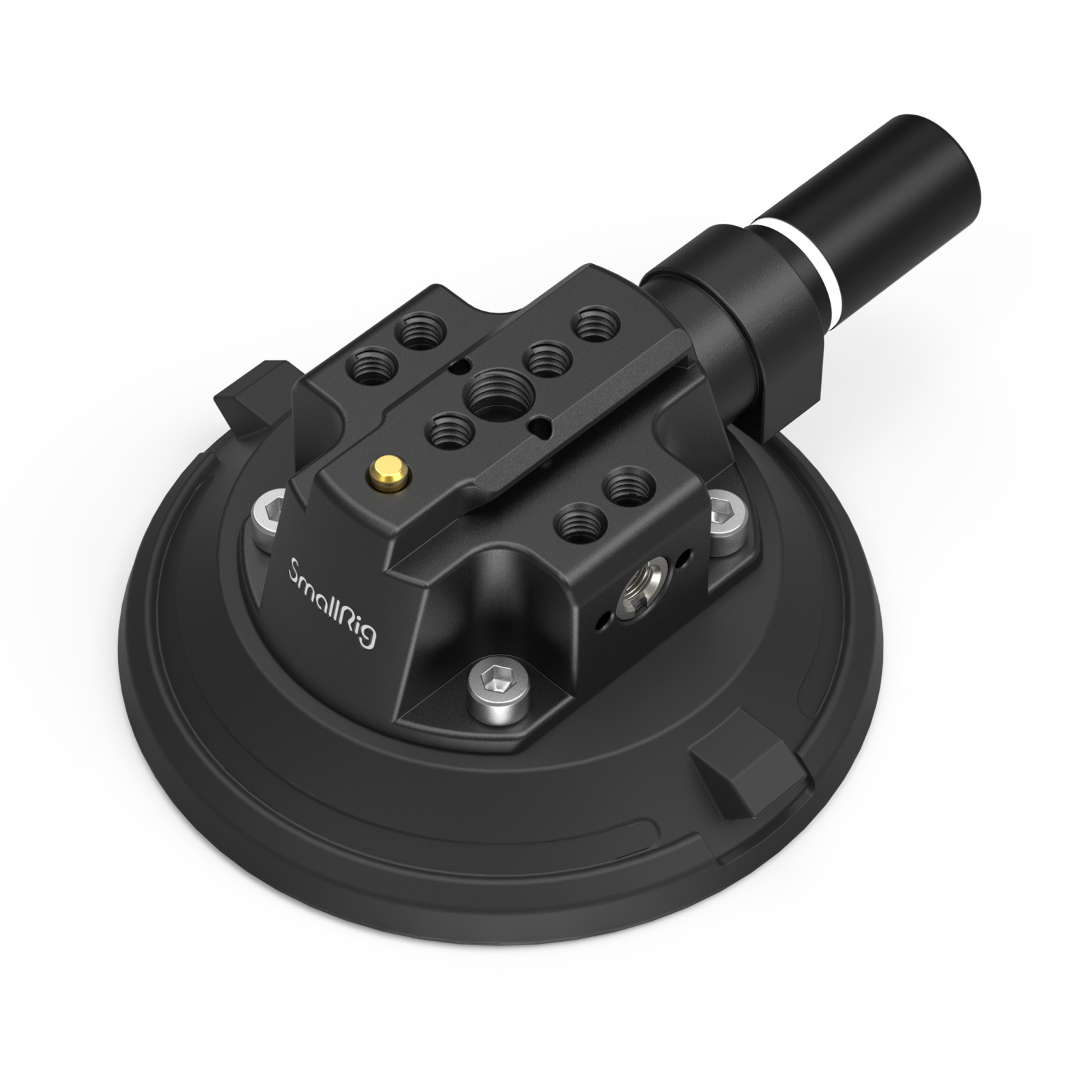

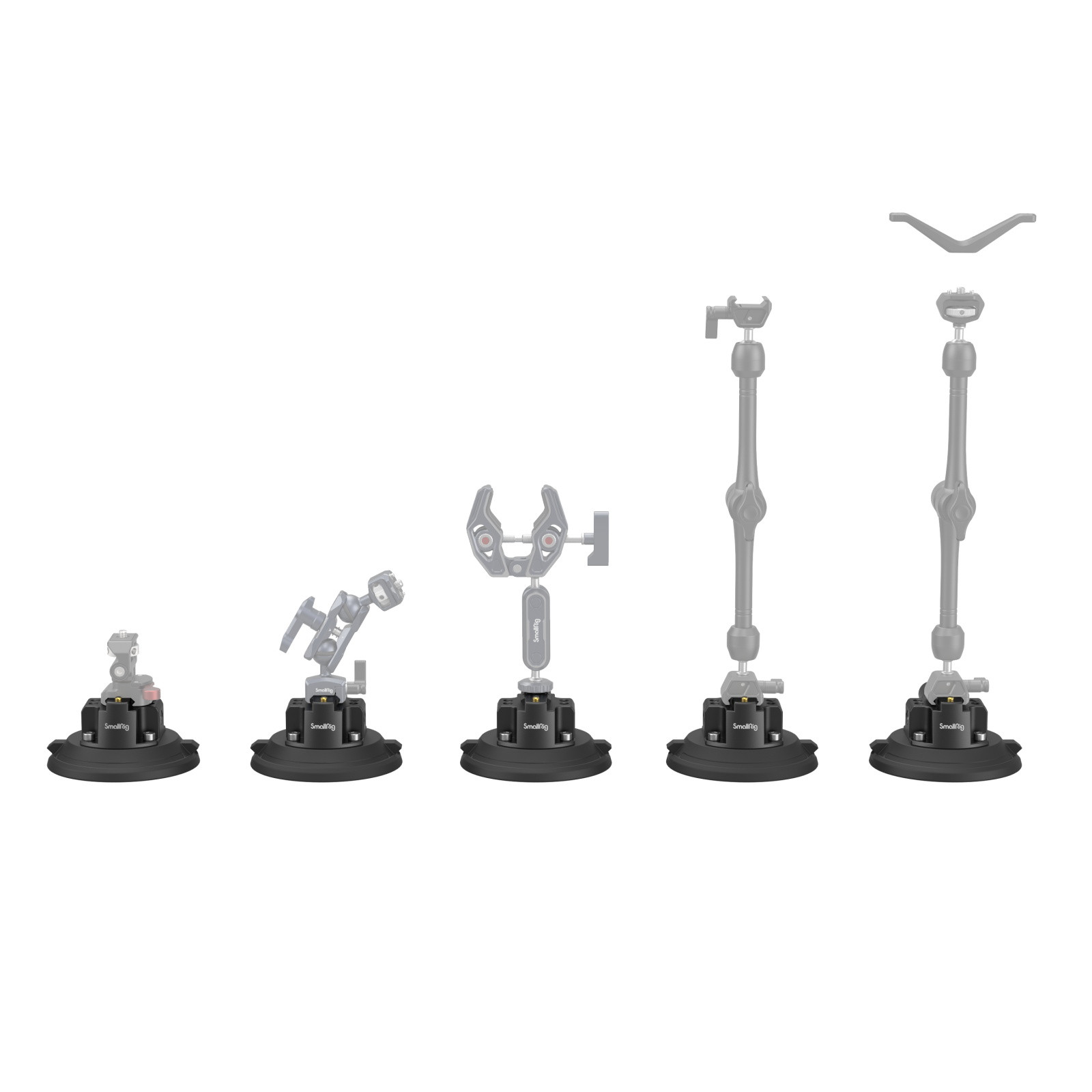

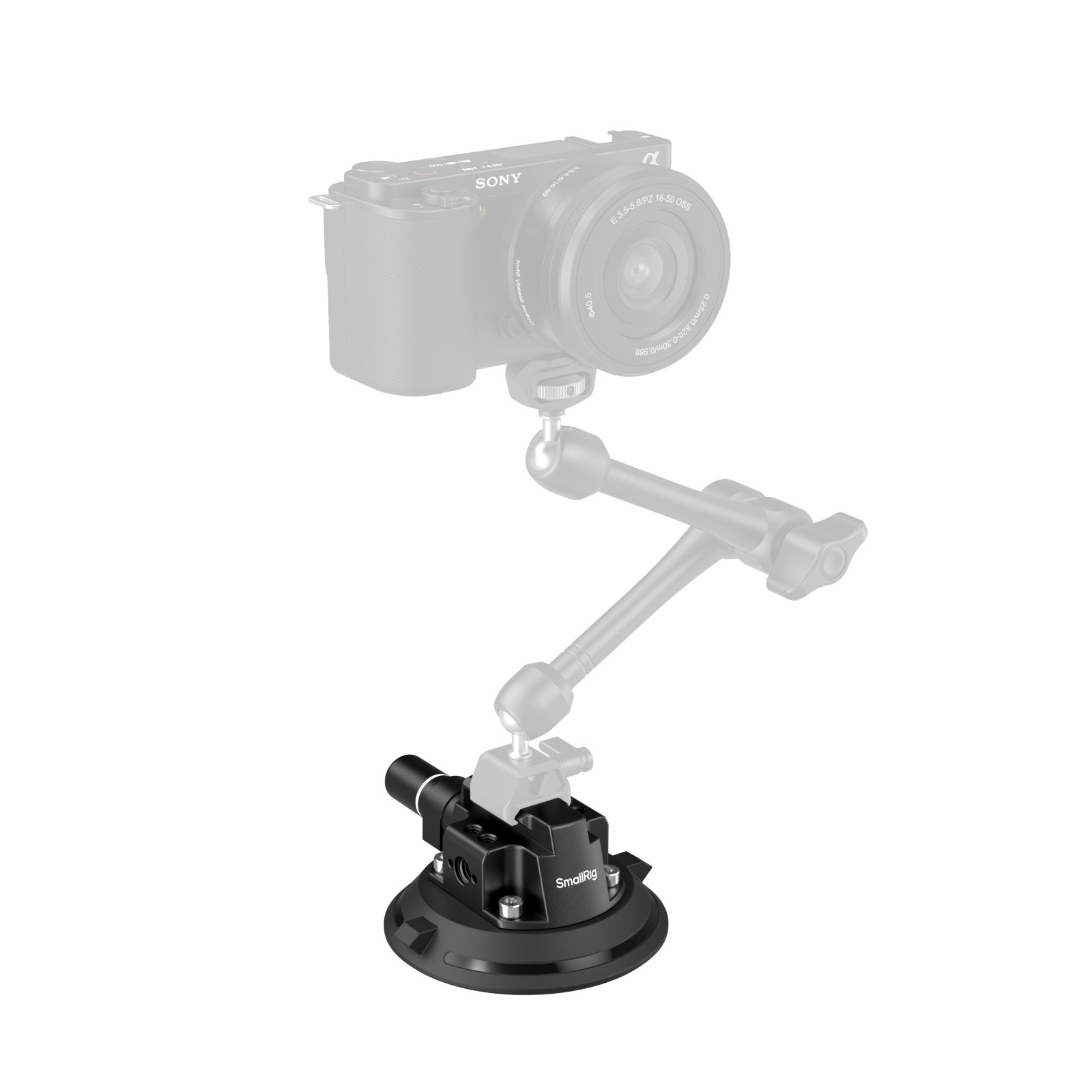

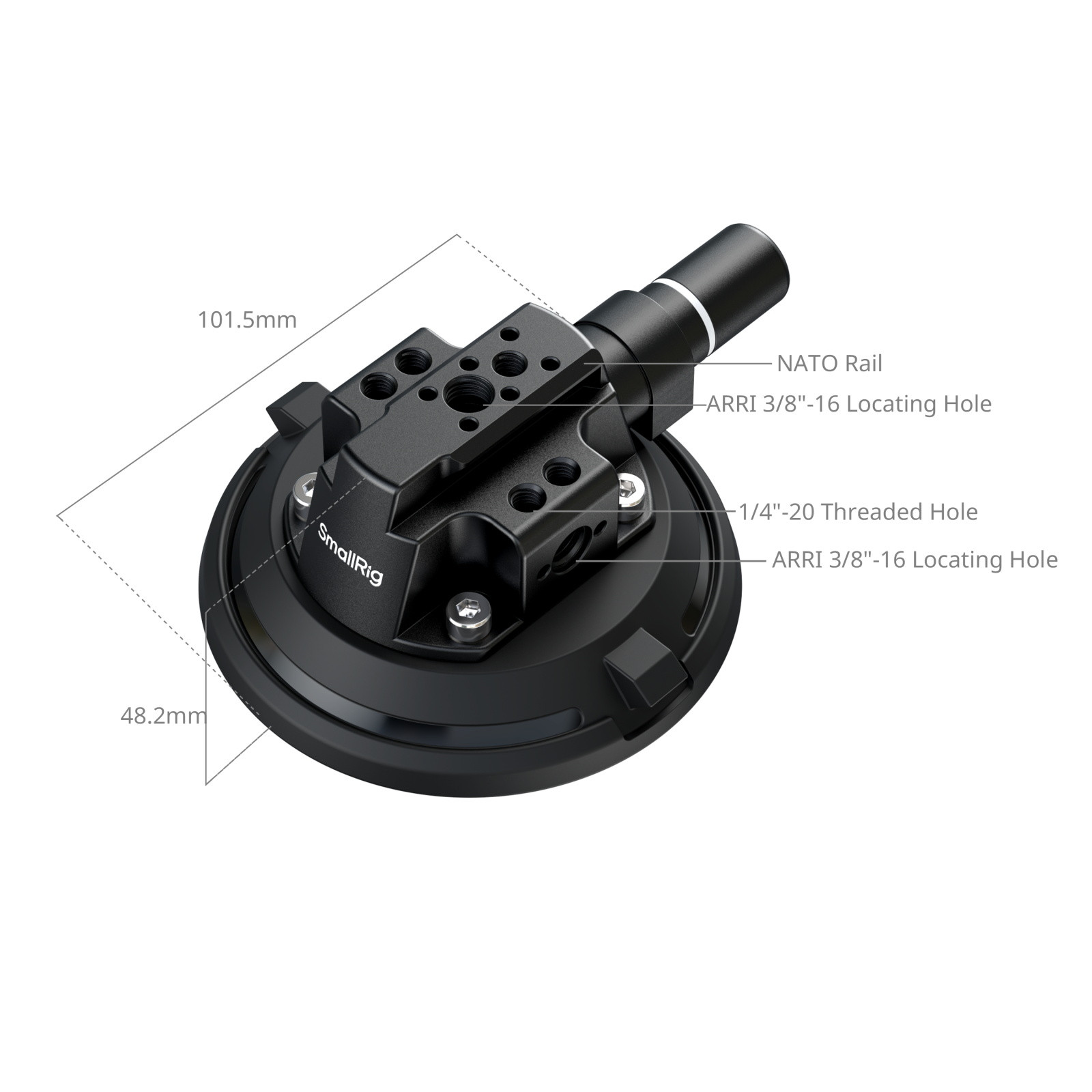

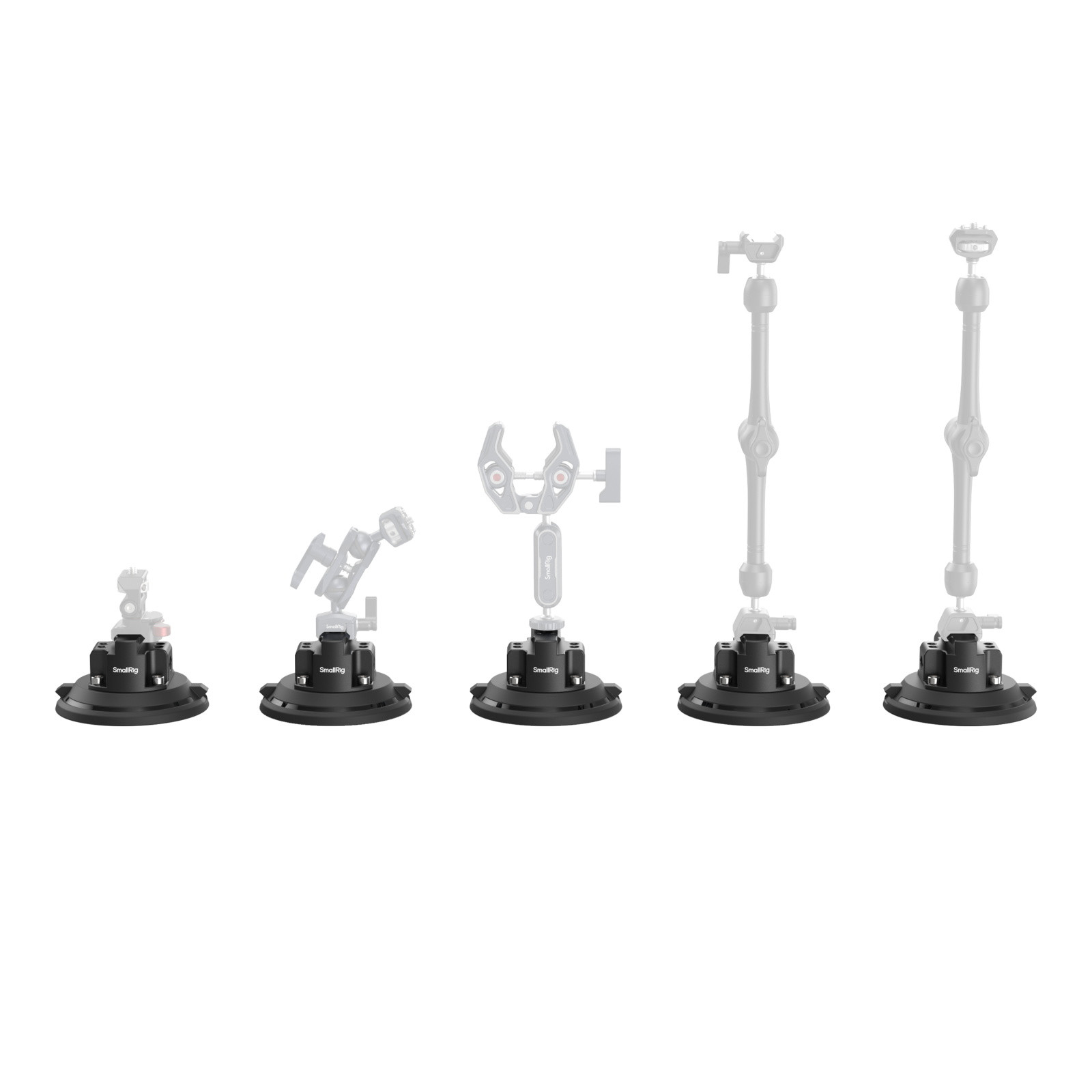

SmallRig 4'' Suction Cup Camera Mounting Support for Vehicle Shooting 4122B consists of a suction cup mount, sucker, hand pump and dust cover. The suction cup camera mount, made mostly of robust and wear-resistant NBR, can work at -40°C to 60°C. It is not easily deformed and features great airtightness, suitable for clean, dry, and smooth surfaces. With powerful suction force, it has a maximum horizontal suction of 50 kg and a maximum vertical suction of 35 kg. The aluminum-alloy suction cup camera mount comes with such accessory mounting points as 1/4"-20 threaded holes, 3/8”-16 threaded holes, and ARRI 3/8"-16 locating holes for attaching 3757B, 3873, 3874, 3875, 2906B, 2070B, 2115C, etc. It is manually pumped and locked, with a safety-line indicator to ensure safety and reliability. When not in use, put on the dust cover to prevent dust for a longer service life.
Note:
1. Suitable for clean, dry, and smooth surfaces, not for rough, wet, uneven, dirty, or fragile surfaces.
2. Please always keep the sucker and filter cotton intact and clean.
3. Please apply it carefully to coated surfaces.
4. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.
Disclaimer: Please mount it onto recommended surfaces and check at least every four hours.
Key Features
Warnings:
1. The 4″ Suction Cup Camera Mount, when adhering to a still object, has a tested maximum horizontal suction of 50 kg and maximum vertical suction of 35 kg. Please check the suction force every 24 hours.

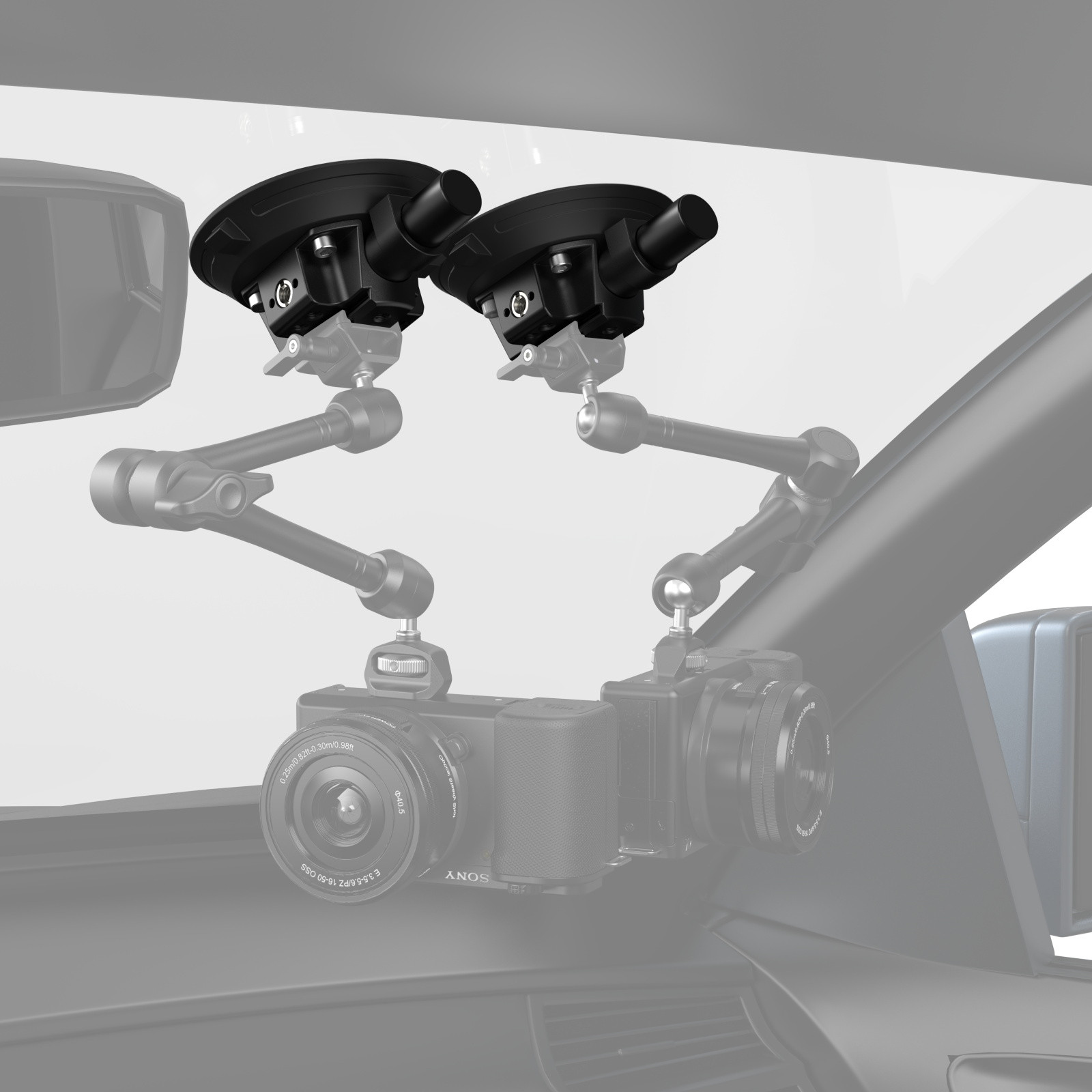

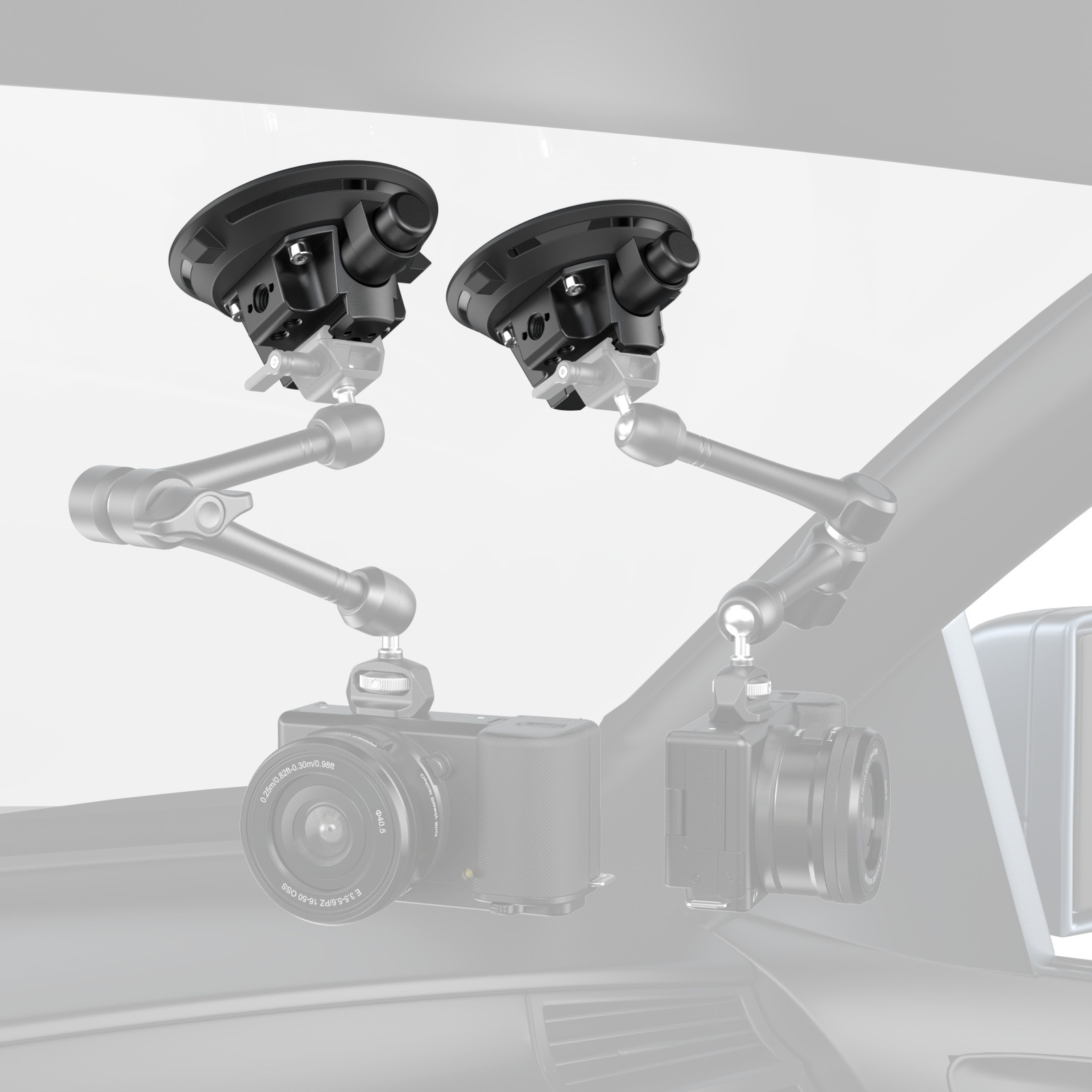

2. It is recommended, when adhering to a vehicle, the 4″ Suction Cup Camera Mount work with a cable tether and bears no more than 2 kg*. Please run the vehicle smoothly at a speed of below 80 km/h and check the suction force every 2 hours.
3. Suitable for dry, flat, glossy, solid surfaces, not for painted surfaces, natural marble, old tiles, breathable wallpaper, diatom mud walls, unpainted wood, frosted glass, and other rough or breathable materials.
4. Works at -20°C to 60°C.
5. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.
6. Please follow the instructions. Products that are damaged due to improper use are not eligible for after-sales service.
Note: According to the indoor experiment, the vertical load capacity is up to 2kg while using with 14" lever arm. The laboratory data is for reference only, actual product may vary due to product enhancement.
Packing List
1 x 4″ Suction Cup Camera Mount
Technical Data
Product Dimensions: 139.6 x 105.8 x 50.2mm
Package Dimensions: 162 x 121 x 71mm
Product Weight: 264g±5g
Package Weight: 378g±5g
Material(s): Aluminum Alloy, NBR, ABS, Stainless Steel
